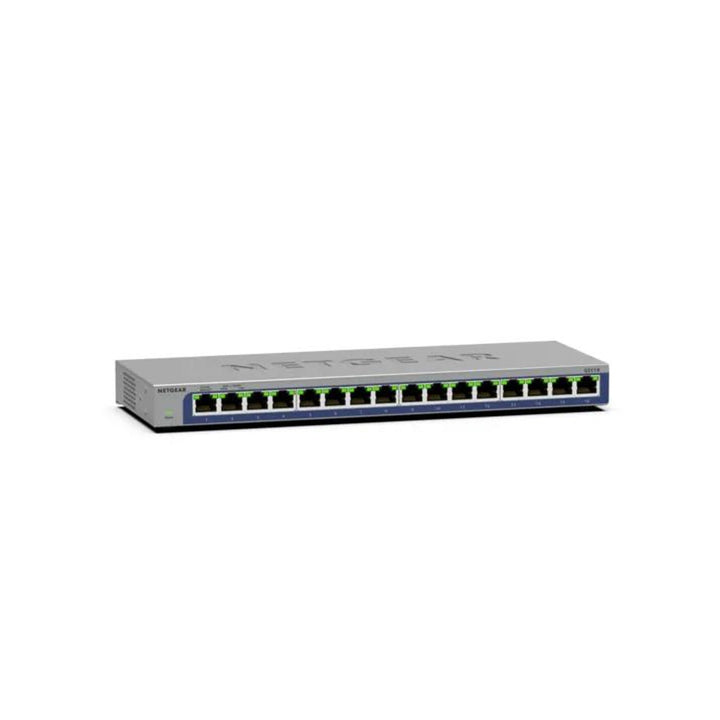

NETGEAR GS116 16-Port Gigabit Ethernet Unmanaged Switch, Fanless, Desktop/Wall-Mount
PRODUCT DESCRIPTION
NETGEAR GS116 16-Port Gigabit Ethernet Unmanaged Switch (GS116-300UKS) - Limited Lifetime Local Warranty
16 Gigabit Ports, Plug-and-Play
The NETGEAR GS116 (hardware version GS116v3) is a 16-port Gigabit Ethernet unmanaged switch. Every port runs at 10/100/1000 Mbps and no software or configuration is required — connect PCs, printers, NAS, IP phones and access points and it just works.
Non-Blocking Performance with Traffic Prioritisation
NETGEAR rates the GS116 at 32 Gbps of switching bandwidth with latency under 3.2 µs at Gigabit speed, an 8K MAC address table, a 512 KB packet buffer and jumbo frames up to 9K. IEEE 802.1p and DSCP class-of-service support helps prioritise voice and video traffic.
Silent, Fanless Metal Case
The fanless design (0 dBA) runs silently in offices, classrooms and homes. The sturdy metal case sits on a desk or mounts on a wall using the supplied wall-mount kit, and IEEE 802.3az Energy Efficient Ethernet keeps power draw to a maximum of 8.1 W.
Need help choosing? Email sales@sourceit.com.sg with your port count and mounting needs and we will size it for you.
NETGEAR GS116 Datasheet — Technical Specifications
General
| Product Name | NETGEAR GS116 16-Port Gigabit Ethernet Unmanaged Switch |
| Part Number | GS116-300UKS |
| Hardware Version | GS116v3 |
| Series | NETGEAR 5-, 8- and 16-port Gigabit Ethernet Unmanaged Switches (GS105, GS108, GS116) |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Interfaces
| Ethernet Ports | 16 x 10/100/1000BASE-T RJ-45 |
| LEDs | Per port: speed, link, activity; per device: power status |
Performance
| Switching Bandwidth | 32 Gbps |
| Forwarding Mode | Store-and-forward |
| Latency | < 3.2 µs (1000 Mbps); < 4.7 µs (100 Mbps); < 24 µs (10 Mbps) |
| MAC Address Table | 8K |
| Packet Buffer | 512 KB |
| Jumbo Frames | Up to 9K packet size |
Features & Standards
| Quality of Service | IEEE 802.1p CoS and DSCP; 8 queues, WRR ratio 1:3:5:7:8:10:12:15 |
| IEEE Standards | 802.3 Ethernet, 802.3i 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.1p Class of Service, 802.3x full-duplex flow control, 802.3az Energy Efficient Ethernet |
Power & Environmental
| Power Supply | External power adapter, 12 V DC, 1.5 A (18 W) |
| Power Consumption | 8.1 W max |
| Cooling | Fanless (0 dBA) |
| Operating Temperature | 0 to 50 °C |
| Storage Temperature | -20 to 70 °C |
| Operating Humidity | 90% max RH, non-condensing |
| Storage Humidity | 95% max RH, non-condensing |
| MTBF | 4,160,957 hours |
Physical
| Dimensions (W x D x H) | 286 x 102 x 27 mm |
| Weight | 0.89 kg |
| Enclosure | Metal |
| Mounting | Desktop or wall mount (wall-mount kit included) |
Certifications
| EMC | Class A (CE, FCC Part 15, ICES-003, KC, VCCI, RCM, BSMI) |
| Safety | CB, CE LVD, RCM, BSMI, EN 62368-1 |
Compatibility & Software Support
Management
Unmanaged — no software, web interface or configuration is required. Ports auto-negotiate speed and duplex.
Typical Use
Small offices, classrooms and homes that need 16 Gigabit wired connections in a quiet, compact desktop or wall-mounted switch. Not a PoE switch — for powered devices NETGEAR offers unmanaged PoE models such as the GS116LP and GS116PP.
Package Contents & Gigabit Unmanaged Ordering Information
In the Box
GS116 switch, power adapter, wall-mount kit and rubber feet, installation guide.
NETGEAR Gigabit Unmanaged Models
| Model | Ports | Part No. |
| GS305 | 5 x GE, desktop | GS305-300UKS |
| GS308 | 8 x GE, desktop | GS308-300UKS |
| GS116 (this listing) | 16 x GE, desktop/wall | GS116-300UKS |
| GS516 | 16 x GE, desktop/wall/rack | GS516-300UKS |
| GS324 | 24 x GE, desktop/rack | GS324-200EUS |
| GS524 | 24 x GE, desktop/wall/rack | GS524-300UKS |
| GS348 | 48 x GE, desktop/rack | GS348-100EUS |
Datasheet & Downloads
| NETGEAR datasheet | GS105v5 / GS108v4 / GS116v3 Datasheet (PDF) |
| Installation guide | GS116v3 Installation Guide (PDF) |
| NETGEAR product page | GS116 on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GS116-300UKS.
Frequently Asked Questions — NETGEAR GS116
Does the GS116 need configuring?
No. It is unmanaged and plug-and-play — no software is required.
Is it fanless?
Yes. NETGEAR lists a silent, fanless design (0 dBA).
Can it be wall-mounted or rack-mounted?
It can sit on a desk or be wall-mounted with the included kit. NETGEAR does not list rack mounting for the GS116 — for a 16-port rack-mountable model see the GS516.
Does it supply PoE?
No. For PoE see NETGEAR's unmanaged PoE models such as the GS116LP and GS116PP.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
