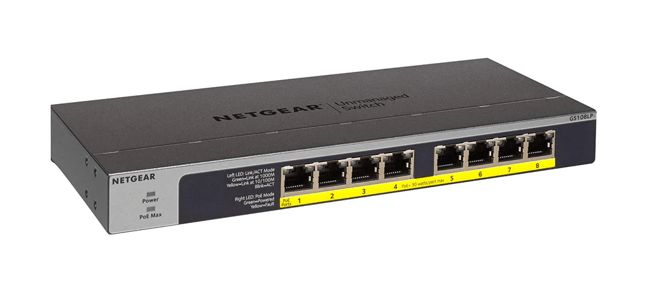

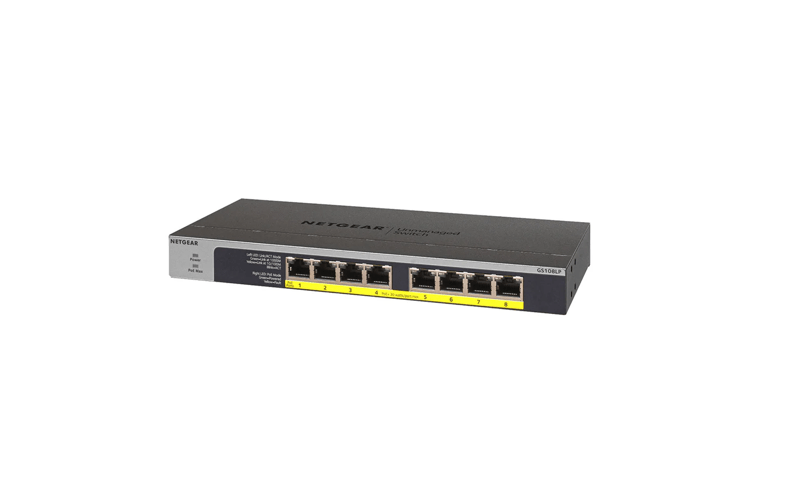

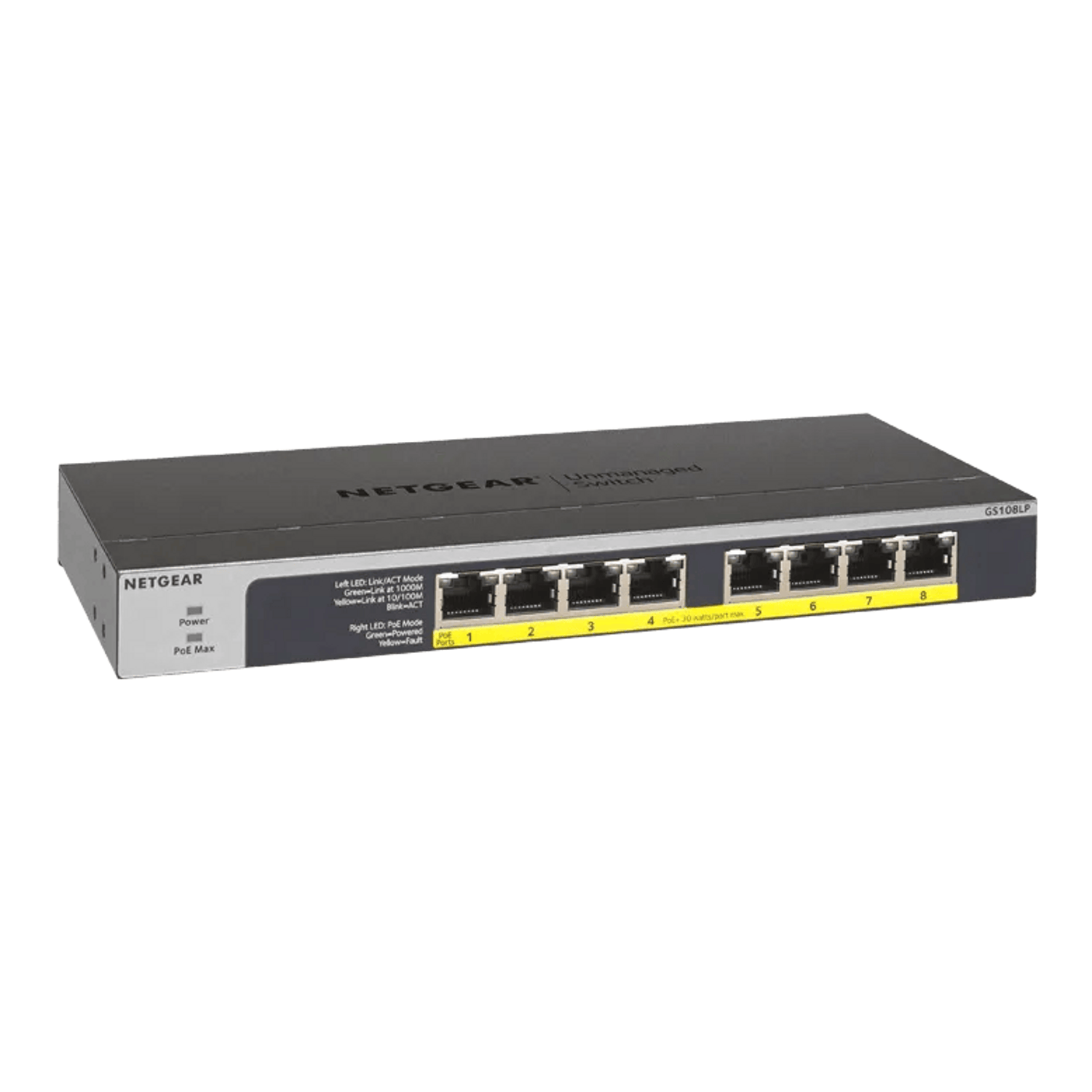

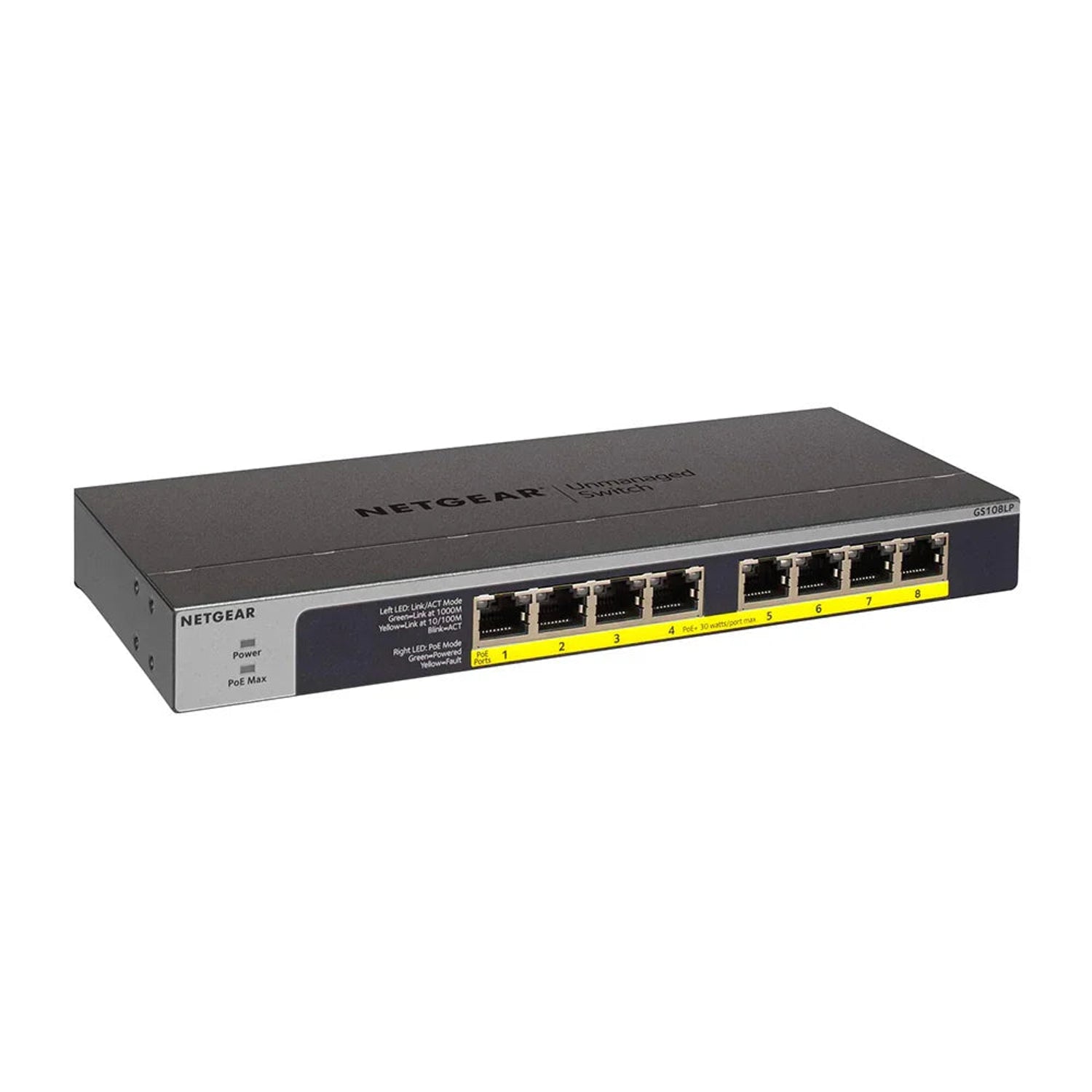

NETGEAR GS108LP 8-Port Gigabit PoE+ Unmanaged Switch, 60W FlexPoE, Fanless
PRODUCT DESCRIPTION
NETGEAR GS108LP 8-Port Gigabit Ethernet PoE+ Unmanaged Switch with FlexPoE, 60W (GS108LP-100EUS) - Limited Lifetime Local Warranty
Eight PoE+ Ports with FlexPoE
The NETGEAR GS108LP is an 8-port Gigabit Ethernet unmanaged switch with PoE+ on every port (15.4 W 802.3af / 30 W 802.3at) and a 60 W budget. NETGEAR FlexPoE lets you expand the budget to 83 W with the optional EPS90W or 123 W with the optional EPS130W adapter (sold separately).
Plug-and-Play
No configuration needed — connect IP cameras, VoIP phones and access points and they power up. Dynamic PoE allocation, 802.1p/DSCP QoS, 802.3az Energy Efficient Ethernet and auto power-down are built in.
Compact Metal Case, Flexible Mounting

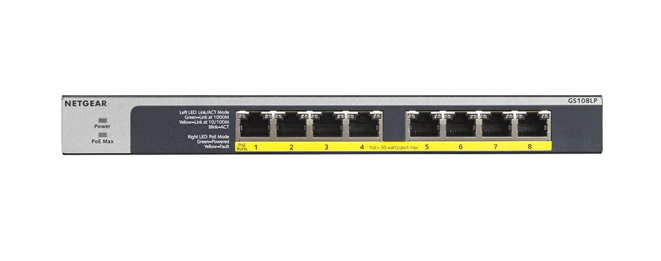

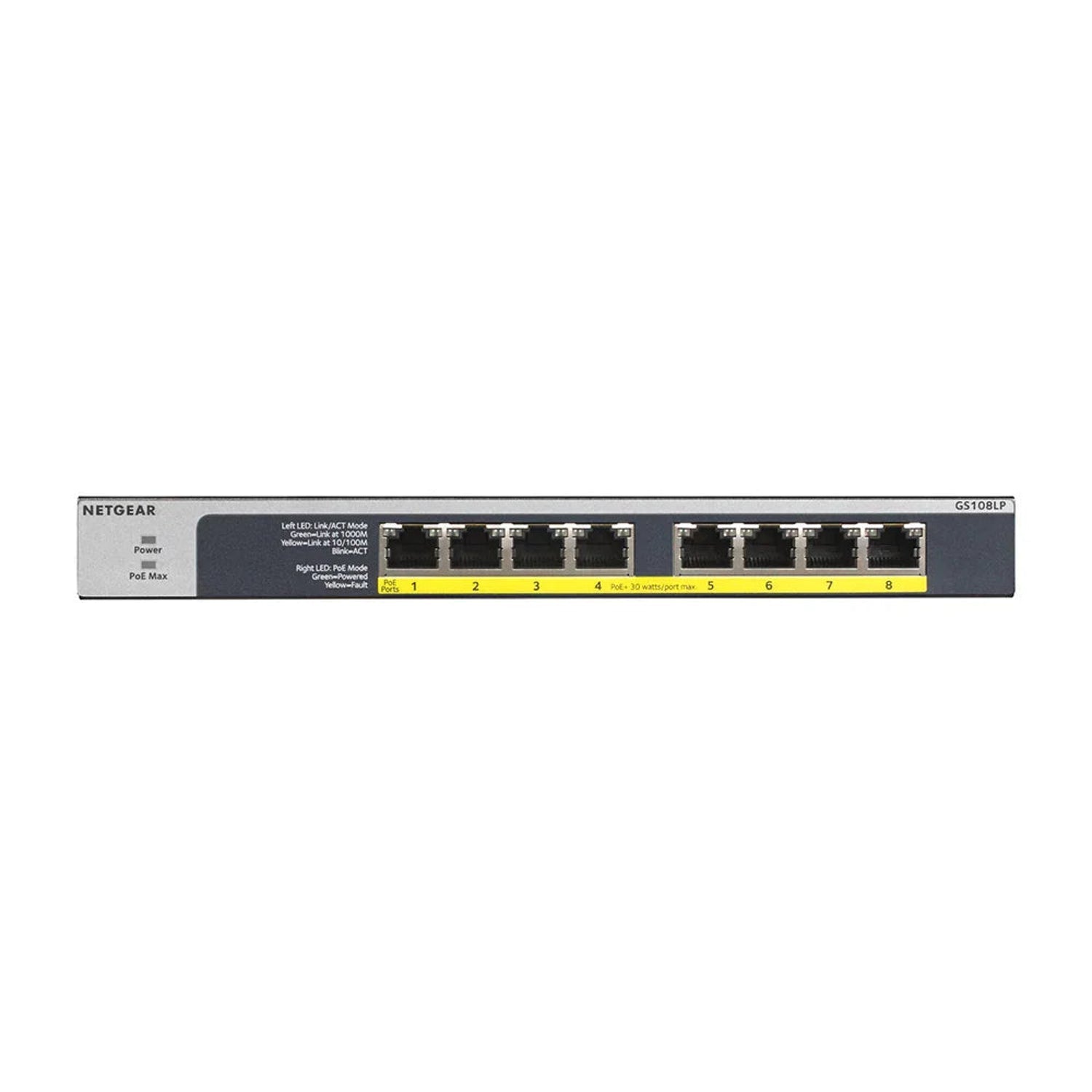

The small fanless metal case runs silently and installs on a desktop, wall or in a rack, with per-port Speed, Link/Activity and PoE LEDs plus a PoE Max indicator.
Need help choosing? Email sales@sourceit.com.sg with your device count and PoE power needs and we will size it for you.
NETGEAR GS108LP Datasheet — Technical Specifications
General
| Product Name | NETGEAR GS108LP 8-Port Gigabit Ethernet PoE+ Unmanaged Switch with FlexPoE, 60W |
| Part Number | GS108LP-100EUS |
| Series | NETGEAR Gigabit Ethernet PoE/PoE+ Unmanaged Switches |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Interfaces & PoE
| Ethernet Ports | 8 x 10/100/1000BASE-T RJ-45, all PoE+ (up to 15.4 W 802.3af / 30 W 802.3at per port) |
| PoE Budget | 60 W; 83 W (EPS90W) or 123 W (EPS130W) with optional FlexPoE adapters |
Performance
| Switching Capacity | 16 Gbps |
| MAC Address Table | 4K |
| Packet Buffer | 192 KB |
| Jumbo Frames | Supported |
| Switching Method | Store-and-forward |
| QoS | DSCP and IEEE 802.1p, WFQ |
Power & Environmental

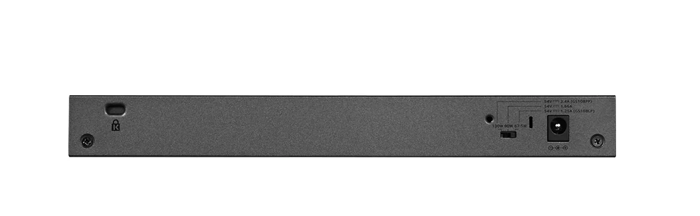

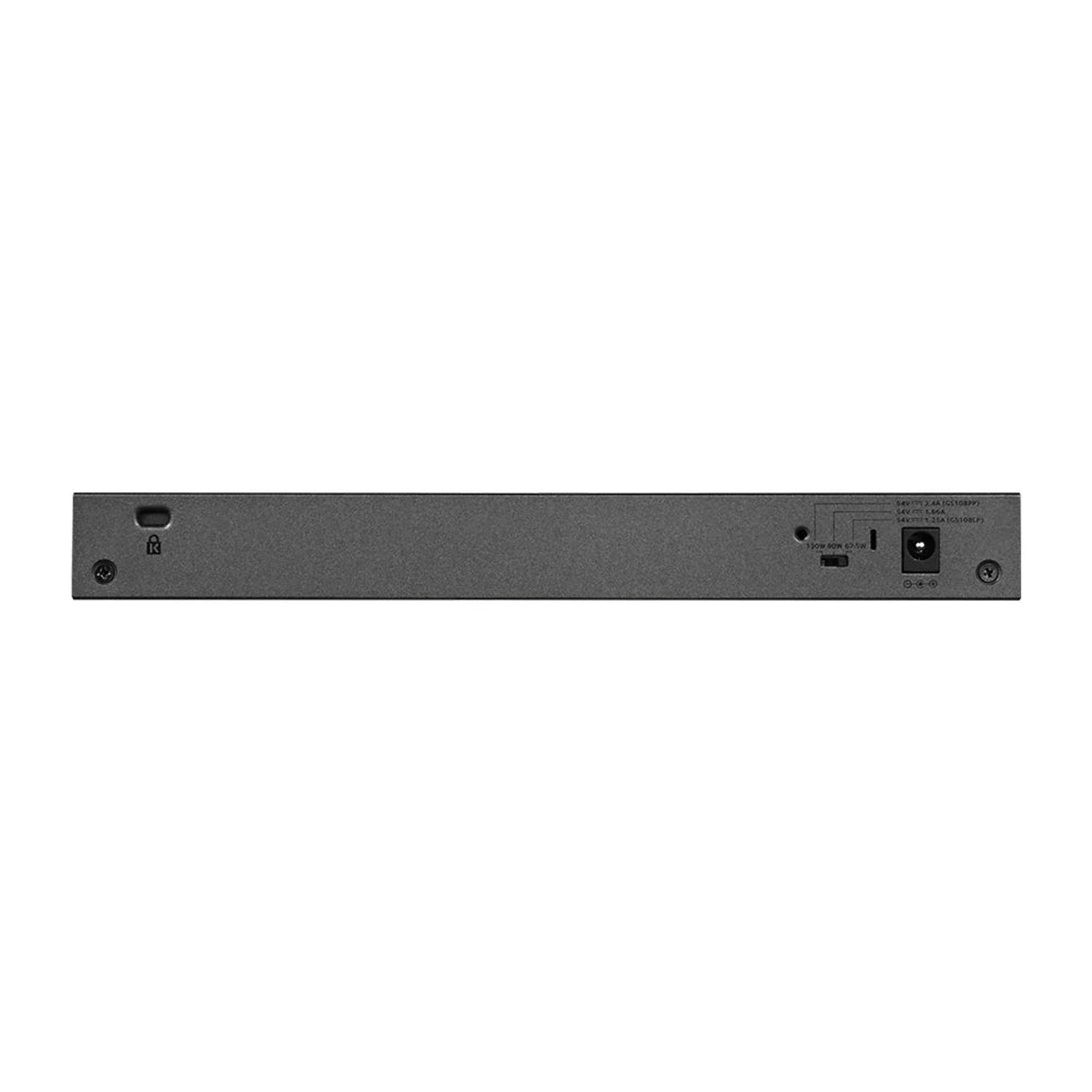

| Power Supply | External adapter, 54 V DC @ 1.25 A (67.5 W) |
| Power Consumption | 67.5 W max; 1.23 W min |
| Heat Dissipation | 230.85 BTU/hr max; 3.69 BTU/hr min |
| Cooling | Fanless |
| Operating Temperature | 0 to 40 °C |
| Operating Humidity | 90% max RH, non-condensing |
| MTBF | 2,362,192 hours |
Physical
| Dimensions (W x D x H) | 236 x 102 x 27 mm |
| Weight | 0.6 kg |
| Mounting | Desktop, wall or rack |
Certifications
| EMC | FCC Part 15 Class A, CAN ICES, CE, RCM, KC, VCCI |
| Safety | CB, CE LVD, CSA |
Compatibility & Software Support
Management
Unmanaged — no software, web interface or configuration is required. Ports auto-negotiate speed, duplex and cable type (Auto MDI/MDI-X).
PoE Compatibility
Standards-based IEEE 802.3af (PoE) and 802.3at (PoE+) — works with PoE/PoE+ IP cameras, VoIP phones, wireless access points and IoT devices.
Typical Use
Small offices and homes powering up to eight PoE devices, with room to grow the PoE budget later via FlexPoE.
Package Contents & Gigabit PoE+ Unmanaged (FlexPoE) Ordering Information
In the Box
GS108LP switch, power adapter, wall/rack installation kit, quick installation guide.
NETGEAR Gigabit PoE+ Unmanaged (FlexPoE) Models
| Model | Ports / PoE | Part No. |
| GS108LP (this listing) | 8 x GE, 8 x PoE+, 60W | GS108LP-100EUS |
| GS108PP | 8 x GE, 8 x PoE+, 123W | GS108PP-100EUS |
| GS116LP | 16 x GE, 16 x PoE+ | GS116LP-100EUS |
| GS116PP | 16 x GE, 16 x PoE+ | GS116PP-100EUS |
Datasheet & Downloads
| NETGEAR datasheet | Gigabit Ethernet PoE/PoE+ Unmanaged Switches Datasheet (PDF) |
| Installation guide | GS108LP / GS108PP Installation Guide (PDF) |
| NETGEAR product page | GS108LP on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GS108LP-100EUS.
Frequently Asked Questions — NETGEAR GS108LP
Does the GS108LP need configuring?
No. It is unmanaged and plug-and-play — every port auto-negotiates.
Can I increase the PoE budget?
Yes. With the optional EPS90W adapter the budget becomes 83 W; with the optional EPS130W it becomes 123 W.
Is it fanless?
Yes. NETGEAR's datasheet lists it as fanless.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
