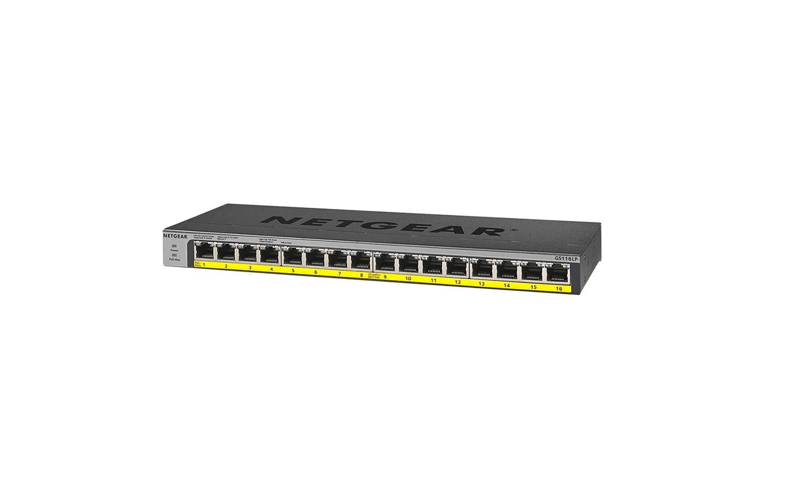

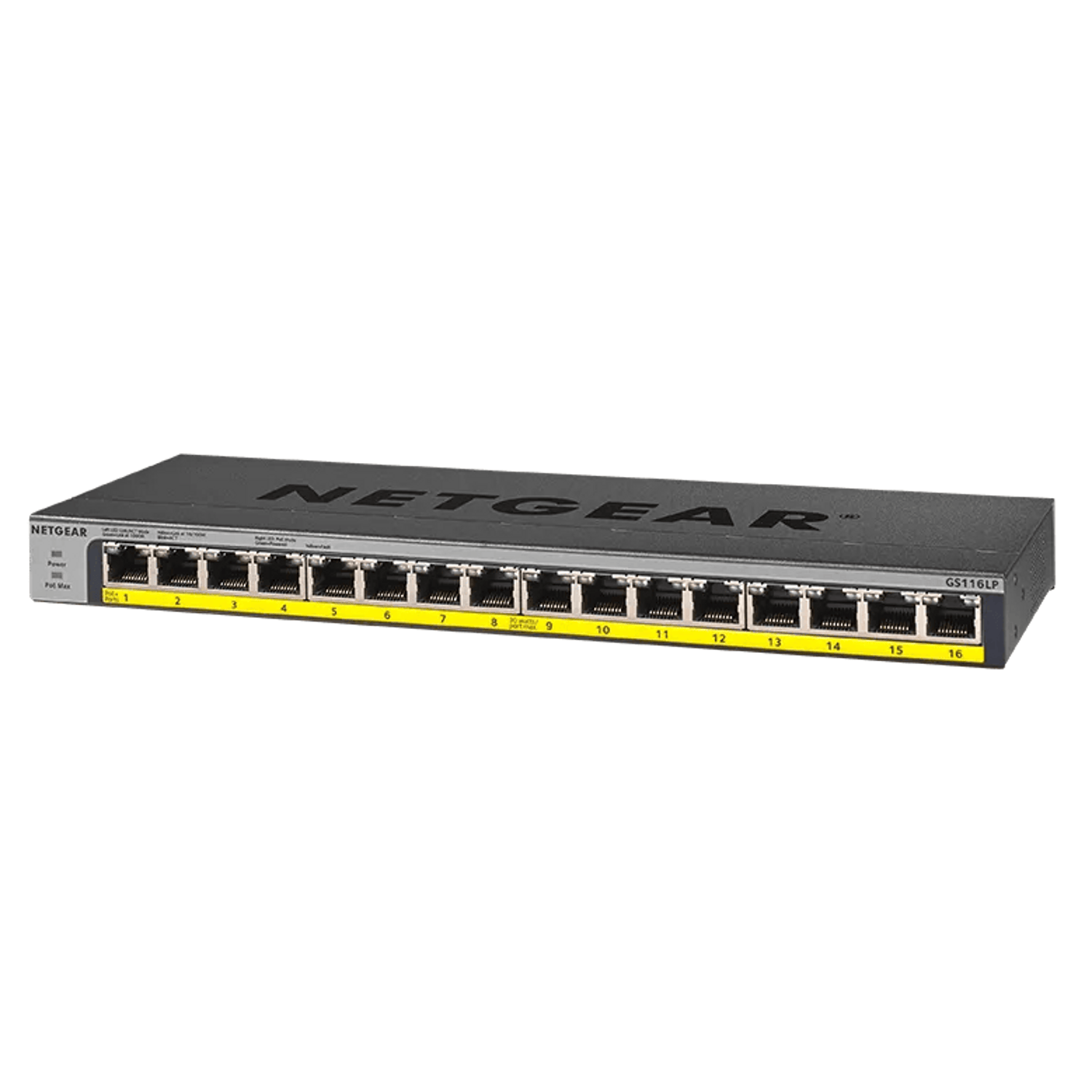

NETGEAR GS116LP 16-Port Gigabit PoE+ Unmanaged Switch, 76W FlexPoE, Fanless
PRODUCT DESCRIPTION
NETGEAR GS116LP 16-Port Gigabit Ethernet PoE+ Unmanaged Switch with FlexPoE, 76W (GS116LP-100EUS) - Limited Lifetime Local Warranty
Sixteen PoE+ Ports in a Compact Switch
The NETGEAR GS116LP is a 16-port Gigabit Ethernet unmanaged switch where every port supports 802.3af (15.4 W) and 802.3at PoE+ (30 W), with a 76 W total PoE budget out of the box.
FlexPoE — Grow Your Power Budget
NETGEAR FlexPoE lets you raise the budget to 115 W or 183 W later with a separately purchased NETGEAR power supply, so the switch can keep up as you add cameras, phones and access points.
Plug-and-Play, Fanless and Silent
No configuration needed. The sturdy fanless metal case installs on a desktop, wall or rack, with 802.1p/DSCP QoS, 802.3az Energy Efficient Ethernet and jumbo frame support.
Need help choosing? Email sales@sourceit.com.sg with your device count and PoE power needs and we will size it for you.
NETGEAR GS116LP Datasheet — Technical Specifications
General
| Product Name | NETGEAR GS116LP 16-Port Gigabit Ethernet PoE+ Unmanaged Switch with FlexPoE, 76W |
| Part Number | GS116LP-100EUS |
| Series | NETGEAR Gigabit Ethernet PoE/PoE+ Unmanaged Switches |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Interfaces & PoE

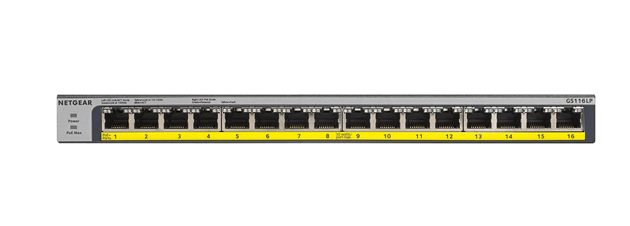

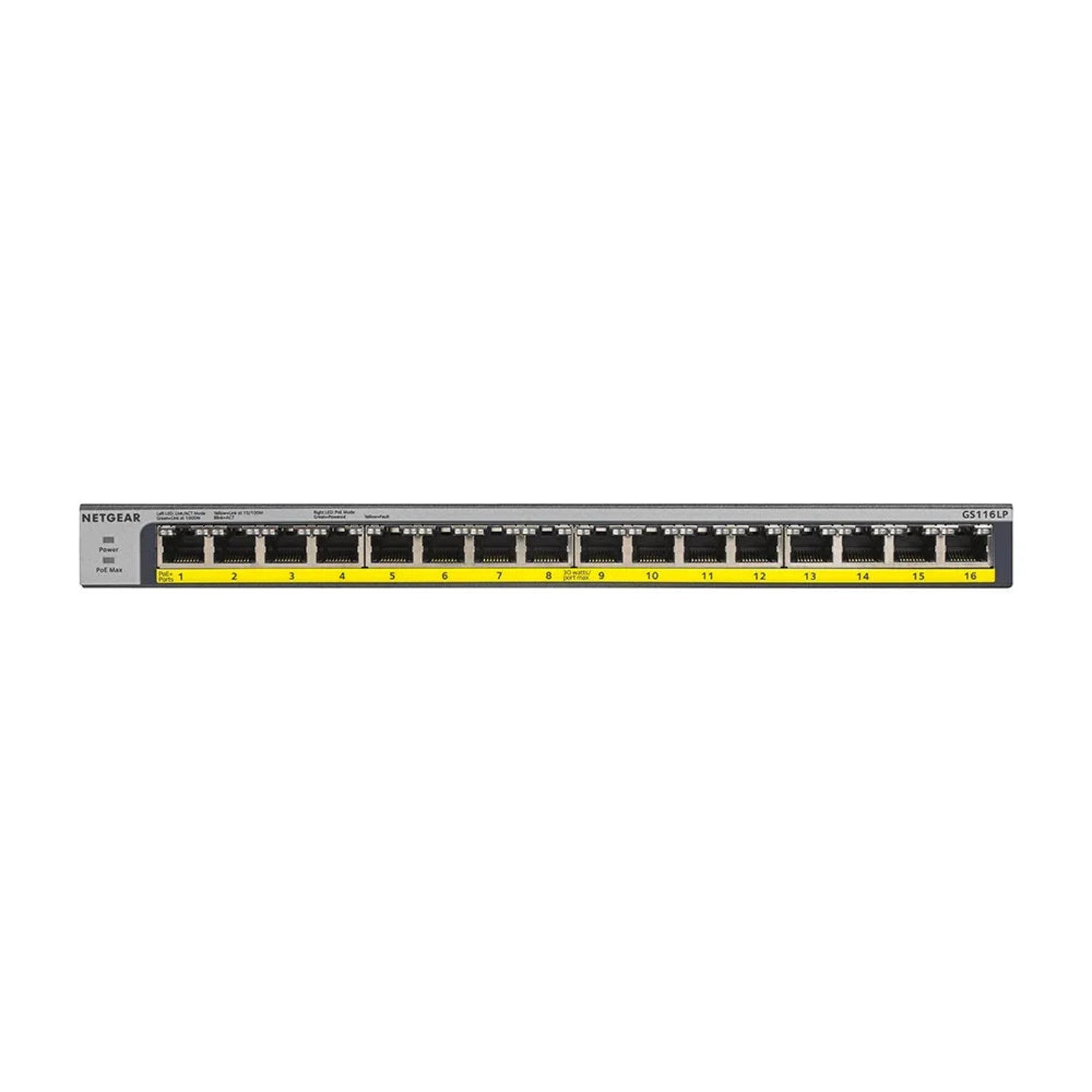

| Ethernet Ports | 16 x 10/100/1000BASE-T RJ-45, all PoE+ (up to 15.4 W 802.3af / 30 W 802.3at per port) |
| PoE Budget | 76 W (115 W or 183 W with optional NETGEAR FlexPoE power supply) |
Performance
| Switching Capacity | 32 Gbps |
| MAC Address Table | 4K |
| Packet Buffer | 1 MB |
| Jumbo Frames | Supported |
| Switching Method | Store-and-forward |
| QoS | DSCP and IEEE 802.1p, WFQ |
Power & Environmental

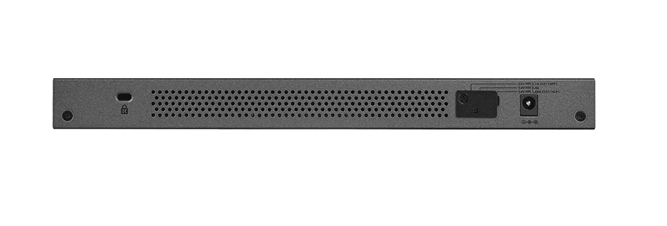

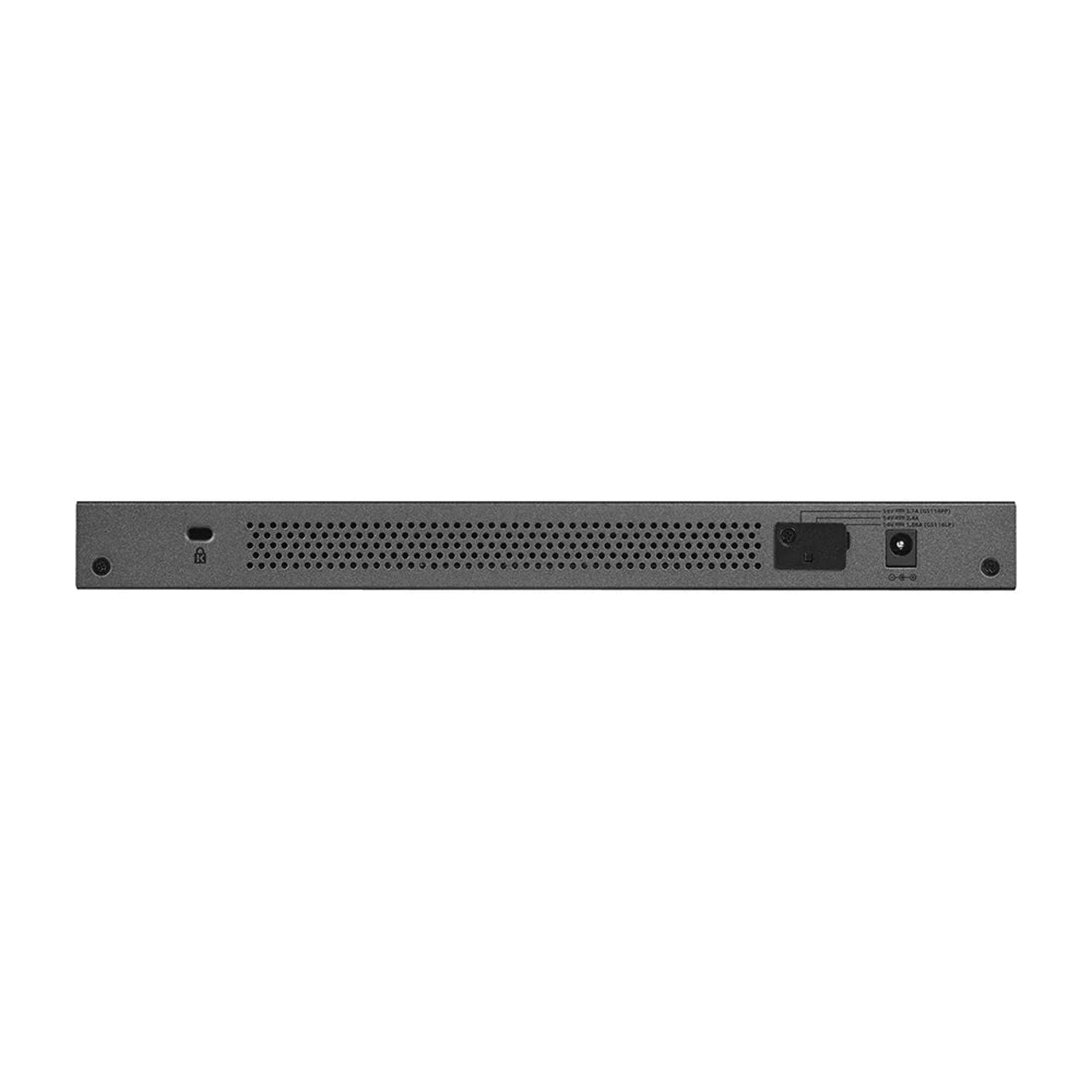

| Power Supply | External 90 W power adapter (FlexPoE: supports 130 W or 200 W NETGEAR adapters, sold separately) |
| Standby Power | 2.68 W (link down) |
| Cooling | Fanless |
| Operating Temperature | 0 to 40 °C |
| Operating Humidity | 90% max RH, non-condensing |
| MTBF | 2,362,192 hours |
Physical
| Dimensions (W x D x H) | 286 x 102 x 27 mm |
| Weight | 0.88 kg |
| Mounting | Desktop, wall or 19-inch rack |
Certifications
| EMC | FCC Part 15 Class A, CAN ICES, CE, RCM, BSMI, KC, VCCI |
| Safety | CB, CE LVD, CSA, RCM, BSMI |
Compatibility & Software Support
Management
Unmanaged — no software, web interface or configuration is required. Ports auto-negotiate speed, duplex and cable type (Auto MDI/MDI-X).
PoE Compatibility
Standards-based IEEE 802.3af (PoE) and 802.3at (PoE+) — works with PoE/PoE+ IP cameras, VoIP phones, wireless access points and IoT devices.
Typical Use
Offices and installations powering up to sixteen PoE/PoE+ devices — IP cameras, access points, VoIP phones — with a moderate power budget that can be upgraded later.
Package Contents & Gigabit PoE+ Unmanaged (FlexPoE) Ordering Information
In the Box
Switch, power adapter, wall installation kit, rack-mount kit, quick installation guide.
NETGEAR Gigabit PoE+ Unmanaged (FlexPoE) Models
| Model | Ports / PoE | Part No. |
| GS108LP | 8 x GE, 8 x PoE+, 60W | GS108LP-100EUS |
| GS108PP | 8 x GE, 8 x PoE+, 123W | GS108PP-100EUS |
| GS116LP (this listing) | 16 x GE, 16 x PoE+, 76W | GS116LP-100EUS |
| GS116PP | 16 x GE, 16 x PoE+, 183W | GS116PP-100EUS |
Datasheet & Downloads
| NETGEAR datasheet | Gigabit Ethernet PoE/PoE+ Unmanaged Switches Datasheet (PDF) |
| Installation guide | GS116LP / GS116PP Installation Guide (PDF) |
| NETGEAR product page | GS116LP on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GS116LP-100EUS.
Frequently Asked Questions — NETGEAR GS116LP
Does the GS116LP need configuring?
No. It is unmanaged and plug-and-play — every port auto-negotiates.
What is the difference between GS116LP and GS116PP?
Both have 16 Gigabit PoE+ ports. The GS116LP ships with a 76 W budget (upgradeable to 115 W or 183 W via FlexPoE); the GS116PP ships with 183 W.
Is it fanless?
Yes. NETGEAR's datasheet lists it as fanless, with 0 dB acoustic noise.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
