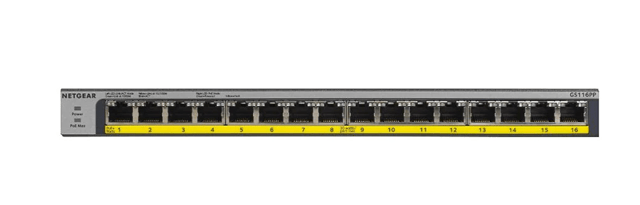

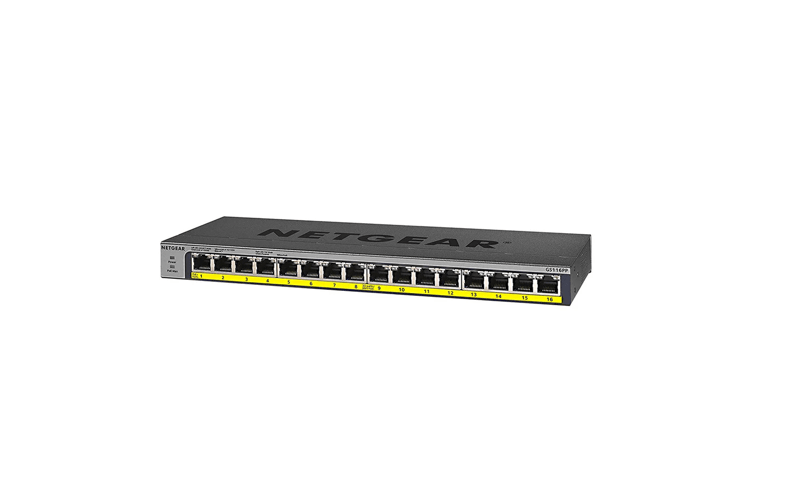

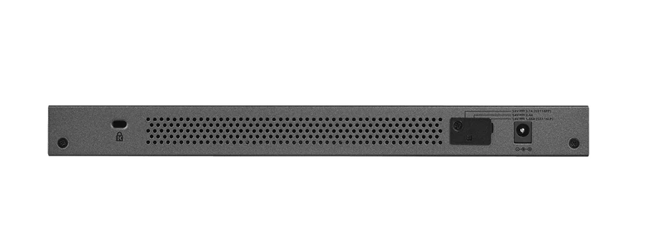

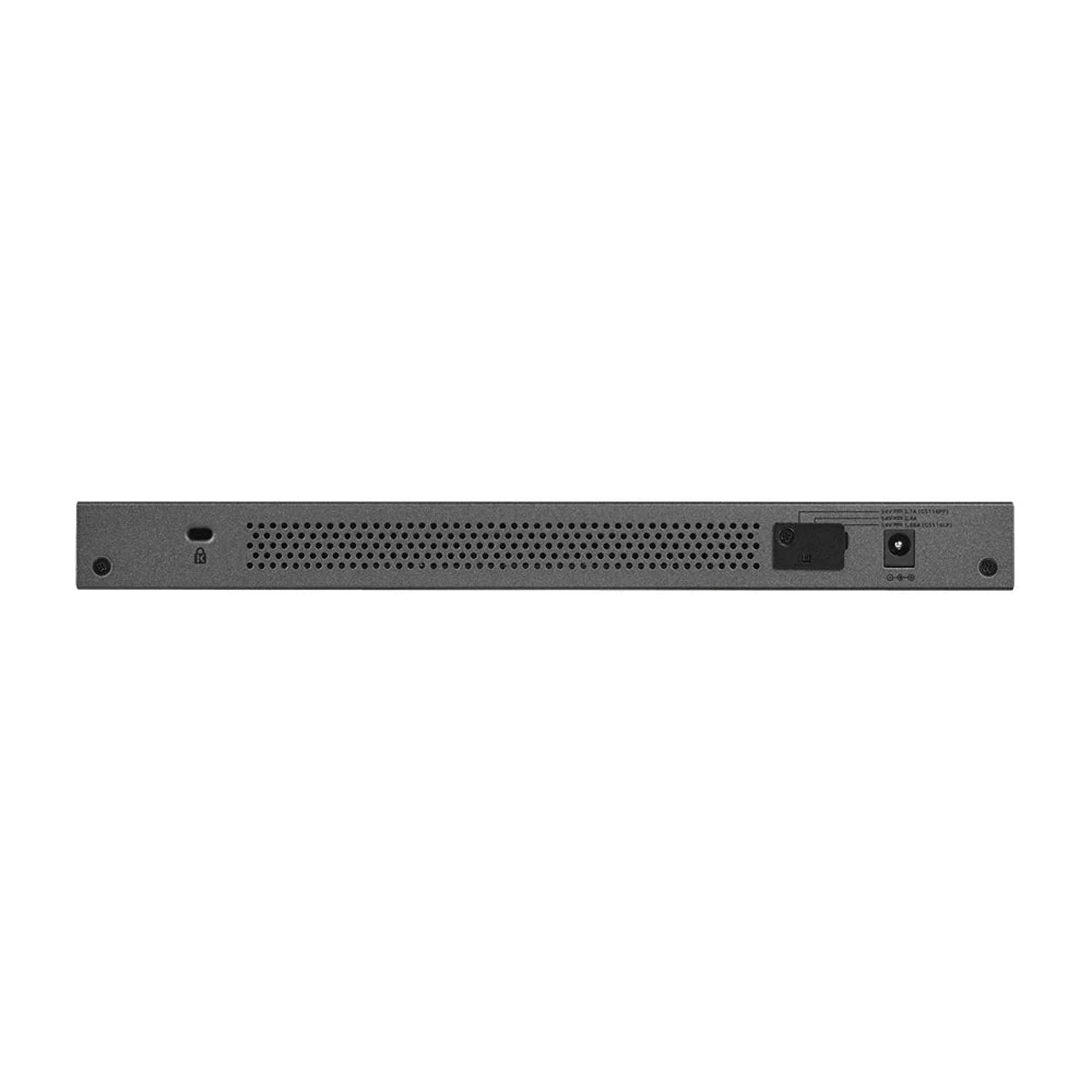

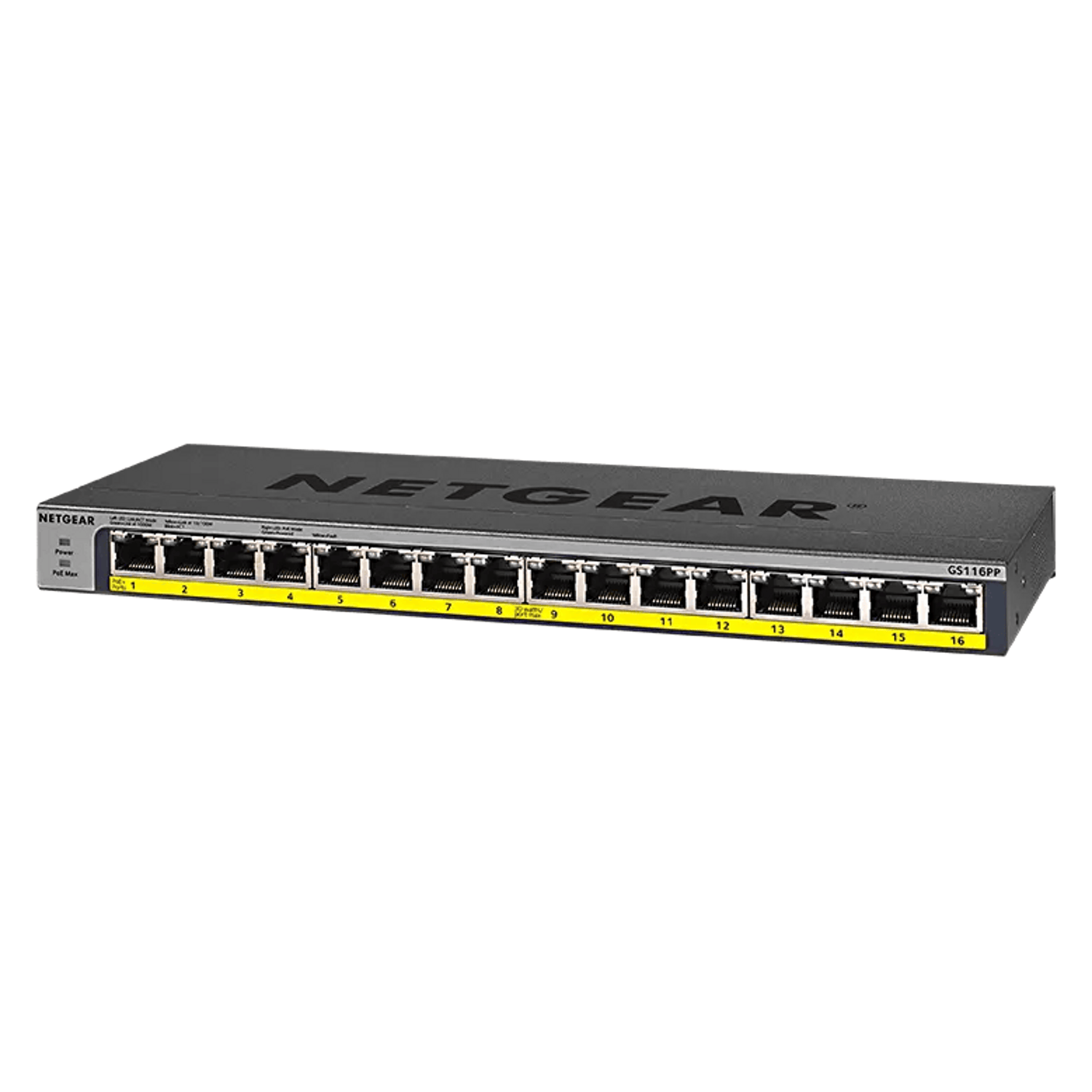

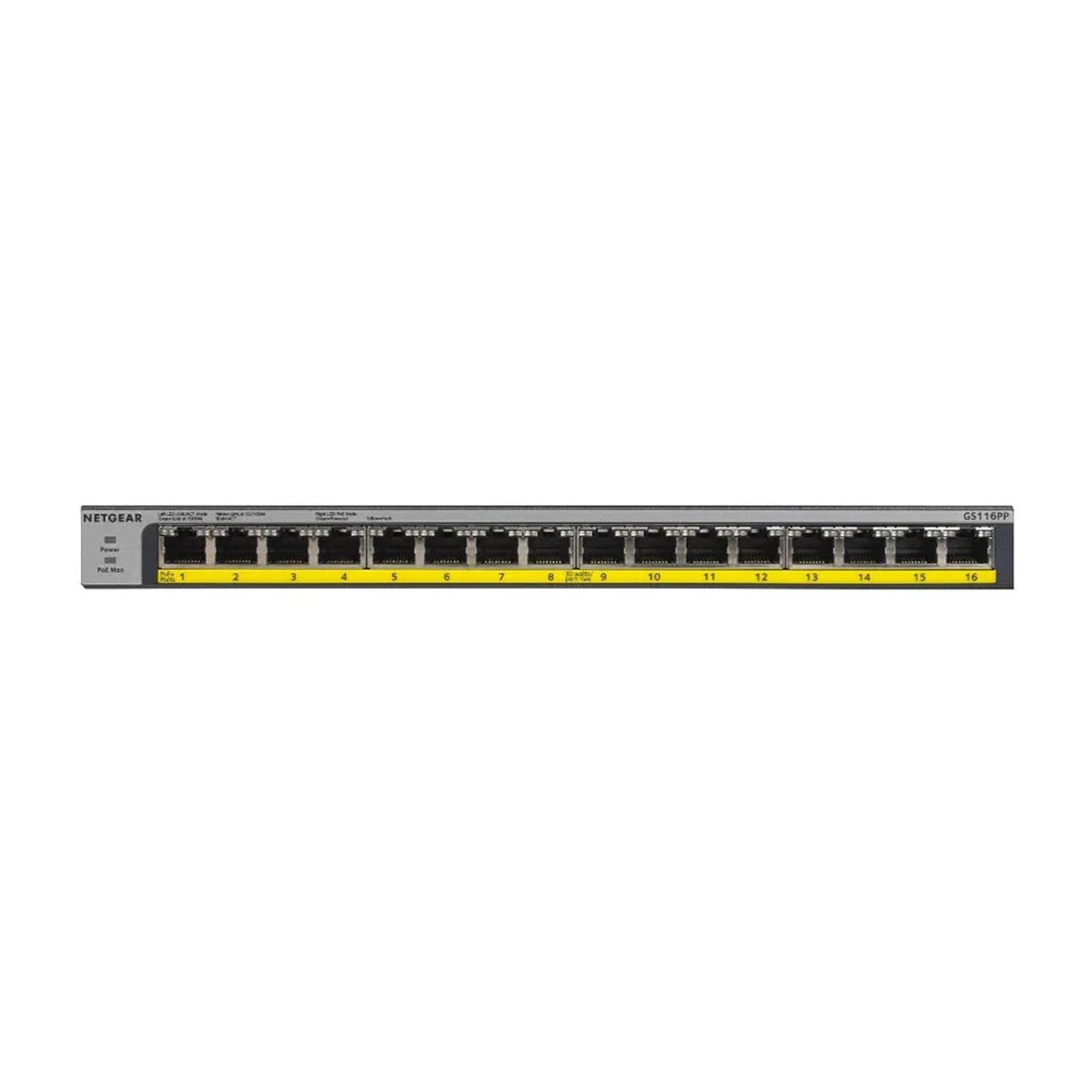

NETGEAR GS116PP 16-Port Gigabit High-Power PoE+ Unmanaged Switch, 183W FlexPoE, Fanless
PRODUCT DESCRIPTION
NETGEAR GS116PP 16-Port Gigabit Ethernet High-Power PoE+ Unmanaged Switch with FlexPoE, 183W (GS116PP-100EUS) - Limited Lifetime Local Warranty
Sixteen PoE+ Ports, 183W Budget
The NETGEAR GS116PP is the high-power 16-port Gigabit Ethernet unmanaged PoE+ switch: every port supports 802.3af (15.4 W) and 802.3at (30 W), with a 183 W total budget — enough to run a full complement of cameras, access points and phones.
FlexPoE
NETGEAR FlexPoE lets you match the power supply to the deployment: the GS116PP can also run at 76 W or 115 W with separately purchased NETGEAR power supplies.
Plug-and-Play, Fanless and Silent
No configuration needed. The sturdy fanless metal case installs on a desktop, wall or rack, with 802.1p/DSCP QoS, 802.3az Energy Efficient Ethernet and jumbo frame support.
Need help choosing? Email sales@sourceit.com.sg with your device count and PoE power needs and we will size it for you.
NETGEAR GS116PP Datasheet — Technical Specifications
General
| Product Name | NETGEAR GS116PP 16-Port Gigabit Ethernet High-Power PoE+ Unmanaged Switch with FlexPoE, 183W |
| Part Number | GS116PP-100EUS |
| Series | NETGEAR Gigabit Ethernet PoE/PoE+ Unmanaged Switches |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Interfaces & PoE
| Ethernet Ports | 16 x 10/100/1000BASE-T RJ-45, all PoE+ (up to 15.4 W 802.3af / 30 W 802.3at per port) |
| PoE Budget | 183 W (76 W or 115 W with optional NETGEAR FlexPoE power supply) |
Performance
| Switching Capacity | 32 Gbps |
| MAC Address Table | 4K |
| Packet Buffer | 1 MB |
| Jumbo Frames | Supported |
| Switching Method | Store-and-forward |
| QoS | DSCP and IEEE 802.1p, WFQ |
Power & Environmental
| Power Supply | External 200 W power adapter |
| Power Consumption | 200 W max; 2.68 W min (link down) |
| Heat Dissipation | 680.58 BTU/hr max; 9.14 BTU/hr min |
| Cooling | Fanless |
| Operating Temperature | 0 to 40 °C |
| Operating Humidity | 90% max RH, non-condensing |
| MTBF | 2,362,192 hours |
Physical
| Dimensions (W x D x H) | 286 x 102 x 27 mm |
| Weight | 0.88 kg |
| Mounting | Desktop, wall or 19-inch rack |
Certifications
| EMC | FCC Part 15 Class A, CAN ICES, CE, RCM, BSMI, KC, VCCI |
| Safety | CB, CE LVD, CSA, RCM, BSMI |
Compatibility & Software Support
Management
Unmanaged — no software, web interface or configuration is required. Ports auto-negotiate speed, duplex and cable type (Auto MDI/MDI-X).
PoE Compatibility
Standards-based IEEE 802.3af (PoE) and 802.3at (PoE+) — works with PoE/PoE+ IP cameras, VoIP phones, wireless access points and IoT devices.
Typical Use
Installations powering up to sixteen PoE/PoE+ devices — IP cameras, access points, VoIP phones — that need a large budget from day one.
Package Contents & Gigabit PoE+ Unmanaged (FlexPoE) Ordering Information
In the Box
Switch, power adapter, wall installation kit, rack-mount kit, quick installation guide.
NETGEAR Gigabit PoE+ Unmanaged (FlexPoE) Models
| Model | Ports / PoE | Part No. |
| GS108LP | 8 x GE, 8 x PoE+, 60W | GS108LP-100EUS |
| GS108PP | 8 x GE, 8 x PoE+, 123W | GS108PP-100EUS |
| GS116LP | 16 x GE, 16 x PoE+, 76W | GS116LP-100EUS |
| GS116PP (this listing) | 16 x GE, 16 x PoE+, 183W | GS116PP-100EUS |
Datasheet & Downloads
| NETGEAR datasheet | Gigabit Ethernet PoE/PoE+ Unmanaged Switches Datasheet (PDF) |
| Installation guide | GS116LP / GS116PP Installation Guide (PDF) |
| NETGEAR product page | GS116PP on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GS116PP-100EUS.
Frequently Asked Questions — NETGEAR GS116PP
Does the GS116PP need configuring?
No. It is unmanaged and plug-and-play — every port auto-negotiates.
What is the difference between GS116LP and GS116PP?
Both have 16 Gigabit PoE+ ports. The GS116PP ships with a 183 W budget; the GS116LP ships with 76 W.
Is it fanless?
Yes. NETGEAR's datasheet lists it as fanless, with 0 dB acoustic noise.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
