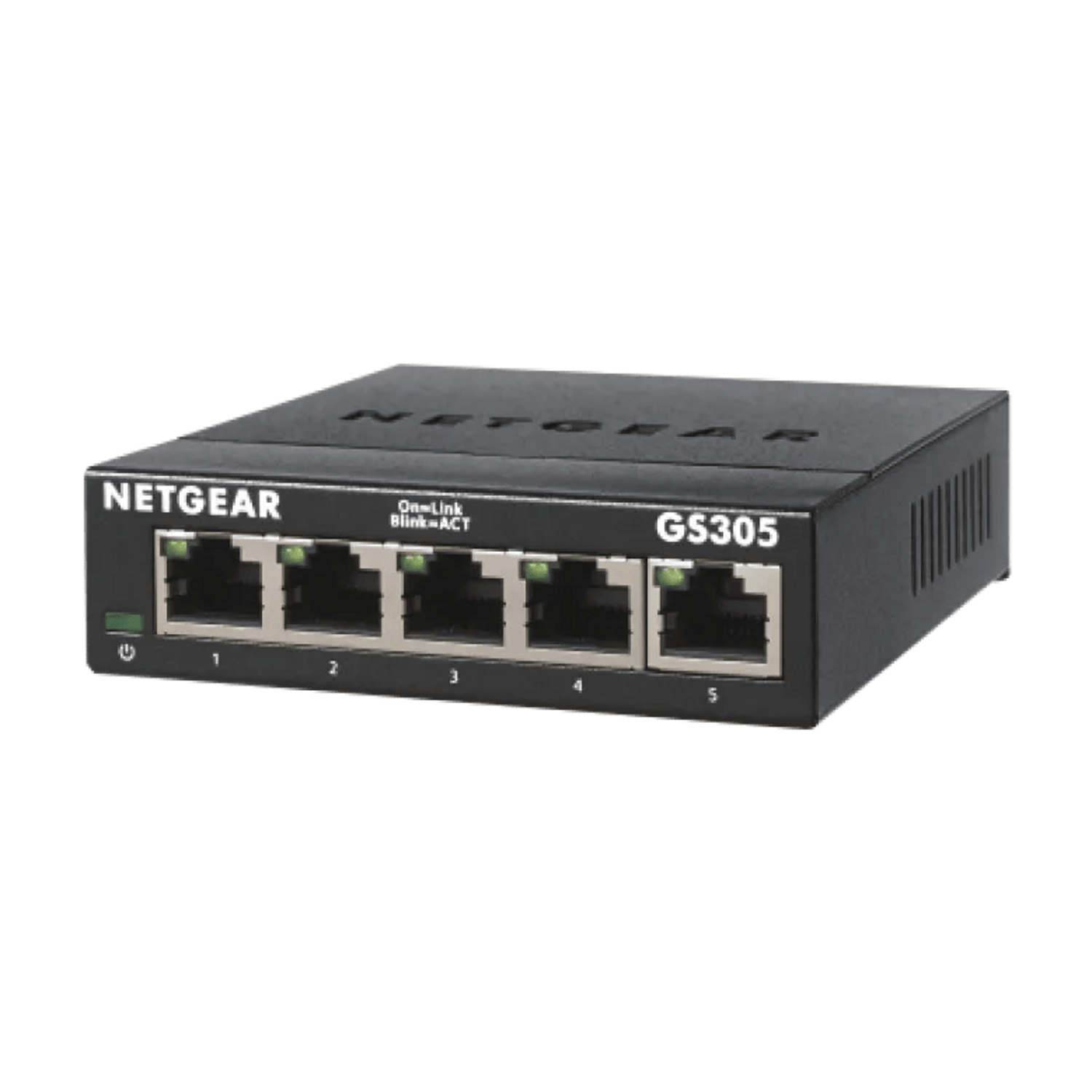

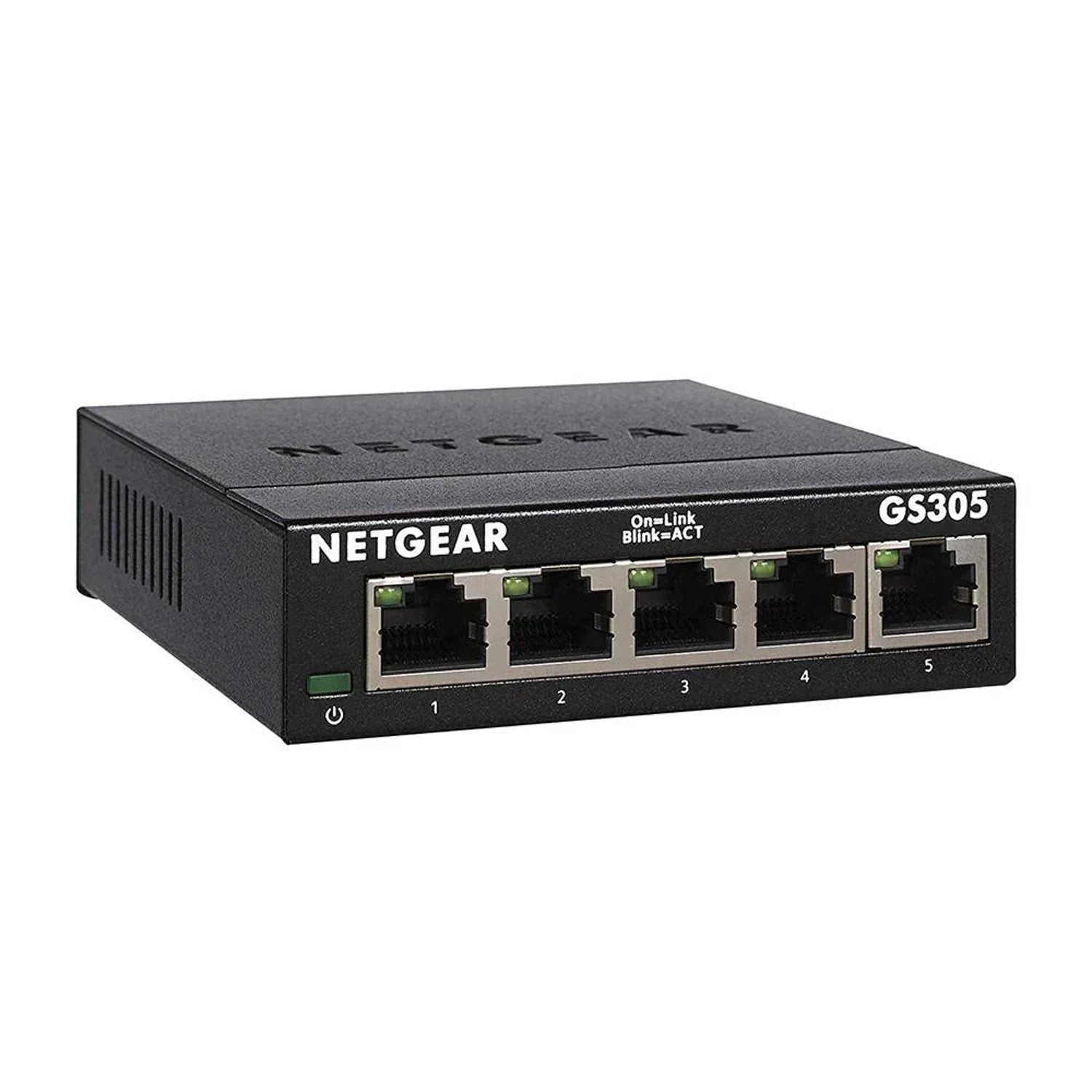

NETGEAR GS305 5-Port Gigabit Ethernet Unmanaged Switch, Fanless, Desktop/Wall-Mount
PRODUCT DESCRIPTION
NETGEAR GS305 5-Port Gigabit Ethernet Unmanaged Switch (GS305-300UKS) - 3 Years Local Warranty
5 Gigabit Ports, Plug-and-Play
The NETGEAR GS305 is a 5-port Gigabit Ethernet unmanaged switch from NETGEAR's Essentials range. There is no software to install and nothing to configure — plug in PCs, printers, consoles, NAS or access points and every port auto-negotiates at up to 1000 Mbps.
Non-Blocking and Energy-Efficient
NETGEAR rates the GS305 at 10 Gbps of non-blocking bandwidth, with 802.1p QoS prioritisation, jumbo frames up to 9,216 bytes and IEEE 802.3az Energy Efficient Ethernet to cut power use, drawing just 2.15 W maximum.
Silent, Compact Metal Case
The fanless design runs at 0 dBA, and the compact metal housing sits on a desk or mounts on a wall — ideal for home offices, meeting rooms and reception desks.
Need help choosing? Email sales@sourceit.com.sg with your port count and we will size it for you.
NETGEAR GS305 Datasheet — Technical Specifications
General
| Product Name | NETGEAR GS305 5-Port Gigabit Ethernet Unmanaged Switch |
| Part Number | GS305-300UKS |
| Series | NETGEAR Gigabit Unmanaged Essentials Switches |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Interfaces
| Ethernet Ports | 5 x 10/100/1000BASE-T RJ-45 with Auto Uplink (auto MDI/MDIX) |
Performance
| Switching Bandwidth | 10 Gbps (non-blocking) |
| Forwarding Rate | 1,448,000 pps (64-byte packets) |
| Latency | < 2.6 µs (64-byte packets) |
| MAC Address Table | 2K |
| Packet Buffer | 128 KB |
| Jumbo Frames | Up to 9,216 bytes |
| QoS | 802.1p traffic prioritisation |
Power & Environmental
| Power Supply | External adapter, 5 V / 0.7 A |
| Power Consumption | 2.15 W max; 0.31 W standby |
| Heat Dissipation | 7.35 BTU/hr max |
| Cooling | Fanless (0 dBA) |
| Energy Efficiency | IEEE 802.3az Energy Efficient Ethernet |
| Operating Temperature | 0 to 40 °C |
| Operating Humidity | 90% max RH, non-condensing |
| MTBF | 3,831,422 hours at 25 °C |
Physical
| Dimensions (W x D x H) | 101 x 94 x 29 mm |
| Weight | 0.25 kg |
| Housing & Mounting | Metal case; desktop or wall-mount |
Compatibility & Software Support
Management
Unmanaged — no software, web interface or configuration is required. Ports auto-negotiate speed, duplex and cable type.
Typical Use
Home offices, small offices, meeting rooms and entertainment setups that need a few extra Gigabit wired connections. Not a PoE switch — for powered devices see NETGEAR's GS305P / GS305PP.
Package Contents & Gigabit Unmanaged Ordering Information
In the Box
GS305 switch, power adapter, installation guide. Ethernet cables are not included.
NETGEAR Gigabit Unmanaged Models
| Model | Ports | Part No. |
| GS305 (this listing) | 5 x GE, desktop/wall | GS305-300UKS |
| GS308 | 8 x GE, desktop/wall | GS308-300UKS |
| GS324 | 24 x GE, desktop/rack | GS324-200EUS |
| GS348 | 48 x GE, desktop/rack | GS348-100EUS |
Datasheet & Downloads
| NETGEAR datasheet | Gigabit Unmanaged Essentials Switches Datasheet (PDF) |
| Installation guide | GS305 / GS308 Installation Guide (PDF) |
| NETGEAR product page | GS305 on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GS305-300UKS.
Frequently Asked Questions — NETGEAR GS305
Does the GS305 need configuring?
No. It is unmanaged and plug-and-play — every port auto-negotiates.
Is it fanless?
Yes. NETGEAR lists a fanless design with 0 dBA acoustic output.
Can it be wall-mounted?
Yes. NETGEAR lists it as desktop or wall-mountable.
Does it supply PoE?
No. For PoE see NETGEAR's GS305P or GS305PP.
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
