Logitech Tap Meeting Room Touch Controller
PRODUCT DESCRIPTION
Logitech Tap Meeting Room Touch Controller with Cat5e Kit (939-001950) - 2 Years Local Warranty
Logitech Tap Touch Controller for Microsoft Teams Rooms and Zoom Rooms
The Logitech Tap is a purpose-built, USB-connected meeting room touch controller for video conferencing room solutions. Logitech certifies Tap as a touch controller for Google Meet, GoToRoom, Microsoft Teams Rooms, Pexip Room, RingCentral Rooms and Zoom Rooms, so a single hardware standard can be rolled out across a mixed platform estate. Tap connects to the room computer over USB and drives the room camera, microphones and display from one always-on console on the table.

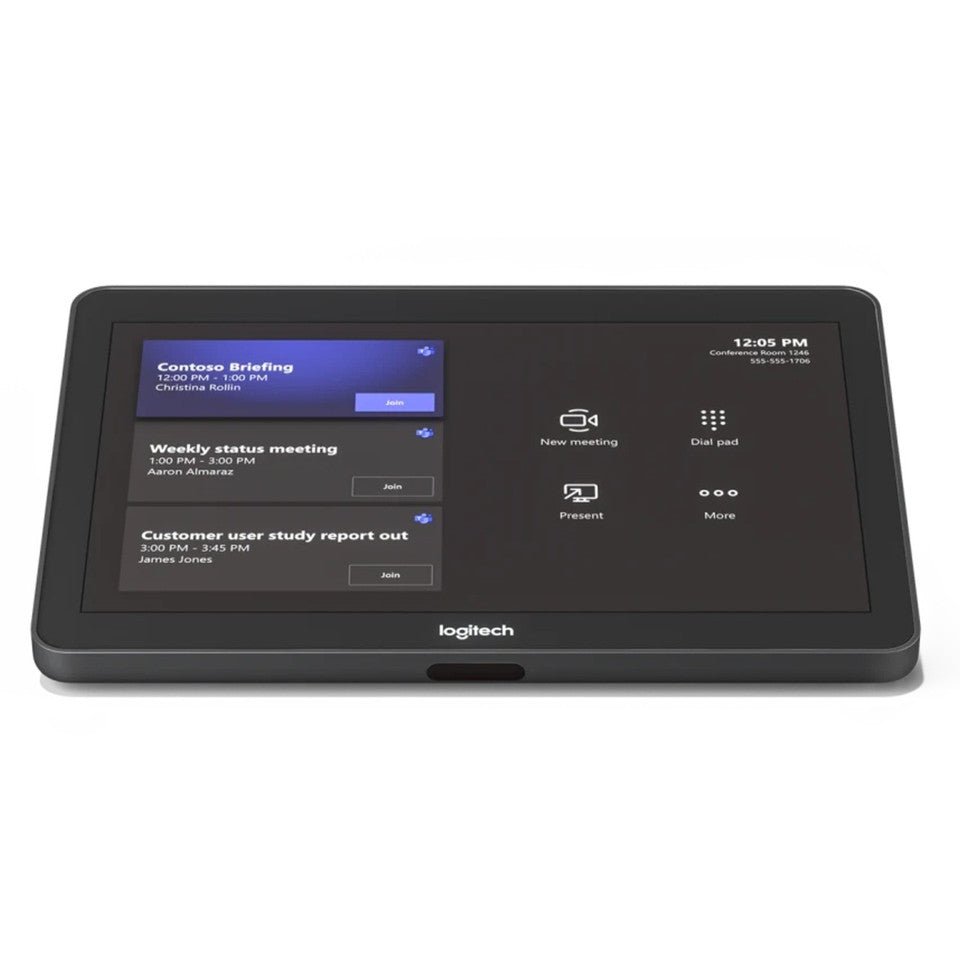

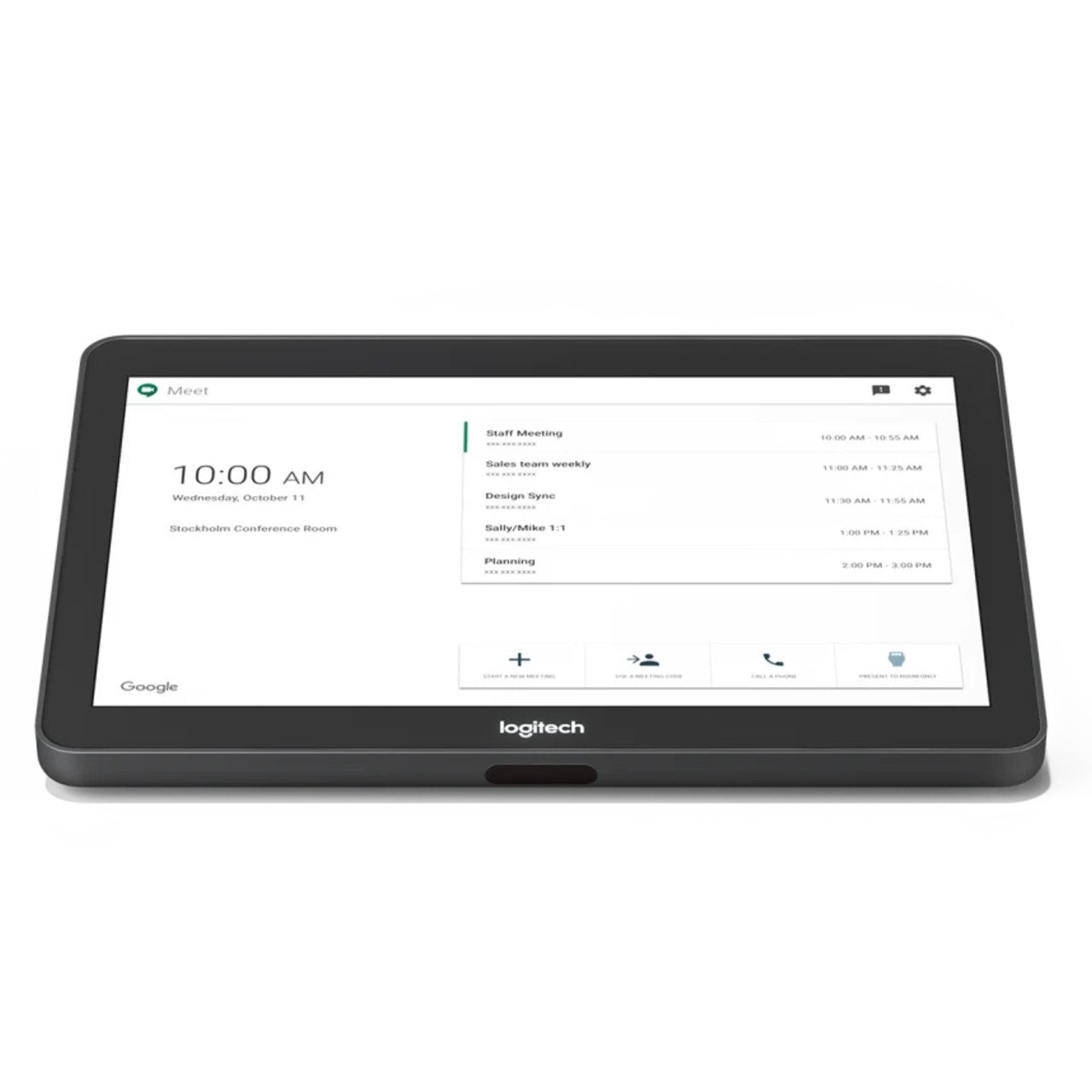

10.1-Inch Capacitive Touchscreen Built for Daily Meeting Room Use
Tap uses a 10.1-inch 1280 x 800 LCD with LED backlighting, 400 nits of brightness, a 1000:1 contrast ratio and an 85° viewing angle in every direction. The panel is capacitive with 10-point multi-touch and carries an oleophobic anti-fingerprint, anti-glare coating — a practical detail in Singapore meeting rooms where a controller is touched dozens of times a day. A fixed 14° tilt keeps the screen readable from a seated position without any accessory.
USB-Over-Cat5e Deployment Up to 40 Metres
The included Logitech Cat5e Kit converts Tap's USB connection to structured cabling, so the room PC can sit in a credenza or rack while Tap stays on the table. Logitech supports up to 40 m of total Cat5e cabling, and the box ships with a 2.97 m and a 7.0 m Cat5e cable plus a 2.0 m HDMI 1.4a cable. An internal cable retention and strain relief system keeps the installation tidy, and two Kensington lock slots secure the unit in open or shared spaces.
One-Touch Join, Motion Wake and Wired Content Sharing
An integrated PIR motion sensor wakes the room system as people walk in, so the join button is already waiting. An HDMI input on the Tap handles wired content sharing at 1080p for guests who prefer a cable to a wireless share, and a 3.5 mm 4-pole headset jack is available on the console. Across a fleet, Logitech Sync delivers remote monitoring, firmware updates, provisioning and usage analytics.
Logitech Tap Datasheet — Technical Specifications
General
| Product | Logitech Tap Meeting Room Touch Controller (with Cat5e Kit) |
| Part Number | 939-001950 |
| Product Type | USB-connected meeting room touch controller |
| Colour | Graphite |
| Room PC | Required — Tap connects to a room computer over USB |
| Device Management | Logitech Sync |
| Regulatory | CE / CCC / EAC / FCC |
| Warranty | 2 Years Local Warranty (Singapore) |
Display
| Screen Size | 10.1" diagonal |
| Resolution | 1280 x 800 |
| Panel | LCD with LED backlighting |
| Touch Technology | Capacitive, 10-point multi-touch |
| Brightness | 400 nits |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 85° (up / down / left / right) |
| Display Tilt Angle | 14° |
| Coating | Oleophobic anti-fingerprint and anti-glare coating |
Connectivity
| USB to Host | USB 2.0 / 3.0 / 3.1 Type-C |
| USB Accessory Port | USB Type-A |
| HDMI Input | HDMI in for content sharing — 1080p video and audio (1920 x 1080) |
| Audio Jack | 3.5 mm (1/8") 4-pole headset jack |
| Cable Standard | Cat5e, via the included Logitech Cat5e Kit (Tap Receiver + dongle transceiver) |
| Cat5e Cable Included | 2.97 m + 7.0 m = 9.97 m total in the box |
| Maximum Cable Run | Up to 40 m of customer-supplied Cat5e cabling (total length) |
| HDMI Cable Included | HDMI 1.4a, 2.0 m, Type A to Type C |
| Security | Two Kensington lock slots (side and underside) |
Compute & Host Requirements
| Room Computer | Required — Logitech recommends the Logitech-bundled room PC |
| Host Operating Systems | Windows 10 or later; ChromeOS 80 or higher; Logitech CollabOS |
| Not Supported as Host | Android, Linux and macOS are not supported host operating systems |
| Host Port | USB 2.0 / 3.0 / 3.1 Type-A port on the room PC |
Design & Power
| Dimensions (H x W x D) | 58 x 244 x 179 mm (2.3 x 9.6 x 7.0 in) |
| Weight | 1.25 kg (2.75 lb) |
| Power | 12 V DC external power supply; 100–240 V auto-switching input, 12 V 2 A output, international adaptor set included |
| Power over Ethernet | Not supported on Logitech Tap (PoE is a Tap IP feature) |
| Motion Sensor | Integrated PIR motion sensor for presence detection and wake |
| Audio | Integrated ultrasonic speaker |

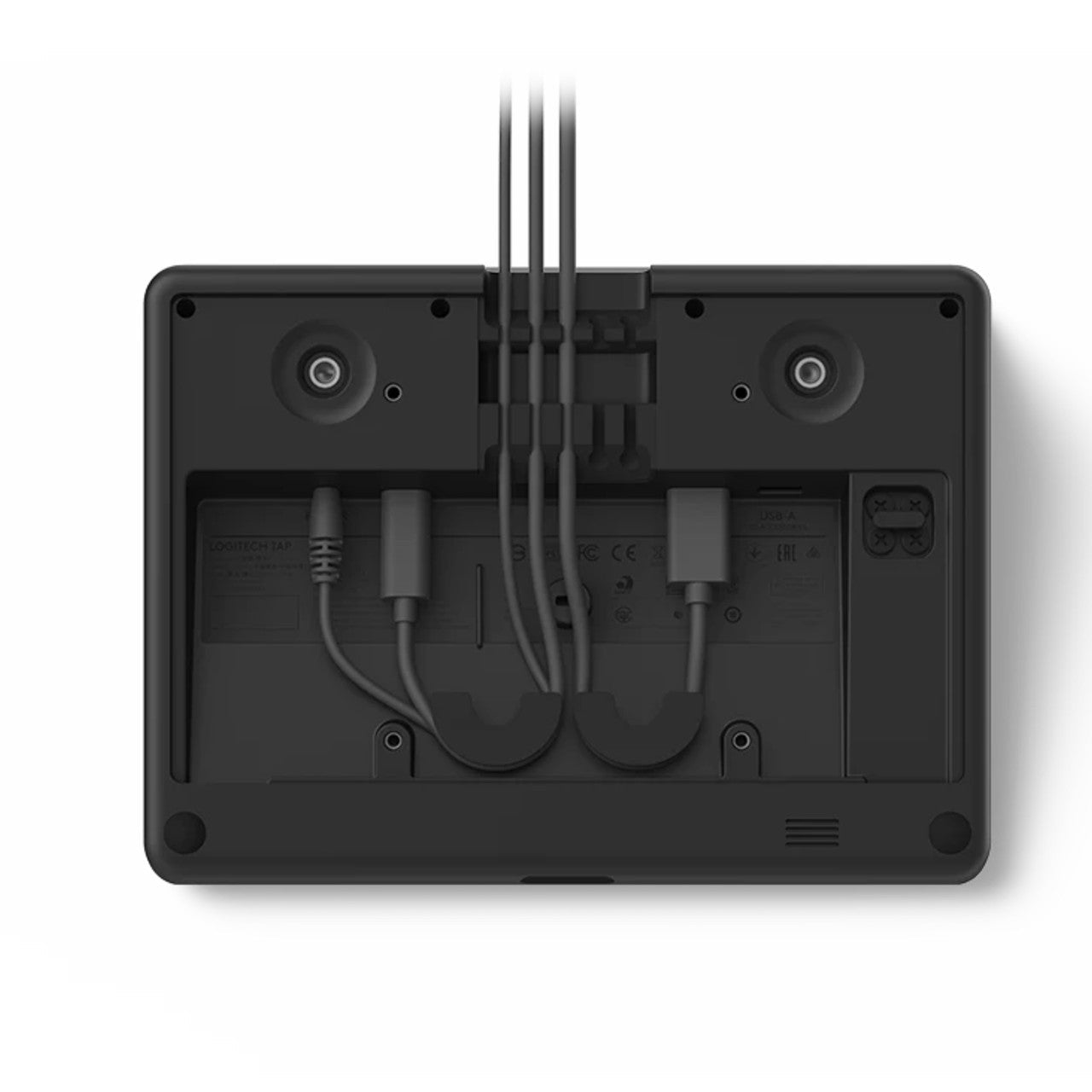

| Cable Management | Internal cable retention and strain relief system |
| Mounting | 100 x 100 mm VESA FDMI; table, riser, wall and PC mounts sold separately |
Compatibility & Software Support
Host operating systems. Logitech Tap is supported on Windows 10 or later, ChromeOS 80 or higher, and Logitech CollabOS. Logitech states that no other operating system — including Android, Linux and macOS — is supported as a Tap host.
Certifications. The Logitech Tap datasheet states that Tap is certified as a touch controller for the following video conferencing room solutions: Google Meet, GoToRoom, Microsoft Teams Rooms, Pexip Room, RingCentral Rooms and Zoom Rooms. The Logitech product page lists Google Meet (ChromeOS and Android), Microsoft Teams Rooms on Windows and Zoom Rooms.
Compatible Logitech room cameras. Tap is deployed alongside a room PC and a Logitech conference camera such as MeetUp, Rally Bar or Rally Bar Mini in USB mode, as well as Rally and Rally Plus room systems.
Software and management. Logitech Sync provides remote monitoring, firmware updates, provisioning and analytics across a Tap estate. Logi Tune and Logi Options+ are personal device applications and are not used to manage Tap.
Package Contents & Logitech Tap Family Ordering Information
In the box
- Logitech Tap touch controller
- Cat5e Kit: Tap Receiver, dongle transceiver, 100–240 V power supply with international adaptor set, 2.97 m Cat5e cable, 7.0 m Cat5e cable
- HDMI 1.4a cable, 2.0 m
- VESA mounting screws (4)
- Microfiber cloth
- Documentation
Logitech Tap family — ordering information
| Logitech Tap (Cat5e Kit) — Graphite | 939-001950 (this listing) |
| Logitech Tap IP — Graphite | 952-000085 — Tap IP Graphite |
| Logitech Tap IP — White | 952-000088 — Tap IP White |
| Logitech Tap Scheduler — Graphite | 952-000091 — Tap Scheduler Graphite |
| Logitech Tap Scheduler — White | 952-000094 — Tap Scheduler White |
| Logitech Cat5e Kit (spare) | 952-000019 — Cat5e Kit for Logitech Tap |
Tap mounting accessories
| Tap Table Mount | 939-001811 — preserves the 14° screen angle, swivels 180° (in stock at SourceIT) |
| Tap Riser Mount | 939-001814 — raises the screen to a 30° angle, swivels 180° |
| Tap Wall Mount | 939-001817 — plate-and-cleat design, adds virtually no thickness (in stock at SourceIT) |
| Tap PC Mount | 939-001825 — steel mount for small-form-factor room PCs |
| VESA | 100 x 100 mm VESA FDMI |
Regional note: Logitech also publishes Tap SKUs 939-001951 (China), 939-001952 (Japan) and 939-001953 (India). 939-001950 is the worldwide SKU supplied in Singapore.
Datasheet & Downloads
Frequently Asked Questions — Logitech Tap
Does the Logitech Tap need a room PC?
Yes. Logitech Tap is a USB-connected touch controller and must be physically connected to a room computer over USB (carried over Cat5e using the included Tap Receiver). Logitech supplies Tap as part of a room solution with a bundled PC. If you want a controller that runs over the network with no room PC and no USB run, use Tap IP paired with an appliance such as Logitech RoomMate or a Rally Bar in appliance mode.
What is the difference between Logitech Tap and Logitech Tap IP?
Tap (939-001950) connects over USB to a room PC, has an HDMI input for wired content sharing and a 3.5 mm headset jack, and is powered by a 12 V adapter. Tap IP (952-000085 / 952-000088) connects over a single Ethernet cable, is powered by PoE (802.3af), has no HDMI ingest port, and pairs over the network with a CollabOS appliance. Tap IP is the newer deployment model and is generally the simpler install.
How far can I run the cable from the room PC to the Tap?
Logitech supports up to 40 m of total Cat5e cabling between the Tap Receiver at the PC and the Tap on the table. The box includes a 2.97 m and a 7.0 m Cat5e cable (9.97 m total); longer runs use customer-supplied Cat5e. Only Cat5e is specified by Logitech — we do not claim Cat6 support.
Which Logitech cameras work with Tap?
Tap is used with USB-connected Logitech conference cameras driven by the room PC, including MeetUp, Rally and Rally Plus room systems, and Rally Bar or Rally Bar Mini in USB mode.
Is a Microsoft Teams Rooms or Zoom Rooms licence included?
No. Tap is hardware only. A Microsoft Teams Rooms or Zoom Rooms software licence is purchased separately per room. SourceIT can quote hardware and licensing together for Singapore deployments.
Are the table, riser and wall mounts included?
No. The box includes four VESA screws only. The Tap Table Mount (939-001811), Riser Mount (939-001814), Wall Mount (939-001817) and PC Mount (939-001825) are ordered separately — the Table Mount and Wall Mount are stocked at SourceIT.
Does the Logitech Tap come with local warranty in Singapore?
Yes. Every Logitech Tap sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
