Logitech Cat5e Kit for Logitech Tap
PRODUCT DESCRIPTION
Logitech Cat5e Kit for Logitech Tap (952-000019) - 2 Years Local Warranty
Cat5e Kit for Logitech Tap — Data and Power over One Category Cable
The Cat5e Kit for Logitech Tap (952-000019) connects a Logitech Tap touch controller to the meeting room computer up to 40 m away, carrying both data and power over category cable. There is no need for a power outlet at the table, and the room PC can sit in a cabinet, behind the display or in a nearby equipment space.
Point-to-Point Connection for Flexible Room Layouts
The kit pairs a Logitech Tap receiver with a dongle transceiver at the computer end and works over Cat5e or higher cable. Two Cat5e cables are included (2.97 m and 7.0 m) for typical layouts, and longer runs up to 40 m can use your own structured cabling. It is a point-to-point USB extension, not a network connection, so it is plugged directly between Tap and the room computer rather than into a network switch.
Cat5e Kit for Logitech Tap Datasheet — Technical Specifications
General
| Part Number | 952-000019 |
| Product series | Logitech Tap touch controller accessories |
| Compatibility | Logitech Tap |
| Warranty | 2 Years Local Warranty (Singapore) |
Connectivity
| Connection type | Point-to-point USB extension over category cable (not an Ethernet/IP connection) |
| Cable type | Cat5e or higher |
| Maximum distance | Up to 40 m (131.23 ft) total |
| Included cables | 2.97 m (9.74 ft) and 7.0 m (22.96 ft) Cat5e |
| Power | Data and power delivered over the category cable; 100–240 V power supply with international adaptor set included |
| PoE class | Tap with Cat5e is a PoE Type 1, Class 3 device adhering to IEEE 802.3af, using less than 15 W in normal operation |
Meeting Room Computer
| Supported host | Windows 10 64-bit or ChromeOS 80+ computer with a USB 2.0 port |
Compatibility & Installation
The Cat5e Kit is designed for the USB-connected Logitech Tap touch controller. It is not required for Logitech Tap IP, which connects over the network with Power over Ethernet.
A standards-based 802.3af PoE injector, such as the Logitech PoE Injector with Plug Set, may be used in place of the included power supply. A PoE network switch cannot be used, because the kit is a point-to-point link rather than a network connection.
The kit works with the Table Mount, Riser Mount (952-000080) and Wall Mount. Where USB-C over longer distances is needed for other devices, see the Logitech Strong USB cables (10 m, 25 m, 45 m).
Package Contents & Tap Accessories Ordering Information

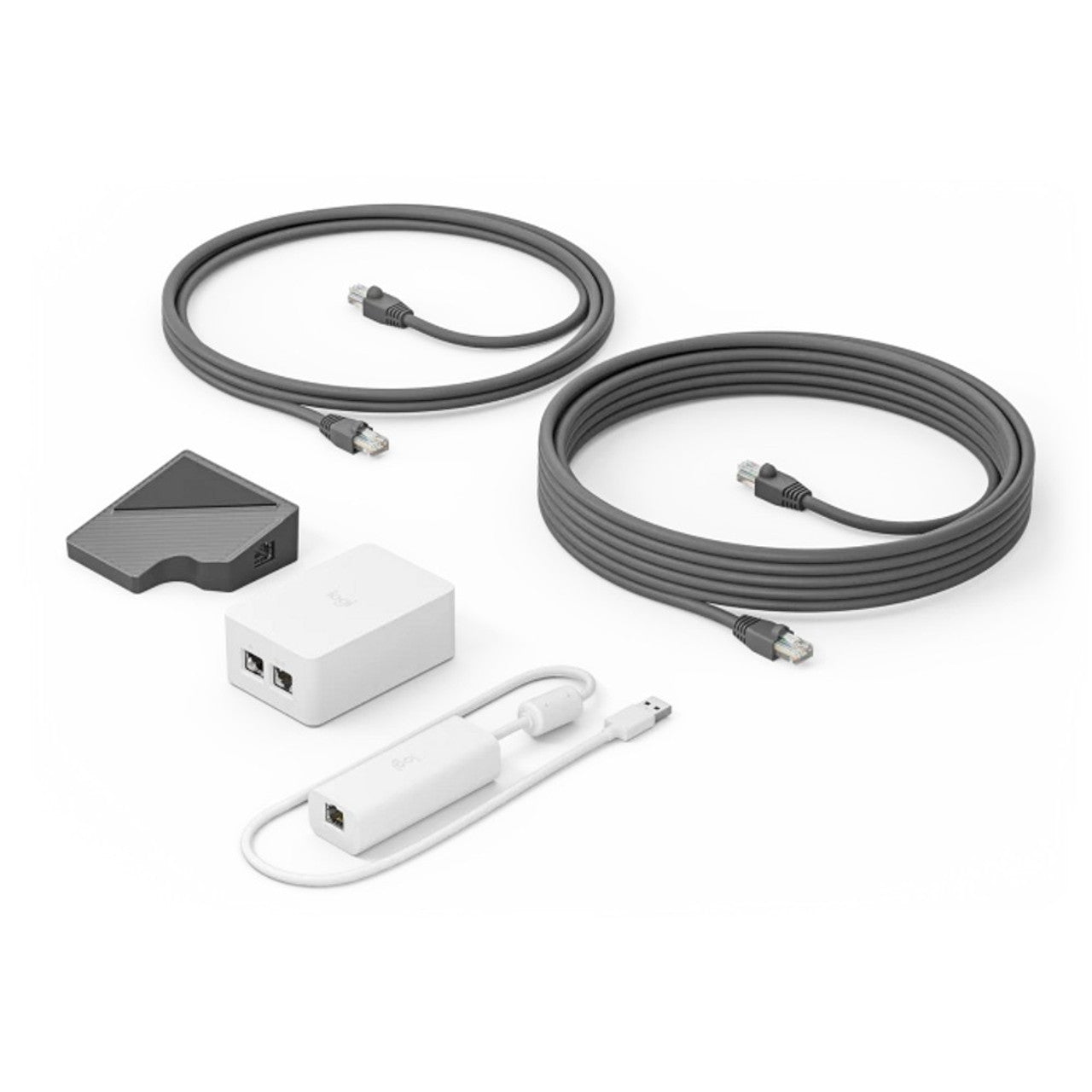

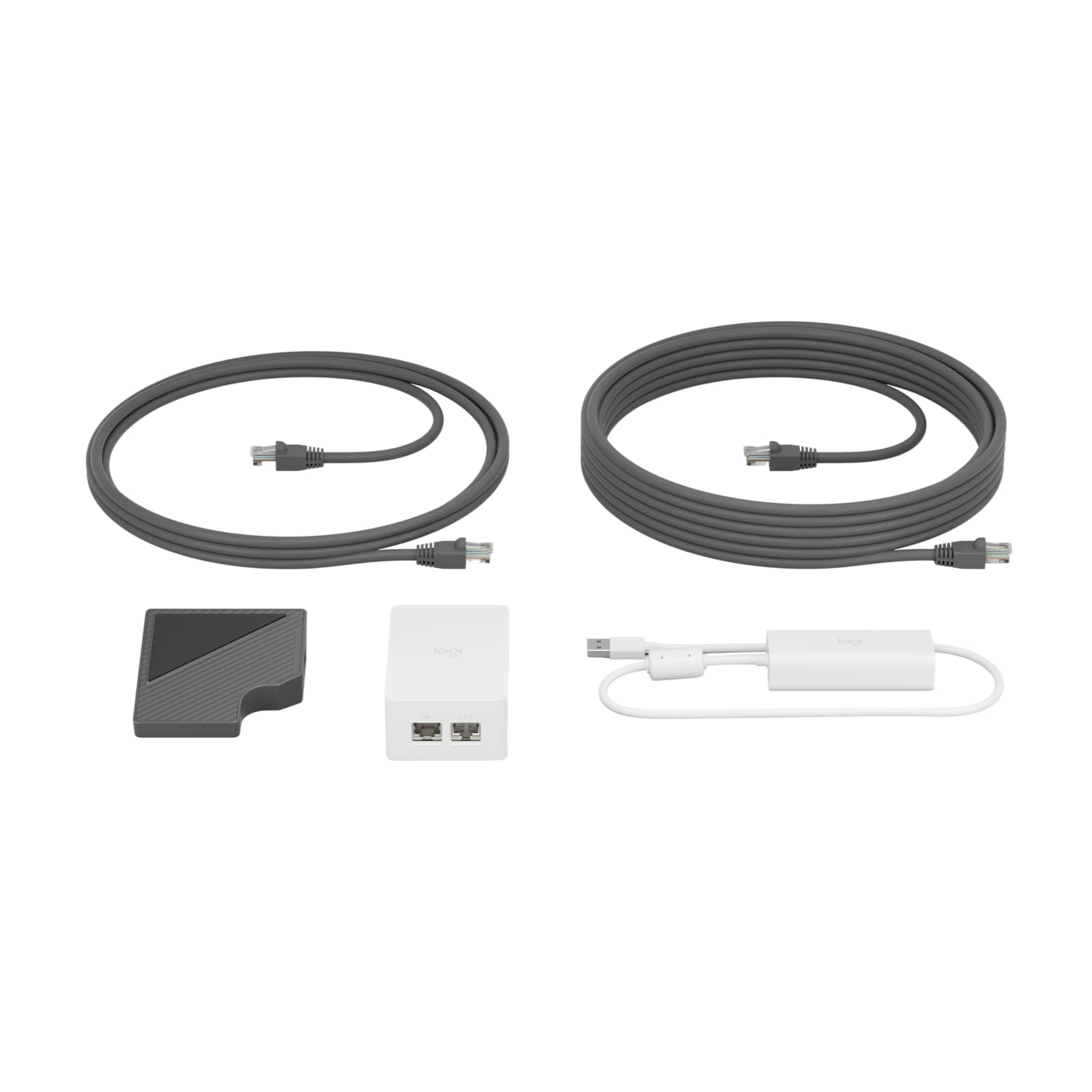

In the box: Logitech Tap receiver, dongle transceiver, 100–240 V power supply with international adaptor set, 2.97 m Cat5e cable, 7.0 m Cat5e cable and documentation.
Logitech Tap family at SourceIT:
| Model | Part Number |
| Logitech Tap (USB, with Cat5e connectivity) | 939-001950 |
| Logitech Tap IP — Graphite | 952-000085 |
| Logitech Tap IP — White | 952-000088 |
| Logitech Tap Table Mount | 939-001811 |
| Logitech Tap Riser Mount | 952-000080 |
| Logitech Tap Wall Mount | 939-001817 |
| Cat5e Kit for Logitech Tap (this listing) | 952-000019 |
| Logitech PoE Injector with Plug Set | 952-000074 |
Datasheet & Downloads
Frequently Asked Questions — Cat5e Kit for Logitech Tap
How far can Tap be from the meeting room computer?
Up to 40 m of Cat5e or higher cable in total.
Can I plug it into my PoE network switch?
No. The Cat5e Kit is a point-to-point USB extension over category cable, not a network/IP/Ethernet solution, so it must run directly between Tap and the computer.
Can I use my own PoE injector instead of the power supply?
Yes. Tap with Cat5e is a PoE Type 1, Class 3 device that adheres to the 802.3af standard and uses less than 15 W in normal operation, so a compliant injector such as the Logitech PoE Injector with Plug Set can be used.
Do I need it for Tap IP?
No. Tap IP connects to the network and is powered over Ethernet; the Cat5e Kit is for the USB-connected Logitech Tap.
Does it come with a local warranty?
Yes. Every Cat5e Kit for Logitech Tap sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
