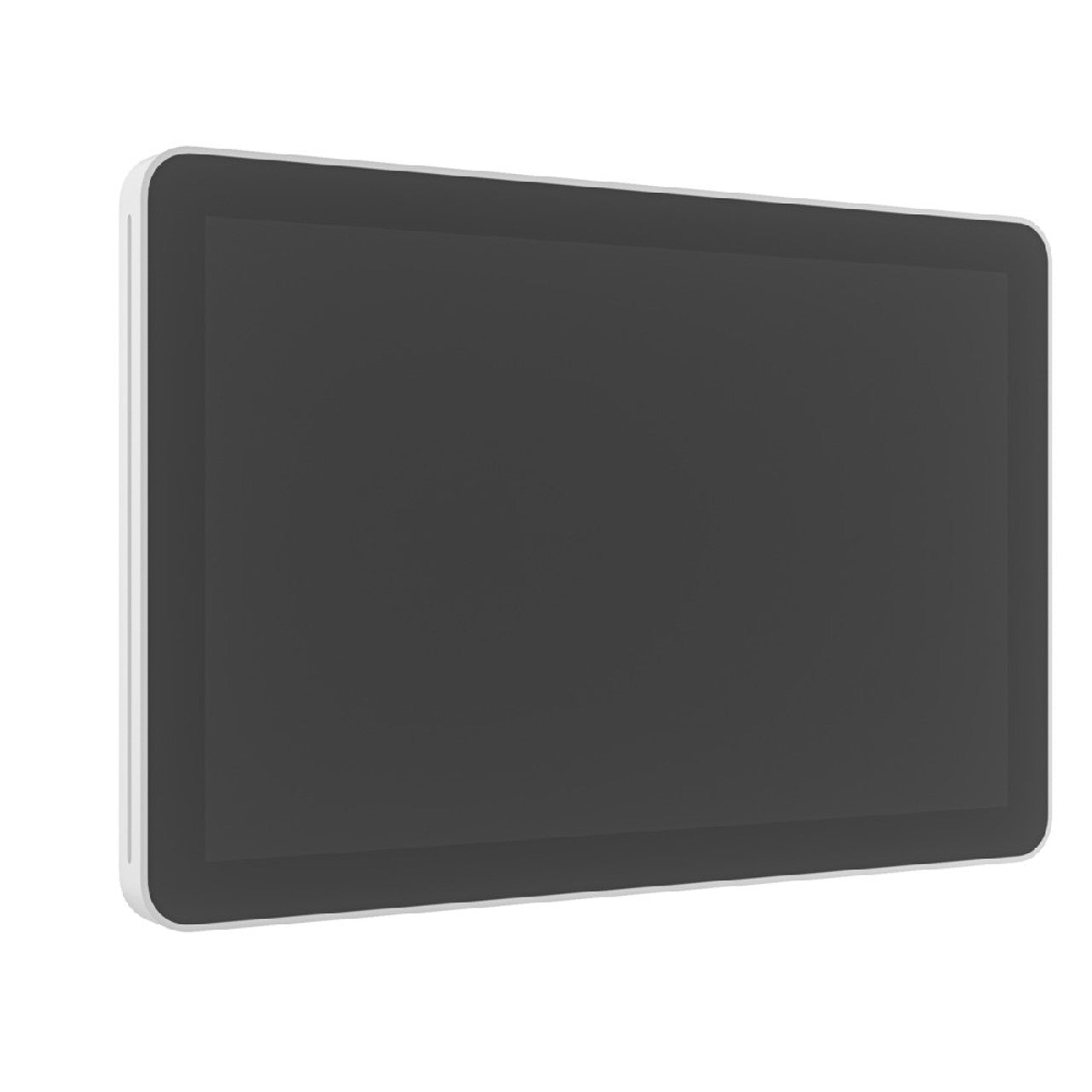

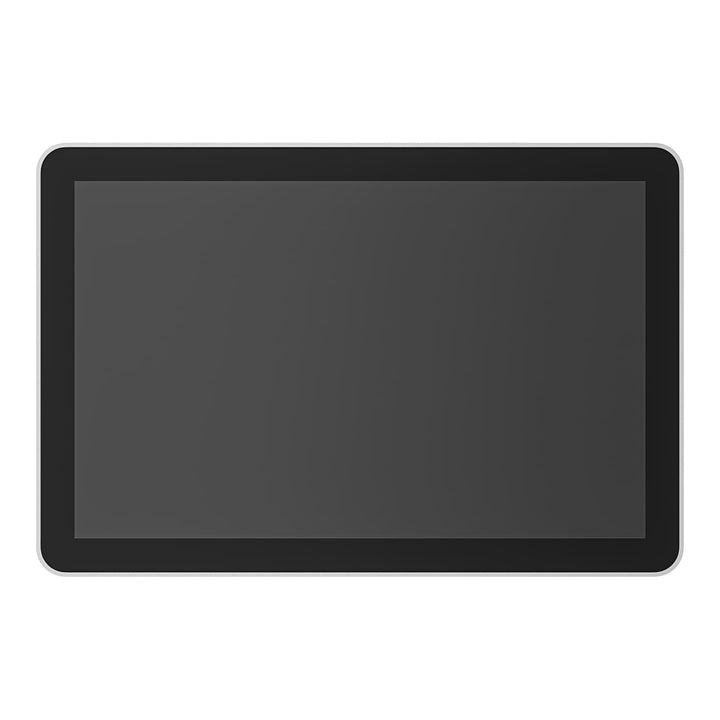

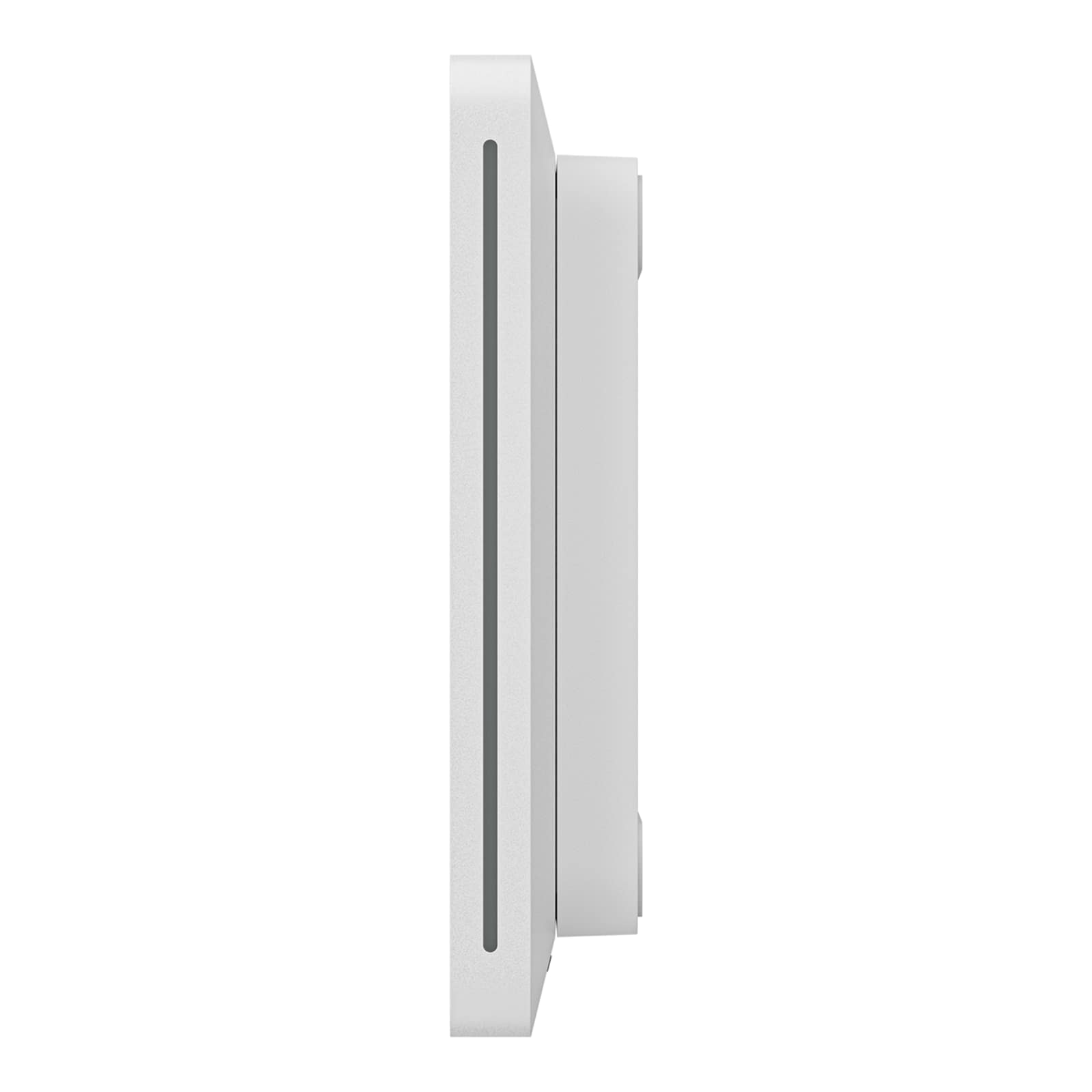

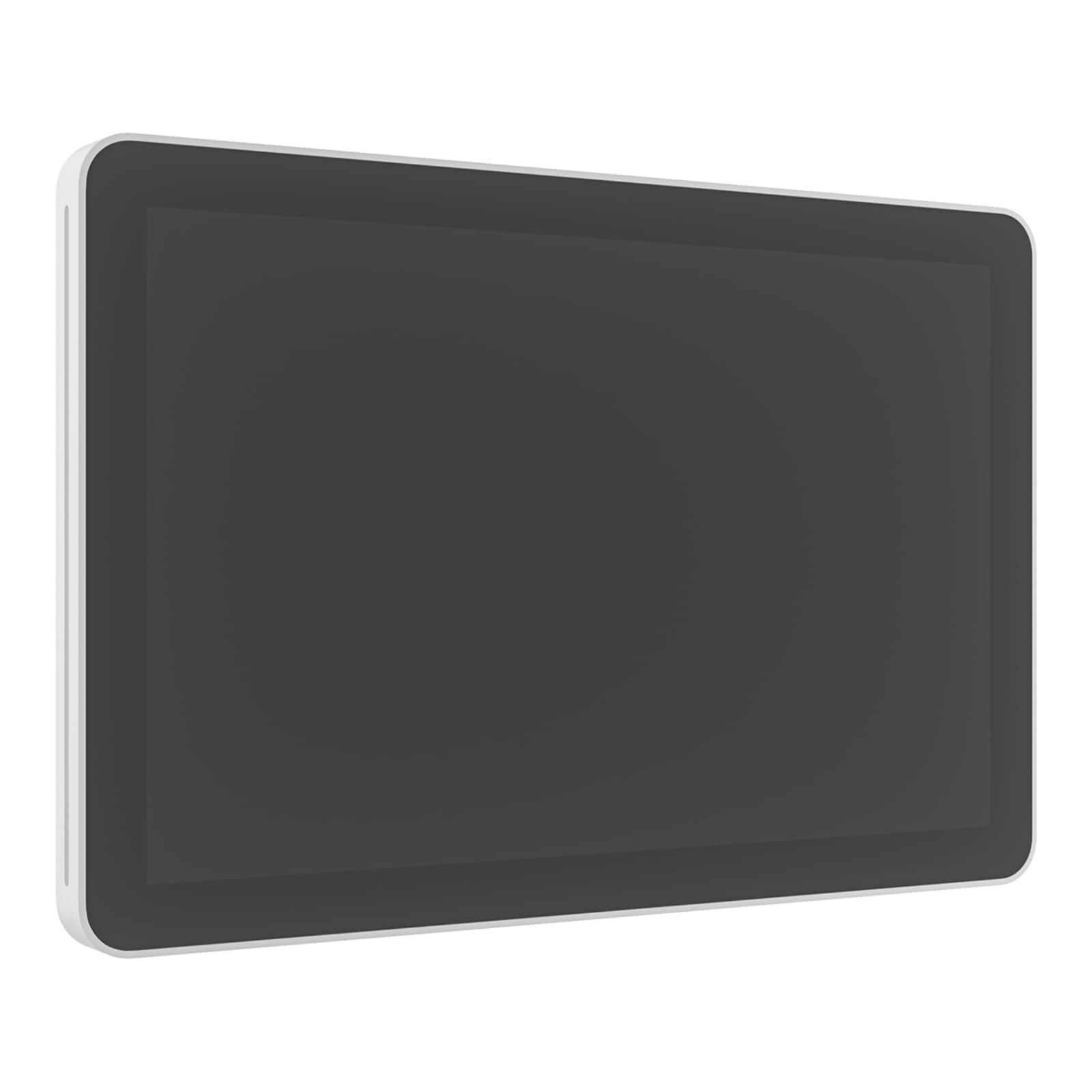

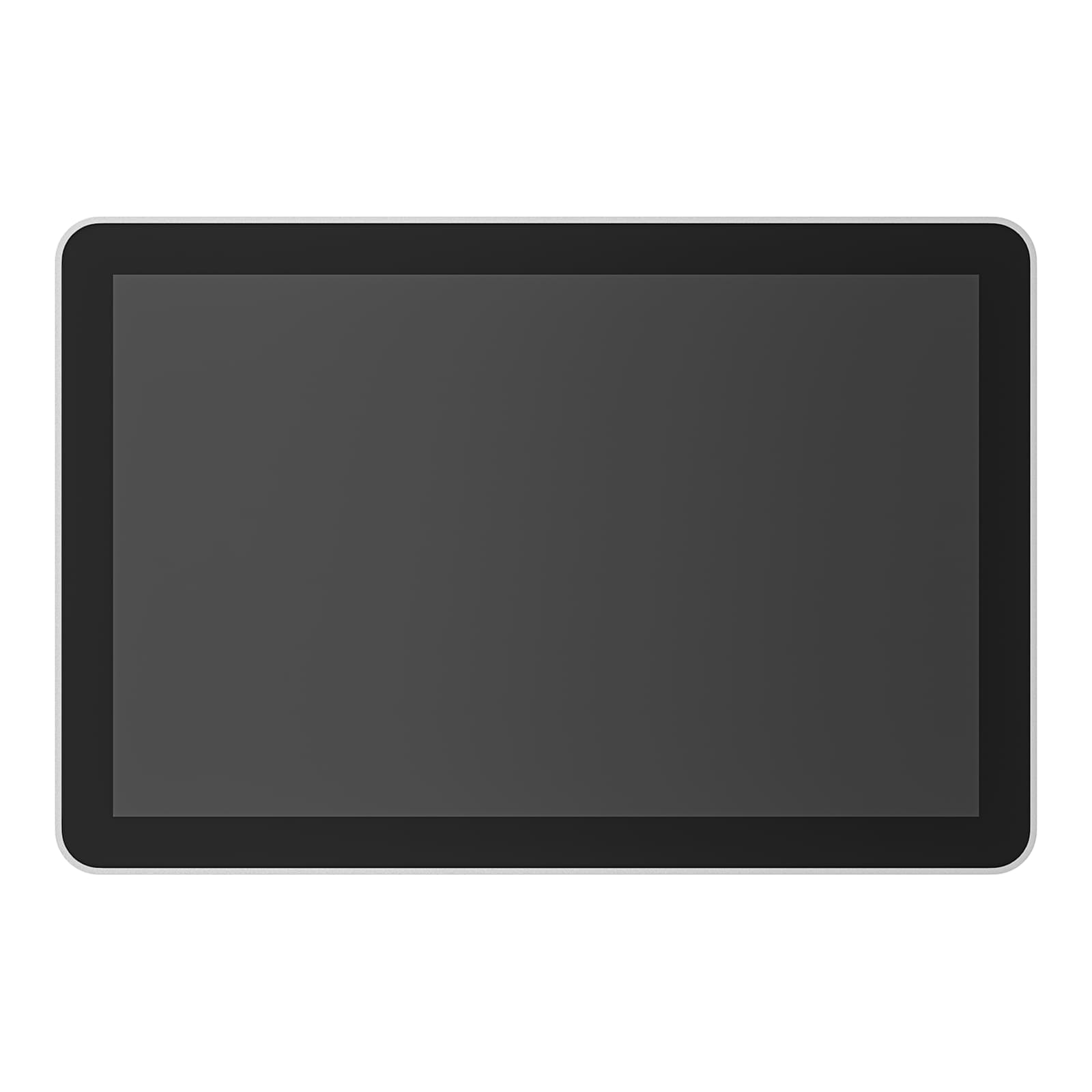

Logitech Tap Scheduler LCD Scheduling Display White

Logitech Tap Scheduler LCD Scheduling Display White (952-000094) - 2 Years Local Warranty

Smart Meeting Room Scheduling Solution

Logitech Tap Scheduler LCD Scheduling Display White (952-000094) is a purpose-built meeting room scheduling panel designed to simplify room booking and workspace management. Featuring a clean and modern white finish, it provides clear room availability visibility and seamless scheduling integration for corporate offices, meeting spaces, and hybrid work environments.

Clear LCD Display for Easy Room Management

The Logitech Tap Scheduler features an intuitive LCD touchscreen display that allows users to quickly view meeting schedules, room availability, and booking status at a glance. Its user-friendly interface helps improve meeting room utilization while reducing scheduling conflicts in busy office environments.

Optimized for Leading Scheduling Platforms

Designed for modern workplace collaboration, the Tap Scheduler integrates with popular room scheduling platforms including Microsoft Teams Panels, Zoom Rooms, and other workplace management systems. This ensures smooth deployment and compatibility across enterprise meeting room infrastructures.

Elegant Design with Flexible Installation Options

With its sleek white finish and slim profile, the Tap Scheduler blends seamlessly into contemporary office environments. It supports flexible installation on glass, walls, and door frames, making it suitable for various meeting room configurations while maintaining a professional appearance.

Technical Specifications

General
Model: Tap Scheduler
Part Number: 952-000094
Color: White
Product Type: Meeting Room Scheduling Display
Deployment: Meeting rooms, huddle spaces, conference rooms, enterprise collaboration environments
Usage Mode: Dedicated room scheduling and room availability display panel

Display Specifications
Display Size: 10.1-inch IPS touchscreen
Panel Type: LCD with LED backlighting
Resolution: 1280 × 800
Aspect Ratio: 16:10
Touch Technology: Capacitive multi-touch
Multi-Touch Support: 10-point touch
Brightness: 400 nits
Viewing Angle: 85° horizontal / 85° vertical
Surface Treatment: Anti-fingerprint oleophobic coating

Scheduling Platform Compatibility
Microsoft Teams Panels
Zoom Rooms Scheduling Display
Logitech Room Booking
Robin
Appspace
Envoy Rooms
RICOH Spaces
Comeen
Korbyt Booking

Connectivity
Network Interface: 10/100 Mbps Ethernet
Wi-Fi: Wi-Fi 802.11a/b/g/n/ac/ax
Bluetooth: Bluetooth 5.0 (reserved for future use)
Power Input: Power over Ethernet (PoE) IEEE 802.3af Type 1 Class 3

Mounting Options
Glass Mount
Wall Mount
Mullion Mount
Corner Mount Accessory Included
VESA Mount Support: 100 × 100 mm

Sensors & Smart Features
Integrated Ambient Light Sensor
Integrated Accelerometer
LED Status Indicators for room availability
Cable Routing Options: Horizontal / Vertical / Center

Security
Full Disk Encryption: AES-128
Data Encryption: Symmetric Keys + PKI
Device Identity Protection: Device attestation supported
Key Protection: Arm TrustZone

Management & Deployment
Operating Platform: Logitech CollabOS
Remote Management: Logitech Sync supported
Deployment Type: Enterprise-scale room scheduling deployment
Management Support: Microsoft Teams Admin Center / Zoom Device Management

Performance & Features
One-touch room booking and reservation
Real-time room availability display
LED availability indicators visible from distance
Single PoE cable for power and networking
Flush-mounted low-profile installation
Designed for continuous commercial operation

Environmental Specifications
Operating Temperature: 0°C to 40°C
Storage Temperature: -40°C to 70°C
Humidity: 10% to 95%

Physical Specifications
Dimensions: 246.2 × 165 × 28.5 mm
Weight: 700 g
Form Factor: Wall-mounted scheduling display panel

Package Contents
Logitech Tap Scheduler White
Multi-surface mount (glass/drywall)
Corner mount accessory
Mullion mount
Mounting hardware
Documentation

Key Features
10.1-inch IPS multi-touch scheduling display
Microsoft Teams and Zoom Rooms compatible
Power over Ethernet (PoE) deployment
Integrated room availability LED indicators
Enterprise remote management via Logitech Sync
Multiple mounting options included
Anti-fingerprint commercial-grade display
Low-profile professional installation design

Typical Use Cases
Meeting room scheduling
Conference room availability display
Microsoft Teams Rooms deployment
Zoom Rooms deployment
Enterprise office environments
Hybrid workplace collaboration
