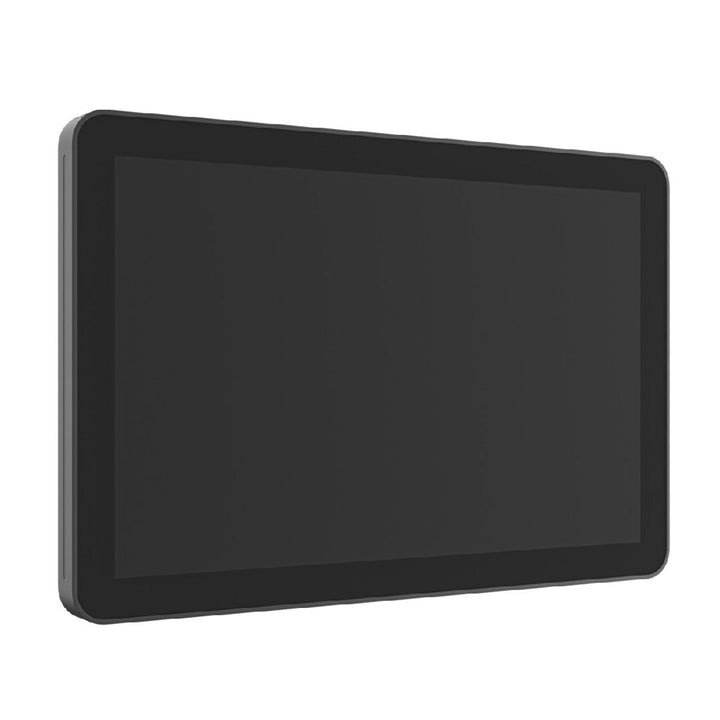

Logitech Tap Scheduler LCD Scheduling Display Graphite

Logitech Tap Scheduler LCD Scheduling Display Graphite (952-000091) - 2 Years Local Warranty

Smart Meeting Room Scheduling Solution

Logitech Tap Scheduler LCD Scheduling Display Graphite (952-000091) is a dedicated meeting room scheduling panel designed to streamline workspace management and room booking processes. Featuring a modern Graphite finish, it provides clear room availability information and seamless scheduling integration for enterprise offices, conference rooms, and hybrid work environments.

Intuitive LCD Touchscreen for Easy Scheduling

The Logitech Tap Scheduler features a responsive LCD touchscreen display that allows users to quickly check meeting schedules, room status, and availability in real time. Its intuitive interface helps reduce booking conflicts and improves meeting room efficiency across busy office environments and collaborative workspaces.

Compatible with Leading Scheduling Platforms

Built for modern workplace collaboration, the Tap Scheduler integrates with major room scheduling platforms including Microsoft Teams Panels and Zoom Rooms. This ensures smooth deployment and centralized scheduling management across enterprise meeting room infrastructures and workplace ecosystems.

Modern Graphite Design with Flexible Installation

The sleek Graphite finish delivers a professional appearance that complements modern office interiors. Designed for flexible deployment, the Tap Scheduler supports installation on glass panels, walls, and door frames, making it suitable for a wide range of meeting room configurations and office layouts.

Technical Specifications

General
Model: Tap Scheduler
Part Number: 952-000091
Color: Graphite
Product Type: Meeting Room Scheduling Display
Deployment: Meeting rooms, huddle spaces, conference rooms, enterprise collaboration environments
Usage Mode: Dedicated room scheduling and room availability display panel

Display Specifications
Display Size: 10.1-inch IPS touchscreen
Panel Type: LCD with LED backlighting
Resolution: 1280 × 800
Aspect Ratio: 16:10
Touch Technology: Capacitive multi-touch
Multi-Touch Support: 10-point touch
Brightness: 400 nits
Contrast Ratio: 1000:1
Viewing Angle: 85° horizontal / 85° vertical
Surface Treatment: Anti-fingerprint oleophobic coating

Scheduling Platform Compatibility
Microsoft Teams Panels
Zoom Rooms Scheduling Display
Robin
Appspace
Envoy Rooms
RICOH Spaces
Comeen
Korbyt Booking

Connectivity
Network Interface: 10/100 Mbps Ethernet
Wi-Fi: Wi-Fi 802.11a/b/g/n/ac/ax
Bluetooth: Bluetooth 5.0
Power Input: Power over Ethernet (PoE) IEEE 802.3af Type 1 Class 3

Mounting Options
Glass Mount
Wall Mount
Mullion Mount
Corner Mount Included
VESA Mount Support: 100 × 100 mm

Sensors & Smart Features
Integrated Ambient Light Sensor
Integrated Accelerometer
LED Room Availability Indicators
Flexible Cable Routing Options

Security
Full Disk Encryption: AES-128
Data Encryption: Symmetric Keys + PKI
Device Identity Protection: Supported
Key Protection: Arm TrustZone

Management & Deployment
Operating Platform: Logitech CollabOS
Remote Management: Logitech Sync supported
Deployment Type: Enterprise-scale room scheduling deployment
Management Support: Microsoft Teams Admin Center / Zoom Device Management

Performance & Features
One-touch room booking and reservation
Real-time room availability display
LED availability indicators visible from distance
Single PoE cable for power and networking
Flush-mounted professional installation
Designed for continuous commercial operation

Environmental Specifications
Operating Temperature: 0°C to 40°C
Storage Temperature: -40°C to 70°C
Humidity: 10% to 95%

Physical Specifications
Dimensions: 246.2 × 165 × 28.5 mm
Weight: 700 g
Form Factor: Wall-mounted scheduling display panel

Package Contents
Tap Scheduler Graphite
Glass mount
Wall mount
Mullion mount
Corner mount accessory
Mounting hardware
Documentation

Key Features
10.1-inch IPS multi-touch scheduling display
Microsoft Teams and Zoom Rooms compatible
Power over Ethernet (PoE) deployment
Integrated room availability LED indicators
Enterprise remote management via Logitech Sync
Multiple mounting options included
Anti-fingerprint commercial-grade display
Professional low-profile installation design

Typical Use Cases
Meeting room scheduling
Conference room availability display
Microsoft Teams Rooms deployment
Zoom Rooms deployment
Enterprise office environments
Hybrid workplace collaboration
