Logitech Tap Table Mount
PRODUCT DESCRIPTION
Logitech Tap Table Mount (939-001811) - 2 Years Local Warranty
Logitech Tap Table Mount — Low-Profile Swivel Mount for Tap and Tap IP

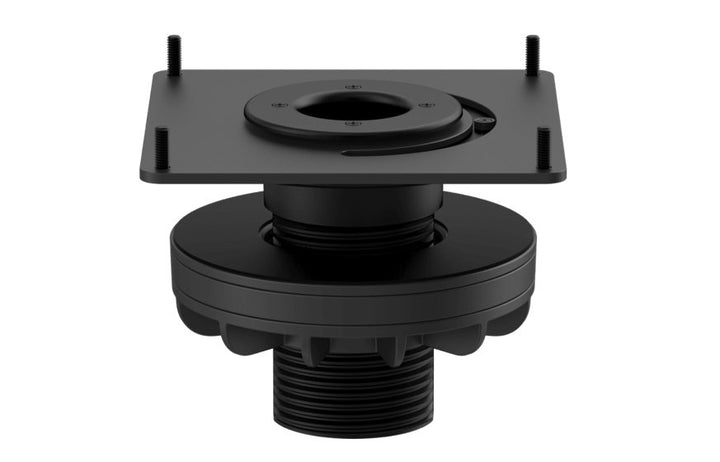

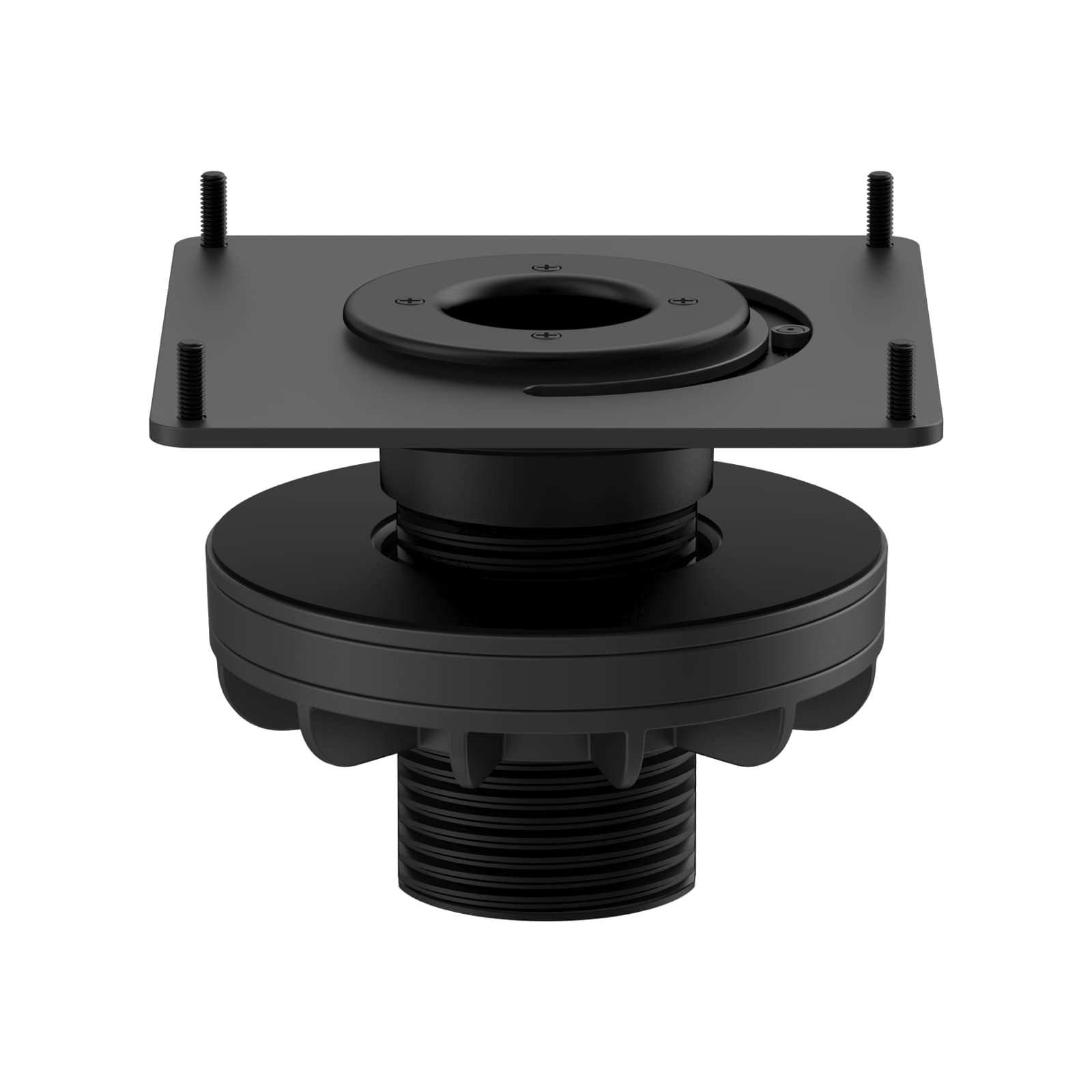

The Logitech Tap Table Mount (939-001811) secures a Logitech Tap or Tap IP touch controller to the meeting room table while keeping its sleek profile and native 14° screen angle. The controller swivels 180°, so it can be turned to face whoever is running the meeting, and it stays put rather than sliding around or walking off the table.
Fits Standard Tables and Grommet Holes with Clean Down-Routed Cabling
The mount adjusts to table tops from 20 mm to 50 mm thick and installs through grommet holes from 51 mm to 89 mm in diameter. Cables route down through the grommet and are held by the included cable cinch, leaving the table surface clear of loose wiring.
Logitech Tap Table Mount Datasheet — Technical Specifications
General
| Part Number | 939-001811 |
| Product series | Logitech Tap touch controller accessories |
| Compatibility | Logitech Tap, Logitech Tap IP |
| Warranty | 2 Years Local Warranty (Singapore) |
Mounting
| Screen angle | 14° |
| Swivel | 180° |
| Table thickness | 20 – 50 mm (0.75 – 2.0 in) |
| Grommet hole diameter | 51 – 89 mm (2.0 – 3.5 in) |
| Cable management | Down-routing through the grommet hole, cable cinch included |
Dimensions
| Dimensions with Tap (H x W x D) | 61 x 244 x 179 mm (2.4 x 9.61 x 7.05 in) |
Compatibility & Installation

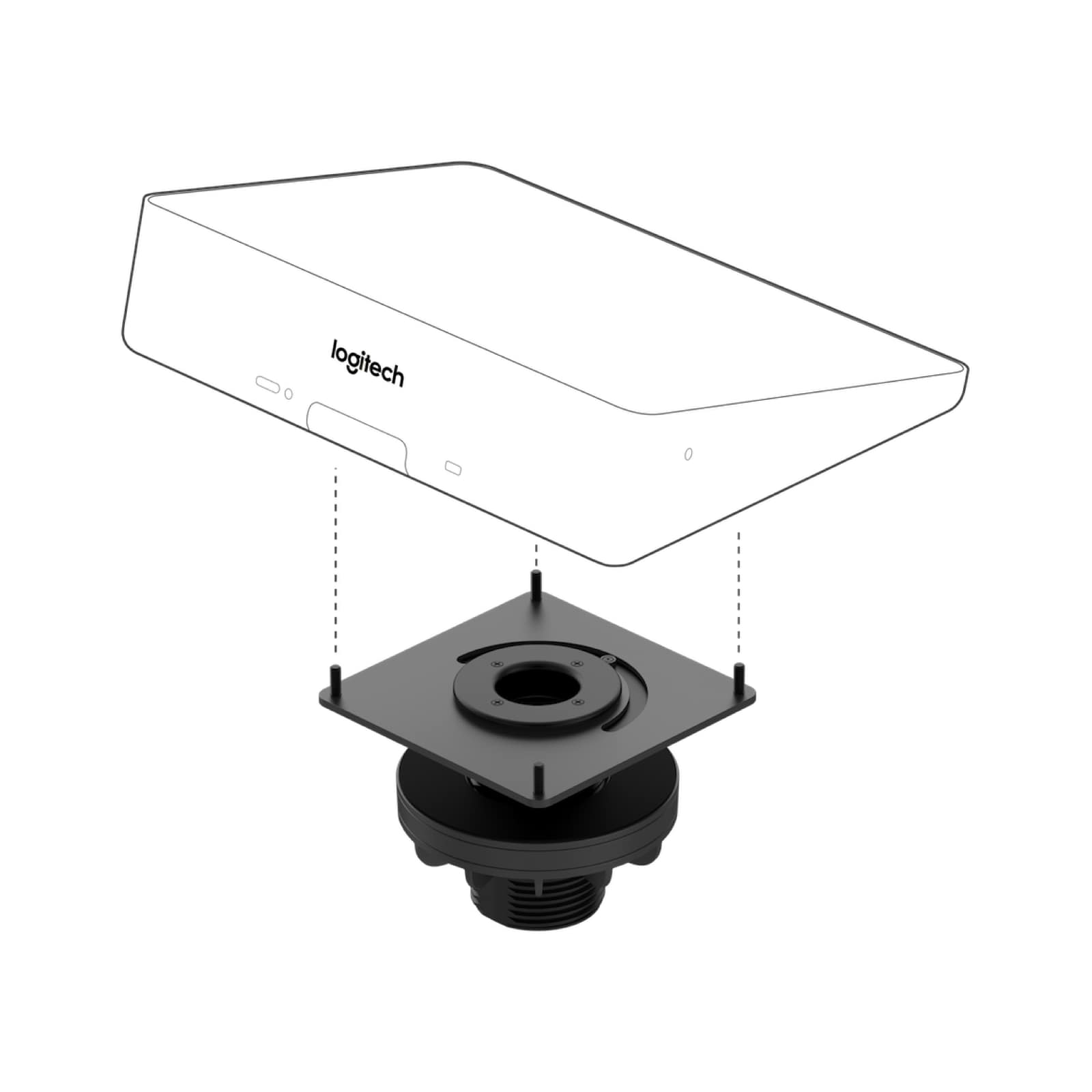

The Table Mount is designed for the Logitech touch controller family: Logitech Tap and Logitech Tap IP (Graphite or White). Both controllers share the same 100 x 100 mm VESA mounting pattern, so one mount standard covers USB-connected and network-connected rooms alike.
For larger rooms where people view the screen from further back, the Logitech Tap Riser Mount (952-000080) raises the controller to a steeper 30° angle with the same 180° swivel. For wall installations, choose the Logitech Tap Wall Mount.
Package Contents & Tap Accessories Ordering Information
In the box: Table Mount assembly, cable cinch and documentation.
Logitech Tap family at SourceIT:
| Model | Part Number |
| Logitech Tap (USB, with Cat5e connectivity) | 939-001950 |
| Logitech Tap IP — Graphite | 952-000085 |
| Logitech Tap IP — White | 952-000088 |
| Logitech Tap Table Mount (this listing) | 939-001811 |
| Logitech Tap Riser Mount | 952-000080 |
| Logitech Tap Wall Mount | 939-001817 |
| Cat5e Kit for Logitech Tap | 952-000019 |
| Logitech PoE Injector with Plug Set | 952-000074 |
Datasheet & Downloads
Frequently Asked Questions — Logitech Tap Table Mount
Does it work with Tap IP as well as the original Tap?
Yes. Logitech lists both Logitech Tap and Logitech Tap IP as compatible with the Table Mount.
Will it fit my meeting room table?
It suits table tops from 20 mm to 50 mm thick and installs through a grommet hole of 51 mm to 89 mm in diameter.
Can the controller be turned to face different seats?
Yes. The Table Mount swivels 180° while keeping Tap at its standard 14° screen angle.
What is the difference between the Table Mount and the Riser Mount?
The Table Mount is low profile and keeps the 14° screen angle. The Riser Mount (952-000080) elevates the controller to a 30° angle for better visibility in larger rooms. Both swivel 180°.
Does it come with a local warranty?
Yes. Every Logitech Tap Table Mount sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
