Logitech PoE Injector with Plug Set
PRODUCT DESCRIPTION

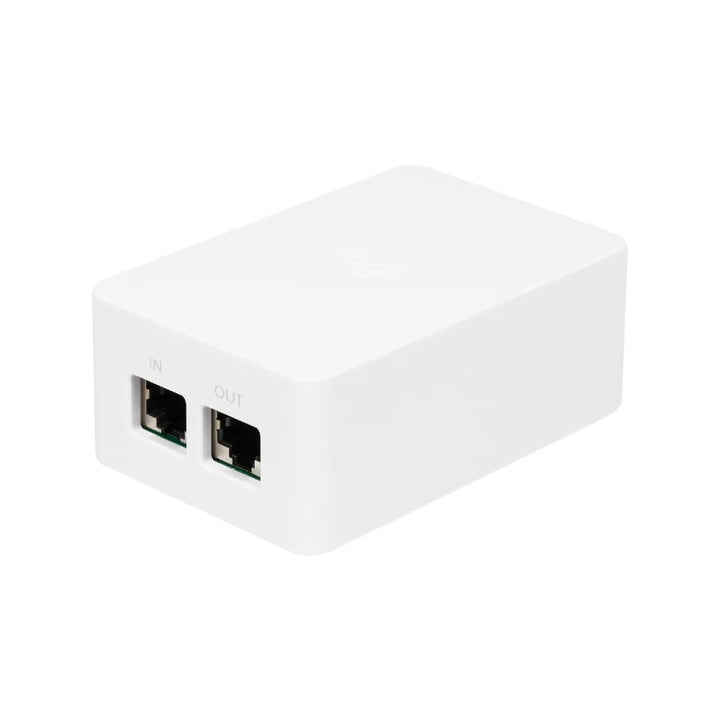

Logitech PoE Injector with Plug Set (952-000074) - 2 Years Local Warranty
Logitech PoE Injector with Plug Set — Power for Tap IP, Tap Scheduler and More
The Logitech PoE Injector with Plug Set (952-000074) supplies Power over Ethernet to Logitech meeting room devices where a PoE switch port is not available. Logitech specifies it for the Cat5e Kit for Tap, Tap IP, Tap Scheduler, Scribe and Sight, giving one genuine Logitech power accessory across the touch controllers, scheduling panels and room cameras in your estate.
Single-Cable Installs with a Plug Set for Every Region
Tap IP and Tap Scheduler are PoE Type 1, Class 3 devices that follow the IEEE 802.3af standard, so one Cat5e (UTP AWG24 or better) cable carries both power and data to the device. The included plug set lets the injector be deployed in different regions, which suits organisations standardising rooms across Singapore and overseas offices.
Logitech PoE Injector with Plug Set Datasheet — Technical Specifications
General
| Part Number | 952-000074 |
| Colour | Off-white |
| Product series | Logitech meeting room power accessories |
| Compatibility | Cat5e Kit for Logitech Tap, Logitech Tap IP, Logitech Tap Scheduler, Logitech Scribe, Logitech Sight |
| Warranty | 2 Years Local Warranty (Singapore) |
Powered Device Requirements
| Tap IP / Tap Scheduler | PoE Type 1, Class 3, IEEE 802.3af; less than 15.4 W in normal operation |
| Tap with Cat5e Kit | PoE Type 1, Class 3, IEEE 802.3af; less than 15 W in normal operation |
| Recommended cable | Category cable meeting or exceeding Cat5e UTP AWG24 |
Compatibility & Installation
Logitech specifies this injector for the Cat5e Kit for Logitech Tap, Logitech Tap IP, Logitech Tap Scheduler, Logitech Scribe and Logitech Sight.
For Tap IP and Tap Scheduler, an 802.3af PoE switch port can be used instead of an injector; when budgeting a PoE switch, allow 15.4 W per port. The Cat5e Kit for Logitech Tap is a point-to-point link and cannot be powered from a PoE switch, so an injector or the kit's own power supply is used.
Package Contents & Tap Accessories Ordering Information
In the box: PoE injector with plug set.
Logitech Tap family at SourceIT:
| Model | Part Number |
| Logitech Tap (USB, with Cat5e connectivity) | 939-001950 |
| Logitech Tap IP — Graphite | 952-000085 |
| Logitech Tap IP — White | 952-000088 |
| Logitech Tap Table Mount | 939-001811 |
| Logitech Tap Riser Mount | 952-000080 |
| Logitech Tap Wall Mount | 939-001817 |
| Cat5e Kit for Logitech Tap | 952-000019 |
| Logitech PoE Injector with Plug Set (this listing) | 952-000074 |
Datasheet & Downloads
Frequently Asked Questions — Logitech PoE Injector with Plug Set
Which Logitech devices is it for?
Logitech lists the Cat5e Kit for Tap, Tap IP, Tap Scheduler, Scribe and Sight.
Do I need it if I already have a PoE switch?
Not for Tap IP or Tap Scheduler — both work from an IEEE 802.3af PoE switch port. Budget 15.4 W per port. The Cat5e Kit for Tap cannot be powered from a switch, so an injector or the kit's own power supply is required there.
What cable should I use?
Logitech recommends category cable meeting or exceeding Cat5e UTP AWG24.
Does it come with a local warranty?
Yes. Every Logitech PoE Injector with Plug Set sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
