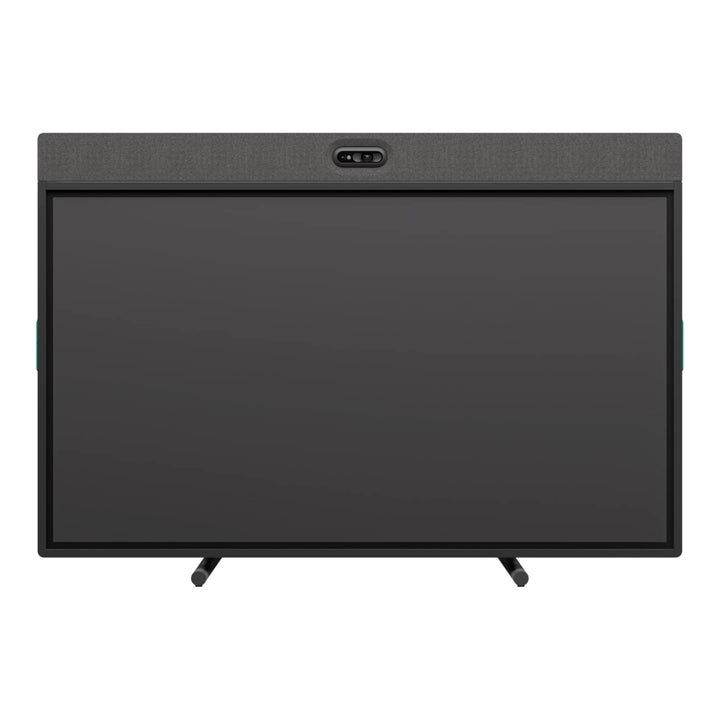

Logitech Rally Board 65 Graphite
PRODUCT DESCRIPTION
Logitech Rally Board 65 Graphite (960-001699) - 2 Years Local Warranty
All-in-One 65-Inch 4K Video Collaboration Board for Singapore Meeting Rooms

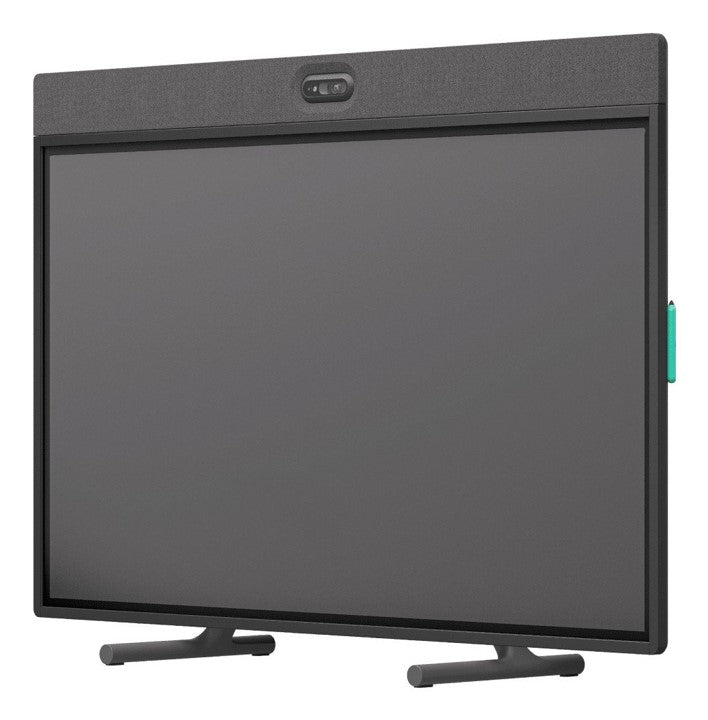

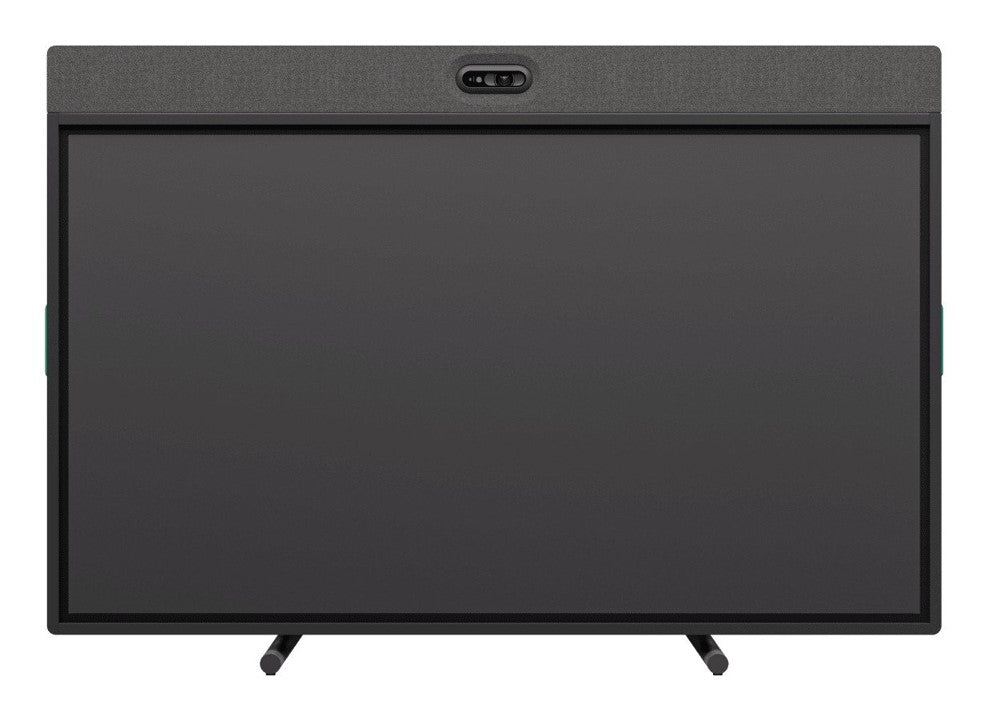

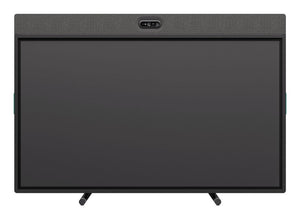

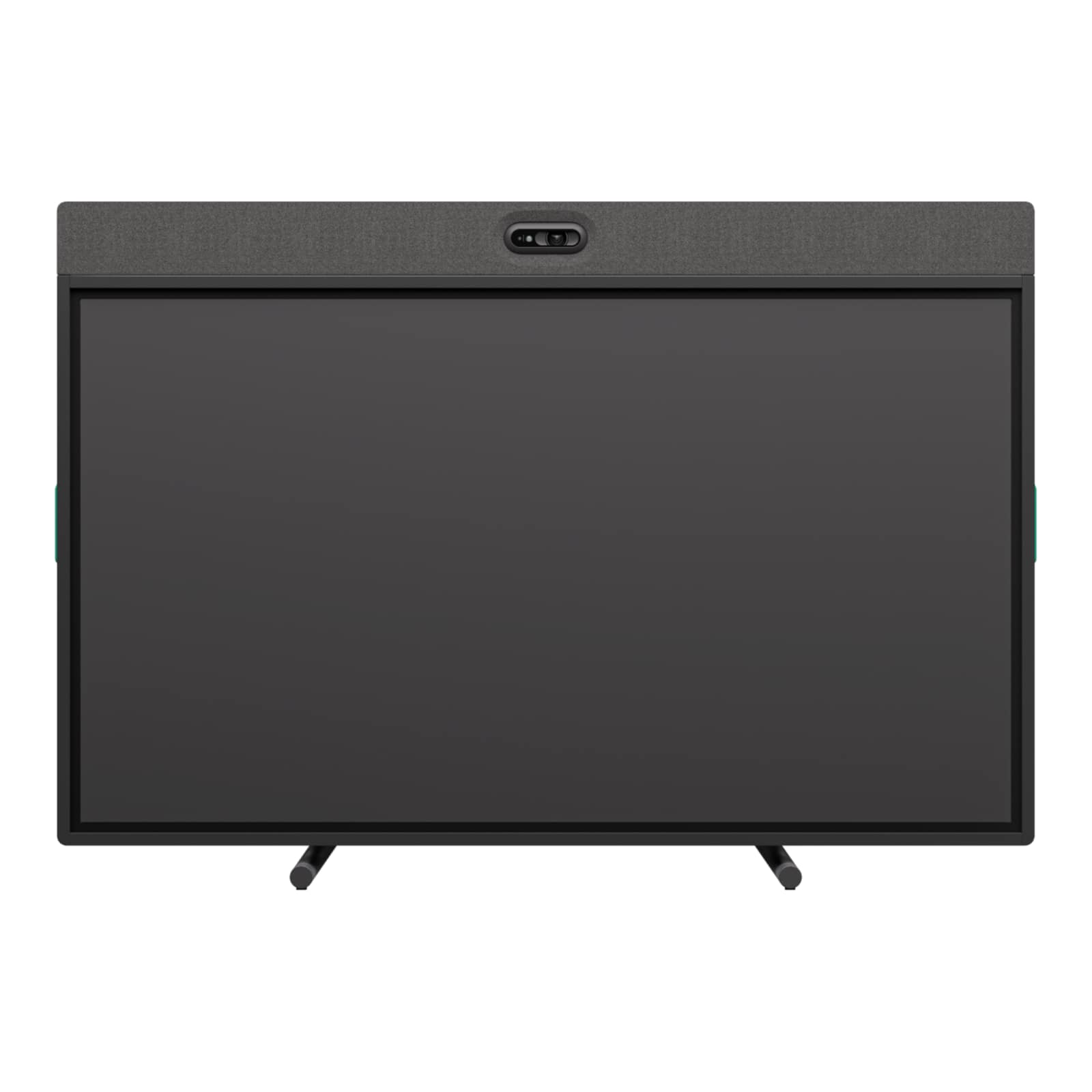

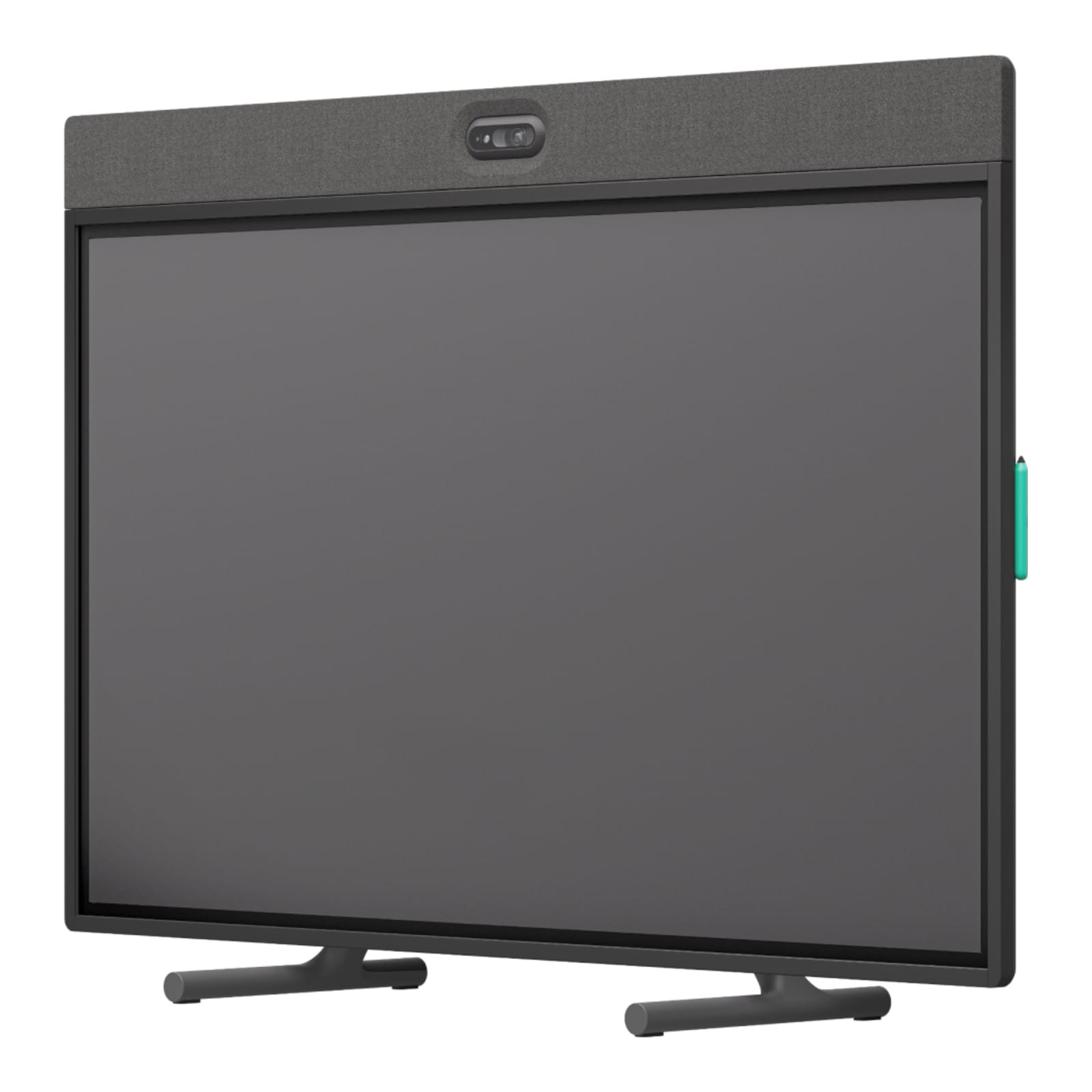

The Logitech Rally Board 65 puts a 65-inch UHD 4K touchscreen, a 20.3 MP camera, a four-driver speaker system and a beamforming microphone array into a single device. There is no separate codec, no external camera bar and no rack of components to specify — one unit handles video, audio, content and touch annotation for the room. For Singapore offices working with tight floor plates and short fit-out windows, that means far less cabling, a much faster install and one part number to support.
20.3 MP 1-Inch Sensor Camera with RightSight 2 Auto-Framing and Depth Blur
A 1-inch, 20.3 MP sensor captures 4K at 30 fps across a 115.7° diagonal field of view, wide enough to take in a full table without anyone leaning into frame. RightSight 2 automatically frames the people in the room, while a second depth-mapping camera with a 145° field of view drives Depth Blur to separate presenters from the background. Zoom is 4x HD digital — Logitech does not specify an optical zoom on this model, and neither will we. When the board is idle the camera rotates to a physical privacy position.
RightSound 2 Audio with AI Beam Selection and 7 m Pickup
Two 70 mm full-range ported drivers and two 31 mm tweeters, each rated 8 W, cover 90 Hz to 16 kHz — enough headroom to fill a medium room without the thin, boxy sound of a display speaker. Front and rear microphone arrays with AI Beam Selection track the active talker up to 7 m away, and RightSound 2 AI Speech Enhancement strips out both transient noise such as keyboard clatter and stationary noise such as air-conditioning, alongside acoustic echo cancellation.
Three Deployment Modes: Appliance, PC or Single-Cable BYOD
Rally Board 65 runs Logitech CollabOS as a certified Zoom Rooms Appliance or Microsoft Teams Rooms on Android device for a permanently signed-in room. Prefer to bring your own laptop? A single USB-C cable with DisplayPort Alt Mode carries video, audio and touch-back in BYOD mode, with no room licence required, so visiting vendors and staff on any platform can just plug in. A VESA 100 PC mount is included if you would rather attach your own room computer. Built-in occupancy, temperature and air-quality sensors feed room analytics back through Logitech Sync.
Logitech Rally Board 65 Datasheet — Technical Specifications
General
| Product | Logitech Rally Board 65 all-in-one video collaboration board |
| Display | 65-inch LCD, UHD 4K 3840 x 2160, 16:9 |
| Touch | Infrared touch, 20 touch points |
| Brightness | 400 nits typical |
| Contrast ratio | 5000:1 typical |
| Screen treatment | Anti-glare and anti-fingerprint coatings |
| Deployment modes | Android (appliance) mode, PC mode, or BYOD single-cable mode |
| Operating system | Logitech CollabOS |
| Environmental sensing | Room occupancy, temperature and air quality sensors; radar-based low-power mode |
| Part number | 960-001699 (Singapore / Asia-Pacific SKU) |
| Warranty | 2 Years Local Warranty (Singapore) |
Camera
| Image sensor | 1-inch sensor, 20.3 MP |
| Secondary camera | Depth-mapping camera, 145° diagonal field of view |
| Video resolutions | 4K, 1440p, 1080p, 900p, 720p and SD, all at 30 fps |
| Zoom | 4x HD digital zoom (Logitech does not specify any optical zoom) |
| Field of view | 115.7° diagonal (DFOV) / 103.3° horizontal (HFOV) / 60.7° vertical (VFOV) |
| Pan | No mechanical pan |
| Tilt | Automatic motorised tilt based on device orientation; not user-controlled. Camera rotates to a privacy position when idle. |
| AI framing | RightSight 2 auto-framing, Depth Blur |
Audio
| Speakers | Two full-range ported drivers, 2 x 70 mm, 8 W rated |
| Tweeters | Two high-frequency drivers, 2 x 31 mm, 8 W rated |
| Frequency response | 90 Hz – 16 kHz |
| Microphones | Front microphone array plus rear microphone array |
| Beamforming | Beamforming with AI Beam Selection |
| Microphone pickup range | Up to 7 m (23 ft) |
| AI audio processing | RightSound 2 with AI Speech Enhancement (transient and stationary noise removal) and acoustic echo cancellation |
Connectivity
| HDMI in | 1 x HDMI in, up to 4K60 |
| HDMI out | 1 x HDMI out, up to 4K60 |
| USB Type-A | 3 x USB 3.1 Type-A |
| USB Type-C | 1 x USB Type-C 3.1 with DisplayPort Alt Mode for single-cable BYOD |
| Audio out | 3.5 mm line-level audio out |
| Ethernet | 10/100/1000 Mbps RJ45 |
| Wi-Fi | 802.11a/b/g/n/ac/ax |
| Bluetooth | Bluetooth Low Energy |
Design & Power
| Dimensions (device only) | 1500 x 989 x 76 mm (59 x 39 x 3.0 in) |
| Weight (device only) | 46 kg (101 lb) |

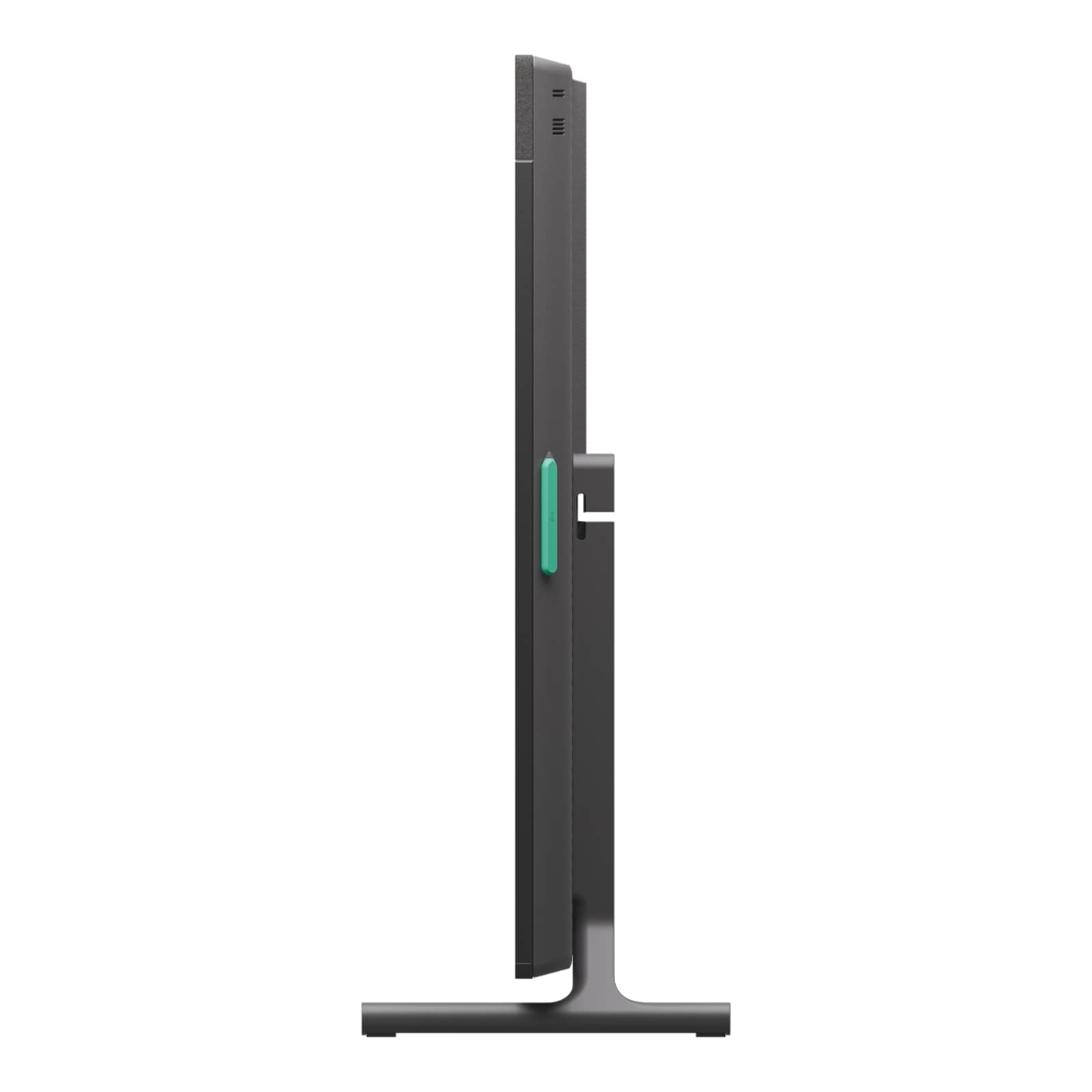

| Dimensions (with table stand) | 1500 x 1051 x 395 mm (59 x 41.4 x 15.6 in) |
| Weight (with table stand) | 50 kg (110 lb) |

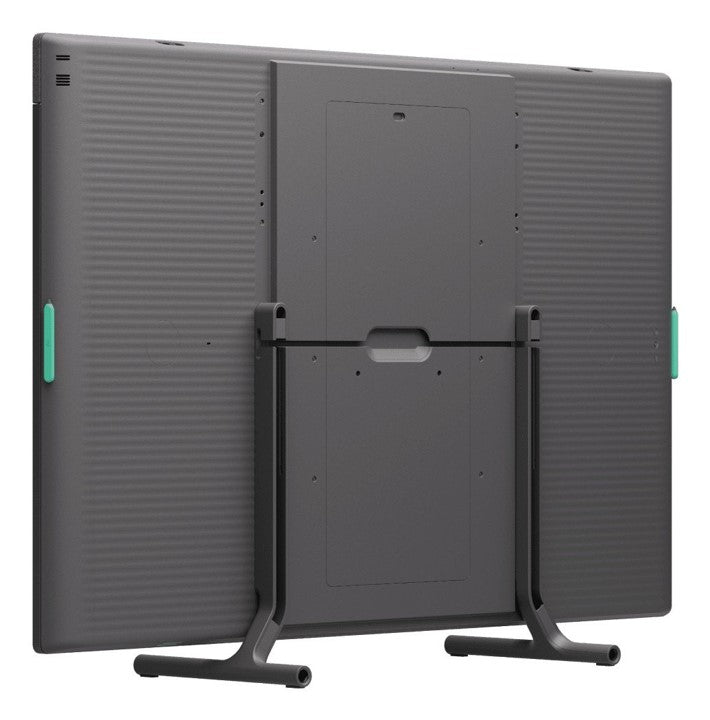

| Mounting | Cart (camera above), table stand (camera below) or wall mount (camera below). VESA 100 PC mount included. |
| Power | Built-in auto-sensing 100–240 V supply with 3 m (9.8 ft) AC cable |
| Recycled plastic | Up to 41% post-consumer recycled plastic (Graphite) |
Compatibility & Software Support
Logitech Rally Board 65 runs Logitech CollabOS and is managed remotely through Logitech Sync for firmware updates, device health, room insights and remote troubleshooting.
| Zoom Rooms Appliance | Certified |
| Microsoft Teams Rooms on Android | Certified |
| Zoom Rooms (Windows & Mac) | Listed by Logitech as coming soon |
| Microsoft Teams Rooms on Windows | Listed by Logitech as coming soon |
| Google Meet | Not certified. Google Meet can be used in BYOD / USB mode. |
| BYOD mode | Single USB-C cable to a laptop; works with any soft codec, no room licence required |
| Device management | Logitech Sync |
Certification status above is taken from Logitech’s own CollabOS platform certification matrix. Certification programmes change over time — check the current matrix here before specifying a deployment.
Package Contents & Rally Board 65 Ordering Information
In the box

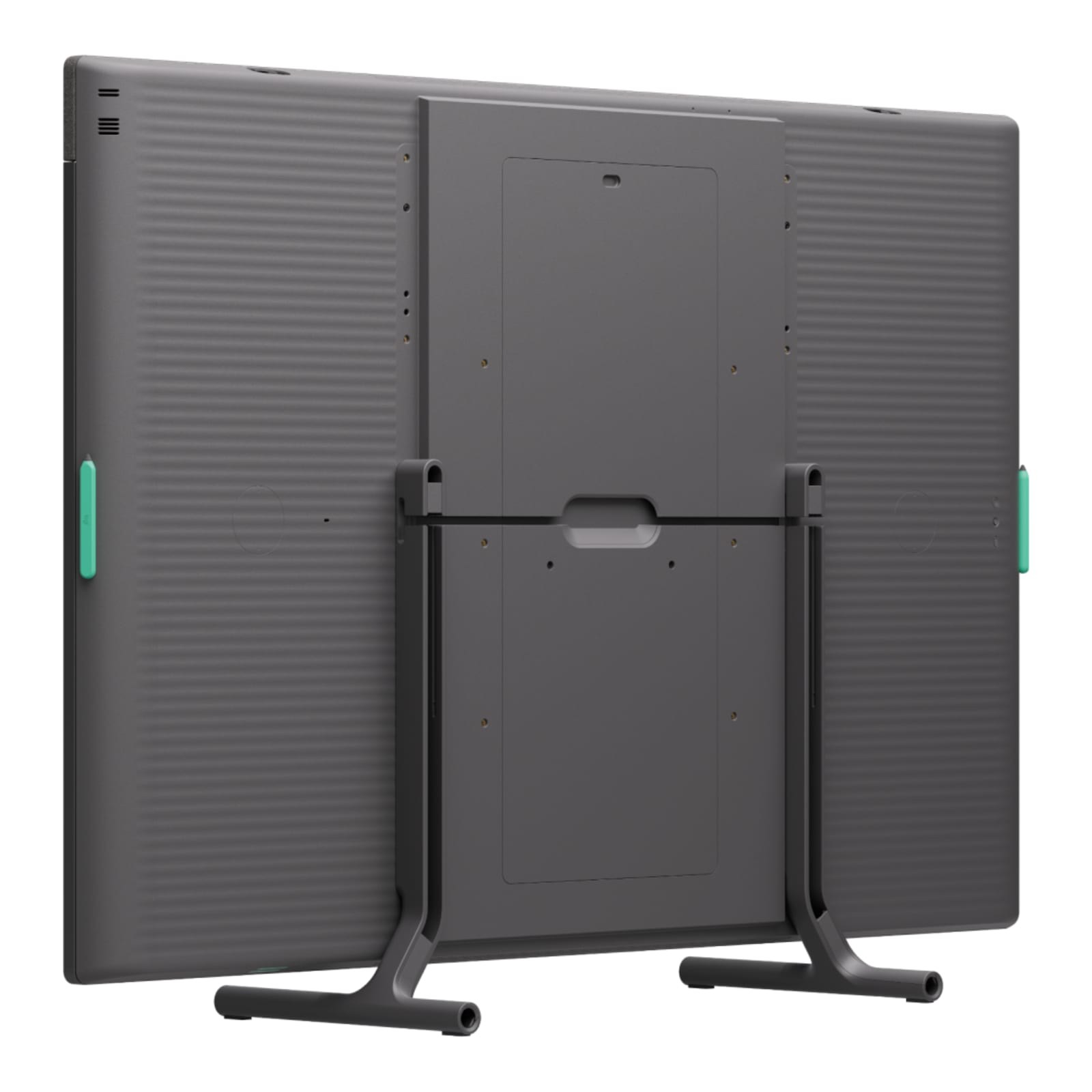

Rally Board 65 main device, two tabletop legs, power cord, two styluses, VESA 100 PC mount, cable hook, assembly hardware and tools, and documentation.
Rally Board 65 ordering information
| Rally Board 65 Graphite — 960-001699 (this listing) | View listing |
| Rally Board 65 Off-White — 960-001731 | View listing |

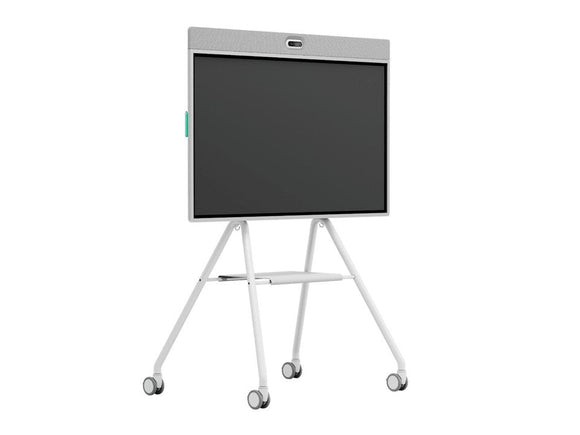

| Rally Board 65 Cart, Off-White — 952-000251 | View listing |
Regional part numbers
Logitech publishes different part numbers for the same Rally Board 65 by region. The Singapore / Asia-Pacific part numbers stocked by SourceIT are 960-001699 (Graphite) and 960-001731 (Off-White). Logitech’s global datasheets often quote the Americas part numbers 960-001697 and 960-001729 for the same hardware — the specifications are identical; only the regional SKU and power cord differ.
Factory bundles
Logitech also publishes factory bundle part numbers 991-000561 (Rally Board 65 Graphite with Off-White cart) and 991-000562 (Rally Board 65 Off-White with Off-White cart). Contact SourceIT if you would prefer to order a bundled part number rather than board and cart separately.
Datasheet & Downloads
Frequently Asked Questions — Logitech Rally Board 65
What is the difference between the Graphite and Off-White Rally Board 65?
Only the finish and the part number. The Graphite unit is 960-001699 and the Off-White unit is 960-001731; the display, camera, audio, connectivity and software are identical. The one published difference is recycled plastic content — Logitech states up to 41% post-consumer recycled plastic for Graphite and 27% for Off-White. You can view the Off-White Rally Board 65 here.
What room size is the Rally Board 65 suitable for?
Logitech does not publish a seat count or room-size rating for Rally Board 65, so we will not invent one. What the datasheet does confirm is a 7 m microphone pickup range and a 115.7° diagonal camera field of view, which in practice suits huddle rooms through to medium meeting rooms and classrooms. Talk to SourceIT with your room dimensions and we will size it against the measured specs rather than a marketing number.
Do I need a separate room PC, compute appliance or licence?
Not for BYOD use — a single USB-C cable from a laptop drives the camera, audio and touch, and no room licence is needed. For a permanently signed-in room you run it in appliance mode with a Microsoft Teams Rooms on Android or Zoom Rooms Appliance licence, which is bought from Microsoft or Zoom, not from the hardware. PC mode is also supported using the included VESA 100 PC mount if you want to attach your own room computer.
Is the Rally Board 65 certified for Google Meet?
No. Logitech’s certification matrix lists Rally Board 65 as certified for Zoom Rooms Appliance and Microsoft Teams Rooms on Android only. Google Meet can still be used through BYOD / USB mode, which is platform-agnostic, but there is no Google Meet appliance certification. We would rather tell you that up front than have it fail an IT review.
Does it have optical zoom or a motorised PTZ camera?
No. The camera uses 4x HD digital zoom, and there is no mechanical pan. Tilt is motorised but it is driven automatically by device orientation and is not user-controllable. If you need true motorised optical PTZ, look at the Logitech Rally Camera or a Rally Bar instead.
How should I mount it, and do I need the cart?
Rally Board 65 supports three mounting options: the included tabletop legs, a wall mount, or the Rally Board 65 Cart (952-000251) for a mobile deployment. Wall and cart mounting place the camera below the screen; the cart can also be configured camera-high. The board alone weighs 46 kg, so wall mounting needs a structurally sound wall — SourceIT can arrange a site survey and installation in Singapore.
How does the Rally Board 65 compare with a Rally Bar plus a separate display?
A Rally Bar is a video bar that you pair with your own display and it gives you motorised optical PTZ. Rally Board 65 combines a 65-inch 4K touchscreen, camera, speakers and microphones in one unit with digital whiteboarding and touch annotation, so it is the better fit where you want a single interactive surface rather than a camera bar under a TV.
Does the Rally Board 65 come with a Singapore warranty?
Yes. Every Rally Board 65 sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
