Ergotron CareFit™ Combo Arm with Worksurface Snow
PRODUCT DESCRIPTION
Ergotron CareFit Combo Arm with Worksurface (45-622-251) - 5 Years Local Warranty

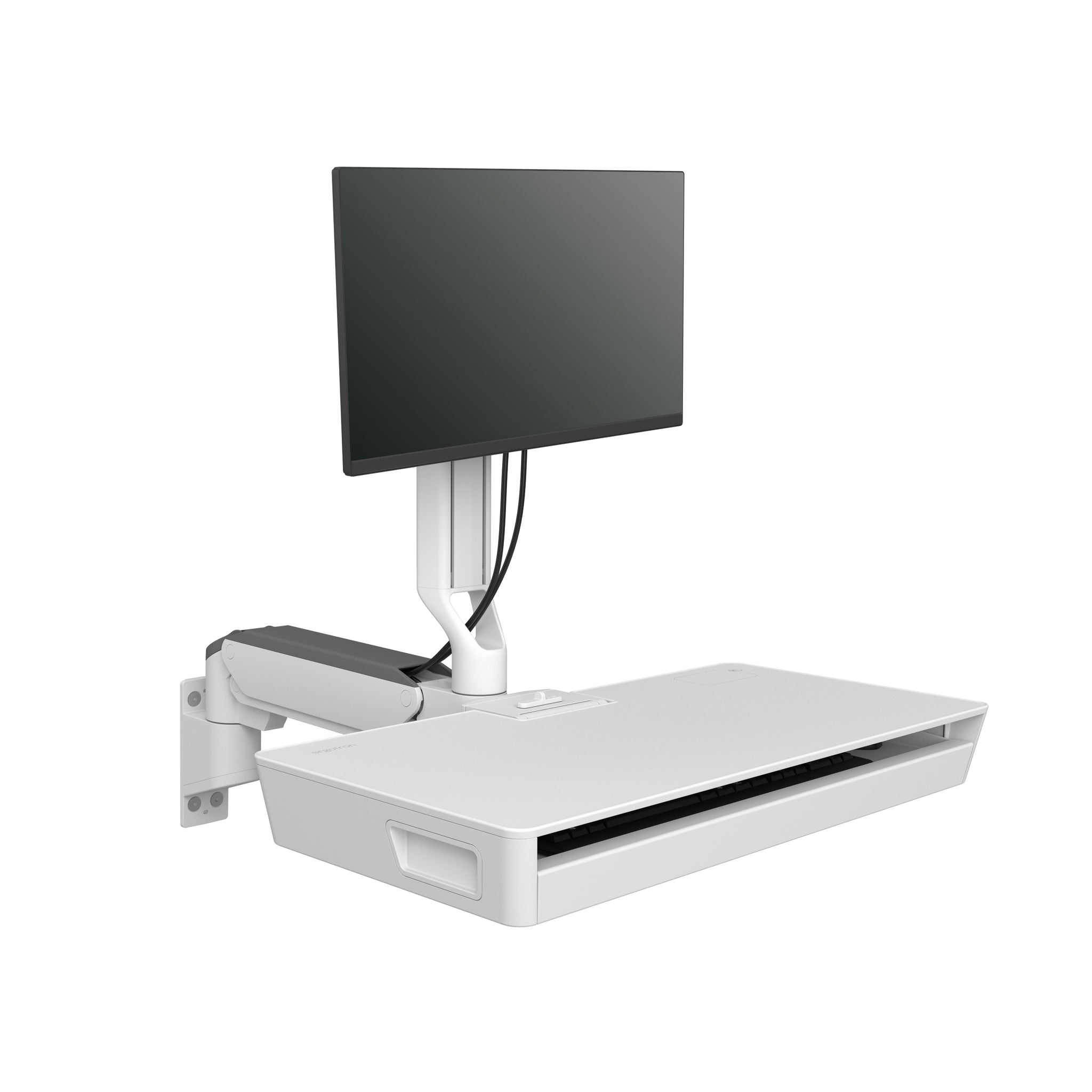

Ergotron CareFit Combo Arm with Worksurface — Complete Bedside Documentation Station
The CareFit Combo Arm with Worksurface adds a writing surface to Ergotron's clinical wall arm, so a caregiver can position a 27″ display, type, and still have somewhere to put a chart, a tablet or a specimen tray. With 20″ (51 cm) of lift and reach of up to 57.8″ (146 cm), the whole station comes to the patient.

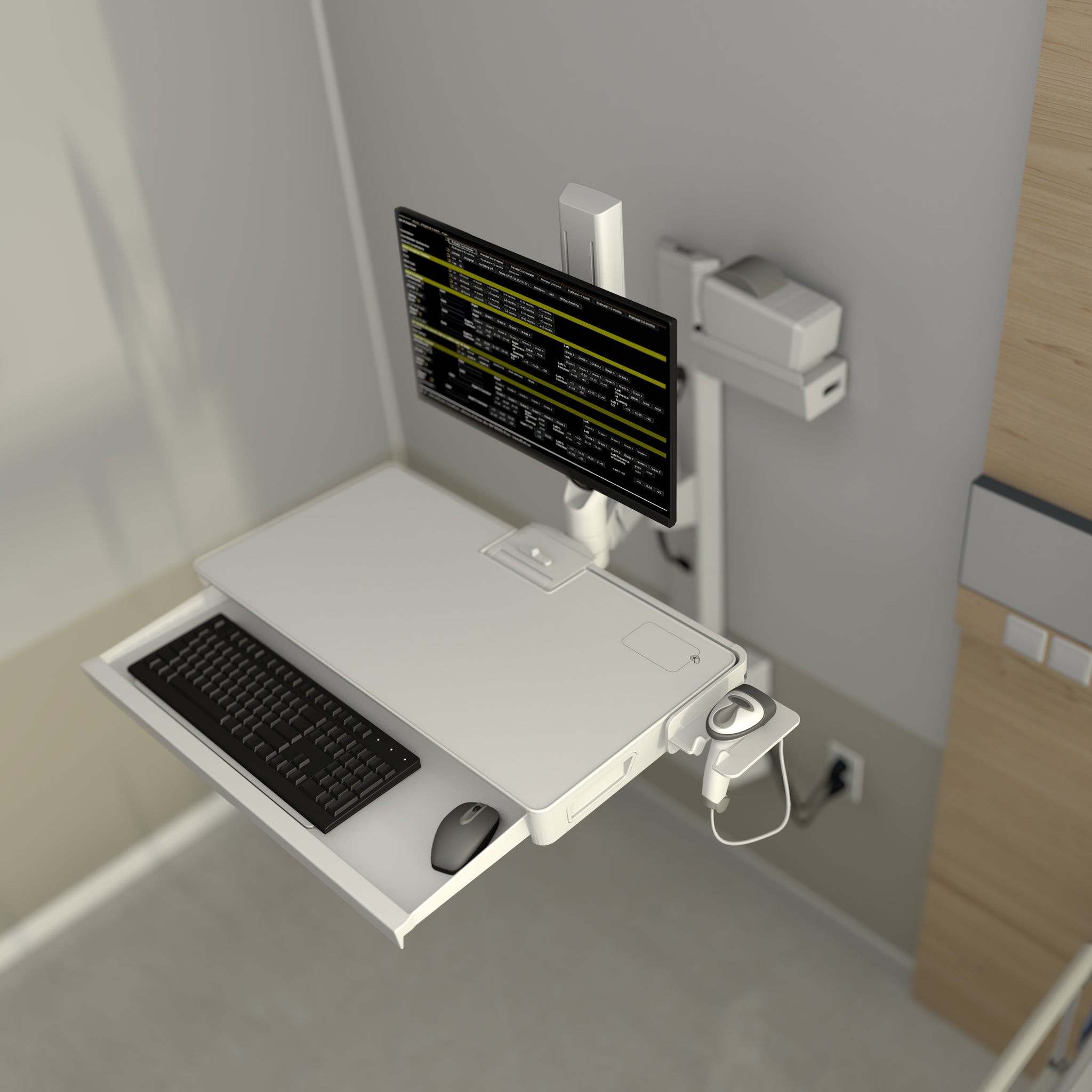

The Worksurface Clinicians Actually Ask For

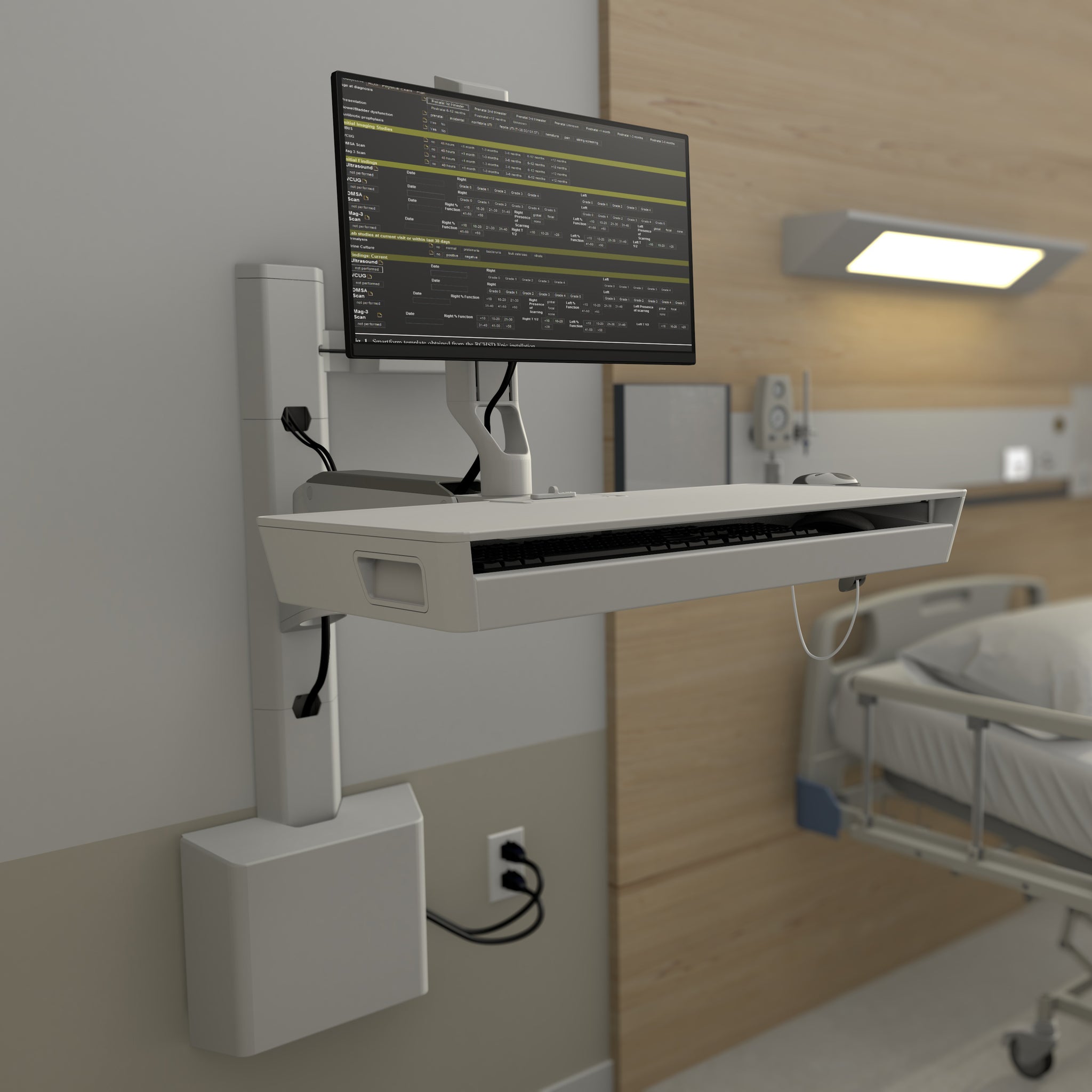

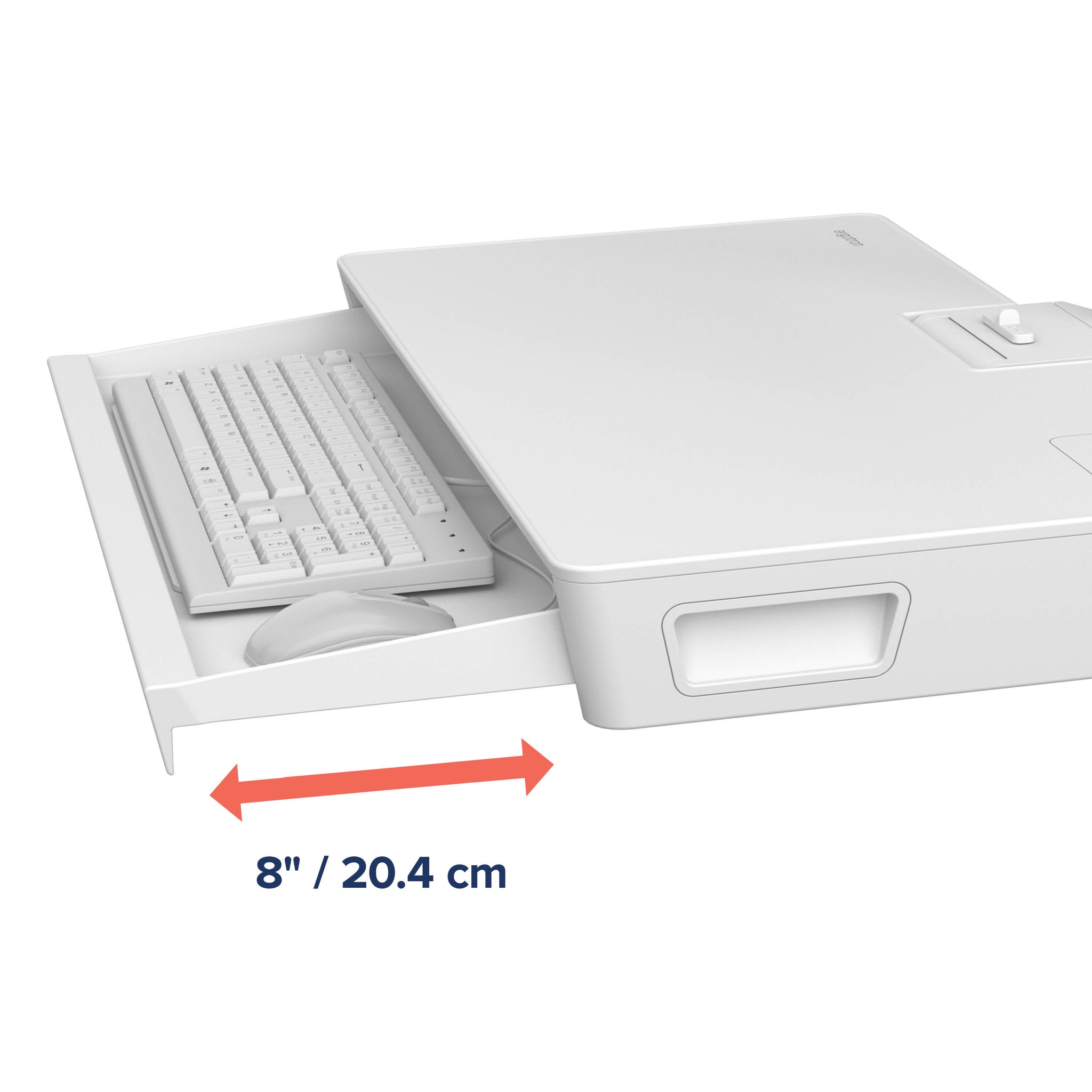

Wall-mounted screens are easy to specify; somewhere to put the paperwork is what gets forgotten. The integrated worksurface turns the arm from a screen mount into a genuine documentation position, which is why it is the configuration most often chosen for patient rooms and treatment bays in Singapore hospitals and day surgeries.
27″ Display Support at 8–22 lbs
Ergotron rates the CareFit Combo for a typical 27″ display weighing 8–22 lbs (3.6–10 kg) on a VESA MIS-D pattern (100 x 100 mm or 75 x 75 mm). That covers the 24″–27″ clinical panels most sites have standardised on, without an adapter plate.

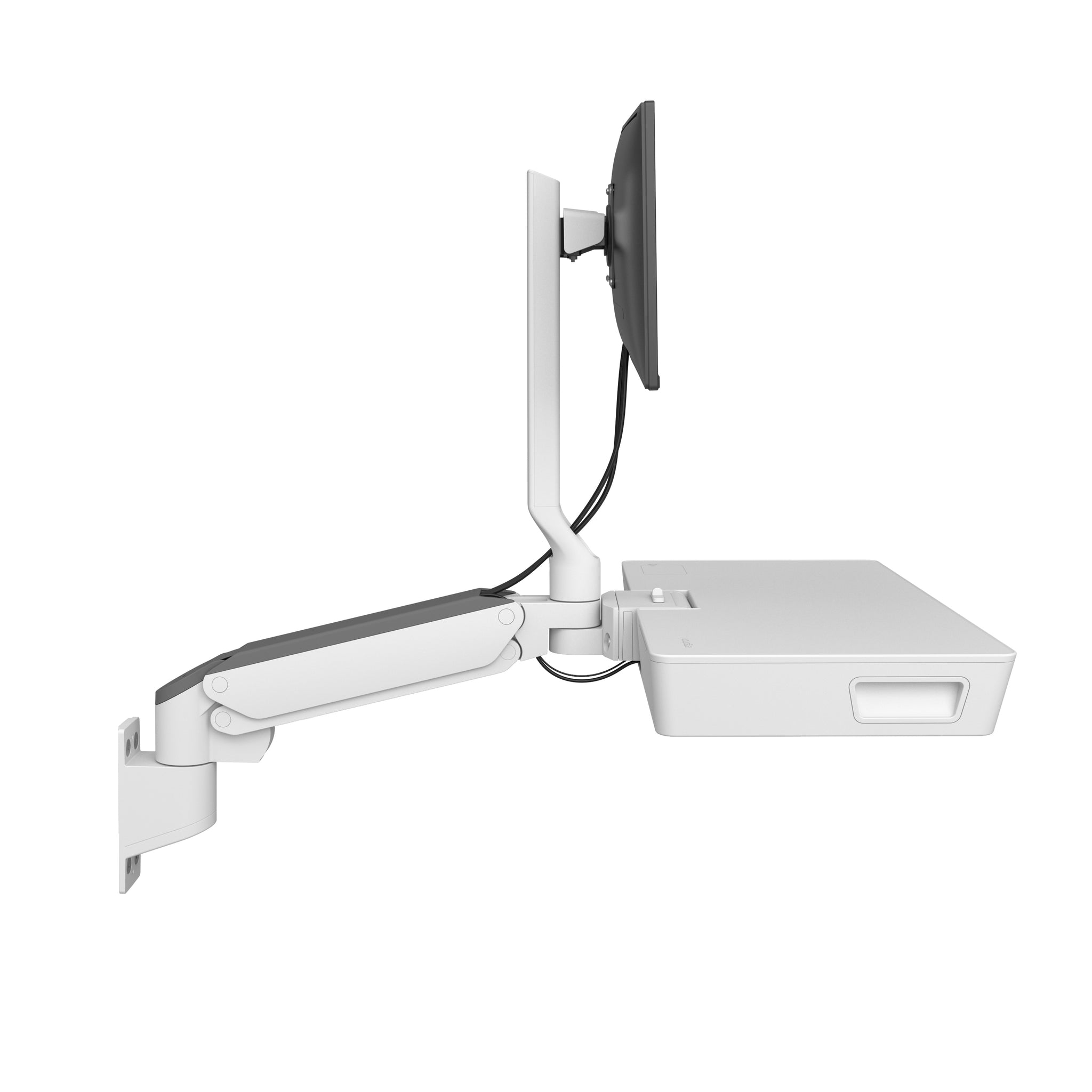

Folds Away to 10″–13″ from the Wall

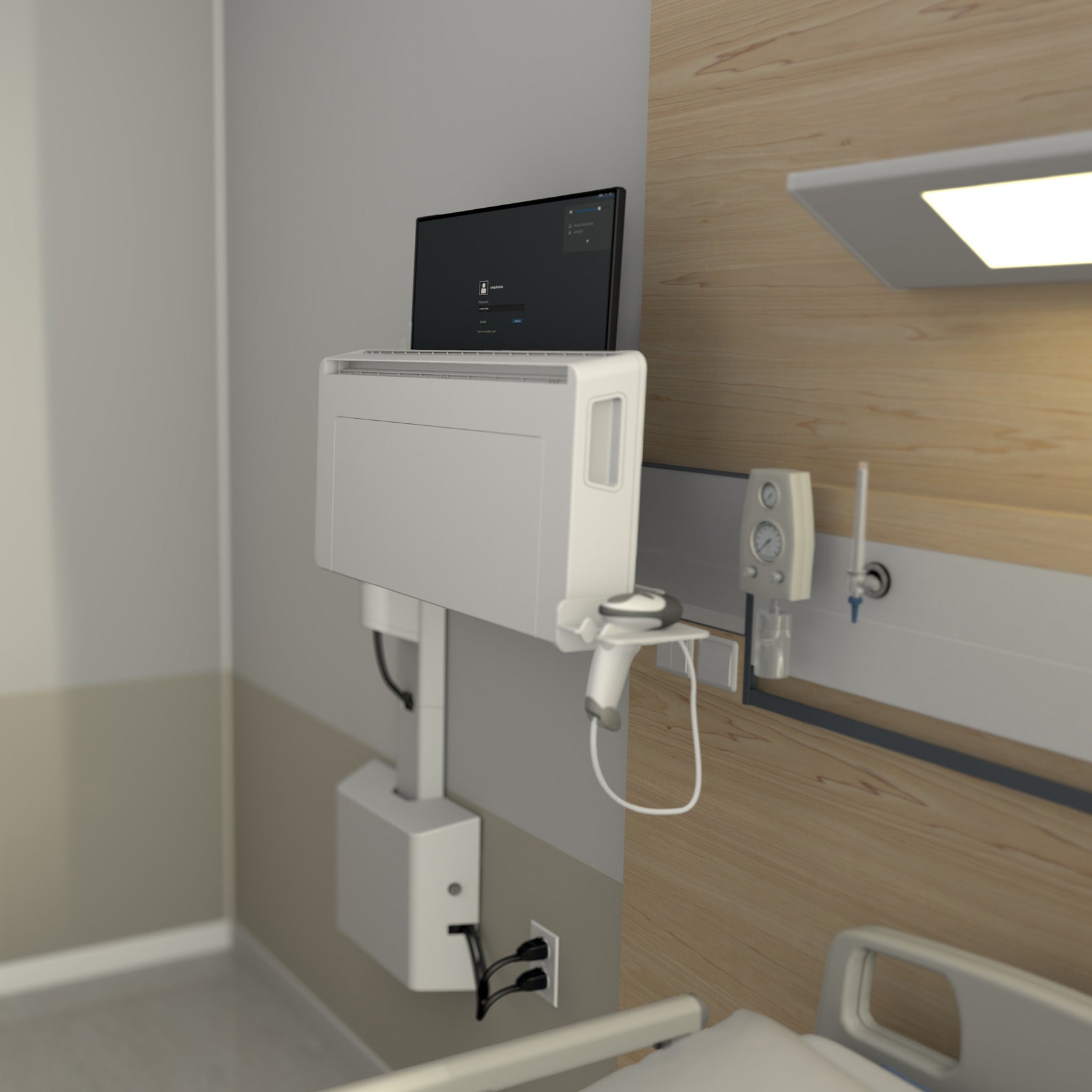

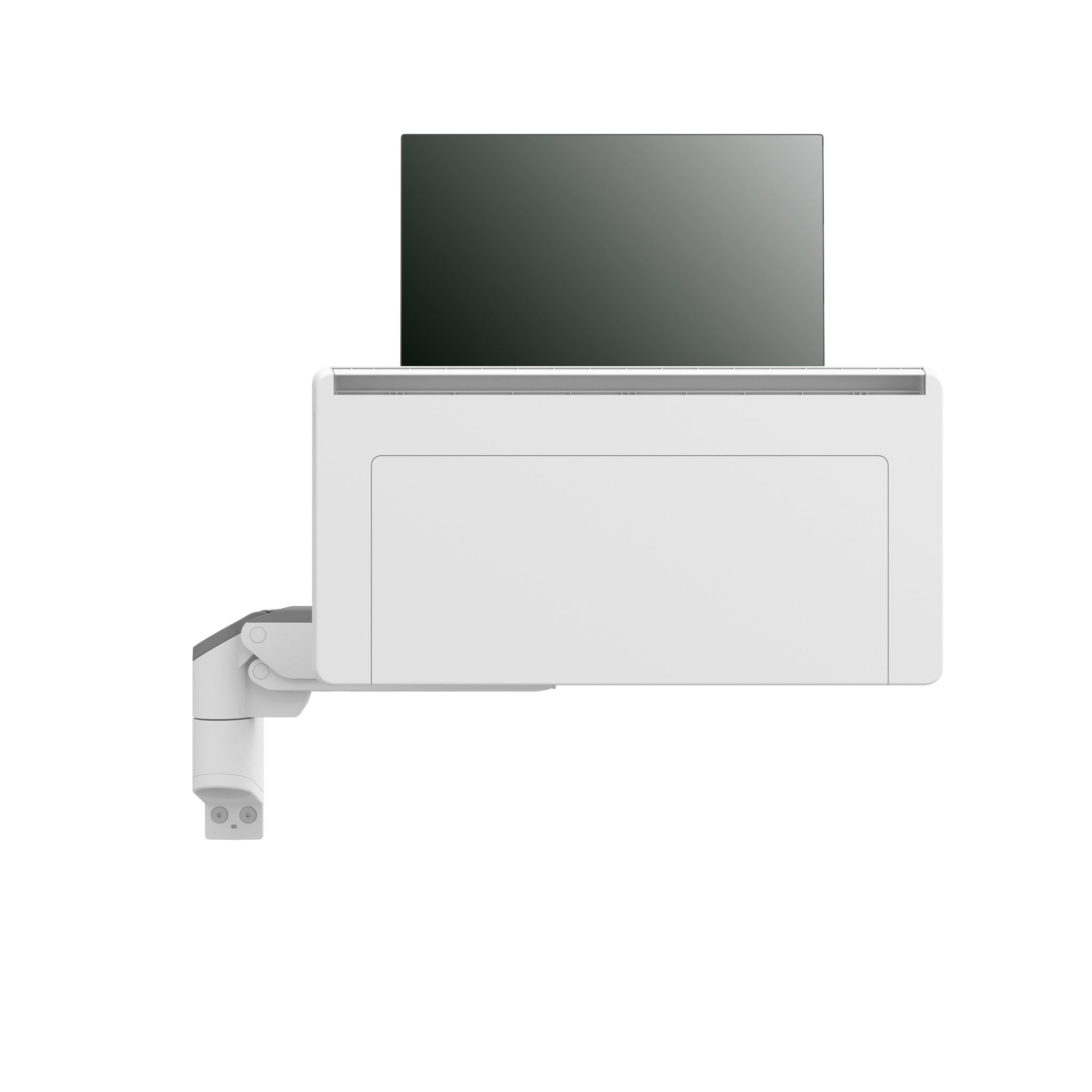

When the shift moves on, the arm and worksurface fold back to 10″–13″ (25.5–33 cm) from the wall. Nothing stands on the floor, so cleaning is unobstructed and the room stays usable for clinical work that has nothing to do with the computer.
Snow White, Cable-Managed and Warranted for 5 Years
The snow white finish and integrated cable routing keep the installation wipe-clean end to end. Ergotron backs the CareFit Combo with a 5-year manufacturer warranty; SourceIT supplies it with local Singapore warranty support and a GST invoice.
Ergotron CareFit Combo Arm with Worksurface Datasheet — Technical Specifications
General
| Product Name | Ergotron CareFit Combo Arm with Worksurface |
| Part Number | 45-622-251 |
| Series | CareFit Combo |
| Finish | Snow white |
| Mounting Type | Wall mount on CareFit 34″ wall track (31-018-216) |
| Construction | Wall-mounted arm assembly with integrated cable management |

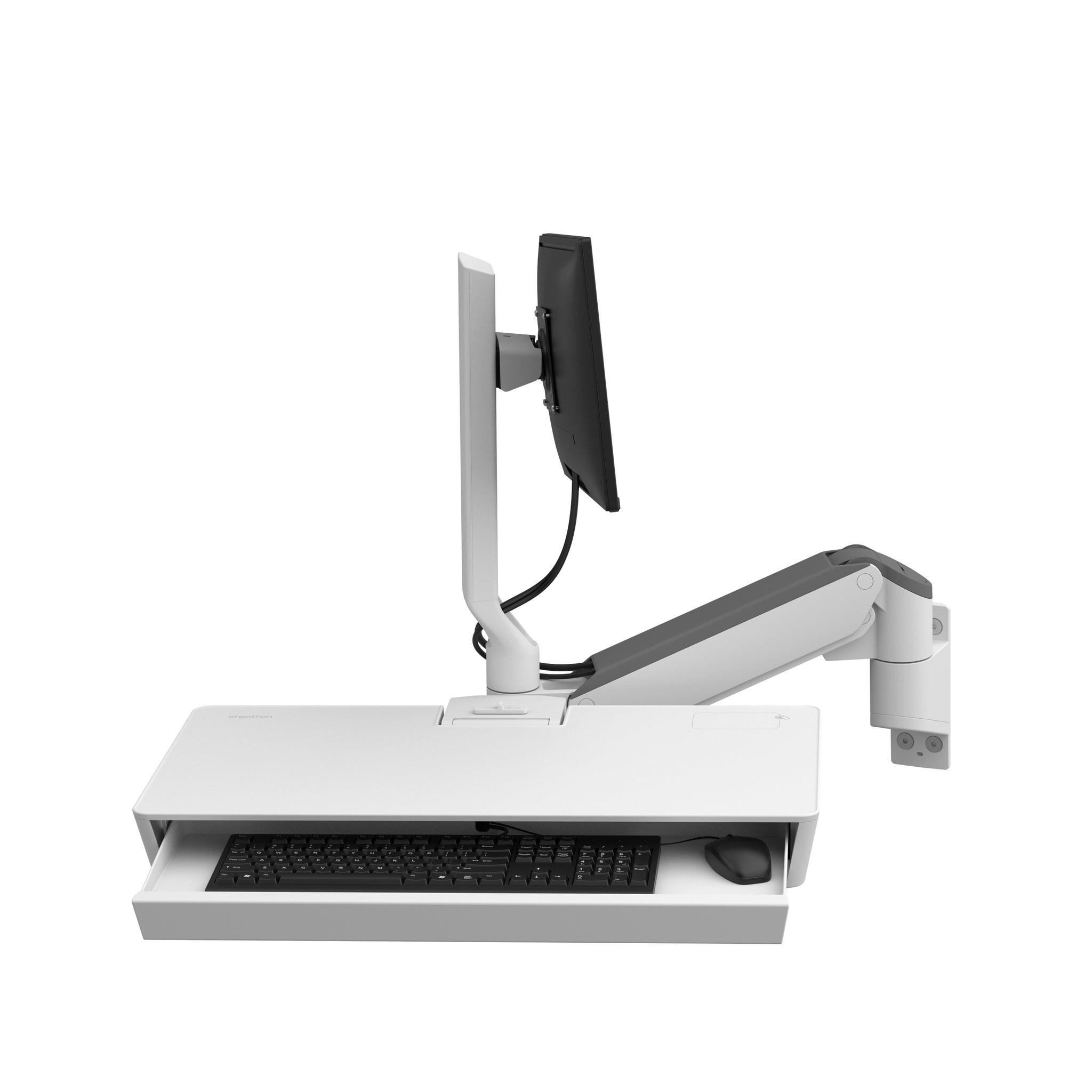

| Configuration | Monitor mount, keyboard and mouse platform and integrated worksurface (no CPU holder) |
| Manufacturer Warranty | 5-Year Manufacturer Warranty (Ergotron) |
| Local Warranty (Singapore) | Local Warranty (Singapore) |
Display Compatibility
| Typical LCD Size | ≤ 27″ |
| VESA Pattern | VESA MIS-D (100 x 100 mm and 75 x 75 mm) |
| Display Weight Capacity | 8–22 lbs (3.6–10 kg) |
| Number of Screens | 1 (dual displays via Ergotron CareFit Combo Dual Monitor Kit 98-650-251) |

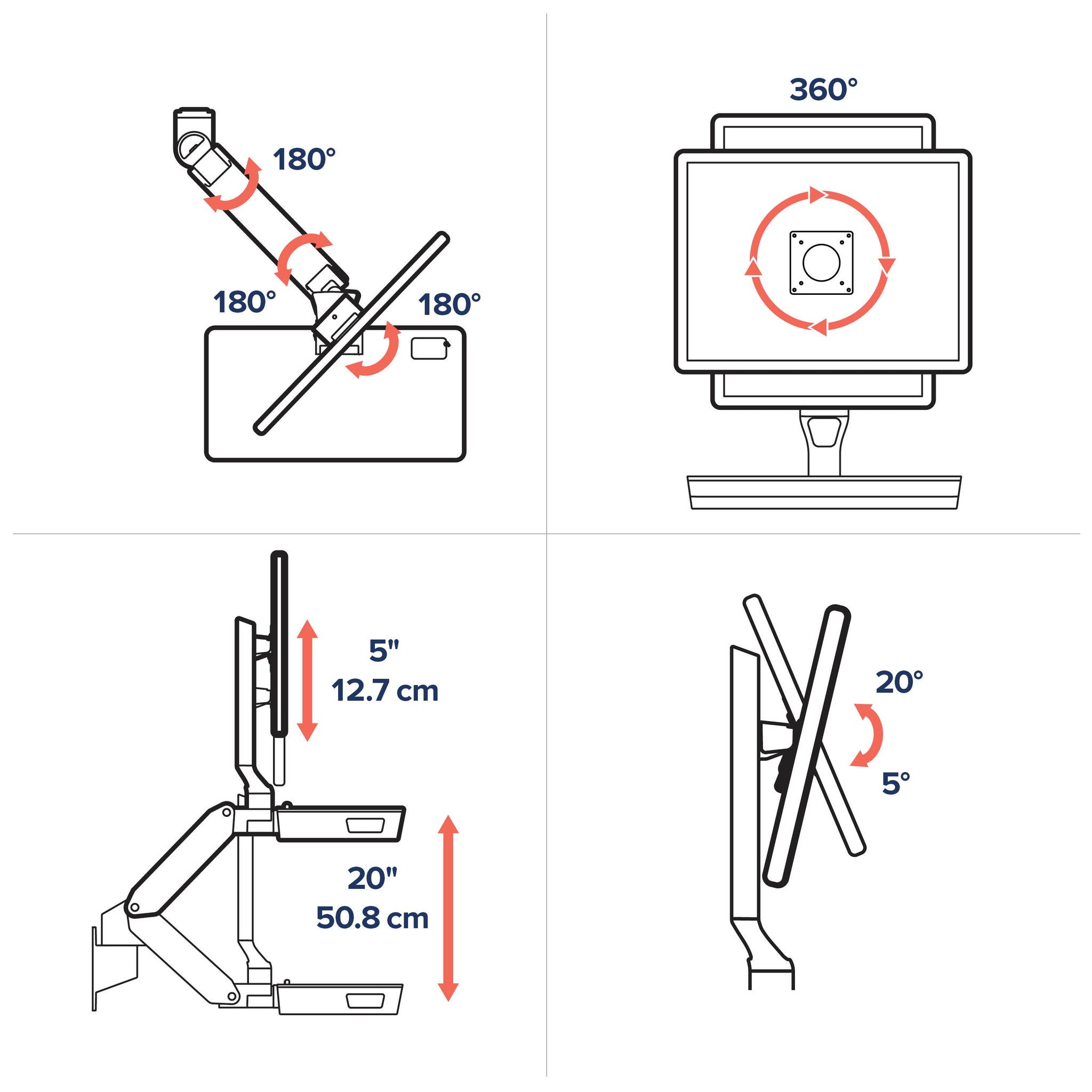

Adjustment & Motion
| Vertical Lift | 20″ (51 cm) |
| Pan | 180° |
| Rotation | 180° |
| Extension / Reach from Wall | Up to 57.8″ (146 cm) |
| Reach with CareFit Combo Extender | Up to 65.3″ (165.7 cm) with 98-547-251 (adds 18.5″ / 47.1 cm) |
| Folded Depth | 10″–13″ (25.5–33 cm) |
Design & Durability
| Wall Track | 34″ CareFit wall track (31-018-216) |
| Product Weight | 38.9–47.3 lbs (17.6–21.5 kg) across CareFit Combo configurations |
| Folded Depth | 10″–13″ (25.5–33 cm) |

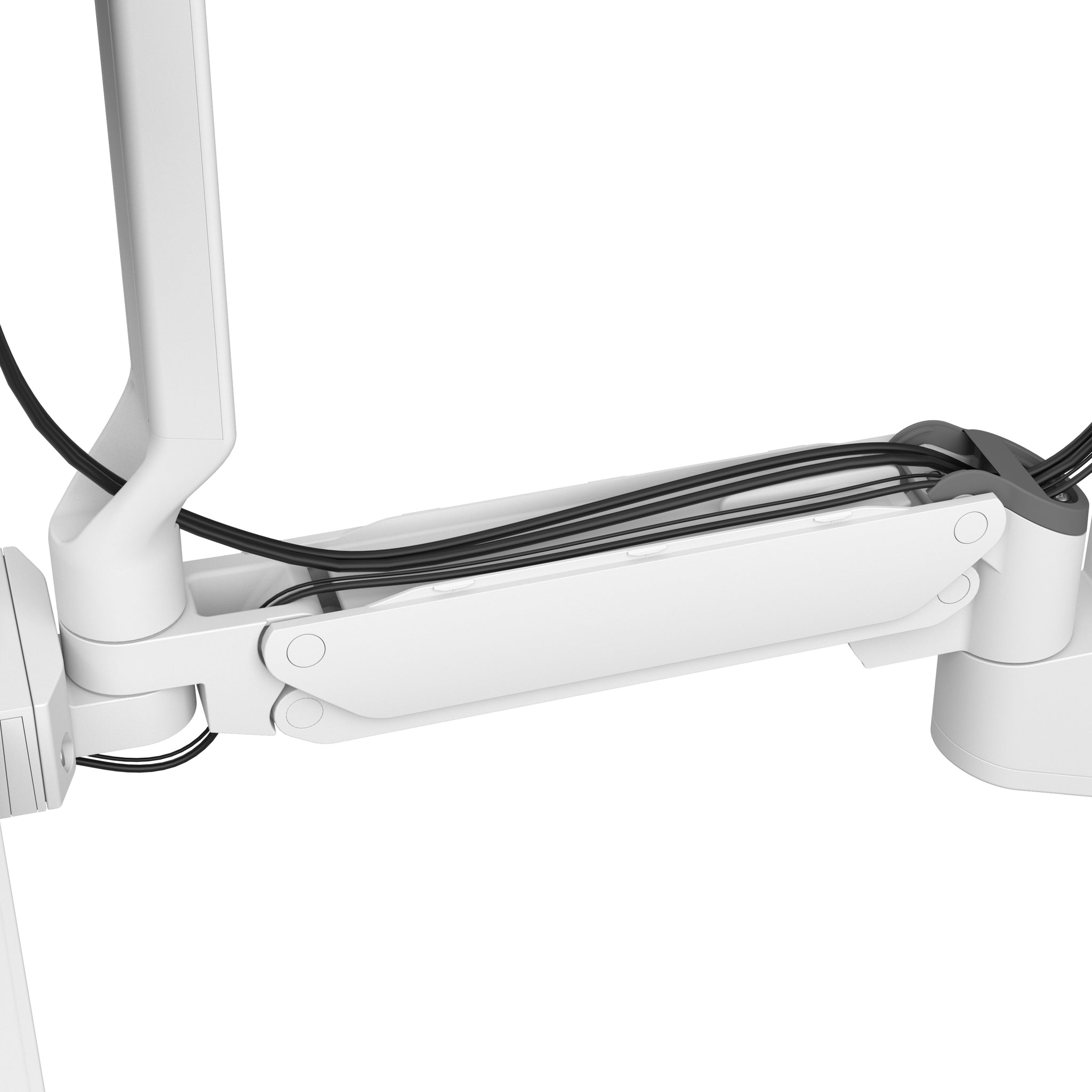

| Cable Management | Integrated cable routing through the arm and wall track |
| Available Accessories | CareFit Combo Extender (98-547-251), Short Extender (98-648-251), CPU Tray (98-548-251), CPU Wall Cabinet (98-543-251), Dual Monitor Kit (98-650-251) |
Compatibility & Fit
The CareFit Combo Arm with Worksurface carries a single display up to a typical 27″ weighing 8–22 lbs (3.6–10 kg). Displays attach through a VESA MIS-D pattern — 100 x 100 mm or 75 x 75 mm — which covers virtually every clinical and business monitor in that size class. A larger display range than the older StyleView Combo arms makes this the current choice where sites have standardised on 24″–27″ panels.
Mounting is wall-mount only, on Ergotron's 34″ CareFit wall track (31-018-216). There is no desk-clamp or grommet option, so desk thickness is not a consideration — but the wall construction must carry the assembly, which weighs 38.9–47.3 lbs (17.6–21.5 kg) depending on configuration. Confirm the wall type before installation, especially on drywall or lightweight partitions.
Reach is the CareFit Combo's headline advantage: up to 57.8″ (146 cm) from the wall as standard, and up to 65.3″ (165.7 cm) with the CareFit Combo Extender (98-547-251), which adds 18.5″ (47.1 cm). Folded away it sits 10″–13″ (25.5–33 cm) from the wall. Ultrawide and strongly curved panels sit outside the published 27″ / 22 lbs envelope and are not recommended.
A second display can be added using Ergotron's CareFit Combo Dual Monitor Kit (98-650-251); without it, the arm is a single-screen workstation.
This configuration adds the worksurface but not a CPU holder. If the computer also has to be wall-mounted, specify the CareFit Combo System with Worksurface (45-619-251), or add the CareFit Combo CPU Tray (98-548-251).
Package Contents & CareFit Combo Ordering Information
In the box: CareFit Combo arm assembly with height-adjustable display mount, keyboard and mouse platform, wall-mount hardware and integrated cable management. The 34″ CareFit wall track is part number 31-018-216.
CareFit Combo range — SourceIT catalogue
| CareFit Combo Arm, snow white | 45-621-251 |
| CareFit Combo Arm with Worksurface, snow white (this listing) | 45-622-251 |
| CareFit Combo System (with CPU holder), snow white | 45-618-251 |
| CareFit Combo System with Worksurface, snow white | 45-619-251 |
CareFit Combo accessories — SourceIT catalogue
| CareFit Combo Extender (adds 18.5″ / 47.1 cm reach) | 98-547-251 |
| CareFit Combo CPU Tray | 98-548-251 |
| CareFit Combo Scanner Bracket | 98-551-251 |
| CareFit Combo Wireless Scanner Bracket | 98-549-251 |
Related: SV Combo with Worksurface & Pan
Ergotron also lists a CareFit Combo Short Extender (98-648-251), CPU Wall Cabinet (98-543-251) and Dual Monitor Kit (98-650-251). Contact SourceIT to quote items not held in local stock.
Datasheet & Downloads
Frequently Asked Questions — Ergotron CareFit Combo Arm with Worksurface
Which part number is this listing?
This listing is the CareFit Combo Arm with Worksurface, part number 45-622-251 in snow white. The arm-only version is 45-621-251.
What finishes is it available in?
Snow white (-251) only — the standard CareFit clinical finish. For a polished aluminium wall combo arm with a worksurface, see the SV Combo Arm with Worksurface & Pan (45-583-026).
What size and weight of monitor does the CareFit Combo take?
Ergotron publishes a typical LCD size of 27″ or smaller and a display weight capacity of 8–22 lbs (3.6–10 kg). Note that 8 lbs is a real minimum as well as 22 lbs being the maximum — a display lighter than 8 lbs will not hold position on the lift.
Do I need a VESA adapter?
Not for a standard monitor. The CareFit Combo mounts VESA MIS-D displays at either 100 x 100 mm or 75 x 75 mm. Only panels with a proprietary or oversized pattern need a manufacturer adapter plate.
Can it carry two screens?
Not as supplied. A second display can be added with Ergotron's CareFit Combo Dual Monitor Kit (98-650-251); on its own the arm is a single-screen workstation.
How does it mount, and does desk thickness matter?
It is wall-mount only, fixed to Ergotron's 34″ CareFit wall track (31-018-216), so desk thickness does not apply. What does matter is the wall: the assembly weighs 38.9–47.3 lbs (17.6–21.5 kg) depending on configuration, so confirm the wall construction before installing, particularly on drywall or partitions.
Can it reach across a bed?
That is what the reach specification is for. The CareFit Combo extends up to 57.8″ (146 cm) from the wall as standard, and up to 65.3″ (165.7 cm) with the CareFit Combo Extender (98-547-251). Folded away between uses it sits 10″–13″ (25.5–33 cm) from the wall.
Is it suitable for sit-stand documentation all shift?
Yes. The 20″ (51 cm) of vertical lift lets each clinician set the screen and keyboard to their own standing or seated height without tools, and the arm folds back to the wall between patients.
How does it differ from the CareFit Combo Arm (45-621-251)?
The worksurface. 45-621-251 is the same arm without the integrated writing surface. Display size, weight range, lift, pan, rotation and reach are unchanged.
Is the Ergotron CareFit Combo Arm with Worksurface covered by warranty in Singapore?
Yes. Every Ergotron CareFit Combo Arm with Worksurface sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the CareFit Combo Arm with Worksurface with a 5-year manufacturer warranty.
