Ergotron SV Combo System Worksurface, Small CPU Holder White
PRODUCT DESCRIPTION
Ergotron SV Combo System with Worksurface & Pan, Small CPU Holder, White (45-594-216) - 5 Years Local Warranty

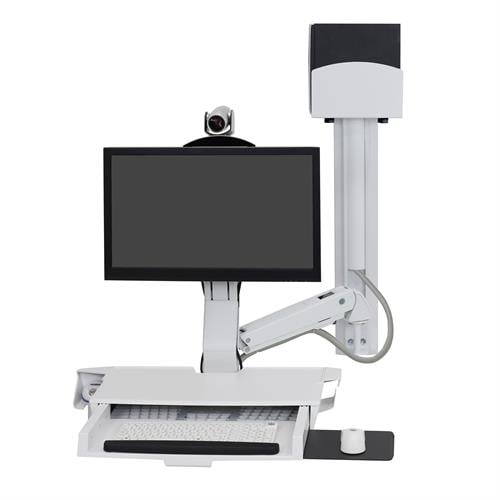

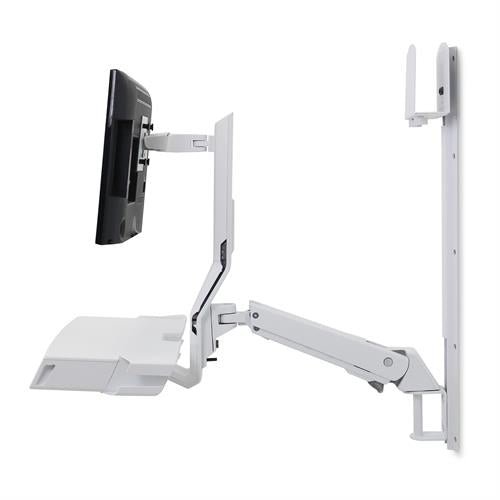

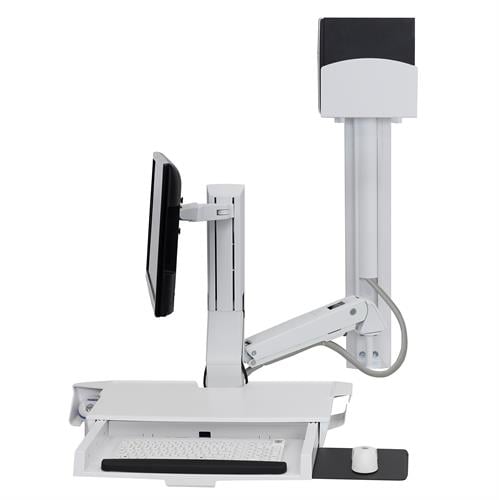

Ergotron SV Combo System in White — Complete Wall-Mounted Sit-Stand Workstation
The white SV Combo System supplies everything a wall computing position needs in one box: monitor arm, worksurface, keyboard tray with slide-out mouse tray, scanner holder, small CPU holder and a 34″ wall track. The clean white finish disappears into clinical and modern office interiors while delivering 25″ (64 cm) of total display height range.
Worksurface, Keyboard Tray and CPU Holder in One Wall Assembly
The worksurface takes 10 lbs (4.5 kg) for charts, tablets and forms; the keyboard tray takes 4 lbs (1.8 kg) including the mouse and scanner; the small CPU holder carries a small-form-factor desktop on the same track. The result is a complete workstation with a zero floor footprint.
20″ of Tandem Lift Serves Every Shift
Worksurface and keyboard travel 20″ (51 cm) together, with a further 5″ (13 cm) of independent display adjustment. A station shared by staff of very different heights can be reset by hand in seconds, which is exactly what a three-shift ward or a hot-desked office needs.
Antimicrobial White Finish for Clinical Environments
Ergotron builds the SV Combo range from aluminium and high-grade plastic with antimicrobial-treated surfaces and concealed cable routing. In white, it suits Singapore hospitals, day surgeries, dental practices and laboratories where surfaces are wiped down between patients.
VESA MIS-D Fit and a 5-Year Ergotron Warranty
The supplied VESA kit fits MIS-D displays (75 x 75 mm or 100 x 100 mm) weighing 6–18 lbs (2.7–8.2 kg) at a typical 24″ size. Ergotron backs the system with a 5-year manufacturer warranty; SourceIT supplies it with local Singapore warranty support and a GST invoice.
Ergotron SV Combo System with Worksurface & Pan, Small CPU Holder, White Datasheet — Technical Specifications
General
| Product Name | Ergotron SV Combo System with Worksurface & Pan, Small CPU Holder, White |
| Part Number | 45-594-216 |
| Series | StyleView (SV) Combo with Worksurface & Pan |
| Finish | White |
| Mounting Type | Wall mount (34″ wall track included) |
| Construction | Aluminium and high-grade plastic with antimicrobial-treated surfaces |
| CPU Storage | Small CPU holder included |
| Manufacturer Warranty | 5-Year Manufacturer Warranty (Ergotron) |
| Local Warranty (Singapore) | Local Warranty (Singapore) |
Display Compatibility
| Typical LCD Size | 24″ |
| VESA Pattern | VESA MIS-D (75 x 75 mm / 100 x 100 mm) |
| Display Weight Capacity | 6–18 lbs (2.7–8.2 kg) |
| Worksurface Capacity | 10 lbs (4.5 kg) |
| Keyboard / Mouse / Scanner Capacity | 4 lbs (1.8 kg) |
| Number of Screens | 1 |
Adjustment & Motion
| Lift (worksurface and keyboard in tandem) | 20″ (51 cm) |
| Independent LCD Adjustment | 5″ (13 cm) |
| Total LCD Height Adjustment | 25″ (64 cm) |
| Tilt | 25° up / 5° down |
| Pan | 360° full system; 180° monitor pan |
| Rotation | 90° |
| Optional Extender | Adds 17″ (43 cm) of reach from the wall — 45-261-026 / 45-261-216 |
Design & Durability
| Keyboard Tray | Keyboard tray with slide-out mouse tray, wrist rest and scanner/mouse holder |
| Worksurface | Integrated worksurface, rated 10 lbs (4.5 kg) |
| Cable Management | Cable ties and cable channels; cables stay hidden and organised for easy cleaning |
| Hygiene | Antimicrobial-treated, easy-to-clean exterior |
| Product Weight | 41 lbs (19 kg) (with worksurface) |
| Shipping Weight | 51 lbs (23 kg) |
Compatibility & Fit
The SV Combo System with Worksurface & Pan, Small CPU Holder, White carries a single display plus a keyboard, mouse and scanner on a wall-mounted arm. Ergotron rates it for a typical 24″ LCD weighing 6–18 lbs (2.7–8.2 kg), attaching through a VESA MIS-D pattern — that is 75 x 75 mm or 100 x 100 mm, the two patterns almost every business monitor of that size uses.
The worksurface is rated separately at 10 lbs (4.5 kg) and the keyboard tray at 4 lbs (1.8 kg), so a scanner, wrist rest and mouse are all accounted for. Mounting is wall-mount only and the 34″ wall track is supplied in the box; there is no desk-clamp or grommet option, so no desk-thickness check is needed — but the wall construction must be able to carry the assembly.
Ultrawide and strongly curved panels are outside the published envelope. The 6–18 lbs (2.7–8.2 kg) window is a minimum as well as a maximum: a display lighter than 6 lbs will not load the constant-force lift correctly and the arm will drift upward, so very light panels need a counterweight or a different mount.
This is the white (-216) finish of the same system as 45-594-026 in polished aluminium. Note that it is a wall-mounted system with no casters — it does not move between rooms.
Package Contents & SV Combo Ordering Information
In the box: combo arm, wall-mount bracket, height-adjustable LCD mount, wrist rest, scanner/mouse holder, keyboard tray, slide-out mouse tray, VESA kit and cable ties. System models additionally include a 34″ wall track, the CPU holder, cable channels and fasteners.
SV Combo with Worksurface & Pan — SourceIT catalogue
| SV Combo Arm with Worksurface & Pan, polished aluminium | 45-583-026 |
| SV Combo System with Worksurface & Pan, small CPU holder, polished aluminium | 45-594-026 |
| SV Combo System with Worksurface & Pan, small CPU holder, white (this listing) | 45-594-216 |
| SV Combo System with Worksurface & Pan, medium CPU holder, polished aluminium | 45-595-026 |
Extension arms
| SV Sit-Stand Combo Extender, white (adds 17″ / 43 cm reach) | 45-261-216 |
| SV Sit-Stand Combo Extender, Short, polished aluminium | 97-858-026 |
| SV Sit-Stand Combo Extender, Short, white | 97-858-216 |
Earlier-generation StyleView Sit-Stand Combo
| StyleView Sit-Stand Combo Arm, polished aluminium | 45-266-026 |
| StyleView Sit-Stand Combo System with small CPU holder, polished aluminium | 45-273-026 |
Ergotron also lists white (-216) equivalents of 45-583 and 45-595. Contact SourceIT to quote finishes not held in local stock.
Datasheet & Downloads
Frequently Asked Questions — Ergotron SV Combo System with Worksurface & Pan, Small CPU Holder, White
What is the difference between the white and polished aluminium versions?
Finish only. This white 45-594-216 and the polished aluminium 45-594-026 are mechanically identical.
What monitor does it take?
A typical 24″ LCD weighing 6–18 lbs (2.7–8.2 kg), mounted through the supplied VESA MIS-D kit.
What size CPU fits the holder?
It ships with Ergotron's small CPU holder for small-form-factor desktops. Larger chassis need the medium holder version (45-595).
Does it fit my monitor's VESA pattern?
Yes for the standard patterns: Ergotron specifies VESA MIS-D, which covers 75 x 75 mm and 100 x 100 mm. The VESA kit is supplied in the box, so no separate adapter is normally required. Displays with a proprietary or 200 x 100 mm pattern need a manufacturer adapter plate.
How much height adjustment does it give?
The worksurface and keyboard travel 20″ (51 cm) in tandem, and the display adds a further 5″ (13 cm) of independent adjustment, giving 25″ (64 cm) of total LCD height range. That is enough for one station to be shared across a full range of user heights in a multi-shift ward or office.
Can I mount two monitors on it?
No. This is a single-display workstation. For two screens at a wall position, specify one of Ergotron's dual wall mount systems.
Can it be clamped to a desk instead of a wall?
No — it is wall-mount only. There is no desk-clamp or grommet base, so desk thickness does not apply. Confirm the wall construction can take the load before installation, particularly on drywall or lightweight partitions.
Is it suitable for sit-stand use all day?
Yes — that is what it is designed for. The 20″ (51 cm) of tandem lift lets a user move between seated and standing postures without tools, and the arm folds back toward the wall between tasks so the floor stays clear.
Is the Ergotron SV Combo System with Worksurface & Pan, Small CPU Holder, White covered by warranty in Singapore?
Yes. Every Ergotron SV Combo System with Worksurface & Pan, Small CPU Holder, White sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the SV Combo System with Worksurface & Pan, Small CPU Holder, White with a 5-year manufacturer warranty.
