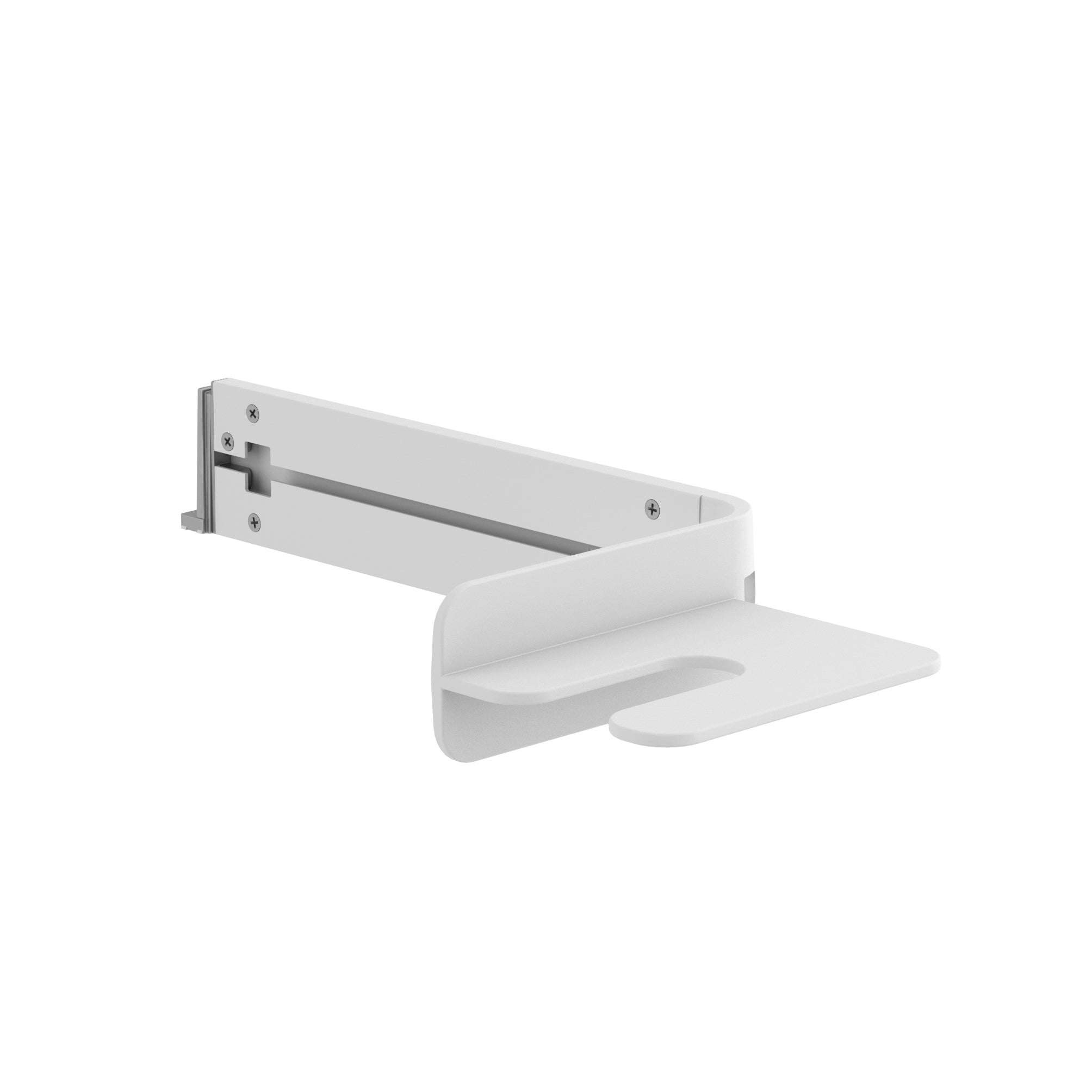

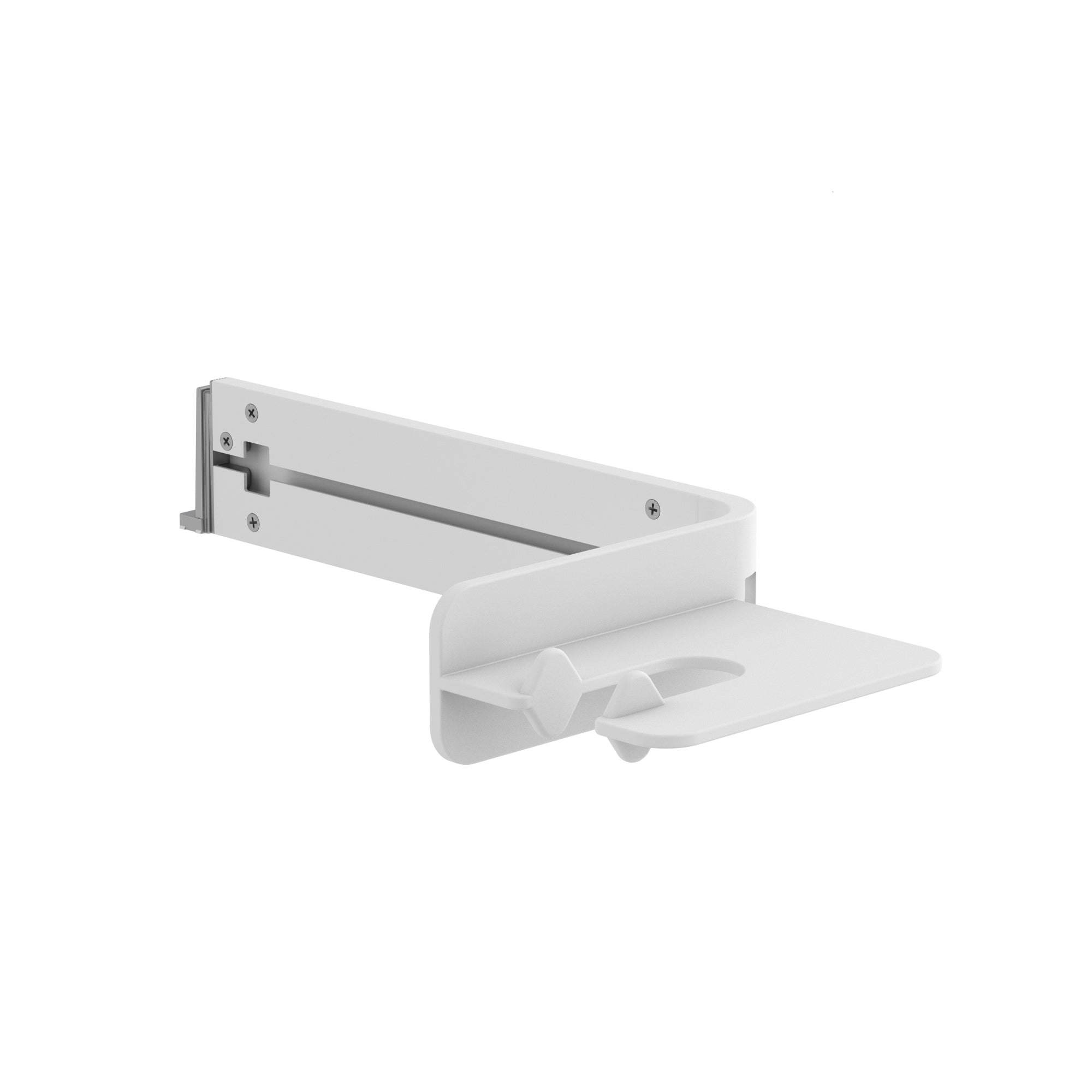

Ergotron CareFit™ Combo Scanner Bracket
PRODUCT DESCRIPTION
Ergotron CareFit Combo Scanner Bracket (98-551-251) - Local Warranty

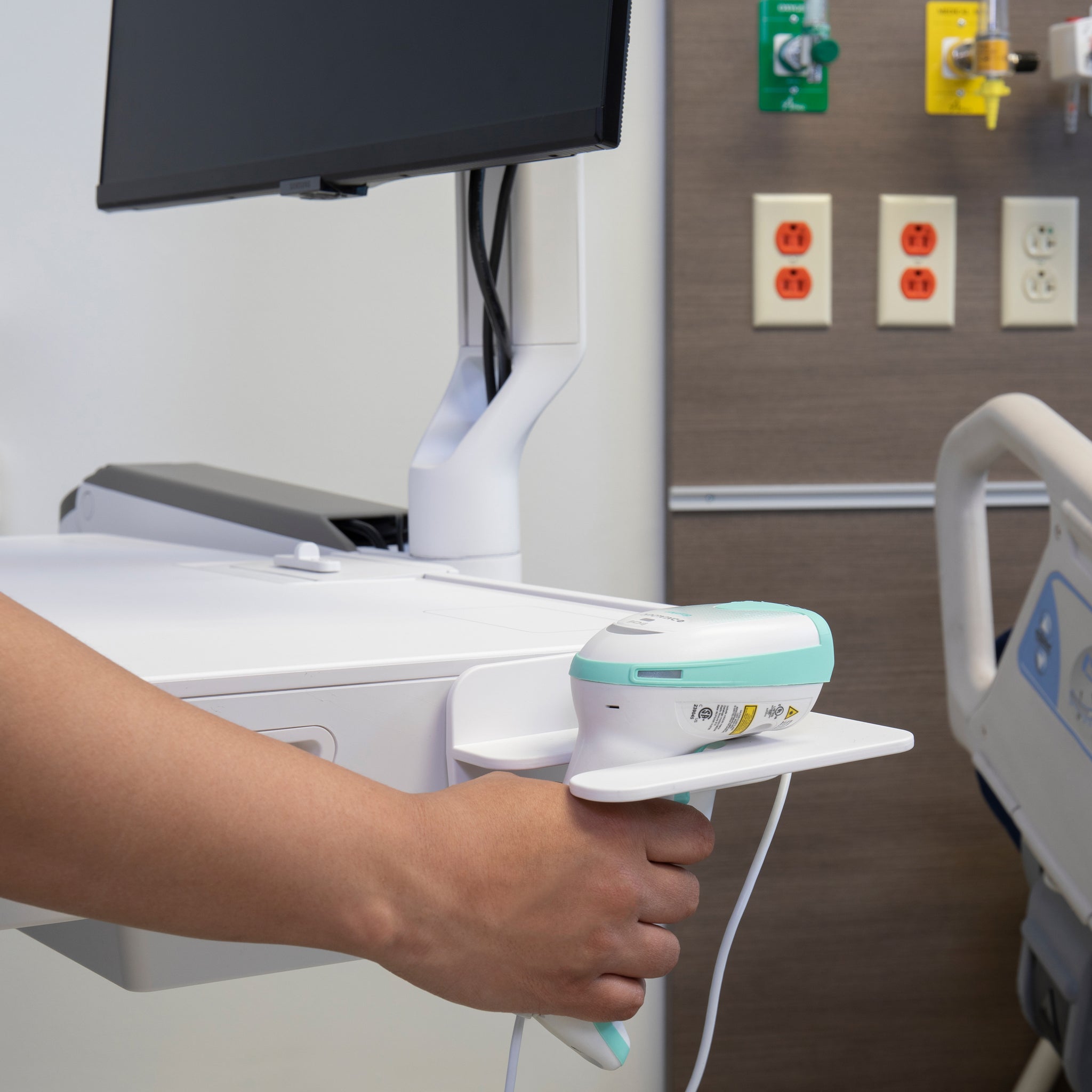

Gives the Barcode Scanner a Fixed Home on the Workstation
Ergotron's description: support efficient workflows and easily access a scanner to free up time for patient care. On a wall-mounted workstation where every scan is part of a documented administration, a scanner that is always in the same place removes a small delay repeated dozens of times a shift.
Installs on Either Side of the Workstation
Ergotron's Combo datasheet notes the bracket "supports efficient workflows with installation on either side". Handedness and which side the patient is approached from both matter, and this is decided at installation rather than at purchase.
Three Scanner Options in the Combo Range
Ergotron's configurator offers this bracket, the Wireless Scanner Bracket (98-549-251), and a Top-Mount Scanner Holder, VESA Attach (98-649-251) for hands-free scanning. Choose on the scanner you actually have.
Ergotron CareFit Combo Scanner Bracket Datasheet — Technical Specifications
General
| Product | Ergotron CareFit Combo Scanner Bracket |
| Part Number | 98-551-251 |
| Ergotron Page Title | CareFit Combo Scanner Bracket |
| Type | CareFit Combo wall-mount system accessory |
| Ergotron Description | "Support efficient workflows and easily access a scanner to free up time for patient care." |
| Warranty | Local warranty — see note below |
| Local Warranty (Singapore) | Included with every SourceIT purchase, with GST invoice |
Configuration Position
| Ergotron Configurator Step | Step 5 — select your scanner holder |
| Installation | Either side of the workstation |
| Alternatives | Wireless Scanner Bracket 98-549-251; Top-Mount Scanner Holder, VESA Attach 98-649-251 |
Host System Specification (the Combo system, not this accessory)
| Typical Display Size | Up to 27" |
| Display Weight Capacity | 8–22 lb (3.6–10 kg) |
| Worksurface Weight Capacity | 1.5 lb (0.68 kg) |
| Lift | 20" (51 cm) |
| Pan / Rotation | 180° / 180° |
| VESA | MIS-D — 100 x 100 mm and 75 x 75 mm |
| Host Warranty | 5 years on the CareFit Combo base units |
Published Specification Limits
| Accessory Dimensions and Weight | Not published by Ergotron |
| Load Capacity | Not published by Ergotron for this accessory |
| Materials and Colour Name | Not published by Ergotron |
| Box Contents | Not published by Ergotron |
Compatibility & Fit
This accessory belongs to the CareFit Combo system — Ergotron's modular wall-mount arm platform, mounted on a 34" Wall Track (part 31-018-216, which Ergotron states is required for the CareFit Combo Arm). The host products are the CareFit Combo Arm (45-621-251), Combo Arm with Worksurface (45-622-251), Combo System (45-618-251) and Combo System with Worksurface (45-619-251).
Ergotron publishes no scanner size, weight or model compatibility for this bracket. If you have standardised on a particular scanner — a Zebra, Honeywell or Datalogic handheld, for example — send us the model and we will confirm the fit with Ergotron rather than let it arrive and not seat properly.
The distinction between this bracket and the Wireless Scanner Bracket (98-549-251) is one Ergotron states only by the word "wireless". It does not describe a charging cradle or base for the wireless version, so if your cordless scanner needs its base mounted, ask us to confirm which bracket accommodates it before ordering.
Do not cross-order across CareFit platforms. Ergotron runs three separate CareFit lines and their accessories do not interchange: Combo (this wall-mount arm system), Enclosure (the folding wall-mount workstation 61-367), and CareFit Pro (the mobile medical cart C52-xxxx). A scanner bracket or shelf from one will not fit another.
Ergotron prints a warning worth repeating when you configure a Combo system: confirm that the combined weight of every product and accessory does not exceed the system's capacity, and check attachment points, because not all accessories can be used together in a single configuration. Send us your intended configuration and we will check it against the datasheet before you order.
Package Contents & CareFit Combo Ordering Information
Ergotron publishes no box-contents list for this accessory.
CareFit Combo Ordering Information
| 98-551-251 (this listing) | CareFit Combo Scanner Bracket — Support efficient workflows and easily access a scanner to free up time for patient care |
Other CareFit Combo Accessories at SourceIT
| 98-547-251 | CareFit Combo Extender — adds 18.5" (47.1 cm) of reach |
| 98-548-251 | CareFit Combo CPU Tray — mini PC under the worksurface |
| 98-551-251 | CareFit Combo Scanner Bracket |
| 98-549-251 | CareFit Combo Wireless Scanner Bracket |
| 98-578-251 | Printer Bracket for Wall Track |
| 98-609-030 | CareFit Wall Track 34" Covers |
CareFit Combo Host Products (order on request)
| 45-618-251 | CareFit Combo System — white |
| 45-619-251 | CareFit Combo System with Worksurface — white |
| 45-621-251 | CareFit Combo Arm — white |
| 45-622-251 | CareFit Combo Arm with Worksurface — white |
| 31-018-216 | 34" Wall Track — required for the CareFit Combo Arm |
Datasheet & Downloads
- Ergotron CareFit Combo Scanner Bracket product page (98-551)
- Ergotron CareFit Combo System datasheet (PDF)
Ergotron publishes no standalone datasheet or installation guide for this accessory. The CareFit Combo System datasheet is the authoritative source for the host system's specification and for the accessory's place in the configurator.
Frequently Asked Questions — Ergotron CareFit Combo Scanner Bracket
Which scanner does it fit?
Ergotron publishes no scanner model, size or weight compatibility. Send us your scanner model and we will confirm with Ergotron.
Can it be fitted on the left or the right?
Yes. Ergotron states the bracket installs on either side, so the position is chosen at installation to suit the clinician.
What is the difference between this and the Wireless Scanner Bracket?
Ergotron's only stated difference is the word "wireless" in the product description of 98-549-251. It does not describe a charging cradle for the wireless version. If your cordless scanner has a base that needs mounting, ask us to check first.
Is there a hands-free option?
Ergotron also lists a Top-Mount Scanner Holder, VESA Attach (98-649-251) described as supporting hands-free scanning. We can source it.
Does it come with a warranty in Singapore?
Yes. Every Ergotron CareFit Combo Scanner Bracket sold by SourceIT comes with local Singapore warranty and a GST invoice. Ergotron's current warranty schedule covers carts, mounts, desks and power systems by category and has no category covering accessories — the 5-year term printed on the CareFit Combo datasheet belongs to the host product, not to this accessory — so we do not quote a manufacturer duration on this page; ask us and we will confirm the current term with Ergotron for your order.
