Epson EF-100B WXGA 3LCD Laser Streaming Projector (Black)
PRODUCT DESCRIPTION
Epson EF-100B WXGA 3LCD Laser Streaming Projector, Black (V11H914352) - 3 Years Singapore Local Warranty
2,000 Lumens of Colour and White Brightness for Rooms You Cannot Darken
Epson publishes 2,000 lumens colour light output and 2,000 lumens white light output for the EF-100B, measured to IDMS 15.4 and ISO 21118 respectively. The two figures matching matters in a real room: a 3-chip 3LCD engine puts a colour image on the wall at the same brightness as a white one, so a slide deck, a product photo or a match stays readable in a meeting room with the blinds half open, a retail counter under downlights or a cafe at midday. Contrast is rated at 2,500,000:1, which keeps dark scenes from turning flat once ambient light creeps in.
360-Degree Projection and Automatic Vertical Keystone for Pop-Ups and Awkward Rooms
The EF-100B can be rotated through 360 degrees — horizontally, vertically and rotationally — so it will throw onto a wall, a ceiling or the floor from wherever it happens to sit. Automatic vertical keystone correction of -45 to +45 degrees and manual horizontal correction of -40 to +40 degrees square the image up without a tripod head or a ladder. For a Singapore pop-up stand, a showroom window, an exhibition booth or a training room with no installed AV, that means the projector goes down on whatever surface is available and is usable in under a minute.
Streaming Media Player Bay Keeps the Source Inside the Chassis
Behind the rear cover there is a bay sized for a small streaming stick, fed by the projector's own HDMI input and its 2 A USB power supply. The stick travels inside the projector rather than dangling off the back, so there is nothing to lose between sites and nothing for a visitor to unplug. Epson lists the Amazon Fire TV Stick generations 1, 2 and 4K and the Roku Streaming Stick and Streaming Stick+ as fitting with the back cover on. A laptop, media player or console connects to the same HDMI port when you need it.
Laser Light Source, 2.7 kg Chassis and Singapore Local Warranty
The EF-100B uses a laser diode light source rather than a replaceable lamp, so there is no lamp module to hold as a spare and no lamp change to schedule; the only serviceable consumable Epson lists is the ELPAF57 air filter. At 230 x 210 x 92 mm and approximately 2.7 kg the whole unit fits in a backpack, and it draws 172 W with the laser on and 0.4 W in energy-saving standby. SourceIT supplies the EF-100B in Singapore with three years Singapore local warranty and a GST invoice on every unit.
Epson EF-100B Datasheet — Technical Specifications
General
| Product | Epson EF-100B WXGA 3LCD Laser Streaming Projector |
| Part Number (SKU) | V11H914352 |
| Model Colour | Black |
| Projection System | 3LCD |
| LCD Panel | 0.59-inch panel |
| Colour Modes | Dynamic, Bright Cinema, Natural, Cinema |
| Warranty | 3 Years Singapore Local Warranty |
| Local Warranty (Singapore) | Supplied by SourceIT with GST invoice |
Projection & Optics
| Resolution | WXGA |
| Native Aspect Ratio | 16:10 |
| Colour Light Output | 2,000 lumens |
| White Light Output | 2,000 lumens |
| Contrast Ratio | 2,500,000:1 |
| Colour Reproduction | Up to 16.77 million colours |
| Colour Processing | 10 bit |
| Screen Size | 30" to 150" (0.65 m to 3.41 m) at wide zoom; 22" to 111" at tele zoom |
| Projection Distance | 1.34 m to 1.81 m for a 60" screen |
| Throw Ratio | 1.04 (zoom wide), 1.40 (zoom tele) |
| Zoom | 1.0 - 1.35 (digital zoom) |
| Projection Lens F Number | 1.58 |
| Projection Lens Focal Length | 13.53 mm |
| Focus Method | Manual |
| Keystone Correction | Vertical -45 to +45 degrees (automatic); horizontal -40 to +40 degrees |
Light Source
| Light Source | Laser diode |
Connectivity
| Input: Digital | 1 x HDMI |
| Input: Video / USB | 1 x USB for 2 A power supply and firmware update; 1 x USB mini B (service) |
| Output: Audio | 1 x audio out for headphone |
| Bluetooth Audio | Yes (SBC, aptX) |
Audio & Features
| Speaker Output | 1 x 5 W |
| Ceiling Projection | Yes |
| AV Mute | Yes |
| Direct Power On | Yes |
| Security | Kensington-style lock provision |
Physical & Environmental

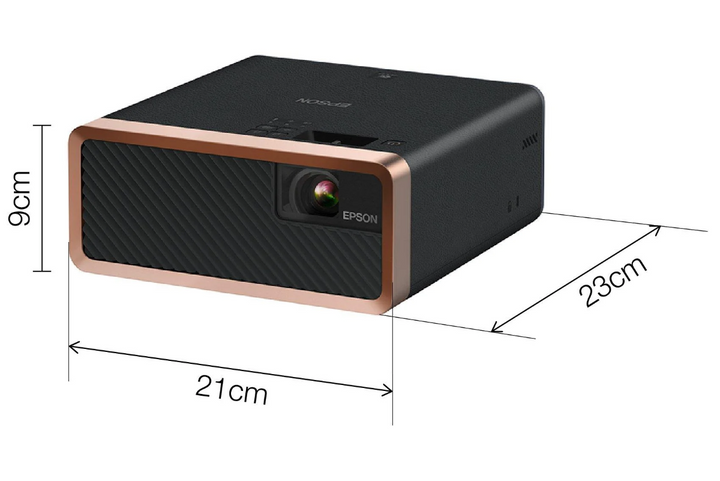

| Dimensions (D x W x H) | 230 x 210 x 92 mm |
| Weight | Approx. 2.7 kg |
| Noise Level (normal / eco) | 29 dB / 26 dB |
Power
| Power Consumption: Laser On | 172 W |
| Power Consumption: Energy Saving | 0.4 W |
Specifications are taken from Epson's published product data for this exact model on the Epson regional page linked under Datasheet & Downloads. Where Epson does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Placement and mounting
The EF-100B is designed to be set down rather than installed: a table, counter, shelf or road case lid all work, and Epson rates the unit for 360-degree projection horizontally, vertically and rotationally. Where a fixed position is wanted, Epson lists the ELPMB60 ceiling mount as the option for this model and ceiling projection is supported in the menu. Allow 1.34 m to 1.81 m of throw distance for a 60-inch image; the throw ratio is 1.04 at wide zoom and 1.40 at tele zoom, so the room, not the projector, sets the picture size.
What it connects to
There is one HDMI input, so the usual sources are a laptop, a media player, a games console, a document camera feed or a streaming stick. A USB type A port supplies 2 A for a connected stick and handles firmware updates, and a USB mini B port is reserved for service. Audio leaves either through the 5 W built-in speaker, the headphone output, or over Bluetooth to a speaker or soundbar — Epson lists SBC and aptX support for Bluetooth audio on this model.
Streaming media player bay
The rear of the chassis has a bay for a small streaming stick. Epson states that the Amazon Fire TV Stick generation 1, generation 2 and 4K, the Roku Streaming Stick and the Roku Streaming Stick+ all fit with the back cover fitted, and that the Google Chromecast generation 2, generation 3 and Ultra do not fit with the cover on. Confirm the stick you intend to standardise on with SourceIT before you order a fleet.
Consumables and accessories
Epson lists two options for this model: the ELPAF57 air filter and the ELPMB60 ceiling mount. Because the light source is a laser diode there is no lamp module to stock. SourceIT can quote the filter and the mount alongside the projector so the whole deployment sits on one purchase order.
Package Contents & Epson Portable Laser Projector Range
In the box
- Epson EF-100B projector
- 1.8 m power cable
- Quick start guide
- Remote control and batteries
Package contents follow Epson's product data for this model; items not listed by Epson are not claimed here.
Epson portable laser projector range
| Model | Format |
| EF-100B (this listing) | WXGA portable laser projector, black |
| EF-11 | Full HD portable laser projector |
| EF-12 | Full HD portable laser projector |
| EF-21G | Full HD EpiqVision Mini laser projector, smoke ice green |
| EF-22N | Full HD EpiqVision Mini laser projector with stand, metallic blue |
Datasheet & Downloads
- Epson Australia — EF-100B product page and specifications
- Epson United Kingdom — EF-100B product page
- Epson Singapore support page — Epson EF-100B (downloads and manuals)
Epson Singapore no longer publishes a specification page for the EF-100B, so the figures above are taken from Epson's own regional product pages for this exact model. Epson part numbers differ by region: Epson Singapore's support record shows V11H914152 and Epson Australia shows V11H914153 for the same black EF-100B. SourceIT can email the current Epson data sheet revision on request with a quotation.
Frequently Asked Questions — Epson EF-100B
What does the B in EF-100B stand for?
It denotes the chassis finish. Epson lists the model colour for the EF-100B as black. The same projector is also made in a neutral white finish as the EF-100W, which is a separate part number and is not this listing.
Is it bright enough for a meeting room with the lights on?
Epson rates it at 2,000 lumens colour light output and 2,000 lumens white light output. That suits a small to medium room with normal office lighting or a retail counter under downlights. For a large, brightly lit hall the ceiling-mounted Epson EB installation projectors SourceIT lists are the right range instead.
How big a picture will it give, and from how far back?
Epson publishes 30" to 150" at wide zoom and 22" to 111" at tele zoom, with a 60" image at 1.34 m to 1.81 m. The throw ratio is 1.04 at wide and 1.40 at tele, and the 1.0 - 1.35 zoom is digital rather than optical, so plan the distance first and use the zoom only for fine adjustment.
Is there a lamp to replace?
No. The EF-100B uses a laser diode light source, so there is no lamp module to hold as a spare or to schedule downtime for. The only consumable Epson lists for this model is the ELPAF57 air filter.
Can I put a streaming stick inside it?
Yes. There is a bay at the rear fed by the HDMI input and a 2 A USB supply. Epson states that the Amazon Fire TV Stick generations 1, 2 and 4K and the Roku Streaming Stick and Streaming Stick+ fit with the back cover on, while the Google Chromecast generations 2 and 3 and Chromecast Ultra do not.
Can it be ceiling-mounted?
Yes. Ceiling projection is supported and Epson lists the ELPMB60 ceiling mount as the option for this model. Most buyers use it on a table or counter, but a fixed position is possible where a room needs one.
Does it have its own speakers?
It has a single 5 W built-in speaker. There is also a headphone output and Bluetooth audio with SBC and aptX, so a Bluetooth speaker or soundbar can carry the sound in a room where 5 W is not enough.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every Epson EF-100B sold by SourceIT carries three years Singapore local warranty and is invoiced with GST.
