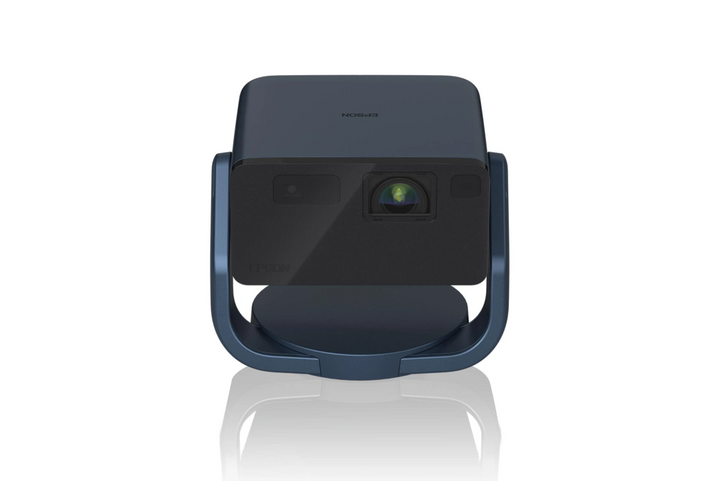

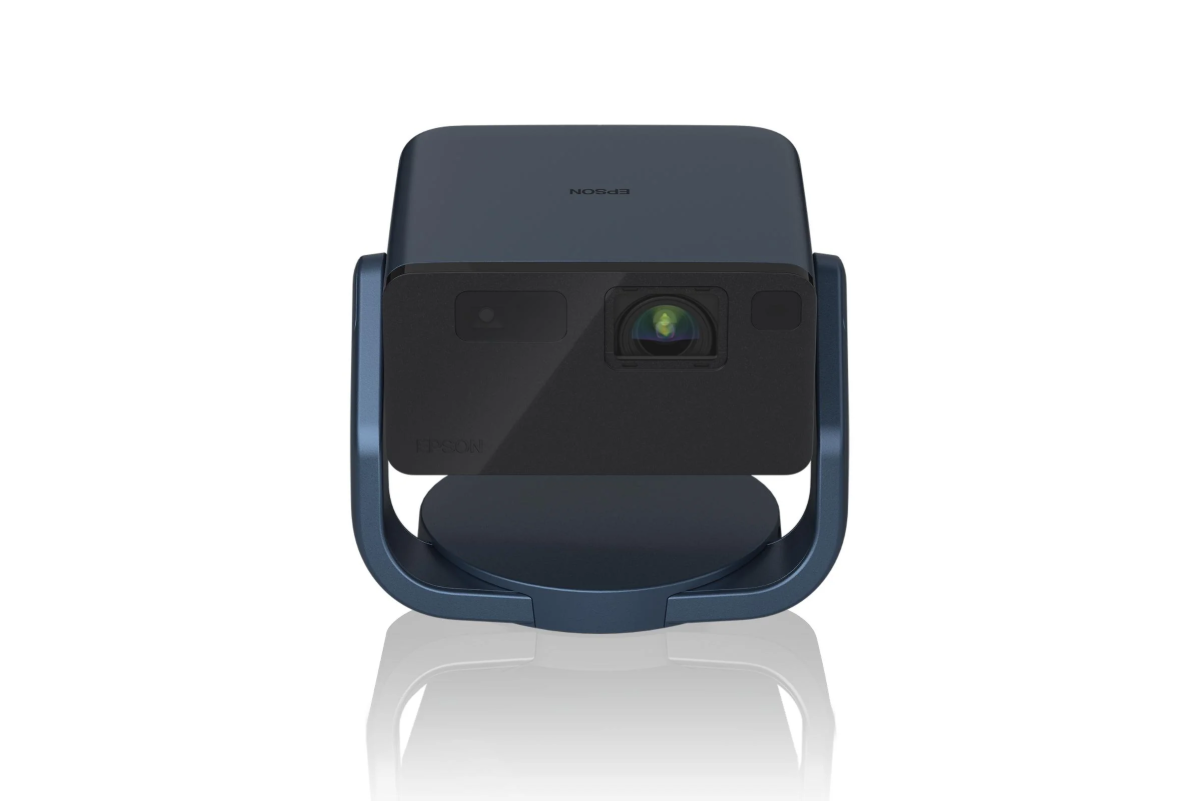

Epson EF-22N Full HD EpiqVision Mini Laser Projector (Metallic Blue)
PRODUCT DESCRIPTION
Epson EF-22N Full HD EpiqVision Mini Laser Projector, Metallic Blue (V11HB38452) - 3 Years Singapore Local Warranty
Built-In Stand That Aims the Picture Where the Wall Is
The feature that separates the EF-22N from the rest of the EpiqVision Mini range is its stand: Epson lists a fixed stand with vertical and horizontal adjustment built into the chassis. Instead of propping the unit on books or carrying a tripod, you set it down on the counter, the boardroom table or the shelf and swing the body until the image lands where it should — including upwards onto a ceiling. For a Singapore pop-up stand, a serviced showroom or a co-working meeting room where the projector moves several times a week, that removes the one part of the set-up people usually get wrong.

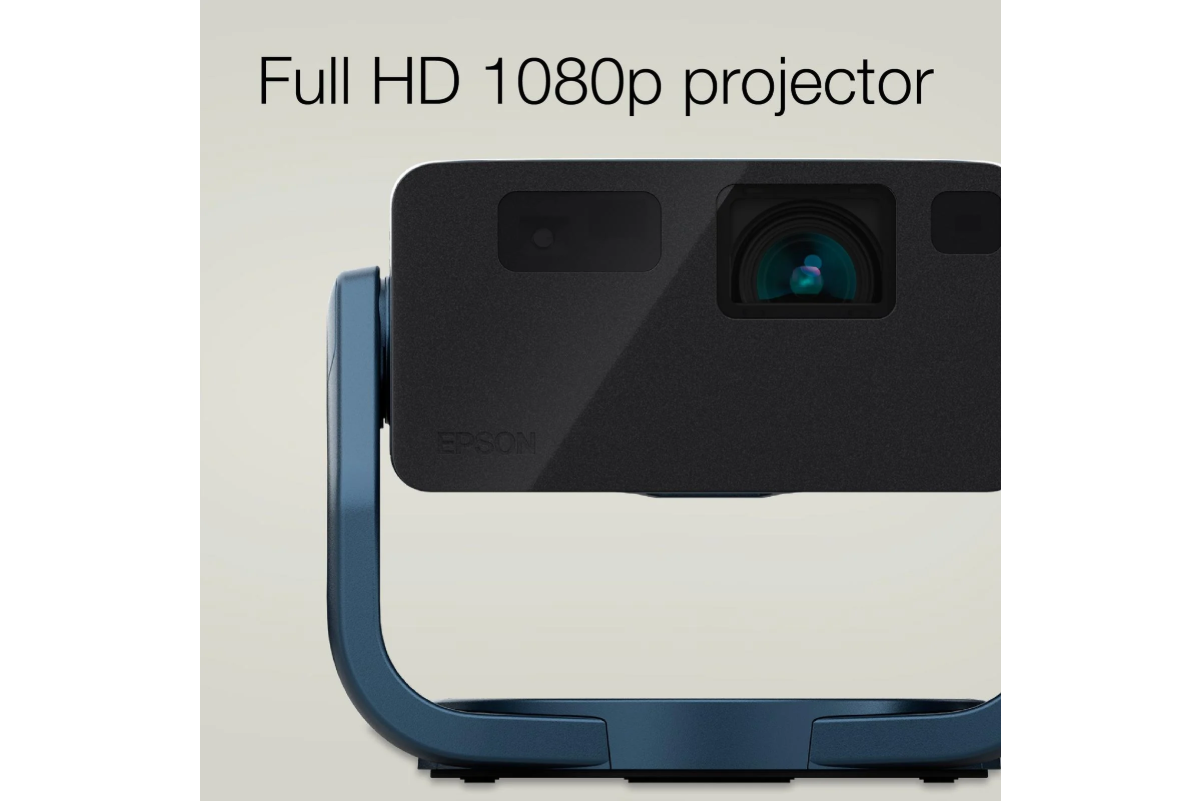

Full HD 1080p at 1,000 Lumens, Up to a 150-Inch Picture
Epson publishes 1,000 lumens colour light output and 1,000 lumens white light output for the EF-22N, measured to IDMS 15.4 and ISO 21118:2020, falling to 500 lumens in economy mode, from a 3-chip 3LCD engine on a 0.62-inch panel. Resolution is Full HD 1080p and Epson rates the maximum display size at 150 inches. Colour and white brightness matching is what stops a colour slide or a product photo from washing out relative to a white one, so the image holds up in a room with the lights on rather than only in the dark.
Automatic Keystone, Obstacle Avoidance and Screen Fit
Epson lists automatic keystone correction, automatic obstacle avoidance, screen fit and smart eye protection for this model. Together they mean the projector squares itself onto the available surface, works around a light switch or a picture frame, sizes the image to the screen it can see, and dims when someone walks into the beam. On a unit that is set down somewhere different every week by whoever is presenting, that is the difference between staff using it and staff leaving it in the cupboard. The chassis measures 236 x 191 x 192 mm.
Google TV, Twin 5 W Speakers and Singapore Local Warranty
Google TV runs on the projector itself, so streaming apps arrive without a media box hanging off the single HDMI input, and audio comes from two 5 W speakers built into the body. Epson lists the model colour as metallic blue — a deep, finished blue rather than a black or white box, which matters on a projector that sits on the table in front of the client rather than hidden above the ceiling. SourceIT supplies the EF-22N in Singapore with three years Singapore local warranty and a GST invoice on every unit.
Epson EF-22N Datasheet — Technical Specifications
General
| Product | Epson EF-22N Full HD EpiqVision Mini Laser Projector |
| Part Number (SKU) | V11HB38452 |
| Epson Singapore Model Name | Epson EpiqVision Mini EF-22N Full HD Lifestyle Projector |
| Model Colour | Metallic blue |
| Product Family | Epson EpiqVision range |
| Projection System | 3LCD technology, RGB liquid crystal shutter |
| LCD Panel | 0.62 inch |
| Warranty | 3 Years Singapore Local Warranty |
| Local Warranty (Singapore) | Supplied by SourceIT with GST invoice |
Projection & Optics
| Resolution | Full HD 1080p |
| Colour Light Output | 1,000 lumens (500 lumens in economy), in accordance with IDMS 15.4 |
| White Light Output | 1,000 lumens (500 lumens in economy), in accordance with ISO 21118:2020 |
| Display Size (maximum) | 150" |
| Keystone Correction | Automatic |
| Obstacle Avoidance | Automatic |
| Screen Fit | Yes |
Light Source
| Light Source | Laser |
Connectivity
| HDMI Ports | 1 |
| USB | 1 x USB type A (USB storage, camera, mic, HID); 1 x USB mini B (firmware updates) |
| Output: Audio | Headphone connector |
Audio & Features
| Built-in Speakers | 2 x 5 W |
| Smart Platform | Google TV |
| Smart Eye Protection | Yes |
| Stand | Fixed stand with vertical and horizontal adjustments |
Physical & Environmental
| Dimensions | 236 x 191 x 192 mm |
Specifications are taken from Epson's published product data for this exact model on the Epson regional page linked under Datasheet & Downloads. Where Epson does not publish a figure for this exact model it has been left out rather than estimated — Epson's published specification for the EF-22N is shorter than for the rest of the range, so several rows carried on sibling models are deliberately absent here.
Compatibility & Installation
Placement and set-up
The EF-22N is a portable projector with its own built-in stand, so the normal deployment is a table, counter or shelf rather than a ceiling mount — there is nothing to install and nothing to commission. The stand gives vertical and horizontal adjustment, and automatic keystone correction, screen fit and obstacle avoidance square the image onto the surface the projector can see. Epson does not publish a throw ratio or a projection distance table for this exact model, so ask SourceIT for the Epson figures if you are designing a fixed position around it.
What it connects to

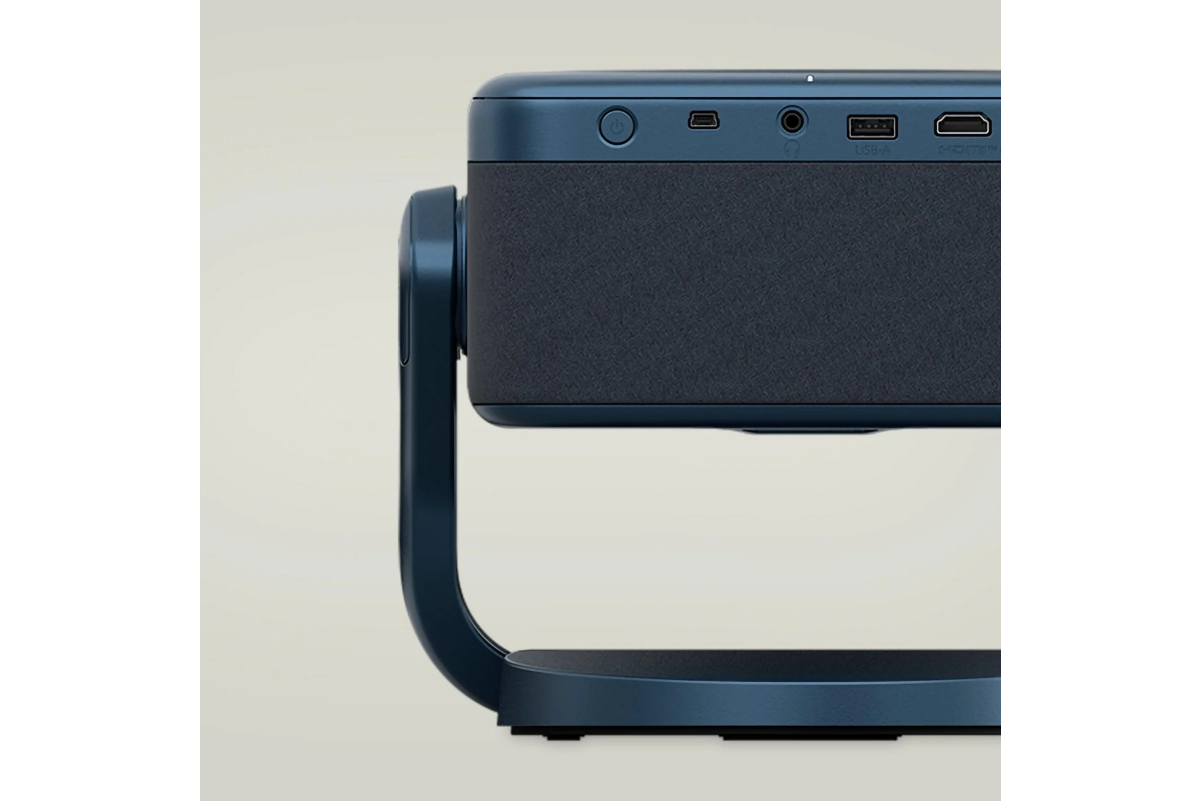

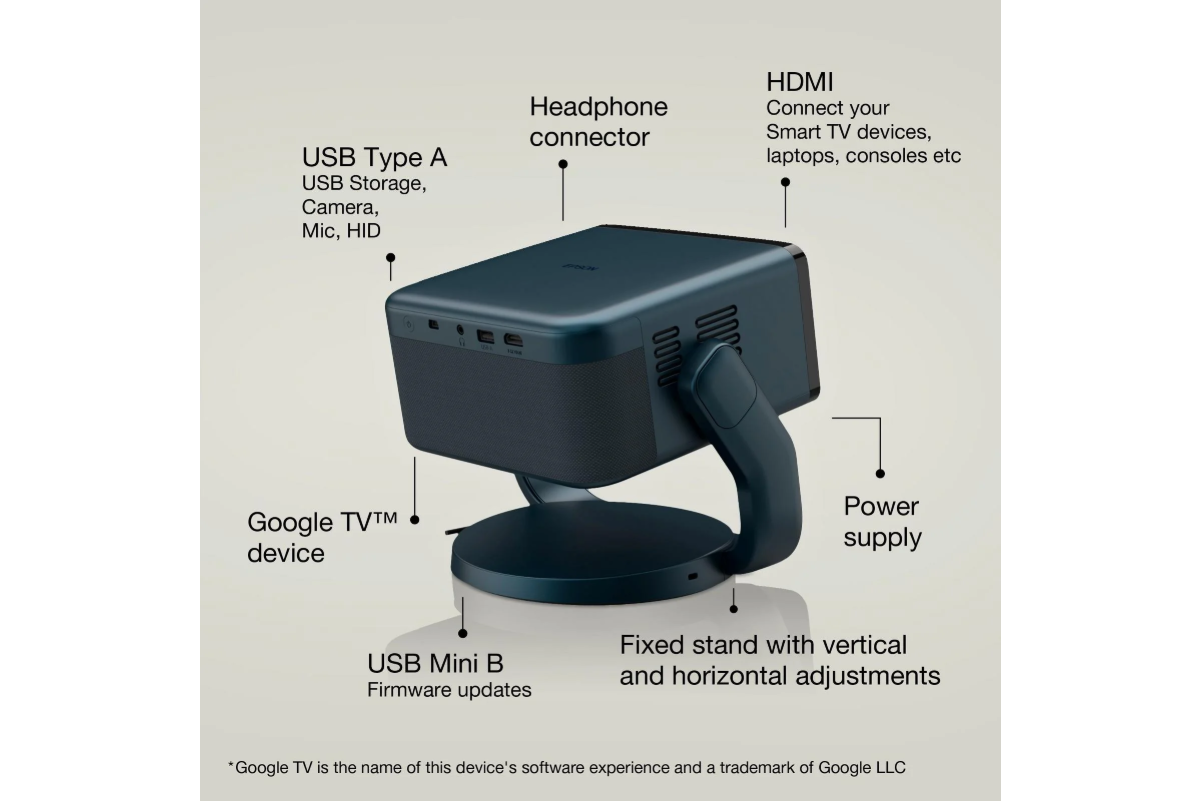

There is a single HDMI input for a laptop, a media player or a games console, a USB type A port that takes USB storage, a camera, a microphone or an HID device, a USB mini B port for firmware updates, and a headphone connector. Google TV runs on the projector itself, so streaming does not need an external stick and the HDMI port stays free for a presenter's laptop.
Colour siblings
This generation of EpiqVision Mini is offered in more than one finish. This listing is the metallic blue unit with the built-in stand; SourceIT also lists the EF-21G, the smoke ice green unit of the same generation without the stand. The finish and the stand are the differences between the two part numbers.
Earlier EpiqVision Mini models
SourceIT also lists the earlier EpiqVision Mini units EF-11 and EF-12, which share the same portable, laser, table-top idea. If you need a projector for a fixed meeting room or classroom instead, the ceiling-mountable Epson EB series listed by SourceIT is the better starting point.
Package Contents & Epson EpiqVision Mini Range
In the box
- Epson EF-22N EpiqVision Mini projector with built-in stand
- Power supply
Epson does not publish a full package contents list for this exact model on its current regional product pages, so only the items above are claimed here. SourceIT will confirm the full carton contents against the Epson data sheet with your quotation.
Package contents follow Epson's product data for this model; items not listed by Epson are not claimed here.
Epson EpiqVision Mini range
| Model | Finish |
| EF-11 | Earlier EpiqVision Mini model |
| EF-12 | Earlier EpiqVision Mini model |
| EF-21G | Smoke ice green, without stand |
| EF-22N (this listing) | Metallic blue, with built-in stand |
Datasheet & Downloads
- Epson United Kingdom — EF-22N product page and specifications
- Epson Singapore support page — Epson EpiqVision Mini EF-22N
Epson Singapore no longer publishes a specification page for the EF-22N, so the figures above are taken from Epson United Kingdom's product page for this exact model. Epson part numbers differ by region: Epson Singapore's support record shows V11HB38452 and Epson United Kingdom shows V11HB38440 for the same metallic blue EF-22N. Epson's published specification for this model is short, and SourceIT has not filled the gaps with figures from a neighbouring model. SourceIT can email the current Epson data sheet revision on request with a quotation.
Frequently Asked Questions — Epson EF-22N
What is the EpiqVision Mini range?
It is Epson's family of small, portable laser projectors — self-contained units designed to be carried and set down on a table, counter or shelf rather than installed on a ceiling. Epson Singapore lists this unit as the "Epson EpiqVision Mini EF-22N Full HD Lifestyle Projector".
What does the N at the end of EF-22N mean?
It denotes the colourway. Epson lists the model colour for this unit as metallic blue. Other finishes exist in the same EF-22 generation under different part numbers; this listing is the metallic blue unit, Epson Singapore part number V11HB38452.
What is the stand for?
Epson describes it as a fixed stand with vertical and horizontal adjustments, built into the chassis. It lets you aim the picture up, down or across from wherever the projector is standing without a tripod or a stack of books, which is the usual problem with a portable projector set down on a counter or a boardroom table.
How big a picture will it give?
Epson rates the maximum display size at 150 inches. Epson does not publish a throw ratio or a projection distance table for this exact model, so SourceIT will not print a distance figure it cannot verify — ask us and we will confirm it from the Epson data sheet.
Is it bright enough for a meeting room with the lights on?
Epson rates it at 1,000 lumens colour and 1,000 lumens white light output, falling to 500 lumens in economy mode. That suits a small room with the lights dimmed, an evening pop-up or a lounge. For a bright meeting room or a classroom in daylight the higher-output Epson EB models SourceIT lists are the right range instead.
Is there a lamp to replace?
No. The EF-22N uses a laser light source rather than a replaceable lamp module, so there is no lamp consumable to stock and no lamp change to schedule.
How is it different from the EF-21G?
They are the same EpiqVision Mini generation. The EF-22N is the metallic blue unit and adds the built-in adjustable stand; the EF-21G is the smoke ice green unit without the stand. Both are Full HD and rated at 1,000 lumens colour and white light output.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every Epson EF-22N sold by SourceIT carries three years Singapore local warranty and is invoiced with GST.
