Epson EB-W06 Projector
PRODUCT DESCRIPTION
Epson EB-W06 WXGA 3LCD Projector (V11H973052) - 3 Years Singapore Local Warranty
3,700 Lumens of Colour Brightness in a 2.5 kg Body
The EB-W06 produces 3,700 lumens of colour light output and 3,700 lumens of white light output from a chassis weighing just 2.5 kg. Epson's 3LCD, three-chip design is what makes those two figures equal, so a slide deck's brand colours look the same on screen as they do on the laptop rather than shifting towards grey. For a small meeting room, a training room, a classroom or a sales team that carries a projector between offices, that is enough brightness to work with the lights on and the blinds half open.
WXGA 1280 x 800 Widescreen for Slides and Video
Native resolution is WXGA, 1280 x 800 pixels in a 16:10 aspect ratio, matching the shape of most business laptop screens and presentation templates. Slides fill the screen without letterboxing, and 16:9 video scales cleanly. A 16,000:1 contrast ratio keeps dark slides and video readable in a dimmed room. The 0.59-inch 3LCD panel drives screens from 33 to 320 inches, so the same projector suits a four-person huddle room and a 40-seat training room without any change of lens.
Set Up in Seconds with Auto Keystone and Slide Correction

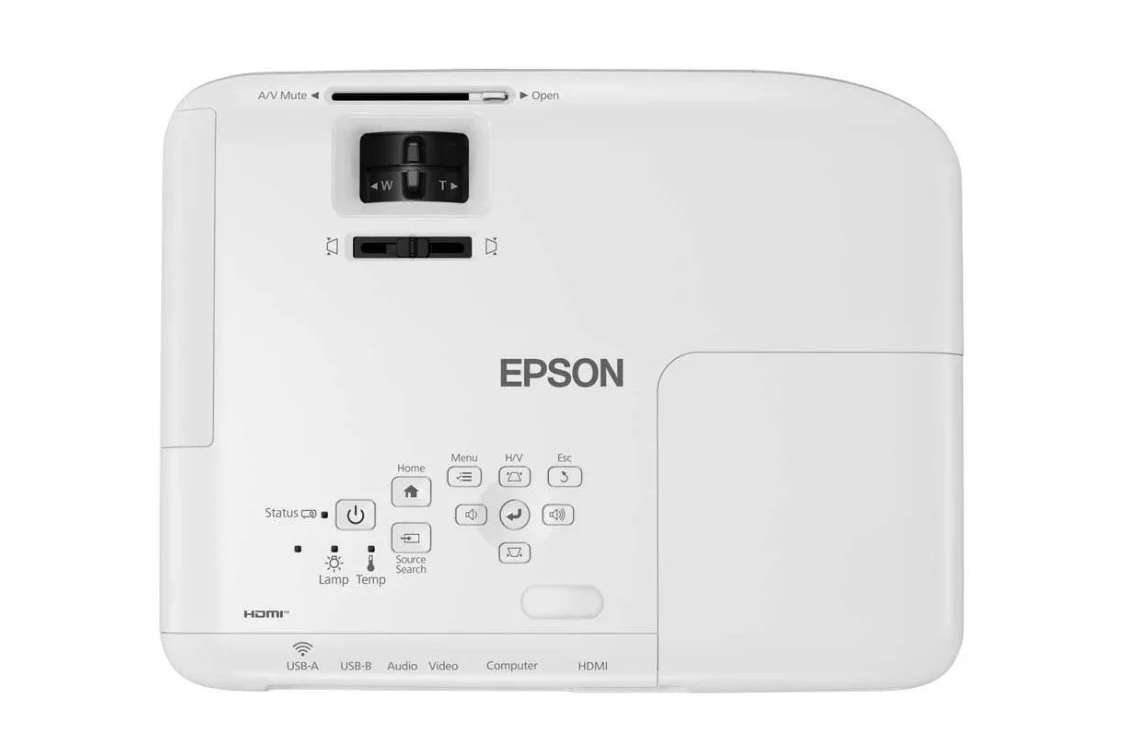

Automatic vertical keystone correction squares the image the moment the projector is placed on a table, and a horizontal slide correction bar on the top panel straightens the remaining skew by hand without going into a menu. Both axes cover minus 30 to plus 30 degrees. Plugging in an HDMI, USB or VGA cable powers the projector on automatically, and instant off means it can be unplugged straight after the meeting with no cool-down wait. For rooms with no permanent AV support, that removes most of the setup friction.
HDMI, VGA, Composite and Optional Wireless Presentation
One HDMI input, one D-Sub 15-pin computer input, one composite video input and stereo RCA audio inputs cover everything from a current laptop to an older DVD player or document camera still in service. A USB Type B port supports display over USB from a PC, and the USB Type A port accepts the optional Epson ELPAP11 wireless LAN module for cable-free presentation. Epson iProjection then allows multi-PC projection from laptops and mobile devices, while Epson Projector Management handles monitoring across a fleet.
Epson EB-W06 Datasheet — Technical Specifications
General
| Product | Epson EB-W06 WXGA 3LCD Projector |
| Part Number (SKU) | V11H973052 |
| Projection Technology | 3LCD, 3-chip technology |
| LCD Panel | 0.59-inch |
| Native Resolution | WXGA (1280 x 800) |
| Native Aspect Ratio | 16:10 |
| GTIN / UPC | 8715946671140 |
| Local Warranty (Singapore) | 3 years local warranty, supplied by SourceIT with GST invoice |
Projection & Optics
| Colour Light Output | 3,700 lm |
| White Light Output | 3,700 lm |
| Contrast Ratio | 16,000:1 |
| Zoom | 1 - 1.2 (optical) |
| Screen Size (standard lens) | 33" to 320" |
| Projection Distance | 60" screen: 1.68 m - 2.02 m |
| Throw Ratio | 1.30 (zoom wide) - 1.56 (zoom tele) |
| Lens F-Number | 1.49 - 1.72 |
| Lens Focal Length | 16.9 mm - 20.28 mm |
| Focus Method | Manual |
| Offset | 10:1 |
| Keystone Correction | Vertical -30 to +30 degrees; horizontal -30 to +30 degrees |
| Auto Keystone Correction | Vertical -30 to +30 degrees |
| Horizontal Slide Keystone Correction | Yes |
| Colour Modes | Dynamic, Presentation, Cinema, sRGB, Blackboard |
Light Source
| Type | Lamp |
| Lamp Type | 210 W UHE |
| Lamp Life (Normal / Eco) | 6,000 hours / 12,000 hours |
| Instant Off | Yes |
| Direct Power On | Yes |
Connectivity
| Digital Input | 1 x HDMI |
| Computer Input | 1 x D-Sub 15-pin (RGB), 1 x USB 2.0 Type B |
| Video Input | 1 x RCA composite (yellow) |
| Audio Input | 2 x RCA (red / white) |
| Network I/O | 1 x USB 2.0 Type A (for wireless LAN) |
| Wireless Connectivity | Optional (ELPAP11) |
Audio & Features
| Built-in Speaker | 2 W |
| Split Screen | Yes |
| Epson Projector Management (network & control) | Yes |
| Epson iProjection (Multi-PC Projection) | Yes |
| Security | Kensington-style lock provision; wireless LAN cover with screw |
Physical & Environmental
| Dimensions (D x W x H, including feet) | 237 x 302 x 82 mm |
| Weight | 2.5 kg |
| Noise Level (Normal / Eco) | 37 / 28 dB |
Power
| Power Consumption (lamp on) | 327 W |
| Power Consumption (standby) | 2.0 W |
Specifications are taken from Epson's published product data for this model. Where Epson does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mounting and placement
The EB-W06 is designed primarily for table-top use, with automatic vertical keystone correction and a horizontal slide correction bar on the top panel so it can be set down at an angle and squared up in seconds. Both correction axes cover minus 30 to plus 30 degrees. Ceiling mounting is also possible with a suitable bracket. At 237 x 302 x 82 mm including feet and 2.5 kg, it fits in a laptop bag compartment and sits comfortably on a small trolley or lectern shelf.
What it connects to

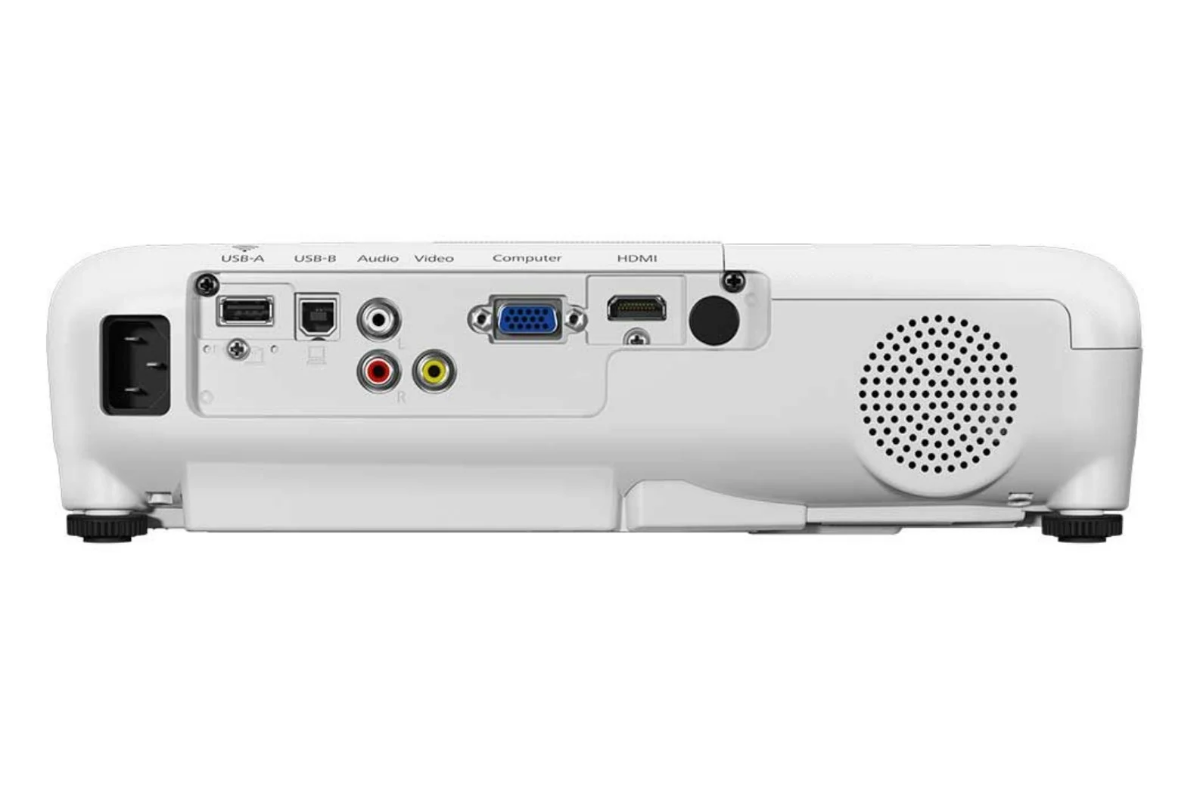

One HDMI input handles current laptops, streaming sticks and media players. One D-Sub 15-pin computer input keeps older notebooks, lectern PCs and document cameras working, and a composite RCA video input with stereo RCA audio inputs covers legacy sources such as DVD players and older cameras. A USB 2.0 Type B port supports display over USB from a PC, which avoids carrying a video cable at all when the source is a Windows laptop. Audio plays through the 2W internal speaker.
Network, control and content management
Wireless presentation requires the optional Epson ELPAP11 wireless LAN module, which fits the USB 2.0 Type A port behind a lockable cover. With the module fitted, Epson iProjection allows multi-PC projection from laptops, tablets and phones, and Epson Projector Management provides network monitoring and control. Split screen lets two sources share the image. A Kensington-style lock provision and a screw-secured wireless LAN cover cover the basic physical security requirements for a shared room.
Accessories
The Epson ELPAP11 wireless LAN module is the usual addition. SourceIT can also quote replacement lamps, ceiling mounts and carry cases alongside the projector.
Package Contents & Epson EB-W Range
In the box
Epson does not publish a full box-contents list for the EB-W06 on its published product data, so no contents are claimed here. SourceIT will confirm exactly what ships with the unit when you request a quotation.
Epson EB-W portable WXGA range
| Model | Colour / white brightness |
| EB-W06 (this listing) | 3,700 lm |
| EB-W51 | 4,000 lm |
| EB-W55 | 4,000 lm, built-in wireless LAN |
Datasheet & Downloads
- Epson Singapore — EB-W06 support, manuals and downloads
- Epson — EB-W06 full published specifications
SourceIT can email the current data sheet revision for the EB-W06 together with a quotation. Tell us your room depth and screen width and we will confirm the image size before you order.
Frequently Asked Questions — Epson EB-W06
Is the EB-W06 a Full HD projector?
No. Its native resolution is WXGA, 1280 x 800 pixels in 16:10. It accepts Full HD sources and scales them, but the panel itself is WXGA. If you need a native 1920 x 1080 image, look at Epson's Full HD models instead.
How bright is it, really?
3,700 lumens of colour light output and 3,700 lumens of white light output. Epson measures colour light output to IDMS 15.4 and white light output to ISO 21118, so the two are directly comparable — unlike single-chip designs where colour brightness can be much lower than the headline white figure.
How long does the lamp last and can it be replaced?
The 210 W UHE lamp is rated at 6,000 hours in Normal mode and 12,000 hours in Eco mode, and it is a user-replaceable consumable. SourceIT can supply replacement lamps.
Does it have built-in Wi-Fi?
No. Wireless presentation requires the optional Epson ELPAP11 wireless LAN module, which fits the USB Type A port behind a screw-secured cover. If built-in wireless is a requirement, the EB-W55 has it as standard.
Will it connect to an older VGA laptop or a DVD player?
Yes. As well as HDMI, the EB-W06 has a D-Sub 15-pin computer input, a composite RCA video input and stereo RCA audio inputs, so legacy sources are covered.
How big an image will it project?
33 to 320 inches. A 60-inch image needs 1.68 to 2.02 metres of throw distance across the 1.2x zoom range, and the throw ratio is 1.30 to 1.56.
How does it differ from the EB-W51?
The EB-W51 is brighter at 4,000 lumens against 3,700 lumens and has a higher lamp-on power draw. Both are WXGA 3LCD models with 16,000:1 contrast, the same 1.2x zoom and the same 1.30 to 1.56 throw ratio.
What warranty and paperwork do I get?
Every unit sold by SourceIT carries local Singapore warranty and ships with a GST invoice. Three years local warranty applies to this model.
