Eaton 5SC3000IRT 3000VA Tower Models 230V

Eaton 5SC3000IRT 3000VA Tower Models 230V (9210-83117) - 3 Years Local Warranty

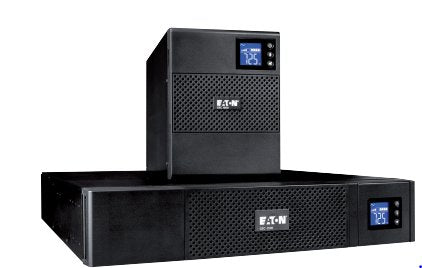

Eaton 5SC 3000VA Tower UPS – Comprehensive Power Protection

The Eaton 5SC 3000VA Tower UPS is designed to provide superior protection for your critical electronic equipment, ensuring seamless operation during power disruptions. With a power rating of 3000VA (or 2100W), this high-performance UPS delivers reliable backup power for servers, network systems, and other essential devices. Perfect for businesses that need to safeguard sensitive equipment, the Eaton 5SC 3000VA guarantees maximum uptime with minimal interruptions from power disturbances.

Efficient and Energy-Saving Design

Eaton's 5SC 3000VA Tower UPS combines a space-efficient tower form factor with advanced energy-saving features. Its Automatic Voltage Regulation (AVR) technology ensures that your devices are supplied with consistent voltage, protecting them from power surges, sags, and spikes. With energy-efficient components and an Energy Star-certified design, this UPS minimizes energy consumption without compromising performance, making it an eco-friendly choice for power protection.

User-Friendly LCD Display for Real-Time Monitoring

The Eaton 5SC 3000VA Tower UPS comes equipped with an intuitive LCD display that provides clear and concise information about the UPS's status. The display shows real-time data such as battery runtime, load capacity, and incoming power quality. This easy-to-read interface allows users to monitor the health of their UPS and be notified of any power issues, ensuring that you’re always aware of the system’s status and can take action before any disruption occurs.

Comprehensive Protection for Your Equipment

Equipped with integrated surge protection, the Eaton 5SC 3000VA Tower UPS shields your critical equipment from damaging power surges and electrical spikes. The UPS ensures that sensitive devices such as servers, computers, and networking equipment remain safe from potential electrical damage caused by lightning or fluctuations in power. This advanced protection helps reduce the risk of downtime, ensuring your business operates smoothly.

Technical Specifications

General
Model: 5SC3000IRT
Part Number: 9210-83117

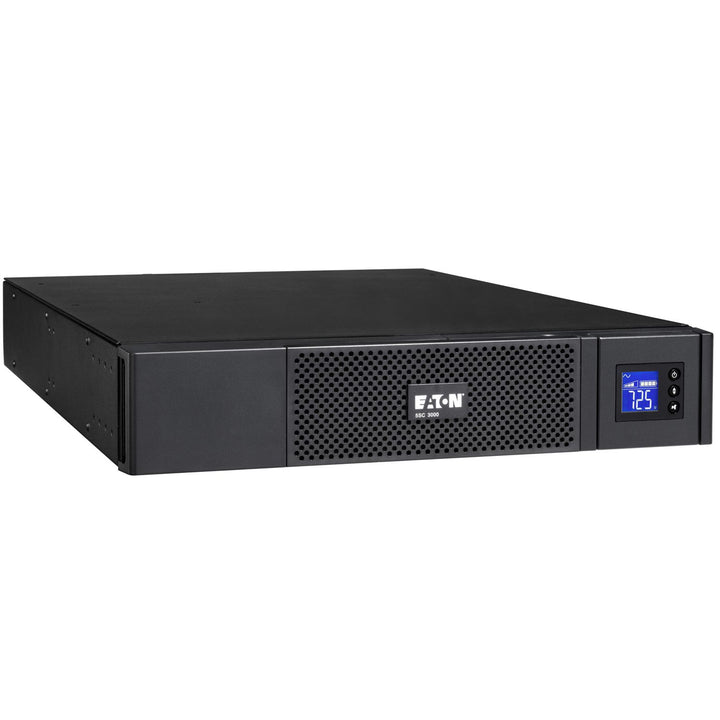

Product Name: Eaton 5SC3000IRT 3000VA Rack/Tower UPS 230V
Manufacturer: Eaton
Product Type: Line-Interactive UPS
UPS Topology: Line-Interactive High Frequency with AVR (Booster/Fader)
Form Factor: Rack/Tower Convertible
Rack Height: 2U
Power Capacity: 3000VA / 2700W
Output Power Factor: 0.9
Input Voltage: 230V AC
Output Voltage: 220V / 230V / 240V Adjustable
Battery Technology: Sealed Lead Acid (VRLA)
Application: Servers, NAS Storage, Network Equipment, Security Systems, Edge Computing, Telecommunications
Warranty: 2 Years Standard Warranty

Power Specifications
Rated Capacity: 3000VA / 2700W
UPS Topology: Line-Interactive
Output Power Factor: 0.9
Output Waveform: Pure Sine Wave
Input Voltage Range: 184V – 276V AC
Output Voltage: 230V (+6% / -10%) Adjustable to 220V / 230V / 240V
Output Frequency: 50Hz / 60Hz Auto-Sensing
Frequency Regulation: ±1Hz
Efficiency: Up to 97%
Automatic Voltage Regulation (AVR): Supported
Booster/Fader Technology: Supported
Cold Start Capability: Supported

Battery Specifications
Battery Type: Maintenance-Free Sealed Lead Acid (VRLA)
Battery Quantity: 6 Batteries
Battery Rating: 12V / 9Ah
Battery Management: Eaton ABM® Advanced Battery Management
Battery Charging Method: ABM or Constant Voltage Charging (User Selectable)
Battery Replacement: User Replaceable
Automatic Battery Testing: Supported
Deep Discharge Protection: Supported
Hot-Swappable Battery Access: Front Panel Access
Extended Battery Capability: Not Supported

Runtime Specifications
Runtime at 50% Load: Approximately 10 Minutes
Runtime at 70% Load: Approximately 6 Minutes
Runtime at Full Load: Approximately 4–5 Minutes
Battery Runtime Monitoring: Supported
Load-Based Runtime Estimation: Supported

Input Specifications
Input Connector: IEC C20 (16A)
Input Voltage: 230V AC
Input Frequency Range: 45–55Hz (50Hz System) / 55–65Hz (60Hz System)
Input Cord Length: 1.8m
Input Phase: Single Phase
Input Protection: Integrated

Output Specifications
Total Output Outlets: 9
IEC C13 Outlets: 8
IEC C19 Outlets: 1
Output Phase: Single Phase
Critical Load Protection: Supported
Pure Sine Wave Output: Supported
Programmable Output Control: Supported

Display & User Interface
Display Type: LCD Display
Input Voltage Monitoring: Supported
Output Voltage Monitoring: Supported
Battery Status Monitoring: Supported
Load Monitoring: Supported
Runtime Estimation: Supported
Alarm Configuration: Supported
Sensitivity Configuration: Supported
Status Notifications: Supported

Management & Communication
USB Port: 1 × HID Compliant USB
RS232 Serial Port: 1 × Serial Port
Relay Contacts: Supported
Remote On/Off (ROO): Supported
Remote Power Off (RPO): Supported
Communication Expansion Slot: 1
SNMP/Web Management Card: Optional
Relay-MS Card: Optional
Eaton Intelligent Power Manager (IPM): Supported
Eaton Intelligent Power Protector (IPP): Supported
Windows Compatibility: Supported
macOS Compatibility: Supported
Linux Compatibility: Supported

Protection Features
Line-Interactive Power Protection
Automatic Voltage Regulation (AVR)
Pure Sine Wave Output
Surge Protection
Brownout Protection
Overvoltage Protection
Undervoltage Protection
Short Circuit Protection
Overload Protection
Deep Discharge Protection
Critical Load Protection

Virtualization & Software Support
VMware Compatible
Microsoft Hyper-V Compatible
Virtualization Platform Support
Remote Shutdown Capability
Centralized UPS Monitoring
Power Event Management
Multi-Server Shutdown Support

Environmental Specifications
Operating Temperature: 0°C to 40°C
Storage Temperature: -15°C to 50°C
Operating Humidity: 0% – 90% Non-Condensing
Maximum Operating Altitude: 3000m
Noise Level: Less Than 45 dB at 1 Meter

Design & Construction
Color: Black
Form Factor: Rack/Tower Convertible
Rack Mount Kit: Included
Tower Pedestals: Included
Construction Type: 19-Inch Rackmount Device
Short Depth Design: Supported
Wall Mount Compatible: Supported
Front Battery Access: Supported

Physical Specifications
Dimensions (H × W × D): 86.2 × 441 × 647 mm
Weight: 35.3 kg
Rack Height: 2U
Installation Type: Rack or Tower

Package Contents
Eaton 5SC3000IRT UPS
Input Power Cable
Rack Mounting Kit
Tower Pedestals
Cable Locking System
USB Communication Cable
RS232 Serial Cable
2 × IEC-to-IEC Output Cables
Quick Start Guide
Safety Instructions

Features
3000VA / 2700W Capacity
Line-Interactive Topology
Pure Sine Wave Output
Automatic Voltage Regulation (AVR)
ABM® Battery Management Technology
LCD Status Display
USB & RS232 Connectivity
Optional SNMP/Web Management
Front Battery Replacement
Rack/Tower Convertible Design
Short Depth Chassis
97% Efficiency

Performance & Features
The Eaton 5SC3000IRT is designed to provide cost-effective power protection for servers, storage systems, and networking equipment. Its line-interactive topology with AVR corrects voltage fluctuations without switching to battery power, helping to extend battery life. The pure sine wave output ensures compatibility with modern active PFC power supplies commonly found in enterprise servers and network appliances. Eaton's ABM battery management technology can extend battery service life by up to 50% compared to traditional float charging methods.

Key Features
3000VA / 2700W Capacity
Pure Sine Wave Output
Line-Interactive Technology
97% Efficiency
ABM® Battery Management
8 × IEC C13 Outputs
1 × IEC C19 Output
LCD Display
USB & RS232 Connectivity
Optional Network Management Card
Rack/Tower Convertible 2U Design
Short Depth Installation Friendly

Typical Use Cases
Rack Servers
Tower Servers
NAS Storage Systems
Network Switches
Firewalls
Telecommunications Equipment
Branch Office Infrastructure
Retail POS Systems
Kiosks & Ticketing Machines
Security & Surveillance Systems
SMB Server Rooms
Edge Computing Deployments

Certifications & Compliance
IEC/EN 62040-1
IEC/EN 62040-2
UL 1778
CE Certified
TÜV Certified
cTUVus Certified
EAC Certified

UPC / GTIN
UPC: 743172088352
