Eaton 5SC2200IRT 2200VA Tower Models 230V

Eaton 5SC2200IRT 2200VA Tower Models 230V (9210-73033) - 3 Years Local Warranty

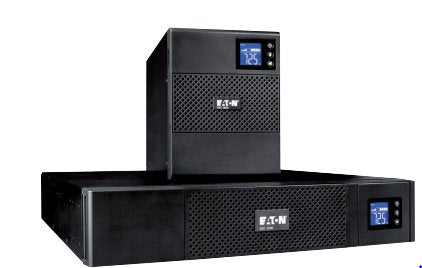

Eaton 5SC 2200VA Tower UPS - Superior Power Protection

The Eaton 5SC 2200VA Tower UPS is the ideal solution for protecting your sensitive equipment from power disruptions, including PCs, networking devices, and critical business equipment. With a robust 2200VA (or 1580W) power rating, this UPS is designed to deliver exceptional reliability and prevent downtime during electrical disturbances. Perfect for small to medium-sized businesses or home office setups, the Eaton 5SC 2200VA ensures that your devices are always powered and protected.

Efficient Design with Energy Savings

The Eaton 5SC 2200VA Tower UPS provides a compact and space-saving design, making it ideal for offices with limited space. Despite its small footprint, this UPS delivers powerful performance and is equipped with features that help you save energy. With energy-efficient capabilities like Energy Star compliance and Automatic Voltage Regulation (AVR), the Eaton 5SC minimizes power consumption while ensuring optimal performance. AVR technology ensures your devices receive consistent voltage, preventing damage and extending battery life.

Advanced LCD Display for Easy Monitoring

With an easy-to-use LCD display, the Eaton 5SC 2200VA Tower UPS provides real-time insights into the UPS’s health, load capacity, and battery status. The display makes it easy to monitor essential parameters, such as remaining battery runtime and system alerts. This allows users to quickly identify potential issues and take action to prevent downtime. The clear, intuitive display ensures that you are always in control and aware of your power backup status.

Robust Protection Against Power Surges and Outages

The Eaton 5SC 2200VA Tower UPS offers advanced surge protection to safeguard your sensitive equipment from damaging power surges, lightning strikes, and electrical spikes. Whether you're protecting office equipment, electronics, or network gear, the UPS ensures that power quality remains stable. With the Eaton 5SC 2200VA UPS, you can rest easy knowing that your devices are shielded from potential power threats, reducing the risk of damage and downtime.

Technical Specifications

General
Model: 5SC2200IRT
Part Number: 9210-73033

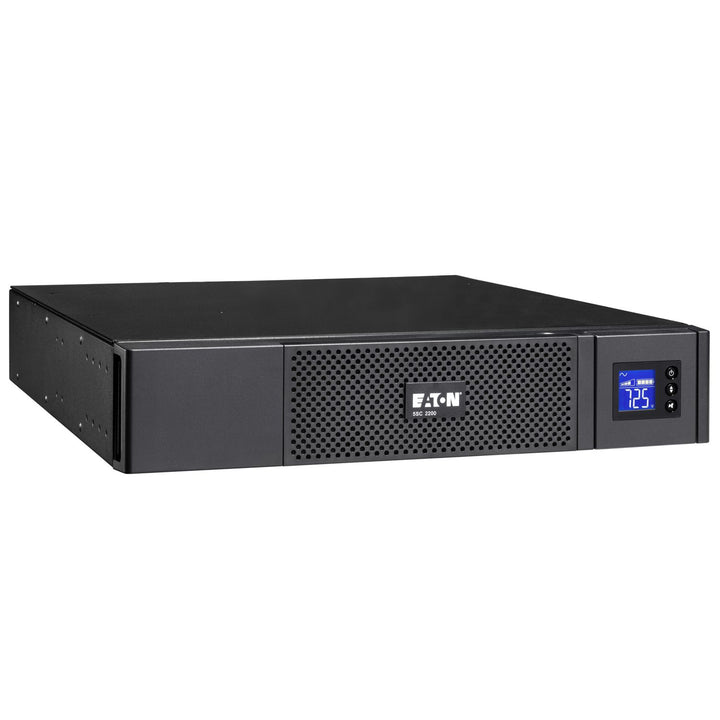

Product Name: Eaton 5SC2200IRT 2200VA Rack/Tower UPS 230V
Manufacturer: Eaton
Product Type: Line-Interactive UPS
UPS Topology: Line-Interactive with Automatic Voltage Regulation (AVR)
Form Factor: Rack/Tower Convertible
Rack Height: 2U
Power Capacity: 2200VA / 1980W
Output Power Factor: 0.9
Input Voltage: 230V AC
Output Voltage: 220V / 230V / 240V Adjustable
Battery Technology: Maintenance-Free Sealed Lead Acid (VRLA)
Application: Servers, NAS Storage, Network Switches, Firewalls, Security Systems, Telecommunications Equipment, SMB Server Rooms
Warranty: 2 Years Standard Warranty

Power Specifications
Rated Capacity: 2200VA / 1980W
UPS Topology: Line-Interactive
Output Power Factor: 0.9
Output Waveform: Pure Sine Wave
Input Voltage Range: 184V – 276V AC
Output Voltage: 220V / 230V / 240V Configurable
Output Voltage Range: 230V (+6% / -10%)
Input Frequency Range: 45Hz – 55Hz (50Hz System), 55Hz – 65Hz (60Hz System)
Output Frequency: 50Hz / 60Hz ±0.1Hz
Efficiency: Up to 97%
Automatic Voltage Regulation (AVR): Supported
Cold Start Capability: Supported
Auto Shutdown Function: Supported

Battery Specifications
Battery Type: Maintenance-Free Sealed Lead Acid (VRLA)
Battery Quantity: 4 Batteries
Battery Rating: 12V / 9Ah
Battery Management: Eaton ABM® Advanced Battery Management
Battery Charging Method: ABM or Constant Voltage Charging (User Selectable)
Battery Replacement: User Replaceable
Automatic Battery Test: Supported
Deep Discharge Protection: Supported
Hot-Swappable Batteries: Supported
Extended Battery Capability: No

Runtime Specifications
Runtime at Full Load: Approximately 2 Minutes
Runtime at Half Load: Approximately 7 Minutes
Runtime Monitoring: Supported
Load-Based Runtime Estimation: Supported

Input Specifications
Input Connector: IEC C20
Input Phase: Single Phase
Input Voltage: 220V / 230V / 240V
Input Cord Length: 1.8m
Input Protection: Integrated
Input Monitoring: Supported

Output Specifications
Total Output Outlets: 9
IEC C13 Outlets: 8
IEC C19 Outlets: 1
Output Phase: Single Phase
Critical Load Protection: Supported
Pure Sine Wave Output: Supported
Programmable Output Control: Supported

Display & User Interface
Display Type: LCD Display
Real-Time Status Monitoring: Supported
Input Voltage Monitoring: Supported
Output Voltage Monitoring: Supported
Battery Status Monitoring: Supported
Load Monitoring: Supported
Runtime Estimation: Supported
Alarm Notifications: Supported
Status Configuration: Supported

Management & Communication
USB Port (HID Compliant): 1
RS232 Serial Port: 1
Remote On/Off: Supported
Remote Power Off (RPO): Supported
Dry Contacts: Supported
Communication Expansion Slot: 1
Network Management Card: Optional
SNMP/Web Monitoring: Optional
Software Compatibility:
• Eaton Intelligent Power Manager (IPM)
• Eaton Intelligent Power Protector (IPP)
Virtualization Support: VMware, Hyper-V, Citrix Xen, Red Hat Compatible

Protection Features
Line-Interactive Power Protection
Automatic Voltage Regulation (AVR)
Pure Sine Wave Output
Surge Protection
Brownout Protection
Overvoltage Protection
Undervoltage Protection
Short Circuit Protection
Overload Protection
Deep Discharge Protection
Critical Load Protection

Environmental Specifications
Operating Temperature: 0°C to 40°C
Storage Temperature: -15°C to 50°C
Relative Humidity: 0% – 90% Non-Condensing
Maximum Operating Altitude: 3000m
Noise Level: Less Than 40 dB at 1 Meter

Design & Construction
Color: Black
Form Factor: Rack/Tower Convertible
Rack Size: 2U
Rack Mount Kit: Included
Tower Pedestals: Included
Construction Type: 19-Inch Rack Device
Front Battery Access: Supported
Cable Locking System: Included

Physical Specifications
Dimensions (W × H × D): 441 × 86.2 × 522 mm
Weight: 26.5 kg
Rack Height: 2U
Installation Type: Rack or Tower

Package Contents
Eaton 5SC2200IRT UPS
Input Power Cable
Rack Mounting Kit
Cable Locking System
USB Communication Cable
RS232 Serial Cable
2 × IEC-to-IEC Output Cables
Quick Start Guide
Safety Instructions

Features
2200VA / 1980W Capacity
Line-Interactive Topology
Pure Sine Wave Output
97% Efficiency
Automatic Voltage Regulation (AVR)
ABM® Battery Management Technology
Hot-Swappable Batteries
LCD Display Interface
USB & RS232 Connectivity
Optional Network Management Card
Rack/Tower Convertible Design
VMware & Hyper-V Compatible
Remote On/Off and RPO Support

Performance & Features
The Eaton 5SC2200IRT is designed for professional IT and networking environments requiring cost-effective power protection. Its line-interactive architecture with AVR corrects voltage fluctuations without switching to battery power, helping extend battery life. The pure sine wave output ensures compatibility with modern active PFC power supplies commonly found in servers, storage systems, and network appliances. Eaton's ABM battery management technology helps extend battery service life while reducing maintenance costs.

Key Features
2200VA / 1980W Capacity
Pure Sine Wave Output
Line-Interactive Technology
97% Efficiency
ABM® Battery Management
8 × IEC C13 Outputs
1 × IEC C19 Output
LCD Display
USB & RS232 Connectivity
Optional SNMP Management
Rack/Tower Convertible 2U Design
Hot-Swappable Batteries
VMware, Hyper-V & Citrix Compatible

Typical Use Cases
Rack Servers
Tower Servers
NAS Storage Systems
Network Switches
Firewalls
Telecommunications Equipment
Retail POS Systems
Security & Surveillance Systems
SMB Server Rooms
Branch Office Infrastructure
Edge Computing Deployments
Business-Critical Applications

Certifications & Compliance
IEC/EN 62040-1
IEC/EN 62040-2
UL 1778
CE Certified
TÜV Certified
cTUVus Certified
EAC Certified

UPC / GTIN
UPC: 743172088345
