Eaton 5SC500i 500VA Tower Models 230V

Eaton 5SC500i 500VA Tower Models 230V (9210-2327) - 3 Years Local Warranty

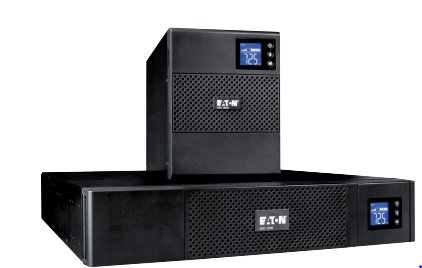

Eaton 5SC 500VA Tower UPS – Compact Power Protection

The Eaton 5SC 500VA Tower UPS is an ideal solution for small office setups, home offices, or individual workstations that require reliable power protection. With a 500VA power rating (or 300W), this compact and efficient UPS offers robust protection for devices such as routers, desktop computers, and other electronics. Offering seamless backup power, it ensures your equipment continues to run smoothly during power interruptions, helping to prevent data loss and downtime.

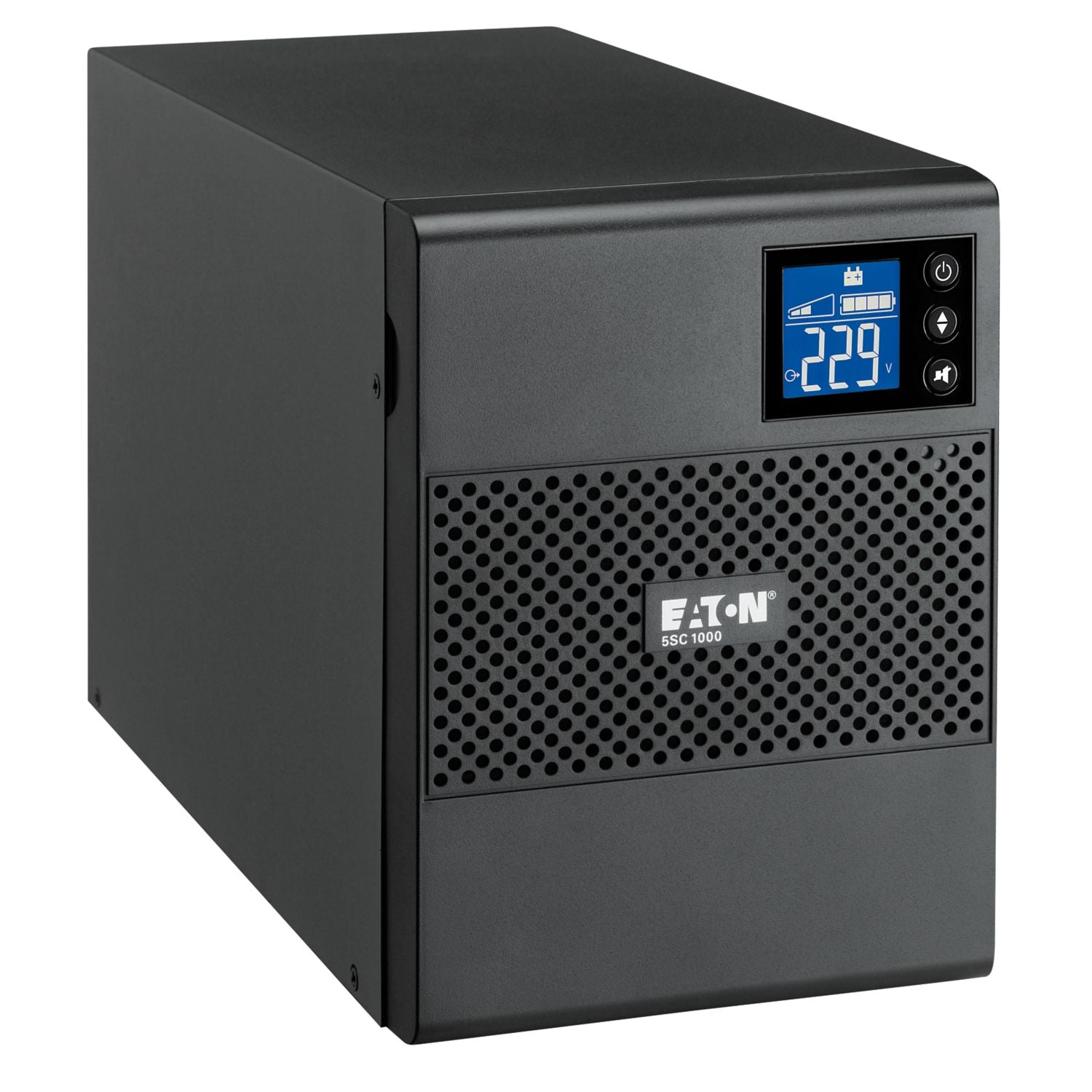

Efficient and Compact Design

The Eaton 5SC 500VA Tower UPS is designed with space efficiency in mind, featuring a compact tower form factor that makes it suitable for environments where space is limited. It incorporates Automatic Voltage Regulation (AVR) technology, which stabilizes voltage fluctuations and protects sensitive equipment from power sags, surges, and spikes. This makes the Eaton 5SC 500VA both a reliable and energy-efficient solution for power backup needs.

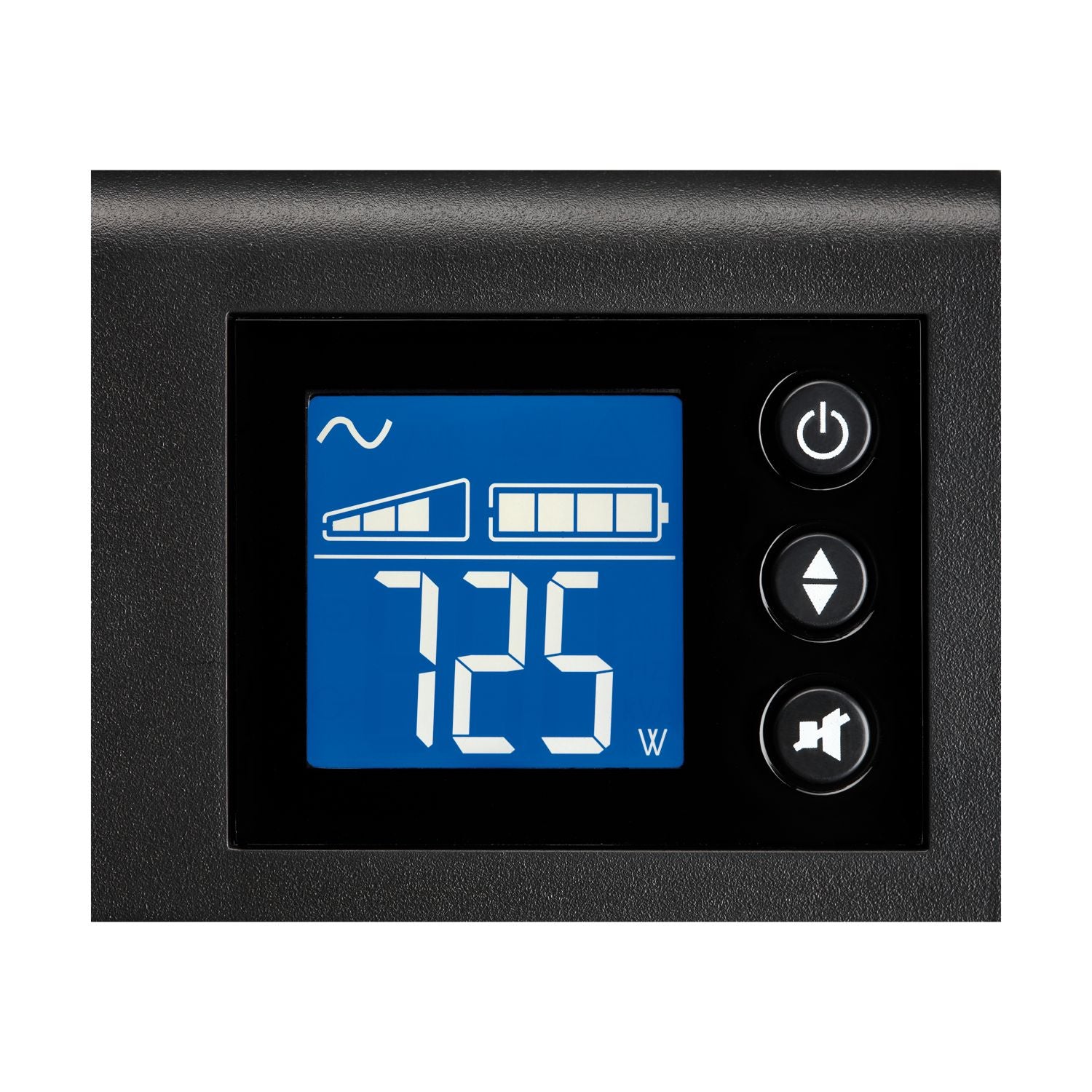

Real-Time Monitoring with LCD Display

This model comes with a user-friendly LCD display that provides real-time monitoring of the UPS's performance. The display allows users to quickly check key information such as battery status, load capacity, and input/output voltage. With this information readily available, users can ensure that their UPS is functioning properly and be alerted in case of any issues, giving peace of mind that their devices are being protected.

Reliable Surge Protection and Battery Backup

The Eaton 5SC 500VA Tower UPS offers built-in surge protection, helping to protect sensitive electronics from damage caused by power surges and lightning strikes. The integrated battery backup ensures that your equipment remains operational during power outages, allowing you to save your work and shut down devices properly to avoid data corruption or hardware failure.

Technical Specifications

General
Model: 5SC500i
Part Number: 9210-2327
Product Name: Eaton 5SC500i 500VA Tower UPS 230V
Manufacturer: Eaton
Product Type: Line-Interactive UPS
UPS Topology: Line-Interactive with Automatic Voltage Regulation (AVR)
Form Factor: Tower
Power Capacity: 500VA / 350W
Output Power Factor: 0.7
Input Voltage: 220V / 230V / 240V AC
Output Voltage: 220V / 230V / 240V AC Adjustable
Battery Technology: Maintenance-Free Sealed Lead Acid (VRLA)
Application: Desktop PCs, NAS Storage, Network Switches, Routers, Firewalls, POS Systems, Kiosks, Small Servers, Security Systems
Warranty: 2 Years Warranty

Power Specifications
Rated Capacity: 500VA / 350W
UPS Topology: Line-Interactive
Output Power Factor: 0.7
Output Waveform: Pure Sine Wave
Input Voltage Range: 184V – 276V AC
Output Voltage: 230V Default (220V / 230V / 240V Selectable)
Output Voltage Range: 230V (+6% / -10%)
Input Frequency Range: 45Hz – 55Hz (50Hz System), 55Hz – 65Hz (60Hz System)
Output Frequency: 50Hz / 60Hz Auto-Sensing
Efficiency: Up to 95%
Automatic Voltage Regulation (AVR): Supported
Cold Start Capability: Supported
Auto Shutdown Function: Supported

Battery Specifications
Battery Type: Maintenance-Free Sealed Lead Acid (VRLA)
Battery Quantity: 1 Battery
Battery Rating: 12V / 9Ah
Battery Management: Eaton ABM® Advanced Battery Management Technology
Battery Charging Method: ABM or Constant Voltage Charging (User Selectable)
Battery Replacement: User Replaceable
Automatic Battery Testing: Supported
Deep Discharge Protection: Supported
Extended Battery Capability: No

Runtime Specifications
Runtime at Full Load: Approximately 5 Minutes
Runtime at Half Load: Up to 13 Minutes
Runtime Monitoring: Supported
Load-Based Runtime Estimation: Supported

Input Specifications
Input Connector: IEC C14
Input Phase: Single Phase
Input Voltage Monitoring: Supported
Input Frequency Monitoring: Supported
Input Protection: Integrated
Nominal Input Voltage: 230V Default (220V / 230V / 240V Selectable)

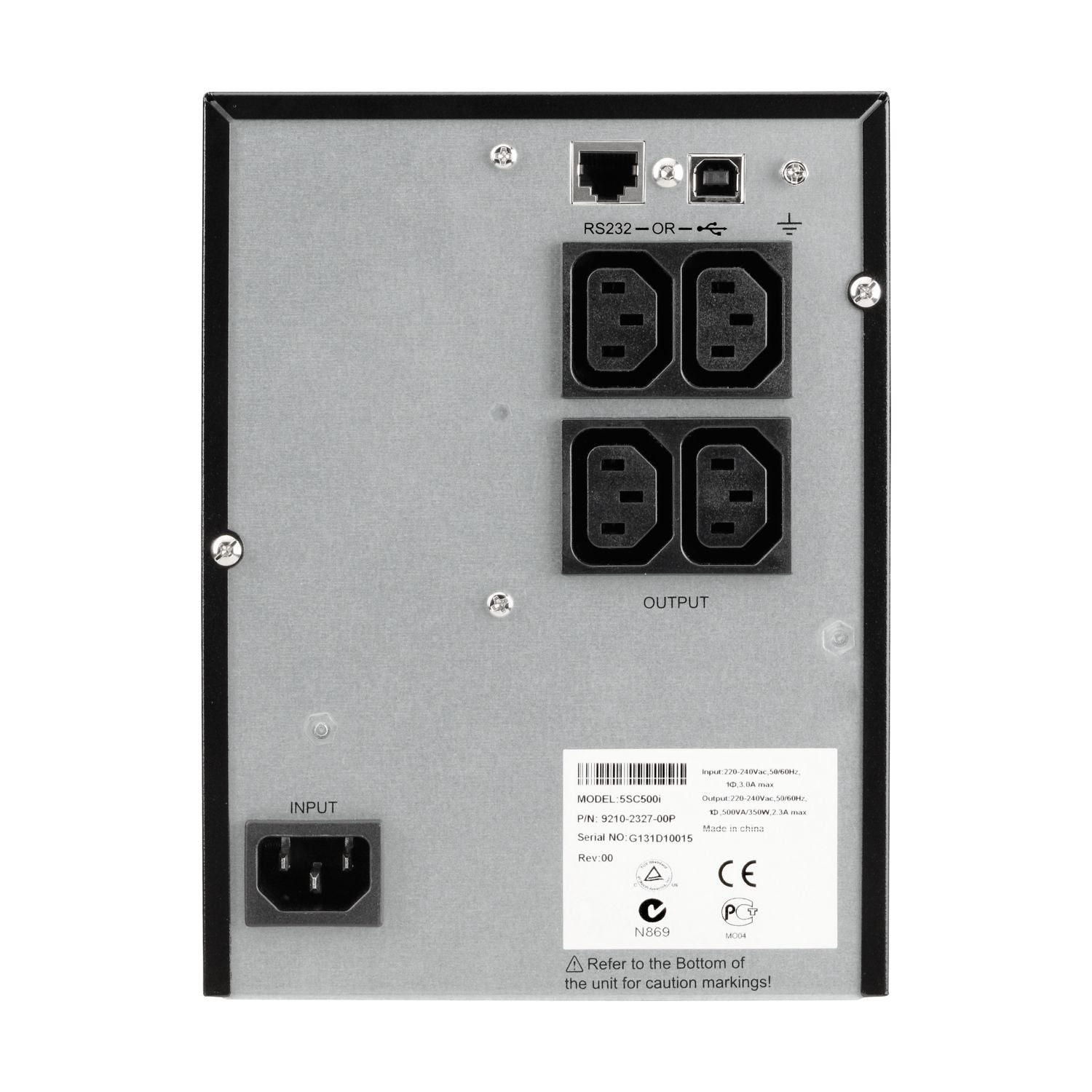

Output Specifications
Total Output Outlets: 4
Outlet Type: IEC C13
Output Phase: Single Phase
Output Voltage: 220V / 230V / 240V Adjustable
Pure Sine Wave Output: Supported
Critical Equipment Protection: Supported

Display & User Interface
Display Type: LCD Display
Power Status Monitoring: Supported
Input Voltage Monitoring: Supported
Output Voltage Monitoring: Supported
Battery Status Monitoring: Supported
Load Monitoring: Supported
Runtime Estimation: Supported
Audible Alarm Notifications: Supported
User Configuration Menu: Supported

Management & Communication
USB Port (HID Compliant): 1
RS232 Serial Port: 1
Network Management Card: Not Supported
SNMP Monitoring: Not Supported
Expansion Slots: No
Software Compatibility: Eaton Intelligent Power Protector (IPP)
Windows Compatible: Supported
Linux Compatible: Supported
Automatic Safe Shutdown: Supported

Protection Features
Automatic Voltage Regulation (AVR)
Pure Sine Wave Output
Surge Protection
Brownout Protection
Overvoltage Protection
Undervoltage Protection
Short Circuit Protection
Overload Protection
Battery Deep Discharge Protection
Power Line Conditioning
Auto Restart After Power Recovery

Environmental Specifications
Operating Temperature: 0°C to 40°C
Operating Humidity: 0% – 95% Non-Condensing
Maximum Operating Altitude: 2000m
Noise Level: Less Than 25 dB at 1 Meter
BTU Rating: 72 BTU/hr

Design & Construction
Color: Black
Form Factor: Tower
Construction Type: Free Standing Model
Compact Space-Saving Design: Supported
Front Battery Access: Supported
Quiet Office-Friendly Design: Supported

Physical Specifications
Dimensions (H × W × D): 210 × 150 × 240 mm
Weight: 6.6 kg
Installation Type: Tower Only

Package Contents
Eaton 5SC500i UPS
USB Communication Cable
RS232 Serial Cable
2 × IEC-to-IEC Power Cables
Quick Start Guide
Safety Instructions

Features
500VA / 350W Capacity
Line-Interactive UPS Technology
Pure Sine Wave Output
Automatic Voltage Regulation (AVR)
LCD Status Display
ABM® Battery Management Technology
USB & RS232 Connectivity
User Replaceable Battery
Automatic Battery Testing
Compact Tower Design
Low Noise Operation
Power Management Software Support

Performance & Features
The Eaton 5SC500i is a compact line-interactive UPS designed for protecting networking equipment, small servers, NAS devices, kiosks, and professional workstations. It delivers pure sine wave output, making it fully compatible with modern active PFC power supplies. Eaton's ABM® battery management technology can extend battery service life by up to 50% compared to traditional charging methods while providing advanced battery replacement warnings. The front-panel LCD display offers real-time monitoring of load, battery status, input voltage, and runtime information.

Key Features
500VA / 350W Capacity
Pure Sine Wave Output
Line-Interactive Topology
Automatic Voltage Regulation (AVR)
ABM® Battery Management Technology
LCD Display Interface
4 × IEC C13 Outputs
USB & RS232 Connectivity
User Replaceable Battery
Low Noise Operation (<25 dB)
Compact Tower Design
Safe System Shutdown Support

Typical Use Cases
Desktop Computers
NAS Storage Systems
Network Switches
Routers & Firewalls
Retail POS Systems
Kiosks
Ticketing Machines
Security & Surveillance Systems
Small Office Servers
Telecommunications Equipment
Home Office Infrastructure

Certifications & Compliance
IEC/EN 62040-1
IEC/EN 62040-2
UL 1778
CE Certified
TÜV Certified
cTUVus Certified
EAC Certified

UPC / GTIN
UPC: 743172045140
