Eaton 5SC750i 750VA Tower Models 230V

Eaton 5SC750i 750VA Tower Models 230V (9210-3364) - 3 Years Local Warranty

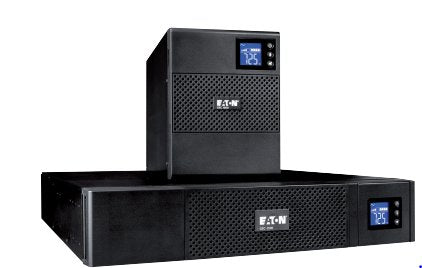

Eaton 5SC 750VA Tower UPS – Efficient Power Protection

The Eaton 5SC 750VA Tower UPS offers essential power protection for home offices, small businesses, and critical equipment. With a 750VA power rating (or 450W), this compact UPS is designed to provide reliable battery backup and surge protection for devices such as desktops, networking equipment, and point-of-sale systems. The Eaton 5SC 750VA UPS ensures that your devices continue to function during power outages, preventing data loss and hardware damage.

Compact Design with Advanced Features

The Eaton 5SC 750VA Tower UPS is engineered for space-saving and efficiency. Its compact tower form factor is ideal for environments with limited space while offering powerful features that protect sensitive electronics. With Automatic Voltage Regulation (AVR), the UPS corrects voltage fluctuations, stabilizing the power supply to safeguard connected devices. Whether you experience power sags, spikes, or surges, this UPS ensures a consistent and clean power supply.

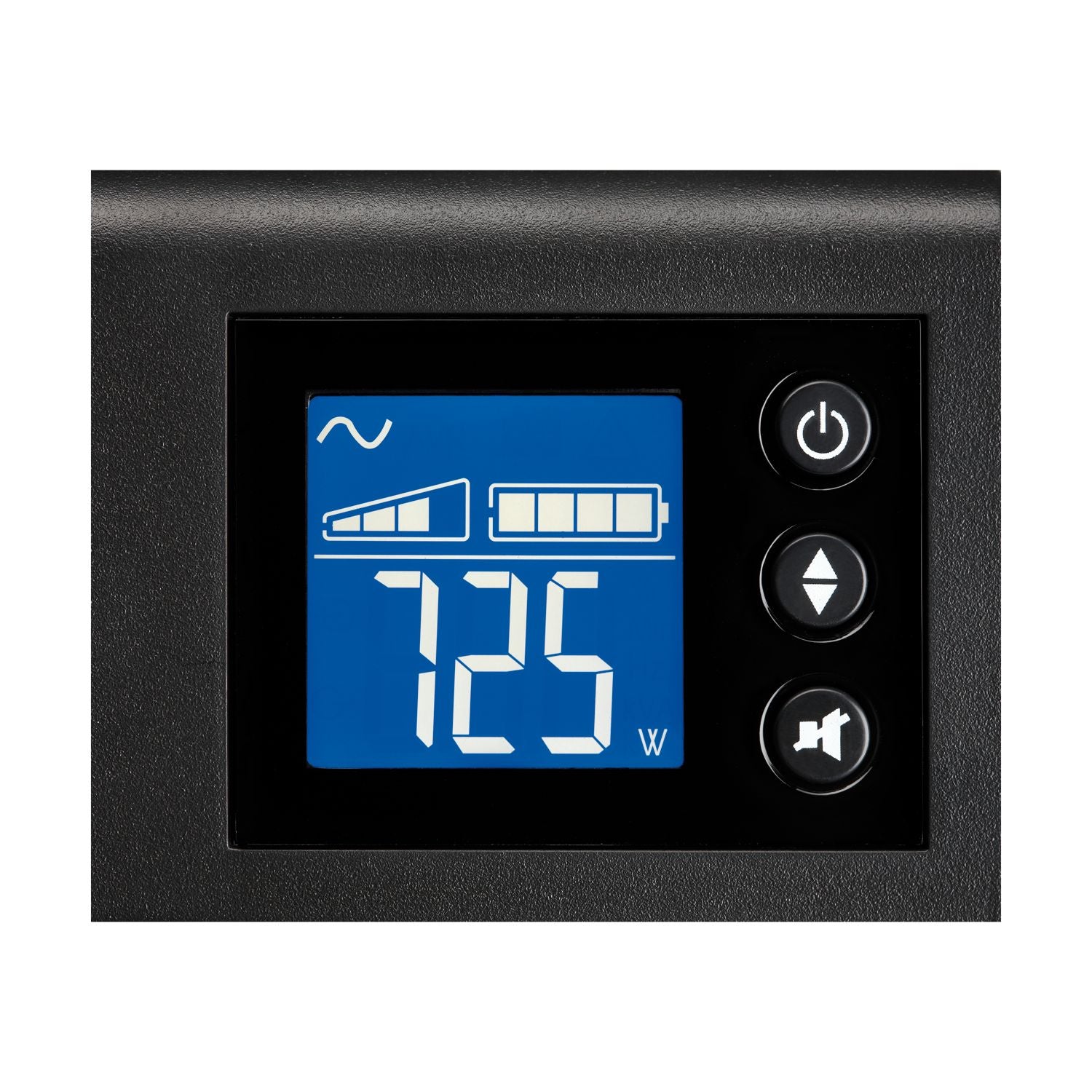

Real-Time Monitoring via LCD Display

Equipped with a convenient LCD display, the Eaton 5SC 750VA provides users with real-time information on the UPS’s status, including battery charge, load capacity, input and output voltage, and other vital metrics. This display allows users to easily monitor performance and respond to any potential issues. This ensures that your devices are always operating within safe parameters, giving you peace of mind and minimizing the risk of downtime.

Built-In Surge Protection and Battery Backup

The Eaton 5SC 750VA Tower UPS includes integrated surge protection, which shields your valuable equipment from sudden power surges, lightning strikes, and other electrical disturbances. Additionally, the UPS offers reliable battery backup during power outages, allowing you to continue operating critical equipment without interruption. The ability to save work and properly shut down devices helps prevent data loss and system damage.

Technical Specifications

General
Model: 5SC750i
Part Number: 9210-3364
Product Name: Eaton 5SC750i 750VA Tower UPS 230V
Manufacturer: Eaton
Product Type: Line-Interactive UPS
UPS Topology: Line-Interactive with Automatic Voltage Regulation (AVR)
Form Factor: Tower
Power Capacity: 750VA / 525W
Output Power Factor: 0.7
Input Voltage: 230V AC
Output Voltage: 220V / 230V / 240V Adjustable
Battery Technology: Maintenance-Free Sealed Lead Acid (VRLA)
Application: Workstations, Tower Servers, NAS Storage, Network Switches, POS Systems, Kiosks, ATMs, Security Systems
Warranty: 2 Years Standard Warranty

Power Specifications
Rated Capacity: 750VA / 525W
UPS Topology: Line-Interactive
Output Power Factor: 0.7
Output Waveform: Pure Sine Wave
Input Voltage Range: 184V – 276V AC
Output Voltage: 230V Default (Adjustable to 220V / 230V / 240V)
Output Voltage Range: 230V (+6% / -10%)
Input Frequency Range: 45Hz – 55Hz (50Hz System) / 55Hz – 65Hz (60Hz System)
Output Frequency: 50Hz / 60Hz Auto-Sensing
Efficiency: Up to 96%
Automatic Voltage Regulation (AVR): Supported
Cold Start Capability: Supported
Auto Shutdown Function: Supported

Battery Specifications
Battery Type: Maintenance-Free Sealed Lead Acid (VRLA)
Battery Quantity: 2 Batteries
Battery Rating: 12V / 7Ah
Battery Management: Eaton ABM® Advanced Battery Management
Battery Charging Method: ABM or Constant Voltage Charging (User Selectable)
Battery Replacement: User Replaceable
Automatic Battery Testing: Supported
Deep Discharge Protection: Supported
Extended Battery Capability: No

Runtime Specifications
Runtime at Full Load: Approximately 5 Minutes
Runtime at Half Load: Approximately 12.5 Minutes
Runtime Monitoring: Supported
Load-Based Runtime Estimation: Supported

Input Specifications
Input Connector: IEC C14
Input Phase: Single Phase
Input Voltage Monitoring: Supported
Input Frequency Monitoring: Supported
Input Protection: Integrated
Nominal Input Voltage: 230V Default (220V / 230V / 240V Selectable)

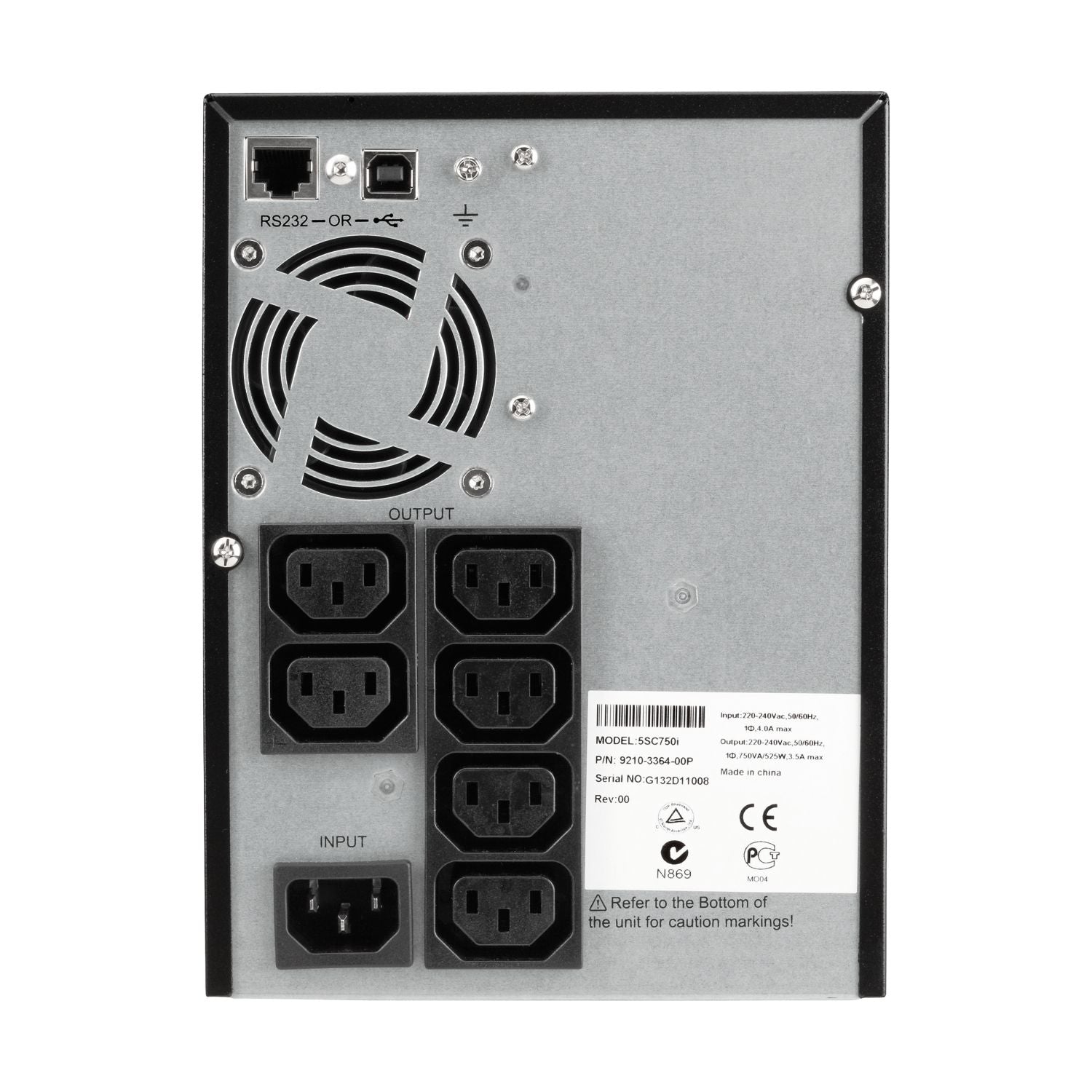

Output Specifications
Total Output Outlets: 6
IEC C13 Outlets: 6
Output Phase: Single Phase
Output Voltage: 220V / 230V / 240V Adjustable
Pure Sine Wave Output: Supported
Critical Load Protection: Supported

Display & User Interface
Display Type: LCD Display
Real-Time Power Monitoring: Supported
Input Voltage Monitoring: Supported
Output Voltage Monitoring: Supported
Battery Status Monitoring: Supported
Load Monitoring: Supported
Runtime Estimation: Supported
Alarm Notifications: Supported
Status Configuration: Supported

Management & Communication
USB Port (HID Compliant): 1
RS232 Serial Port: 1
Ethernet Interface: Not Supported
Network Management Card: Not Supported
Expansion Slots: No
Software Compatibility: Eaton Intelligent Power Protector (IPP)
Remote Shutdown: Supported
Windows Compatible: Supported
macOS Compatible: Supported
Linux Compatible: Supported

Protection Features
Line-Interactive Power Protection
Automatic Voltage Regulation (AVR)
Pure Sine Wave Output
Surge Protection
Brownout Protection
Overvoltage Protection
Undervoltage Protection
Short Circuit Protection
Overload Protection
Battery Deep Discharge Protection

Environmental Specifications
Operating Temperature: 0°C to 35°C
Operating Humidity: 0% – 90% Non-Condensing
Maximum Operating Altitude: 2000m
Noise Level: Less Than 40 dB at 1 Meter
BTU Rating: 106 BTU/hr

Design & Construction
Color: Black
Form Factor: Tower
Construction Type: Free Standing Model
Compact Tower Design: Supported
Rack Mountable: No
Front LCD Status Display: Supported

Physical Specifications
Dimensions (W × H × D): 150 × 210 × 340 mm
Weight: 10.4 kg
Installation Type: Tower Only

Package Contents
Eaton 5SC750i UPS
USB Communication Cable
RS232 Serial Cable
2 × IEC-to-IEC Power Cables
Quick Start Guide
Safety Instructions

Features
750VA / 525W Capacity
Line-Interactive Technology
Pure Sine Wave Output
Automatic Voltage Regulation (AVR)
ABM® Battery Management Technology
LCD Status Display
USB & RS232 Connectivity
Compact Tower Design
96% Efficiency
User Replaceable Batteries
Ideal for Small Business IT Equipment

Performance & Features
The Eaton 5SC750i delivers reliable power protection for small business servers, networking equipment, NAS storage, kiosks, ATMs, and workstations. Its line-interactive design with AVR automatically corrects voltage fluctuations without relying on battery power, helping to extend battery life and maximize efficiency. The pure sine wave output ensures compatibility with modern active PFC power supplies commonly found in servers and networking equipment. Eaton's ABM® technology extends battery lifespan by up to 50% compared to conventional charging methods.

Key Features
750VA / 525W Capacity
Pure Sine Wave Output
Line-Interactive UPS Technology
Automatic Voltage Regulation (AVR)
96% Efficiency
6 × IEC C13 Outlets
LCD Display Interface
ABM® Battery Management
USB & RS232 Connectivity
Compact Tower Design
User Replaceable Batteries
Eaton Intelligent Power Protector Compatible

Typical Use Cases
Tower Servers
Network Switches
NAS Storage Systems
Firewalls
Retail POS Systems
ATMs
Kiosks
Security & Surveillance Systems
Workstations
Home Office Infrastructure
Small Business IT Environments

Certifications & Compliance
IEC/EN 62040-1
IEC/EN 62040-2
UL 1778
CE Certified
TÜV Certified
cTUVus Certified
EAC Certified

UPC / GTIN
UPC: 743172045157
