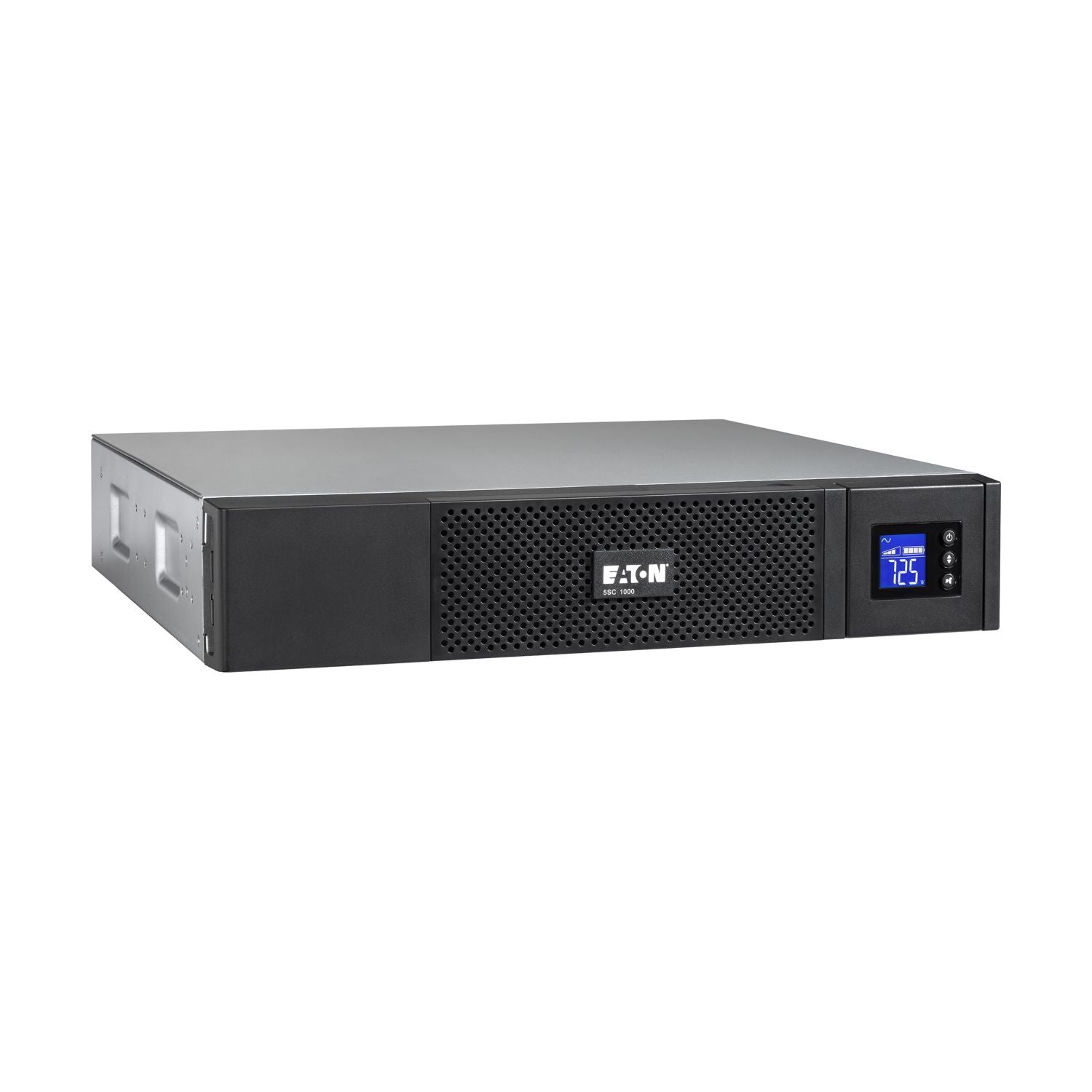

Eaton 5SC 1500VA 1050W Line-Interactive Sine Wave Rack UPS, 2U, 8x IEC C13
PRODUCT DESCRIPTION
Eaton 5SC 1500VA/1050W Rack UPS (5SC1500iR, 9210-63057) - 3 Years Local Warranty
Sine Wave Line-Interactive Protection in 2U of Rack Space
The Eaton 5SC 5SC1500IR is a 1500 VA / 1050 W line-interactive rack-mount UPS that delivers a clean sine wave output on battery. The 5SC1500iR suits a small rack or wall cabinet: rack servers, storage and network switching. It suits Singapore offices, clinics, retail back-rooms and server racks where short outages, sags and surges would otherwise interrupt work or corrupt data.
Automatic Voltage Regulation
Automatic Voltage Regulation corrects routine voltage deviations without switching to battery, across an input window of 184–276 V, keeping the internal batteries (3 x 12 V / 9 Ah) in reserve for genuine outages. Advanced Battery Management (ABM) charging is user selectable to extend battery life.
2U Rack Unit for 500 mm Deep Enclosures
Eaton specifies the 5SC1500iR as compatible with 500 mm depth enclosures, making it a good fit for shallow wall-mount network cabinets. Batteries are hot swappable, and a single slot takes an optional network management, relay or industrial communication card.
Virtualisation-Ready Shutdown
The 5SC1500iR integrates with Eaton Intelligent Power Manager and is compatible with VMware, Hyper-V, Citrix Xen and Red Hat virtual environments, with remote On/Off and Remote Power Off connectors.
Supplied Locally with GST Invoice and 3-Year Warranty
SourceIT supplies the Eaton 5SC in Singapore with a full GST invoice and local warranty support. Eaton's Singapore price list gives this model 3 years on the UPS and internal battery.
Need help sizing? Email sales@sourceit.com.sg with your load in watts and the runtime you need.
Eaton 5SC1500IR Datasheet — Technical Specifications
General
| Product Name | Eaton 5SC UPS |
| Catalogue Number | 5SC1500IR |
| Part Number (SKU) | 9210-63057 |
| Range | Eaton 5SC |
| Topology | Line-interactive with Automatic Voltage Regulation (AVR) |
| Form Factor | Rack (2U, 19-inch) |
| Colour | Black |
| Local Warranty (Singapore) | 3 years on UPS and internal battery (Eaton Singapore price list), supplied by SourceIT with a GST invoice |
Power
| Rated Power | 1500 VA / 1050 W |
| Output Power Factor | 0.7 |
| Input Connection | IEC C14 |
| Input Voltage Range | 184–276 V |
| Input Nominal Voltage | 230 V default (220/230/240 V) |
| Input Frequency Range | 45–55 Hz (50 Hz system), 55–65 Hz (60 Hz system) |
| Output Voltage | 230 V default (220/230/240 V), +6% / −10% |
| Output Frequency | 50/60 Hz |
| Output Waveform | Sine wave |
| Output Outlets | 8 x IEC C13 |
| Phase (Input / Output) | 1 / 1 |
| Efficiency at Max. Load | 97% |
| Power Consumption | 42 W |
Battery & Runtime (Eaton published)
| Battery | 12 V / 9 Ah x 3, lead-acid maintenance-free, user replaceable |
| Battery Management | ABM or constant voltage charging (user selectable), automatic battery test, deep discharge protection |
| Extended Battery Capability | No |
| Runtime at Half Load | 13 min |
| Runtime at Full Load | 5 min |
Communications
| Communication Ports | USB (HID compliant), Serial (RS232), remote On/Off and Remote Power Off terminal, dry contacts (2 outputs) |
| Expansion Slot | One slot for optional communication card |

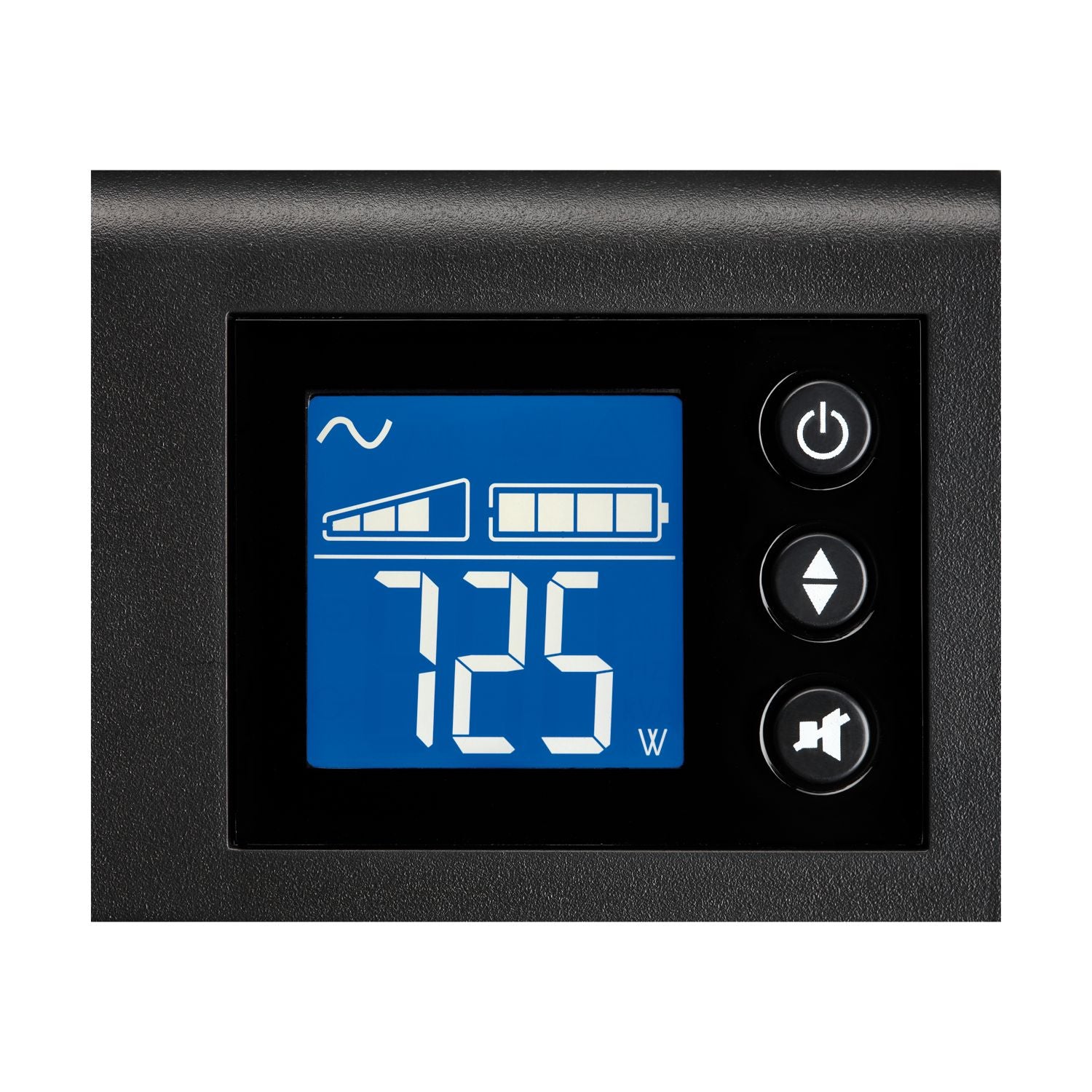

| User Interface | LCD display |
| Software | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
| Auto Shutdown | Yes |
Physical & Environmental
| Width / Height / Depth (as listed by Eaton) | 440 / 86.2 / 405 mm |
| Rack Size | 2U, 19-inch (482.6 mm) |
| Weight | 17.78 kg |
| Noise Level | <40 dB at 1 m |
| Heat Dissipation | 211 BTU/h (online) |
| Altitude | 3000 m |
| Relative Humidity | 0–90% non-condensing |
| Certifications | IEC/EN 62040-1, IEC/EN 62040-2, UL 1778, CE, EAC, cTUVus |
Compatibility & Software Support
What It Is Suited To
The 5SC1500iR suits a small rack or wall cabinet: rack servers, storage and network switching. The watt rating (1050 W) is the limit: total the continuous watts of everything you plan to connect and leave headroom.
Operating Systems and Software
The USB port is HID compliant, so Windows, macOS and Linux recognise the UPS as a power source without extra drivers. Compatible software: Eaton Intelligent Power Manager, Eaton Intelligent Power Protector. The communication slot accepts an optional Eaton network management card for SNMP/web monitoring and network shutdown.
Outlets

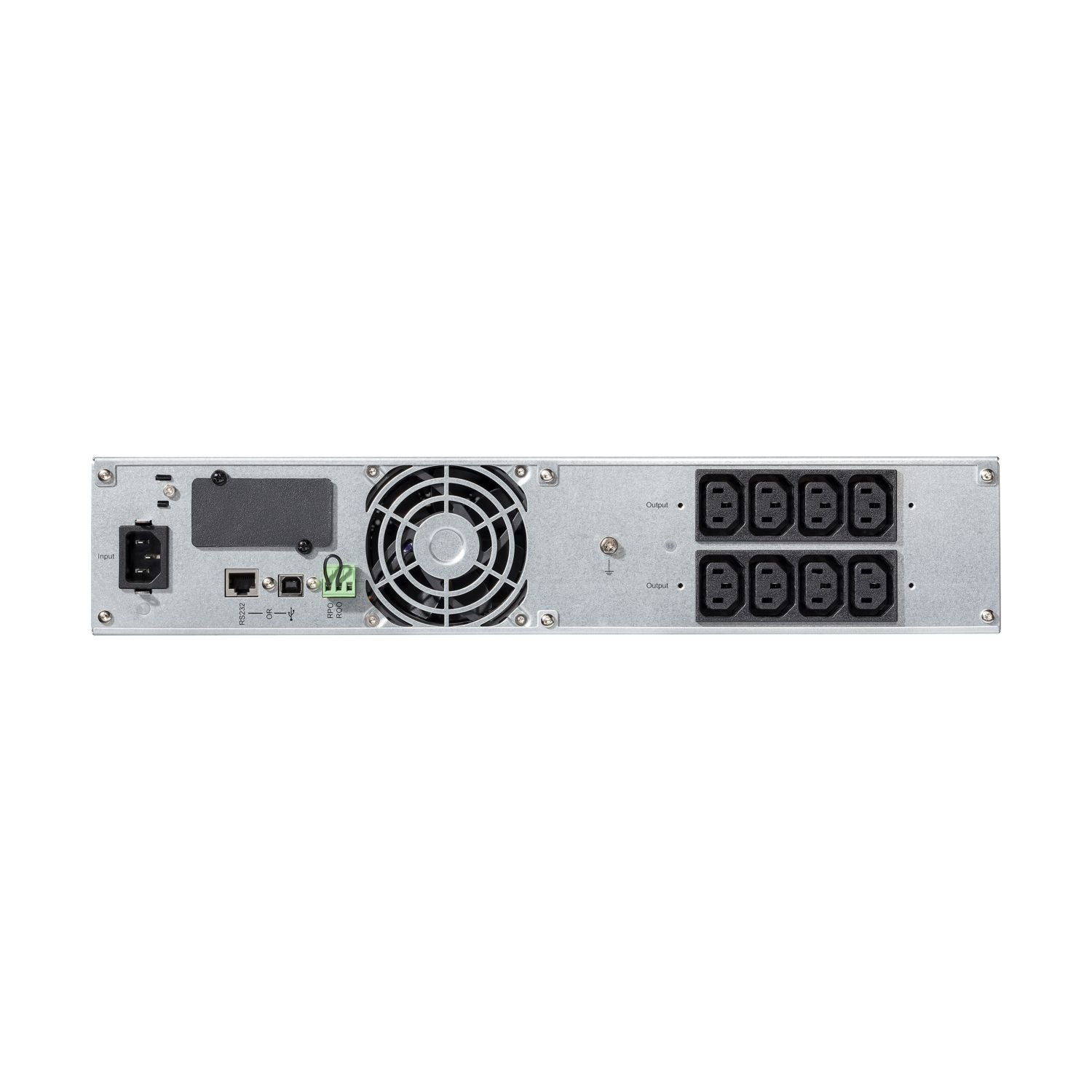

8 x IEC C13 outlets with an IEC C14 input. Equipment with a BS 1363 (Type G) plug needs an IEC C14 lead or an IEC-input power strip; ask us if you need one quoted.
Package Contents & 5SC Ordering Information
In the Box
Eaton lists: rack-mounting kit, cable locking system, USB cable, serial cable, 2 x IEC-IEC cables, quick start guide and safety instructions.
Eaton 5SC Range — Ordering Information
| 5SC500i | 500 VA / 350 W | Tower | 9210-2327 |
| 5SC750i | 750 VA / 525 W | Tower | 9210-3364 |
| 5SC1000i | 1000 VA / 700 W | Tower | 9210-5395 |
| 5SC1500i | 1500 VA / 1050 W | Tower | 9210-6399 |
| 5SC1000iR | 1000 VA / 700 W | Rack 2U | 9210-53046 |
| 5SC1500iR (this listing) | 1500 VA / 1050 W | Rack 2U | 9210-63057 |
| 5SC2200IRT | 2200 VA / 1980 W | Rack/tower 2U | 9210-73033 |
| 5SC3000IRT | 3000 VA / 2700 W | Rack/tower 2U | 9210-83117 |
Extended Warranty
Ask us about Eaton extended warranty options for this range, purchased together with the UPS.
Datasheet & Downloads
| Eaton specifications | Eaton 5SC1500IR specifications (eaton.com) |
| Eaton spec sheet | Eaton 5SC1500IR product specifications (PDF) |
| Eaton services | Eaton UPS and battery services (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 5SC1500IR.
Frequently Asked Questions — Eaton 5SC1500IR
Is the output a true sine wave?
Yes. Eaton specifies a sine wave output on battery, which suits servers and computers with active-PFC power supplies.
How long will it run on battery?
Eaton publishes 13 min at half load and 5 min at full load (1050 W). Runtime varies with load, battery age and temperature, and this model does not take external battery modules.
Can it shut down my server automatically?
Yes. Connect the USB (HID) or RS232 port and use Eaton Intelligent Power Manager, or fit an optional network card to shut down several machines over the network.
Will it fit a shallow wall cabinet?
Eaton lists a depth of 405 mm and compatibility with 500 mm depth enclosures.
What warranty do I get?
3 years on the UPS and internal battery per Eaton's Singapore price list, supplied by SourceIT with local support and a GST invoice.
