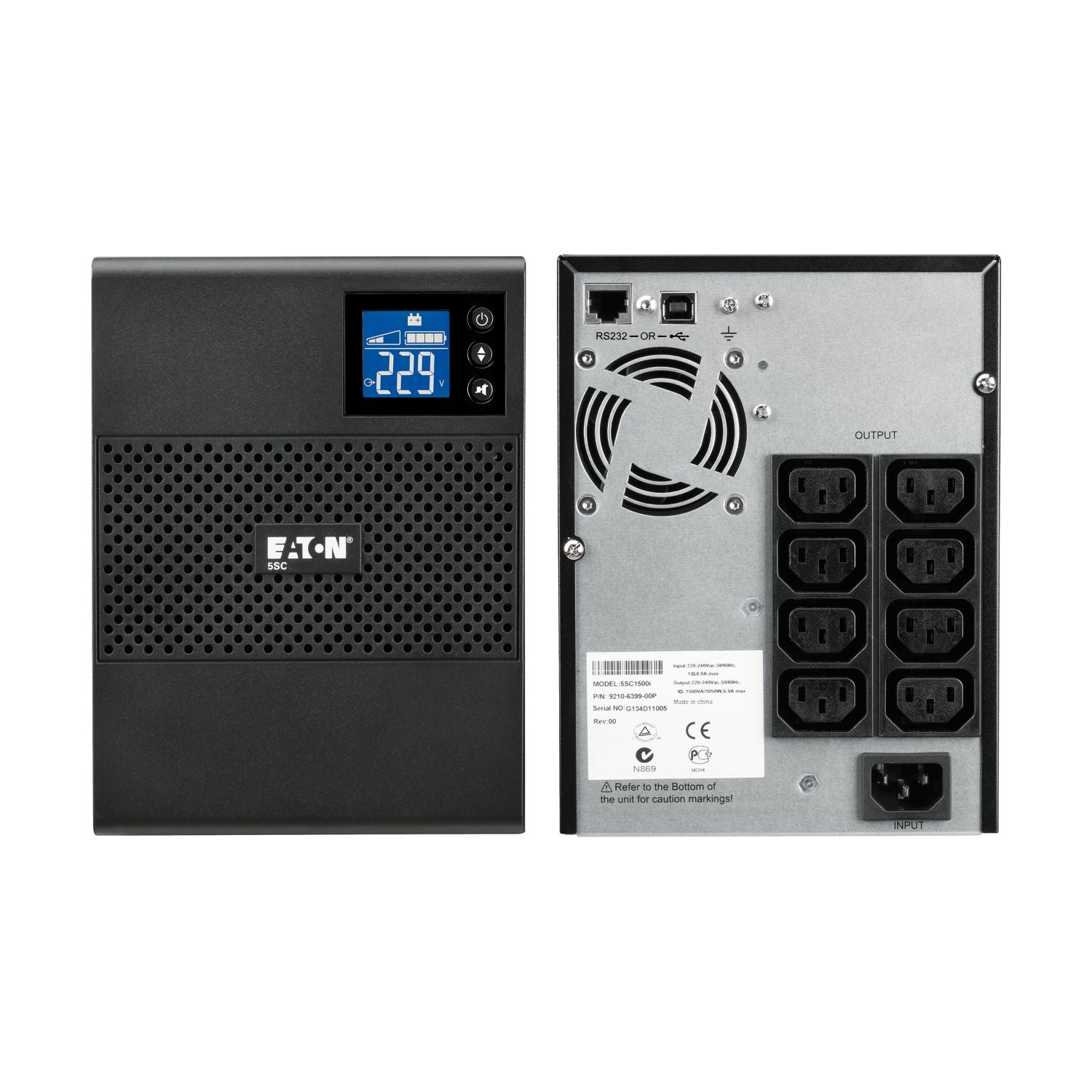

Eaton 5SC 1500VA 1050W Line-Interactive Sine Wave Tower UPS, 8x IEC C13, LCD
PRODUCT DESCRIPTION
Eaton 5SC 1500VA/1050W Tower UPS (5SC1500i, 9210-6399) - 3 Years Local Warranty
Sine Wave Line-Interactive Protection for Servers and Workstations
The Eaton 5SC 5SC1500I is a 1500 VA / 1050 W line-interactive tower UPS that delivers a clean sine wave output on battery. The 5SC1500i suits an entry-level tower server, a NAS with network switch, or several workstations. It suits Singapore offices, clinics, retail back-rooms and server racks where short outages, sags and surges would otherwise interrupt work or corrupt data.
Automatic Voltage Regulation
Automatic Voltage Regulation corrects routine voltage deviations without switching to battery, across an input window of 184–276 V, keeping the internal batteries (3 x 12 V / 9 Ah) in reserve for genuine outages. Advanced Battery Management (ABM) charging is user selectable to extend battery life.
LCD Display, USB and Serial for Automatic Shutdown

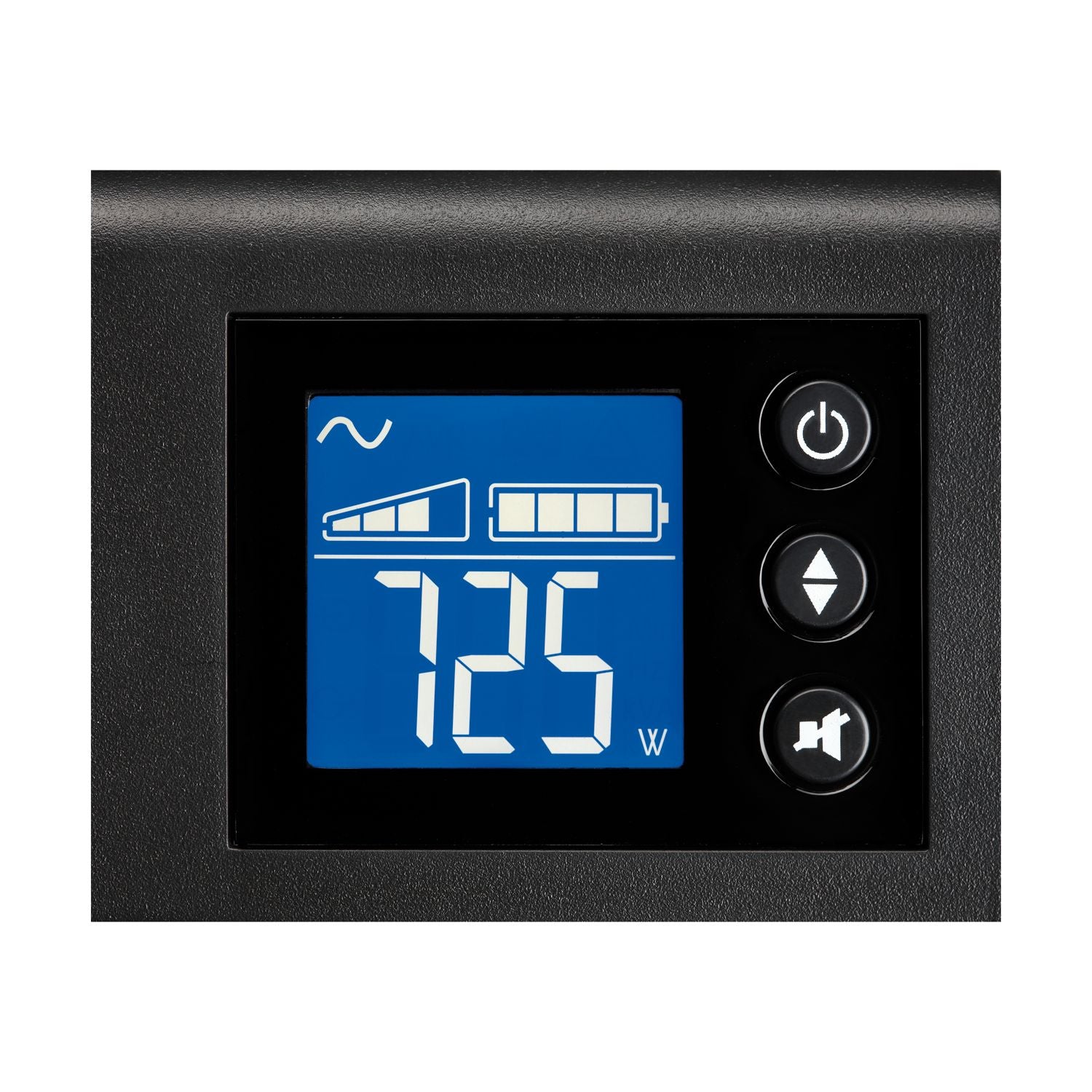

An LCD display shows UPS status and measurements at a glance. The HID-compliant USB port and RS232 serial port work with Eaton Intelligent Power Protector for automatic, orderly shutdown. 8 IEC C13 outlets suit the IEC leads used by servers, PCs, monitors and network equipment.
Supplied Locally with GST Invoice and 3-Year Warranty
SourceIT supplies the Eaton 5SC in Singapore with a full GST invoice and local warranty support. Eaton's Singapore price list gives this model 3 years on the UPS and internal battery.
Need help sizing? Email sales@sourceit.com.sg with your load in watts and the runtime you need.
Eaton 5SC1500I Datasheet — Technical Specifications
General
| Product Name | Eaton 5SC UPS |
| Catalogue Number | 5SC1500I |
| Part Number (SKU) | 9210-6399 |
| Range | Eaton 5SC |
| Topology | Line-interactive with Automatic Voltage Regulation (AVR) |
| Form Factor | Tower (free standing) |
| Colour | Black |
| Local Warranty (Singapore) | 3 years on UPS and internal battery (Eaton Singapore price list), supplied by SourceIT with a GST invoice |
Power
| Rated Power | 1500 VA / 1050 W |
| Output Power Factor | 0.7 |
| Input Connection | IEC C14 |
| Input Voltage Range | 184–276 V |
| Input Nominal Voltage | 230 V default (220/230/240 V) |
| Input Frequency Range | 45–55 Hz (50 Hz system), 55–65 Hz (60 Hz system) |
| Output Voltage | 230 V default (220/230/240 V), +6% / −10% |
| Output Frequency | 50/60 Hz |
| Output Waveform | Sine wave |
| Output Outlets | 8 x IEC C13 |
| Phase (Input / Output) | 1 / 1 |
| Efficiency at Max. Load | 97% |
| Power Consumption | 63 W |
Battery & Runtime (Eaton published)
| Battery | 12 V / 9 Ah x 3, lead-acid maintenance-free, user replaceable |
| Battery Management | ABM or constant voltage charging (user selectable), automatic battery test, deep discharge protection |
| Extended Battery Capability | No |
| Runtime at Half Load | 13 min |
| Runtime at Full Load | 5 min |
Communications
| Communication Ports | USB (HID compliant), Serial (RS232) |
| Expansion Slot | No |
| User Interface | LCD display |
| Software | Eaton Intelligent Power Protector |
| Auto Shutdown | Yes |
Physical & Environmental
| Width / Height / Depth (as listed by Eaton) | 150 / 210 / 410 mm |
| Weight | 15.2 kg |
| Noise Level | <40 dB at 1 m |
| Heat Dissipation | 211 BTU/h (online) |
| Altitude | 2000 m |
| Relative Humidity | 0–90% non-condensing |
| Certifications | IEC/EN 62040-1, IEC/EN 62040-2, UL 1778, CE, EAC, cTUVus |
Compatibility & Software Support
What It Is Suited To
The 5SC1500i suits an entry-level tower server, a NAS with network switch, or several workstations. The watt rating (1050 W) is the limit: total the continuous watts of everything you plan to connect and leave headroom.
Operating Systems and Software
The USB port is HID compliant, so Windows, macOS and Linux recognise the UPS as a power source without extra drivers. Compatible software: Eaton Intelligent Power Protector. There is no network card slot on this model.
Outlets

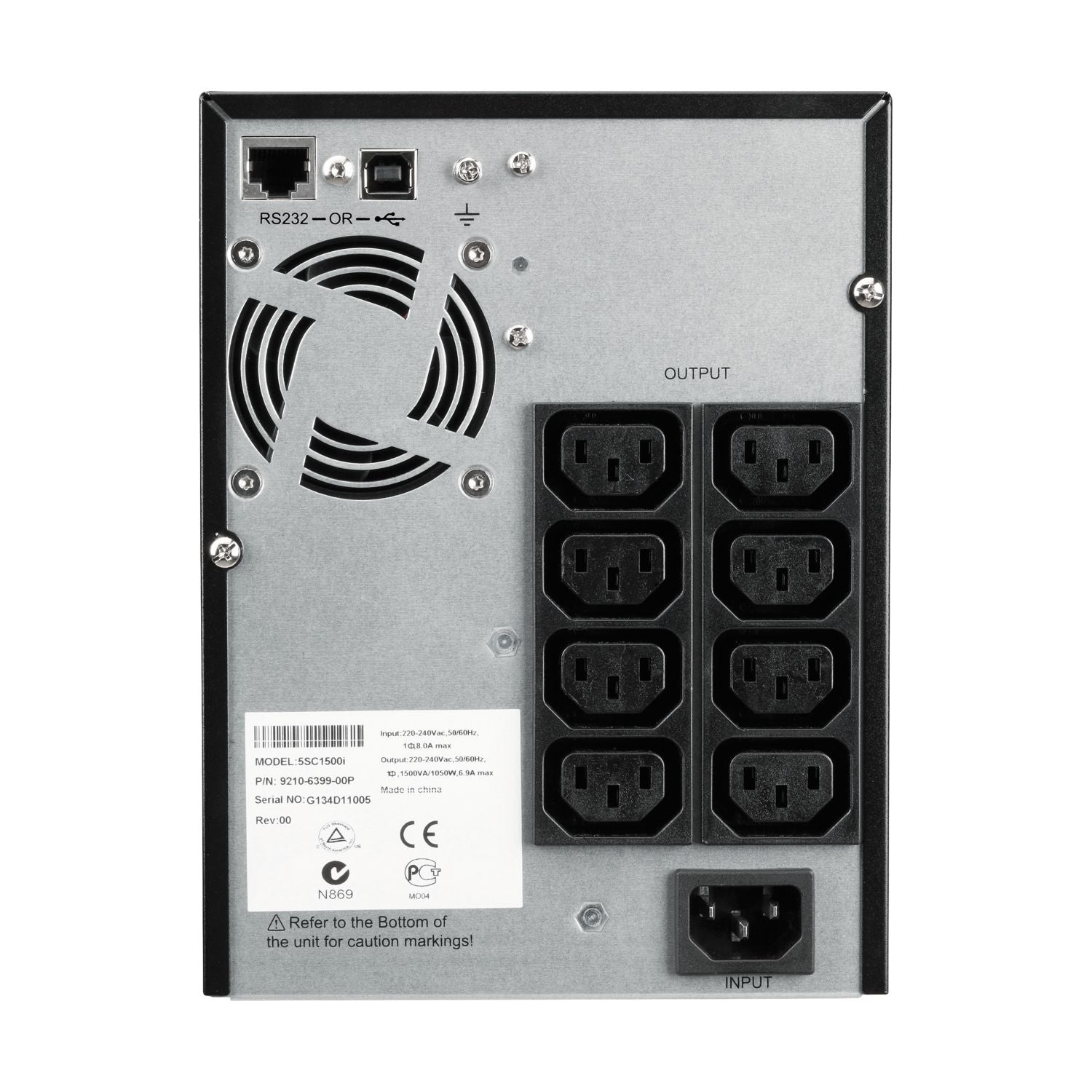

8 x IEC C13 outlets with an IEC C14 input. Equipment with a BS 1363 (Type G) plug needs an IEC C14 lead or an IEC-input power strip; ask us if you need one quoted.
Package Contents & 5SC Ordering Information
In the Box
Eaton lists: USB cable, serial cable, 2 x IEC-IEC cables, quick start guide and safety instructions.
Eaton 5SC Range — Ordering Information
| 5SC500i | 500 VA / 350 W | Tower | 9210-2327 |
| 5SC750i | 750 VA / 525 W | Tower | 9210-3364 |
| 5SC1000i | 1000 VA / 700 W | Tower | 9210-5395 |
| 5SC1500i (this listing) | 1500 VA / 1050 W | Tower | 9210-6399 |
| 5SC1000iR | 1000 VA / 700 W | Rack 2U | 9210-53046 |
| 5SC1500iR | 1500 VA / 1050 W | Rack 2U | 9210-63057 |
| 5SC2200IRT | 2200 VA / 1980 W | Rack/tower 2U | 9210-73033 |
| 5SC3000IRT | 3000 VA / 2700 W | Rack/tower 2U | 9210-83117 |
Extended Warranty
Ask us about Eaton extended warranty options for this range, purchased together with the UPS.
Datasheet & Downloads
| Eaton specifications | Eaton 5SC1500I specifications (eaton.com) |
| Eaton spec sheet | Eaton 5SC1500I product specifications (PDF) |
| Eaton services | Eaton UPS and battery services (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 5SC1500I.
Frequently Asked Questions — Eaton 5SC1500I
Is the output a true sine wave?
Yes. Eaton specifies a sine wave output on battery, which suits servers and computers with active-PFC power supplies.
How long will it run on battery?
Eaton publishes 13 min at half load and 5 min at full load (1050 W). Runtime varies with load, battery age and temperature, and this model does not take external battery modules.
Can it shut down my server automatically?
Yes. Connect the USB (HID) or RS232 port and use Eaton Intelligent Power Protector, or the operating system's built-in UPS support over USB.
Does it support SNMP or a network card?
No. The 5SC tower models have no expansion slot. For network management, look at the 5SC rack models, 5P, 5PX or 9-series ranges.
What warranty do I get?
3 years on the UPS and internal battery per Eaton's Singapore price list, supplied by SourceIT with local support and a GST invoice.
