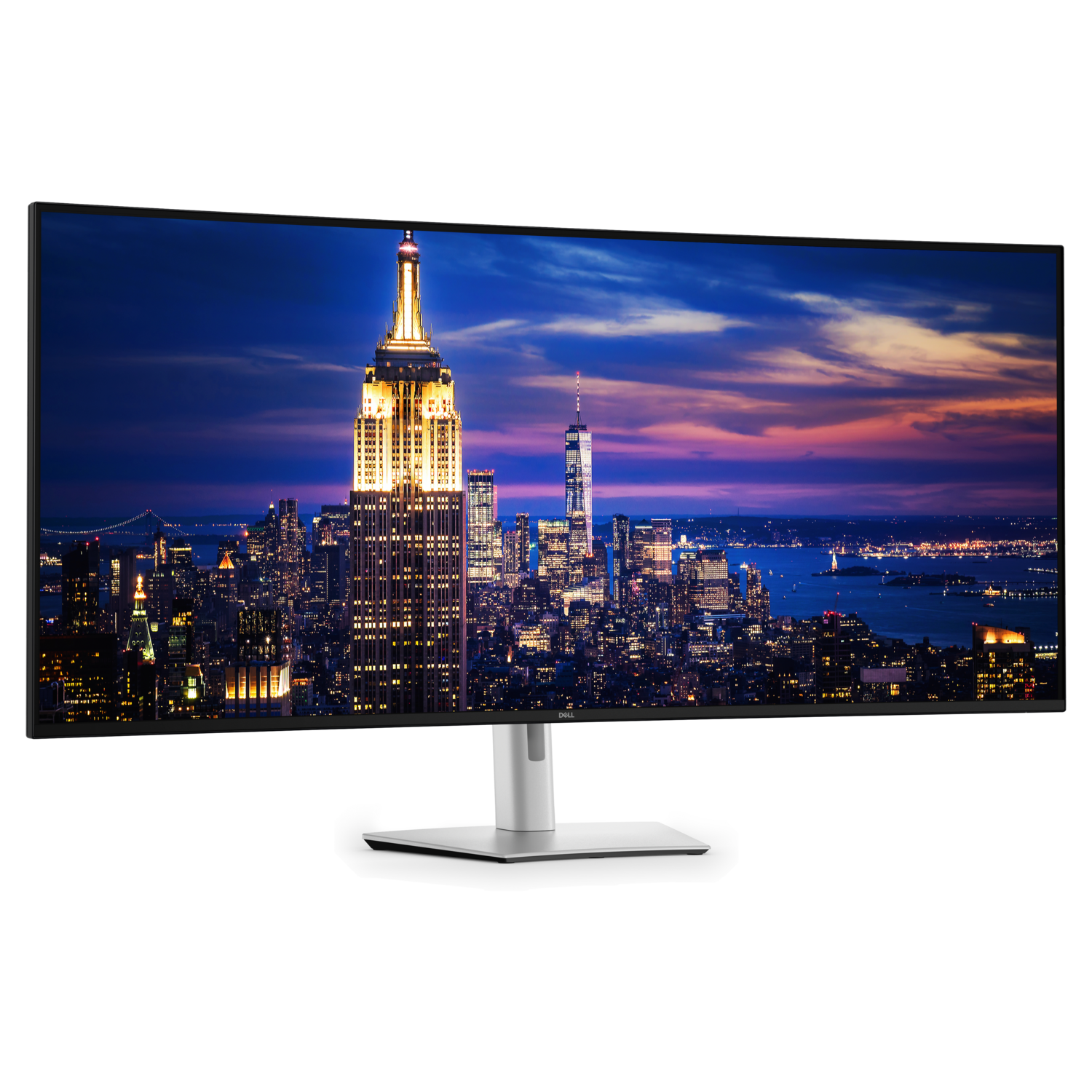

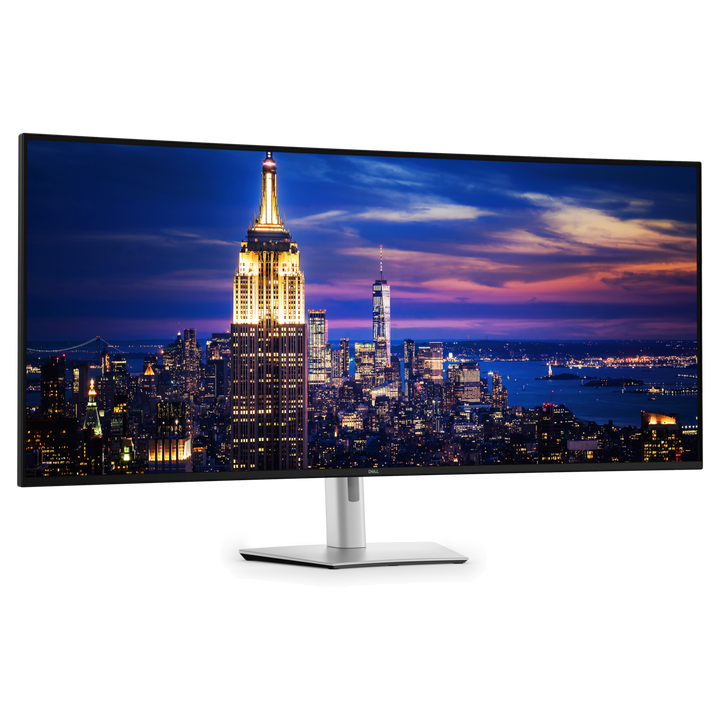

Dell UltraSharp 52 U5226KW 52" 6K Curved Thunderbolt Hub Monitor
PRODUCT DESCRIPTION
Dell UltraSharp 52 Thunderbolt Hub Monitor U5226KW (210-BTHL) - 3 Years Local Warranty
52" 6K curved canvas

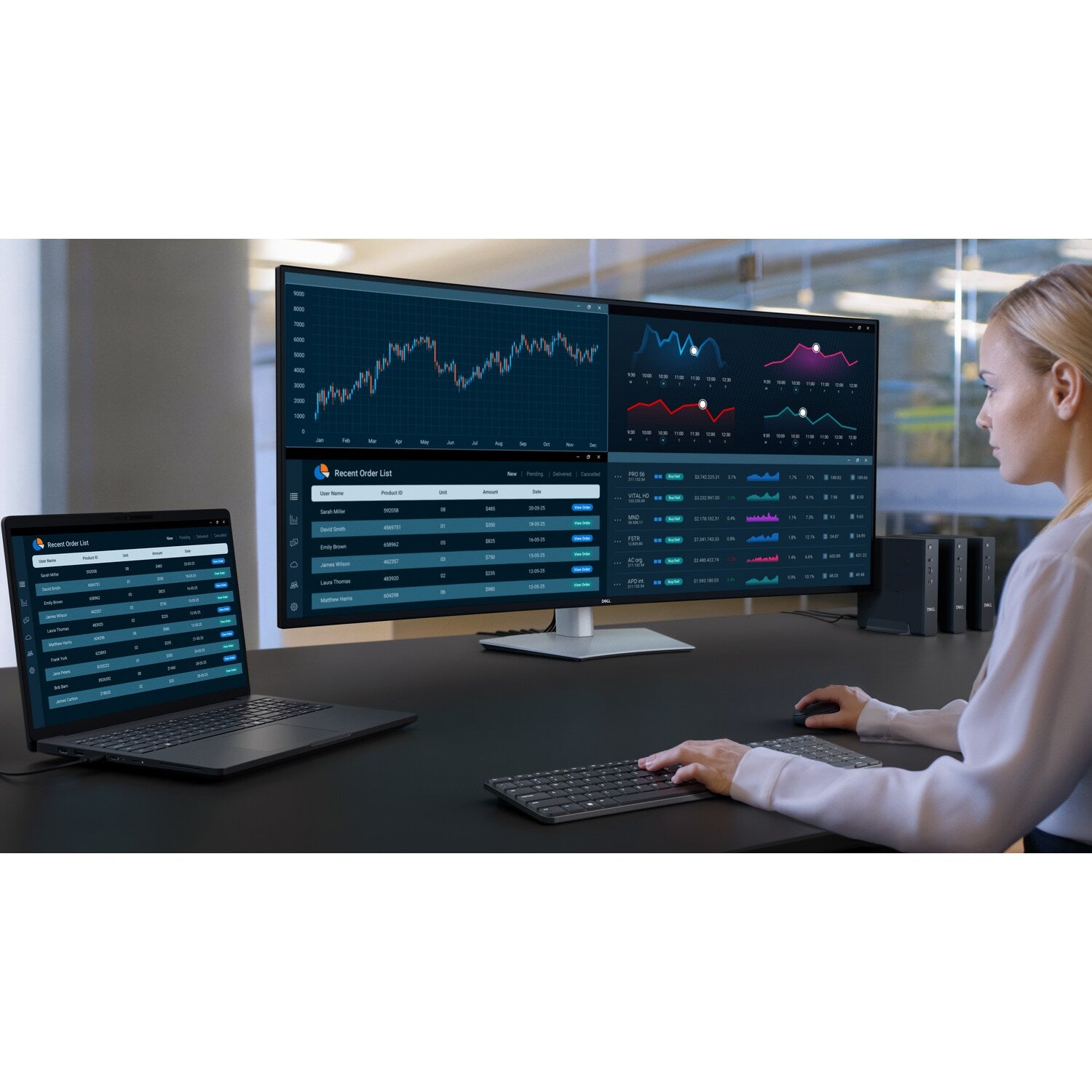

A 51.5-inch 6144 x 2560 IPS Black panel with a 4200R curve and 21:9 aspect ratio, running at up to 120 Hz - one seamless screen in place of a multi-monitor setup.
Thunderbolt 4 hub, 140W

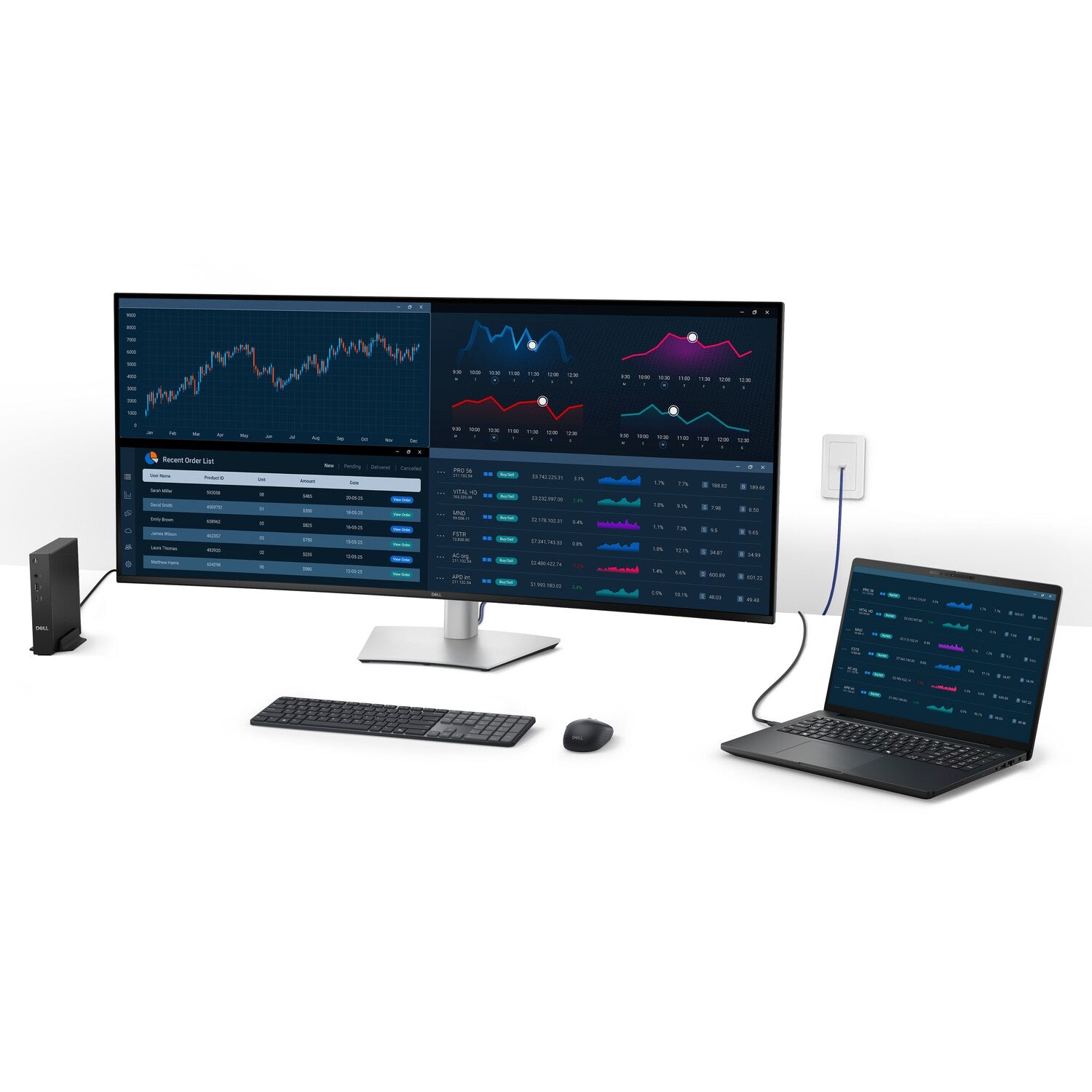

A single Thunderbolt 4 40Gbps cable carries video, data and up to 140 W EPR power delivery to your laptop, backed by 2.5GbE RJ45, five 10Gbps USB-A and two 10Gbps USB-C downstream ports (up to 27 W).
Colour accuracy and 5-star eye comfort
99% DCI-P3 and 100% sRGB with calibration accuracy of Delta E < 1.5 and 2,000:1 native contrast, plus TÜV Rheinland 5-star Eye Comfort with hardware low blue light, flicker-free operation and an ambient light sensor.
Equipping a trading floor, studio or control room? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell U5226KW Datasheet — Technical Specifications
General
| Product Name | Dell UltraSharp 52 Thunderbolt Hub Monitor - U5226KW |
| Model | U5226KW |
| Dell SKU | 210-BTHL |
| Local Warranty (Singapore) | 3-Year Advanced Exchange Service and Premium Panel Exchange (Dell), supplied by SourceIT with a GST invoice |
| Screen Size Class | 52" |
| Viewable Screen Size | 51.5" |
| Screen Mode | 6K |
| Panel Technology | In-plane Switching (IPS) Black Technology |
| Curved Screen | Yes |
| Curvature | 4200R |
| Product Colour | Platinum Silver |
| Built-in Devices | USB Hub, KVM Switch |
| Microphone | No |
Display
| Maximum Resolution | 6144 x 2560 at 120Hz |
| Standard Refresh Rate | 120 Hz |
| Aspect Ratio | 21:9 |
| Response Time Details | 5 ms GTG (Fast), 8 ms GTG |
| Pixel Pitch | 0.19644 mm x 0.19644 mm |
| Pixel Per Inch (PPI) | 129 |
| Brightness | 400 cd/m2 |
| Native Contrast Ratio | 2,000:1 |
| Colour Supported | 1.07 Billion Colours |
| Colour Gamut | 99% DCI-P3 (CIE 1976), 100% sRGB (CIE 1931), 100% BT.709 (CIE 1931), 99% Display P3 |
| Calibration Accuracy | E < 1.5 |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Glass Hardness | 3H |
| Surface Treatment | Anti-glare Low Reflectance |
| HDMI Feature Support | Variable Refresh Rate (VRR) |
| HDCP Supported | Yes |
| Features | Internal Multi-Stream Transport (iMST), Anti-glare, Low Reflection, Ambient Light Sensor, Picture by Picture, Picture in Picture, Colour Calibration, Security Lock, Cable Lock Slot |

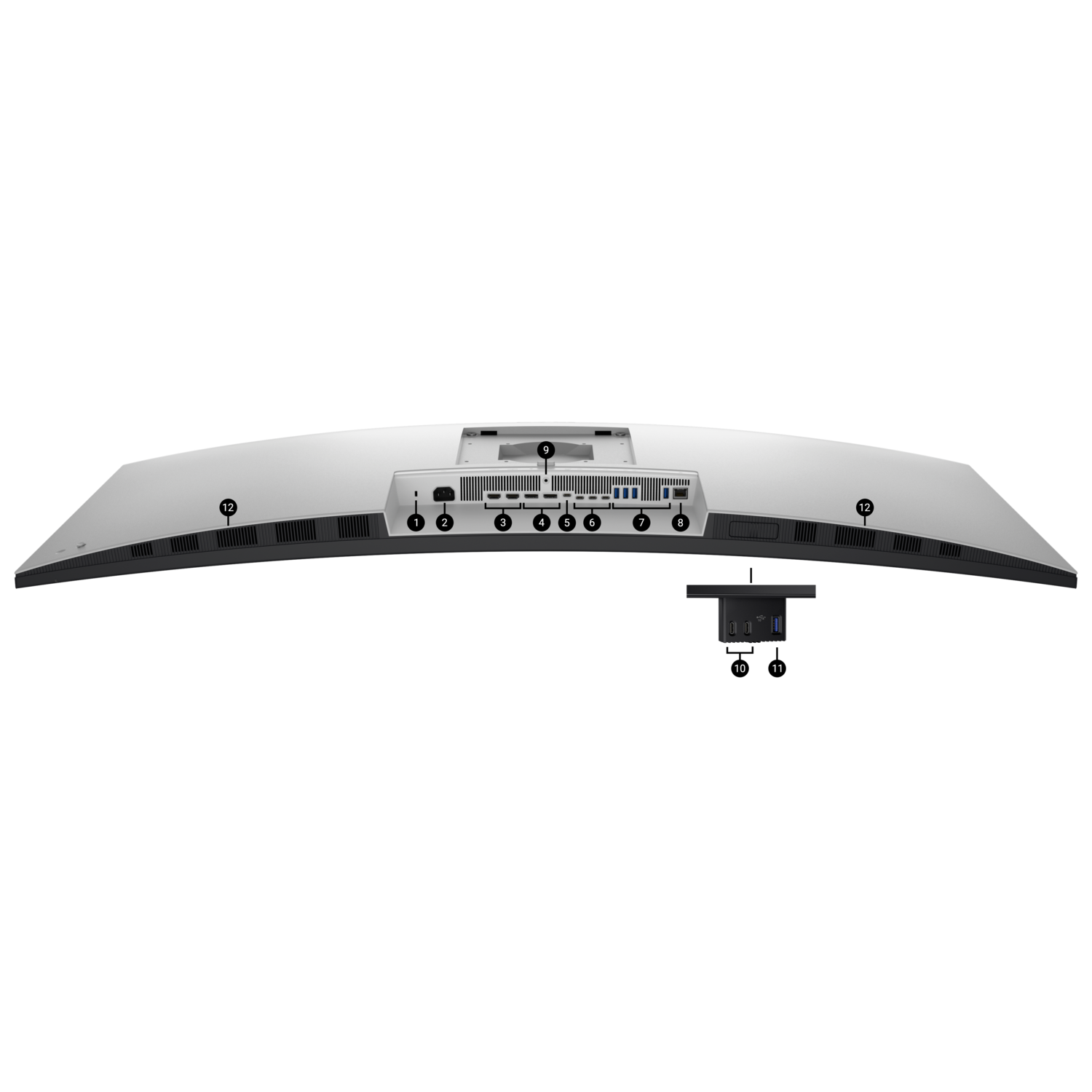

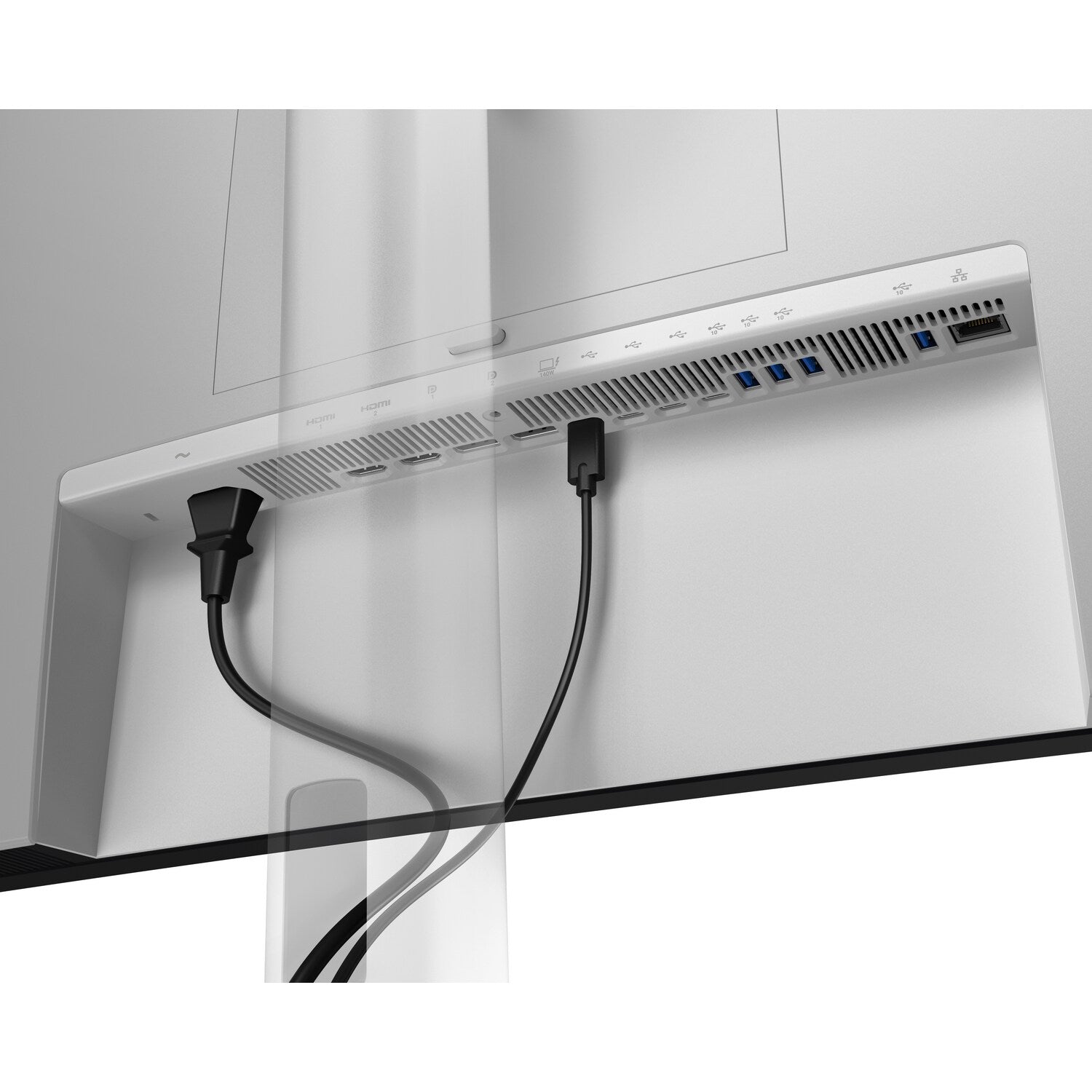

Ports & Connectivity
| HDMI | 2 HDMI port/s (HDCP 2.2) (Supports up to 6144 x 2560, 120 Hz, VRR, as specified in HDMI 2.1 (FRL)) |
| DisplayPort | 2 DisplayPort 1.4 (HDCP 2.2) port/s |
| Thunderbolt | 1 Thunderbolt 4 40Gbps upstream port/s (DisplayPort 1.4 Alt Mode, Power Delivery up to 140 W EPR) |
| USB-C upstream | 3 USB-C 10Gbps upstream port/s |

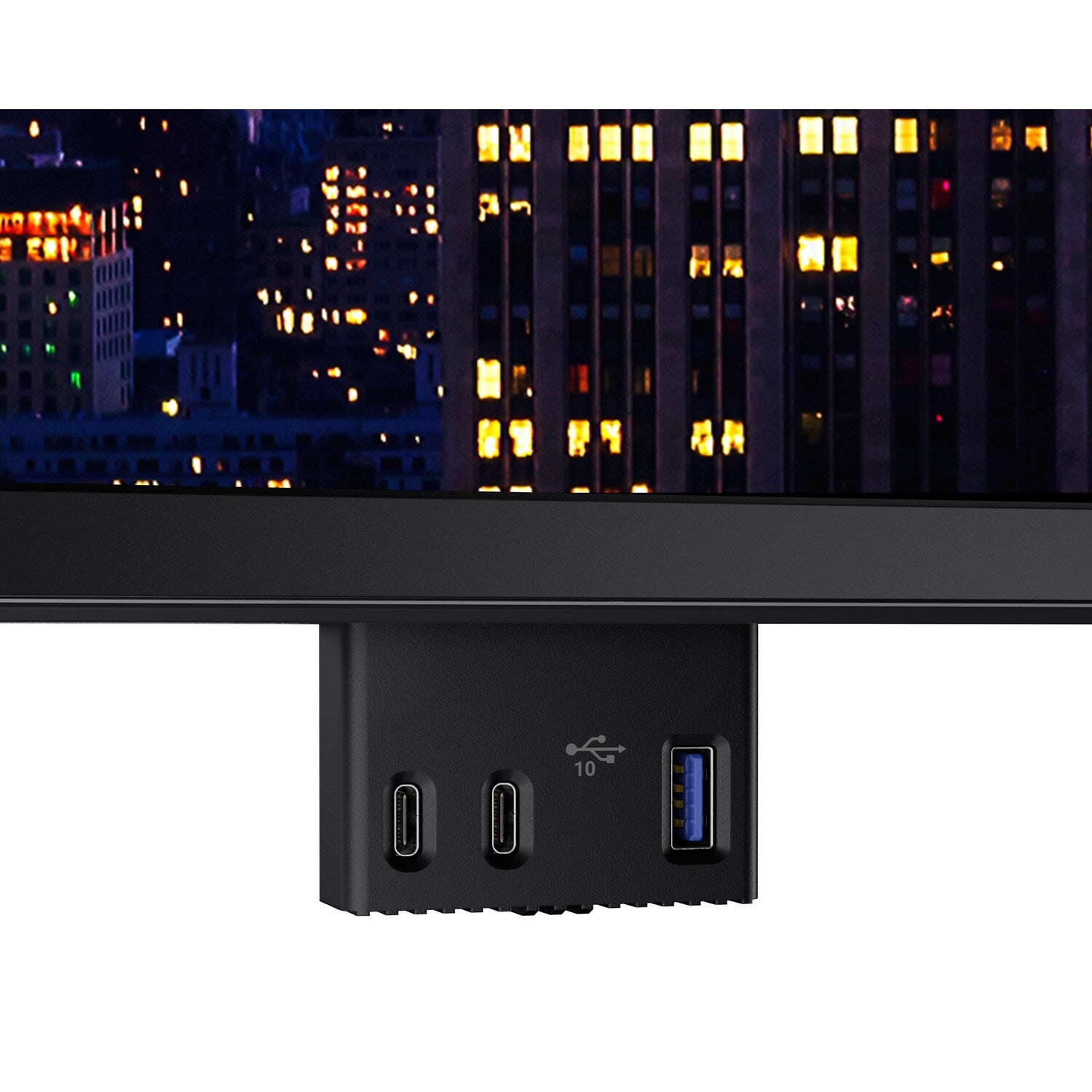

| USB-C downstream | 2 USB-C 10Gbps downstream port/s, Power Delivery up to 27 W |
| USB-A downstream | 4 USB Type-A 10Gbps downstream port/s |
| USB-A downstream (charging) | 1 USB Type-A 10Gbps downstream port/s with Battery Charging 1.2 |
| Ethernet | 1 RJ45 Ethernet port/s, 2.5GbE |
| KVM | Auto USB KVM with Ethernet Switch Mode control supporting up to 4 input sources |
| Picture by Picture / Picture in Picture | PbP supporting up to 4 input sources; PiP supporting up to 2 screen partitions |
| Daisy Chain Availability | No |
Ergonomics / Stand
| Adjustable Stand | Yes |
| Stand Adjustments | Height, Tilt, Slant, Swivel |
| Stand Included | Yes |
| Maximum Adjustable Height | 90 mm |
| Tilt Angle | -5° to 10° |
| Swivel Angle | -20° to 20° |
| Slant Angle | -2°/2° |
| Pivot | No |
| Mount Type | Panel Mount |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100, 200 x 100, 200 x 200 |
Audio
| Speakers | Yes |
| Number of Speakers | 2 |
| Speaker Output Power | 2 x 9 W |
Power
| Input Voltage Range | 100V AC to 240V AC |
| Frequency | 50 Hz, 60 Hz |
| Voltage Current | 5.50 A |
| Operating Power Consumption | 63.60 W |
| Standby Power Consumption | 0.5 W |
| Off-Mode Power Consumption | 0.3 W |
| Maximum Power Consumption | 430 W |

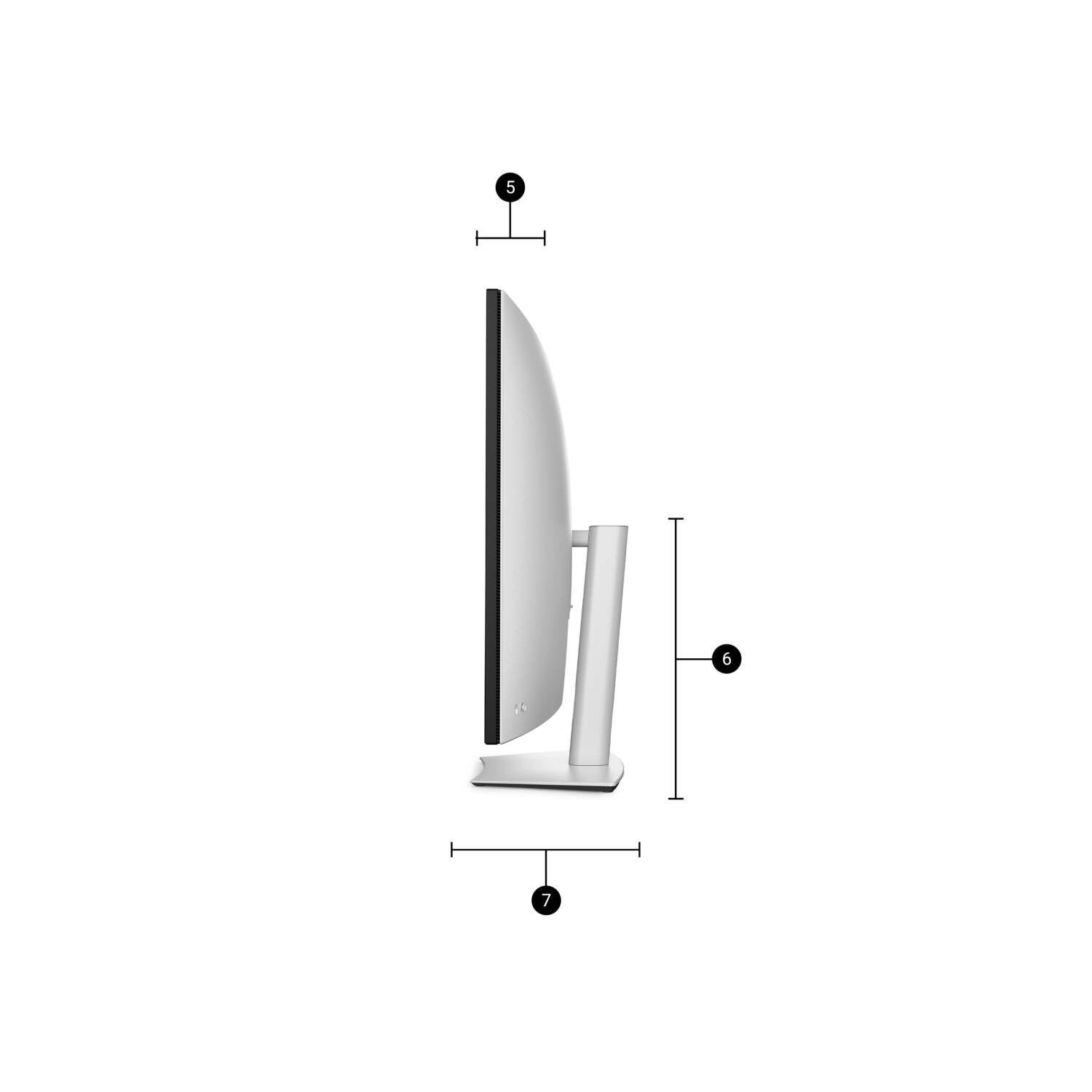

Dimensions & Weight
| Height | 529.05 mm |
| Width | 1223.32 mm |
| Depth | 111.94 mm |
| Height with Stand | 666.79 mm |
| Width with Stand | 1223.32 mm |
| Depth with Stand | 255 mm |
| Compressed Height with Stand | 576.79 mm |
| Extended Height with Stand | 666.79 mm |
| Bezel Width (Top) | 10.34 mm |
| Bezel Width (Bottom) | 15.80 mm |
| Bezel Width (Left) | 10.34 mm |
| Bezel Width (Right) | 10.34 mm |
| Stand Depth | 255 mm |
| Weight (Approximate) | 12.95 kg |
| Weight with Stand (Approximate) | 18.23 kg |
Environmental Conditions
| Operating Temperature Range | 0°C to 40°C |
| Non-operating Temperature Range | -20°C to 60°C |
| Operating Humidity Range | 10% to 80% (Non-condensing) |
| Non-operating Humidity Range | 5% to 90% (Non-condensing) |
| Maximum Operating Altitude | 5 km |
| Maximum Non-operating Altitude | 12.19 km |
Eye Comfort
| Eye Comfort Technology | Yes |
| Low Blue Light | Yes |
| Flicker Free | Yes |
| Eye Comfort Certification | Yes |
| Eye Comfort Rating | 5 Star |
| Certifying body | TÜV Rheinland Eye Comfort 5 stars; low blue light Hardware Solution Category I |
Compliance / Certifications
| Certifications & Standards | Israel EE, CEL, Ukrain EE, Mexico EE, Ghana EE, GS Mark, Arsenic-Free glass and Mercury-Free for the panel only, BFR/PVC free monitor (excluding external cables), California CEC |
| Energy Star | Yes |
| TCO Certified | Yes |
| TAA Compliant | No |
| Environmentally Friendly | Yes |
| Environmental Certification | China Environmental United Certification Center (CEC), Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+), Electronic Product Environmental Assessment Tool Gold (EPEAT Gold), TCO Certified 10.0, TCO Certified Edge |
| Energy Efficiency Certification | China Energy Conservation Program (CECP), ENERGY STAR 8.0 |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 5 (ErP Lot 5), Energy-related Products Directive (ErP), Korea Minimum Energy Performance Standards (MEPS) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Materials | Arsenic-free Glass, Mercury-free, BFR Free, PVC Free |
Software
| Remote Asset Management | Dell Display and Peripheral Manager (DDPM), Dell Device Management Console (DDMC), Dell Color Management (DCM) |
| Platform Supported | Windows, ThinOS, Linux, Mac |
Compatibility & Software Support
Laptop & PC Connection
HDMI: 2 HDMI port/s (HDCP 2.2) (Supports up to 6144 x 2560, 120 Hz, VRR, as specified in HDMI 2.1 (FRL)); DisplayPort: 2 DisplayPort 1.4 (HDCP 2.2) port/s; Thunderbolt: 1 Thunderbolt 4 40Gbps upstream port/s (DisplayPort 1.4 Alt Mode, Power Delivery up to 140 W EPR); USB-C upstream: 3 USB-C 10Gbps upstream port/s; USB-C downstream: 2 USB-C 10Gbps downstream port/s, Power Delivery up to 27 W; USB-A downstream: 4 USB Type-A 10Gbps downstream port/s; USB-A downstream (charging): 1 USB Type-A 10Gbps downstream port/s with Battery Charging 1.2; Ethernet: 1 RJ45 Ethernet port/s, 2.5GbE; KVM: Auto USB KVM with Ethernet Switch Mode control supporting up to 4 input sources; Picture by Picture / Picture in Picture: PbP supporting up to 4 input sources; PiP supporting up to 2 screen partitions; Daisy Chain Availability: No.
Software
Remote asset management: Dell Display and Peripheral Manager (DDPM), Dell Device Management Console (DDMC), Dell Color Management (DCM). Platforms supported: Windows, ThinOS, Linux, Mac.
Mounting
VESA mount: 100 x 100, 200 x 100, 200 x 200.
Package Contents & Dell UltraSharp 27 to 52-inch Hub & Creator Monitors Ordering Information
In the Box
Monitor, Stand, QR Card, Safety, Environmental, and Regulatory Information, Power cable, 1 x DisplayPort 1.4 cable - 1.80 m, 1 x HDMI 2.1 cable - 1.80 m, 1 x USB-C to USB Type-A 10Gbps cable - 1.0 m, 1 x Thunderbolt 4 40Gbps cable - 2.0 m.
Dell UltraSharp 27 to 52-inch Hub & Creator Monitors
| Model | Key feature |
| U2725QE | 27" 4K IPS Black 120 Hz, HDR 600, Thunderbolt 4 140 W, 2.5GbE RJ45 |
| U3224KB | 32" 6K IPS Black, HDR 600, 4K webcam + 2x14W speakers, Thunderbolt 4 140 W, RJ45 |
| U3225QE | 32" 4K IPS Black 120 Hz, Thunderbolt 4 140 W, RJ45 2.5GbE |
| U3226Q | 32" 4K QD-OLED 120 Hz, built-in colorimeter, Thunderbolt 4 140 W, RJ45 |
| U3425WE | 34" WQHD 1900R IPS Black 120 Hz, Thunderbolt 4 90 W, RJ45, KVM |
| U3824DW | 38" WQHD+ 2300R IPS Black 60 Hz, USB-C 90 W, RJ45, KVM |
| U4025QW | 40" 5K2K (5120x2160) IPS Black 120 Hz curved, Thunderbolt 4 140 W, RJ45 |
| U4924DW | 49" DQHD (5120x1440) IPS Black 60 Hz curved, USB-C 90 W, RJ45 |
| U5226KW (this listing) | 52" 6K (6144x2560) 120 Hz curved IPS Black, Thunderbolt 4 140 W, 2.5GbE RJ45, KVM |
Datasheet & Downloads
| Datasheet (PDF) | U5226KW datasheet on delltechnologies.com |
| Product page | U5226KW on dell.com Singapore |
| Manuals & drivers | U5226KW manuals and documents on Dell Support |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting U5226KW.
Frequently Asked Questions — Dell U5226KW
What resolution and refresh rate does the U5226KW support?
6144 x 2560 (6K) at up to 120 Hz on a 51.5" 21:9 curved (4200R) IPS Black panel.
Can it charge my laptop over one cable?
Yes. The Thunderbolt 4 40Gbps upstream port provides Power Delivery up to 140 W EPR along with DisplayPort 1.4 Alt Mode video and data.
Does it have wired Ethernet and a KVM?
Yes. It has 1 RJ45 2.5GbE port and a built-in Auto USB KVM with Ethernet Switch Mode supporting up to 4 input sources.
Can I daisy-chain another monitor from it?
No. Dell's datasheet lists Daisy Chain Availability as No.
What warranty does it come with in Singapore?
Dell Singapore lists 3-Year Advanced Exchange Service and Premium Panel Exchange.
