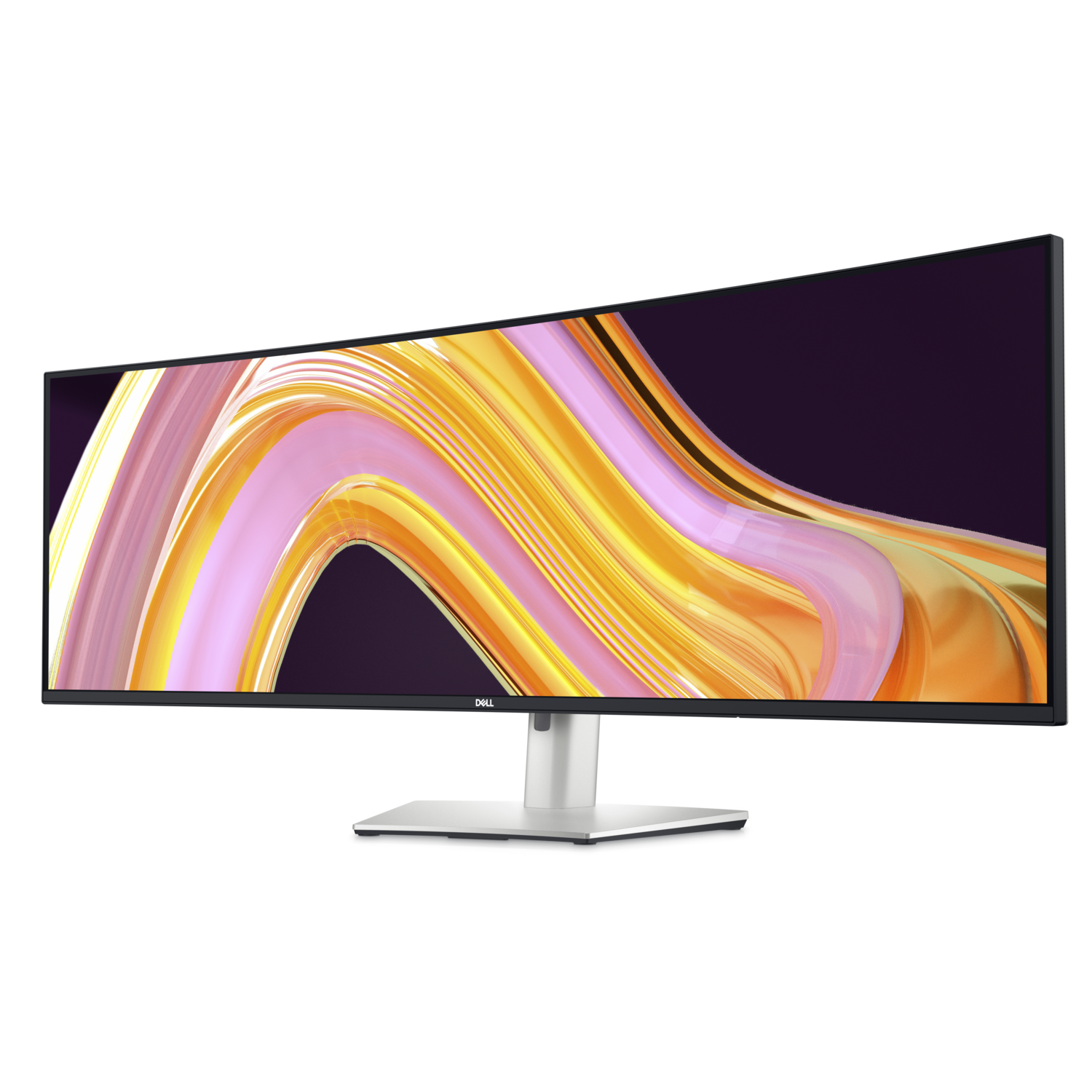

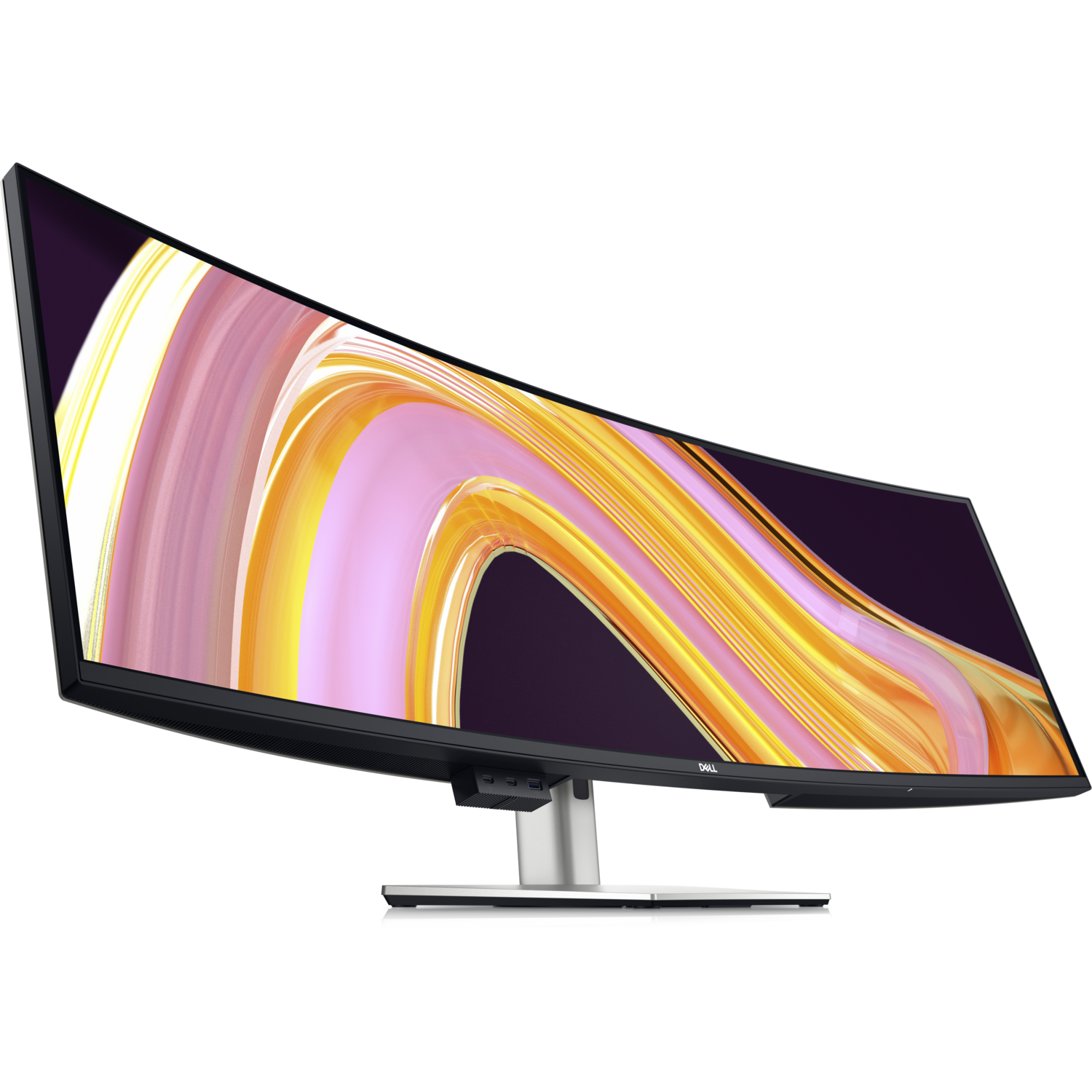

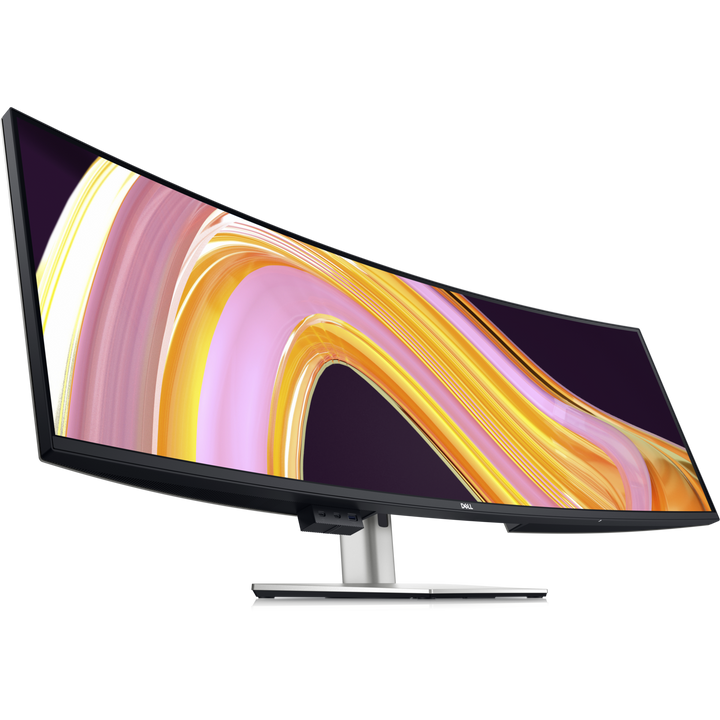

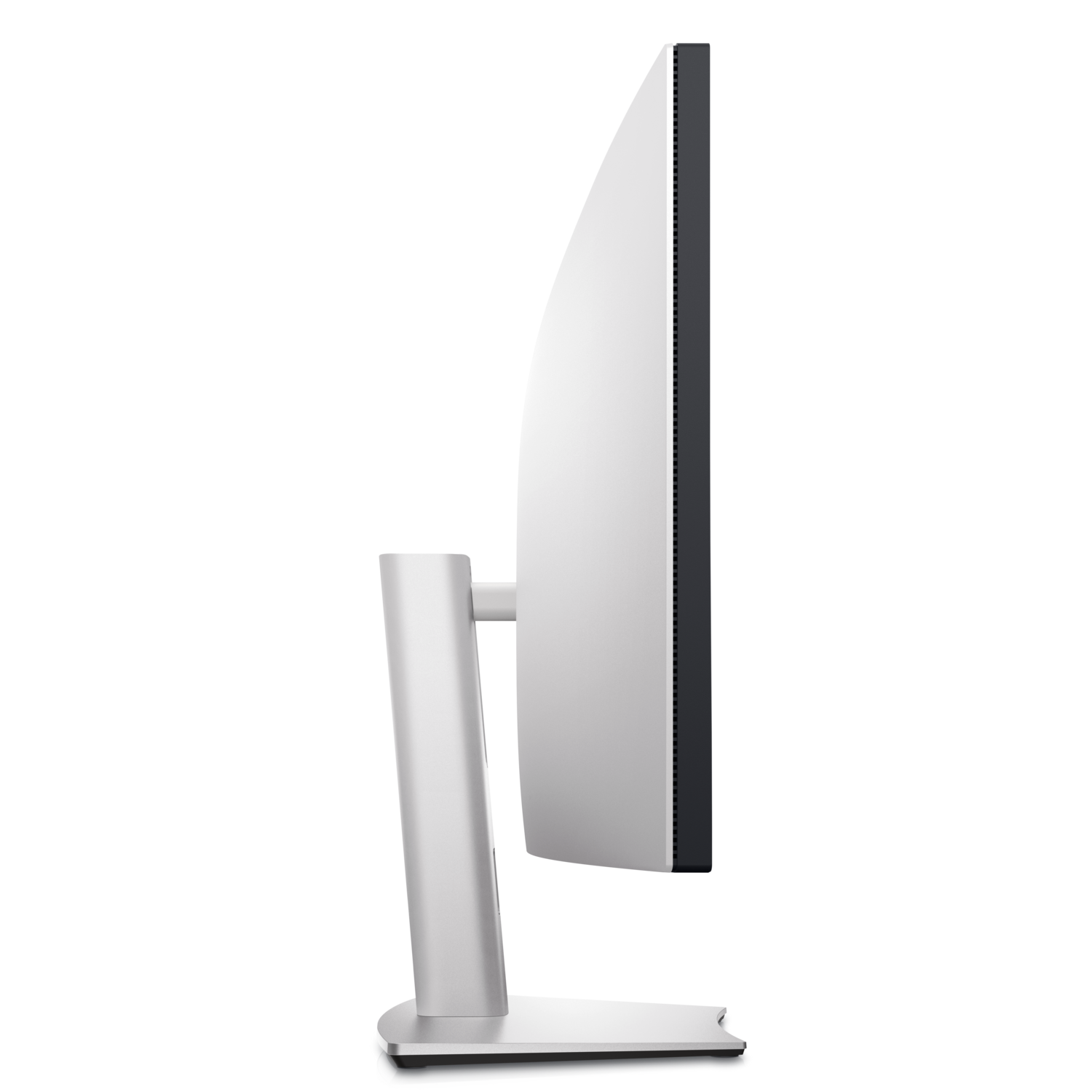

Dell UltraSharp 49 U4924DW 49" Curved USB-C Hub Monitor
PRODUCT DESCRIPTION
Dell UltraSharp 49 Curved USB-C Hub Monitor U4924DW (210-BGVL) - 3 Years Local Warranty
49" Dual QHD curved

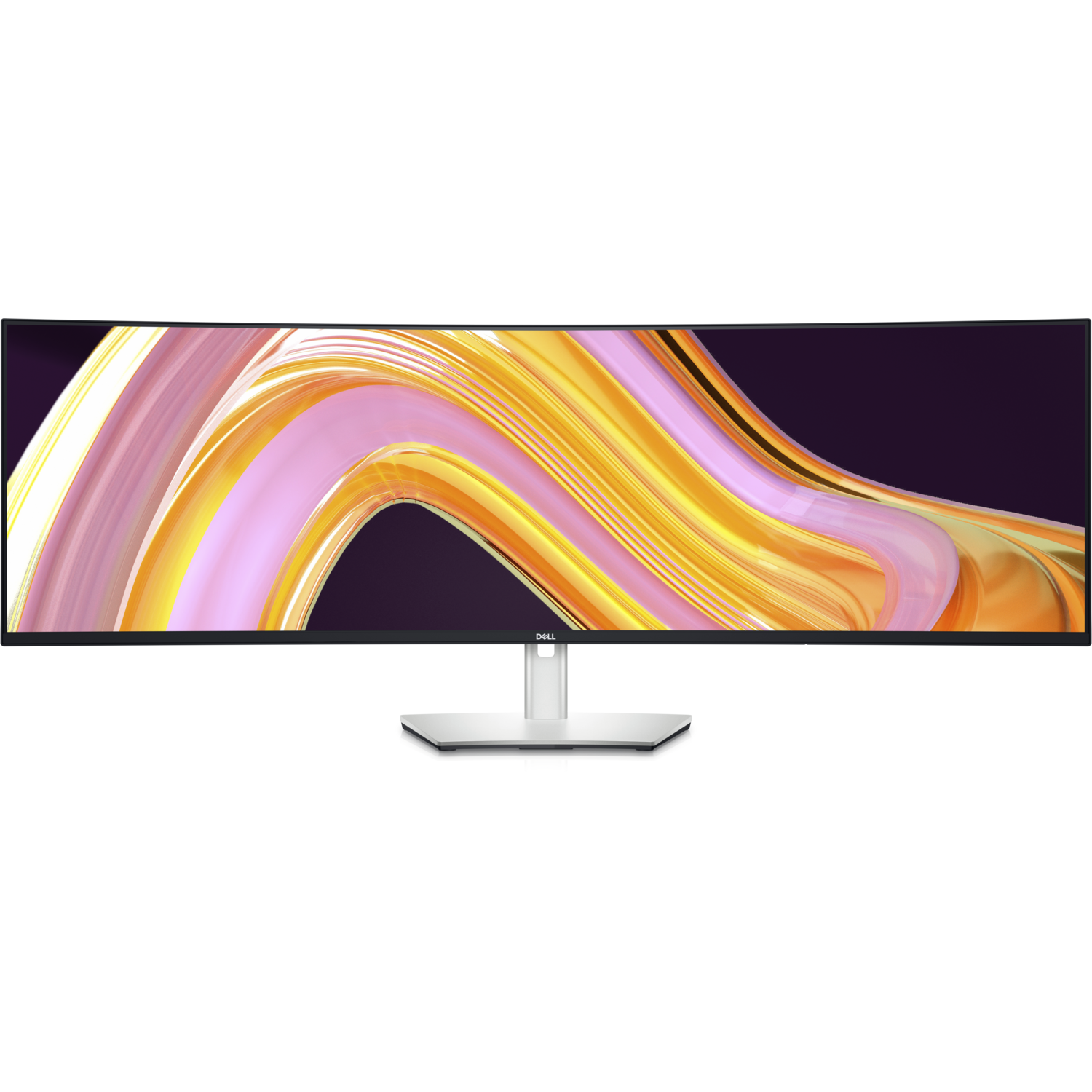

A 49-inch 32:9 IPS Black panel at 5120 x 1440 with a 3800R curve - the space of two 27-inch QHD screens with no gap between them.
USB-C hub, 90W

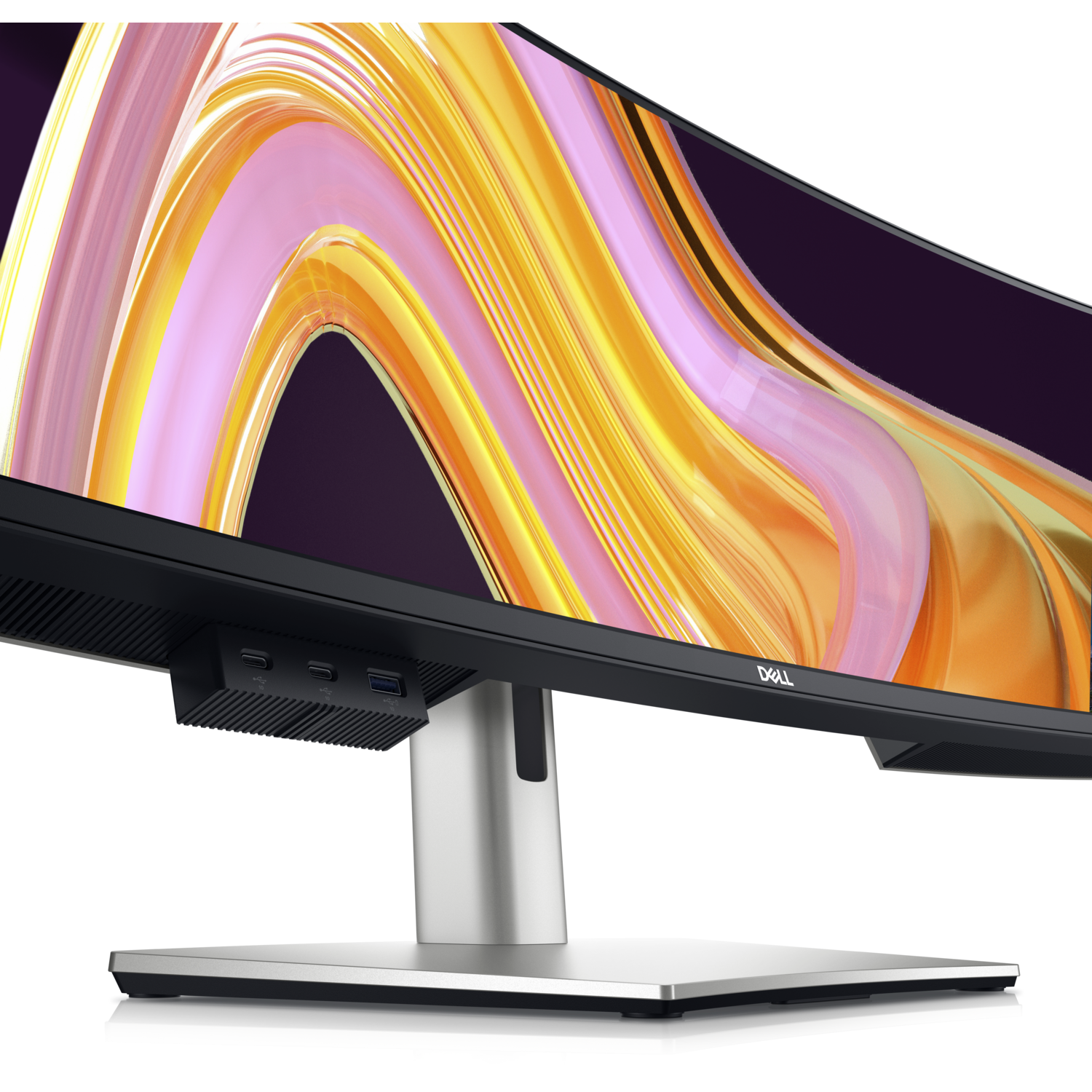

A single USB-C cable carries video, data and up to 90W power delivery, backed by 2.5GbE RJ45, USB 3.2 Gen2 Type-A/Type-C ports and a second data-only USB-C upstream.
Built-in multitasking
Auto-KVM, Picture-by-Picture and Picture-in-Picture let you run two PCs from one keyboard and mouse, with Easy Arrange in Dell Display Manager.
Equipping a team or studio? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell U4924DW Datasheet — Technical Specifications
General
| Product Name | Dell UltraSharp 49 Curved USB-C Hub Monitor - U4924DW |
| Model | U4924DW |
| Dell SKU | 210-BGVL |
| Local Warranty (Singapore) | 3-Year Advanced Exchange Service and Premium Panel Exchange (Dell), supplied by SourceIT with a GST invoice |
Display
| Diagonal Viewing Size | 1,244.60 mm (49.00 inches) |
| Preset Display Area (W x H) | 1,198.08 mm x 336.96 mm |
| Panel Type | IPS Black Technology |
| Display Screen Coating | Anti-Glare with 3H hardness |
| Maximum Preset Resolution | 5120 x 1440 at 60 Hz |
| Aspect Ratio | 32:9 |
| Curvature | 3800R |
| Viewing Angle | 178° vertical / 178° horizontal |
| Pixel Per Inch (PPI) | 109 |
| Contrast Ratio | 2000 to 1 (typical) |
| Backlight Technology | White LED Edgelight System |
| Brightness | 350 cd/m² (typical) |
| Response Time | 5 ms gray to gray in Fast mode; 8 ms gray to gray in Normal mode |
| Color Gamut | 100% sRGB, DCI-P3 98%, Display P3 98%, REC. 709 100% (Delta E<2) |
| Color Support | 1.07 billion colors |
| HDR Ready | No |

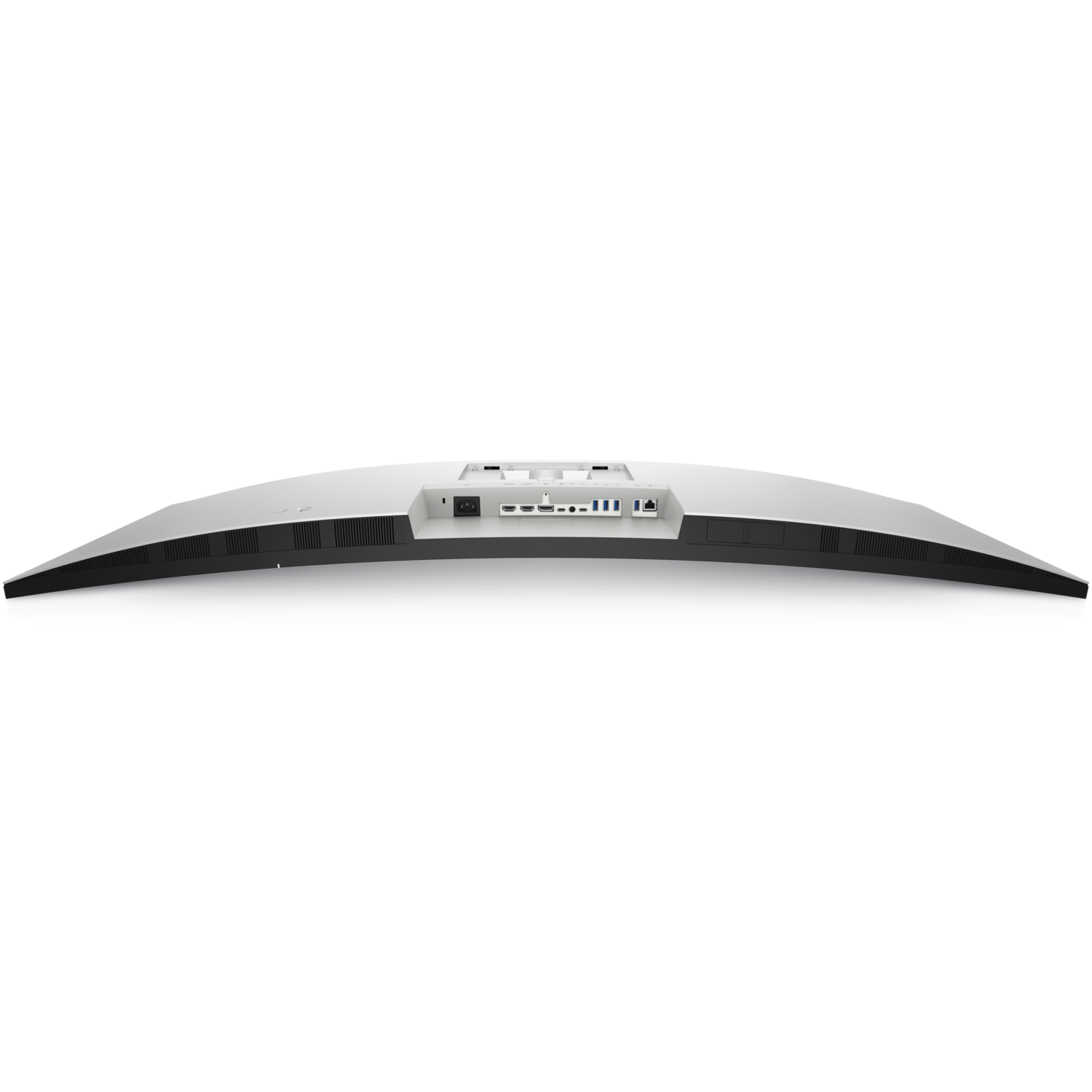

Ports & Connectivity
| Port | 1 x USB Type-C upstream port (video and data) with DisplayPort 1.4 Alternate mode, Power Delivery up to 90W |
| Port | 1 x USB-C upstream port (data only, 10 Gbps USB 3.2 Gen2) |
| Port | 2 x HDMI ports (HDCP2.2) supporting up to DQHD 5120 x 1440 60 Hz FRL per HDMI 2.1 |
| Port | 1 x DisplayPort version 1.4 (HDCP2.2) |
| Port | 4 x SuperSpeed USB 10 Gbps (USB 3.2 Gen2) Type-A downstream ports |
| Port | 2 x SuperSpeed USB 10 Gbps (USB 3.2 Gen2) Type-C downstream ports with 15W charging capability |
| Port | 1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen2) Type-A with BC1.2 charging at 2 A maximum |
| Port | 1 x Audio line-out port |
| Port | 1 x RJ45 Ethernet port, 2.5GbE |
| Picture-by-Picture / Picture-in-Picture | Yes |
| Keyboard, Video and Mouse (KVM) | Yes, with Auto-KVM |
| Daisy Chain Availability | No |

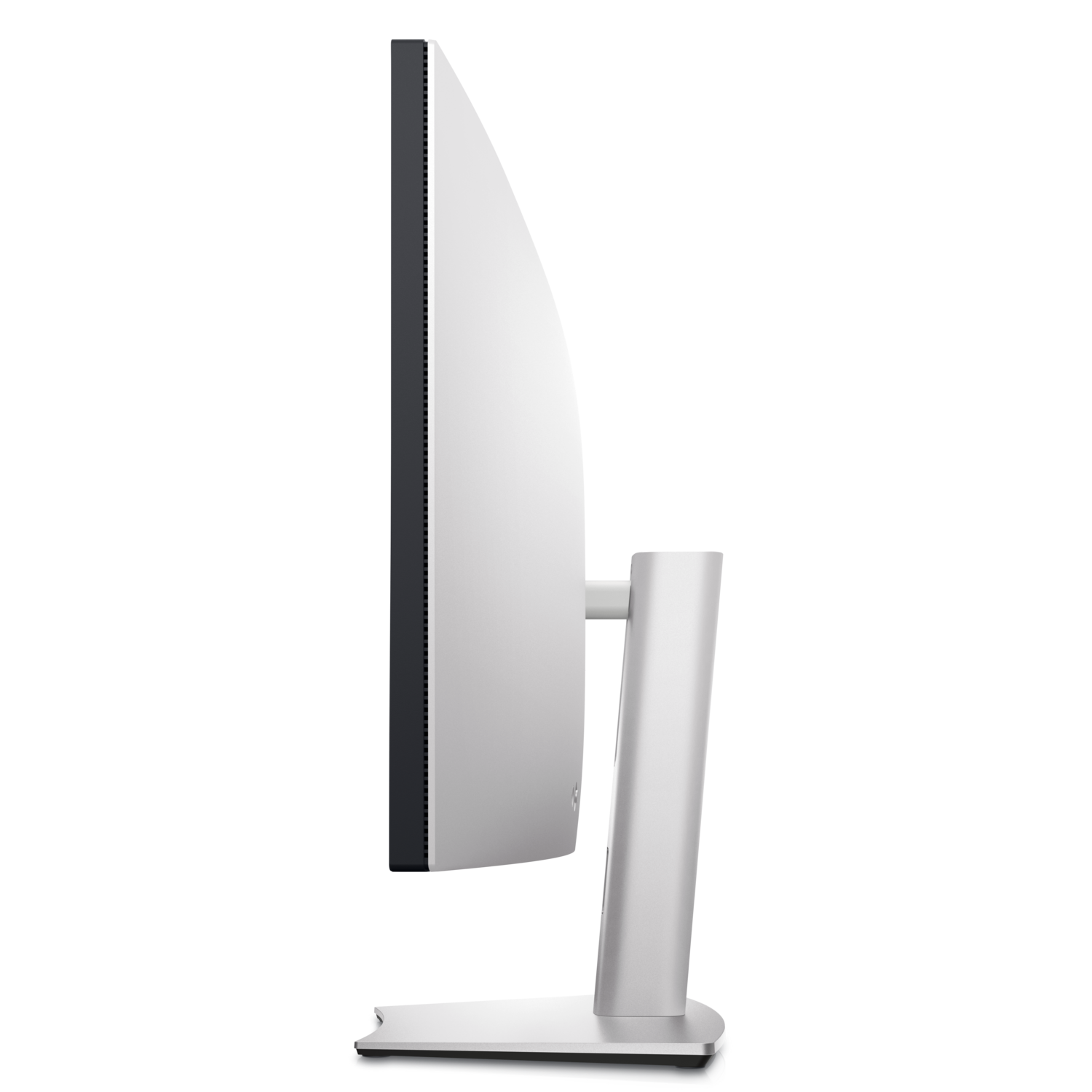

Ergonomics / Stand
| Height Adjustable | 120 mm |
| Tilt | -5° to 21° |
| Swivel | -170° to 170° |
| Slant | -2° to 2° |
| Pivot | Not available |

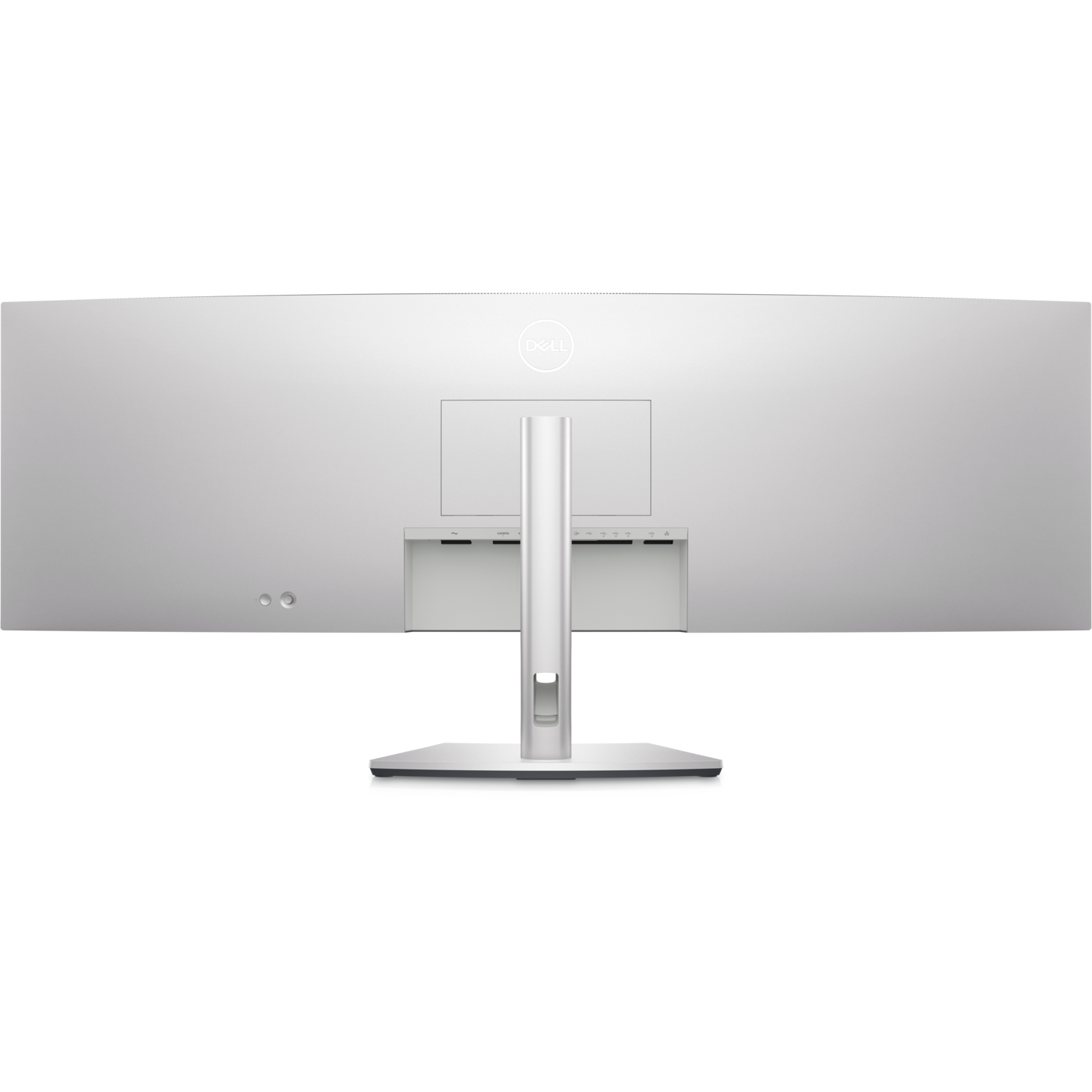

| VESA Mounting | 200 mm x 100 mm and 100 mm x 100 mm |
| Security | Security lock slot (cable lock sold separately) |
Audio
| Built-in Speakers | 2 x 9W |
| Audio Line-out | 1 x port (speakers only, no headphone support) |
Power
| Voltage Required | 100 VAC to 240 VAC / 50 Hz or 60 Hz ±3 Hz / 3.6 A maximum |
| Power Consumption (Off Mode) | 0.3 W |
| Power Consumption (Standby Mode) | 0.3 W |
| Power Consumption (On Mode) | 45 W |
| Power Consumption (Maximum) | 290 W |
Dimensions & Weight
| Height with Stand (Compressed to Extended) | 400.57 mm to 520.57 mm |
| Width with Stand | 1214.90 mm |
| Depth with Stand | 269.14 mm |
| Height without Stand | 365.95 mm |
| Width without Stand | 1214.90 mm |
| Depth without Stand | 112.09 mm |
| Weight (Panel Only - for VESA Mount) | 12.15 kg |
| Weight (with Stand Assembly and Cables) | 16.30 kg |
| Weight (with Packaging) | 27.73 kg |
Environmental Conditions
| Operating Temperature | 0°C to 40°C |
| Non-operating Temperature | -20°C to 60°C |
| Operating Humidity | 10% to 80% (non-condensing) |
| Non-operating Humidity | 5% to 90% (non-condensing) |
| Operating Altitude | 5000 m maximum |
| Non-operating Altitude | 12192 m maximum |
Eye Comfort
| Low Blue Light | ComfortView Plus (built-in low blue light reduction) |
Compliance / Certifications
| Compliant Standards | ENERGY STAR® certified; EPEAT® registered where applicable; RoHS-compliant; TCO Certified; BFR/PVC free (excluding external cables); Arsenic-free glass and Mercury-free (panel only) |
Software
| Dell Display Manager Compatibility | Yes, with Easy Arrange and other key features |
Compatibility & Software Support
Laptop & PC Connection
1 x USB Type-C upstream port (video and data) with DisplayPort 1.4 Alternate mode, Power Delivery up to 90W; 1 x USB-C upstream port (data only, 10 Gbps USB 3.2 Gen2); 2 x HDMI ports (HDCP2.2) supporting up to DQHD 5120 x 1440 60 Hz FRL per HDMI 2.1; 1 x DisplayPort version 1.4 (HDCP2.2); 4 x SuperSpeed USB 10 Gbps (USB 3.2 Gen2) Type-A downstream ports; 2 x SuperSpeed USB 10 Gbps (USB 3.2 Gen2) Type-C downstream ports with 15W charging capability; 1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen2) Type-A with BC1.2 charging at 2 A maximum; 1 x Audio line-out port; 1 x RJ45 Ethernet port, 2.5GbE; Picture-by-Picture / Picture-in-Picture: Yes; Keyboard, Video and Mouse (KVM): Yes, with Auto-KVM; Daisy Chain Availability: No.
Software
Dell Display Manager Compatibility: Yes, with Easy Arrange and other key features.
Mounting
VESA Mounting: 200 mm x 100 mm and 100 mm x 100 mm.
Package Contents & Dell UltraSharp 27 to 49-inch Hub & Creator Monitors Ordering Information
In the Box
Monitor, Stand riser, Stand base, 1 x Power cable, 1 x Type-C Gen 2 (C-C cable) - 1 m, 1 x DisplayPort cable (DP to DP) - 1.8 m, 1 x Type-A to Type-C Gen 2 cable - 1 m, 1 x HDMI cable (HDMI to HDMI) - 1.8 m, Quick setup guide, Safety, environmental and regulatory information.
Dell UltraSharp 27 to 49-inch Hub & Creator Monitors
| Model | Key feature |
| U2725QE | 27" 4K IPS Black 120 Hz, HDR 600, Thunderbolt 4 140 W, 2.5GbE RJ45 |
| U3224KB | 32" 6K IPS Black, HDR 600, 4K webcam + 2x14W speakers, Thunderbolt 4 140 W, RJ45 |
| U3225QE | 32" 4K IPS Black 120 Hz, Thunderbolt 4 140 W, RJ45 2.5GbE |
| U3226Q | 32" 4K QD-OLED 120 Hz, built-in colorimeter, Thunderbolt 4 140 W, RJ45 |
| U3425WE | 34" WQHD 1900R IPS Black 120 Hz, Thunderbolt 4 90 W, RJ45, KVM |
| U3824DW | 38" WQHD+ 2300R IPS Black 60 Hz, USB-C 90 W, RJ45, KVM |
| U4025QW | 40" 5K2K (5120x2160) IPS Black 120 Hz curved, Thunderbolt 4 140 W, RJ45 |
| U4924DW (this listing) | 49" DQHD (5120x1440) IPS Black 60 Hz curved, USB-C 90 W, RJ45 |
Datasheet & Downloads
| Datasheet (PDF) | U4924DW datasheet on delltechnologies.com |
| Product page | U4924DW on dell.com Singapore |
| Manuals & drivers | U4924DW manuals and documents on Dell Support |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting U4924DW.
Frequently Asked Questions — Dell U4924DW
What resolution does the U4924DW support?
5120 x 1440 (Dual QHD) at 60 Hz on a 49-inch 32:9 curved (3800R) IPS Black panel.
Can I charge my laptop through the monitor?
Yes. The USB-C upstream port supports DisplayPort 1.4 Alternate mode and Power Delivery up to 90W.
Can I connect two computers at once?
Yes. It supports Picture-by-Picture and Picture-in-Picture, and its built-in KVM with Auto-KVM lets you control both with one keyboard and mouse.
Does it support daisy chaining?
No. Daisy chaining is not available on this model.
What warranty comes with it in Singapore?
3-Year Advanced Exchange Service and Premium Panel Exchange.
