Dell UltraSharp 34 U3425WE 34" Curved Thunderbolt Hub Monitor
PRODUCT DESCRIPTION
Dell UltraSharp 34 Curved Thunderbolt Hub Monitor U3425WE (210-BMDH) - 3 Years Local Warranty
5-star Eye Comfort
TÜV 5-star Eye Comfort certified, with ComfortView Plus and an ambient light sensor that auto-adjusts brightness and colour temperature.
Thunderbolt 4 hub
A single Thunderbolt 4 cable carries video, data and up to 90 W power delivery, with a 2.5GbE RJ45 port, USB 10 Gbps hub, KVM and Thunderbolt daisy chaining.
120 Hz IPS Black curve
34.14" 3440 x 1440 1900R curved IPS Black panel at up to 120 Hz, 2000:1 contrast and 98% DCI-P3 with factory calibration (Delta E < 2).
Equipping a team or studio? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell U3425WE Datasheet — Technical Specifications
General
| Product Name | Dell UltraSharp 34 Curved Thunderbolt Hub Monitor - U3425WE |
| Model | U3425WE |
| Dell SKU | 210-BMDH |
| Local Warranty (Singapore) | 3-Year Advanced Exchange Service and Premium Panel Exchange (Dell), supplied by SourceIT with a GST invoice |
Display
| Diagonal Viewing Size | 867.16 mm (34.14 inches) |
| Preset Display Area (H x V) | 799.80 mm x 334.80 mm (31.49" x 13.18") |
| Panel Type | IPS Black Technology |
| Display Screen Coating | Anti-Glare with 3H hardness |
| Maximum Preset Resolution | 3440 x 1440 at 120 Hz |
| Viewing Angle | 178° vertical / 178° horizontal |
| Pixel Pitch | 0.2325 mm x 0.2325 mm |
| Pixel Per Inch (PPI) | 110 |
| Contrast Ratio | 2000 to 1 (typical) |
| Aspect Ratio | 21:9 |
| Backlight Technology | LED Edgelight System |
| Brightness | 300 cd/m² (typical) |
| Response Time | 8 ms (Normal) / 5 ms (Fast) |
| Curved Screen | Yes, 1900R |
| HDR | No |
| Color Gamut | DCI-P3 98%, Display P3 98%, sRGB 100%, BT.709 100% |
| Color Accuracy | DCI-P3, Display P3, sRGB & BT.709: Delta E < 2 (average) |
| Color Support | 1.07 Billion colors (8bit + A-FRC) |

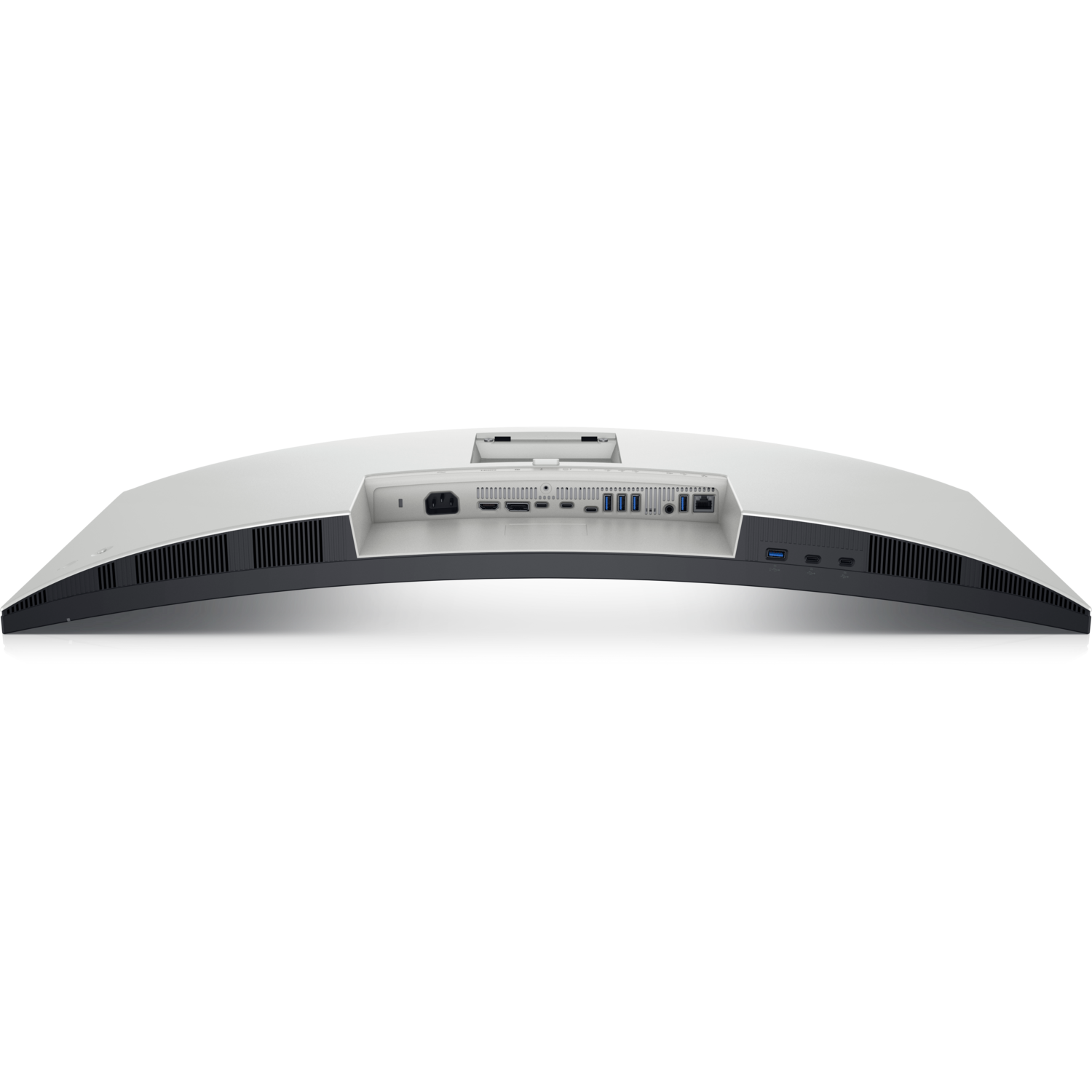

Ports & Connectivity
| Port | 1 x HDMI port (HDCP1.4 & 2.2) (supports up to WQHD 3440 x 1440 100 Hz TMDS as per specified in HDMI 2.1) |
| Port | 1 x DP 1.4 (HDCP1.4 & 2.2) (supports up to WQHD 3440 x 1440 120 Hz) |
| Port | 1 x Thunderbolt 4 upstream port (Video + Data). Alternate mode with DisplayPort 1.4, Power Delivery up to 90 W |
| Port | 1 x Thunderbolt 4 downstream port (15 W) for daisy chaining (Video + Data) |
| Port | 1 x USB Type-C upstream port (data only) (super speed USB 10 Gbps, USB 3.2 Gen2) |
| Port | 4 x USB Type-A downstream port (super speed USB 10 Gbps, USB 3.2 Gen2) |
| Port | 1 x USB Type-A downstream port (super speed USB 10 Gbps, USB 3.2 Gen2) with BC1.2 power charging |
| Port | 2 x USB Type-C downstream port (super speed USB 10 Gbps, USB 3.2 Gen2) with power charging (15 W) |
| Port | 1 x RJ45 Ethernet port, 2.5GbE |
| Port | 1 x Audio line-out port |
| KVM | Yes |
| PbP / PiP | Yes |
| Daisy Chain | Yes |
Ergonomics / Stand
| Adjustability | Height, Tilt, Swivel |
| Height Adjustable | 150 mm |
| Tilt | -5° / +21° |
| Swivel | -30° / +30° |
| Flat Panel Mount Interface | VESA mounting holes (100 mm x 100 mm - behind attached VESA Cover) |
| Security | Security lock slot (cable lock sold separately); Anti-theft stand lock slot (to lock stand to monitor using screw) |
Audio / Camera
| Audio Output | 1 x Audio line-out |
| Built-in Speakers | 2 x 5 W |
Power
| Voltage Required | 100 VAC to 240 VAC / 50 Hz or 60 Hz ± 3 Hz / 3.2 A (typical) |
| Power Consumption (Off mode) | 0.3 W |
| Power Consumption (Standby mode) | 0.5 W |
| Power Consumption (Networked Standby mode) | 1.9 W |
| Power Consumption (On mode) | 31.5 W |
| Power Consumption (Max.) | 250 W |
| Power Consumption (Pon) | 29.3 W |
| Total Energy Consumption (TEC) | 99 kWh |
Dimensions & Weight
| Height with stand (Compressed ~ Extended) | 392.83 mm ~ 542.83 mm (15.47" ~ 21.37") |
| Width with stand | 813.46 mm (32.03") |
| Depth with stand | 240.43 mm (9.47") |
| Height without stand | 359.15 mm (14.14") |
| Width without stand | 813.46 mm (32.03") |
| Depth without stand | 105.08 mm (4.14") |
| Weight (panel only - for VESA mount) | 7.78 kg (17.15 lb) |
| Weight (with stand assembly and cables) | 10.81 kg (23.83 lb) |
| Weight (with packaging) | 15.05 kg (33.17 lb) |
Environmental Conditions
| Temperature (Operating) | 0°C to 40°C (32°F to 104°F) |
| Temperature (Non-operating) | -20°C to 60°C (-4°F to 140°F) - Storage and Shipping |
| Humidity (Operating) | 10% to 80% (non-condensing) |
| Humidity (Non-operating) | 5% to 90% (non-condensing) - Storage and Shipping |
| Altitude (Operating) | 5000 m (16404 ft) max |
| Altitude (Non-operating) | 12192 m (40000 ft) max |
Eye Comfort
| TÜV Eye Comfort | 5 Stars |
| ComfortView Plus | Built-in low blue light screen; reduces blue light emission to less than 35% |
| Ambient Light Sensor | Yes, auto brightness and color temperature adjustment |
Compliance / Certifications
| Compliant Standards | ENERGY STAR certified monitor |
| Compliant Standards | EPEAT registered where applicable. EPEAT registration varies by country. See www.epeat.net for registration status by country |
| Compliant Standards | TCO Certified & TCO Certified Edge |
| Compliant Standards | RoHS-compliant |
| Compliant Standards | BFR/PVC free monitor (excluding external cables) |
| Compliant Standards | Arsenic-free glass and Mercury-free for the panel only |
Software
| Dell Display Manager Compatibility | Yes, Easy Arrange, Other key features |
| Dell Color Management | Compatible with external colorimeter |
Compatibility & Software Support
Laptop & PC Connection
1 x HDMI port (HDCP1.4 & 2.2) (supports up to WQHD 3440 x 1440 100 Hz TMDS as per specified in HDMI 2.1); 1 x DP 1.4 (HDCP1.4 & 2.2) (supports up to WQHD 3440 x 1440 120 Hz); 1 x Thunderbolt 4 upstream port (Video + Data). Alternate mode with DisplayPort 1.4, Power Delivery up to 90 W; 1 x Thunderbolt 4 downstream port (15 W) for daisy chaining (Video + Data); 1 x USB Type-C upstream port (data only) (super speed USB 10 Gbps, USB 3.2 Gen2); 4 x USB Type-A downstream port (super speed USB 10 Gbps, USB 3.2 Gen2); 1 x USB Type-A downstream port (super speed USB 10 Gbps, USB 3.2 Gen2) with BC1.2 power charging; 2 x USB Type-C downstream port (super speed USB 10 Gbps, USB 3.2 Gen2) with power charging (15 W); 1 x RJ45 Ethernet port, 2.5GbE; 1 x Audio line-out port; KVM: Yes; PbP / PiP: Yes; Daisy Chain: Yes.
Software
Dell Display Manager Compatibility: Yes, Easy Arrange, Other key features; Dell Color Management: Compatible with external colorimeter.
Mounting
Flat Panel Mount Interface: VESA mounting holes (100 mm x 100 mm - behind attached VESA Cover).
Package Contents & Dell UltraSharp 27 to 49-inch Hub & Creator Monitors Ordering Information
In the Box
Monitor, Stand Riser, Stand Base, 1 x Power cable, 1 x DisplayPort 1.4 cable - 1.8 m, 1 x HDMI cable - 1.8 m, 1 x Thunderbolt 4 passive cable - 1 m, 1 x USB Type-A to USB Type-C Gen 2 cable - 1 m, Quick Setup guide, Safety, Environmental and Regulatory Information, Factory calibration report.
Dell UltraSharp 27 to 49-inch Hub & Creator Monitors
| Model | Key feature |
| U2725QE | 27" 4K IPS Black 120 Hz, HDR 600, Thunderbolt 4 140 W, 2.5GbE RJ45 |
| U3224KB | 32" 6K IPS Black, HDR 600, 4K webcam + 2x14W speakers, Thunderbolt 4 140 W, RJ45 |
| U3225QE | 32" 4K IPS Black 120 Hz, Thunderbolt 4 140 W, RJ45 2.5GbE |
| U3226Q | 32" 4K QD-OLED 120 Hz, built-in colorimeter, Thunderbolt 4 140 W, RJ45 |
| U3425WE (this listing) | 34" WQHD 1900R IPS Black 120 Hz, Thunderbolt 4 90 W, RJ45, KVM |
| U3824DW | 38" WQHD+ 2300R IPS Black 60 Hz, USB-C 90 W, RJ45, KVM |
| U4025QW | 40" 5K2K (5120x2160) IPS Black 120 Hz curved, Thunderbolt 4 140 W, RJ45 |
| U4924DW | 49" DQHD (5120x1440) IPS Black 60 Hz curved, USB-C 90 W, RJ45 |
Datasheet & Downloads
| Datasheet (PDF) | U3425WE datasheet on delltechnologies.com |
| Product page | U3425WE on dell.com Singapore |
| Manuals & drivers | U3425WE manuals and documents on Dell Support |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting U3425WE.
Frequently Asked Questions — Dell U3425WE
Can a laptop be powered and connected with one cable?
Yes. The Thunderbolt 4 upstream port carries video (DisplayPort 1.4 alt mode) and data and provides Power Delivery up to 90 W.
What refresh rate does the U3425WE support?
Up to 3440 x 1440 at 120 Hz over DisplayPort 1.4 or Thunderbolt; HDMI supports up to 3440 x 1440 at 100 Hz.
Can I daisy chain a second monitor?
Yes. The Thunderbolt 4 downstream port (15 W) supports daisy chaining (video + data).
Does it have built-in speakers and Ethernet?
Yes: 2 x 5 W built-in speakers, an audio line-out, and a 2.5GbE RJ45 Ethernet port.
What warranty does it come with in Singapore?
Dell Singapore lists 3-Year Advanced Exchange Service and Premium Panel Exchange.
