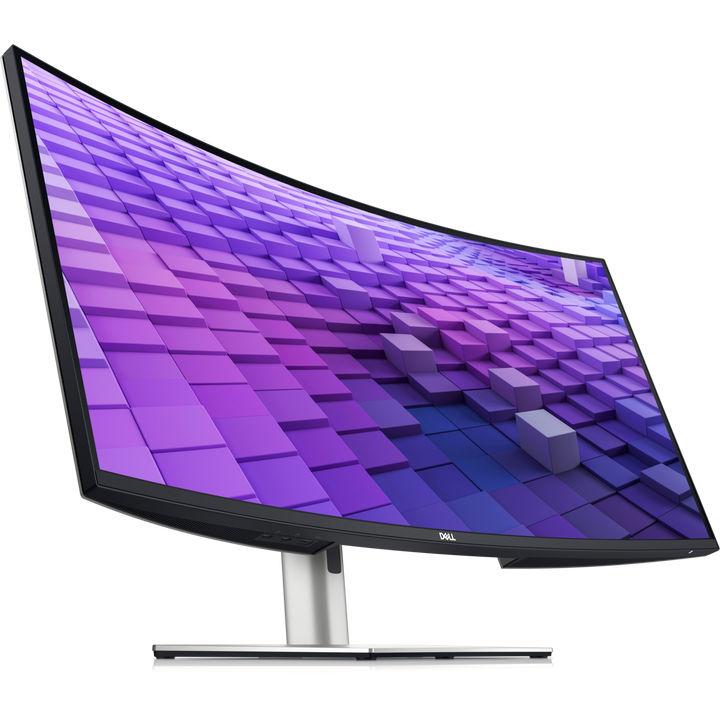

Dell UltraSharp 38 U3824DW 38" Curved USB-C Hub Monitor
PRODUCT DESCRIPTION
Dell UltraSharp 38 Curved USB-C Hub Monitor U3824DW (210-BHZG) - 3 Years Local Warranty
37.5" WQHD+ curve
3840 x 1600 2300R curved IPS Black panel with 2000:1 contrast, 98% DCI-P3 and 100% sRGB for a wide multitasking workspace.
USB-C hub, 90 W
One USB-C cable carries video, data and up to 90 W power delivery, with a 2.5GbE RJ45 port and 10 Gbps USB-A and USB-C downstream ports.
Two PCs, one setup
Built-in KVM with Auto-KVM plus Picture-by-Picture and Picture-in-Picture let you control two computers with one keyboard and mouse.
Equipping a team or studio? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell U3824DW Datasheet — Technical Specifications
General
| Product Name | Dell UltraSharp 38 Curved USB-C Hub Monitor - U3824DW |
| Model | U3824DW |
| Dell SKU | 210-BHZG |
| Local Warranty (Singapore) | 3-Year Advanced Exchange Service and Premium Panel Exchange (Dell), supplied by SourceIT with a GST invoice |
Display
| Diagonal Viewing Size | 952.90 mm (37.52 inches) |
| Preset Display Area (H x V) | 879.67 mm x 366.53 mm (34.63" x 14.43") |
| Panel Type | IPS Black Technology |
| Display Screen Coating | Anti-Glare with 3H hardness |
| Maximum Preset Resolution | 3840 x 1600 at 60 Hz |
| Viewing Angle | 178° vertical / 178° horizontal |
| Pixel Pitch | 0.22908 mm x 0.22908 mm |
| Pixel Per Inch (PPI) | 110.87 |
| Contrast Ratio | 2000 to 1 (typical) |
| Aspect Ratio | 21:9 |
| Backlight Technology | White LED Edgelight System |
| Brightness | 300 cd/m² (typical) |
| Response Time | 8 ms (Normal) / 5 ms (Fast) |
| Curved Screen | Yes, 2300R |
| HDR | No |
| Color Gamut | DCI-P3 98%, Display P3 98%, sRGB 100%, REC. 709 100% |
| Color Support | 1.07 billion colors |

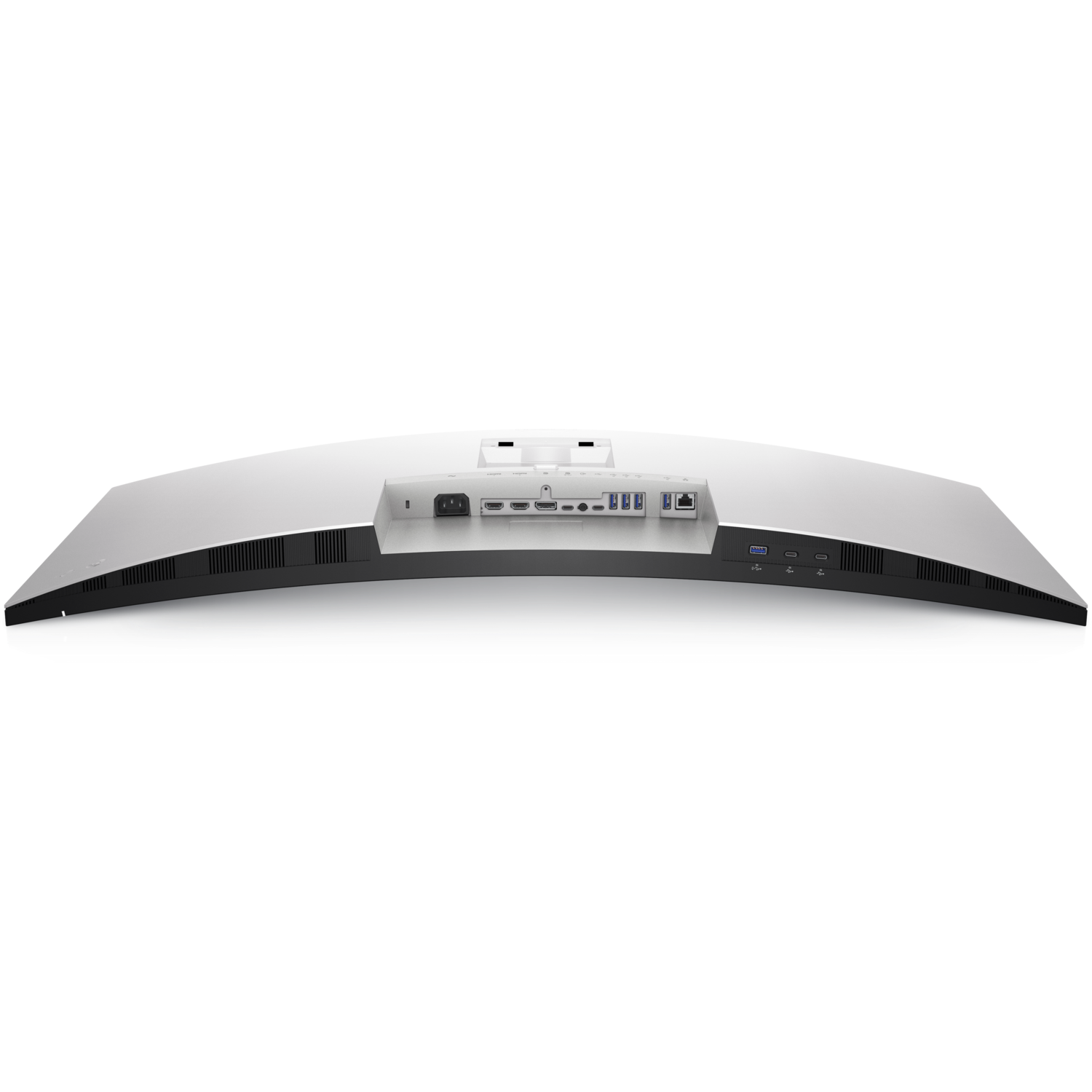

Ports & Connectivity
| Port | 1 x DisplayPort 1.4 (HDCP 2.2) (supports up to WQHD+ 3840 x 1600 60 Hz) |
| Port | 2 x HDMI (HDCP 2.2) (supports up to WQHD+ 3840 x 1600 60 Hz) |
| Port | 1 x USB Type-C upstream port (Alternate mode with DisplayPort 1.4, Power Delivery up to 90 W) |
| Port | 1 x USB Type-C upstream port (data only) (10 Gbps, USB 3.2 Gen2) |
| Port | 4 x USB Type-A downstream port (10 Gbps, USB 3.2 Gen2) |
| Port | 1 x USB Type-A downstream port (10 Gbps, USB 3.2 Gen2) with BC1.2 charging (2A max) |
| Port | 2 x USB Type-C downstream port (10 Gbps, USB 3.2 Gen2) with power charging (15 W) |
| Port | 1 x RJ45 Ethernet port, 2.5GbE |
| Port | 1 x Audio line-out |
| KVM | Yes, with Auto-KVM |
| PbP / PiP | Yes |
| Daisy Chain | No |
Ergonomics / Stand
| Adjustability | Height, Tilt, Swivel, Slant |
| Height Adjustable | 120 mm |
| Tilt | -5° to 21° |
| Swivel | -30° to 30° |
| Slant | -4° to 4° |
| Flat Panel Mount Interface | VESA mounting holes (100 mm x 100 mm) |
| Security | Security lock slot (cable lock sold separately); Anti-theft stand lock slot |
Audio / Camera
| Audio Output | 1 x Audio line-out (headphone usage not supported) |
| Built-in Speakers | 2 x 9 W |
Power
| Voltage Required | 100 VAC to 240 VAC / 50 Hz or 60 Hz ± 3 Hz / 3.2 A (typical) |
| Power Consumption (Off mode) | 0.3 W |
| Power Consumption (Standby mode) | 0.4 W |
| Power Consumption (Networked Standby mode) | 0.9 W |
| Power Consumption (On mode) | 34.8 W |
| Power Consumption (Max.) | 245 W |
Dimensions & Weight
| Height with stand (Compressed ~ Extended) | 443.76 mm ~ 563.76 mm (17.47" ~ 22.20") |
| Width with stand | 894.26 mm (35.21") |
| Depth with stand | 251.21 mm (9.89") |
| Height without stand | 392.33 mm (15.44") |
| Width without stand | 894.26 mm (35.21") |
| Depth without stand | 102.35 mm (4.03") |
| Weight (panel only - for VESA mount) | 8.79 kg (19.37 lb) |
| Weight (with stand assembly and cables) | 13.27 kg (29.25 lb) |
| Weight (with packaging) | 18.98 kg (41.83 lb) |
Environmental Conditions
| Temperature (Operating) | 0°C to 40°C (32°F to 104°F) |
| Temperature (Non-operating) | -20°C to 60°C (-4°F to 140°F) |
| Humidity (Operating) | 10% to 80% (non-condensing) |
| Humidity (Non-operating) | 5% to 90% (non-condensing) |
| Altitude (Operating) | 5000 m (16404 ft) max |
| Altitude (Non-operating) | 12192 m (40000 ft) max |
Eye Comfort
| ComfortView Plus | Built-in low blue light screen reduces potentially harmful blue light emissions |
Compliance / Certifications
| Compliant Standards | ENERGY STAR certified |
| Compliant Standards | EPEAT registered where applicable (registration varies by country) |
| Compliant Standards | TCO Certified & TCO Certified Edge |
| Compliant Standards | RoHS-compliant |
| Compliant Standards | BFR/PVC free (excluding external cables) |
| Compliant Standards | Arsenic-free glass and Mercury-free for the panel only |
Software
| Dell Display Manager Compatibility | Yes, Easy Arrange (48 pre-set window partitions), Easy Arrange Memory, USB KVM wizard, automatic firmware and software update notifications |
| IT Integration | Compatible with SCCM, InTune, and Command Line Interface scripts |
Compatibility & Software Support
Laptop & PC Connection
1 x DisplayPort 1.4 (HDCP 2.2) (supports up to WQHD+ 3840 x 1600 60 Hz); 2 x HDMI (HDCP 2.2) (supports up to WQHD+ 3840 x 1600 60 Hz); 1 x USB Type-C upstream port (Alternate mode with DisplayPort 1.4, Power Delivery up to 90 W); 1 x USB Type-C upstream port (data only) (10 Gbps, USB 3.2 Gen2); 4 x USB Type-A downstream port (10 Gbps, USB 3.2 Gen2); 1 x USB Type-A downstream port (10 Gbps, USB 3.2 Gen2) with BC1.2 charging (2A max); 2 x USB Type-C downstream port (10 Gbps, USB 3.2 Gen2) with power charging (15 W); 1 x RJ45 Ethernet port, 2.5GbE; 1 x Audio line-out; KVM: Yes, with Auto-KVM; PbP / PiP: Yes; Daisy Chain: No.
Software
Dell Display Manager Compatibility: Yes, Easy Arrange (48 pre-set window partitions), Easy Arrange Memory, USB KVM wizard, automatic firmware and software update notifications; IT Integration: Compatible with SCCM, InTune, and Command Line Interface scripts.
Mounting
Flat Panel Mount Interface: VESA mounting holes (100 mm x 100 mm).
Package Contents & Dell UltraSharp 27 to 49-inch Hub & Creator Monitors Ordering Information
In the Box
Monitor, Stand Riser, Stand Base, 1 x Power cable, 1 x DP Cable (DP to DP) - 1.8 m, 1 x HDMI cable (HDMI-HDMI) - 1.8 m, 1 x Type-C Gen 2 (C-C cable) - 1 m, 1 x USB-A to USB-C Gen 2 cable - 1 m, Quick setup guide, Safety, Environmental and Regulatory Information, Factory calibration report.
Dell UltraSharp 27 to 49-inch Hub & Creator Monitors
| Model | Key feature |
| U2725QE | 27" 4K IPS Black 120 Hz, HDR 600, Thunderbolt 4 140 W, 2.5GbE RJ45 |
| U3224KB | 32" 6K IPS Black, HDR 600, 4K webcam + 2x14W speakers, Thunderbolt 4 140 W, RJ45 |
| U3225QE | 32" 4K IPS Black 120 Hz, Thunderbolt 4 140 W, RJ45 2.5GbE |
| U3226Q | 32" 4K QD-OLED 120 Hz, built-in colorimeter, Thunderbolt 4 140 W, RJ45 |
| U3425WE | 34" WQHD 1900R IPS Black 120 Hz, Thunderbolt 4 90 W, RJ45, KVM |
| U3824DW (this listing) | 38" WQHD+ 2300R IPS Black 60 Hz, USB-C 90 W, RJ45, KVM |
| U4025QW | 40" 5K2K (5120x2160) IPS Black 120 Hz curved, Thunderbolt 4 140 W, RJ45 |
| U4924DW | 49" DQHD (5120x1440) IPS Black 60 Hz curved, USB-C 90 W, RJ45 |
Datasheet & Downloads
| Datasheet (PDF) | U3824DW datasheet on delltechnologies.com |
| Product page | U3824DW on dell.com Singapore |
| Manuals & drivers | U3824DW manuals and documents on Dell Support |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting U3824DW.
Frequently Asked Questions — Dell U3824DW
Can a laptop be powered and connected with one cable?
Yes. The USB-C upstream port supports DisplayPort 1.4 alt mode, data and Power Delivery up to 90 W.
What is the resolution and refresh rate?
3840 x 1600 (WQHD+) at 60 Hz on a 37.52" 21:9 curved IPS Black panel.
Can I use it with two computers?
Yes. It has a built-in KVM with Auto-KVM and supports Picture-by-Picture and Picture-in-Picture.
Does it support daisy chaining?
No. Dell's datasheet lists daisy chain as not supported on the U3824DW.
What warranty does it come with in Singapore?
Dell Singapore lists 3-Year Advanced Exchange Service and Premium Panel Exchange, with next-business-day response.
