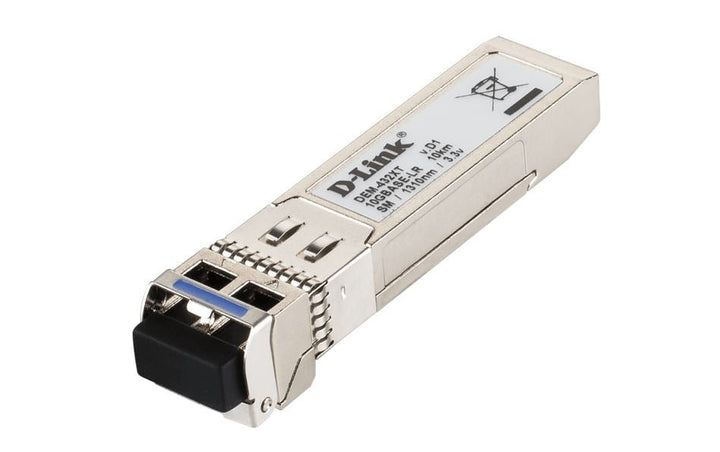

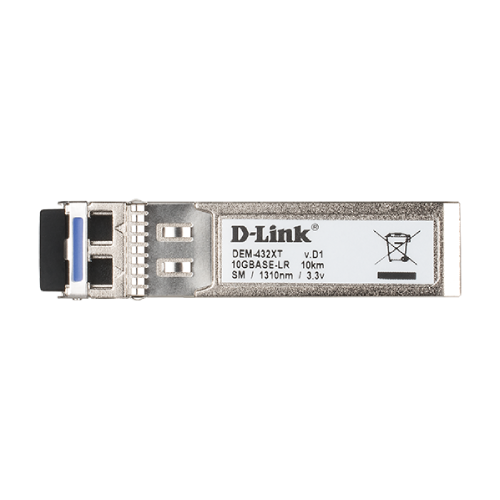

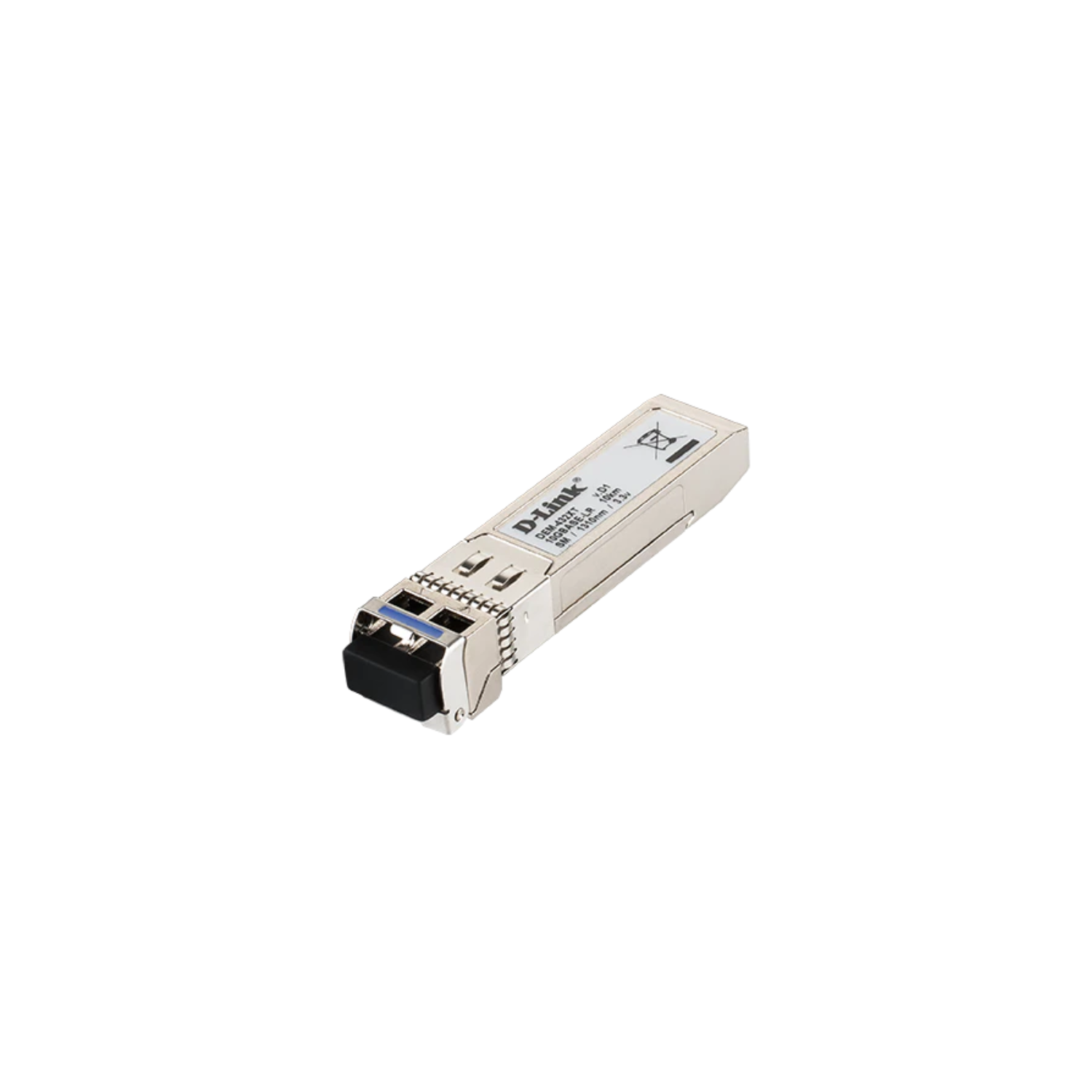

D-Link DEM-432XT 10GBASE-LR Single-Mode SFP+ Transceiver (10 km)
PRODUCT DESCRIPTION
D-Link DEM-432XT 10GBASE-LR Single-Mode SFP+ Transceiver, 10 km (DEM-432XT) - 5 Years Local Warranty
10 Gigabit Links up to 10 km
The D-Link DEM-432XT is a 10GBASE-LR SFP+ transceiver using a 1310 nm laser over 9/125 µm single-mode fibre with a duplex LC connector, for 10G links of up to 10 km between buildings or across a campus.
Compact and Hot Pluggable
The module follows the SFF-8432 SFP+ form factor, draws 300 mA at 3.3 V, and is hot pluggable and RoHS compliant. It is certified CE, FCC and VCCI for EMI and UL, TUV and CDRH for safety.
Need help choosing? Email sales@sourceit.com.sg with your switch model, fibre type and link distance and we will match the right module for you.
D-Link DEM-432XT Datasheet — Technical Specifications
General
| Product Name | D-Link DEM-432XT 10GBASE-LR Single-Mode SFP+ Transceiver (10 km) |
| Part Number | DEM-432XT |
| Series | DEM-400 Series 10 Gigabit SFP+ Transceivers |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Optical Interface
| Standard | IEEE 802.3ae 10GBASE-LR |
| Connector | Duplex LC |
| Media | Single-mode fibre 9/125 µm |
| Wavelength | 1310 nm |
| Maximum Distance | 10 km |
| Tx Power | -8.5 dBm (min) to 0.5 dBm (max) |
| Rx Sensitivity | -12.6 dBm |
Module, Environmental & Certifications
| Form Factor | SFP+ (SFF-8432), 14.8 x 56.5 x 11.85 mm |
| Weight | 19.5 g |
| Power | 3.3 V: 300 mA |
| Hot Pluggable | Yes; RoHS compliant |
| Operating Temperature | 0 to 70 °C |
| Storage Temperature | -40 to 85 °C |
| Operating Humidity | 5 to 85% |
| Storage Humidity | 5 to 95% |
| EMI | CE, FCC, VCCI |
| Safety | UL, TUV, CDRH |
Compatibility & Software Support
Host Ports
Plugs into a 10G SFP+ slot. D-Link's datasheet does not publish a host compatibility list — send us your switch model and we will confirm before you order.
Diagnostics
Digital Diagnostic Monitoring (DDM) is not listed for this model; D-Link sells separate "-DD" versions with DDM.
Package Contents & DEM-400 10G SFP+ Ordering Information
D-Link 10G SFP+ Transceivers (DEM-400 Series datasheet)
| Model | Standard | Media | Distance | Part No. |
| DEM-410T | 10GBASE-T (also 1000BASE-T) | Copper RJ45, Cat6a | 30 m | DEM-410T |
| DEM-431XT | 10GBASE-SR, 850 nm | Multi-mode, duplex LC | 300 m OM3 / 550 m OM4 | DEM-431XT |
| DEM-432XT (this listing) | 10GBASE-LR, 1310 nm | Single-mode, duplex LC | 10 km | DEM-432XT |
We also list other D-Link 10G SFP+ optics — DEM-433XT, DEM-434XT, DEM-435XT, DEM-436XT-BXD / BXU and the DDM versions DEM-431XT-DD / DEM-432XT-DD; see each listing for its specifications.
Package contents are not listed in D-Link's datasheet — ask us if you need confirmation of what is in the box.
Datasheet & Downloads
| D-Link datasheet | DEM-400 Series 10G SFP+ Datasheet, March 2019 (PDF) |
| D-Link product page | DEM-432XT on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DEM-432XT.
Frequently Asked Questions — D-Link DEM-432XT
How far can the DEM-432XT reach?
Up to 10 km on single-mode fibre, per D-Link's datasheet.
Does it support DDM?
DDM is not listed for the DEM-432XT. If you need optical diagnostics, choose the DEM-432XT-DD.
Can I use it on multi-mode fibre?
No — it is a single-mode (9/125 µm) optic. For multi-mode fibre choose the DEM-431XT.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
