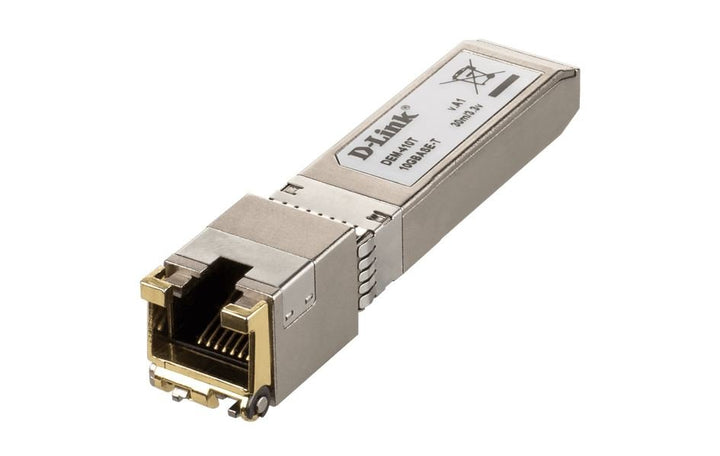

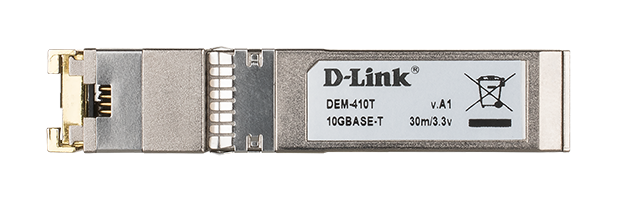

D-Link DEM-410T 10GBASE-T Copper SFP+ Transceiver
PRODUCT DESCRIPTION
D-Link DEM-410T 10GBASE-T Copper SFP+ Transceiver (DEM-410T) - 5 Years Local Warranty
10G over Copper from an SFP+ Slot
The D-Link DEM-410T turns an SFP+ slot into a 10GBASE-T RJ45 port. It supports IEEE 802.3an 10GBASE-T at up to 30 m over Cat 6a cabling and IEEE 802.3ab 1000BASE-T at up to 100 m over Cat 5e — handy for linking servers, NAS units and switches with copper 10G ports without fibre.
Compact and Low Power
The module runs on 3.3 V with a maximum current of 780 mA, weighs 20 g and carries a D-Link rated MTBF of 217,186 hours.
Need help choosing? Email sales@sourceit.com.sg with your switch model, fibre or cable type and link distance and we will match the right module for you.
D-Link DEM-410T Datasheet — Technical Specifications
General
| Product Name | D-Link DEM-410T 10GBASE-T Copper SFP+ Transceiver |
| Part Number | DEM-410T |
| Series | DEM-400 Series 10G SFP+ Transceivers |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interface
| Standards | IEEE 802.3an 10GBASE-T; IEEE 802.3ab 1000BASE-T |
| Connector | RJ45 |
| Data Rate | 10 Gbps |
| Maximum Distance | 10GBASE-T: up to 30 m on Cat 6a; 1000BASE-T: up to 100 m on Cat 5e |
Module
| Operating Voltage | 3.3 V |
| Maximum Current | 780 mA |
| Operating Temperature | 0 to 65 °C |
| Dimensions | 13.7 x 68 x 8.5 mm (W x D x H) |
| Weight | 20 g |
| MTBF | 217,186 hours |
Certifications
| EMI / Safety | FCC Class B, CE Class B, VCCI Class B, LVD |
| Environmental | RoHS |
Compatibility & Software Support
Host Ports
Fits an SFP+ slot. D-Link restricts DEM-410T use on some switch models — send us your switch model and we will confirm support before you order.
Cabling
Use Cat 6a for 10G runs up to 30 m; Cat 5e is supported for 1000BASE-T up to 100 m.
Package Contents & DEM-400 10G SFP+ Ordering Information
D-Link 10G SFP+ Transceivers
| Model | Standard | Media | Distance | Part No. |
| DEM-410T (this listing) | 10GBASE-T / 1000BASE-T | Copper RJ45 | 30 m Cat 6a (10G) | DEM-410T |
| DEM-431XT | 10GBASE-SR | Multi-mode | 300 m OM3 / 550 m OM4 | DEM-431XT |
| DEM-432XT | 10GBASE-LR | Single-mode | 10 km | DEM-432XT |
| DEM-434XT | 10GBASE-ZR, 1550 nm | Single-mode | 80 km | DEM-434XT |
Package contents are not listed by D-Link — ask us if you need confirmation of what is in the box.
Datasheet & Downloads
| D-Link datasheet | DEM-400 Series 10G SFP+ Datasheet (PDF) |
| D-Link product page | DEM-410T on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DEM-410T.
Frequently Asked Questions — D-Link DEM-410T
How far does 10GBASE-T reach on this module?
Up to 30 m on Cat 6a cabling, per D-Link.
Does it support Gigabit?
Yes, IEEE 802.3ab 1000BASE-T up to 100 m on Cat 5e.
Will it work in my switch?
D-Link restricts its use on some switch models — send us your switch model and we will check.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
