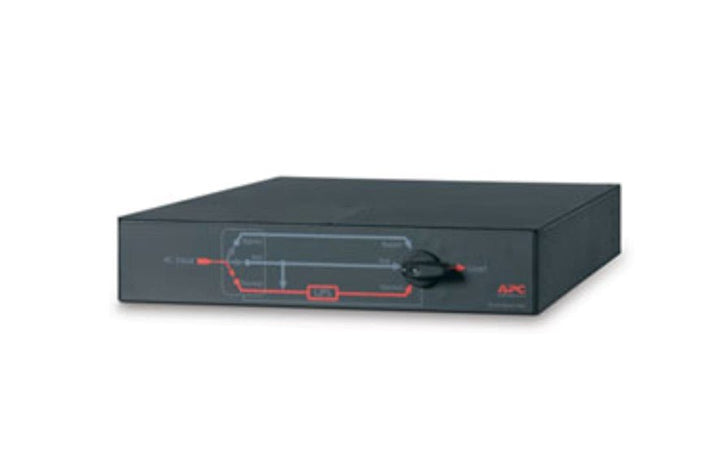

APC Service Bypass Panel 230V
PRODUCT DESCRIPTION
APC Service Bypass Panel, 2U, 230V 32A, BBM, C20 or Hardwire Input, (8) C13 & (2) C19 (SBP5000RMI2U) - 2 Years Local Warranty
32A of Maintenance Bypass for 5kVA-Class Rack UPS
The APC Service Bypass Panel (SBP5000RMI2U) lets a larger rack UPS be isolated, serviced or replaced while the load it feeds keeps running on utility power. Schneider's full product name states the configuration: 230 V, 32 A, Break Before Make switching, IEC 320 C20 or hardwire input, and IEC output of two C19 and eight C13 receptacles.
At 32 A and a maximum load of 7,680 VA it is the larger of the two bypass panels SourceIT stocks, suited to the 5 to 6 kVA class of 230 V rack UPS rather than the 1500 to 3000 VA band.
C20 Plug or Hardwire - Decide Before Installation
This panel accepts either an IEC 320 C20 plug input or a hardwired 3-wire (live, neutral, earth) connection. That flexibility matters at 32 A, where many Singapore installations are hardwired to a dedicated circuit rather than plugged in, and a hardwire panel is supplied in the box for exactly that case.
The choice affects your electrical contractor's scope, so settle it during design rather than on installation day. Ask us and we will walk through the implications for your site.
Break Before Make Switching, Ten Outlets, Rack or Wall Mount
The transfer switch is Break Before Make, stated in Schneider's own product name for the part - the most reliable place to read it, since several distributor listings describe this unit as Make Before Break. Plan the transfer as a brief interruption, not a seamless changeover.
Output is eight C13 and two C19 receptacles, circuit-breaker protected. The unit is rated at 99% efficiency across a power factor range of 0 to 1, and can be rack mounted in 2U or wall mounted - both bracket sets are supplied.
Built for the Environments a 5kVA Rack Actually Lives In
The panel operates from -20 to 50 °C at 0 to 95% humidity, and stores from -25 to 65 °C - a wider envelope than most rack electronics, which suits plant rooms and industrial cabinets as well as air-conditioned comms rooms.
It is a passive panel: metering, a display, network management and surge protection are not provided. All of those belong to the UPS and the rack PDU around it. Approvals include CSA, GOST, EN/IEC 62040-1 and UL 1778. Supplied and invoiced locally in Singapore with GST.
APC SBP5000RMI2U Datasheet — Technical Specifications
General
| Part Number (SKU) | SBP5000RMI2U |
| Schneider Electric Product Name | APC Service Bypass Panel - 230V, 32A, BBM, IEC320 C20/HW input, IEC-320 Output - (2) C19 (8) C13 |
| Function | Maintenance bypass - transfers the load to utility so the UPS can be serviced or removed |
| Form Factor | 2U rack-mount, or wall mounted |
| Switch Type | BBM - Break Before Make |
| EAN | 0731304212591 |
| Warranty | 2-Year Manufacturer Warranty (APC by Schneider Electric) - parts only, per the product data sheet |
| Local Warranty (Singapore) | Yes - supplied and supported locally by SourceIT |
Input
| Nominal Voltage | 230 V |
| Input Connection | IEC 60320 C20 plug or hardwire, 3-wire (live, neutral, earth) |
| Maximum Input Current | 32 A |
Output & Receptacles
| Maximum Output Current | 32 A |
| Maximum Load | 7,680 VA |
| C13 Outlets | 8 x IEC 60320 C13 |
| C19 Outlets | 2 x IEC 60320 C19 |
| Overcurrent Protection | Circuit-breaker protected outputs |
| Efficiency | 99% |
| Power Factor Range | 0 to 1 |
Bypass Operation & Management
| Switch Type | Break Before Make (BBM) - expect a brief interruption on transfer |
| Purpose | Isolates the UPS for service, battery replacement or replacement while the load runs on utility |
| Metering | Not provided |
| Display | Not provided |
| Network Management | Not provided |
| Surge Protection | Not provided - surge protection is the function of the UPS this panel serves |
Physical
| Dimensions (W x D x H) | 432 x 660 x 89 mm |
| Net Weight | 11.36 kg |
| Shipping Weight | 23.18 kg |
| Carton Dimensions | 991 x 610 x 203 mm |
| Mounting | Rack or wall mountable - both bracket sets supplied |
| Operating Temperature | -20 to 50 °C |
| Operating Humidity | 0 to 95% |
| Storage Temperature | -25 to 65 °C |
| Storage Humidity | 0 to 95% |
| Storage Altitude | 0 to 15,240 m |
| Approvals | CSA, GOST, EN/IEC 62040-1, UL 1778 |
| Package Contents | Service bypass panel, hardwire panel, installation guide, rack mounting brackets, wall mounting brackets, user manual |
Compatibility & Load Planning
Which UPS this panel is for. Schneider's user guide for the unit is the "Smart-UPS Service Bypass Panel" guide, whose stated scope is service bypass panels compatible with Smart-UPS and Symmetra UPS systems from 3 kVA to 16 kVA - a guide shared across the whole panel family. What pins this particular panel down is its own rating: 32 A and 7,680 VA maximum, with a C20 or hardwire input. In practice that places it with 5 to 6 kVA class 230 V rack UPS.
Confirm the pairing before you order. Schneider does not publish a per-model compatibility list for this panel that we can verify, and we will not reproduce the reseller cross-reference tables that circulate online - several of them list UPS units of 15 kVA and 20 kVA that a 32 A, 7,680 VA panel plainly cannot serve. Send us your UPS part number and the load schedule and we will confirm the pairing with the distributor in writing.
Input decision: plug or hardwire. The panel accepts an IEC 320 C20 plug input or a hardwired 3-wire connection, and a hardwire panel is supplied in the box. At 32 A many Singapore installations run to a dedicated hardwired circuit. Settle this with your electrical contractor at design stage, because it changes the socket and circuit work required at the rack position.
Outlets and load. Eight C13 and two C19 receptacles, circuit-breaker protected, with 32 A and 7,680 VA as the ceiling for the panel as a whole. Total your connected load before specifying, and remember that in bypass the same load runs on raw utility with no UPS protection.
Break Before Make - what that means operationally. Transfer is not seamless. Treat a bypass transfer as a brief interruption and schedule it accordingly, or stage the transfer while the load is quiesced. Several distributor listings describe this unit as Make Before Break; Schneider's own product name says BBM, and that is the figure to plan against.
Rack and wall mounting. 2U in a rack at 432 mm wide and 89 mm high - but note the depth: 660 mm, considerably deeper than most 2U accessories, so check your cabinet's internal depth and rear clearance before ordering. At 11.36 kg it also needs proper support. Wall mounting brackets are supplied as an alternative.
What it does not do. Metering, a display, network management and surge protection are not provided. For load visibility add a metered rack PDU downstream - it has to be one this panel's C13 and C19 outlets can feed, such as the 16 A, C20-inlet AP8858, rather than a 32 A unit that expects its own IEC 60309 supply. For automatic transfer between two independent supplies rather than manual maintenance bypass, that is a Rack ATS such as the AP4424 - a different product for a different requirement.
Smaller loads. For a 1500 to 3000 VA rack UPS at 16 A, see the SBP3000RMI.
Package Contents & APC Service Bypass Ordering Information
In the box: the service bypass panel, a hardwire panel, installation guide, rack mounting brackets, wall mounting brackets and user manual.
APC service bypass panels in the SourceIT catalogue
| Model | Rating and outlets |
| SBP3000RMI | 2U, 230 V, 16 A, 3,000 VA - 6 C13 + 1 C19, C20 inlet |
| SBP5000RMI2U (this listing) | 2U, 230 V, 32 A, 7,680 VA - 8 C13 + 2 C19, C20 or hardwire input, Break Before Make switch |
Rack-mount UPS in the 5 to 6 kVA class, for reference. These are not confirmed compatible pairings - Schneider publishes no per-model list for this panel, so ask SourceIT to confirm before you order.
| SRT5KRMXLI | Smart-UPS SRT 5000VA RM 230V |
| SRT6KRMXLI | Smart-UPS SRT 6000VA RM 230V |
Rack power and monitoring to go with it
| AP8858 | Rack PDU Metered, 0U, 16 A, 3.7 kW - 18 C13 + 2 C19, C20 inlet, so it can be fed from this panel's C19 outlet; adds the load visibility the panel does not provide |
| AP9559 | Rack PDU Basic, 1U, 16 A, 3.7 kW - 10 C13 + 2 C19, C20 inlet, for extra outlets downstream of the panel |
| AP4424 | Rack ATS, 2U, single phase, 32 A, IEC 309 input - automatic transfer between two supplies; it takes its own IEC 60309 feed rather than being fed from this panel |
Datasheet & Downloads
Official Schneider Electric documentation for the APC SBP5000RMI2U. Links open in a new tab.
- Schneider Electric product page (Singapore) - APC Service Bypass Panel SBP5000RMI2U
- Smart-UPS Service Bypass Panel user guide (SPD_SCON-7Q3JQ2_EN)
- Schneider Electric FAQ FA240007 - what a service bypass panel does
Need a specific document, a compliance declaration or a written quotation? Contact SourceIT and we will supply it.
Frequently Asked Questions — APC SBP5000RMI2U
What is the current rating of this panel - 32A or 50A?
32 A, with a maximum load of 7,680 VA. Schneider's own product name for the part reads "230V, 32A, BBM, IEC320 C20/HW input", and the product data sheet agrees. Several reseller listings quote 50 A for this SKU; that figure is not supported by any Schneider document and should not be used for circuit sizing.
Is the transfer switch Break Before Make or Make Before Break?
Break Before Make. Schneider states BBM in the official product name for the part. A number of distributor listings describe it as MBB, which is incorrect. The practical consequence is that a bypass transfer is a brief interruption rather than a seamless changeover - schedule it as such, or transfer while the load is quiesced.
Can I plug it in, or does it have to be hardwired?
Either. The panel accepts an IEC 320 C20 plug input or a hardwired 3-wire (live, neutral, earth) connection, and a hardwire panel is supplied in the box for the latter. At 32 A, many Singapore installations run to a dedicated hardwired circuit - decide with your electrical contractor at design stage, because it changes the work required at the rack position.
Which UPS models does it work with?
Schneider's user guide covers service bypass panels for Smart-UPS and Symmetra systems from 3 kVA to 16 kVA, but that guide is shared across the family. This panel's own 32 A / 7,680 VA rating places it with 5 to 6 kVA class 230 V rack UPS. Schneider does not publish a verifiable per-model list, and the reseller cross-reference tables in circulation include 15 kVA and 20 kVA units this panel cannot serve - so send us your UPS part number and we will confirm with the distributor in writing.
How much rack space does it need?
2U of height at 432 mm wide - but check the depth before ordering. At 660 mm it is far deeper than most 2U accessories, and it weighs 11.36 kg, so it needs a deep cabinet with proper support and rear clearance. Wall mounting brackets are supplied if a rack position will not work.
Does it offer metering, networking or surge protection?
None of the three are provided. It is a passive panel, and Schneider's product data sheet for it carries no metering, display, network or surge fields. Load visibility comes from a suitably rated metered rack PDU downstream; surge protection and ride-through come from the UPS - which is the very equipment this panel exists to let you maintain.
Does it come with a Singapore warranty?
Yes. Every APC SBP5000RMI2U sold by SourceIT comes with local Singapore warranty and a GST invoice; APC backs the SBP5000RMI2U with a 2-year manufacturer warranty, which Schneider's product data sheet records as parts only - worth noting when comparing against the repair-or-replace terms carried by APC UPS products.
