APC Smart-UPS SRT Lithium-Ion 3000VA Rackmount 4U 230V Long Runtime
PRODUCT DESCRIPTION
APC Smart-UPS SRT Lithium-Ion 3000VA/2700W Rackmount 4U 230V Long Runtime (SRTL3000RM4UXLI) - 5 Years Local Warranty
Smart-UPS On-Line Double Conversion with a 2.4 kWh Lithium-Ion Pack
The APC Smart-UPS SRT Lithium-Ion SRTL3000RM4UXLI is a double-conversion on-line Smart-UPS rated at 3000 VA / 2700 W, supplied as a long-runtime kit: the 2U SRT3000UXI-LI power module with its rail kit, plus one 2U XBP48RM2U-LI lithium-ion external battery pack (48 V, 50 Ah, 2.4 kWh), occupying 4U in total. The load is fed continuously from the inverter on a 230 V sine wave with less than 2% harmonic distortion, so the sags, brownouts and transients of a loaded Singapore riser are absorbed by the rectifier and never reach your servers, storage or network core.
The Smart-UPS On-Line SRT is Schneider's premium on-line platform: switched outlet groups, a SmartSlot for the full range of APC management cards, a 5 to 10 year lithium-ion battery life and a five-year warranty on both the UPS and the pack. It is the right choice for servers, storage, voice and data networks, medical laboratories and light industrial loads.
0.9 Power Factor and 2700 W of Real Power
The SRT is a 0.9 power factor build, delivering 2700 W from 3000 VA. Watts are what limit a UPS, so size on the total continuous watts of the connected load with headroom for start-up surge and growth. Output is provided on six IEC C13 and two IEC C19 outlets, arranged as switched outlet groups so that less critical loads can be shed or rebooted independently from the network card. The input is an IEC 60320 C20 inlet with an operating window of 160–275 V at 40–70 Hz.
Why Lithium-Ion in a Singapore Rack
A lead-acid Smart-UPS in a warm comms room typically needs its cartridges replaced every three to five years. Schneider Electric prints a 5 to 10 year battery life for the XBP48RM2U-LI pack, describes it as minimising the need to replace the battery during the lifetime of the UPS, and gives the pack the same five-year warranty as the UPS.
Runtime and Additional Packs
Schneider Electric does not print runtime minutes on the product page for this kit, so we do not print them. Runtime depends on your load, and the 2.4 kWh pack behind a 2700 W UPS is designed for long hold-up rather than a few minutes of ride-through. Schneider's datasheet lists further XBP48RM2U-LI packs as runtime options for this model; send us your load in watts and the hold-up time you need and we will size the pack count from the manufacturer's runtime data.

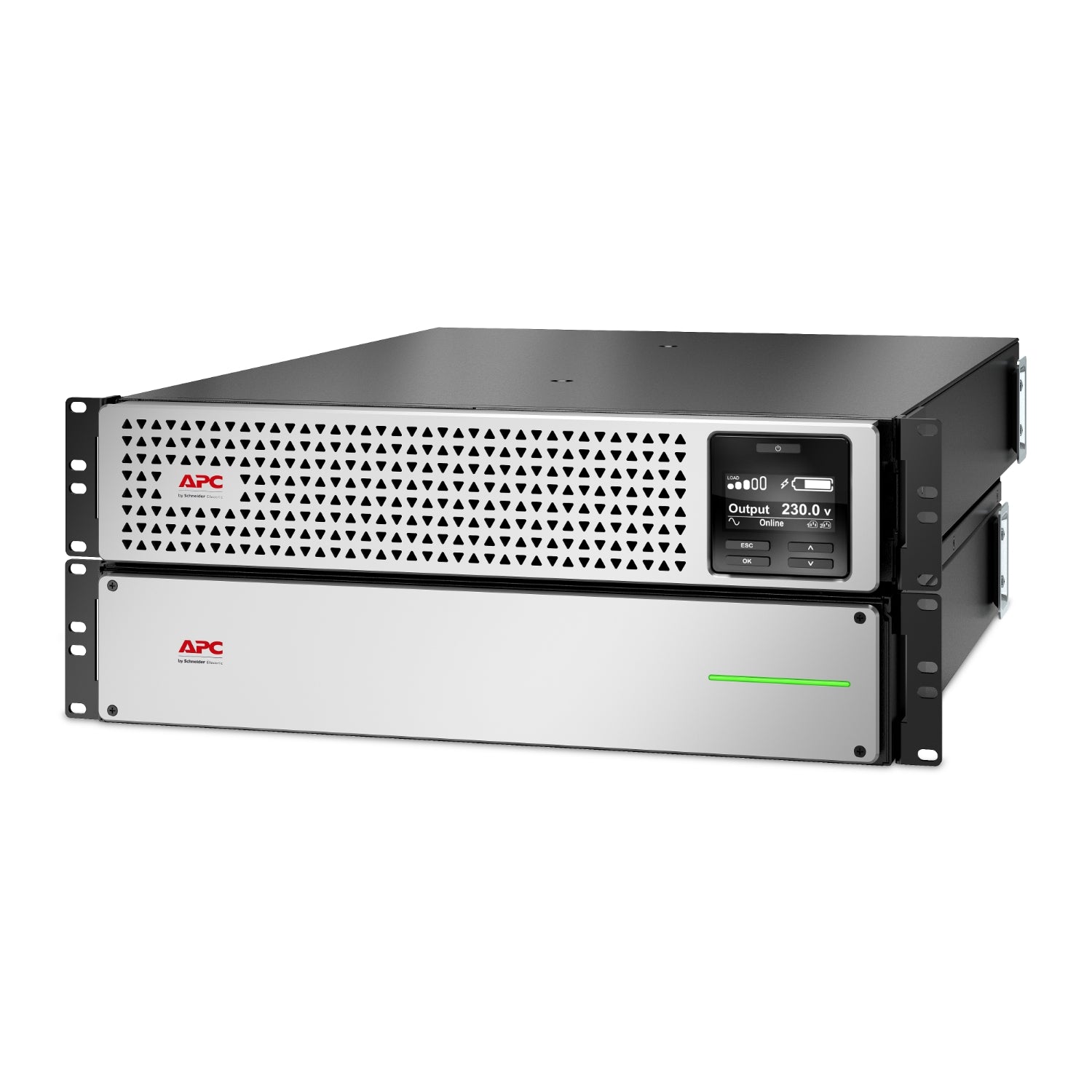

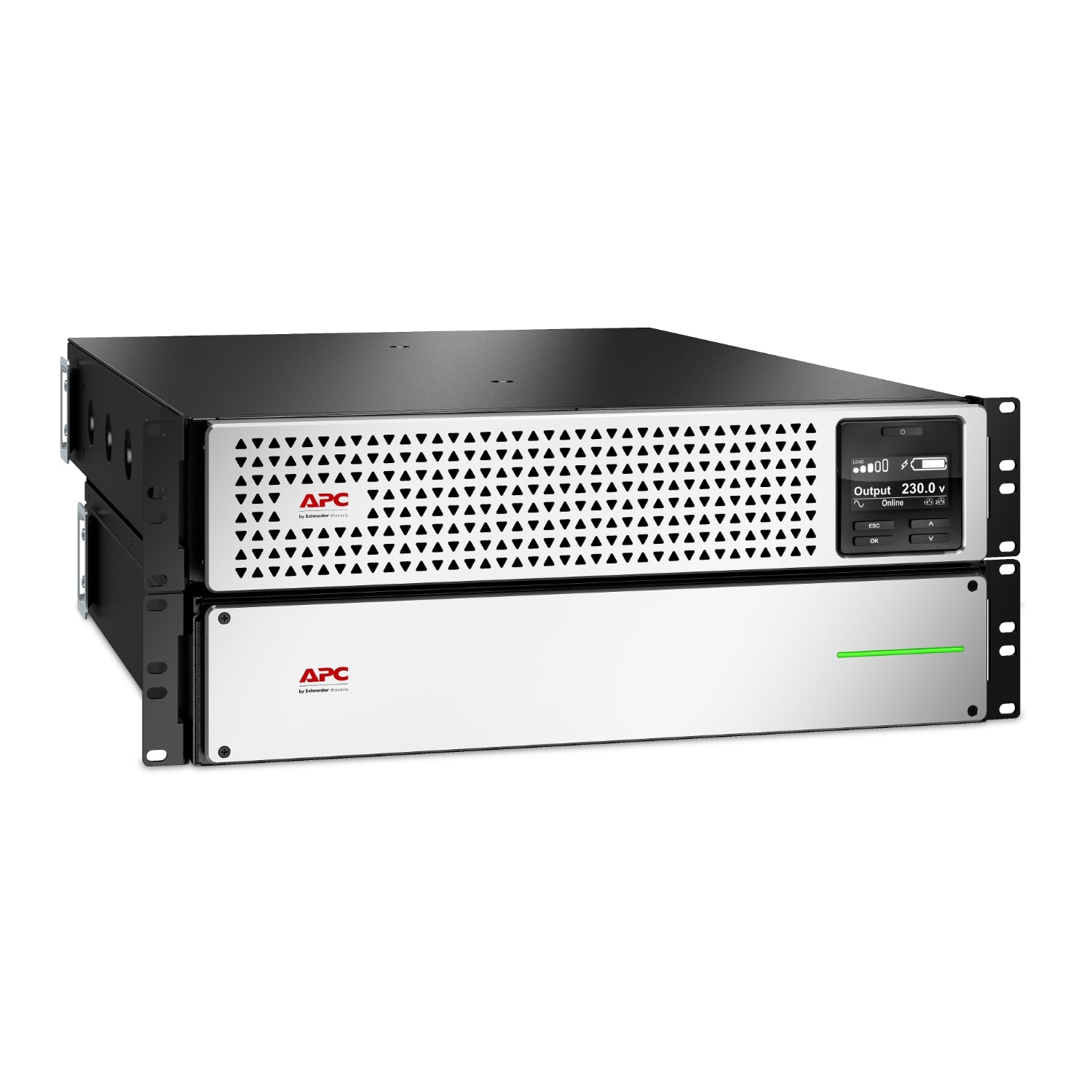

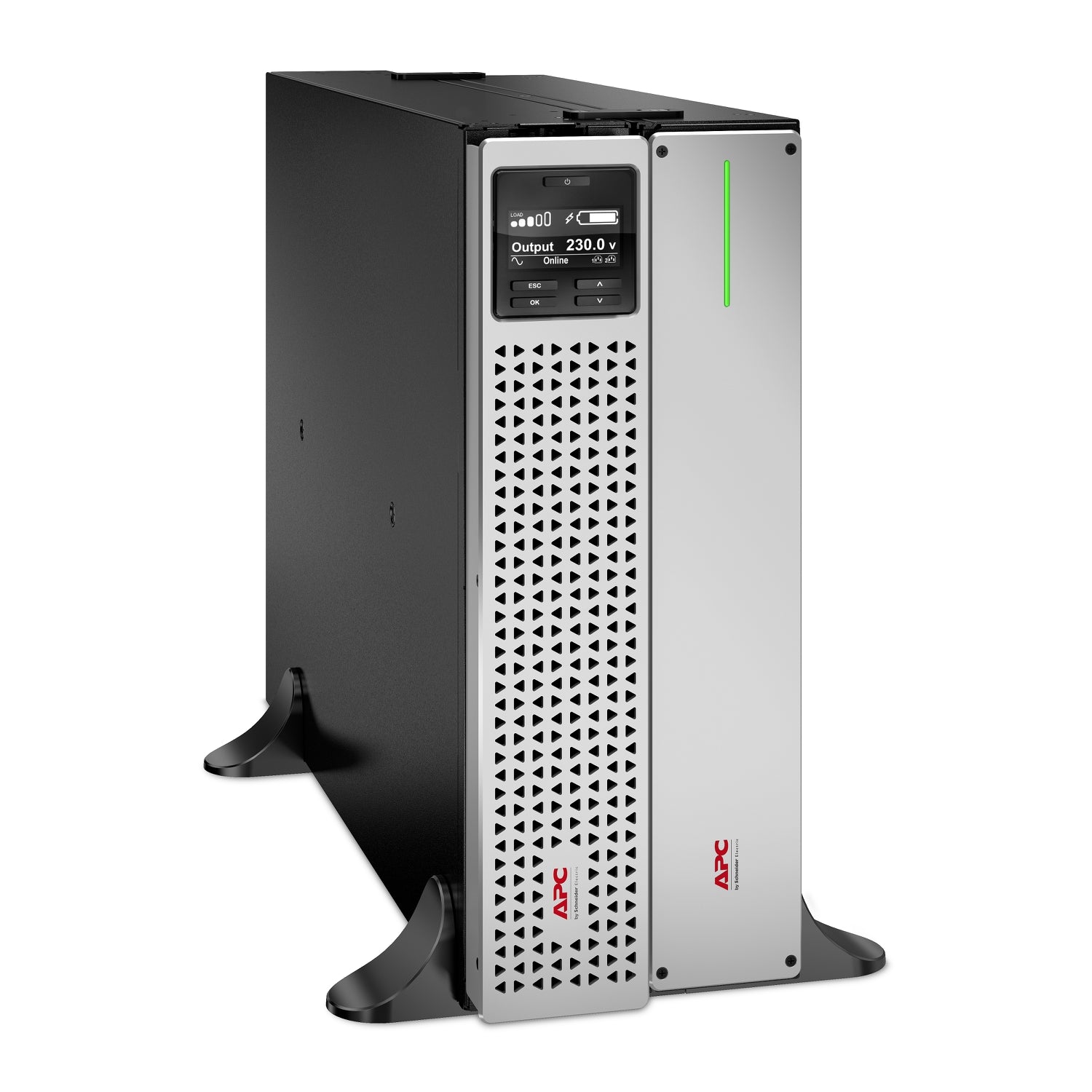

4U Rackmount, Rack/Tower Convertible, Rails Included
The kit occupies 4U: the 2U SRT3000UXI-LI power module and the 2U XBP48RM2U-LI pack (85.5 x 432 x 521 mm, 27 kg). The rail kit for the power module is included, and the pack has its own rack brackets; the SRT is rack/tower convertible, so it can also stand beside a desk-side server. Both units are under 640 mm deep, so a standard 800 mm or 1000 mm server cabinet takes them comfortably.
SmartSlot, Switched Outlet Groups, EPO and PowerChute

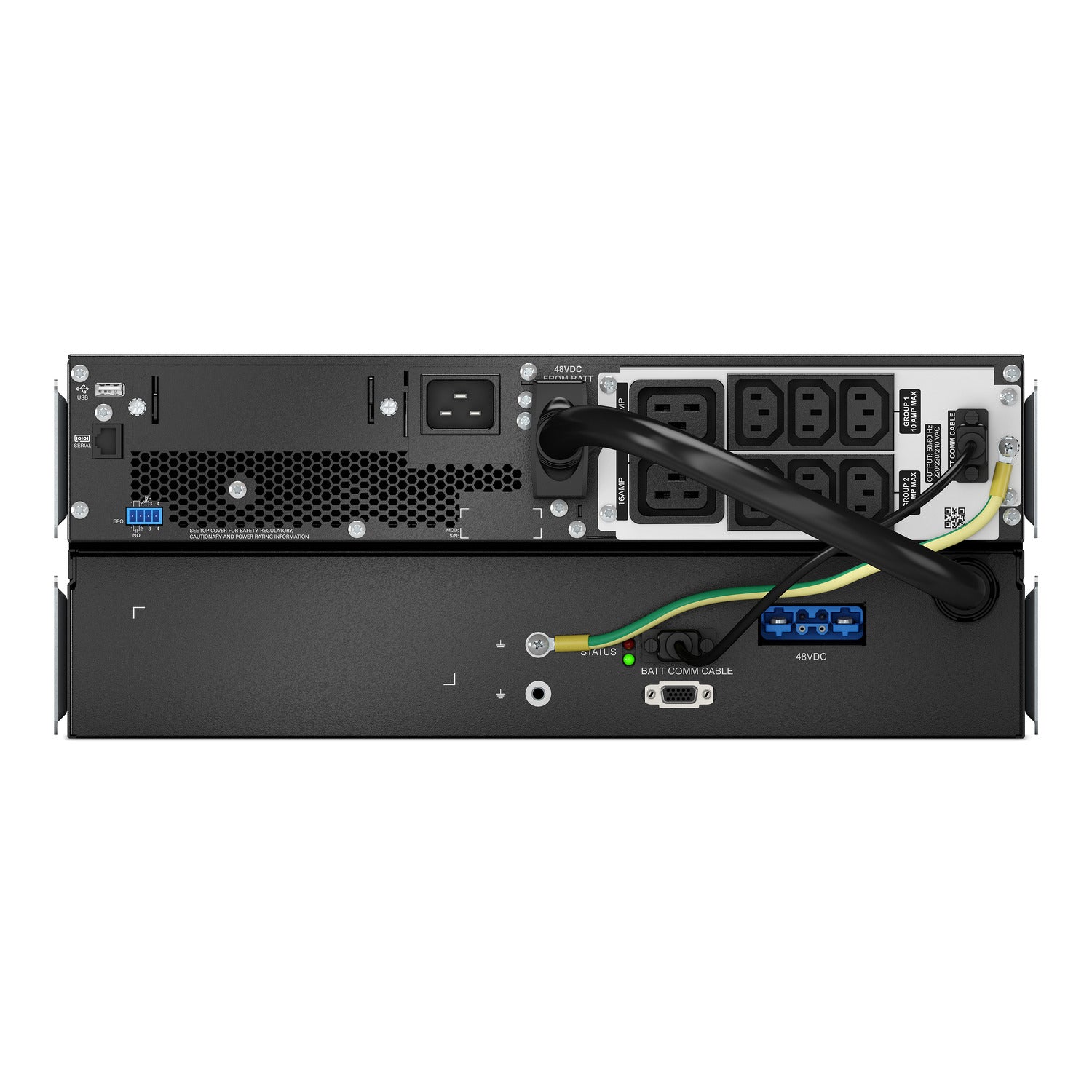

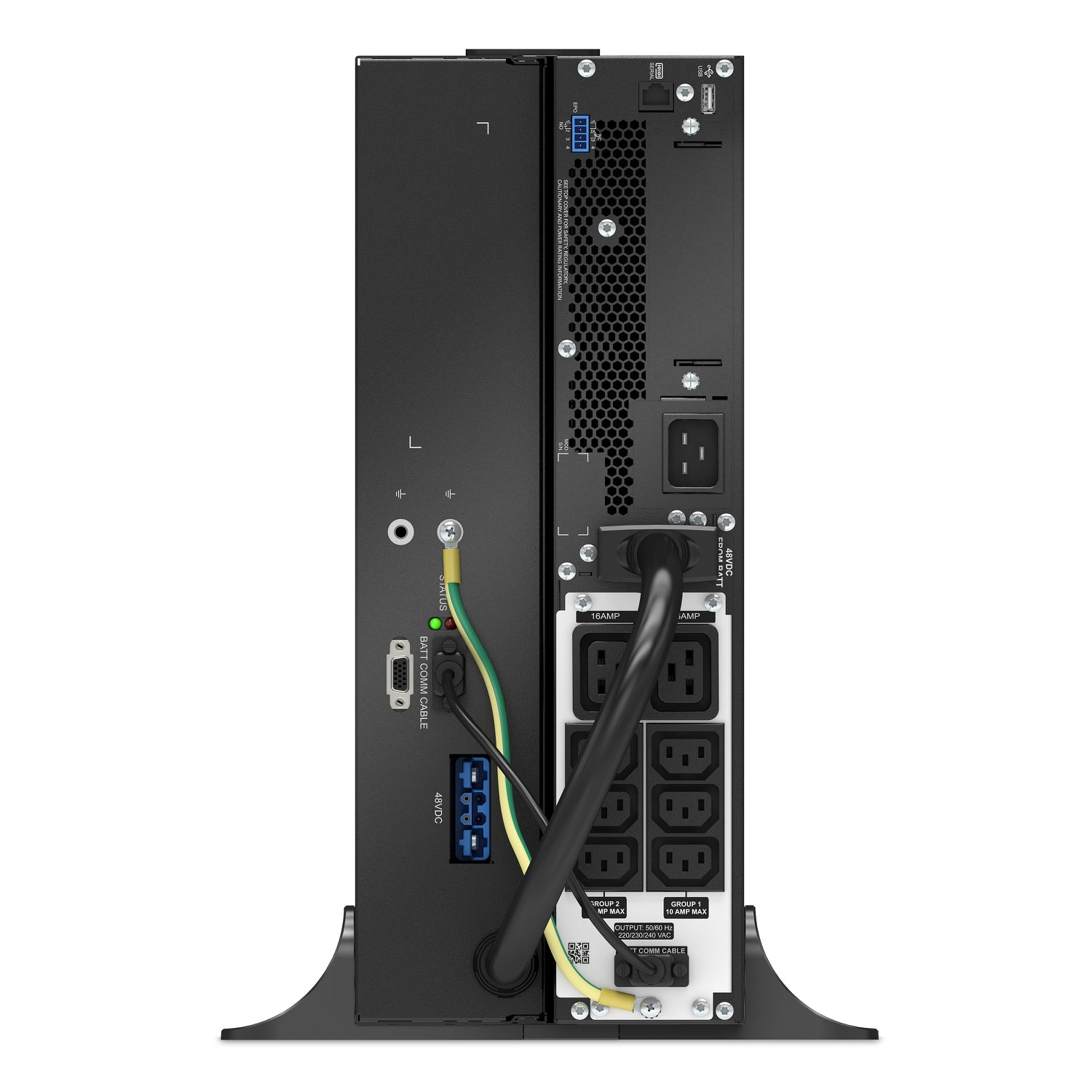

The power module carries a multifunction LCD, USB and serial ports, an Emergency Power Off connector and one free SmartSlot, which takes an APC Network Management Card 3 such as AP9640 or AP9641 for SNMP monitoring, alerting and remote outlet-group control over the network. PowerChute Serial Shutdown is Schneider's documented software for graceful unattended shutdown over the USB or serial cable. If you want the network card fitted from the factory, ask us about the -NC version of this kit, which ships with the Network Management Card 3 with environmental monitoring pre-installed.
Supplied Locally, with GST Invoice and Singapore Warranty
SourceIT supplies the SRTL3000RM4UXLI as an APC by Schneider Electric product with a full GST invoice and local Singapore warranty support. Schneider Electric's printed term for the Smart-UPS SRT Lithium-Ion is five years repair or replace on the UPS, and five years repair or replace on the XBP48RM2U-LI battery pack.
Not sure whether you need this kit or the 2U lead-acid SRT3000RMXLI? Email sales@sourceit.com.sg with your load and runtime and we will size it for you.
APC SRTL3000RM4UXLI Datasheet — Technical Specifications
General
| Schneider Electric Product Name | APC Smart-UPS On-Line, 3kVA, Lithium-ion, Rackmount 4U, 230V, 6x C13+2x C19 IEC outlets, SmartSlot, Extended long runtime, Rail kit included |
| Part Number (SKU) | SRTL3000RM4UXLI |
| Kit Composition | SRT3000UXI-LI 2U power module with rail kit x 1, XBP48RM2U-LI 2U lithium-ion external battery pack x 1 |
| Range | APC Smart-UPS On-Line SRT, Lithium-ion |
| Topology | Double conversion on-line |
| Form Factor | Rackmount 4U in total (2U module + 2U pack), rack/tower convertible |
| Manufacturer Warranty | 5 years UPS, 5 years lithium-ion battery pack — repair or replace (APC by Schneider Electric) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Output
| Output Power Capacity | 3000 VA / 2700 W |
| Output Power Factor | 0.9 |
| Nominal Output Voltage | 230 V (220 V selectable) |
| Output Frequency | 50/60 Hz ±3 Hz synchronised to mains |
| Output Voltage Distortion | Less than 2% |
| Output Waveform | Sine wave |
| Output Receptacles | 6 x IEC C13 + 2 x IEC C19, switched outlet groups |
| Crest Factor | 3:1 |
| Bypass | Built-in automatic and manual bypass |
| Efficiency | Not published by Schneider Electric on the datasheet for this kit — ask us |
| Surge Energy Rating | 432 joules |
| Transfer Time | Not published by Schneider Electric — the load is fed continuously from the inverter |
Input
| Nominal Input Voltage | 230 V (220 V other) |
| Input Voltage Range | 160–275 V AC |
| Input Frequency | 40–70 Hz auto-sensing |
| Input Connection | IEC 60320 C20 inlet |
| Input Lead Supplied | One 1.83 m input lead is listed on the datasheet; the plug type is not printed — confirm with us that a BS 1363 lead is supplied for Singapore before you plan the installation |
Batteries & Runtime
| Battery Type | Lithium-ion (Schneider's Smart-UPS On-Line Lithium-ion brochure lists lithium iron phosphate chemistry), 5 to 10 year battery life as printed |
| Battery Pack | XBP48RM2U-LI — 48 V, 50 Ah, 2.4 kWh, 2U, with intelligent battery management, overvoltage and overtemperature protection |
| Battery Bus Voltage | 48 V DC |
| Battery Charger Power | 158 W |
| Typical Recharge Time | Not published by Schneider Electric for this kit — ask us |
| Runtime at Load | Not published by Schneider Electric as a figure for this kit — ask us for a sizing calculation |
| Additional Battery Packs | Schneider's datasheet lists further XBP48RM2U-LI packs as runtime options; confirm the count with us for your runtime target |
| Battery Replacement | Schneider Electric lists the battery as user replaceable; the pack is an external 2U unit connected by cable |
Communications & Management
| Communication Ports | USB, RS-232 serial, EPO connector, SmartSlot (1 slot, free) |
| Emergency Power Off (EPO) | Yes |
| Control Panel | Multifunction LCD status and control console |
| Audible Alarm | Audible and visible alarms prioritised by severity |
| Network Management | SmartSlot takes an APC Network Management Card 3 such as AP9640 or AP9641 (optional) |
| Shutdown Software | PowerChute Serial Shutdown over USB or serial |
Physical & Environmental
| Rack Height | 4U (2U power module + 2U battery pack) |
| Dimensions, Kit (H x W x D) | 171 x 432 x 639 mm |
| Dimensions, Battery Pack | 85.5 x 432 x 521 mm, 27 kg net |
| Net Weight (kit) | 44.5 kg |
| Shipping Carton | 24.5 x 60 x 81 cm |
| Mounting | Rack-mounted with the included rail kit, or tower |
| Audible Noise | 50 dBA at 1 m |
| Heat Dissipation | 317 BTU/hour |
| Ingress Protection | IP20 |
| Finish | Black with silver front bezel |
| Operating Environment | 0–40 °C, 0–95% relative humidity non-condensing, 0–3000 m |
| Storage Environment | −20 to 50 °C, 0–95% relative humidity non-condensing |
| Certifications (as printed) | CE; battery pack UL 1973 |
| Package Contents | See the In the Box list in the Package Contents section below |
Compatibility & Runtime
Outlets and What Can Be Plugged In
The SRTL3000RM4UXLI provides 6 x IEC C13 + 2 x IEC C19 on the output, arranged as switched outlet groups that can be controlled independently from a network card — useful for rebooting a hung switch remotely or shedding non-critical load to extend runtime. Standard IEC leads plug straight in; locking C13 to C14 lead kits such as the AP8704S-WW keep a rack tidy. The input is an IEC 60320 C20 inlet. Size on watts: this is a 0.9 power factor build rated at 2700 W.
Rack Fit
The kit occupies 4U at 171 x 432 x 639 mm assembled, so it fits any standard 800 mm or 1000 mm server cabinet, and the SRT is rack/tower convertible.
Battery and Runtime
The XBP48RM2U-LI is a 48 V, 50 Ah, 2.4 kWh lithium-ion pack with its own battery management system and overvoltage and overtemperature protection, and a 5 to 10 year battery life as printed by Schneider Electric. Runtime minutes are not printed on the product page for this kit, so we do not print them; Schneider's datasheet lists further XBP48RM2U-LI packs as runtime options. Send us your load and hold-up time and we will size the pack count from the manufacturer's runtime data.
Input Lead
The datasheet lists one 1.83 m input lead without printing the plug type. A Schuko (CEE 7/7) plug does not fit a Singapore BS 1363 socket; a BS 1363 to IEC lead or an IEC-fed rack PDU is the normal solution. Confirm with us at order time.
Management and Software
The SmartSlot takes an APC Network Management Card 3 such as AP9640 or AP9641; the AP9613 dry-contact card is the option for a building management system. PowerChute Serial Shutdown handles graceful unattended shutdown over USB or serial, and an EPO connector is fitted.
Package Contents & Smart-UPS SRT Lithium-Ion Ordering Information
In the Box
SRT3000UXI-LI power module with rail kit, XBP48RM2U-LI lithium-ion battery pack with rack brackets, interconnect cable, USB cable and documentation. Ask us for the current Schneider datasheet for the itemised list.
Smart-UPS SRT Lithium-Ion Range Ordering Information
The lithium-ion SRT kits are new to our catalogue; sibling ratings are listed by part number. Email sales@sourceit.com.sg for any not yet on the site.
| SRTL1000RM4UXLI (ask us) | 1 kVA / 900 W | Rackmount 4U, XBP48RM2U-LI 2.4 kWh pack | 8 x IEC C13 |
| SRTL1500RM4UXLI (ask us) | 1.5 kVA / 1350 W | Rackmount 4U, XBP48RM2U-LI 2.4 kWh pack | 8 x IEC C13 |
| SRTL2200RM4UXLI (ask us) | 2.2 kVA / 1980 W | Rackmount 4U, XBP48RM2U-LI 2.4 kWh pack | 6 x IEC C13 + 2 x IEC C19 |
| SRTL3000RM4UXLI (this listing) | 3 kVA / 2700 W | Rackmount 4U, XBP48RM2U-LI 2.4 kWh pack | 6 x IEC C13 + 2 x IEC C19 |
| SRTL1500RMXLI (ask us) | 1.5 kVA / 1350 W | Rackmount 3U, XBP48RM1U-LI 585 Wh pack | 8 x IEC C13 |
Accessories
| AP9640 | Network Management Card 3 for the SmartSlot — SNMP monitoring and outlet-group control |
| AP9641 | Network Management Card 3 with environmental monitoring — adds sensor ports for a temperature and humidity probe |
| AP9335TH | Temperature and humidity sensor for the AP9641 |
| AP9613 | Dry-contact I/O SmartSlot card for building management systems |
| XBP48RM2U-LI | Additional 48 V, 2.4 kWh lithium-ion battery pack, 2U — ask us |
| AP8704S-WW | Locking IEC C13 to C14 power cord kit for the output outlets |
The Lead-Acid Smart-UPS SRT Models
The same ratings with internal VRLA batteries are the lower-cost choice where a three to five year battery cycle is acceptable and long runtime is not required: SRT1000RMXLI, SRT1500RMXLI, SRT2200RMXLI and SRT3000RMXLI.
Datasheet & Downloads
Schneider Electric hosts the official documentation for this product. The links below are the Schneider Electric pages for this part number; each one names the correct model.
| Schneider Electric product page | APC SRTL3000RM4UXLI on se.com — UK site |
| Operation manual, Smart-UPS On-Line SRT2200UXI-LI / SRT3000UXI-LI (and -NCLI) | Schneider document SPD_PGAY-B4C6HH_EN — document landing page, USA site |
Schneider's own datasheet and user manual download links redirect to a document host that has repeatedly served the wrong model's file, so we do not publish those links here rather than risk sending you the wrong specification. Email sales@sourceit.com.sg quoting SRTL3000RM4UXLI and we will send you the current PDF datasheet and user manual directly.
The XBP48RM2U-LI battery pack has its own installation guide (Schneider reference SUO_IM_990-91565B_EN), which we can send with the datasheet.
Frequently Asked Questions — APC SRTL3000RM4UXLI
What is in the kit, and how much rack space does it take?
The SRT3000UXI-LI 2U power module with its rail kit, and one XBP48RM2U-LI 2U lithium-ion battery pack (48 V, 2.4 kWh) — 4U in total, 171 x 432 x 639 mm assembled.
How do I size this UPS?
Size on watts. The SRT is a 0.9 power factor build, so this model gives 2700 W from 3000 VA. Total up the continuous watts of everything you want to protect, allow headroom for start-up surge and growth, and compare that to 2700 W.
What runtime will I get?
Schneider Electric does not print runtime minutes on the product page for this kit, so we do not print a figure. Email sales@sourceit.com.sg with your load in watts and the hold-up time you need and we will size it against the manufacturer's runtime data, including additional packs if required.
How long does the lithium-ion battery last, and is it user replaceable?
Schneider Electric prints a 5 to 10 year battery life for the XBP48RM2U-LI and lists the battery as user replaceable. The pack is an external 2U unit connected by cable, so a change is a rack job rather than a cartridge swap. Schneider Electric does not describe changing the pack with the load running, so plan a short maintenance window.
Which network card does it take, and is one included?
The SmartSlot is free on this kit and takes an APC Network Management Card 3 such as AP9640 or AP9641. If you want the card factory-fitted, ask us about the -NC version of this kit, which ships with the Network Management Card 3 with environmental monitoring pre-installed.
Which plug is on the power lead?
Schneider's datasheet lists one 1.83 m input lead without printing the plug type. If it is a Schuko (CEE 7/7) lead it will not fit a Singapore BS 1363 socket; a BS 1363 to IEC lead or an IEC-fed rack PDU is the usual answer. Confirm with us when you order.
What are switched outlet groups for?
With a network card fitted you can reboot a hung device remotely, sequence start-up, or shed non-critical load during an outage to give the critical group more runtime.
How does this compare with the lead-acid Smart-UPS SRT of the same rating?
The lead-acid SRT3000RMXLI is a 2U unit with internal VRLA batteries, cheaper to buy and adequate where a short runtime and a three to five year battery cycle are acceptable. This lithium-ion kit adds the 2.4 kWh external pack for long runtime, a 5 to 10 year battery life and a five-year warranty on the battery pack as well as the UPS.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every APC SRTL3000RM4UXLI sold by SourceIT comes with local Singapore warranty and a GST invoice; APC by Schneider Electric backs the SRTL3000RM4UXLI with a five-year manufacturer warranty on the UPS and five years on the lithium-ion battery pack.
