APC Smart-UPS SRT Lithium-Ion 1500VA Rackmount 3U 230V Extended Runtime
PRODUCT DESCRIPTION
APC Smart-UPS SRT Lithium-Ion 1500VA/1350W Rackmount 3U 230V (SRTL1500RMXLI) - 5 Years Local Warranty
Smart-UPS On-Line Double Conversion in 3U with a Lithium-Ion Pack
The APC Smart-UPS SRT Lithium-Ion SRTL1500RMXLI is a double-conversion on-line Smart-UPS rated at 1500 VA / 1350 W, supplied as a compact kit: the 2U SRT1500UXI-LI power module with its rail kit, plus one 1U XBP48RM1U-LI lithium-ion external battery pack (48 V, 585 Wh), occupying 3U in total. The load is fed continuously from the inverter on a 230 V sine wave with less than 2% harmonic distortion, so the sags, brownouts and transients of a loaded Singapore riser never reach your servers, storage or network core.
This is the space-saving member of the lithium-ion SRT family. Where the 4U SRTL1500RM4UXLI pairs the same power module with a 2.4 kWh pack for long runtime, the SRTL1500RMXLI uses the slim 1U, 585 Wh pack for a standard-runtime UPS that still gives you everything else the Smart-UPS SRT platform offers: switched outlet groups, a SmartSlot, a 5 to 10 year lithium-ion battery life and five years of warranty on both UPS and battery.
0.9 Power Factor and 1350 W of Real Power
The SRT is a 0.9 power factor build, delivering 1350 W from 1500 VA. Size on the total continuous watts of the connected load with headroom for start-up surge and growth. Output is provided on eight IEC C13 outlets arranged as switched outlet groups, and the input is an IEC 60320 C14 inlet at 40β70 Hz.
Why Lithium-Ion in a Singapore Rack
A lead-acid Smart-UPS in a warm comms room typically needs its battery cartridges replaced every three to five years. Schneider Electric describes the lithium-ion battery as minimising the need to replace the battery during the lifetime of the UPS, prints a 5 to 10 year battery life, and backs the XBP48RM1U-LI pack with the same five-year repair-or-replace warranty as the UPS. Recharge from flat is six hours as printed by Schneider Electric.

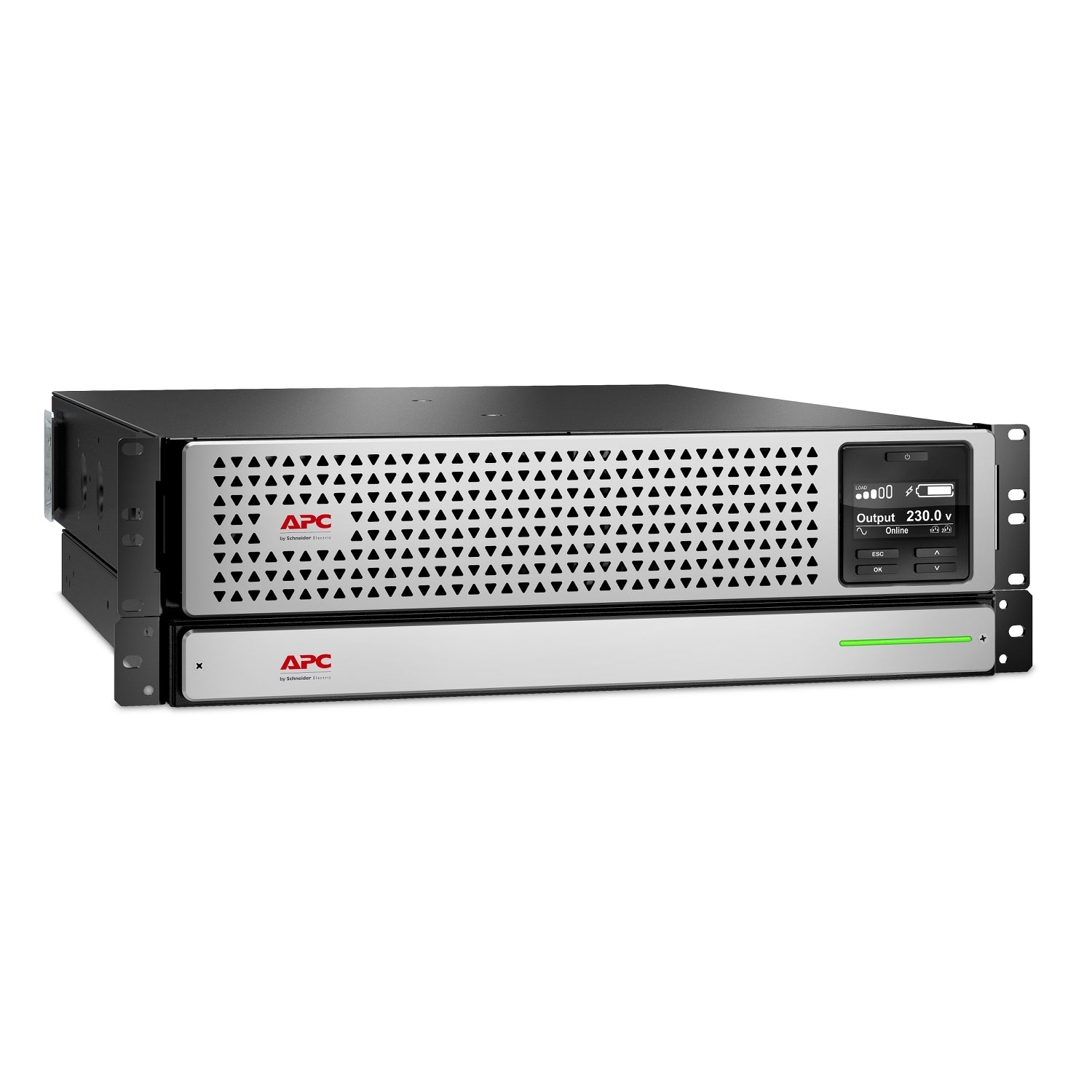

3U Rackmount, Rack/Tower Convertible, Rails Included
The kit occupies 3U and measures 128 x 432 x 590 mm assembled, with a net weight of 30.53 kg, so it fits any standard 800 mm or 1000 mm server cabinet and many deeper comms cabinets. The rail kit is included and removable support feet are supplied for tower use. The 1U pack alone is 43 x 432 x 521 mm and 13.02 kg.
SmartSlot, EPO and PowerChute
The power module carries a multifunction LCD, USB and serial ports, an Emergency Power Off connector and one free SmartSlot, which takes an APC Network Management Card 3 such as AP9640 or AP9641 for SNMP monitoring, alerting and remote outlet-group control. PowerChute Serial Shutdown is Schneider's documented software for graceful unattended shutdown over the USB or serial cable.
Supplied Locally, with GST Invoice and Singapore Warranty
SourceIT supplies the SRTL1500RMXLI as an APC by Schneider Electric product with a full GST invoice and local Singapore warranty support. Schneider Electric's printed term is five years repair or replace on the UPS and five years repair or replace on the lithium-ion battery pack. Schneider Electric lists this part number on its Singapore product page.
Not sure whether you need this 3U standard-runtime kit, the 4U long-runtime SRTL1500RM4UXLI, or the 2U lead-acid SRT1500RMXLI? Email sales@sourceit.com.sg with your load and the runtime you need and we will size it for you.
APC SRTL1500RMXLI Datasheet β Technical Specifications
General
| Schneider Electric Product Name | APC Smart-UPS On-Line, 1500VA, Rackmount 3U, 230V, 8x C13 IEC outlets, SmartSlot, Extended runtime, W/ rail kit, W/ Lithium-ion external battery |
| Part Number (SKU) | SRTL1500RMXLI |
| Kit Composition | SRT1500UXI-LI 2U power module with rail kit x 1, XBP48RM1U-LI 1U lithium-ion external battery pack x 1 |
| Range | APC Smart-UPS On-Line SRT, Lithium-ion |
| Topology | Double conversion on-line |
| Form Factor | Rackmount 3U in total (2U module + 1U pack), rack/tower convertible |
| Manufacturer Warranty | 5 years UPS, 5 years lithium-ion battery pack β repair or replace (APC by Schneider Electric) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Output
| Output Power Capacity | 1500 VA / 1350 W |
| Output Power Factor | 0.9 |
| Nominal Output Voltage | 230 V, configurable to 220 V / 230 V / 240 V |
| Output Frequency | 50/60 Hz Β±3 Hz synchronised to mains |
| Output Voltage Distortion | Less than 2% |
| Output Waveform | Sine wave |
| Output Receptacles | 8 x IEC C13, switched outlet groups |
| Crest Factor | 3:1 |
| Bypass | Built-in bypass |
| Surge Energy Rating | 340 joules |
| Efficiency | Not published by Schneider Electric on the datasheet for this kit β ask us |
| Transfer Time | Not published by Schneider Electric β the load is fed continuously from the inverter |
Input
| Nominal Input Voltage | 230 V, 220 V and 240 V alternatives |
| Input Voltage Range | 160β275 V AC (SRT1500UXI-LI power module) |
| Input Frequency | 40β70 Hz auto-sensing |
| Input Connection | IEC 60320 C14 inlet |
| Input Lead Supplied | The plug type is not printed on the datasheet β confirm with us that a BS 1363 lead is supplied for Singapore |
Batteries & Runtime
| Battery Type | Lithium-ion, 5 to 10 year battery life as printed by Schneider Electric |
| Battery Pack | XBP48RM1U-LI β 48 V, 585 Wh, 1U |
| Battery Bus Voltage | 48 V DC |
| Typical Recharge Time | 6 hours |
| Runtime at Load | Not published by Schneider Electric as a figure for this kit β ask us for a sizing calculation |
| Additional Battery Packs | Extended runtime model; ask us to confirm the pack options for your runtime target |

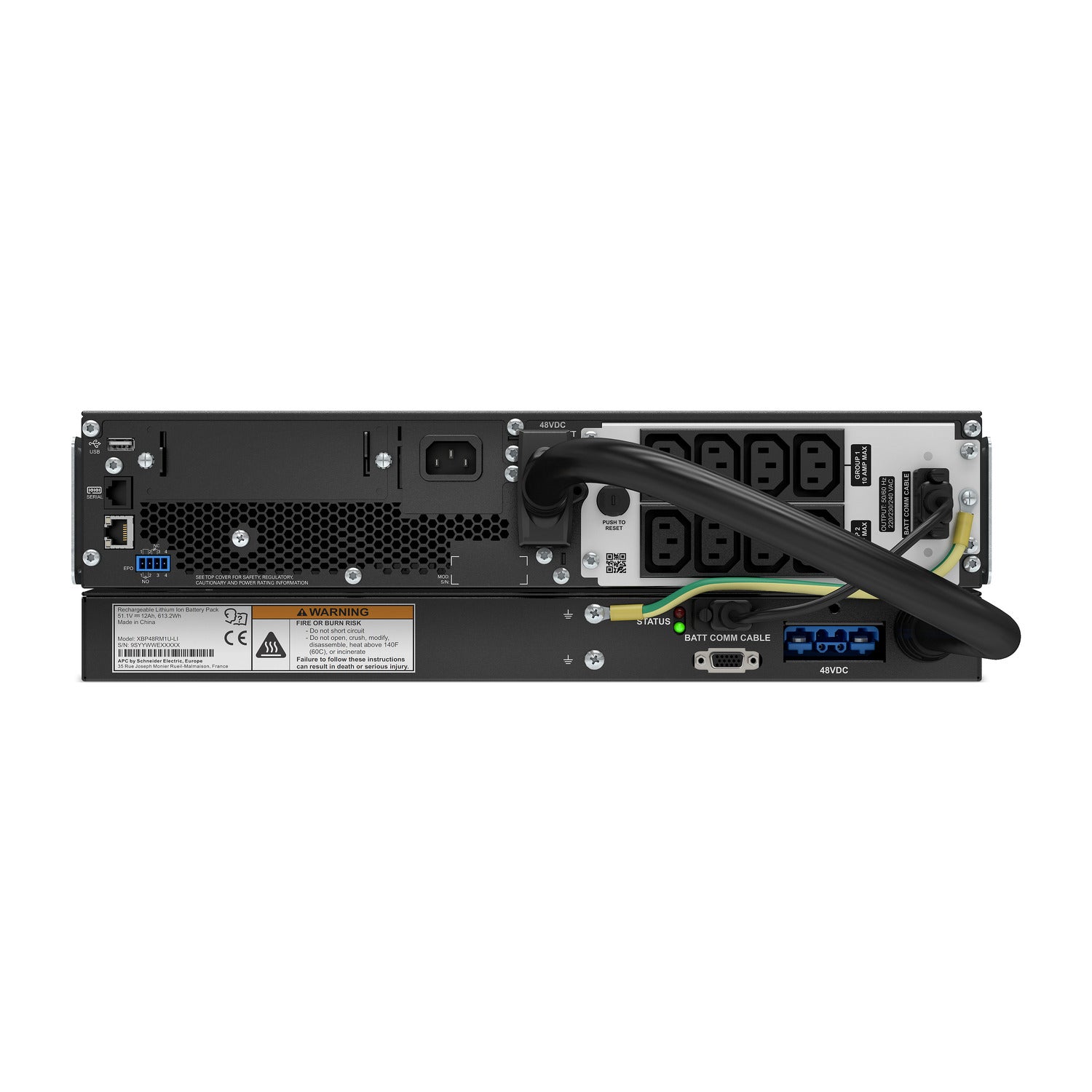

| Battery Replacement | The pack is an external 1U unit connected by cable |
Communications & Management
| Communication Ports | USB, RS-232 serial, EPO connector, SmartSlot (1 slot, free) |
| Emergency Power Off (EPO) | Yes |
| Control Panel | Multifunction LCD status and control console |
| Audible Alarm | Audible and visible alarms prioritised by severity |
| Network Management | SmartSlot takes an APC Network Management Card 3 such as AP9640 or AP9641 (optional) |
| Shutdown Software | PowerChute Serial Shutdown over USB or serial |
Physical & Environmental
| Rack Height | 3U (2U power module + 1U battery pack) |
| Dimensions, Kit (H x W x D) | 128 x 432 x 590 mm |
| Dimensions, Battery Pack | 43 x 432 x 521 mm, 13.02 kg net |
| Net Weight (kit) | 30.53 kg |
| Shipping Weight | 46.86 kg |
| Shipping Carton | 44.5 x 60 x 85 cm |

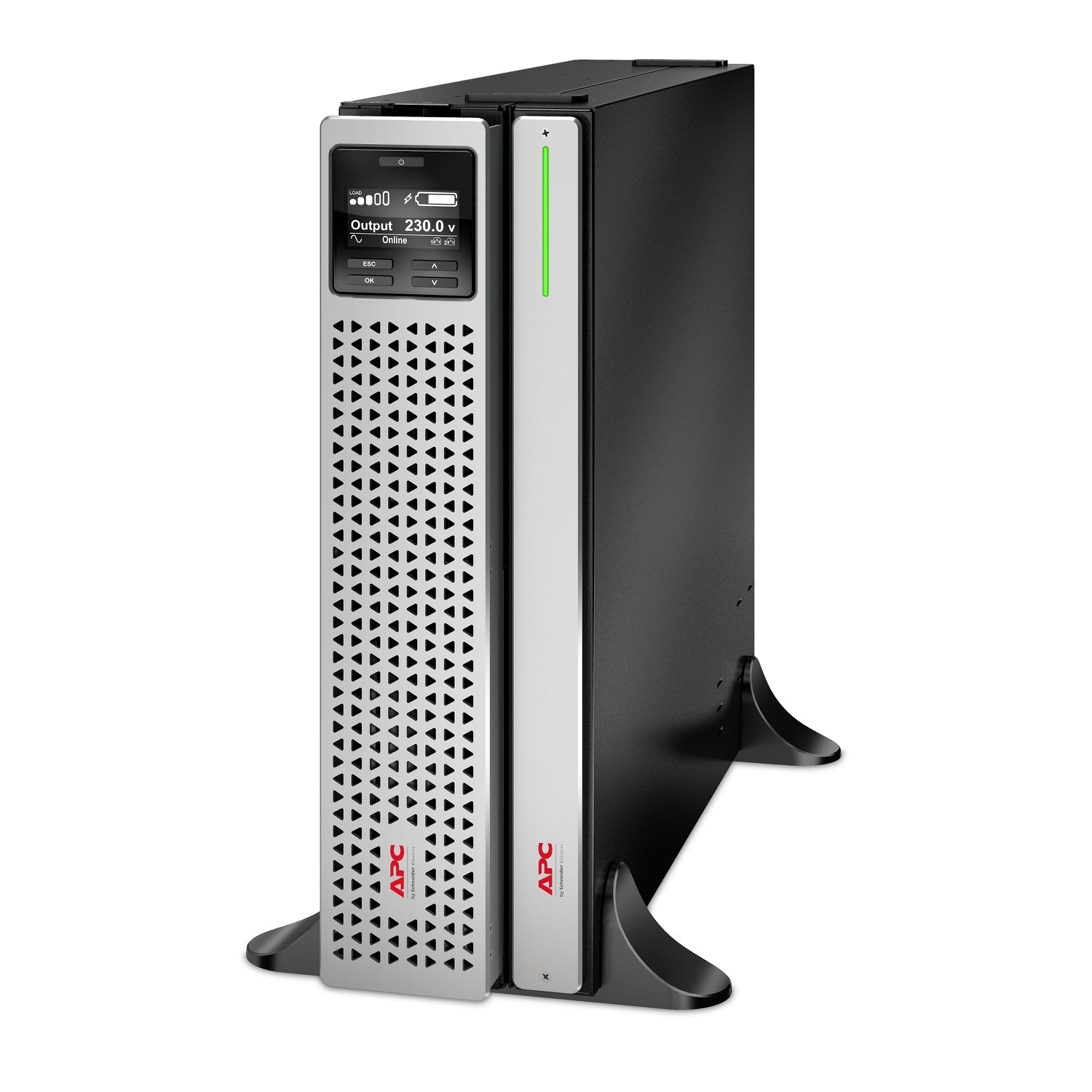

| Mounting | Rack-mounted with the included rail kit, or tower with the removable support feet |
| Audible Noise | 50 dBA at 1 m |
| Heat Dissipation | 450 BTU/hour |
| Ingress Protection | IP20 |
| Finish | Black |
| Operating Environment | 0β40 Β°C, 0β95% relative humidity non-condensing, 0β3000 m |
| Storage Environment | β15 to 45 Β°C, 0β95% relative humidity non-condensing |
| Certifications (as printed) | CE, EAC, RCM, VDE; battery pack UL 1973 |
| Package Contents | CD with software, communication cable, documentation CD, installation guide, removable support feet, USB cable, warranty card, plus the XBP48RM1U-LI battery pack and rail kit |
Compatibility & Runtime
Outlets and What Can Be Plugged In
The SRTL1500RMXLI provides 8 x IEC C13 on the output, arranged as switched outlet groups that a network card can control independently. Standard IEC leads plug straight in; locking C13 to C14 lead kits such as the AP8704S-WW keep a rack tidy. The input is an IEC 60320 C14 inlet. Size on watts: this is a 0.9 power factor build rated at 1350 W.
Rack Fit
The kit occupies 3U at 128 x 432 x 590 mm assembled and 30.53 kg net. The 2U power module ships with its rail kit and the 1U XBP48RM1U-LI pack with its brackets; removable support feet are supplied for tower use. At 590 mm deep it suits a standard 800 mm or 1000 mm server cabinet.
Battery and Runtime
The XBP48RM1U-LI is a 48 V, 585 Wh lithium-ion pack with a 5 to 10 year battery life as printed by Schneider Electric and a six-hour recharge. Runtime minutes are not printed on the product page for this kit, so we do not print them. If you need runtime measured in hours rather than tens of minutes, the 4U SRTL1500RM4UXLI pairs the same power module with the 2.4 kWh XBP48RM2U-LI pack. Send us your load and hold-up time and we will size the right kit from the manufacturer's runtime data.
Input Lead
The datasheet does not print the plug type of the supplied input lead. If it arrives with a Schuko (CEE 7/7) plug it will not fit a Singapore BS 1363 (Type G) socket; a BS 1363 to IEC lead of the right rating, or an IEC-fed rack PDU such as the AP9559, is the normal solution. Confirm with us at order time.
Management and Software
The SmartSlot takes an APC Network Management Card 3 such as AP9640 or AP9641 for SNMP monitoring, alerting and outlet-group control; the AP9613 dry-contact card is the option for a building management system. PowerChute Serial Shutdown handles graceful unattended shutdown over the supplied USB or serial cable, and an EPO connector is fitted for a room emergency-stop loop.
Package Contents & Smart-UPS SRT Lithium-Ion Ordering Information
In the Box
SRT1500UXI-LI power module with rail kit and removable support feet, XBP48RM1U-LI lithium-ion battery pack, communication cable, USB cable, CD with software, documentation CD, installation guide and warranty card.
Smart-UPS SRT Lithium-Ion Range Ordering Information
| SRTL1000RM4UXLI (ask us) | 1 kVA / 900 W | Rackmount 4U, XBP48RM2U-LI 2.4 kWh pack | 8 x IEC C13 |
| SRTL1500RM4UXLI (ask us) | 1.5 kVA / 1350 W | Rackmount 4U, XBP48RM2U-LI 2.4 kWh pack | 8 x IEC C13 |
| SRTL2200RM4UXLI (ask us) | 2.2 kVA / 1980 W | Rackmount 4U, XBP48RM2U-LI 2.4 kWh pack | 6 x C13, 2 x C19 |
| SRTL3000RM4UXLI (ask us) | 3 kVA / 2700 W | Rackmount 4U, XBP48RM2U-LI 2.4 kWh pack | 6 x C13, 2 x C19 |
| SRTL1500RMXLI (this listing) | 1.5 kVA / 1350 W | Rackmount 3U, XBP48RM1U-LI 585 Wh pack | 8 x IEC C13 |
Accessories
| AP9640 | Network Management Card 3 for the SmartSlot β SNMP monitoring and outlet-group control |
| AP9641 | Network Management Card 3 with environmental monitoring |
| AP9335TH | Temperature and humidity sensor for the AP9641 |
| AP9613 | Dry-contact I/O SmartSlot card for building management systems |
| AP8704S-WW | Locking IEC C13 to C14 power cord kit for the output outlets |
The Lead-Acid Smart-UPS SRT Models
| SRT1000RMXLI | 1 kVA / 1000 W | Rackmount 2U, internal VRLA |
| SRT1500RMXLI | 1.5 kVA / 1500 W | Rackmount 2U, internal VRLA |
| SRT2200RMXLI | 2.2 kVA | Rackmount, internal VRLA |
| SRT3000RMXLI | 3 kVA | Rackmount 2U, internal VRLA |
Datasheet & Downloads
Schneider Electric hosts the official documentation for this product. The links below are the Schneider Electric pages for this part number; each one names the correct model.
| Schneider Electric product page | APC SRTL1500RMXLI on se.com β Singapore site |
| Operation manual, Smart-UPS On-Line SRT1000UXI-LI / SRT1500UXI-LI (and -NCLI) | Schneider document SPD_JGNY-AS88UJ_EN β document landing page, Belgium (English) site |
Schneider's own datasheet and user manual download links redirect to a document host that has repeatedly served the wrong model's file, so we do not publish those links here rather than risk sending you the wrong specification. Email sales@sourceit.com.sg quoting SRTL1500RMXLI and we will send you the current PDF datasheet and user manual directly.
Frequently Asked Questions β APC SRTL1500RMXLI
What is in the kit, and how much rack space does it take?
The SRT1500UXI-LI 2U power module with rail kit and one XBP48RM1U-LI 1U lithium-ion pack (48 V, 585 Wh) β 3U in total, 128 x 432 x 590 mm and 30.53 kg assembled.
How is this different from the SRTL1500RM4UXLI?
Same power module, different pack. The SRTL1500RM4UXLI pairs it with the 2U, 2.4 kWh XBP48RM2U-LI for long runtime at 4U; this SRTL1500RMXLI uses the 1U, 585 Wh XBP48RM1U-LI for a standard-runtime UPS at 3U.
How do I size it?
Size on watts. The SRT is a 0.9 power factor build, so this model gives 1350 W from 1500 VA. Total up the continuous watts of your load, allow headroom for start-up surge and growth, and compare that to 1350 W.
What runtime will I get?
Schneider Electric does not print runtime minutes on the product page for this kit, so we do not print a figure. Email sales@sourceit.com.sg with your load in watts and the hold-up time you need and we will size it against the manufacturer's runtime data β and suggest the 4U kit if you need hours rather than minutes.
How long does the battery last, and how fast does it recharge?
Schneider Electric prints a 5 to 10 year battery life for the lithium-ion pack and a six-hour recharge. The pack is an external 1U unit connected by cable; Schneider Electric does not describe changing the pack with the load running, so plan a short maintenance window for a change.
Which network card does it take?
The SmartSlot is free and takes an APC Network Management Card 3 such as AP9640 or AP9641. Ask us if you want the card fitted and configured before delivery.
Which plug is on the power lead?
Schneider's datasheet does not print the plug type. If it is a Schuko (CEE 7/7) lead it will not fit a Singapore BS 1363 socket; a BS 1363 to IEC lead or an IEC-fed rack PDU is the usual answer. Confirm with us when you order.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every APC SRTL1500RMXLI sold by SourceIT comes with local Singapore warranty and a GST invoice; APC by Schneider Electric backs the SRTL1500RMXLI with a five-year manufacturer warranty on the UPS and five years on the lithium-ion battery pack.
