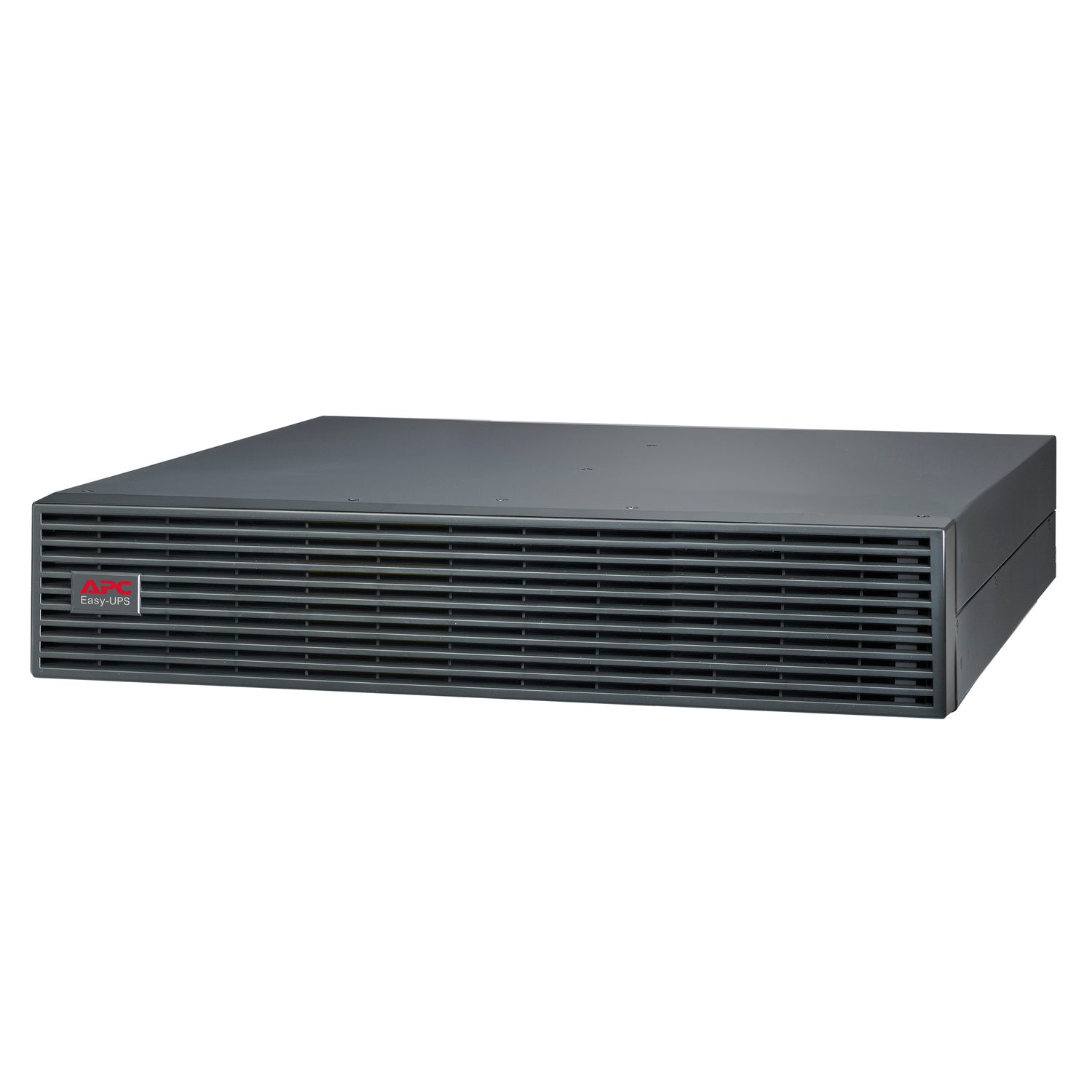

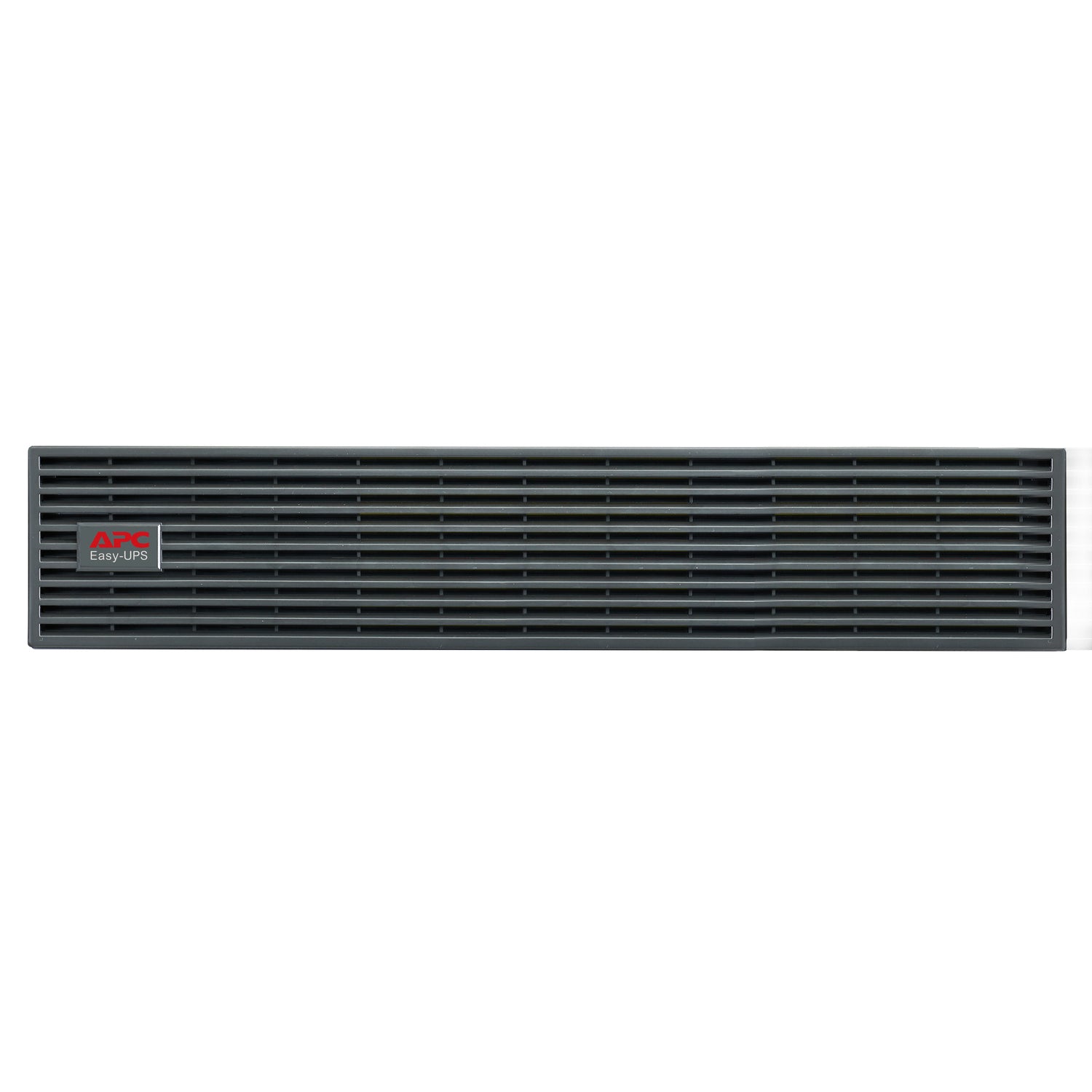

APC Easy UPS On-Line SRV 72V 2U Rackmount Battery Pack for 2/3kVA Models
PRODUCT DESCRIPTION
APC Easy UPS On-Line SRV 72V 2U Rackmount Extended-Runtime Battery Pack for 2/3kVA Rack Models (SRV72RLBP-9A) - 2 Years Local Warranty
Extra Runtime for the 2 and 3 kVA Easy UPS On-Line Rack Models
The APC Easy UPS On-Line SRV72RLBP-9A is the 72 V external battery pack for the 2 kVA and 3 kVA rackmount extended-runtime models in the Easy UPS On-Line SRV range. Schneider's own page for the current SRV2KRILRK-E kit reads “Add up to 4 external battery packs (SRV72RLBP-9A) for extended runtime”, and the same pack serves the SRV3KRILRK-E, the earlier SRV2KRILRK and SRV3KRILRK, and the SRVPM2KRIL-E / SRVPM3KRIL-E power modules they are built on.
Those extended-runtime kits ship with one pack. This listing is the pack on its own — for a second, third or fourth pack when the hold-up time has to grow, or as the documented replacement when an installed pack reaches the end of its service life.
Why a Separate Pack Rather Than a Bigger UPS
A 2–3 kVA rack UPS with internal batteries is sized for a few minutes of graceful shutdown. Where a Singapore site needs the network to stay up through a longer building-power interruption — a branch with a leased line and phones, a clinic, a small server room without a generator — the economical answer is to keep the same UPS and add stored energy. The SRV72RLBP-9A runs on the 72 V DC bus of the 2–3 kVA extended-runtime models, holds six sealed lead-acid blocks in a string, and up to four packs can be chained to one UPS.
2U, 632 mm Deep, 42.5 kg
The pack occupies 2U and measures 86 x 438 x 632 mm, so like the 4U extended-runtime kits it fits a server-depth cabinet rather than a shallow 600 mm comms cabinet. It weighs 42.5 kg — a two-person lift — and the carton includes the rack mounting brackets and the battery cable. For sliding support rails the matching kit is the SRVRK1, rated for 60 kg and up to 780 mm depth, which is the rail kit pictured on Schneider's page for this pack.
Supplied Locally, with GST Invoice and Singapore Warranty
SourceIT supplies the SRV72RLBP-9A as an APC by Schneider Electric product with a full GST invoice and local Singapore warranty support. Schneider's printed manufacturer term is two years, repair or replace. Battery service life is shortened by heat, so keep the cabinet close to 25 °C where you can. Email sales@sourceit.com.sg with your UPS part number and the hold-up time you need and we will confirm the fit and the number of packs.
APC SRV72RLBP-9A Datasheet — Technical Specifications
General
| Schneider Electric Product Name | APC Easy UPS On-Line SRV 72V RM Battery Pack for 2/3 kVA Extended Runtime Model |
| Part Number (SKU) | SRV72RLBP-9A |
| Range | APC Easy UPS On-Line SRV |
| Product Type | External battery pack, rackmount |
| Manufacturer Warranty | 2-Year Manufacturer Warranty, repair or replace (APC by Schneider Electric) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Battery
| Battery Type | Sealed lead-acid (VRLA), maintenance-free |
| Nominal Bus Voltage | 72 V DC |
| Battery Blocks per String | 6 |
| Capacity (Ah / VAh) | Not published by Schneider Electric on the product page — ask us for the runtime calculation instead |
| Maximum Packs per UPS | Up to 4 |
| Replacement Cartridge Part Number | Not published by Schneider Electric for this pack |
Compatibility
| Compatible UPS Models | Easy UPS On-Line SRV 2 kVA and 3 kVA rackmount extended-runtime models: SRV2KRILRK-E, SRV3KRILRK-E, SRV2KRILRK, SRV3KRILRK and the SRVPM2KRIL-E / SRVPM3KRIL-E power modules |
| Not Compatible With | The 1 kVA extended-runtime model (36 V SRV36RLBP-9A), the tower extended-runtime models (SRV72BP-9A tower pack), the 6–20 kVA models and the lithium-ion SRVL range |
| Rail Kit | SRVRK1 (up to 780 mm depth, 60 kg rating) — pictured by Schneider on this pack's page |
Physical & Environmental
| Rack Height | 2U |
| Dimensions (H x W x D) | 86 x 438 x 632 mm |
| Net Weight | 42.5 kg |
| Packaged Dimensions (H x W x L) | 240 x 800 x 600 mm |
| Shipping Weight | 53.1 kg |
| Mounting | Rack-mounted with kit; rack mounting brackets supplied |
| Operating Environment | 0–40 °C, 0–95% relative humidity non-condensing, 0–3000 m |
| Storage Environment | −15 to 40 °C, 0–15000 m |
| Certifications | CE, UKCA, EAC; EN/IEC 62040-1 |
| Package Contents | Battery pack, user manual, battery cable, rack mounting brackets |
Compatibility & Rack Fit
Which UPS Takes This Pack
Schneider names this pack for the 2 kVA and 3 kVA rack extended-runtime models. The current kits are the SRV2KRILRK-E and SRV3KRILRK-E, which ship with one pack each and accept up to four; the earlier SRV2KRILRK and SRV3KRILRK and the bare SRVPM2KRIL-E / SRVPM3KRIL-E power modules use the same pack. The tower extended-runtime models (SRVPM2KIL + SRV72BP-9A, SRVPM3KIL + SRV72BP-9A) use the tower-format SRV72BP-9A instead, and the 1 kVA rack model uses the 36 V SRV36RLBP-9A.
It does not fit the standard-runtime rack models. The SRV1KRIRK-E, SRV2KRIRK-E and SRV3KRIRK-E (and the earlier SRV1KRI, SRV2KRI and SRV3KRI) have internal batteries and no external battery connector; Schneider's product names for them do not list battery pack support. Nor does it fit the lithium-ion SRVL range, which uses the SRVL48RMBP2U.
How Many Packs, and What Runtime

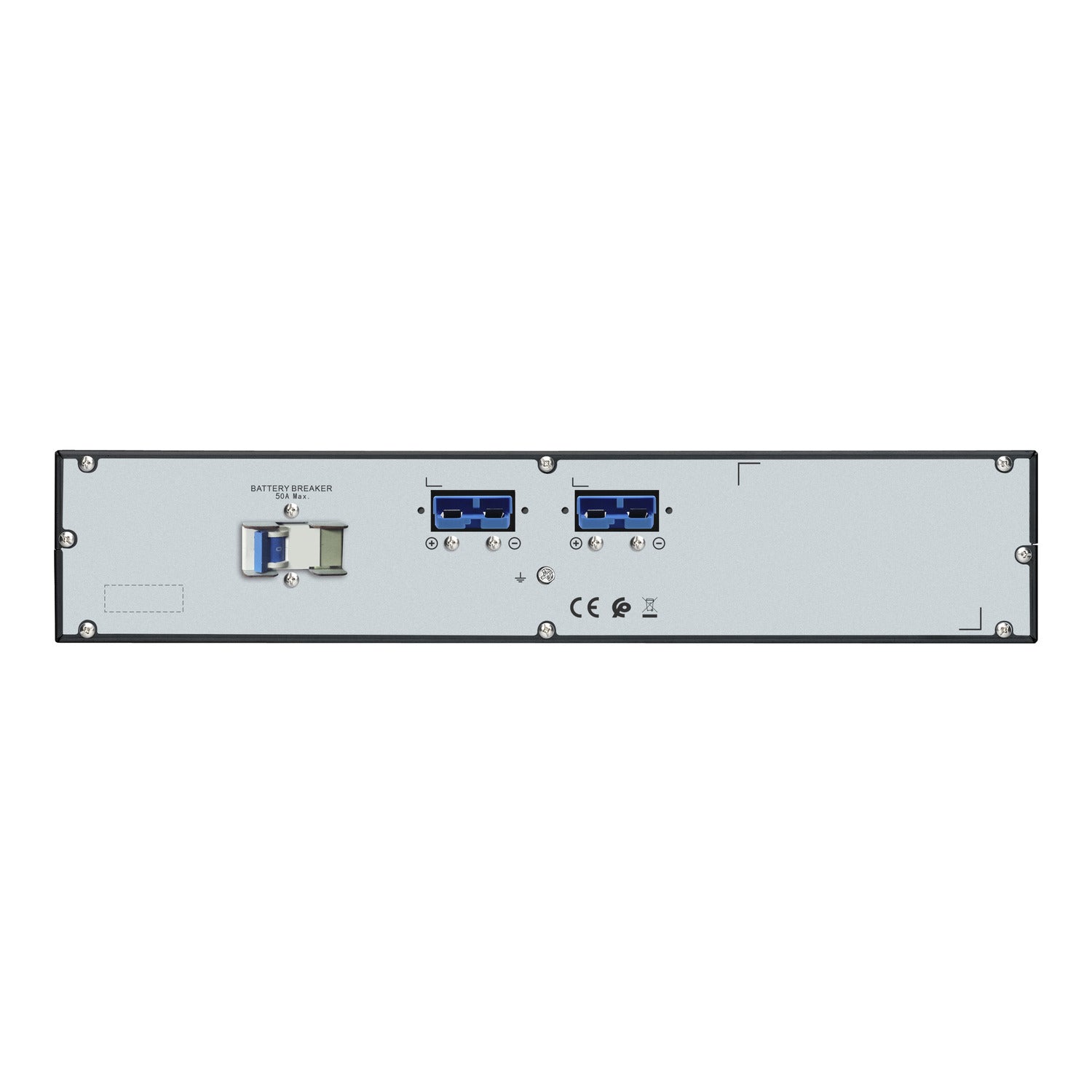

Up to four packs connect to one UPS, chained through the supplied battery cables. Schneider does not print a per-pack runtime on the product page, so we do not publish a table; send us the load in watts and the hold-up time you need and we will size it against Schneider's runtime data. Recharge takes longer as packs are added, so plan recovery time between outages as well as hold-up time.
Rack Fit
Each pack adds 2U, 632 mm of depth and 42.5 kg. A 700 mm or deeper cabinet is the realistic minimum. The SRVRK1 rail kit (60 kg rating, up to 780 mm) is the matching sliding-rail option; the rack mounting brackets are already in the carton.
Package Contents & Easy UPS On-Line SRV Ordering Information
In the Box
Battery pack, user manual, battery cable, rack mounting brackets.
Easy UPS On-Line SRV 2–3 kVA Extended-Runtime Ordering Information
| SRV2KRILRK-E | 2 kVA / 1800 W | Rackmount 4U, rail kit | Ships with 1 x SRV72RLBP-9A, up to 4 |
| SRV3KRILRK-E | 3 kVA / 2700 W | Rackmount 4U, rail kit | Ships with 1 x SRV72RLBP-9A, up to 4 |
| SRV1KRILRK-E | 1 kVA / 900 W | Rackmount 4U, rail kit | Uses the 36 V SRV36RLBP-9A |
| SRVPM2KIL + SRV72BP-9A | 2 kVA | Tower | Uses the tower SRV72BP-9A |
| SRVPM3KIL + SRV72BP-9A | 3 kVA | Tower | Uses the tower SRV72BP-9A |
| SRV72RLBP-9A (this listing) | 72 V, 2U, 42.5 kg | Rackmount pack | For the 2 / 3 kVA rack models above |
Accessories
| SRVRK1 | 19-inch rail kit, up to 780 mm depth, 60 kg rating — the rail kit for this pack. Being added to our catalogue |
| AP9544 | Network Management Card 3 for the host UPS. Not currently stocked — email sales@sourceit.com.sg |
Datasheet & Downloads
Schneider Electric hosts the official documentation for this product. The links below are the product and document landing pages that show the correct part number.
| Schneider Electric product page | APC SRV72RLBP-9A on se.com — Singapore site |
| Technical drawing landing page | SRV72RLBP-9A — APC Easy UPS On-Line SRV 72V Battery Pack (dimensional drawing) |
| Rail kit installation guide landing page | Installation Guide — Rail Kit for Easy UPS On-Line Rack-Mount Series (SRVRK1/SRVRK2) |
Schneider's own datasheet and user manual download links redirect to a document host that has repeatedly served the wrong model's file, so we do not publish those links here rather than risk sending you the wrong specification. Email sales@sourceit.com.sg quoting SRV72RLBP-9A and we will send you the current PDF datasheet and user manual directly.
Frequently Asked Questions — APC SRV72RLBP-9A
Which UPS models does this pack fit?
The Easy UPS On-Line SRV 2 kVA and 3 kVA rackmount extended-runtime models: SRV2KRILRK-E, SRV3KRILRK-E, the earlier SRV2KRILRK and SRV3KRILRK, and the SRVPM2KRIL-E / SRVPM3KRIL-E power modules. It runs on a 72 V bus and does not fit the 1 kVA model (36 V), the tower models (which use the SRV72BP-9A) or anything from 6 kVA up.
Does it fit the SRV2KRIRK-E or SRV3KRIRK-E?
No. Those are the standard-runtime 2U rack models with internal batteries, and Schneider's product names for them do not list external battery pack support. Extended runtime in this range means the 4U “RILRK” kits, which ship with one pack and accept up to four.
How many can I connect?
Up to four per UPS, as Schneider states on the SRV2KRILRK-E and SRV3KRILRK-E pages and on this pack's own page.
What runtime does one pack add?
Schneider does not print a runtime figure on the product page, so we do not publish one. Runtime depends on the load and the number of packs. Send sales@sourceit.com.sg the load in watts and the hold-up time you need and we will size it.
What is the Ah or VAh rating?
Schneider does not publish an Ah or VAh figure for this pack on the product page; it lists the bus voltage (72 V), the battery type (sealed lead-acid) and six blocks per string. We size runtime from Schneider's data rather than quoting a capacity figure we cannot verify.
Do I need a rail kit?
The carton includes rack mounting brackets and the battery cable. For sliding support rails the matching kit is the SRVRK1 (60 kg rating, up to 780 mm), which is the rail kit Schneider pictures on this pack's page.
Will it fit a 600 mm deep cabinet?
No. At 632 mm deep before the battery cable it needs a 700 mm or deeper cabinet. It weighs 42.5 kg, so mount it low.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every APC SRV72RLBP-9A sold by SourceIT comes with local Singapore warranty and a GST invoice; APC backs the SRV72RLBP-9A with a 2-year manufacturer warranty, repair or replace.
