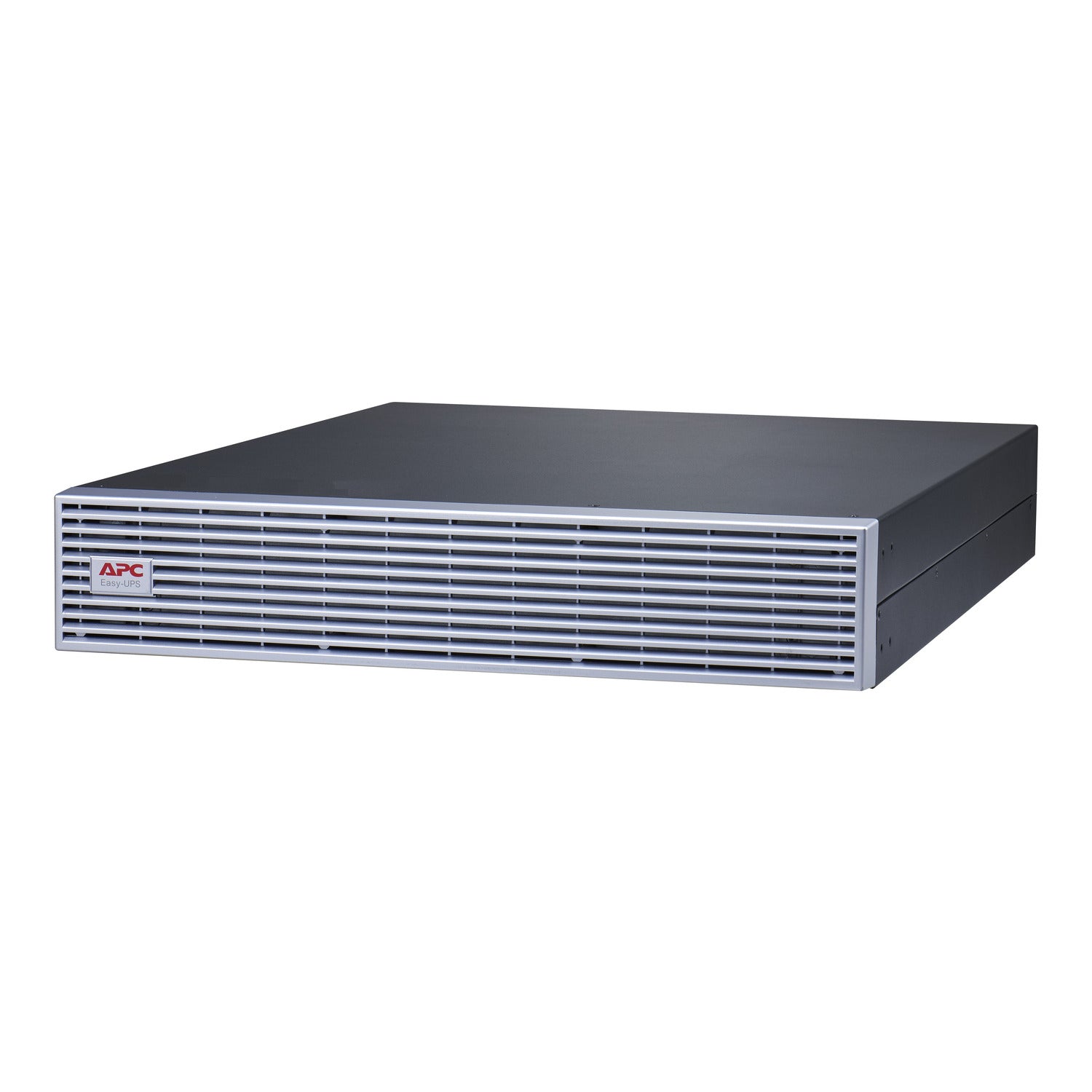

APC Easy UPS SRVL 48V 2400Wh Lithium-Ion External Battery Pack 2U
PRODUCT DESCRIPTION
APC Easy UPS SRVL 48V 2400Wh Lithium-Ion External Battery Pack 2U (SRVL48RMBP2U) - 5 Years Local Warranty
The Battery Pack Behind the SRVL 1 to 3 kVA Kits
The APC SRVL48RMBP2U is the 48 V, 2400 Wh lithium-ion external battery pack used by the Easy UPS On-Line Li-Ion SRVL extended-runtime models at 1, 2 and 3 kVA — SRVL1KRILRK, SRVL2KRILRK and SRVL3KRILRK. One pack ships inside each of those kits; this listing is the same pack sold on its own, either to add runtime to an existing SRVL installation or as a replacement when the original pack reaches the end of its service life. It is a 2U rackmount unit, 86 x 438 x 616 mm and 28.3 kg.
Why Lithium-Ion
Schneider Electric prints an 8 to 10 year battery life for the SRVL lithium-ion pack and describes it as minimising the need to replace the battery during the UPS lifetime. Compared with the VRLA packs of the lead-acid Easy UPS On-Line SRV range, that is two to three times the service life from a lighter, shallower unit that recharges in hours rather than most of a day — the 2 and 3 kVA SRVL modules recharge the pack in 4.8 hours and the 1 kVA module in 8.5 hours. In a Singapore comms room that sits above 30 °C, the longer life is the practical saving.
Adding Runtime
Schneider Electric's product page for the SRVL kits states that up to two additional SRVL48RMBP2U packs can be added to a 1, 2 or 3 kVA SRVL UPS. The pack communicates with the power module over an RJ45 battery-management link, so the UPS knows how much energy is behind it and reports runtime accordingly. Tell us your load and hold-up time and we will confirm how many packs you need.
2U Rackmount — Rail Kit Sold Separately
The pack occupies 2U. Unlike the SRVL kits, which include two SRVRK1 rail kits, a pack bought on its own does not include rails: Schneider Electric lists the SRVRK1 rail kit as a separate item, so add one per pack for a standard 19-inch rack. At 616 mm deep the pack needs a server-depth cabinet rather than a shallow comms cabinet.
Supplied Locally, with GST Invoice and Singapore Warranty
SourceIT supplies the SRVL48RMBP2U as an APC by Schneider Electric product with a full GST invoice and local Singapore warranty support. Schneider Electric's printed term for the pack is five years repair or replace — the same five-year battery term that applies to the pack inside the SRVL kits.
Email sales@sourceit.com.sg with the part number of your UPS and the runtime you need, and we will confirm the pack count and quote the rail kits with it.
APC SRVL48RMBP2U Datasheet — Technical Specifications
General
| Schneider Electric Product Name | APC Easy UPS Lithium-ion External Battery Pack for 1/2/3kVA SRVL Extended runtime model, 48V 2400Wh, 2U Rackmount |
| Part Number (SKU) | SRVL48RMBP2U |
| Product Type | External lithium-ion battery pack |
| Range | APC Easy UPS On-Line Lithium-ion SRVL |
| Form Factor | Rackmount, 2U |
| Compatible UPS Models | Easy UPS On-Line Li-Ion SRVL extended-runtime models, 1 / 2 / 3 kVA (SRVL1KRILRK, SRVL2KRILRK, SRVL3KRILRK and their SRVLPM1KRIL / SRVLPM2KRIL / SRVLPM3KRIL power modules) |
| Manufacturer Warranty | 5 years repair or replace (APC by Schneider Electric) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Battery
| Battery Type | Lithium-ion |
| Nominal Voltage | 48 V DC |
| Typical Capacity | 2400 Wh |
| Recommended Charge Voltage | 52.5 V |
| Battery Life | 8 to 10 years as printed by Schneider Electric |
| Recharge Time | 8.5 hours on the 1 kVA SRVL module; 4.8 hours on the 2 and 3 kVA modules |
| Packs per UPS | Additional SRVL48RMBP2U packs can be added — Schneider's product page states up to two; confirm with us for your runtime target |
| Runtime Contribution | Depends on the UPS rating and load — ask us for a sizing calculation |
Communications & Management

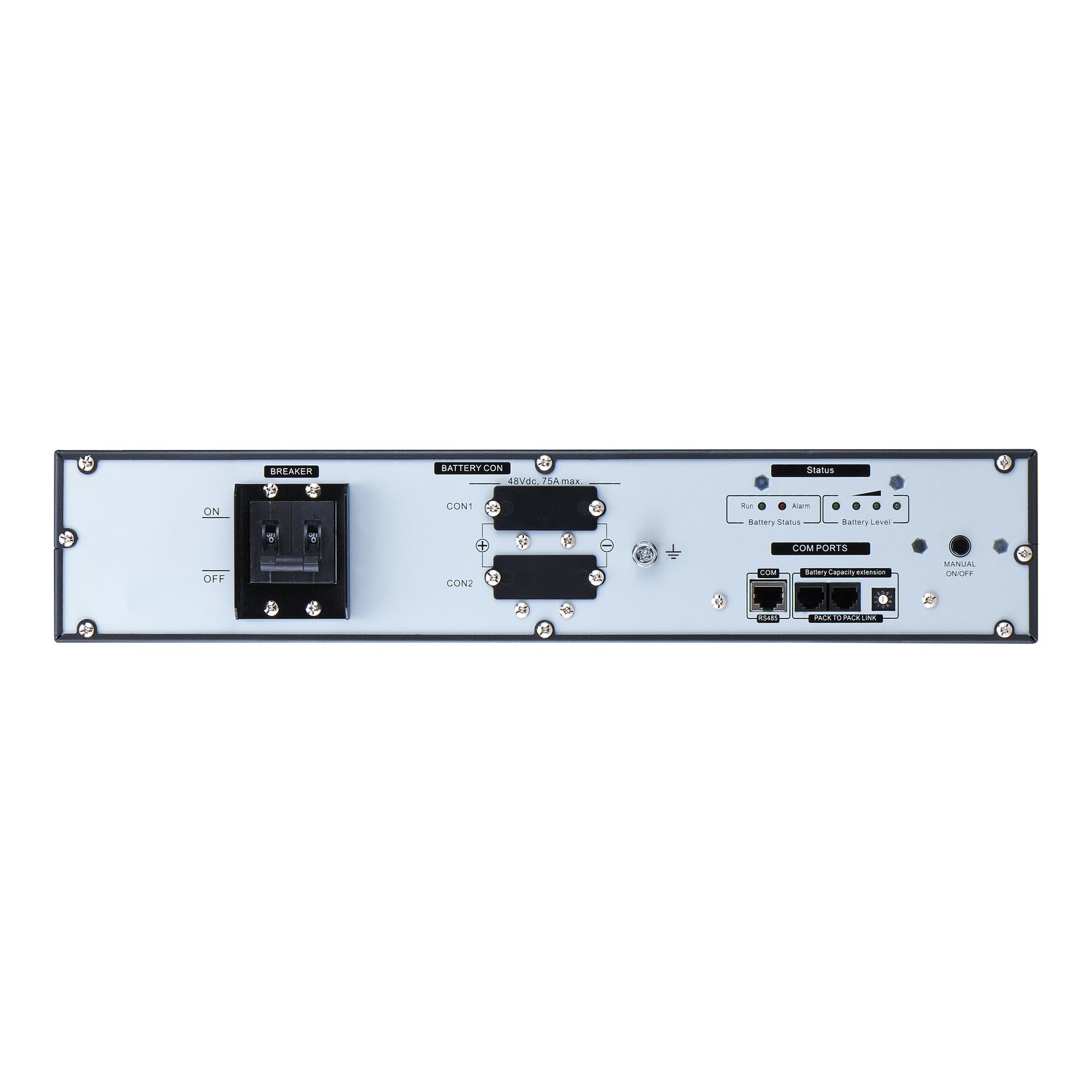

| Battery Management | Built-in battery management with an RJ45 communication link to the SRVL power module |
| Connection to UPS | Battery cable and RJ45 cable between pack and power module |
Physical & Environmental
| Rack Height | 2U |
| Dimensions (H x W x D) | 86 x 438 x 616 mm |
| Net Weight | 28.3 kg |
| Shipping Weight | Not published by Schneider Electric as a figure for the pack — ask us |
| Rail Kit | SRVRK1, sold separately — one per pack |
| Finish | Black with silver front bezel, matching the SRVL power module |
| Operating Environment | Install in the same cabinet conditions as the SRVL UPS: 0–40 °C at rated load, 0–95% relative humidity non-condensing |
| Certifications (as printed) | CE, UKCA, UN 38.3, IEC 62040-1, IEC 62619 |
| Package Contents | Battery pack with rack-mount brackets, battery cable, RJ45 cable and documentation; rails not included |
Compatibility & Rack Fit
Which UPS Does It Fit?
The SRVL48RMBP2U is the pack for the 1, 2 and 3 kVA lithium-ion Easy UPS On-Line SRVL extended-runtime models — SRVL1KRILRK, SRVL2KRILRK and SRVL3KRILRK, whose power modules are the SRVLPM1KRIL, SRVLPM2KRIL and SRVLPM3KRIL. It is not the pack for the 6 kVA SRVL6KRILRK, which uses the 3U, 4800 Wh SRVL48RMBP3U, and it is not interchangeable with the SRV36RLBP-9A and SRV72RLBP-9A VRLA packs of the lead-acid SRV1KRILRK-E, SRV2KRILRK-E and SRV3KRILRK-E kits.
How Many Packs?
Additional SRVL48RMBP2U packs can be added — Schneider's product page states up to two; confirm with us for your runtime target. As a guide, Schneider Electric's brochure prints runtime on the single pack inside each kit as 260 / 135 minutes (half / full load) for the 1 kVA, 136 / 60 minutes for the 2 kVA and 85 / 40 minutes for the 3 kVA. Each extra pack adds 2400 Wh, and we will size the count against the manufacturer's runtime curve for your actual load.
Rack Fit
The pack occupies 2U at 86 x 438 x 616 mm and weighs 28.3 kg, so it needs a server-depth cabinet and a second pair of hands to lift. Rails are not included; order one SRVRK1 rail kit per pack. In a tower installation the pack stands beside the power module.
Recharge
Recharge is handled by the UPS charger: 4.8 hours on the 2 and 3 kVA modules and 8.5 hours on the 1 kVA module for a single pack. Adding packs adds energy to be recharged, so plan for correspondingly longer recharge after a deep discharge.
Package Contents & Easy UPS On-Line SRVL Ordering Information
In the Box
Battery pack with rack-mount brackets, battery cable, RJ45 cable and documentation. Rails are not included — add an SRVRK1 rail kit per pack.
Easy UPS On-Line Lithium-ion SRVL Ordering Information
The pack is supplied inside each of the SRVL kits below; buy this listing for additional runtime or as a replacement. The SRVL kits are referenced here by part number — email sales@sourceit.com.sg for any not yet on the site.
| SRVL1KRILRK (ask us) | 1 kVA / 900 W kit | Includes one SRVL48RMBP2U and two SRVRK1 rail kits, 4U |
| SRVL2KRILRK (ask us) | 2 kVA / 1800 W kit | Includes one SRVL48RMBP2U and two SRVRK1 rail kits, 4U |
| SRVL3KRILRK (ask us) | 3 kVA / 2700 W kit | Includes one SRVL48RMBP2U and two SRVRK1 rail kits, 4U |
| SRVL48RMBP2U (this listing) | 48 V, 2400 Wh battery pack | 2U, rail kit SRVRK1 sold separately |
| SRVL48RMBP3U (ask us) | 48 V, 4800 Wh battery pack | 3U, for the SRVL6KRILRK only |
Accessories
| SRVRK1 | Rail kit for one 2U unit — one per pack, ask us |
| AP9544 | Network Management Card 3 for the SRVL power module's Intelligent Card Slot — ask us |
Lead-Acid Alternatives in the Easy UPS On-Line SRV Range
If your UPS is one of the lead-acid Easy UPS On-Line SRV -E extended-runtime kits, it takes the SRV36RLBP-9A or SRV72RLBP-9A VRLA packs rather than this lithium-ion pack. The kits themselves are here:
| SRV1KRILRK-E | 1 kVA / 900 W | Rackmount 4U, VRLA pack, rail kit |
| SRV2KRILRK-E | 2 kVA / 1800 W | Rackmount 4U, VRLA pack, rail kit |
| SRV3KRILRK-E | 3 kVA / 2700 W | Rackmount 4U, VRLA pack, rail kit |
Datasheet & Downloads
Schneider Electric hosts the official documentation for this product. The links below are the Schneider Electric pages for this part number; each one names the correct model.
| Schneider Electric product page | APC SRVL48RMBP2U on se.com — Singapore site |
| User manual, Easy UPS On-Line SRVL 1000/2000/3000 VA extended runtime (the UPS the pack connects to) | Schneider document SPD_EU_UM_TME23545_EN — document landing page, Ireland (English) site |
| Brochure, APC Easy UPS On-Line Lithium-Ion SRVL 230V Extended Runtime | Schneider document SPD_SRVL_230V_Brochure_EN — document landing page, UK site |
Schneider's own datasheet and user manual download links redirect to a document host that has repeatedly served the wrong model's file, so we do not publish those links here rather than risk sending you the wrong specification. Email sales@sourceit.com.sg quoting SRVL48RMBP2U and we will send you the current PDF datasheet and user manual directly.
The pack's own user manual is Schneider Electric reference SPD_EU_UM_TME21198_EN; email us and we will send it with the datasheet.
Frequently Asked Questions — APC SRVL48RMBP2U
Which UPS models take the SRVL48RMBP2U?
The 1, 2 and 3 kVA lithium-ion Easy UPS On-Line SRVL extended-runtime kits: SRVL1KRILRK, SRVL2KRILRK and SRVL3KRILRK. The 6 kVA SRVL6KRILRK uses the larger 3U SRVL48RMBP3U pack instead.
Is the pack already included with the SRVL kits?
Yes. Each SRVL kit ships with one SRVL48RMBP2U and two SRVRK1 rail kits. Buy this listing when you want additional runtime or a replacement pack.
How many packs can I add?
Additional SRVL48RMBP2U packs can be added — Schneider's product page states up to two; confirm with us for your runtime target. Each pack is another 2U and another 28.3 kg.
Does it come with rails?
No. A pack bought on its own does not include rails; Schneider Electric lists the SRVRK1 rail kit separately. Order one per pack for rack mounting. Tower installation uses the stabiliser feet with the power module.
How long will the pack last, and how quickly does it recharge?
Schneider Electric prints an 8 to 10 year battery life. Recharge is by the UPS charger: 4.8 hours on the 2 and 3 kVA modules and 8.5 hours on the 1 kVA module for a single pack.
Is it a straightforward replacement when the time comes?
The pack is an external 2U unit connected to the power module by a battery cable and an RJ45 link, so replacement is a rack job rather than a cartridge swap. Schneider Electric does not describe changing the pack with the load running, so plan a short maintenance window.
Can I use it with the lead-acid SRV -E kits or with a Smart-UPS?
No. The lead-acid SRV -E extended-runtime kits use the SRV36RLBP-9A and SRV72RLBP-9A VRLA packs, and the Smart-UPS SRT lithium-ion models use the XBP48RM1U-LI and XBP48RM2U-LI. Match the pack to the exact UPS part number.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every APC SRVL48RMBP2U sold by SourceIT comes with local Singapore warranty and a GST invoice; APC by Schneider Electric backs the pack with a five-year manufacturer warranty.
