APC Back-UPS Connect 12Vdc 36W Lithium-Ion Mini UPS for Routers and Cameras
PRODUCT DESCRIPTION
APC Back-UPS Connect 12Vdc 36W, lithium-ion, mini network UPS to protect internet routers, IP cameras and more (CP12036LI) - 2 Years Local Warranty

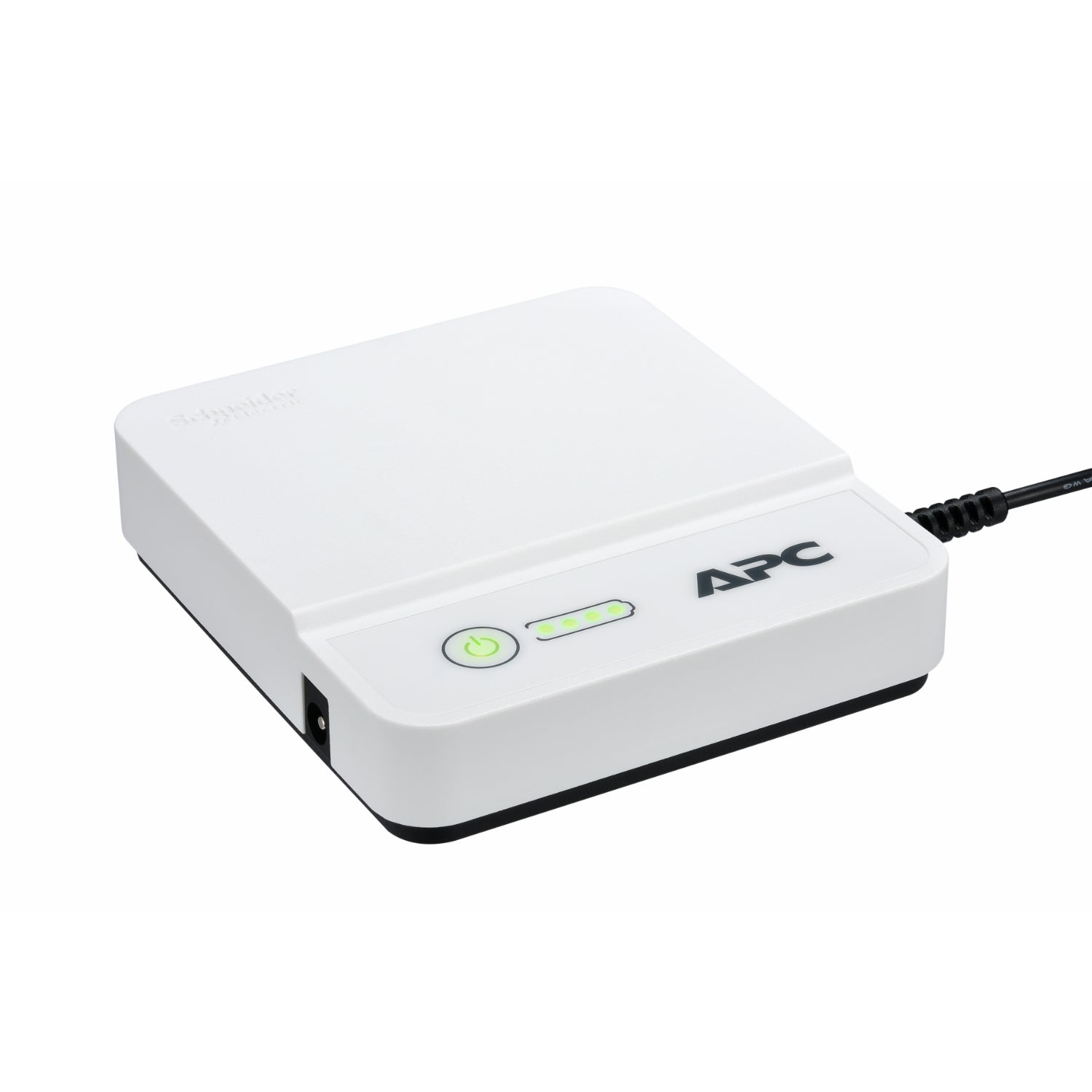

APC CP12036LI — a palm-sized lithium-ion UPS that keeps the router and Wi-Fi up through an outage
The APC CP12036LI is the Back-UPS Connect from APC by Schneider Electric: a 12 Vdc, 36 W mini UPS with a 27.75 Wh lithium-ion battery that sits in line between a router's own power adapter and the router. When the mains fails the router, ONT, mesh node or IP camera keeps running on the battery — Schneider prints up to four hours for an average router — so the home office keeps its internet, the CCTV keeps recording and the smart-home hub keeps talking, without a conventional UPS taking up floor space.

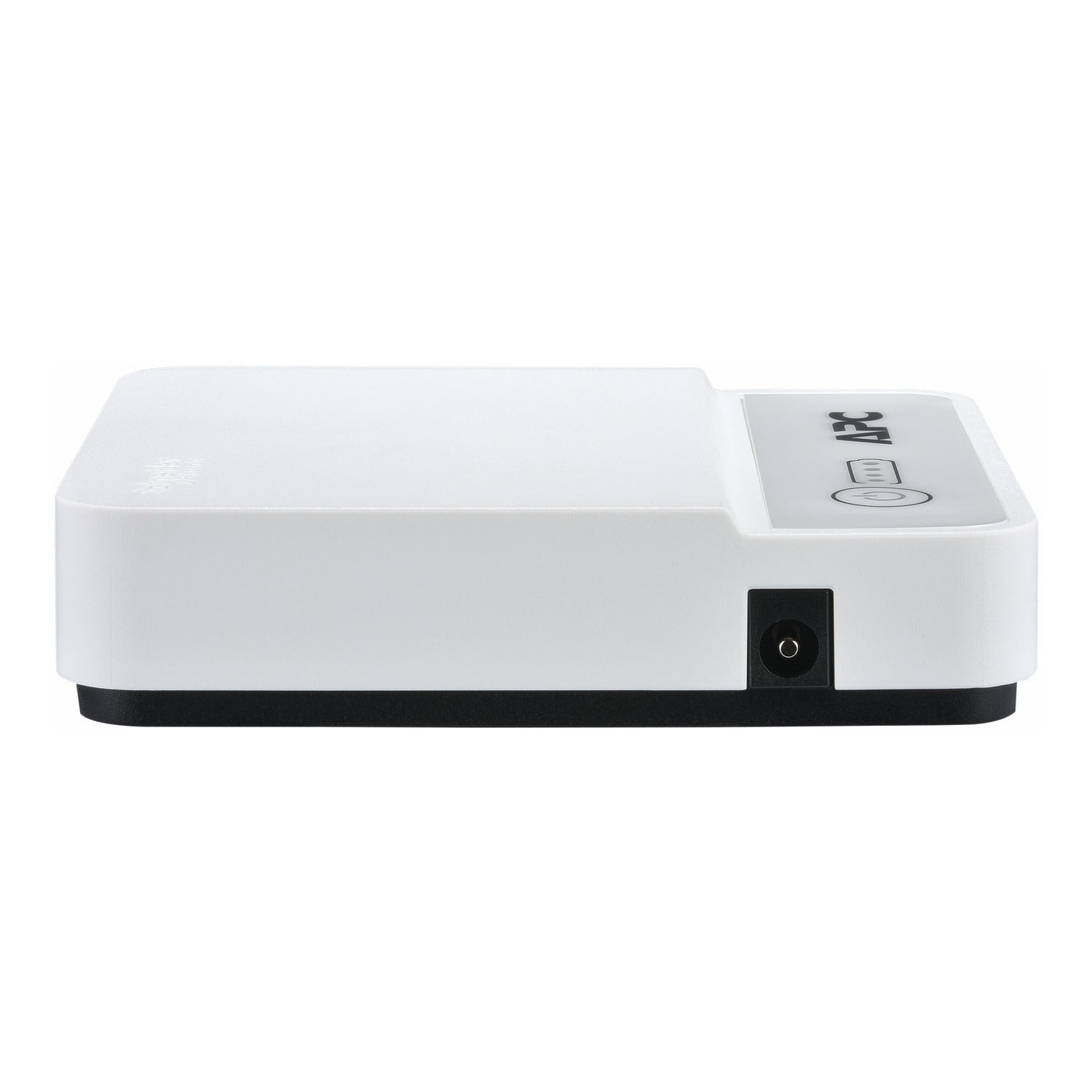

It is 99 mm by 109 mm and 25 mm thick, weighs 300 g and needs no mains socket of its own: the router's existing 12 V adapter plugs into the CP12036LI, and the CP12036LI plugs into the router, using the supplied DC tips.
Why a DC mini UPS, and why lithium-ion
A router draws 10 to 20 W. Protecting it with a 650 VA lead-acid UPS means converting mains to battery to mains to 12 V, wasting most of the energy in the chain and paying for a battery ten times the size. The CP12036LI works entirely at 12 Vdc, so the small 27.75 Wh cell delivers hours rather than minutes, and it draws only 2 W to keep itself charged. Lithium-ion also tolerates Singapore's heat far better than a sealed lead-acid cell, and Schneider describes the battery life as extended compared with traditional VRLA — which matters for a device that will sit behind a TV cabinet for years.
Output is limited to 36 W and 4.1 A with a 15 A fast-acting fuse, which covers a fibre ONT, a consumer or SME router, a mesh access point, a small switch or an IP camera. It is not for a 19 V laptop, a NAS or anything that needs mains.
Fit, tips and indicators
The box includes two additional pairs of DC tips, 2.1 mm and 1.7 mm, so it fits the barrel connectors used on most 12 V routers and ONTs from the local fibre providers and on most 12 V IP cameras and NVR accessories. LED indicators show mains, battery, low input, overload and over-temperature states. Recharge from flat takes about 9 hours. Check that the device you are protecting is 12 Vdc and under 36 W before ordering; if it is not, tell us and we will point you at the right product.
Schneider prints a 24-month warranty for the CP12036LI. Everything SourceIT ships is local Singapore stock with a GST invoice and local warranty support.
APC CP12036LI Datasheet — Technical Specifications
Figures below are taken from the Schneider Electric product page, the Back-UPS Connect CP12036LI user manual and the Schneider product data sheet as carried by an electronics distributor, cross-checked against two independent reseller listings that agree.
General
| Part Number (SKU) | CP12036LI |
| Official Product Name | APC Back-UPS Connect 12Vdc 36W, lithium-ion, mini network UPS to protect internet routers, IP cameras and more |
| Series | APC Back-UPS Connect (APC by Schneider Electric) |
| Product Type | 12 Vdc in-line mini UPS for network devices |
| Form Factor | Compact desktop unit, not rack-mountable |
| Rated Capacity | 36 W |
| Colour | White |
| 2-Year Manufacturer Warranty (APC by Schneider Electric) | 24 months, as printed on the Schneider data sheet |
| Local Warranty (Singapore) | Supported locally by SourceIT with a GST invoice |
Output
| Output Voltage | 12 Vdc |
| Maximum Output Power | 36 W |
| Maximum Output Current | 4.1 A |
| Output Protection | 15 A fast-acting fuse |

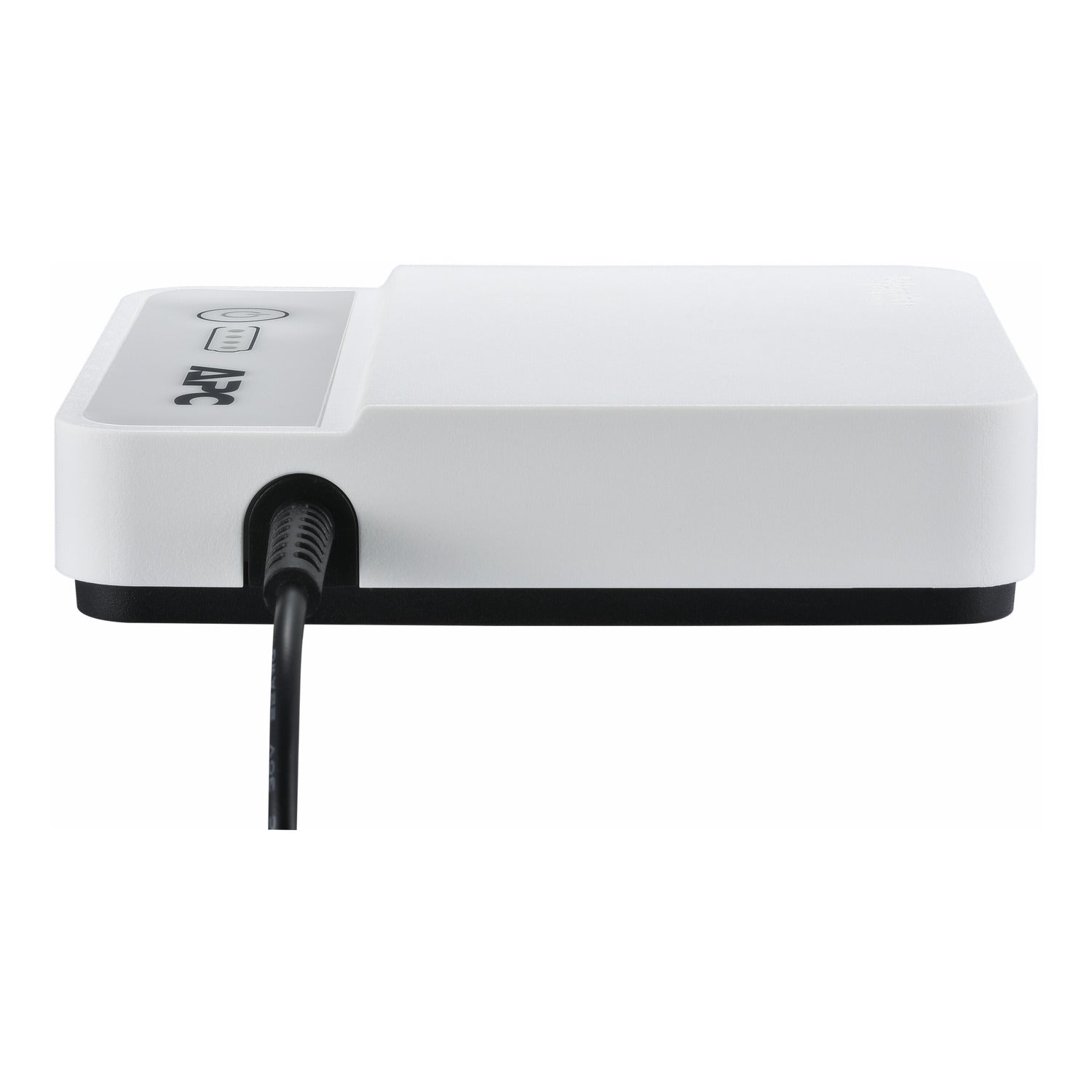

| Output Connection | DC barrel lead; 2 additional pairs of DC tips supplied (2.1 mm and 1.7 mm) |
Input
| Input | 12 Vdc from the protected device's own power adapter |
| Standby Consumption | 2 W |
Batteries & Runtime
| Battery Type | Lithium-ion, integral |
| Battery Capacity | 27.75 Wh |
| Runtime | Up to 4 hours for an average router, as printed by Schneider; the user manual gives 60 to 240 minutes depending on load |
| Typical Recharge Time | 9 hours |
Communications & Management

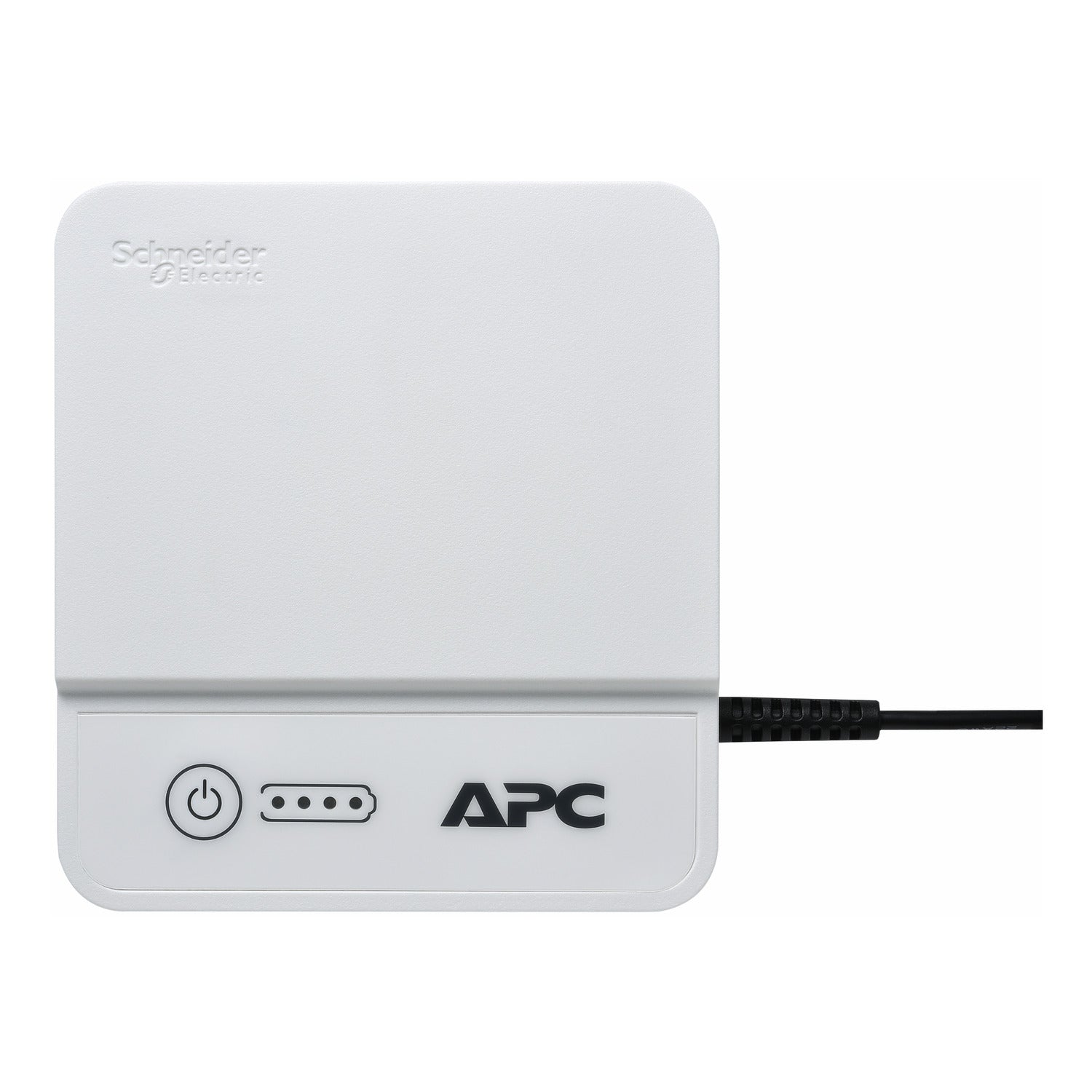

| Indicators | LED status indicators for mains, battery, low input, overload and temperature |
| Software / Ports | Not fitted — stand-alone unit |
Physical & Environmental
| Rack Height | Not applicable |
| Dimensions (W x D x H) | 99 mm x 109 mm x 25 mm |
| Net Weight | 300 g |
| Packaged Weight | 366 g |
| Shipping Dimensions | 163 mm x 115 mm x 33 mm |
| Ingress Protection | IP20 |
| Operating Temperature | 0 to 40 degrees C |
| Standards | EN/IEC 62368-1, EN/IEC 61000-4-2, EN/IEC 61000-4-8; RoHS and REACh compliant |
Compatibility & Runtime
What it protects
Any device powered by a 12 Vdc barrel-connector adapter and drawing 36 W or less: fibre ONTs, consumer and SME routers, mesh Wi-Fi nodes, small unmanaged switches, IP cameras and their PoE-less accessories, smart-home hubs. One CP12036LI protects one device; for a router and a separate ONT, use two.
What it does not protect
Anything on mains (a NAS, a PC, a printer), anything on 19 V or 5 V, PoE-powered devices, and anything drawing more than 36 W. Check the label on the existing power adapter: it must read 12 V output and the current rating multiplied by 12 must be 36 W or less. For a NAS and PC alongside the router, the Back-UPS BX750MI-MS or Easy UPS BV650I-MS are the right tools.
Runtime
Schneider prints up to 4 hours for an average router and 60 to 240 minutes depending on load. A 10 W router will sit near the top of that range; a 30 W router with an ONT will sit near the bottom. Recharge takes about 9 hours, so after a long outage allow most of a day before the next full runtime is available.
Connectors
The supplied lead plus the two additional pairs of DC tips (2.1 mm and 1.7 mm) fit the barrel connectors on the large majority of 12 V networking equipment. If your router uses an unusual connector, send us the adapter model and we will confirm before you order.
Pairing it with a conventional UPS
Many customers run a CP12036LI on the router for hours of internet, and a Easy UPS BV500I-MS or Back-UPS BX950MI-MS on the PC and NAS for a few minutes of clean shutdown. That combination keeps the connection alive long after the computers have shut down, which is usually what a home office actually needs.
Package Contents & APC Back-UPS Connect Ordering Information
In the box
Back-UPS Connect CP12036LI unit with integral lithium-ion battery, DC lead and two additional pairs of DC tips (2.1 mm and 1.7 mm), and documentation. Boxed at 163 mm x 115 mm x 33 mm, 366 g.
APC Back-UPS, Easy UPS and Back-UPS Connect at SourceIT
| Back-UPS BX750MI-MS | Back-UPS 750 VA, AVR, universal sockets — entry level for a router and a PC |
| Back-UPS BX1200MI-MS | Back-UPS 1200 VA, AVR, universal sockets |
| Back-UPS BX1600MI-MS | Back-UPS 1600 VA, AVR, universal sockets |
| Back-UPS BX2200MI-MS | Back-UPS 2200 VA / 1200 W, AVR, 4 universal sockets, stepped-approximation output |
| Back-UPS Pro BR1200SI | Back-UPS Pro 1200 VA / 720 W, sine wave, 8 x C13, USB A+C charging |
| Back-UPS Pro BR1600SI | Back-UPS Pro 1600 VA / 960 W, sine wave, 8 x C13, USB A+C charging |
| Back-UPS Pro BR1500GI | Back-UPS Pro 1500 VA / 865 W, 10 x C13, LCD, external battery pack capable |
| BGM2200-MSX | Back-UPS Pro Gaming 2200 VA / 1320 W, sine wave, RGB, Arctic White |
| BGM2200B-MSX | Back-UPS Pro Gaming 2200 VA / 1320 W, sine wave, RGB, Midnight Black |
| Smart-UPS SMT2200IC | Smart-UPS 2200 VA tower, sine wave, LCD, SmartConnect cloud monitoring |
| LE600I | Line-R 600 VA automatic voltage regulator, 4 x C13 — voltage correction without a battery |
| CP12036LI (this listing) | Back-UPS Connect 12 Vdc 36 W lithium-ion mini UPS for a router or IP camera |
Battery
The lithium-ion battery is integral to the unit and is not a user-replaceable cartridge; there is no separate RBC part number for the CP12036LI.
Datasheet & Downloads
Links open on Schneider Electric's own site. Each one was checked before publication.
- Schneider Electric product page for the APC CP12036LI (United Kingdom site) — official product name, features and document list
- Back-UPS Connect CP12036LI user manual (SPD_BU_UM_TME20748_EN) — document landing page on Schneider Electric
Schneider's own datasheet download links redirect to a host that has served wrong-model files, so for the PDF datasheet or manual as a file for a tender, email sales@sourceit.com.sg quoting the SKU and we will send the correct document.
Need a compliance declaration, a CAD file or a written quotation for a tender? Contact SourceIT and we will supply it.
Frequently Asked Questions — APC CP12036LI
How does it connect — does it need its own power socket?
No. It goes in line: the router's existing 12 V adapter plugs into the CP12036LI, and the CP12036LI plugs into the router with the supplied lead and tips. No extra wall socket is needed.
How long will my router stay up?
Schneider prints up to 4 hours for an average router, and 60 to 240 minutes depending on load. A typical home router at 10 to 15 W is near the top of that range.
Will it fit my fibre ONT or router?
If the adapter is 12 V output and the device draws 36 W or less, yes; the supplied tips (2.1 mm and 1.7 mm) fit most barrel connectors. Send us a photo of the adapter label if in doubt.
Can it power a NAS or a PC?
No. It is a 12 Vdc, 36 W device for network equipment. A NAS or PC needs a mains UPS such as the Back-UPS BX750MI-MS.
Is the battery replaceable?
The lithium-ion cell is built in and there is no replacement cartridge part number. Lithium-ion is chosen for its long service life, and Schneider backs the unit with a 24-month warranty.
Can I use it for an IP camera?
Yes, provided the camera runs from a 12 V adapter (not PoE) and draws under 36 W. It keeps the camera recording through a short outage; the NVR needs its own protection.
Does it get hot or need ventilation?
It draws only 2 W in standby and is rated for 0 to 40 degrees C. Keep it out of a sealed enclosure in direct sun, but a shelf behind the router is fine.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every APC CP12036LI sold by SourceIT comes with local Singapore warranty support and a GST invoice; APC by Schneider Electric prints a 24-month warranty for this model.
