Yealink W76P IP DECT Phone System
PRODUCT DESCRIPTION
Yealink W76P IP DECT Phone System (W76P) - 1 Year Local Warranty

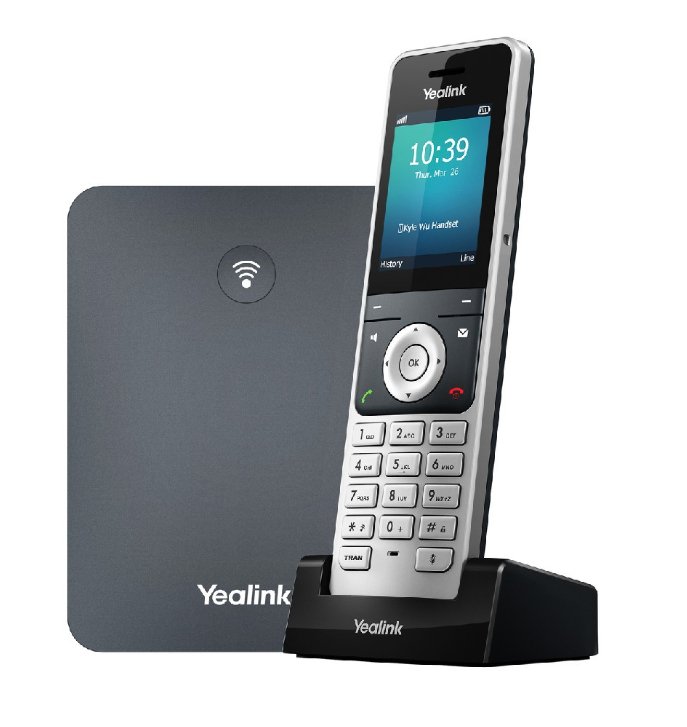

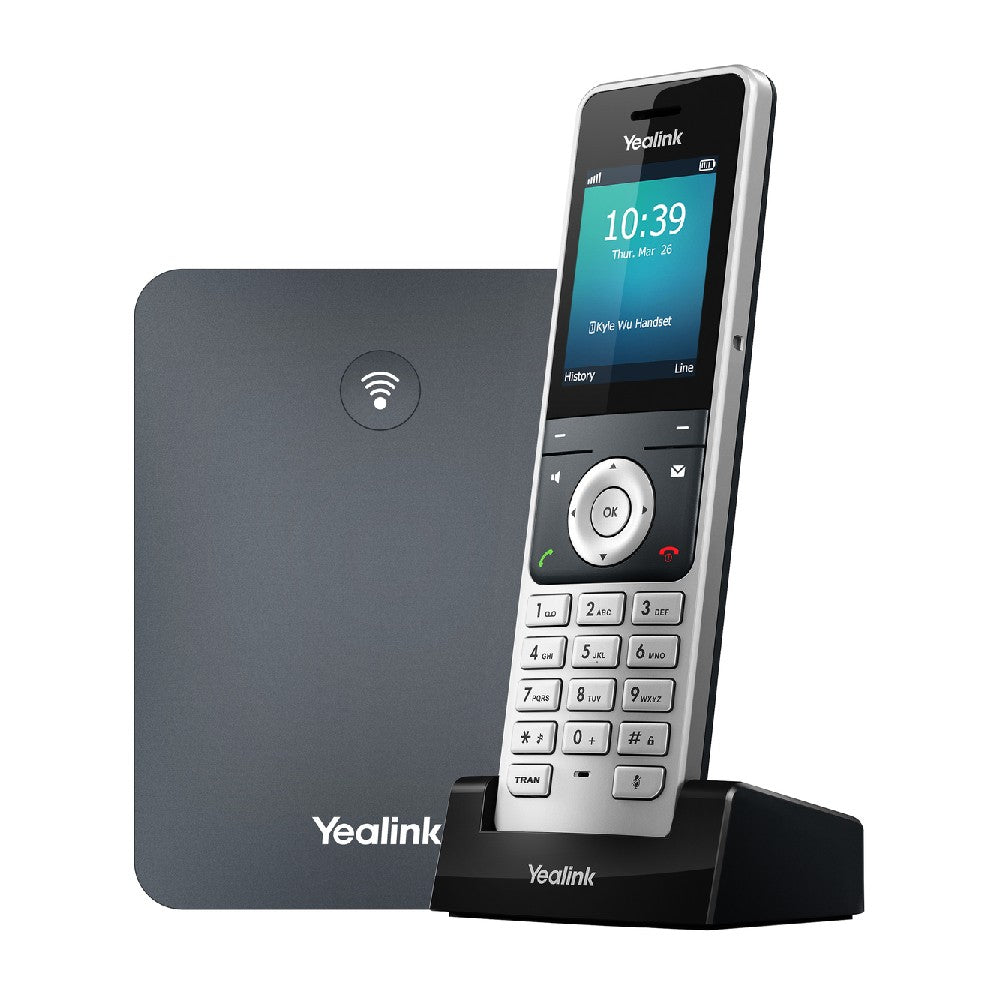

Yealink W76P Complete IP DECT System with Classic W56H Handset
The Yealink W76P pairs the proven W56H handset — big 2.4″ 240x320 colour display, up to 30 hours talk time — with the W70B DECT IP base station. A ready-to-run cordless SIP system built for small and medium-sized businesses with heavy call loads.
Up to 10 Handsets and 20 Simultaneous Calls
The W70B base supports up to 10 handsets, 10 SIP accounts and 20 simultaneous calls with HD voice and G.722 wideband audio, plus up to 6 RT30 repeaters for extended coverage.
Simple to Deploy, Secure to Run
PoE or PSU powered, with zero-touch deployment via Yealink RPS and TLS 1.3 / SRTP / OpenVPN security for painless multi-site rollouts.
Ideal For
The W76P is ideally suited to Singapore warehouses, retail and clinics that want a large-screen handset on an expandable W70B base.
Yealink W76P Datasheet — Technical Specifications
General
| Model | Yealink W76P |
| Part Number / SKU | W76P |
| Product type | IP DECT phone system (W56H handset + W70B base station) |
| Warranty | 1 Year Local Warranty (Singapore) |
System Capacity (W70B base)
| Handsets supported | Up to 10 handsets / DECT headsets |
| SIP accounts | Up to 10 |
| Simultaneous calls | Up to 20 per base |
| Repeater support | Up to 6 x RT30 DECT repeaters per base |

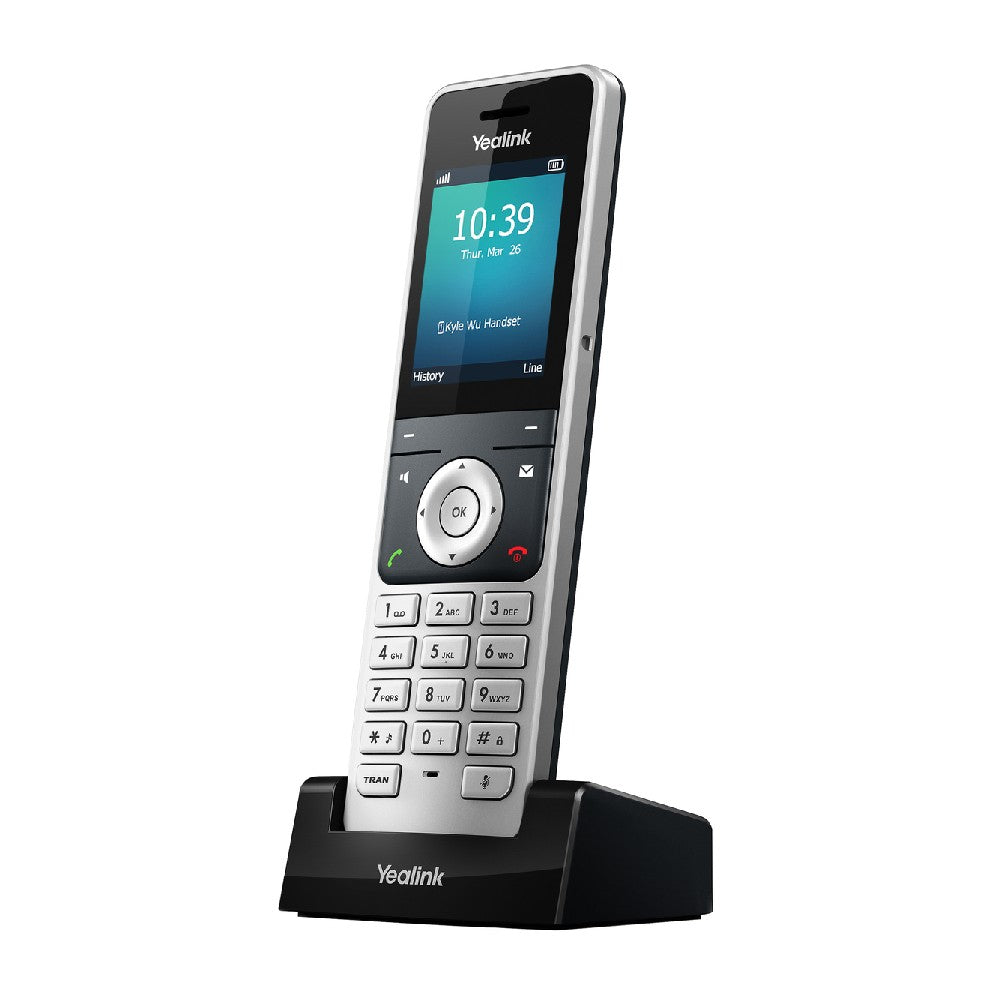

Bundled Handset — W56H
| Screen | 2.4″ 240 x 320 colour display |
| Battery | 1460 mAh Lithium-ion |
| Talk time | Up to 30 hours |
| Standby time | Up to 400 hours (hardware V0–V3) / up to 350 hours (hardware V4), ideal conditions |
| Audio | HD audio based on the DECT standard, full-duplex speakerphone, 3.5 mm headset jack |
Base Station — W70B
| Frequency bands | 1880–1900 MHz (Europe), 1920–1930 MHz (US) |
| Range | Up to 50 m indoor / 300 m outdoor (ideal conditions) |
| Power | PoE (IEEE 802.3af, Class 1) or Yealink AC adapter (AC 100–240 V in, DC 5 V/600 mA out) |
| Network | 1 x RJ45 10/100M Ethernet port |
| Dimensions | 130 mm x 100 mm x 25.1 mm |
| Operating temperature | -10°C to +45°C |
Audio & Security
| Wideband codecs | AMR-WB (optional), G.722 |
| Narrowband codecs | PCMU (G.711μ), PCMA (G.711A), G.726, G.729, G.729A, iLBC |
| Security | TLS 1.0/1.2/1.3, SRTP, OpenVPN, AES encryption |
Compatibility & Software Support
The W70B-based W-series DECT systems register to any standards-based SIP platform (SIP v1/RFC2543, v2/RFC3261) and are widely deployed with leading IP-PBX and hosted voice platforms used in Singapore. They are open-SIP devices — they are not Microsoft Teams or Zoom certified endpoints. Yealink lists the W56H handset as compatible with Microsoft SIP Gateway.
- Provisioning: auto-provisioning and Yealink RPS (Redirection & Provisioning Service) for zero-touch rollout
- Management: web user interface plus Yealink device management support for remote deployment, monitoring and upgrades
- Security: TLS 1.3, SRTP voice encryption and OpenVPN on the W70B base
- Mixed fleets: one W70B base can host a mix of W-series handsets (W71H, W74H, W73H, W78H, W56H, W57R, W59R) — up to 10 per base
Need help confirming interoperability with your PBX or hosted platform? Contact SourceIT presales in Singapore before you order.
Package Contents & W-Series Ordering Information
In the box: one W56H DECT handset and one W70B DECT IP base station, supplied with PSU.
Yealink W-series family at SourceIT:
| Yealink W73P (W70B + W73H) | Complete system — SKU 1302022 |
| Yealink W73H handset | Everyday business handset — SKU 1302021 |
| Yealink W76P (W70B + W56H) | Classic 2.4″ handset system — SKU W76P |
| Yealink W56H handset | Classic 2.4″ handset — SKU 1302002 |
| Yealink W78P (W70B + W78H) | Bluetooth handset system — SKU 1302026 |
| Yealink W78H handset | Bluetooth handset — SKU 1302023 |
| Yealink W77P (W70B + W57R) | Rugged long-battery system — SKU 1302027 |
| Yealink W57R handset | Rugged IP54 handset — SKU 1302007 |
| Yealink W79P (W70B + W59R) | IP67 rugged system — SKU 1302025 |
| Yealink W59R handset | IP67 rugged, Bluetooth — SKU 1302006 |
| Yealink W70B base station | DECT IP base station — SKU 1302017 |
| Yealink W69P (W60B + W59R) | Rugged system with PSU — SKU 1302019 |
| Yealink W71P / W71H / W74P | New W7 models — coming soon |
Datasheet & Downloads
Official Yealink resources for the W76P:
Frequently Asked Questions — Yealink W76P
What is included in the Yealink W76P?
One W56H DECT handset and one W70B DECT IP base station, supplied with PSU.
How does the W76P differ from the W73P?
Same W70B base, different handset: the W76P bundles the 2.4″-screen W56H (up to 30 h talk), while the W73P bundles the lighter 1.8″-screen W73H (up to 35 h talk).
How many handsets and calls does the W76P support?
Up to 10 handsets, 10 SIP accounts and 20 simultaneous calls on the W70B base — and you can mix W56H, W73H, W78H, W57R and W59R handsets on the same base.
Can I extend the DECT coverage?
Yes — up to 6 Yealink RT30 DECT repeaters per base for larger floors.
Does the W76P support HD audio?
Yes — AMR-WB (optional) and G.722 wideband codecs on the base, with HD audio on the W56H handset and full-duplex speakerphone.
Does the Yealink W76P come with local warranty in Singapore?
Yes. Every W76P sold by SourceIT comes with 1 year local Singapore warranty and a GST invoice.
