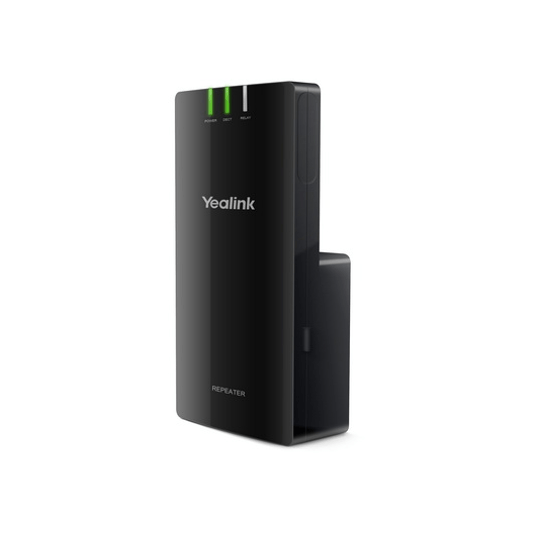

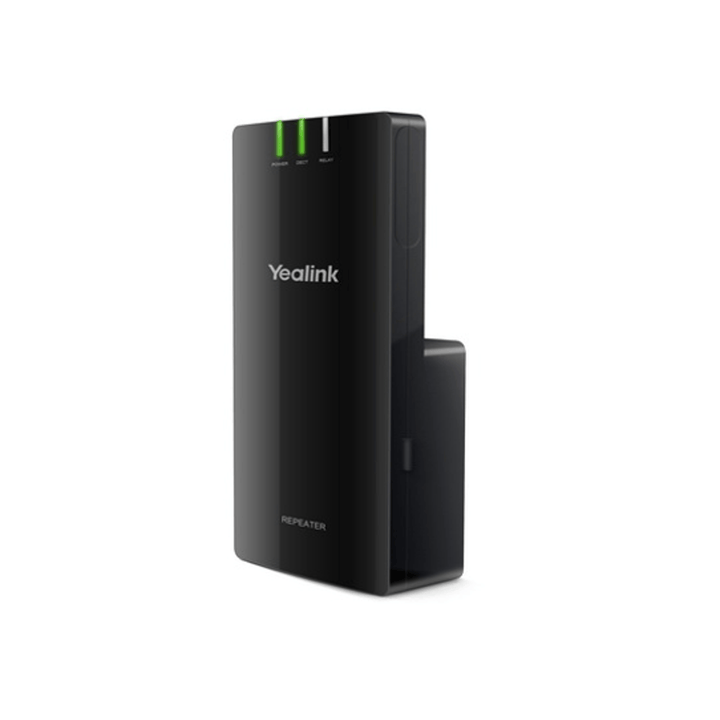

Yealink RT20U DECT Repeater
PRODUCT DESCRIPTION
Yealink RT20U DECT Repeater (1300041) - 2 Years Local Warranty
Yealink RT20U DECT Repeater — Fill DECT Dead Zones Without Cabling
The Yealink RT20U is a DECT repeater that extends the wireless range of compatible Yealink single-cell DECT base stations — filling coverage gaps across corridors, storerooms and adjacent rooms so handsets stay connected everywhere staff work. Each repeater relays the base signal for up to 50 m indoors (up to 300 m outdoors in clear, ideal conditions).
Seamless Roaming with Automatic Handover
The RT20U supports 2 simultaneous calls per repeater with automatic handover between base and repeater cells, so active calls carry on without interruption as users walk through the building. Speech is carried at 32 kbit/s (G.726) over the standard DECT GAP protocol.
Star Deployment of Up to 5 Repeaters
Up to 5 RT20U repeaters can be deployed around one base station in a star layout, letting a compact single-cell DECT system cover shops, clinics, F&B outlets and small warehouses in Singapore without pulling a single network cable.
Slim, Plug-and-Play, Wall-Mountable
Auto-association makes setup quick, three LEDs (Power, DECT Link, Active Relay) show status at a glance, and the slim 12 mm housing mounts discreetly on a wall wherever coverage needs a boost.
Yealink RT20U Datasheet — Technical Specifications
| Model | Yealink RT20U DECT Repeater |
| Part Number | 1300041 |
| Product Type | DECT repeater (DECT GAP compatible) |
| Warranty | 2 Years Local Warranty (Singapore) |
| Compatible Systems | Yealink W52P (firmware 25.73.0.40+), W56P (25.80.0.15+), W60P (77.81.0.10+); DECT GAP standard |
| Simultaneous Calls | Up to 2 calls per repeater |
| Handover | Automatic handover between cells |
| Deployment | Up to 5 repeaters per base station (star connection) |
| Speech Coding | 32 kbit/s (G.726) |
| DECT Frequency Bands | 1880–1900 MHz (Europe), 1920–1930 MHz (US) |
| Indoor Range | Up to 50 m |
| Outdoor Range | Up to 300 m (clear view, ideal conditions) |
| Antennas | 2 internal QWL omnidirectional antennas |
| Transmission Power | Approx. 10 mW average |
| Power Supply | 100–240 V AC, 50/60 Hz |
| LED Indicators | Power On, DECT Link, Active Relay |
| Dimensions | 122 × 62 × 12 mm |
| Weight | 107 g |
| Operating Temperature | 0°C to +45°C |
Compatibility & Software Support
Base stations (per Yealink datasheet): Yealink W52P (firmware v25.73.0.40 or later), W56P (v25.80.0.15 or later) and W60P (v77.81.0.10 or later). The RT20U follows the DECT GAP standard.
Handsets: Works transparently with the W-series handsets registered to the base (e.g. W56H) — handsets roam between base and repeater cells with automatic handover.
Deployment note: For current W70B-based systems (W73P/W79P), choose the newer RT30 repeater instead. For very large sites, consider a multi-cell system such as the W80B.
Package Contents & DECT Accessory Ordering Information
Yealink RT20U DECT Repeater, USB cable, power adapter, Quick Start Guide.
| RT20U DECT Repeater | 1300041 (this product) |
| RT30 DECT Repeater (current model) | 1300042 |
| DD10K DECT USB Dongle | 1300020 |
| W56H DECT Handset | 1302002 |
Datasheet & Downloads
Frequently Asked Questions — Yealink RT20U
What is the difference between the RT20U and the RT30?
The RT20U is the earlier model for W52P/W56P/W60P systems, supporting 2 simultaneous calls and up to 5 repeaters per base. The newer RT30 supports 4 simultaneous calls, the current W70B base and 2-level cascading.
Which Yealink systems does the RT20U work with?
Per the official datasheet: W52P, W56P and W60P single-cell DECT systems on the listed firmware versions, following the DECT GAP standard.
How many repeaters can one base station support?
Up to 5 RT20U units in a star connection around a single base station.
Will calls drop when moving between the base and repeater areas?
No. Automatic handover transfers active calls seamlessly between cells as users move around the site.
How much range does each RT20U add?
Up to 50 m indoors and up to 300 m outdoors in clear, ideal conditions — actual coverage depends on walls and building materials.
Does the RT20U come with local warranty?
Yes. Every RT20U sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
