Yealink MeetingBar A10 All-In-One Android Video Bar

Yealink MeetingBar A10 All-In-One Android Video Bar (1203680) - 2 Years Local Warranty

Yealink MeetingBar A10 All-In-One Video Bar for Small and Huddle Rooms

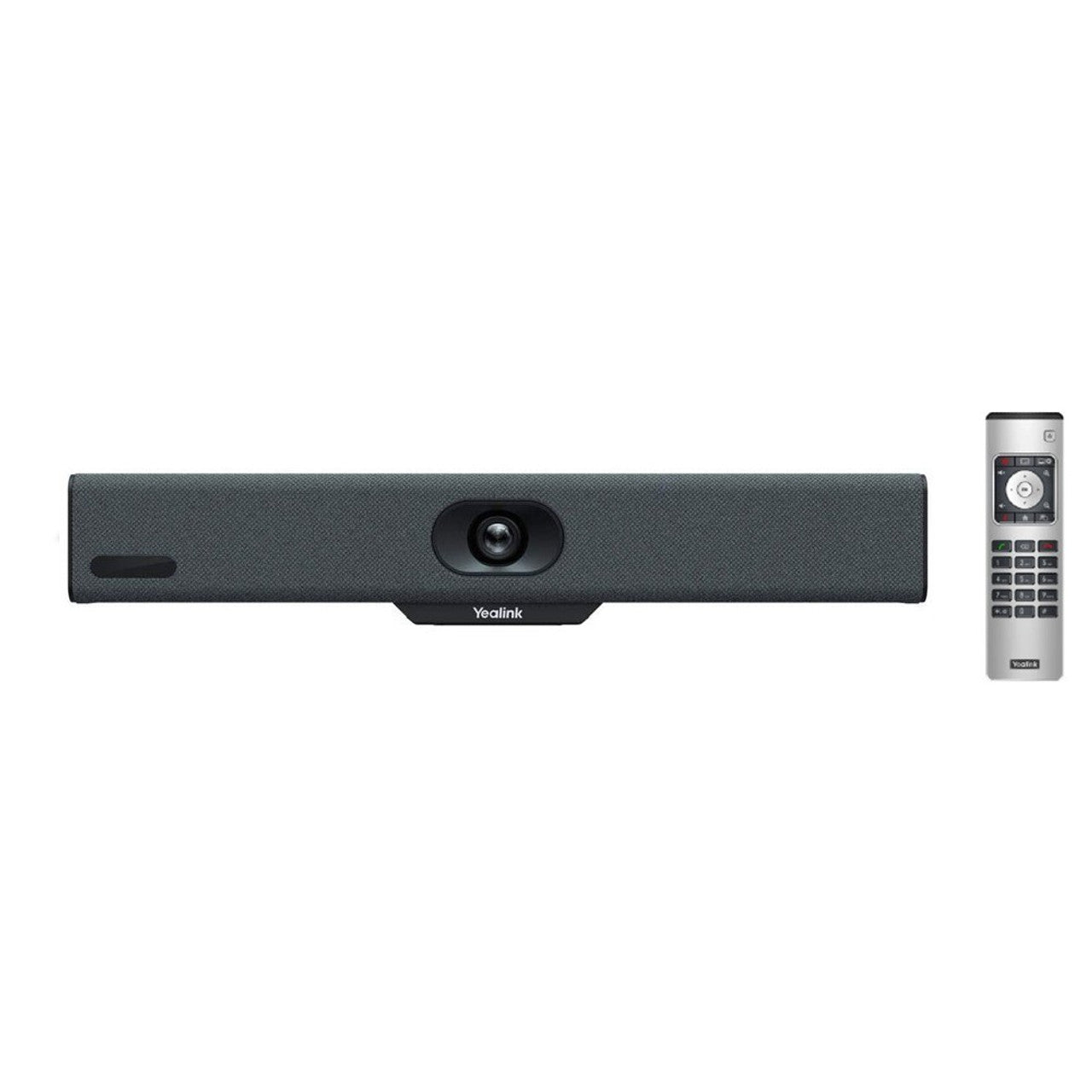

The Yealink MeetingBar A10 is a compact, all-in-one Android video bar designed to bring premium video conferencing to home offices, focus rooms, huddle spaces and small meeting rooms. It integrates a computing unit, 4K camera, 8-microphone array, speaker, adjustable TV clamp, Wi-Fi and Bluetooth into a single sleek 380 mm bar, eliminating the clutter and complexity of separate components. Built on Android 11, the A10 runs Microsoft Teams and Zoom natively, so teams can walk in and start a call in seconds without a dedicated room PC. Plugging in power and an HDMI cable gets a video conference ready — ideal for repeatable, room-by-room rollouts.

Intelligent 4K Camera with AI Auto-Framing

At the core of the A10 is a 4K camera with a 120° diagonal (105° horizontal) field of view that captures the whole room in sharp, true-to-life detail. AI-powered Auto Framing automatically detects participants and adjusts the view to keep everyone perfectly in frame, while Speaker Tracking zooms in on the active talker and Multi-focus Framing keeps groups balanced — with Smart Gallery available on Zoom. An electric privacy shutter provides physical assurance that the camera is off between meetings.

Crystal-Clear Audio with Beamforming Microphones

The A10 features a built-in 8 MEMS microphone array with an upgraded beamforming algorithm that focuses on human speech while suppressing background noise and reverberation. Yealink's AI noise cancellation, acoustic echo cancellation and automatic gain control keep conversations crisp and natural even in full-duplex mode, while the built-in 5 W high-fidelity speaker delivers rich, intelligible sound that fills the space.

Native Microsoft Teams and Zoom Experience

Based on Android 11, the MeetingBar A10 supports native Teams, Zoom and Device Mode in one SKU, giving users the familiar interface they already know. One-click join, calendar integration and intuitive in-room meeting controls make starting and managing meetings effortless, and the built-in whiteboard and content sharing make meetings more collaborative. Pair with the optional WPP30 Wireless Presentation Pod to share content from anywhere in the room with low latency.

Simple Single-Cable Deployment

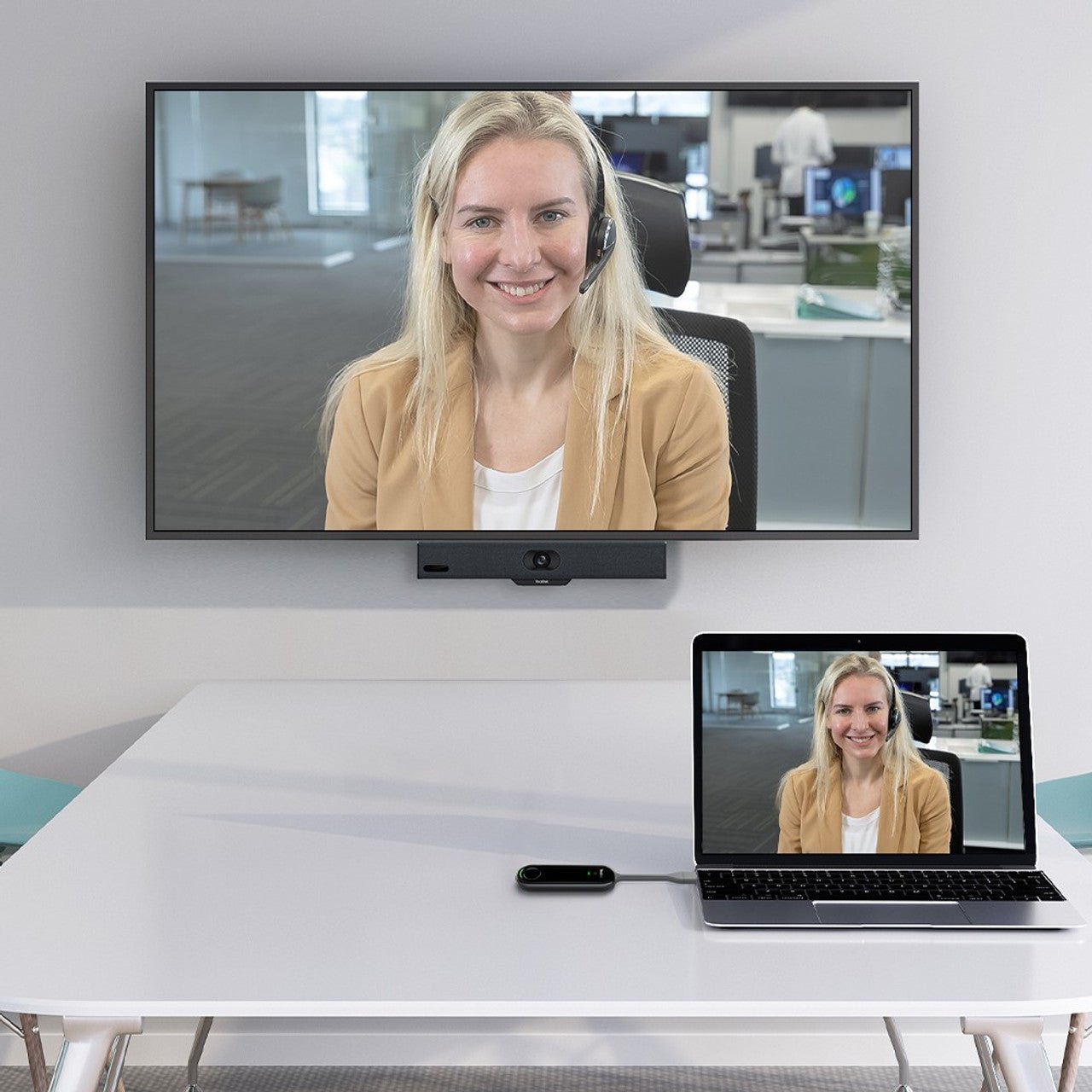

The A10 mounts cleanly above or below a display with its included mounting bracket and adjustable TV clamp, and connects with minimal cabling. It ships with a VCR11 remote control, and pairing with the optional Yealink CTP18 collaboration touch panel adds an intuitive in-room control surface. Because everything is integrated into one bar, there are fewer points of failure and far less setup complexity than component-based systems.

Centralised Management for IT Teams

The MeetingBar A10 supports the Yealink HTTPS web portal, Yealink Device Management Platform, Yealink Management Cloud Service, Teams Admin Center and Zoom Device Management, enabling IT teams to deploy, monitor, configure, update and diagnose devices remotely. This dramatically reduces on-site visits and lowers the total cost of ownership for large deployments.

Ideal For

The Yealink MeetingBar A10 is ideally suited to home offices, huddle rooms, focus rooms and small meeting spaces that need a simple, high-quality, all-in-one video conferencing solution on Teams or Zoom.

Technical Specifications

General
• Model: MeetingBar A10 (A10-010 kit with VCR11 remote)
• Part Number / MPN: 1203680
• GTIN: 841885111906
• Manufacturer: Yealink
• Product Type: All-in-one Android video collaboration bar
• Recommended Room Size: Home office to small meeting room
• Certification: Microsoft Teams and Zoom certified
• Colour: Black
• Warranty: 2 Years Local Warranty

Camera
• 4K camera; output resolutions 1080p30 / 720p30
• Field of View: 120° diagonal, 105° horizontal
• 4× e-PTZ camera
• Electric privacy shutter
• AI Features: Auto Framing, Speaker Tracking, Multi-focus Framing, Smart Gallery (Zoom only)

Audio
• Built-in 8 MEMS microphone array; mic frequency response 100 Hz – 8 kHz
• Built-in 5 W high-fidelity speaker; frequency response 100 Hz – 8 kHz
• Speaker Volume: 89 dB SPL @ 1 W, 98 dB SPL @ 8 W (±2 dB at 0.5 m)
• Sensitivity: 88 dB SPL @ 1 W at 0.5 m
• AI noise cancellation, full-duplex, AGC, acoustic echo cancellation

Platform & Meeting Features
• Operating System: Android 11
• Native Microsoft Teams, Zoom and Device Mode in one SKU
• Calendar and one-click join
• Content sharing and whiteboard
• Meeting controls: add participants, hold/resume, camera on/off, mute, volume, hang up
• Video Codecs: H.264 High Profile, H.264 SVC, H.264

Connectivity & Ports
• 1 × HDMI output (CEC supported)
• 1 × USB 2.0; 1 × USB-C for content sharing
• 1 × Line in / line out
• 1 × 10/100/1000M Ethernet port; 1 × Yealink VCH port (RJ-45)
• Built-in dual-band Wi-Fi (2.4/5 GHz) and Bluetooth 4.2
• Power port, security lock slot, reset slot

Network & Security
• IPv4/IPv6, DHCP/static IP, HTTP/HTTPS web server
• TLS 1.2/1.3, AES 256-bit encryption, built-in certificate
• QoS 802.1p/q, Diff-Serv, VLAN, LLDP, IEEE 802.1X (EAP-MD5/TLS, PEAP-MSCHAPv2, EAP-TTLS)
• SNTP time synchronisation; ping and trace-route diagnostics

Power & Physical
• Power Adapter: AC 100–240 V input, DC 48 V/0.7 A output; USB output 5 V/0.5 A
• Power Consumption: 4.6 W average, 8.1 W peak, 7.9 W standby
• Dimensions (W×D×H): 380 × 57 × 57 mm
• Operating: 0–40 °C, 10–90% humidity; storage −30 to +70 °C

Management
• Yealink HTTPS Web Portal, Yealink Device Management Platform, Yealink Management Cloud Service
• Teams Admin Center and Zoom Device Management

Package Contents
• 1 × MeetingBar A10 endpoint
• 1 × VCR11 Remote Control
• 1 × Ethernet Cable (3 m)
• 1 × HDMI Cable (1.8 m)
• 1 × Mounting Bracket and Accessories
• 1 × Power Adapter
• 1 × Quick Start Guide

Ordering Information
• Yealink MeetingBar A10 — SKU 1203680 (this model)
• Bundle with touch panel: MeetingBar A10 with CTP18 (1203684)
• Larger rooms: MeetingBar A25 (1206714), A40 (1206675), A50 (1206706) also available from SourceIT
• Optional accessories: CTP18 Touch Console, WPP30 Wireless Presentation Pod
