Logitech Rally Bar Mini and Tap IP Video Conferencing Bundle
PRODUCT DESCRIPTION
Logitech Rally Bar Mini + Tap IP Video Conferencing Bundle (991-000389) - 2 Years Local Warranty
Logitech Rally Bar Mini + Tap IP Bundle — A Complete Meeting Room in One Order

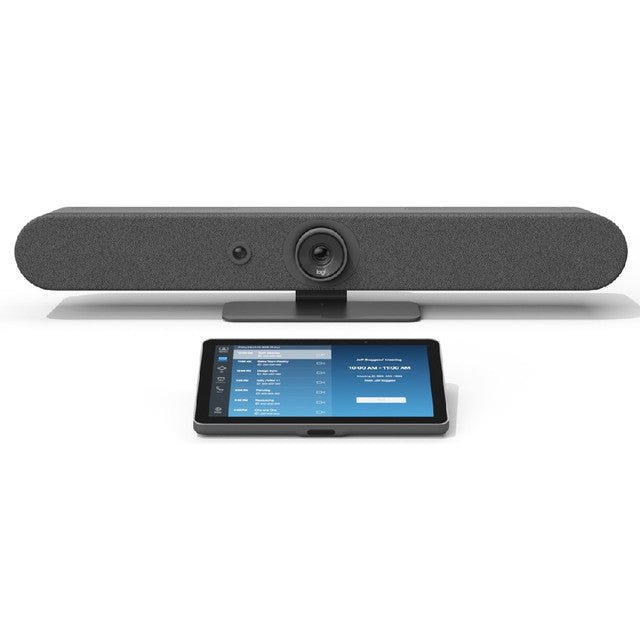

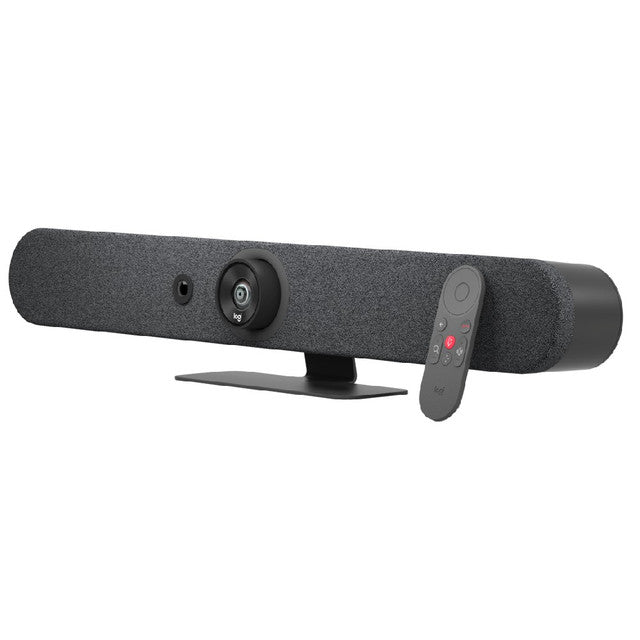

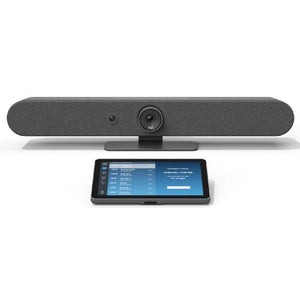

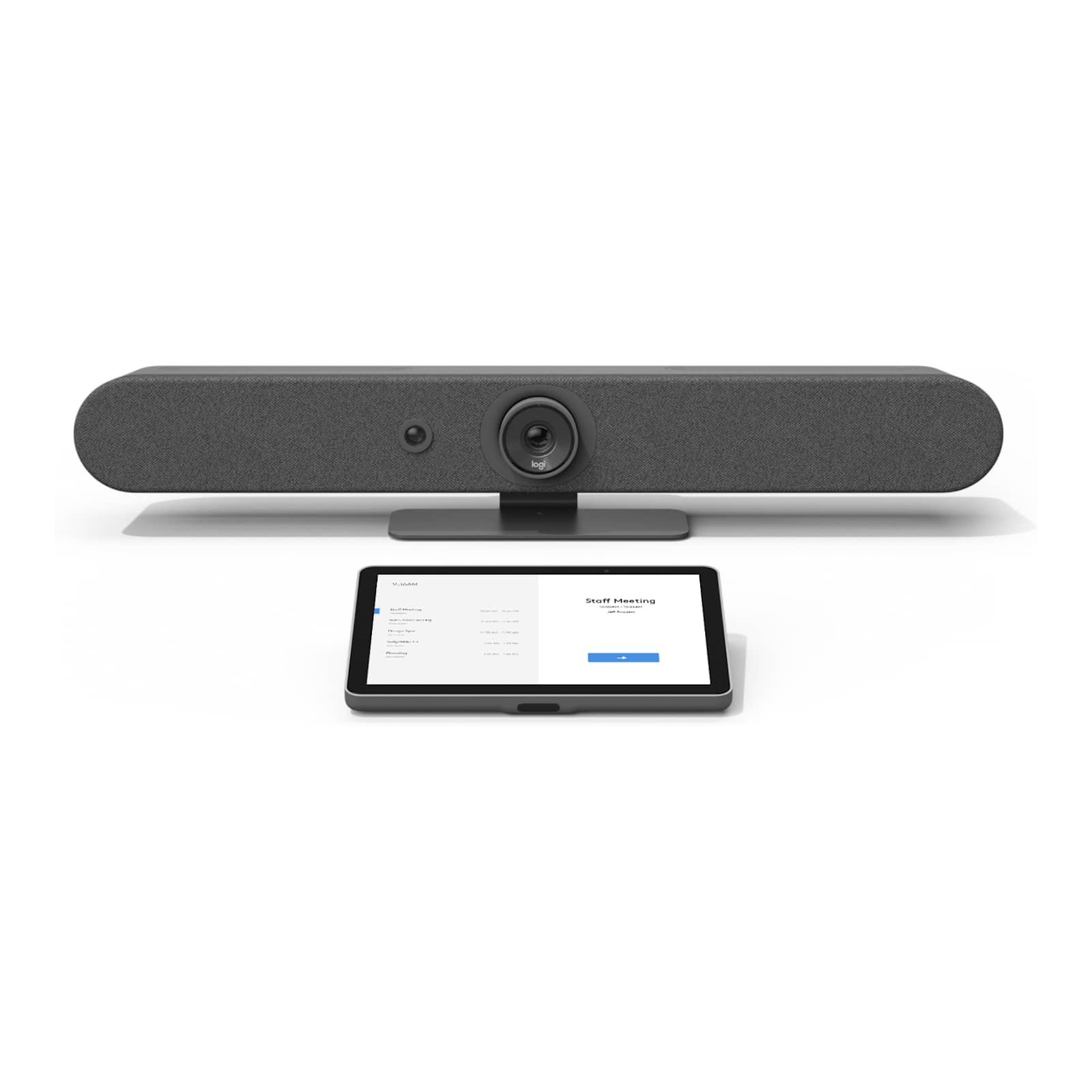

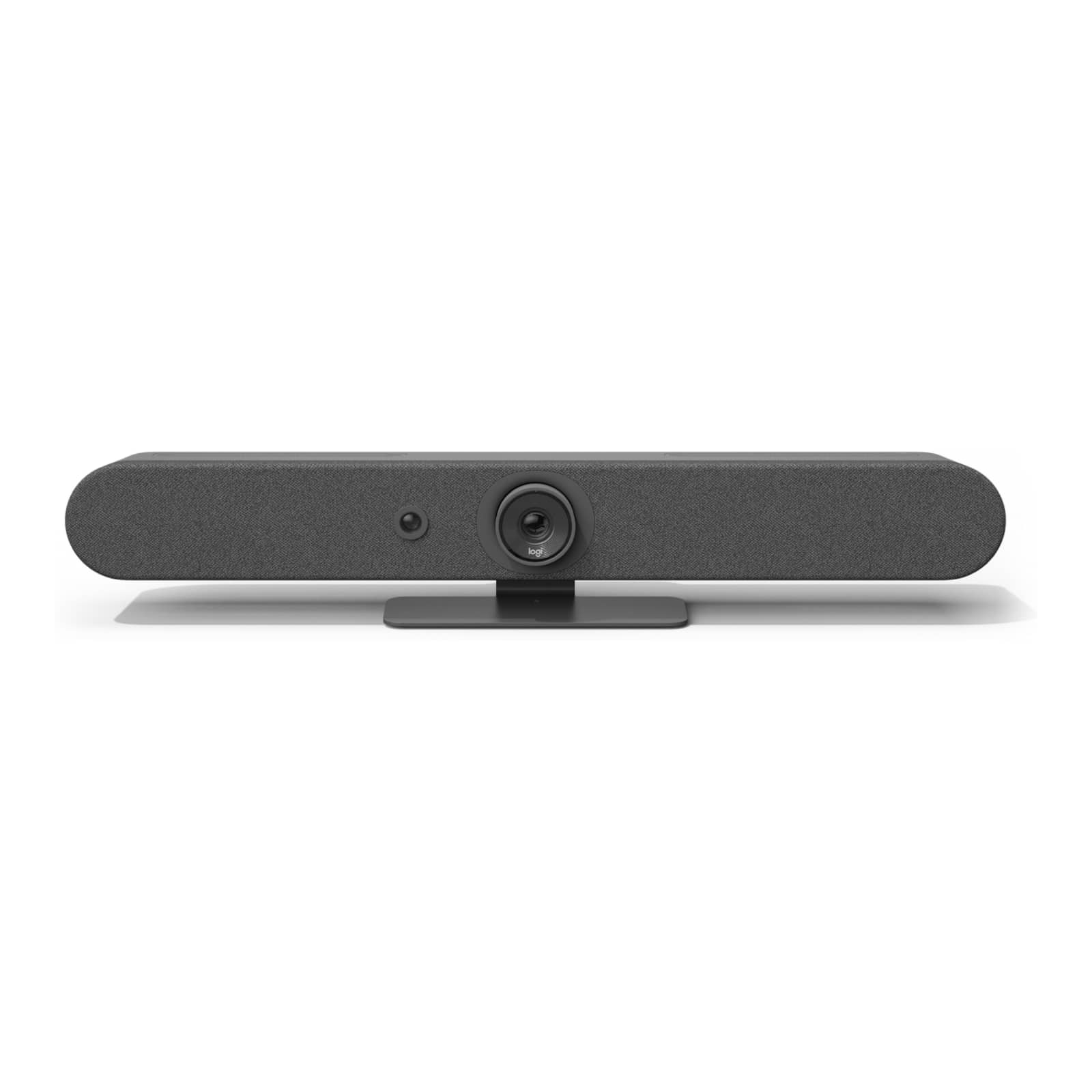

This bundle (991-000389) pairs the Logitech Rally Bar Mini (960-001340) all-in-one video bar with the Logitech Tap IP touch controller (952-000085), giving you everything needed for a permanently installed, one-touch-join meeting room. Rally Bar Mini is built for small and medium meeting rooms, with an ultra-wide 120° camera, six beamforming microphones reaching 7 m and a three-speaker audio system.
One-Touch Join on a 10.1-Inch Touch Controller

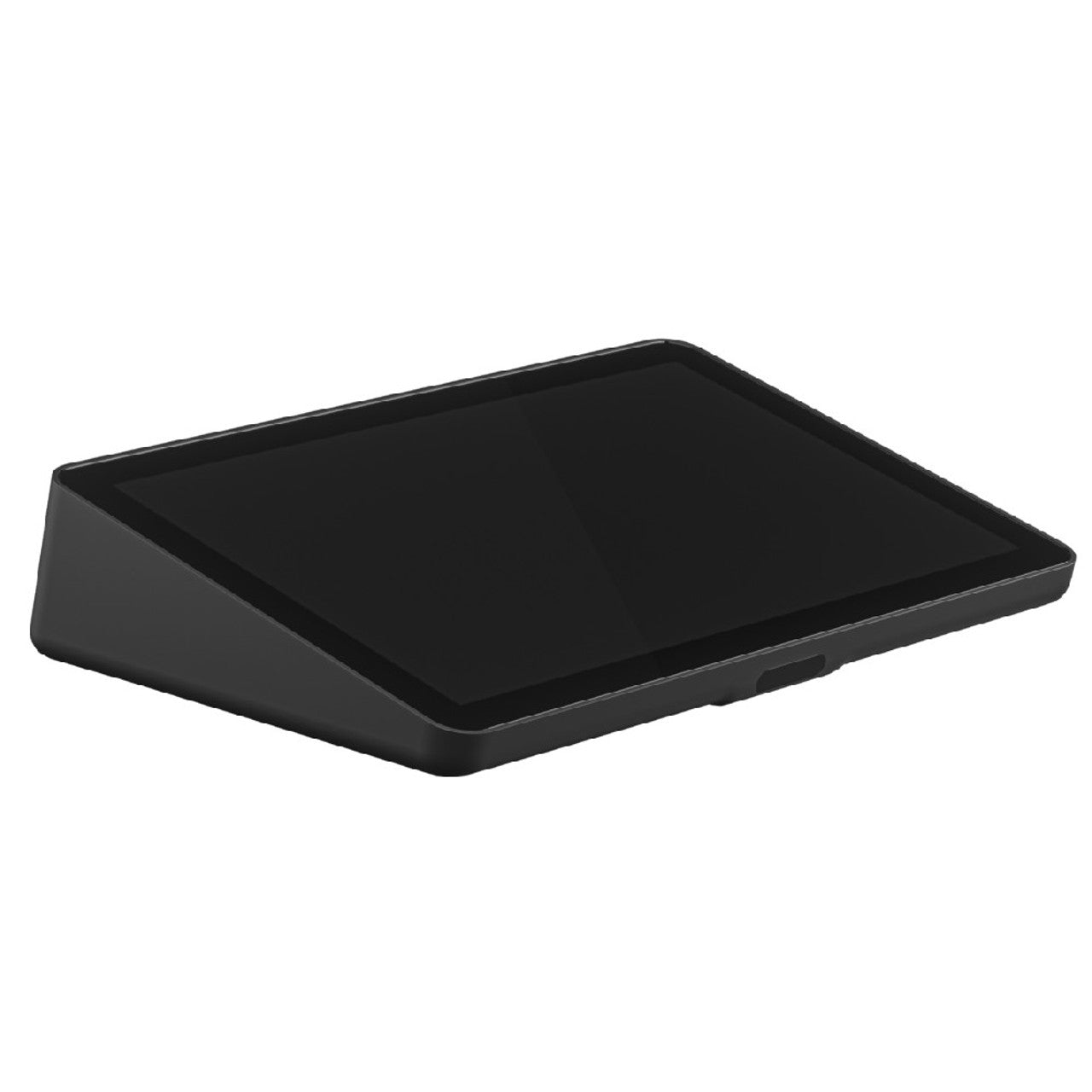

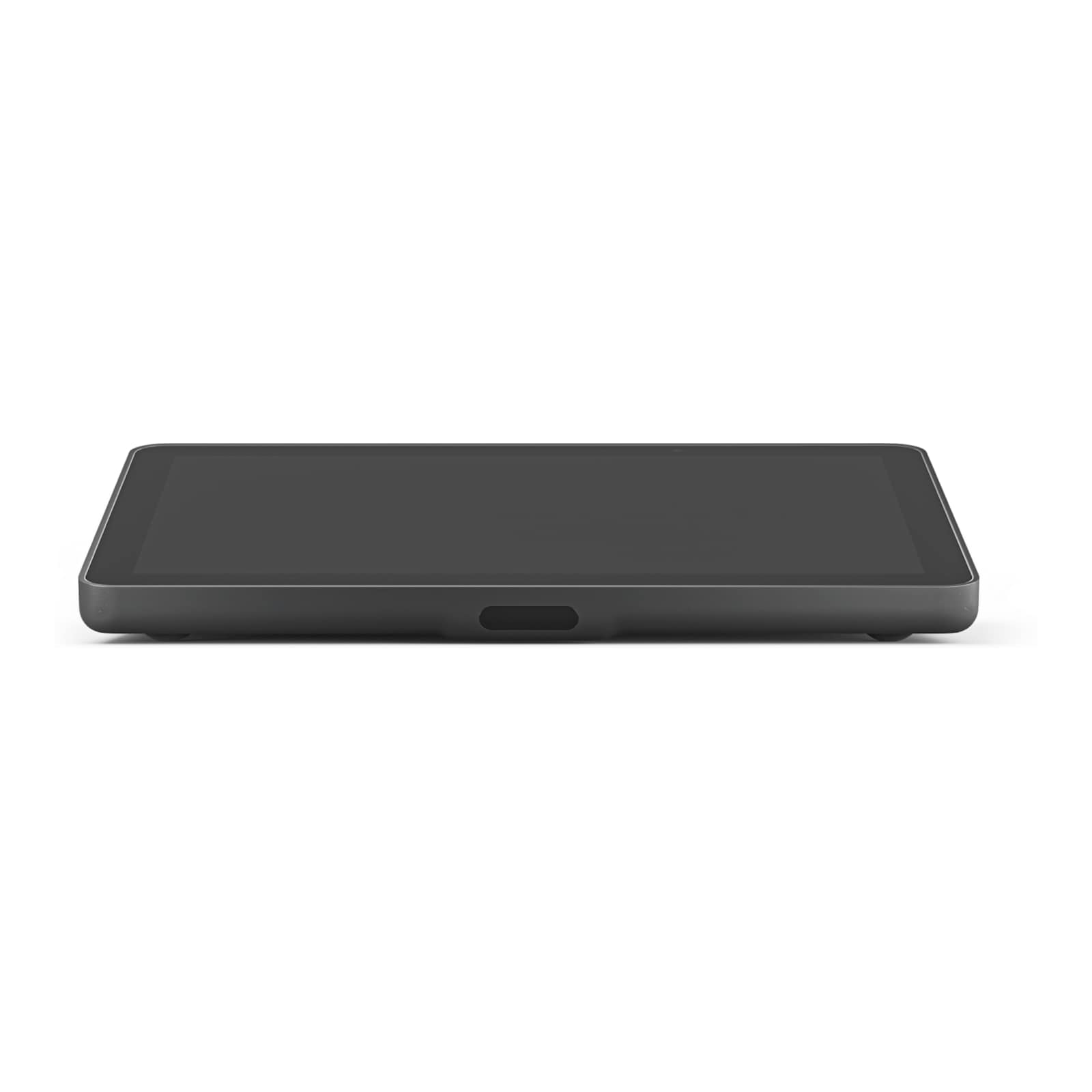

Tap IP puts the meeting calendar on a 10.1-inch 1280 x 800 IPS touchscreen with a 10-point capacitive, oleophobic surface, so joining a scheduled meeting is a single tap rather than a hunt for a laptop cable. It mounts on the table, on a riser or on a wall using the 100 x 100 mm VESA interface.
Single Cable Install with Power over Ethernet
Tap IP is powered and networked over one IEEE 802.3af Type 1 Class 3 PoE cable, so there is no power brick at the table and no USB run across the room. That makes for a much tidier installation in a fitted-out Singapore office and simplifies cable management in glass-walled meeting rooms.
Native Room System, Centrally Managed
The video bar provides built-in compute running Logitech CollabOS, so the room runs Microsoft Teams Rooms or Zoom Rooms natively with no PC. Logitech Sync gives IT central firmware updates, device health monitoring and room usage analytics across every room you deploy.
Logitech Rally Bar Mini + Tap IP Datasheet — Technical Specifications
General
| Part Number | 960-001340 |
| Colour | Graphite |
| Product series | Logitech Rally Bar Mini all-in-one video bar |
| Room size | Small to medium meeting rooms |
| Operating system | Logitech CollabOS (appliance mode) or USB mode |
| Operating temperature | 0 to 40 °C |
| Warranty | 2 Years Local Warranty (Singapore) |
Camera
| Resolution | 4K, 1440p, 1080p, 900p, 720p and SD at 30 fps |
| Zoom | 4X HD digital zoom |
| Field of view | 120° diagonal / 113° horizontal / 80.7° vertical |
| Pan / tilt | Motorised, ±25° pan and ±15° tilt |
| Total room coverage | 163° horizontal x 110° vertical |
| AI Viewfinder (second camera) | 174° diagonal / 150° horizontal field of view |
| AI framing | RightSight auto-framing, Grid View participant framing |
| Image processing | RightLight for natural skin tones in mixed lighting |
Audio
| Speakers | 3 speakers — 1 x 70 mm (2.7 in) woofer and 2 x 43 mm (1.69 in) midrange |
| Rated power | Woofer 8 W; midrange 4 W |
| Speaker sensitivity | Woofer 92 dB SPL at 1 W, 99 dB SPL at 8 W; midrange 84 dB SPL at 1 W / 1 m |
| Microphones | 6 omnidirectional digital MEMS microphones |
| Beamforming | 5 adaptive acoustic broadside beams |
| Microphone pickup range | 7 m (23 ft) |
| Microphone frequency response | 90 Hz – 16 kHz |
| Microphone sensitivity | greater than -36 dBFS ±1 dB at 1 Pa |
| Sampling rate | 48 kHz |
| Audio processing | Acoustic Echo Cancellation, Voice Activity Detector, AI noise suppression (RightSound) |
| Microphone expansion | Up to 3 Rally Mic Pods and 2 Rally Mic Pod Hubs |
Connectivity
| HDMI out | 2 (up to 1080p), HDMI 1.4 |
| HDMI in | 1, HDMI 1.4 |
| USB | 3 x Type-A, 1 x Type-C |
| Ethernet | 10/100/1G |
| Wi-Fi | 802.11a/b/g/n/ac (MIMO) |
| Bluetooth | Bluetooth Low Energy (remote control) |
| External microphone input | Proprietary input for Rally Mic Pod and Mic Pod Hub |
| Security slot | Kensington Security Slot |
Design & Power
| Dimensions (W x H x D) | 719 x 91.4 x 101 mm |
| Weight | 4.03 kg |
| Recycled content | 36% certified post-consumer recycled plastic |
| Mounting | Integrated table stand; optional Wall Mount or TV Mount for Video Bars |
| Power input | 100–240 V, 19 V, 4.74 A |
| Power supply | 90 W 19 V (part number 993-001943) |
| Heat output | 57 BTU/hr idle, 64 BTU/hr in meeting |
| Colours available | Graphite, White |
Logitech Tap IP touch controller
| Part Number | 952-000085 (Graphite) |
| Display | 10.1" diagonal IPS LCD with LED backlight, 1280 x 800 |
| Brightness / contrast | 400 nits, 1000:1 |
| Touch | Capacitive, 10-point multi-touch, oleophobic coating |
| Viewing angle | 85° up, down, left and right; 14° display tilt |
| Power | Power over Ethernet, IEEE 802.3af Type 1 Class 3 — single cable, no separate PSU |
| Ethernet | 10/100 Mbps |
| Wi-Fi | 802.11a/b/g/n/ac |
| Bluetooth | 5.0 |
| Mounting | 100 x 100 mm VESA FDMI; optional Table, Riser and Wall Mounts |
| Dimensions (W x D x H) | 246.2 x 171.3 x 56.1 mm |
| Weight | 1.0 kg |
| Platforms | Microsoft Teams Rooms on Android and Zoom Rooms |
| Security | Full disk AES-128 encryption, device attestation |
| Warranty | 2 Years Local Warranty (Singapore) |
Compatibility & Software Support
Logitech Rally Bar runs Logitech CollabOS and works two ways. In appliance mode it uses its own built-in compute to run the meeting room natively, with no room PC required (a room solution software licence is purchased separately). In USB mode it behaves as a high-end USB camera and speakerphone for a room PC, a Mac or a visitor's laptop, so the same hardware serves both a standardised room platform and bring-your-own-device meetings.
Logitech's CollabOS certification matrix lists this model as certified for Zoom Rooms Appliance, Zoom Rooms for Windows and Mac, Microsoft Teams Rooms on Android, Microsoft Teams Rooms on Windows (with a room PC), Google Meet on ChromeOS and the Meet compute box, Google Meet on Android, and Tencent.
Deployments are monitored and updated centrally through Logitech Sync, which handles firmware, device health and room insights across a fleet — useful for Singapore organisations running meeting rooms across multiple sites or buildings.
Package Contents & Rally Bar Family Ordering Information
In the box: Rally Bar Mini, power supply (90 W 19 V, part number 993-001943), AC power cord, HDMI cable, USB cable, remote control, lens caps for the main lens and AI Viewfinder, and user documentation.
Tap IP in the box: Tap IP touch controller, four VESA mounting screws, microfibre cloth and documentation.
Logitech video bar range at SourceIT:
| Model | Part Number |
| Logitech Rally Bar Graphite | 960-001312 |
| Logitech Rally Bar White | 960-001324 |
| Logitech Rally Bar + Tap IP Bundle | 991-000423 |
| Logitech Rally Bar Mini Graphite | 960-001340 |
| Logitech Rally Bar Mini White | 960-001352 |
| Logitech Rally Bar Mini + Tap IP Bundle (this listing) | 991-000389 |
| Logitech Rally Bar Huddle Graphite | 960-001577 |
| Logitech Rally Bar Huddle + Tap IP Bundle | 991-000482 |
Datasheet & Downloads
Frequently Asked Questions — Logitech Rally Bar Mini + Tap IP Bundle
What exactly is included in this bundle?
The Logitech Rally Bar Mini video bar (960-001340) and the Logitech Tap IP touch controller (952-000085), each with its own accessories as listed under Package Contents. A room solution software licence for Microsoft Teams Rooms or Zoom Rooms is purchased separately.
Do I need anything else to complete the room?
You will need a display with an HDMI input, a network drop for the video bar, and a Power over Ethernet drop or PoE injector for Tap IP. A room solution licence is also required for appliance mode.
Does Tap IP need its own power supply?
No. Tap IP draws power over Ethernet to IEEE 802.3af Type 1 Class 3, so a single cable carries both network and power to the table.
Can I buy the video bar without the controller?
Yes — SourceIT stocks the standalone bars as well. See the ordering table above for every part number in the Logitech video bar range.
Which room size does this bundle suit?
Small to medium meeting rooms. For medium to large rooms see the Rally Bar + Tap IP bundle, and for huddle rooms of up to six people the Rally Bar Huddle + Tap IP bundle.
Can I add expansion microphones to this room?
Yes. Rally Bar Mini supports up to three Rally Mic Pods and two Mic Pod Hubs.
Does it come with a local warranty?
Yes. Every Logitech Rally Bar Mini + Tap IP bundle sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
