Yealink MeetingBar A40 All-In-One Android Video Bar with CTP 25
PRODUCT DESCRIPTION
Yealink MeetingBar A40 All-In-One Android Video Bar with CTP25 Touch Panel (1206676) - 2 Years Local Warranty

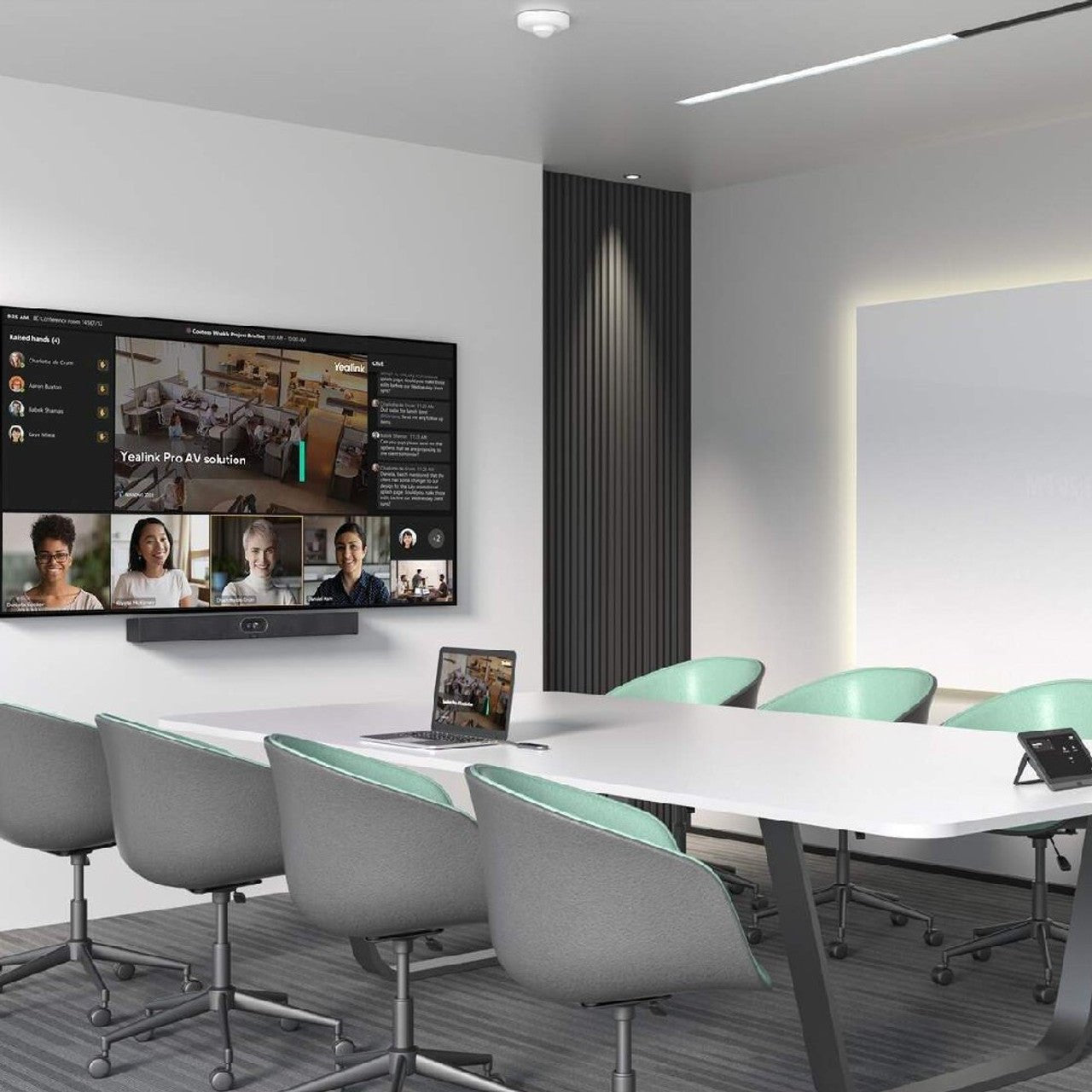

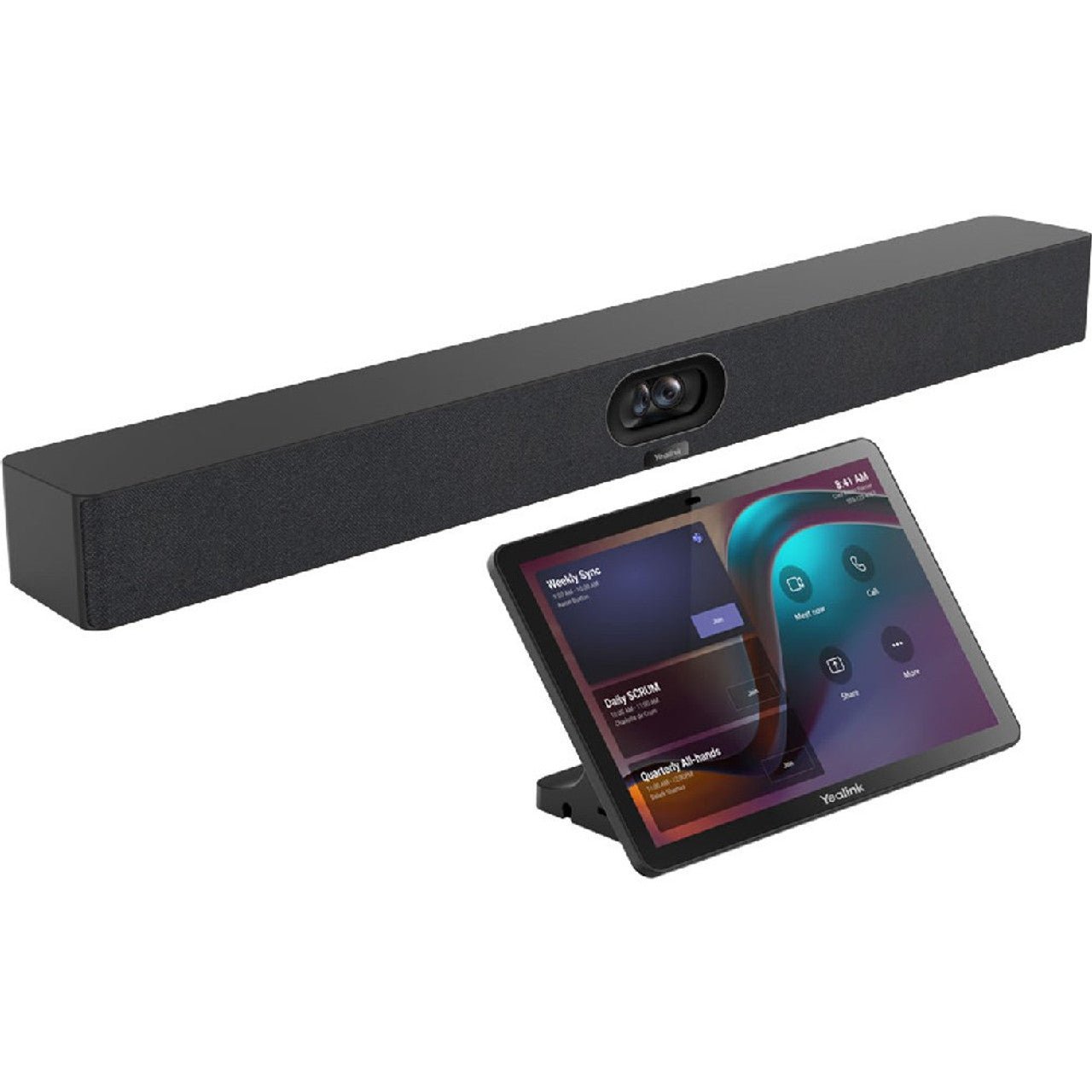

Complete Room Kit for Small to Medium Rooms: A40 + CTP25
The Yealink MeetingBar A40 with CTP25 (A40-031 bundle) is a complete premium room kit for small-to-medium meeting rooms in Singapore. The A40 video bar stitches two 48 MP lenses into one ultra-sharp 110° picture with dual 10 W stereo speakers and an 8 MEMS microphone array, while the CTP25 10.1-inch touch console brings one-touch join, wired BYOD, 4K content sharing and laptop charging to the meeting table.

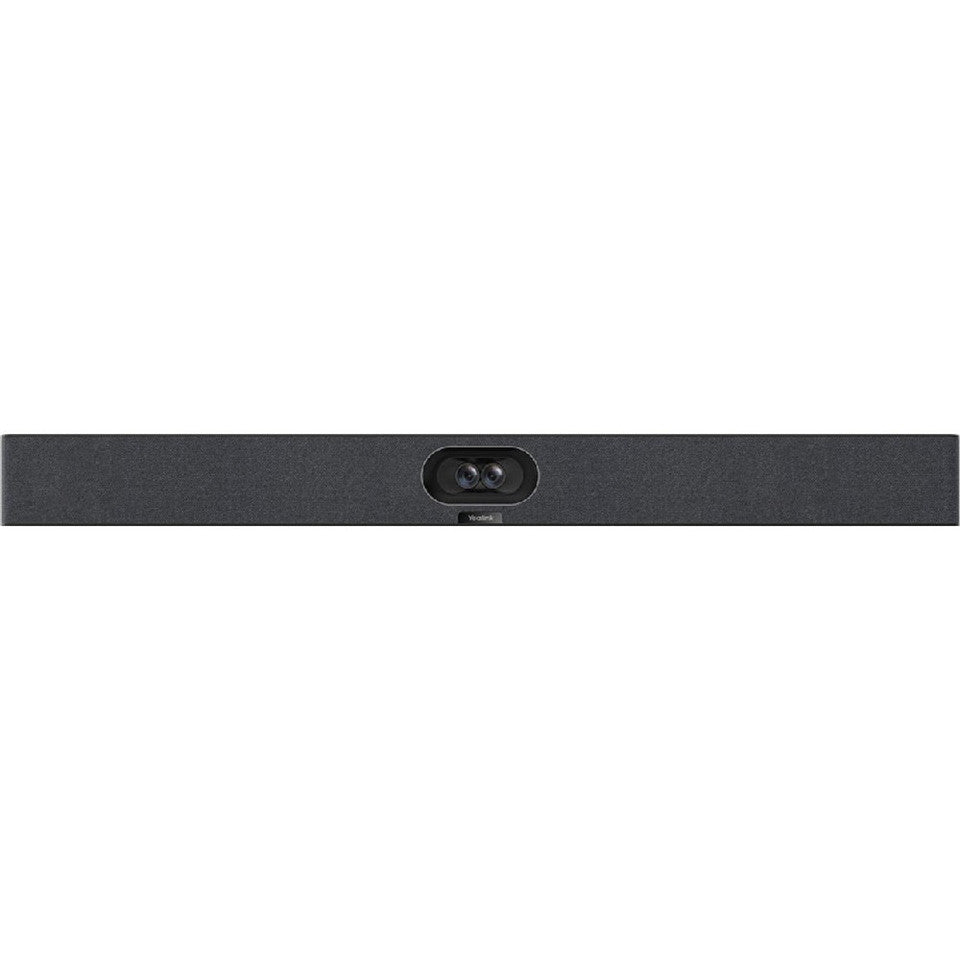

Dual 48 MP Lenses with 4K60 Output and AI Framing
Two 48 MP sensors combine for higher pixel density across a 120° diagonal (110° horizontal) field of view with up to 4K 60 fps output, 6x digital zoom and wide dynamic range. IntelliFocus, Auto Framing, Speaker Tracking, People Counting, Picture-in-Picture and Multi-focus Framing keep everyone clearly visible — with Smart Gallery on Zoom — and an electric privacy lens cap covers the camera between meetings.
Immersive Stereo Audio with 8 MEMS Microphones
The 8 MEMS array picks up voices to 6 m (4 m high-quality) with 3 m full-duplex, AI-enhanced noise cancellation, Audio Fence and reverberation suppression. Dual 10 W stereo speakers deliver rich audio up to 112 dB SPL, and the A40 supports two optional expansion microphones for longer tables.
Single-Cable CTP25: Touch Control, Wired BYOD and Laptop Charging
The CTP25 connects to the A40 with one Cat5e cable carrying power and network, enabling a simplified single login. One USB-C cable to a laptop delivers 4K content sharing, wired BYOD on any platform and PD charging up to 45 W. The bundle includes a 65 W PD adapter, 7.5 m network cable, high stand and cable management cover.
Yealink MeetingBar A40 Datasheet — Technical Specifications
| Model | Yealink MeetingBar A40 + CTP25 (A40-031 kit) |
| Part Number (SKU) | 1206676 |
| Product Type | All-in-one Android video bar + touch console bundle |
| Operating System | Android 13, built on Microsoft Device Ecosystem Platform (MDEP) |
| Platforms | Native Microsoft Teams Rooms on Android; Zoom Rooms (certified) |
| Warranty | 2 Years Local Warranty (Singapore) |
| Camera | Dual-lens stitching system, 2 x 48 MP sensors |
| Field of View | 120° diagonal / 110° horizontal / 54° vertical |
| Max Resolution | 3840 x 2160, up to 4K 60 fps / 1080p 60 fps output |
| Zoom | 6x digital zoom |
| Imaging | Wide dynamic range (WDR) |
| Privacy | Electric privacy lens cap |
| AI Camera Features | IntelliFocus, Auto Framing, Speaker Tracking, People Counting, Picture-in-Picture, Multi-focus Framing, Smart Gallery (Zoom) |
| Microphones | Built-in 8 MEMS microphone array |
| Voice Pickup Range | 6 m (4 m high-quality), 3 m full-duplex |
| Noise Cancellation | AI-enhanced noise cancellation, Audio Fence, reverberation suppression |
| Expansion Microphones | Supports 2 additional expansion microphones |
| Speakers | 2 x 10 W stereo speakers, up to 112 dB SPL, 100 Hz – 16 kHz |

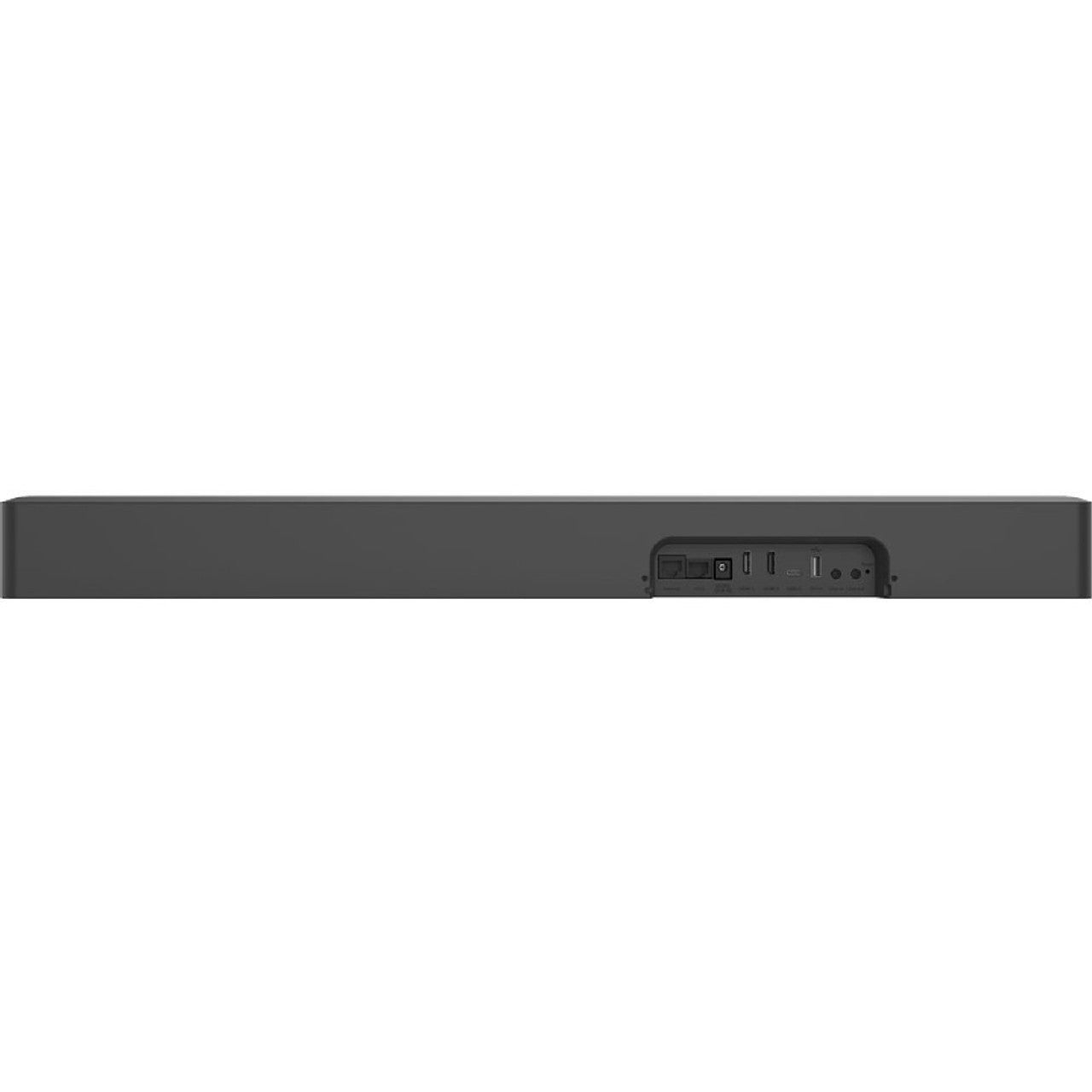

| A40 Connectivity | 2 x HDMI out (dual display); 1 x USB 2.0 Type-A; USB Type-C; Gigabit Ethernet; Yealink VCH port; 3.5 mm line-in & line-out; Wi-Fi 6; Bluetooth 5.0 |
| A40 Dimensions | 650 x 62 x 80 mm |
| A40 Mounting | Wall mount and TV-clip mount included |
| CTP25 Display | 10.1-inch IPS, 1280 x 800, multi-point capacitive touch, anti-glare and anti-fingerprint coating |
| CTP25 Connection | Single Cat5e cable to the bar (power + network) or via IP; PoE 802.3af |
| CTP25 USB-C | 4K content sharing, wired BYOD, PD charging up to 45 W |
| CTP25 Dimensions | 242.95 x 27.50 x 161.95 mm, 0.683 kg |
Compatibility & Software Support
The MeetingBar A40 runs native Microsoft Teams Rooms on Android and is Zoom Rooms certified; the CTP25 mirrors the same platform interface at the table. Wired BYOD through the CTP25 lets the room's camera and audio serve Google Meet, Webex or any other app on a connected laptop. The optional VCH51 sharing kit adds HDMI input, and VCM35 / VCM36-W expansion microphones and CM20 ceiling audio extend coverage.
Device management: Yealink HTTPS web portal, Yealink Device Management Platform (YDMP), Yealink Management Cloud Service (YMCS), Microsoft Teams Admin Center / Intune and Zoom Device Management.
Package Contents & MeetingBar A40 Ordering Information
Inside the box: MeetingBar A40 with power adapter (3.5 m cable), 2 x 1.8 m HDMI cables, 3 m network cable, TV-clip mount, wall mount, cable cover; CTP25 touch console with 65 W PD power adapter (2 m), 7.5 m network cable, 1.2 m USB-C to USB-C cable, high stand and cable management cover; Quick Start Guides.
| A40-031 (1206676) | MeetingBar A40 + CTP25 touch panel — this listing |
| A40-010 (1206675) | MeetingBar A40 + VCR11 remote control |
Related products: CTP25 touch console (standalone), MeetingBar A25 + CTP25, MeetingBar A50 + CTP25.
Datasheet & Downloads
Frequently Asked Questions — Yealink MeetingBar A40 with CTP25
What does the CTP25 add over the standard A40 kit?
The A40-010 kit ships with the VCR11 remote. This A40-031 bundle adds the CTP25 10.1-inch touch console: one-touch join, call and camera control, wired BYOD, 4K content sharing and up to 45 W laptop charging from the table.
How does the CTP25 connect to the A40?
With a single Cat5e cable carrying power and network from the bar's VCH port — no power outlet needed at the table — plus a simplified single login for both devices.
Does this kit support both Microsoft Teams and Zoom?
Yes. The A40 runs Microsoft Teams Rooms on Android natively and is Zoom Rooms certified; the CTP25 mirrors whichever platform the bar is signed into.
How does this bundle compare with the A25 + CTP25?
The A25 bundle is sized for focus rooms of 2–5 people. The A40 adds dual 48 MP stitched lenses with 4K60 output, 6 m mic pickup, dual 10 W stereo speakers, dual HDMI outputs and expansion-mic support for small-to-medium rooms.
Can I extend microphone coverage?
Yes — the A40 supports two additional expansion microphones such as the VCM35 or wireless VCM36-W.
Does this bundle come with local warranty in Singapore?
Yes. Every MeetingBar A40 with CTP25 sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
