Jabra PanaCast Room Kit Multi with PanaCast 55 VBS, SpeakerMic and Cam Crew
PRODUCT DESCRIPTION
Jabra PanaCast Room Kit Multi with PanaCast 55 VBS, SpeakerMic and Cam Crew (9010-239) - 3 Years Local Warranty
Limited Time Promotion, While Stock Last Only.
Jabra PanaCast Room Kit Multi with PanaCast 55 VBS, SpeakerMic and Cam Crew — Multi-Camera AI Room System for Up to 22 People
The Jabra PanaCast Room Kit Multi with PanaCast 55 VBS, SpeakerMic and Cam Crew (9010-239) is Jabra's largest pre-configured room system: the PanaCast 55 VBS video bar with Jabra Control IP, the PanaCast SpeakerMic for audio coverage up to 11 m, and the three-camera Jabra Cam Crew with Ethernet switch for AI speaker tracking from multiple angles. It is designed for large meeting rooms of up to 22 people and can be expanded further with Cam Crew Add On cameras. In-box provisioning means the whole system self-configures for Microsoft Teams Rooms on Android or Zoom Rooms.

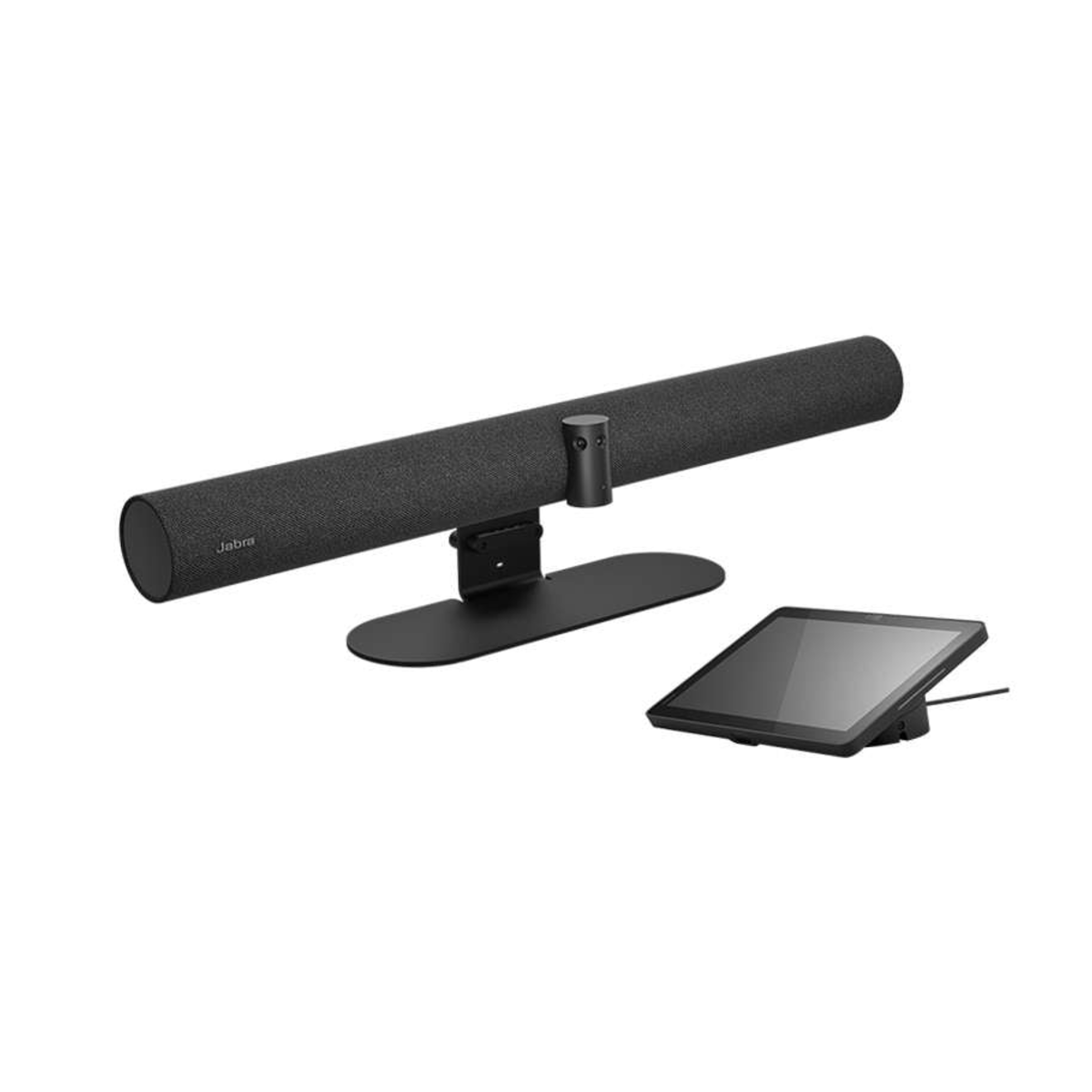

PanaCast 55 VBS: 180° Panoramic Video with On-Device AI
Three cameras deliver a real-time 180° panoramic view at up to 3840 x 1080 with up to 6x lossless zoom, while Intelligent Zoom, Virtual Director, Dynamic Composition and Intelligent Meeting Space keep everyone framed. Built on Microsoft's MDEP Android platform, the bar runs Teams Rooms or Zoom Rooms natively — no room PC required.

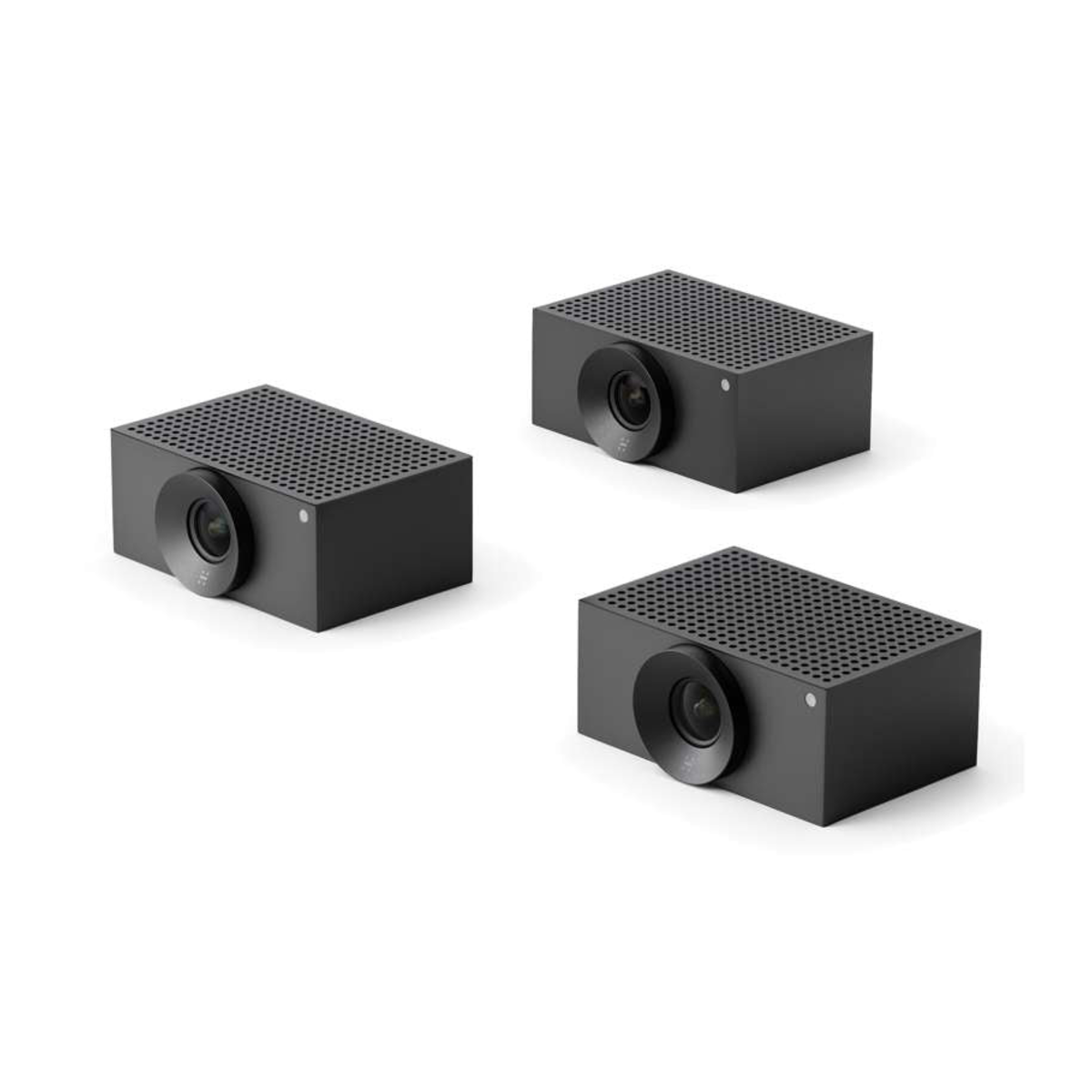

Jabra Cam Crew: Three AI Cameras, One Director
Three Cam Crew cameras (1080p, 92° x 65°, 5x digital zoom) are placed around the room and connected through the included Ethernet switch. Working with the bar, they track whoever is speaking from the best angle while the bar's panoramic view is shown Picture-in-Picture, so remote participants always see both the speaker and the room.

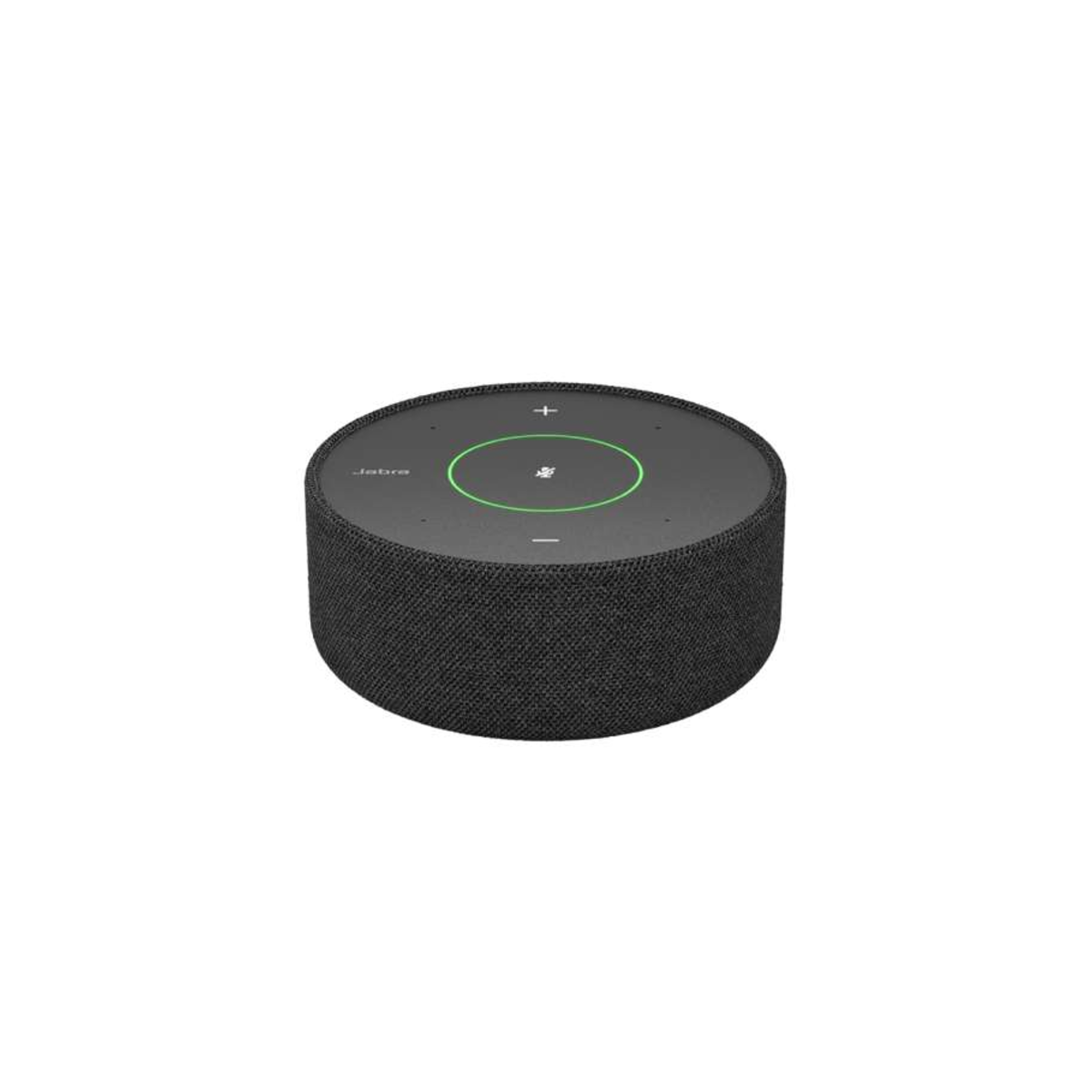

PanaCast SpeakerMic: Audio Coverage to 11 m
Four omnidirectional microphones and a 60 mm speaker at the far end of the table extend the bar's 8-mic beamforming pickup to 11 m, connected over a single Cat6 cable through the included SpeakerMic Adapter.
Jabra PanaCast Room Kit Multi Datasheet — Technical Specifications
General
| Product | Jabra PanaCast Room Kit Multi with PanaCast 55 VBS, SpeakerMic and Cam Crew |
| Part Number | 9010-239 |
| Room Size | Supports up to 22 people; expandable with Cam Crew Add On cameras |
| Warranty | 3 Years Local Warranty (Singapore) — 3-year warranty applies when purchased as a Jabra PanaCast Room Kit Multi |

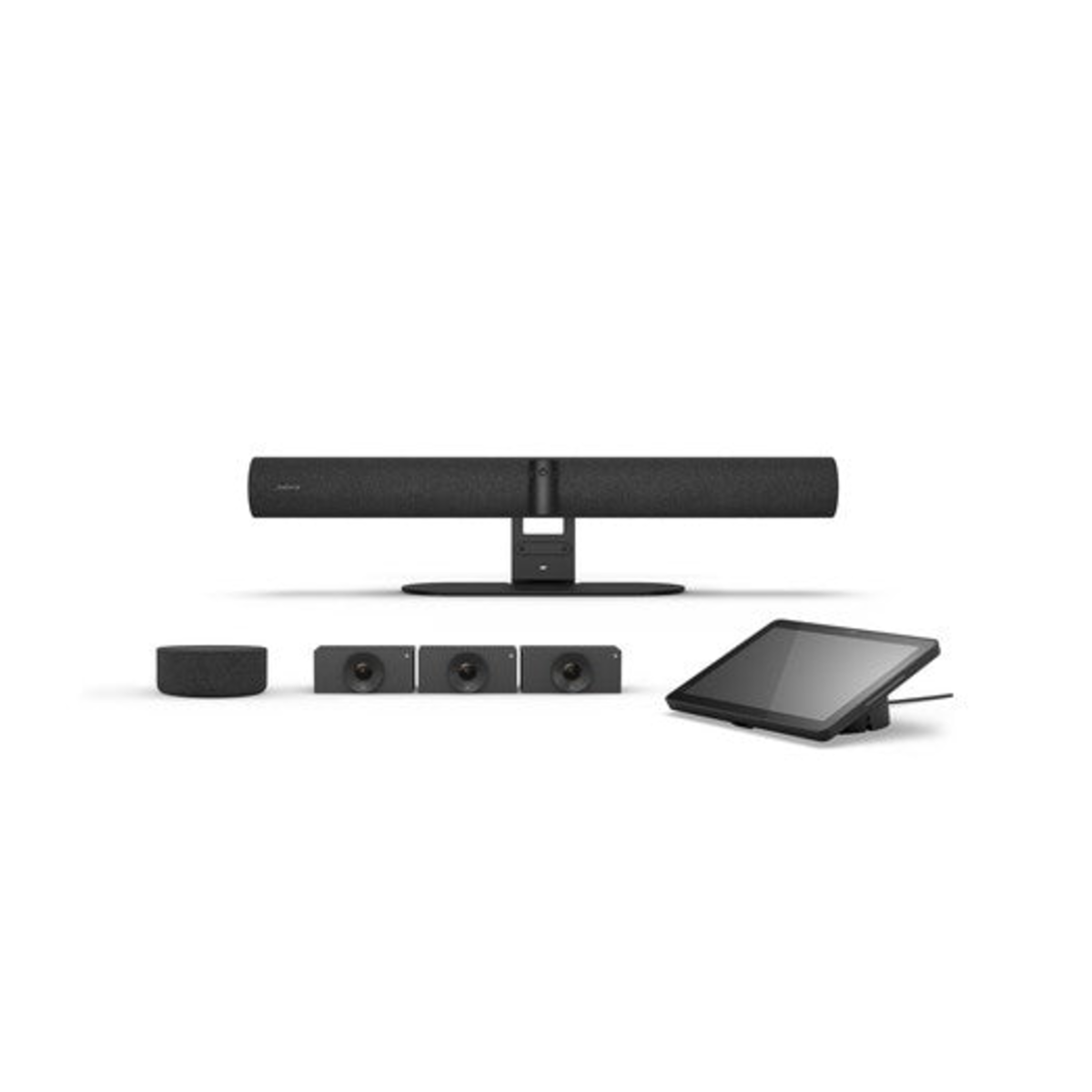

Kit Contents
| Video Bar | Jabra PanaCast 55 VBS with Jabra Control IP touch controller (full VBS box) |
| Audio Extension | Jabra PanaCast SpeakerMic with mounting plate, SpeakerMic Adapter, 3 x table adhesive |
| Multi-Camera System | Jabra Cam Crew — 3 cameras, 4 x 3 m Ethernet cables, 3 x camera wall mounts, USB adapter, 0.6 m USB-C to USB-C, 0.6 m USB-A to USB-C, AC/DC adapter with regional plugs, Ethernet switch with 4 regional power cables |
| Master Box | 210 x 300 x 800 mm; 16,854.3 g |
PanaCast 55 VBS — Video
| Camera Array | 3-camera panoramic array; up to 3840 x 1080 px; 180° x 54° field of view; up to 6x lossless zoom |
| AI Video Features | Intelligent Zoom, Dynamic Composition, Multi-stream Dynamic Composition, Virtual Director, Intelligent Meeting Space, Vivid HDR, People Count; AI speaker tracking with Picture-in-Picture via Cam Crew |
| Video Output | 2 x HDMI, up to 4K |
PanaCast 55 VBS — Audio & Connectivity
| Microphones | 8-mic beamforming array, -37 dBFS, 100 Hz – 16,000 Hz |
| Speakers | 2 x 61 mm woofers + 2 x 33.2 mm tweeters, 80 Hz – 20,000 Hz |
| Audio Coverage | Up to 11 m with SpeakerMic |
| Ports | 2 x HDMI OUT, 1 x HDMI IN, USB-A, 2 x USB-C, RJ45 Ethernet, 3.5 mm aux out |
| Wireless | Wi-Fi 802.11a/b/g/n/ac; Bluetooth 5.1 |
| Platform | MDEP Android 13; Microsoft Teams Rooms on Android / Zoom Rooms; BYOD mode |
| Bar Dimensions / Weight | 730 x 77 x 146 mm; 2,259 g |
| Touch Controller | Jabra Control IP 10.1" 1920 x 1200, PoE with injector |
PanaCast SpeakerMic
| Microphones | 4 omnidirectional microphones; 100 Hz – 18,000 Hz; noise reduction on calls |
| Speaker | 60 mm; 100 Hz – 18,000 Hz |
| Audio Coverage (with PanaCast 55 VBS) | Up to 11 m |
| Controls | On-device touch volume and mute |
| Connection | RJ45 to the bar's USB-C port via the included SpeakerMic Adapter; Cat6/6e/7 cable up to 30 m (not included); 0.5 m USB cable adapter-to-bar |
| Dimensions / Weight | Ø136 x 55 mm; 623 g |
| Materials | Fabric, aluminium, black plastic; IPX2 |
| Operating Temperature | 0°C to 40°C |
| Management | Jabra+, Microsoft Teams Admin Center, Zoom Device Management |
Jabra Cam Crew (per camera)
| Camera Type | Fixed-focus digital PTZ with onboard AI |
| Resolution | Up to 1920 x 1080 |
| Field of View | 92° horizontal / 65° vertical |
| Zoom | Up to 5x digital zoom |
| AI Features | Onboard AI speaker tracking; integrated People Count |
| Dimensions / Weight | 90 x 53 x 122 mm; 0.6 kg |
| Power | 5 V / 3 A external adapter |
| Certifications | Microsoft Teams Rooms; Zoom Rooms |
| Compatible Apps | Microsoft Teams, Zoom Rooms, Huddly Connect App |
| Interfaces | Ethernet RJ45 to the included switch; USB-C to the bar via USB adapter; SuperSpeed USB 3 |
| Cameras in Kit | 3 |
Compatibility & Software Support
The PanaCast Room Kit Multi ships pre-provisioned for in-box setup and runs Microsoft Teams Rooms on Android or Zoom Rooms natively.
| Certifications | Microsoft Teams Rooms; Zoom Rooms |
| Management | Jabra+ for Admins; Jabra Web Console; Microsoft Teams Admin Center; Zoom Device Management |
| Expansion | Jabra Cam Crew Add On (9000-104) cameras for larger spaces — PanaCast 55 supports up to five add-on cameras |
| Room Size | Up to 22 people; audio to 11 m |
Package Contents & Jabra PanaCast Room Kit Multi Ordering Information
In the box: PanaCast 55 VBS video bar, Jabra Control IP with PoE injector, power supply, wall mount, privacy cover, HDMI cable, regional power cable; PanaCast SpeakerMic with mounting plate, SpeakerMic Adapter and table adhesives; Jabra Cam Crew with 3 cameras, 4 x 3 m Ethernet cables, 3 x wall mounts, USB adapter, USB-C and USB-A cables, AC/DC adapter, Ethernet switch and power cables.
Jabra PanaCast 55 family at SourceIT:
| Product | Part Number |
| Jabra PanaCast 55 VBS Video Bar System with Jabra Control IP | 8900-239 |
| Jabra PanaCast 55 VBS Bar Only | 8930-239 |
| Jabra PanaCast Room Kit with PanaCast 55 VBS, SpeakerMic and Cam L1 | 9000-239 |
| Jabra PanaCast Room Kit Multi with PanaCast 55 VBS, SpeakerMic and Cam Crew (this model) | 9010-239 |
| Jabra PanaCast SpeakerMic with SpeakerMic Adapter | 8900-100 |
Datasheet & Downloads
Download the official Jabra documentation for full technical specifications:
Frequently Asked Questions — Jabra PanaCast Room Kit Multi
Q: What is the difference between the Room Kit Multi and the Room Kit?
A: The Room Kit Multi includes the three-camera Jabra Cam Crew and Ethernet switch for rooms up to 22 people; the Jabra PanaCast Room Kit with PanaCast 55 VBS, SpeakerMic and Cam L1 (9000-239) includes a single Cam L1 for rooms up to 16 participants. Both include the PanaCast 55 VBS with Control IP and the SpeakerMic.
Q: Can I add more cameras later?
A: Yes — add Jabra Cam Crew Add On Camera (9000-104) cameras to the Cam Crew; the PanaCast 55 supports up to five add-on cameras.
Q: Do I need a room PC?
A: No. The PanaCast 55 VBS has Android compute built in and runs Microsoft Teams Rooms on Android or Zoom Rooms natively.
Q: Why is the warranty 3 years on the kit?
A: Jabra applies a 3-year warranty when the products are purchased together as a PanaCast Room Kit Multi; bought individually, the PanaCast 55 VBS and SpeakerMic carry 2 years and the Cam Crew carries 3 years.
Q: Does the Jabra PanaCast Room Kit Multi come with warranty in Singapore?
A: Yes. Every Jabra PanaCast Room Kit Multi sold by SourceIT comes with 3 years local Singapore warranty and a GST invoice.
