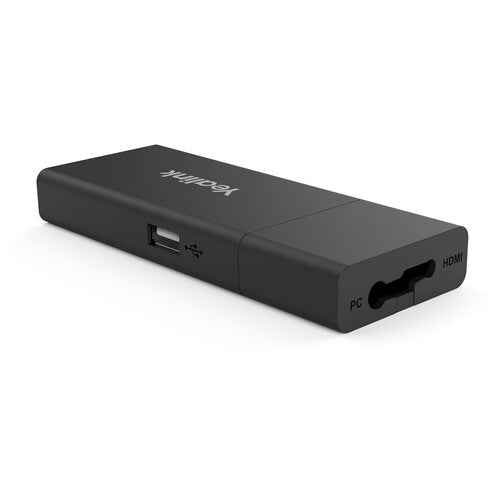

Yealink VCH51 Sharing Box
PRODUCT DESCRIPTION
Yealink VCH51 Sharing Box (1303106) - 2 Years Local Warranty
Simple Wired Content Sharing over HDMI or USB-C
The Yealink VCH51 Sharing Box brings reliable, cable-based content sharing to Yealink video conferencing rooms. Connect your laptop with the included HDMI or USB-C cable and your presentation appears on the room display instantly — no pairing, no software, no fuss. A dependable choice for Singapore meeting rooms where presentations simply have to work.
Sharp Presentations at up to 4K
Share slides, dashboards and documents at up to 4Kp15 on MeetingEye 400/600 systems, and up to 1080p30 on MeetingBar A20/A30 — crisp, readable content for every seat in the room.
BYOD Mode for MeetingBar A20/A30 and MeetingEye 400/600
On supported systems, the VCH51 also enables BYOD: connect over USB-C and use the room's camera and audio devices with the conferencing app on your own laptop. The VCH51 works as a standard audio/video device with most PC applications on Windows and macOS.
Clean Single-Cable PoE Deployment
The VCH51 connects to its host system over a single network cable and is powered via IEEE 802.3af PoE, so the compact box (just 123 x 49 x 16.8 mm, 76 g) sits neatly on the meeting table with a 7.5 m Ethernet cable included for tidy cable runs — ideal for the mid-sized meeting rooms common in Singapore offices.
Yealink VCH51 Datasheet — Technical Specifications
General
| Model | Yealink VCH51 Sharing Box (VCH51 Package) |
| Part Number | 1303106 |
| Product Type | Wired content sharing box with BYOD support |
| Warranty | 2 Years Local Warranty (Singapore) |
Ports & Connectivity
| Network | 1 x 100 Mbps RJ45 port (IEEE 802.3af, full-duplex) |
| USB | 1 x USB 2.0 Type-A; 1 x USB 2.0 Type-C (with DP video input) |
| Video Input | 1 x HDMI video input |
Sharing
| Presentation Resolution | Up to 4Kp15 (MeetingEye 400/600); up to 1080p30 (MeetingBar A20/A30) |
| BYOD | Supported on compatible systems; works as an audio/video device with most PC applications |
| OS Support | Windows 7/8.1/10; macOS 10.6 or higher |
Power
| Power Supply | Power over Ethernet, IEEE 802.3af |
Design
| Dimensions (W x D x H) | 123 x 49 x 16.8 mm |
| Weight | 76 g |
Compatibility & Software Support
| MeetingBar | MeetingBar A20, A30 (content sharing up to 1080p30; BYOD supported) |
| MeetingEye | MeetingEye 400, 600 (content sharing up to 4Kp15; BYOD supported) |
| Laptop OS | Windows 7/8.1/10; macOS 10.6 or higher |
| Applications | Works with most PC applications as a standard audio/video device in BYOD mode |
For newer Yealink rooms (MeetingBar A10/A25/A40/A50, MeetingBoard Pro, MVC/ZVC S-Series), choose the VCH51 Pro instead. Firmware for the VCH51 and its host systems is available on the Yealink Support site.
Package Contents & VCH51 Ordering Information
In the box (VCH51 Package, PN 1303106):
- Yealink VCH51 Sharing Box
- Interface protective cover
- 7.5 m Ethernet cable
- 0.6 m HDMI cable
- 0.6 m USB-C cable
- Quick Start Guide
Yealink wired sharing and BYOD family at SourceIT:
| Yealink VCH51 Sharing Box (this product) | PN 1303106 — wired HDMI/USB-C sharing and BYOD for MeetingBar A20/A30 and MeetingEye 400/600 |
| Yealink VCH51 Pro Content Sharing & BYOD Hub | PN 1303229 — one-cable USB-C hub with 4K/60fps sharing and 65 W PD charging for current MeetingBar/MeetingBoard Pro/MVC/ZVC S-Series rooms |
| Yealink MVC-BYOD-Extender | PN 1303113 — switches Yealink MVC Teams Rooms into BYOD mode over USB |
| Yealink WPP30 Wireless Presentation Pod | Wireless 4K presentation alternative for cable-free sharing |
Datasheet & Downloads
Frequently Asked Questions — Yealink VCH51
What does the Yealink VCH51 Sharing Box do?
It adds wired content sharing to Yealink MeetingBar A20/A30 and MeetingEye 400/600 rooms: plug in the included HDMI or USB-C cable and share your screen at up to 4Kp15 (MeetingEye) or 1080p30 (MeetingBar A20/A30). It also enables BYOD so you can use the room's camera and audio from your own laptop.
What is the difference between the VCH51, VCH51 Pro, MVC-BYOD-Extender and WPP30?
The VCH51 (this product) is the wired sharing box for MeetingBar A20/A30 and MeetingEye 400/600. The VCH51 Pro is the newer one-cable USB-C hub with 4K/60fps sharing and up to 65 W laptop charging for MeetingBar A10/A25/A40/A50, MeetingBoard Pro and MVC/ZVC S-Series. The MVC-BYOD-Extender switches Yealink MVC Teams Rooms into BYOD mode over USB. The WPP30 is a wireless presentation pod if you prefer cable-free sharing.
Which Yealink systems is the VCH51 compatible with?
Yealink lists MeetingEye 400/600 and MeetingBar A20/A30 as supported systems, including BYOD mode. It is not the right choice for the newer A10/A25/A40/A50 bars or MVC/ZVC S-Series kits — use the VCH51 Pro for those.
How is the VCH51 powered and cabled?
It connects to the host system over a single network cable and is powered by PoE (IEEE 802.3af) — no power adapter needed at the table. A 7.5 m Ethernet cable plus 0.6 m HDMI and 0.6 m USB-C laptop cables are included.
Do I need to install software on my laptop?
No. The VCH51 is plug and play on Windows 7/8.1/10 and macOS 10.6 or higher, and in BYOD mode it appears as a standard audio/video device to most PC applications.
Does the VCH51 come with a local warranty in Singapore?
Yes. Every VCH51 sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
