Yealink MeetingBar A40 All-In-One Android Video Bar
PRODUCT DESCRIPTION
Yealink MeetingBar A40 All-In-One Android Video Bar (1206675) - 2 Years Local Warranty

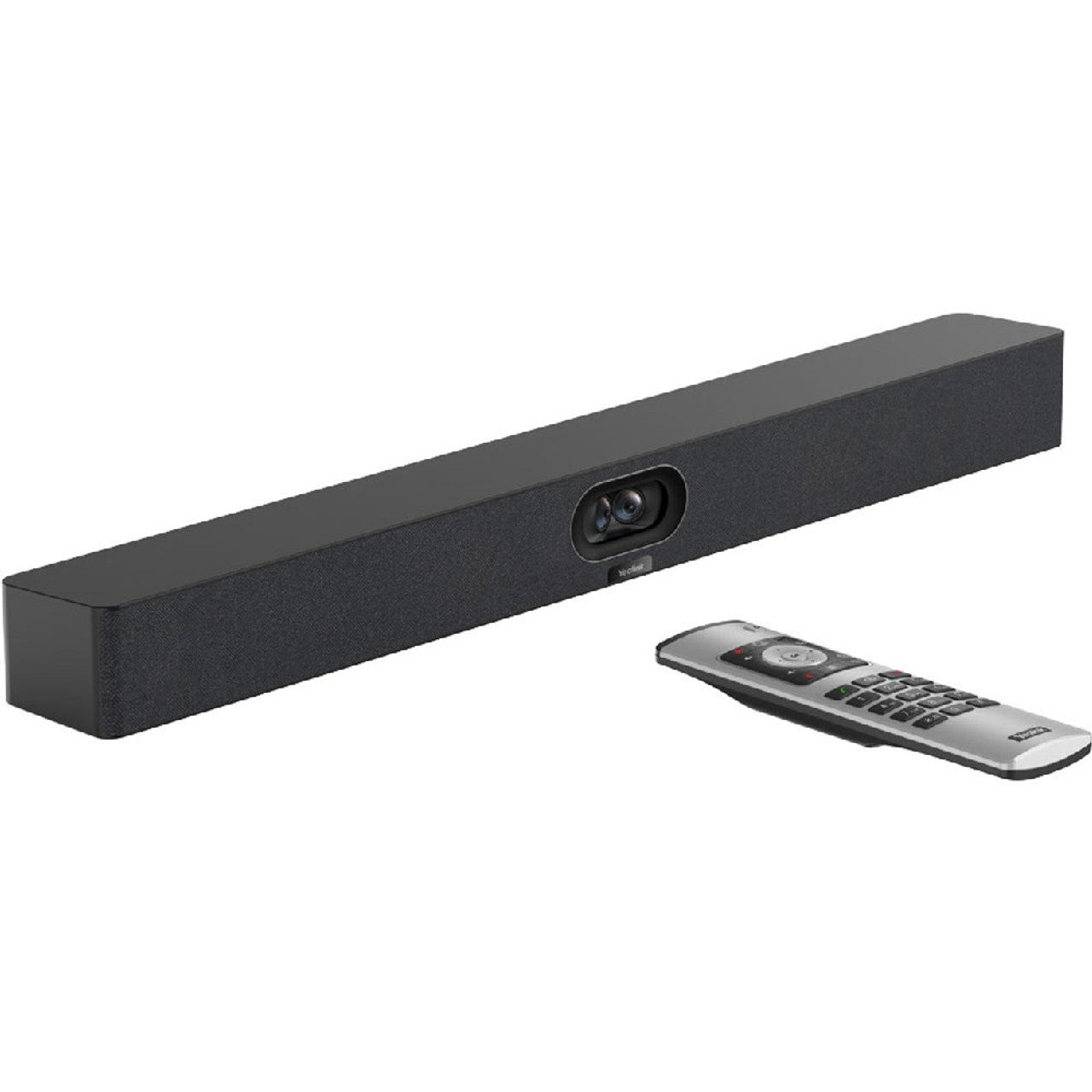

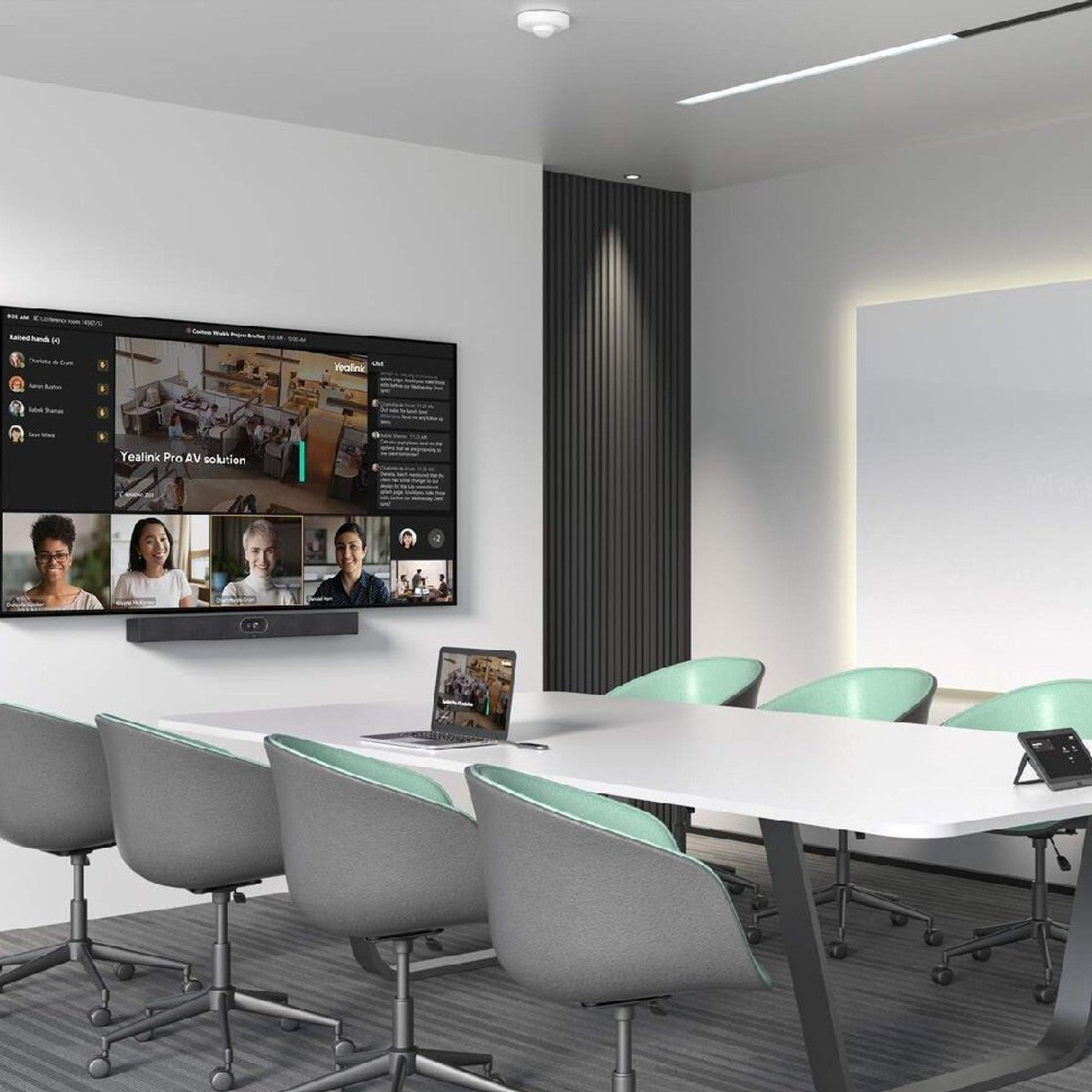

Premium All-In-One Video Bar for Small to Medium Rooms
The Yealink MeetingBar A40 is a premium all-in-one Android video bar built for small-to-medium meeting rooms in Singapore. It stitches the images of two 48 MP lenses into one ultra-sharp 110° picture, and integrates dual 10 W stereo speakers and an 8 MEMS microphone array with 6 m pickup into one refined device — with support for two optional expansion microphones for wider coverage.

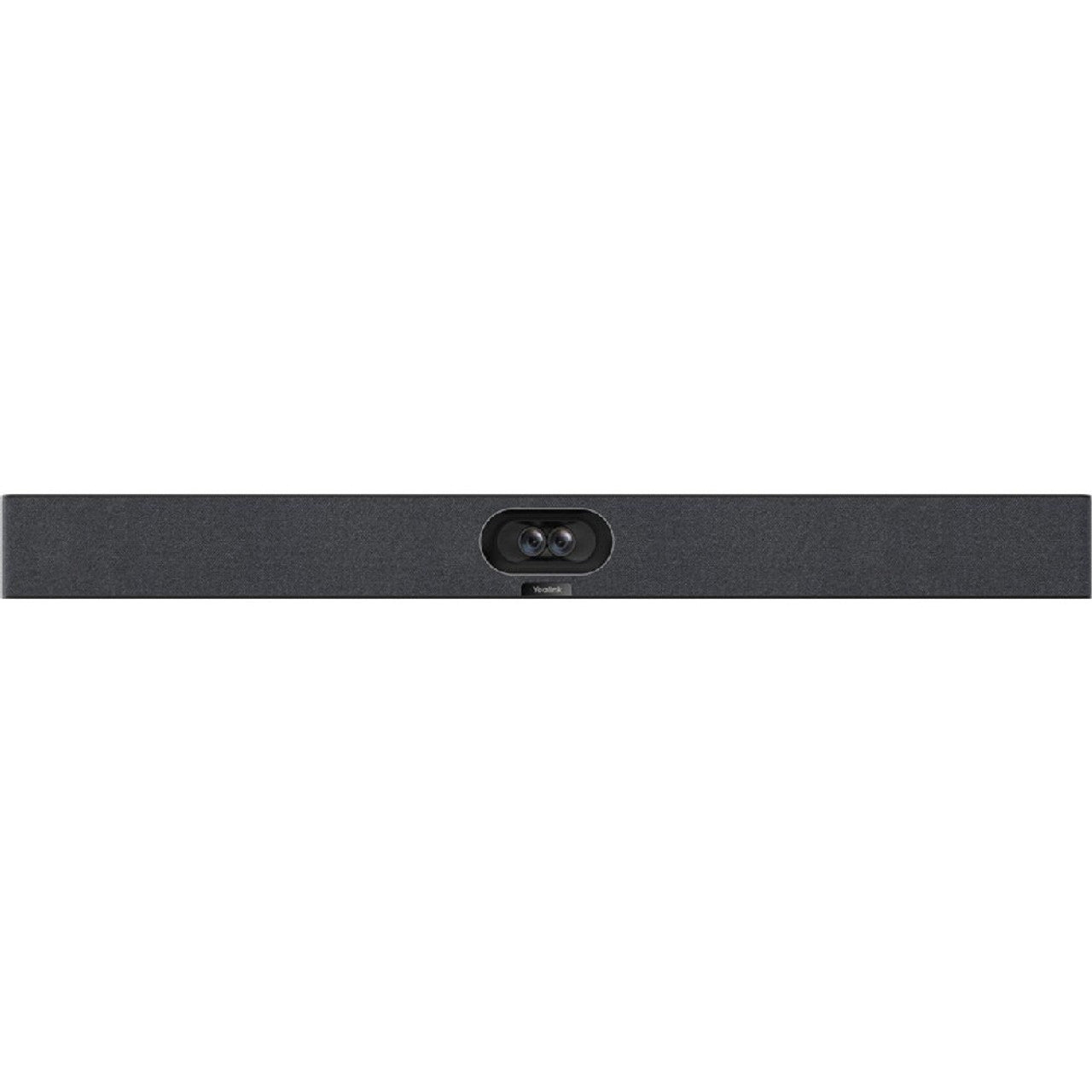

Dual 48 MP Lenses with 4K60 Output and AI Framing
The A40's dual-lens fixed-focus stitching design combines two 48 MP sensors for higher pixel density and sharper detail across a 120° diagonal (110° horizontal) field of view, with up to 4K 60 fps output, 6x digital zoom and wide dynamic range. AI features including IntelliFocus, Auto Framing, Speaker Tracking, People Counting, Picture-in-Picture and Multi-focus Framing keep everyone clearly visible — with Smart Gallery on Zoom — while an electric privacy lens cap covers the camera between meetings.
Immersive Stereo Audio with 8 MEMS Microphones
The 8 MEMS microphone array delivers a 6 m voice pickup range (4 m high-quality) with 3 m full-duplex technology, AI-enhanced noise cancellation, Audio Fence and reverberation suppression. Dual built-in 10 W stereo speakers deliver rich, room-filling audio up to 112 dB SPL with a 100 Hz – 16 kHz response, and two optional expansion microphones extend coverage for longer tables.
Native Teams Rooms and Zoom Rooms on Android 13 with MDEP Security
Running Android 13 and built on the Microsoft Device Ecosystem Platform (MDEP), the A40 supports Microsoft Teams Rooms on Android and is Zoom Rooms certified. Dual HDMI outputs drive two displays, Wi-Fi 6 and Bluetooth 5.0 come built in, and the optional CTP25 touch console connects directly for one-touch control, wired BYOD and 4K sharing.
Yealink MeetingBar A40 Datasheet — Technical Specifications
| Model | Yealink MeetingBar A40 |
| Part Number (SKU) | 1206675 — A40-010 kit (A40 + VCR11 remote) |
| Product Type | All-in-one Android video collaboration bar |
| Operating System | Android 13, built on Microsoft Device Ecosystem Platform (MDEP) |
| Platforms | Native Microsoft Teams Rooms on Android; Zoom Rooms (certified) |
| Warranty | 2 Years Local Warranty (Singapore) |
| Camera | Dual-lens stitching system, 2 x 48 MP sensors |
| Field of View | 120° diagonal / 110° horizontal / 54° vertical |
| Max Resolution | 3840 x 2160, up to 4K 60 fps / 1080p 60 fps output |
| Zoom | 6x digital zoom |
| Imaging | Wide dynamic range (WDR) |
| Privacy | Electric privacy lens cap |
| AI Camera Features | IntelliFocus, Auto Framing, Speaker Tracking, People Counting, Picture-in-Picture, Multi-focus Framing, Smart Gallery (Zoom) |
| Microphones | Built-in 8 MEMS microphone array |
| Voice Pickup Range | 6 m (4 m high-quality), 3 m full-duplex |
| Noise Cancellation | AI-enhanced noise cancellation, Audio Fence, reverberation suppression |
| Expansion Microphones | Supports 2 additional expansion microphones |
| Speakers | 2 x 10 W stereo speakers, up to 112 dB SPL, 100 Hz – 16 kHz |

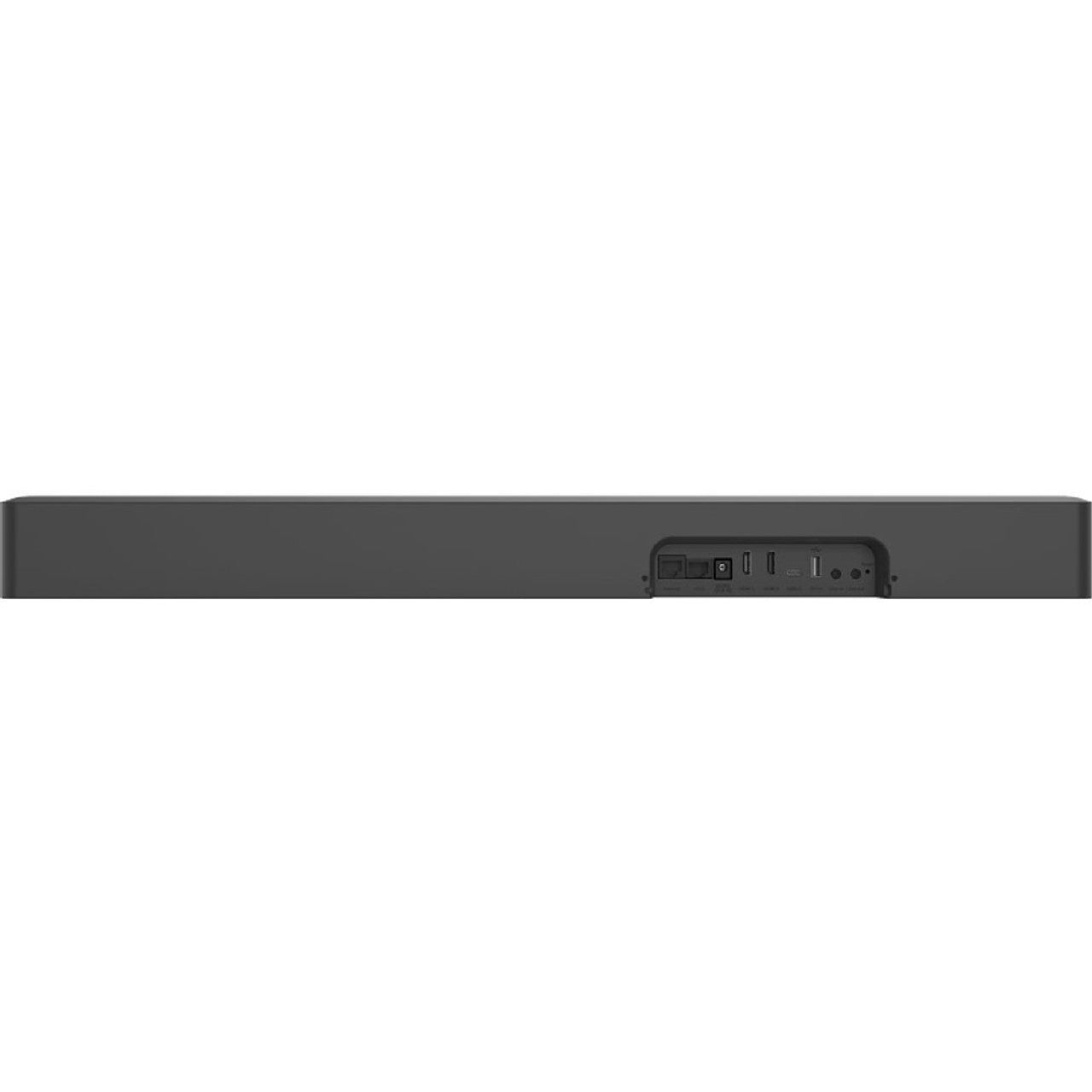

| HDMI | 2 x HDMI output (dual display); HDMI input via optional VCH51 sharing kit |
| USB | 1 x USB 2.0 Type-A, USB Type-C |
| Ethernet | 1 x 10/100/1000 Mbps port |
| Accessory Port | 1 x Yealink VCH port (RJ-45) — direct CTP25 connection |
| Audio Jack | 1 x 3.5 mm line-in & line-out |
| Wi-Fi | Wi-Fi 6 (802.11a/b/g/n/ac/ax), dual-band 2.4 / 5 GHz, 2x2 MIMO |
| Bluetooth | Bluetooth 5.0 |
| Dimensions | 650 x 62 x 80 mm |
| Mounting | Wall mount and TV-clip mount included |
| Power | External power adapter (3.5 m cable) included |
| Operating Conditions | 0–40°C, 10–95% humidity |
Compatibility & Software Support
The MeetingBar A40 runs native Microsoft Teams Rooms on Android and is Zoom Rooms certified. Wired BYOD (General Mode) lets a laptop use the room's camera and audio for Google Meet, Webex or any other platform, and the CTP25 touch console adds single-cable touch control, 4K content sharing and PD laptop charging. The optional VCH51 sharing kit adds HDMI input, and VCM35 / VCM36-W expansion microphones and CM20 ceiling audio extend coverage.
Device management: Yealink HTTPS web portal, Yealink Device Management Platform (YDMP), Yealink Management Cloud Service (YMCS), Microsoft Teams Admin Center / Intune and Zoom Device Management.
Package Contents & MeetingBar A40 Ordering Information
Inside the box: MeetingBar A40, VCR11 remote control, power adapter (3.5 m cable), 2 x 1.8 m HDMI cables, 3 m network cable, TV-clip mount, wall mount, cable cover, Quick Start Guide.
| A40-010 (1206675) | MeetingBar A40 + VCR11 remote — this listing |
| A40-031 (1206676) | MeetingBar A40 + CTP25 touch panel bundle |
Related products: CTP25 touch console, MeetingBar A25, MeetingBar A50.
Datasheet & Downloads
Frequently Asked Questions — Yealink MeetingBar A40
What is the difference between the A40-010 and A40-031?
The A40-010 (this listing) includes the VCR11 remote. The A40-031 bundle adds the CTP25 10.1-inch touch console with a 65 W PD adapter, 7.5 m network cable and high stand for tabletop control and wired BYOD.
How does the A40 compare with the MeetingBar A25?
The A25 suits focus rooms of 2–5 people with a 151° ultra-wide triple-camera system. The A40 steps up to dual 48 MP stitched lenses with 4K60 output, 6 m mic pickup, dual 10 W stereo speakers, dual HDMI outputs and expansion-mic support for small-to-medium rooms.
How does the A40 compare with the MeetingBar A50?
The A50 is the flagship for medium-to-large rooms: triple 50 MP cameras, a 16 MEMS array with 10 m pickup, four speakers and support for three expansion mics.
Does the A40 support two displays?
Yes — dual HDMI outputs support dual-display setups; HDMI input for local presentation is available via the optional VCH51 sharing kit.
Can I extend microphone coverage for a longer table?
Yes. The A40 supports two additional expansion microphones (e.g. VCM35 or wireless VCM36-W), and CM20 ceiling audio is also compatible.
Does the MeetingBar A40 come with local warranty in Singapore?
Yes. Every MeetingBar A40 sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
