Yealink MeetingBar A50 All-In-One Android Video Bar with CTP25
PRODUCT DESCRIPTION

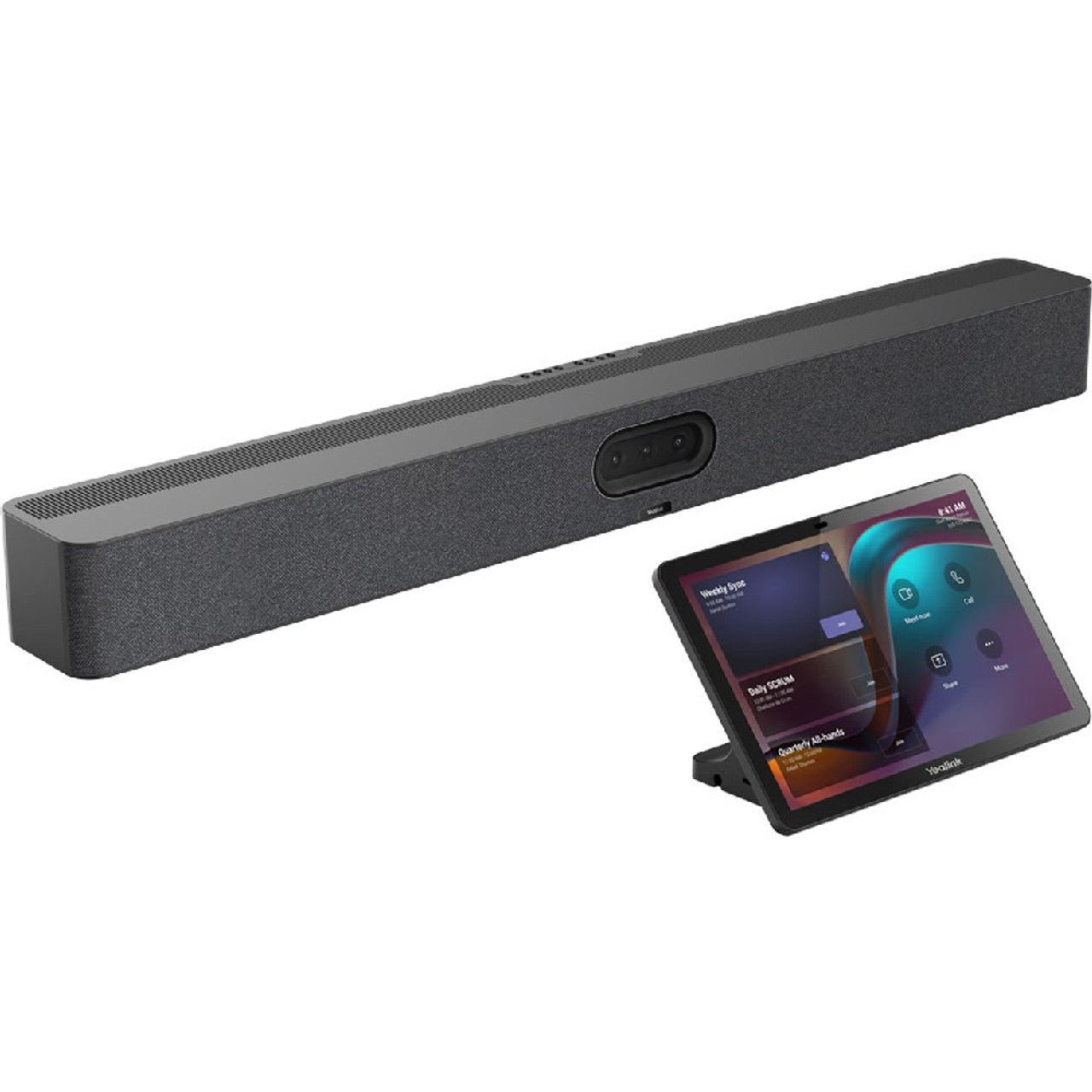

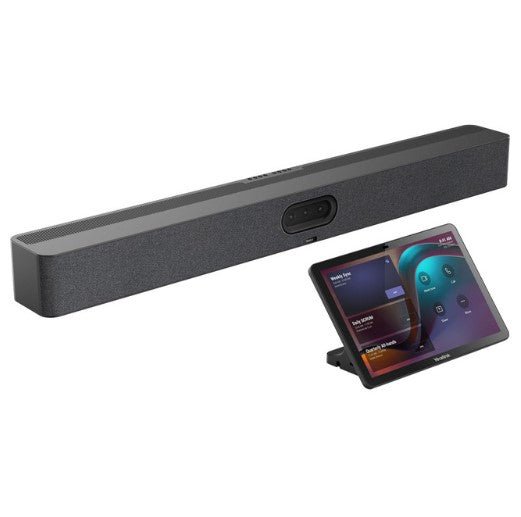

Yealink MeetingBar A50 All-In-One Android Video Bar with CTP25 Touch Panel (1206707) - 2 Years Local Warranty
Complete Flagship Room Kit for Medium and Large Rooms: A50 + CTP25
The Yealink MeetingBar A50 with CTP25 (A50-031 bundle) is a complete flagship room kit for premium medium-to-large meeting rooms of 7–15 people in Singapore. The A50 bar integrates a triple 50 MP camera system, a 16 MEMS microphone array with 10 m pickup and four stereo speakers, while the CTP25 10.1-inch touch console brings one-touch join, wired BYOD, 4K content sharing and laptop charging to the meeting table.

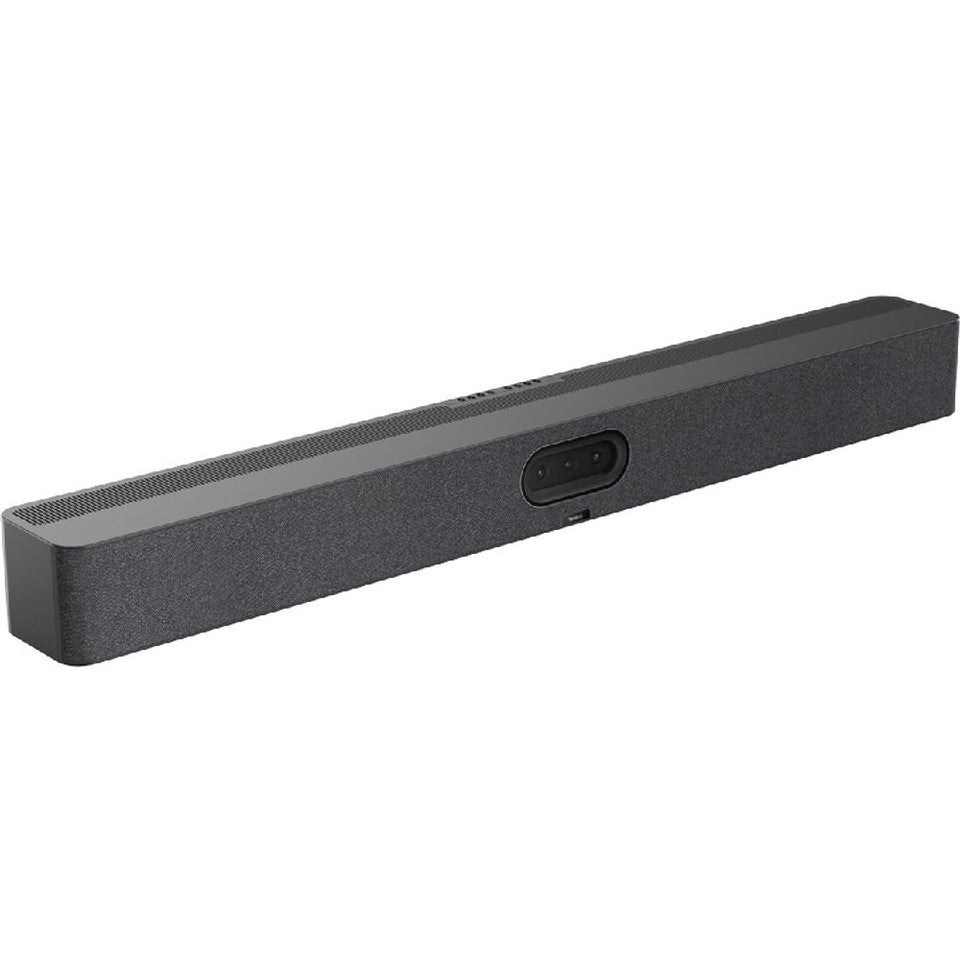

Triple 50 MP Camera System with 8x Zoom and AI Framing
One wide-angle camera (98° horizontal) pairs with two 50 MP telephoto cameras (41.6° horizontal) for high-resolution imaging with 8x digital zoom and up to 4K30 output. IntelliFocus (up to 4 portraits), Auto Framing, Speaker Tracking, People Counting, Picture-in-Picture and Video Fence frame speakers automatically — with Multi-stream IntelliFrame with Copilot on MTR-Windows and Smart Gallery on Zoom — and an electric privacy lens cap covers the camera when idle.
16 MEMS Microphones with 10-Metre Pickup and Four Stereo Speakers
The 16 MEMS array captures voices up to 10 m away with intelligent full-duplex, AI-enhanced noise cancellation and reverberation suppression. Four stereo speakers (4 x 5 W rated, 10 W max each) deliver sound up to 97 dB SPL across 80 Hz – 20 kHz, and up to three optional expansion microphones cover long boardroom tables.

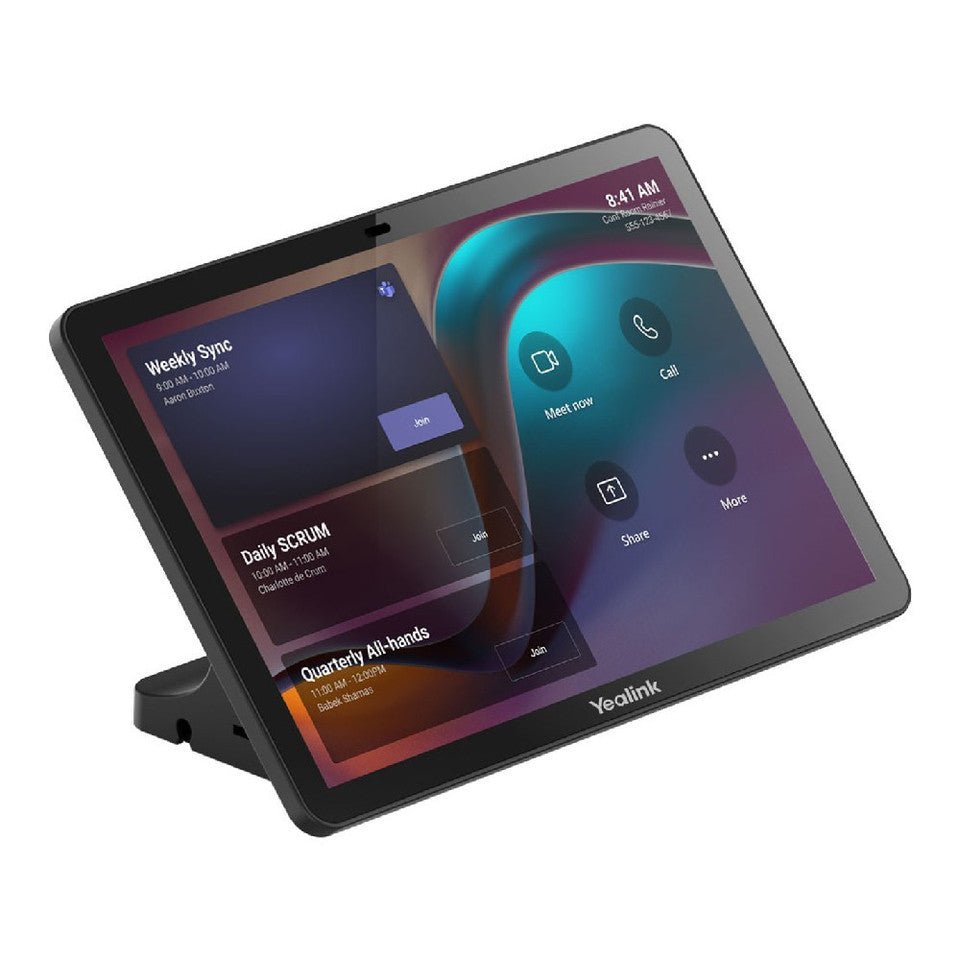

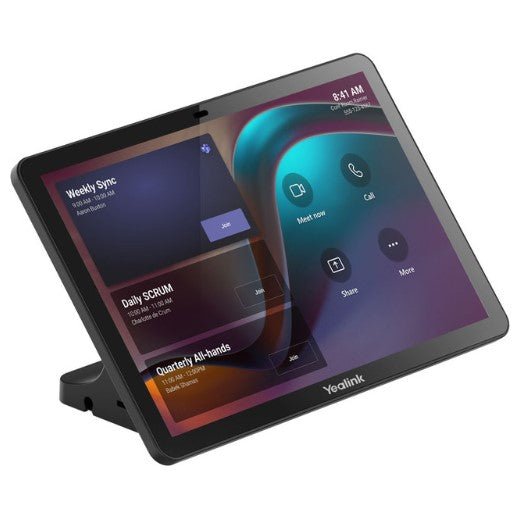

Single-Cable CTP25: Touch Control, Wired BYOD and Laptop Charging
The CTP25 connects to the A50 with one Cat5e cable carrying power and network, enabling a simplified single login. One USB-C cable to a laptop delivers 4K content sharing, wired BYOD on any platform and PD charging up to 45 W. The bundle includes a 65 W PD adapter, 7.5 m network cable, high stand and cable management cover.
Yealink MeetingBar A50 Datasheet — Technical Specifications
| Model | Yealink MeetingBar A50 + CTP25 (A50-031 kit) |
| Part Number (SKU) | 1206707 |
| Product Type | All-in-one Android video bar + touch console bundle |
| Operating System | Android 13, built on Microsoft Device Ecosystem Platform (MDEP) |
| Platforms | Native Microsoft Teams Rooms on Android; native Zoom Rooms; known as MVC S50 in MTR-Windows deployments |
| Recommended Room Size | Medium to large rooms, 7–15 people |
| Warranty | 2 Years Local Warranty (Singapore) |
| Camera System | Triple-camera system, 3 x 50 MP (1 wide + 2 telephoto) |
| Wide Lens | 110° diagonal / 98° horizontal / 81° vertical |
| Telephoto Lenses | 51° diagonal / 41.6° horizontal / 31.8° vertical |
| Zoom | 8x digital zoom |
| Output | Up to 4K (3840 x 2160) @ 30 fps; 1080p @ 60 fps |
| Privacy | Electric privacy lens cap |
| AI Camera Features | IntelliFocus (up to 4 portraits), Auto Framing, Speaker Tracking, People Counting, Picture-in-Picture, Video Fence, Multi-stream IntelliFrame with Copilot (MTR-W), Smart Gallery (Zoom) |
| Microphones | Built-in 16 MEMS microphone array |
| Voice Pickup Range | Up to 10 m |
| Noise Cancellation | AI-enhanced noise cancellation, reverberation suppression, intelligent full-duplex, AEC, AGC |
| Expansion Microphones | Supports 3 additional expansion microphones |
| Speakers | 4 built-in stereo speakers, 4 x 5 W rated (10 W max), up to 97 dB SPL @ 1 m, 80 Hz – 20 kHz |
| A50 Connectivity | 2 x HDMI out with CEC (dual display); 1 x USB 3.0 Type-A; 1 x USB 3.0 Type-B; 1 x USB 2.0 Type-C; Gigabit Ethernet; 2 x Yealink VCH ports; 3.5 mm line-in & line-out; Wi-Fi 6; Bluetooth 5.0 |
| A50 Dimensions | 910 x 102 x 88 mm, 8.5 kg net |
| A50 Mounting | Wall mount (VB-WallMount-02) and table mount included |
| CTP25 Display | 10.1-inch IPS, 1280 x 800, multi-point capacitive touch, anti-glare and anti-fingerprint coating |
| CTP25 Connection | Single Cat5e cable to the bar (power + network) or via IP; PoE 802.3af |
| CTP25 USB-C | 4K content sharing, wired BYOD, PD charging up to 45 W |
| CTP25 Dimensions | 242.95 x 27.50 x 161.95 mm, 0.683 kg |
Compatibility & Software Support
The MeetingBar A50 runs native Microsoft Teams Rooms on Android and native Zoom Rooms; the CTP25 mirrors the same platform interface at the table. Wired BYOD through the CTP25 lets the room's camera and audio serve Google Meet, Webex or any other app on a connected laptop. Up to three expansion microphones — VCM35 or wireless VCM36-W — or CM20 ceiling audio extend coverage in long rooms.
Device management: Yealink HTTPS web portal, Yealink Device Management Platform (YDMP), Yealink Management Cloud Service (YMCS), Microsoft Teams Admin Center / Intune and Zoom Device Management. For Teams Rooms on Windows, see the Yealink MVC S50 room system.
Package Contents & MeetingBar A50 Ordering Information
Inside the box: MeetingBar A50 with power adapter (3.5 m cable), 2 x 1.8 m HDMI 2.0 cables, 3 m network cable, 2.5 m USB 3.0 A-B cable, wall mount (VB-WallMount-02), table mount, cable cover; CTP25 touch console with 65 W PD power adapter, 7.5 m network cable, 1.2 m USB-C cable, high stand and cable management cover; Quick Start Guides.
| A50-031 (1206707) | MeetingBar A50 + CTP25 touch panel — this listing |
| A50-010 (1206706) | MeetingBar A50 + VCR11 remote control |
Related products: CTP25 touch console (standalone), MeetingBar A40 + CTP25, MVC S50 Teams Rooms system.
Datasheet & Downloads
Frequently Asked Questions — Yealink MeetingBar A50 with CTP25
What does the CTP25 add over the standard A50 kit?
The A50-010 kit ships with the VCR11 remote. This A50-031 bundle adds the CTP25 10.1-inch touch console: one-touch join, call and camera control, wired BYOD, 4K content sharing and up to 45 W laptop charging from the table.
How does the CTP25 connect to the A50?
With a single Cat5e cable carrying power and network from one of the bar's two VCH ports — no power outlet needed at the table — plus a simplified single login for both devices.
Does this kit support both Microsoft Teams and Zoom?
Yes. The A50 runs Microsoft Teams Rooms on Android and Zoom Rooms natively, and the CTP25 mirrors whichever platform the bar is signed into.
How does this bundle compare with the A40 + CTP25?
The A40 bundle covers small-to-medium rooms with dual 48 MP lenses and 6 m pickup. The A50 bundle is the flagship for 7–15 person rooms: triple 50 MP cameras, 16 MEMS with 10 m pickup, four speakers and support for three expansion mics.
Can I extend microphone coverage for a long boardroom table?
Yes — up to three expansion microphones (VCM35 wired or VCM36-W wireless), or CM20 ceiling audio.
Does this bundle come with local warranty in Singapore?
Yes. Every MeetingBar A50 with CTP25 sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
