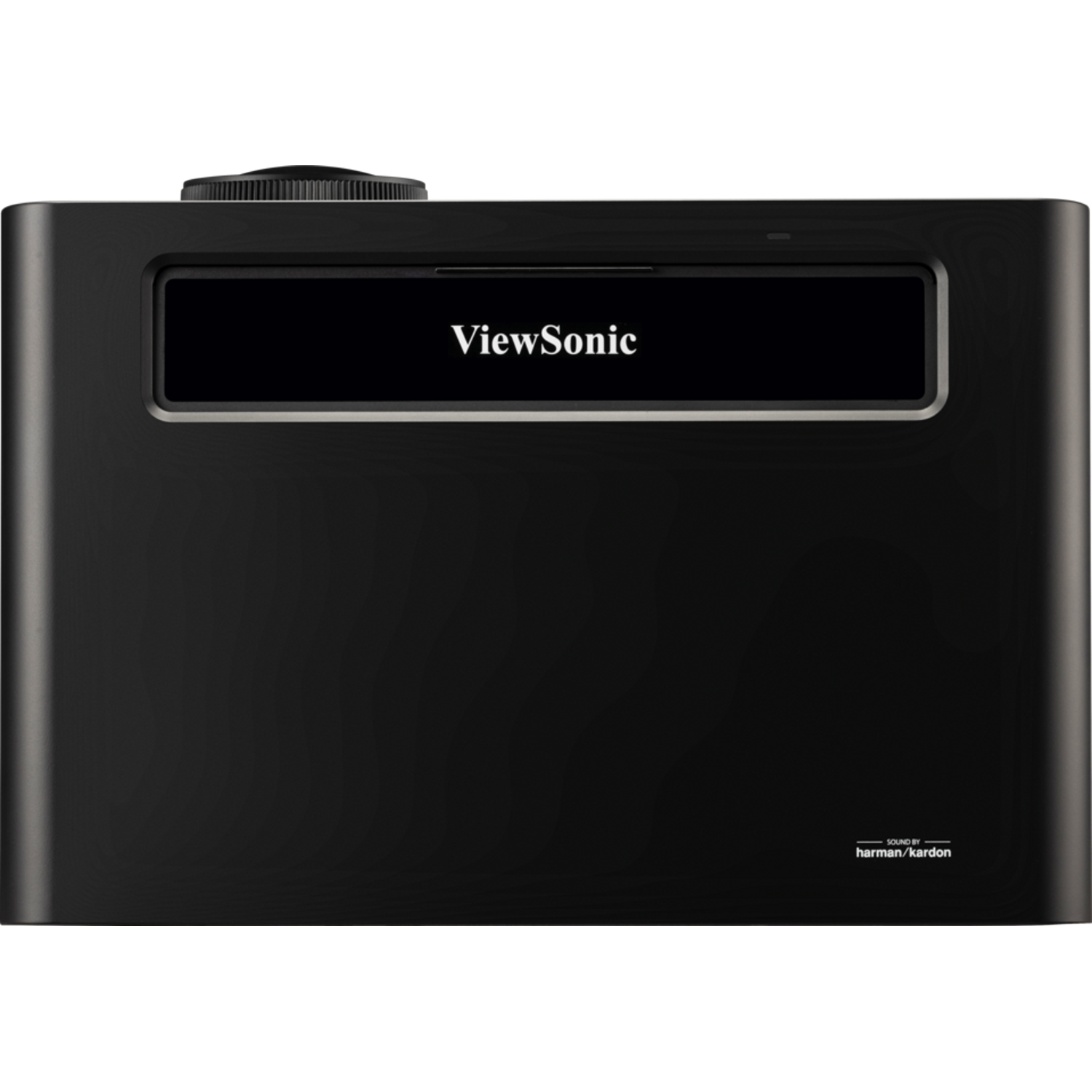

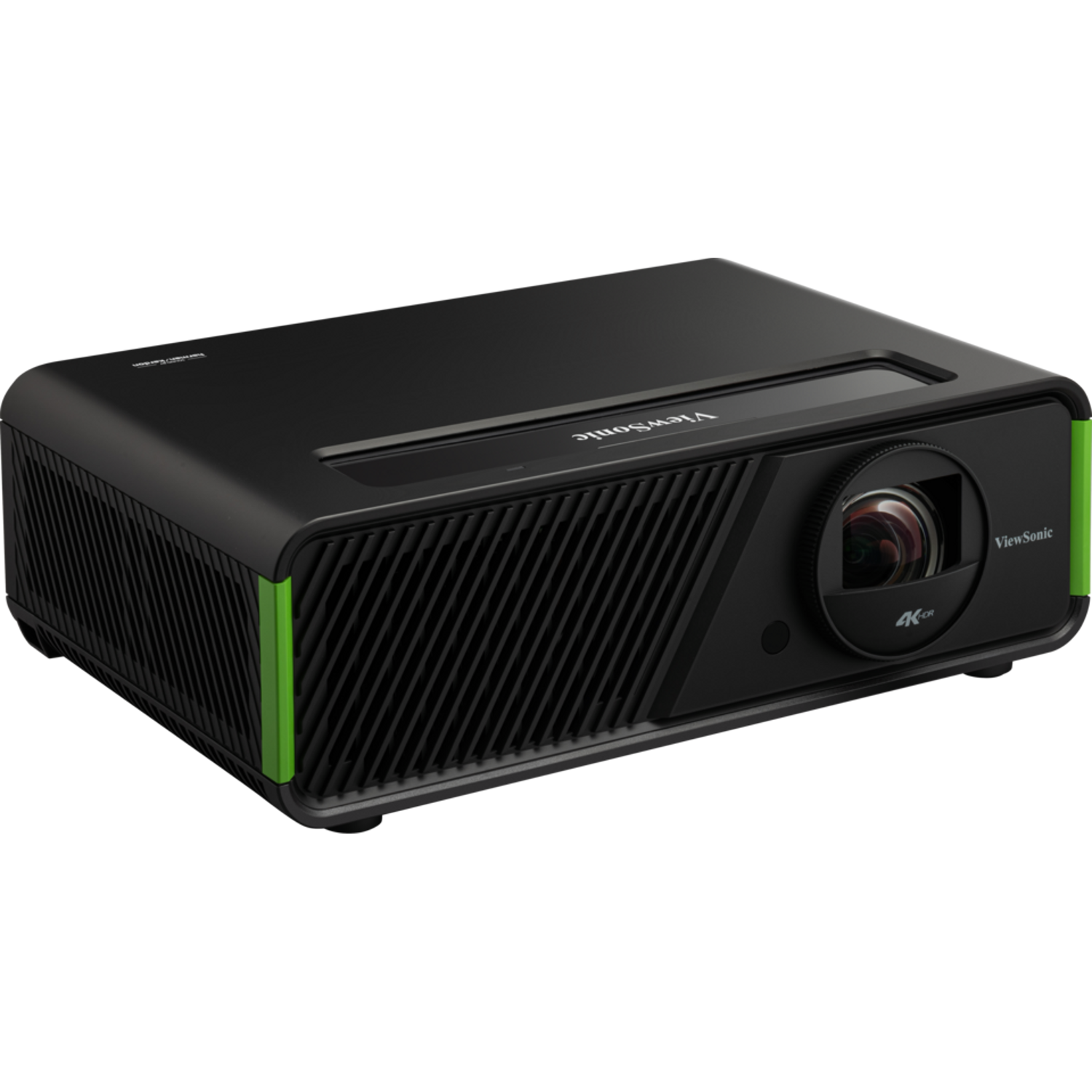

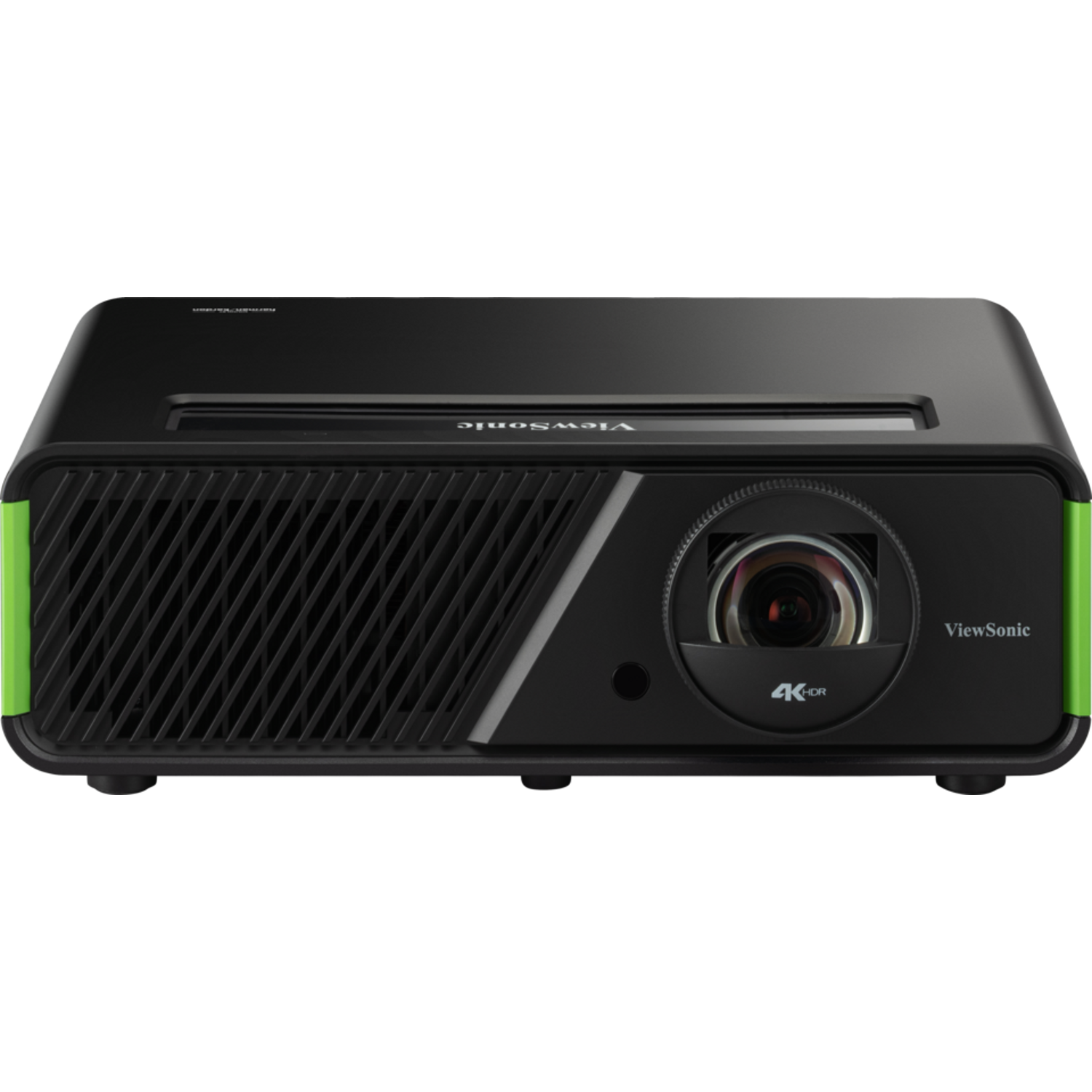

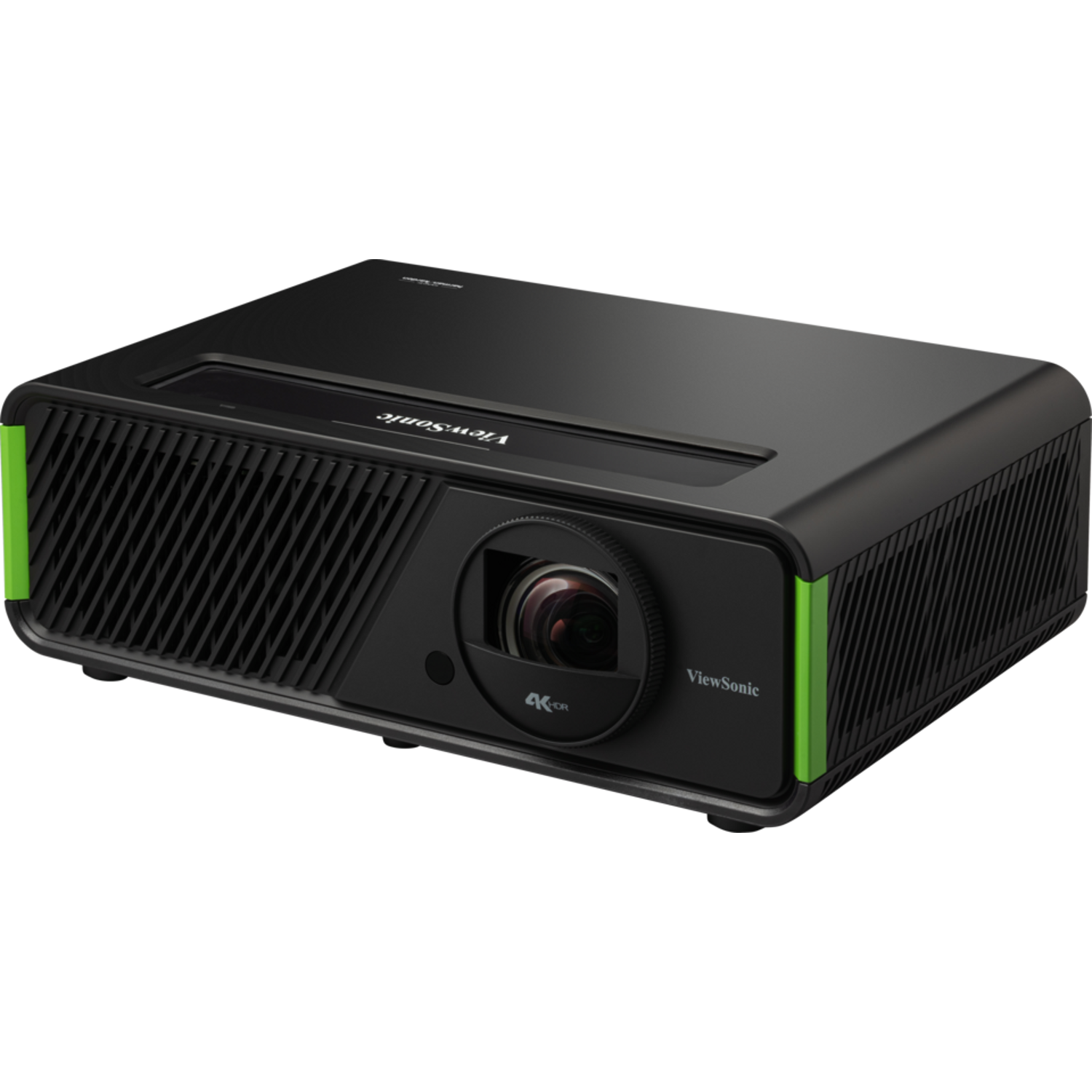

ViewSonic X2-4K Pro 4K HDR Short Throw Smart LED Projector with Google TV
PRODUCT DESCRIPTION
ViewSonic X2-4K Pro 4K HDR Short Throw Smart LED Home Projector with Built-in Google TV - 2 Years Local Warranty
True 4K HDR
3840 x 2160 from a 0.65" 4K-UHD DMD with 3,300 LED lumens and a 3,000,000:1 contrast ratio.
Short Throw
A 0.69–0.83 throw ratio with 1.2x optical zoom gives a 100" image from about 1.53 m.
Designed for Xbox
1440p at 120 Hz and 4.2 ms input lag for fast, responsive gaming.
Built-in Google TV
Google TV with the native Netflix app for streaming without an extra device.
Harman Kardon Sound
Dual 6 W Harman Kardon speakers, HDMI eARC and Bluetooth 5.0 audio out.
Questions about screen size, mounting or setup? Email sales@sourceit.com.sg and our team will help you choose.
ViewSonic X2-4K Pro Datasheet — Technical Specifications
General
| Product Name | ViewSonic X2-4K Pro 4K HDR Short Throw Smart LED Home Projector with Built-in Google TV |
| Model | X2-4K Pro |
| Local Warranty (Singapore) | 2 years local limited warranty on parts and labour; LED light source, no lamp to replace |
Optical
| Projection System | 0.65" 4K-UHD DLP |
| Native Resolution | 3840 x 2160 |
| Brightness | 3,300 LED lumens |
| Contrast Ratio | 3,000,000:1 |
| Display Colour | 1.07 billion colours |
| Light Source | LED |
| Light Source Life | 60,000 hours (Normal) |
| Lens | F=2.53–2.73, f=10.20–12.25 mm |
| Throw Ratio | 0.69–0.83 |
| Optical Zoom | 1.2x |
| Digital Zoom | 0.8x–2.0x |
| Image Size | 60"–120" |
| Throw Distance | 0.92–2.2 m (100" at 1.53 m) |
| Projection Offset | 105% ±5% |
| Keystone | H: ±40°, V: ±40°; auto V: ±40° |
| Input Lag | 4.2 ms |
Compatibility
| Resolution Support | VGA (640 x 480) to 4K (3840 x 2160) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Horizontal Frequency | 15–135 kHz |
| Vertical Scan Rate | 23–240 Hz |
Smart Features
| Platform | Built-in Google TV with native Netflix |
| Local Storage | 8 GB (4 GB available) |
| Wi-Fi | 5 GHz |
| Bluetooth | BT 5.0 audio out |

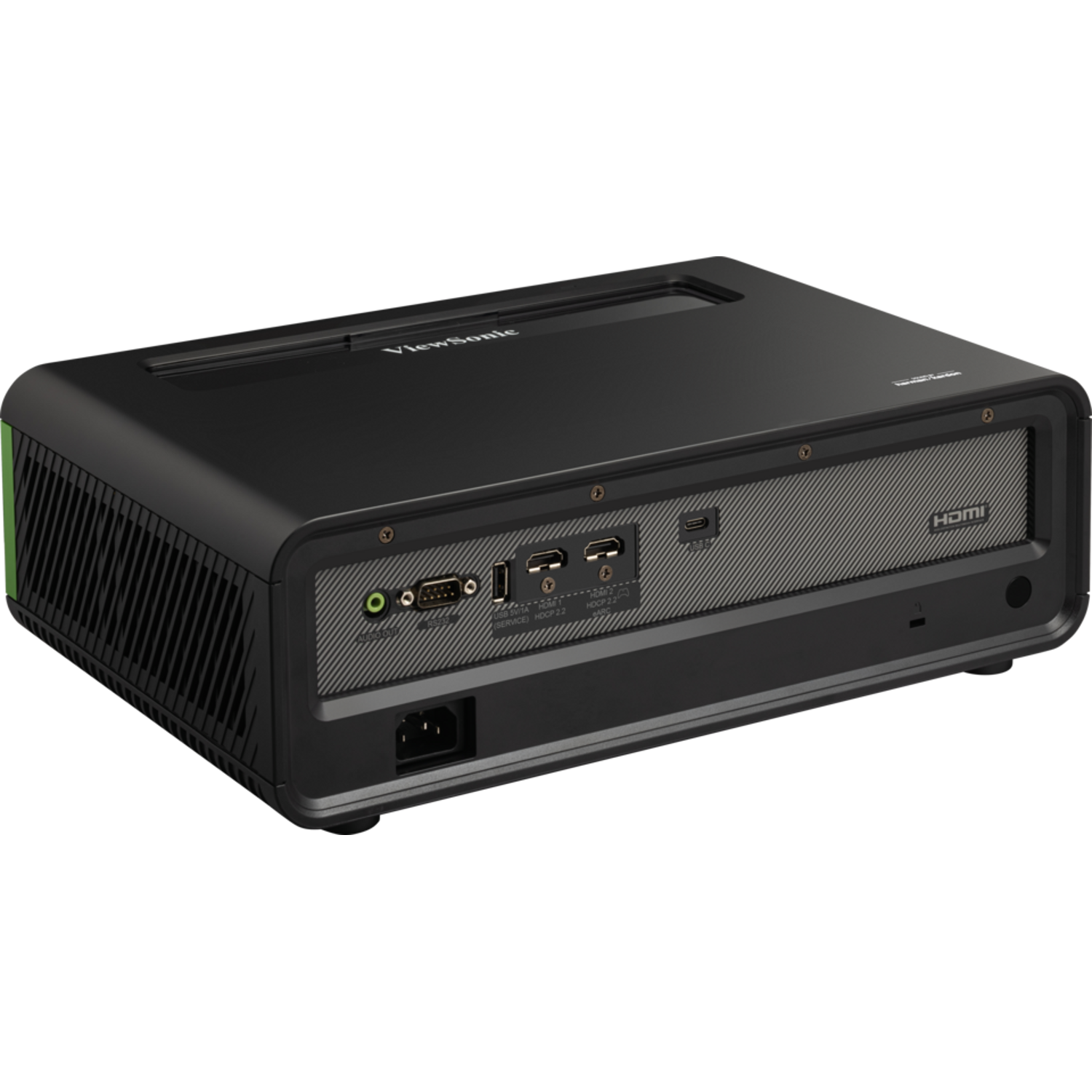

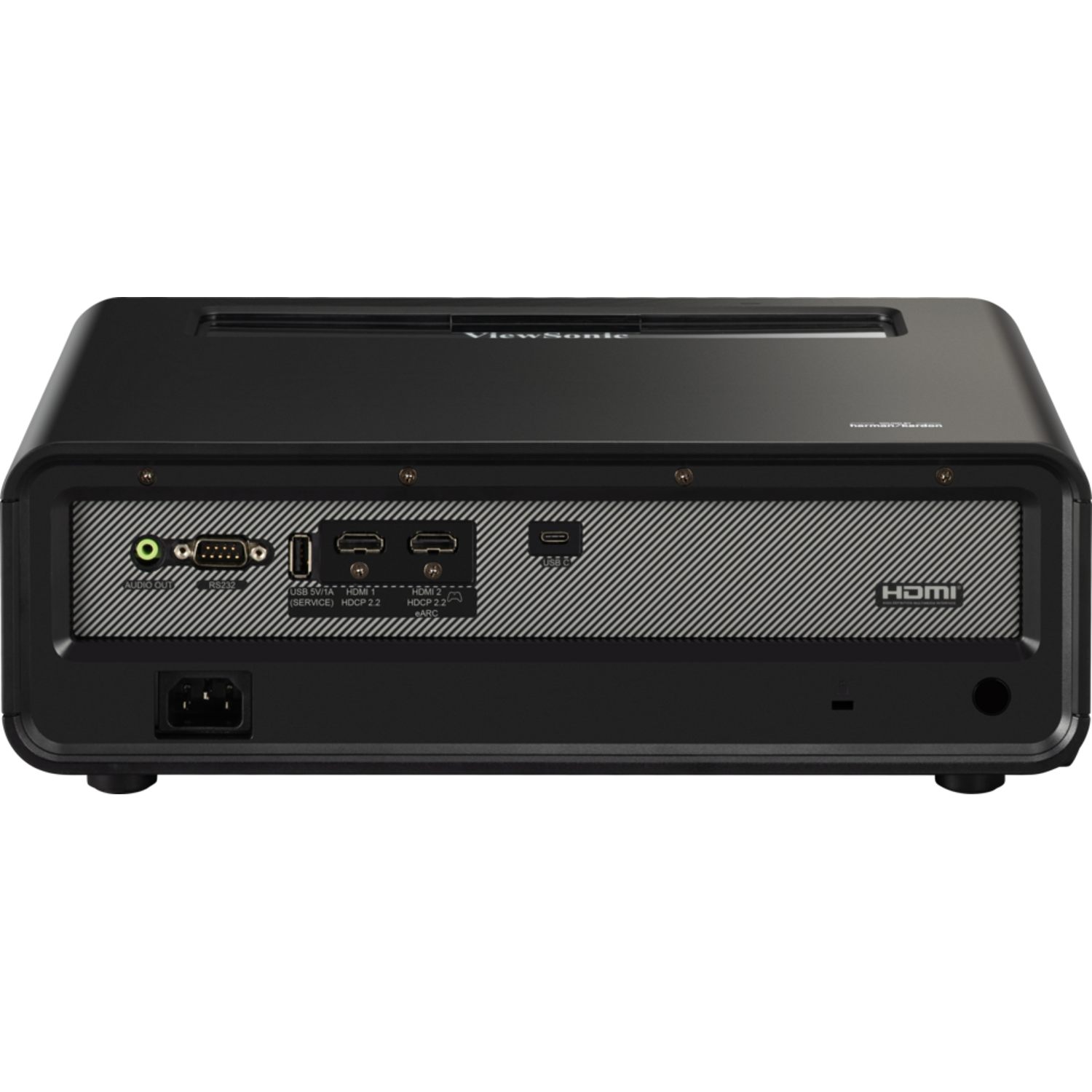

Connectivity
| HDMI | 2 x HDMI 2.0 (HDCP 1.4/2.2); eARC on one input |
| USB-C | 1 x USB Type-C (5 V / 1 A) |
| USB-A | 1 x 5 V / 1 A power (shared with service) |
| Audio Out | 1 x 3.5 mm |
| Control | 1 x RS232 (DB9) |
| Speaker | 2 x 6 W cube (Harman Kardon) |
Power & Environmental
| Power Supply | 100–240 V AC ±10%, 50/60 Hz |
| Power Consumption | 236 W (Normal); <0.5 W standby |
| Audible Noise | 33 dB (Normal); 29 dB (Eco) |
| Operating Temperature | 0–40 °C |
Physical
| Dimensions (W x D x H) | 355 x 251 x 121 mm |
| Net Weight | 3.74 kg |
| Gross Weight | 5.6 kg |
| Packing Dimensions | 490 x 376 x 313 mm |
| OSD Languages | 24 |
Compatibility & Software Support
Consoles and PCs
Designed for Xbox: 1440p at 120 Hz with 4.2 ms input lag. Two HDMI 2.0 inputs accept 4K HDR sources such as PlayStation, Xbox and Blu-ray players.
Streaming
Google TV and native Netflix are built in; phones can also connect over 5 GHz Wi-Fi or USB-C.
Audio
HDMI eARC sends sound to a soundbar or AV receiver; Bluetooth 5.0 and 3.5 mm outputs are also available.
Typical Use
Living rooms and game rooms where a short throw distance is needed for a 100" picture.
Package Contents & ViewSonic Smart LED & Laser Home Projectors Ordering Information
In the Box
X2-4K Pro projector, power cord, USB-C cable (1 m), backlit Bluetooth remote control, quick start guide.
Optional Accessories
| Wall/ceiling mount | PJ-WMK-007 |
| Carry bag | PJ-CASE-009 |
| HDBaseT dongle | HB10B |
ViewSonic Smart LED & Laser Home Projectors
| Model | Key feature |
| X2-4K Pro (this listing) | 4K HDR short throw LED, Google TV |
| M10 | Portable 1080p RGB laser |
| X2 | 1080p short throw LED |
| X11-4KP | Portable 4K short throw LED |
| X100-4K+ | 4K UHD LED home cinema |
Datasheet & Downloads
| ViewSonic datasheet | X2-4K Pro Datasheet |
| User guide | X1-4K Pro/X2-4K Pro User Guide (PDF, English) |
| Quick start guide | X2-4K Pro Quick Start Guide (PDF) |
| ViewSonic product page | X2-4K Pro on viewsonic.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting X2-4K Pro.
Frequently Asked Questions — ViewSonic X2-4K Pro
How close to the wall can it go?
The 0.69–0.83 short throw ratio gives a 100" image from about 1.53 m, with images from 60" to 120".
Is it good for gaming?
Yes. It is Designed for Xbox, supports 1440p at 120 Hz and has 4.2 ms input lag.
Does it have Netflix built in?
Yes. Google TV with the native Netflix app is built in.
Can I connect a soundbar?
Yes. One HDMI input supports eARC for a soundbar or AV receiver; Bluetooth 5.0 and a 3.5 mm output are also available.
What warranty do I get?
2 years local limited warranty on parts and labour. Supplied by SourceIT with a GST invoice.
