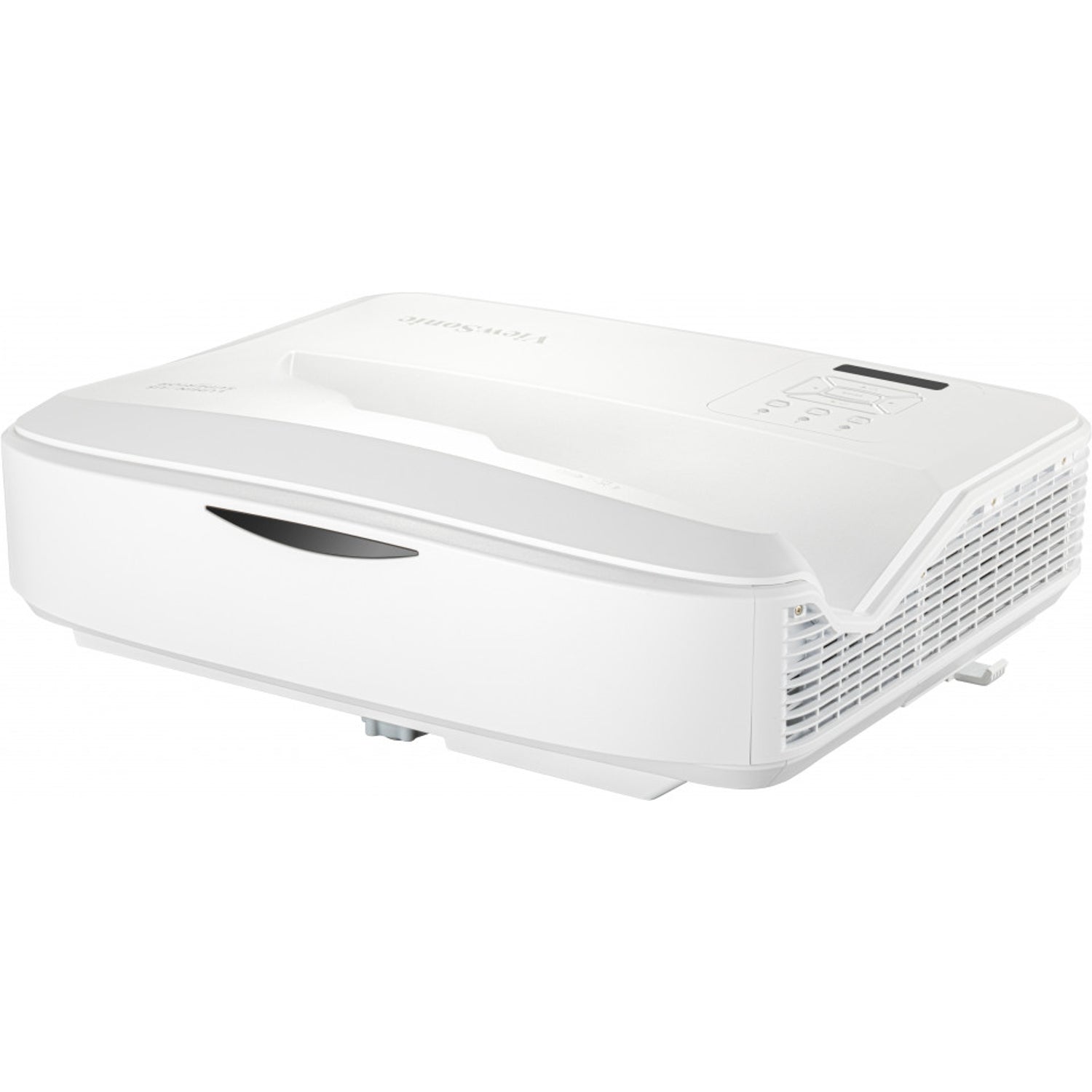

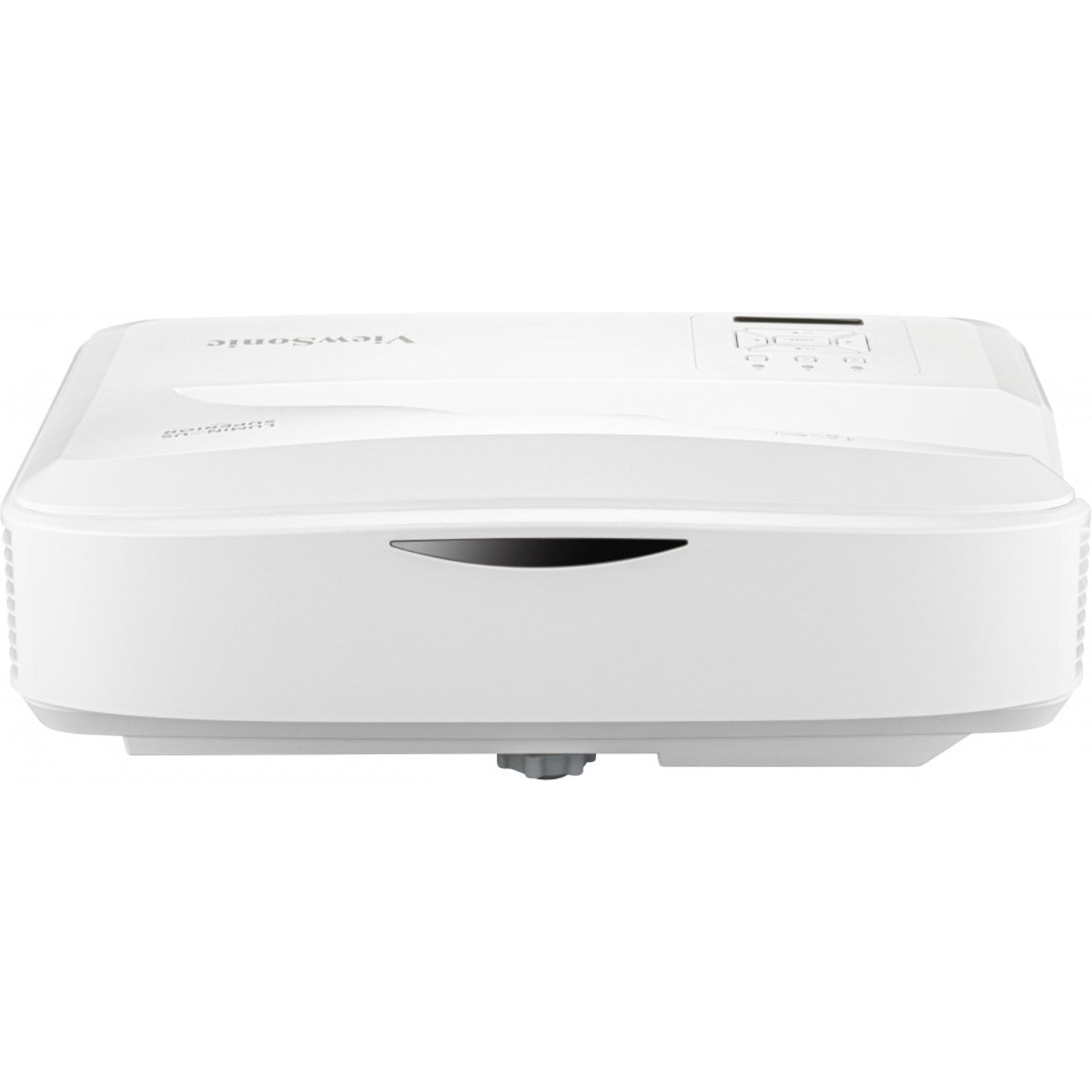

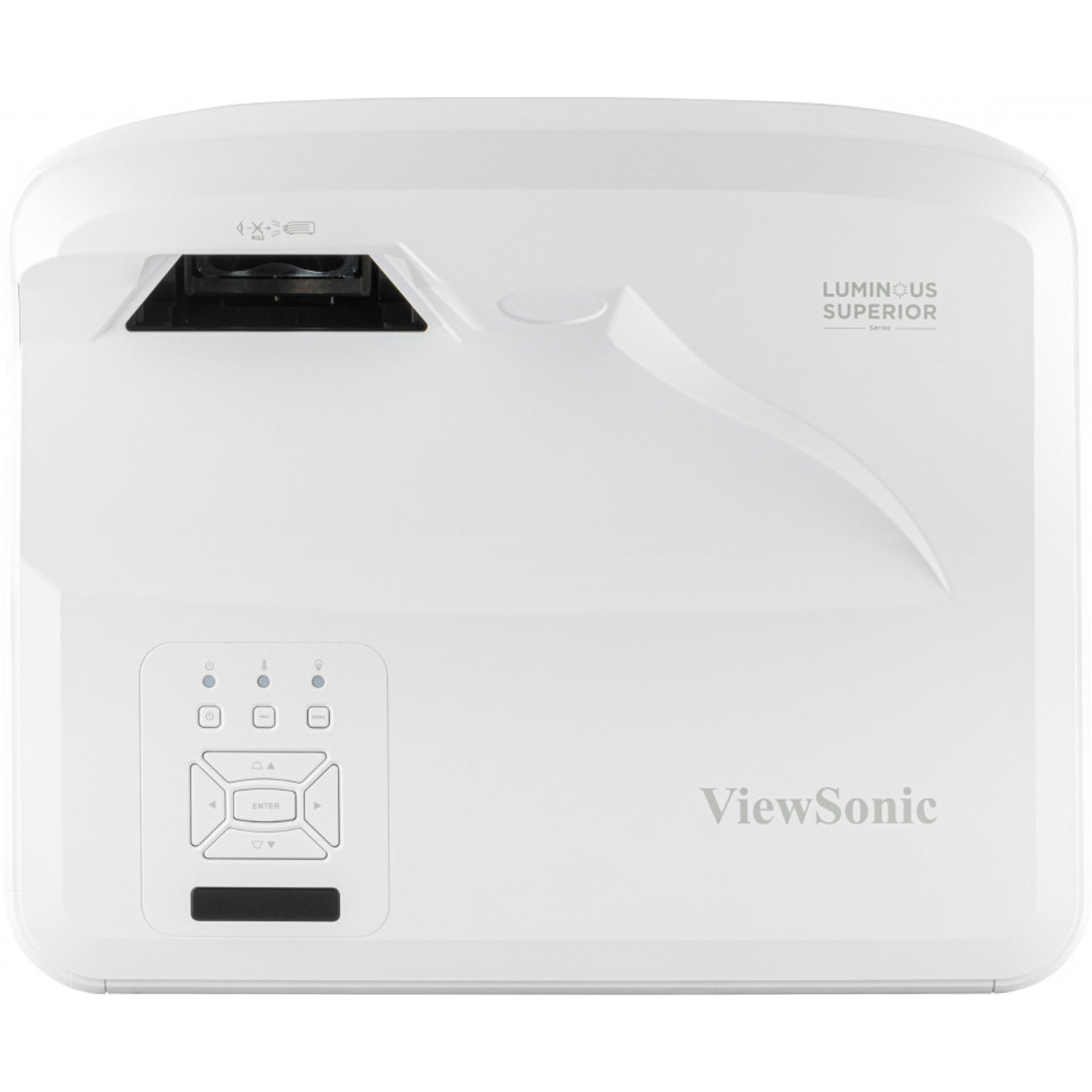

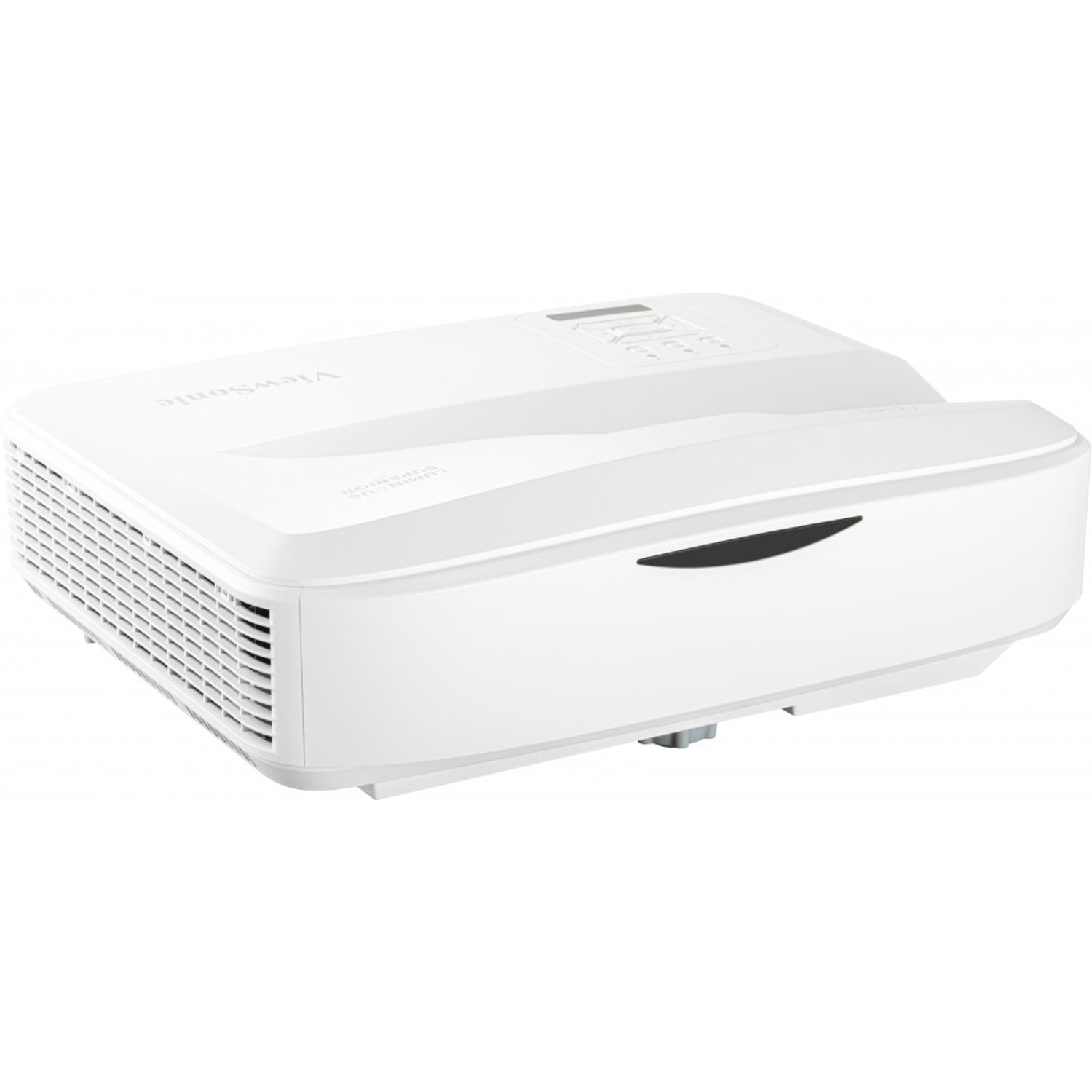

ViewSonic LS832WU 5,000 ANSI Lumens WUXGA Ultra Short Throw Laser Projector
PRODUCT DESCRIPTION
ViewSonic LS832WU 5,000 ANSI Lumens WUXGA Ultra Short Throw Laser Installation Projector - 3 Years Local Warranty
100" From Just 28 cm
With a 0.25 ultra short throw ratio, the ViewSonic LS832WU projects a 100" image from only 28 cm away, sitting right above or below the screen with no presenter shadows.
Bright WUXGA Laser
5,000 ANSI lumens at native 1920 x 1200 with a 3,000,000:1 contrast ratio, powered by 2nd-generation laser phosphor rated 20,000 hours (Normal) and up to 30,000 hours (SuperEco).
Screens Up to 170"
Image sizes from 80" to 170" give a large display at a lower cost-per-inch than flat panels, with H/V keystone and 4-corner adjustment for a perfectly proportioned picture.
Ready for Managed Rooms
Dual HDMI 2.0 (HDCP 2.2), VGA in/out, microphone input and RJ45 LAN control compatible with Crestron, AMX, PJLink and Extron.
Need projectors for several meeting rooms, classrooms or venues? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic LS832WU Datasheet — Technical Specifications
General
| Product Name | ViewSonic LS832WU 5,000 ANSI Lumens WUXGA Ultra Short Throw Laser Installation Projector |
| Model | LS832WU |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour (pick-up and drop-off); laser light source, no lamp to replace |
Optical
| Projection System | 0.67" WUXGA DLP |
| Native Resolution | 1920 x 1200 (WUXGA) |
| Brightness | 5,000 ANSI lumens |
| Contrast Ratio | 3,000,000:1 |
| Display Colour | 1.07 billion colours |
| Light Source | Laser phosphor |
| Light Source Life | 20,000 hours (Normal); 30,000 hours (SuperEco) |
| Lens | F=2.44, f=3.70 mm |
| Throw Ratio | 0.253 |
| Optical Zoom | Fixed |
| Digital Zoom | 0.8x–2.0x |
| Image Size | 80"–170" |
| Throw Distance | 0.17–0.66 m (100" at 0.28 m) |
| Projection Offset | 133% ±10% |
| Keystone | ±10° horizontal, ±10° vertical |
| Input Lag | 33.2 ms |
Compatibility
| Resolution Support | VGA (640 x 480) to 4K (3840 x 2160) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Horizontal Frequency | 15–91 kHz |
| Vertical Scan Rate | 24–85 Hz |

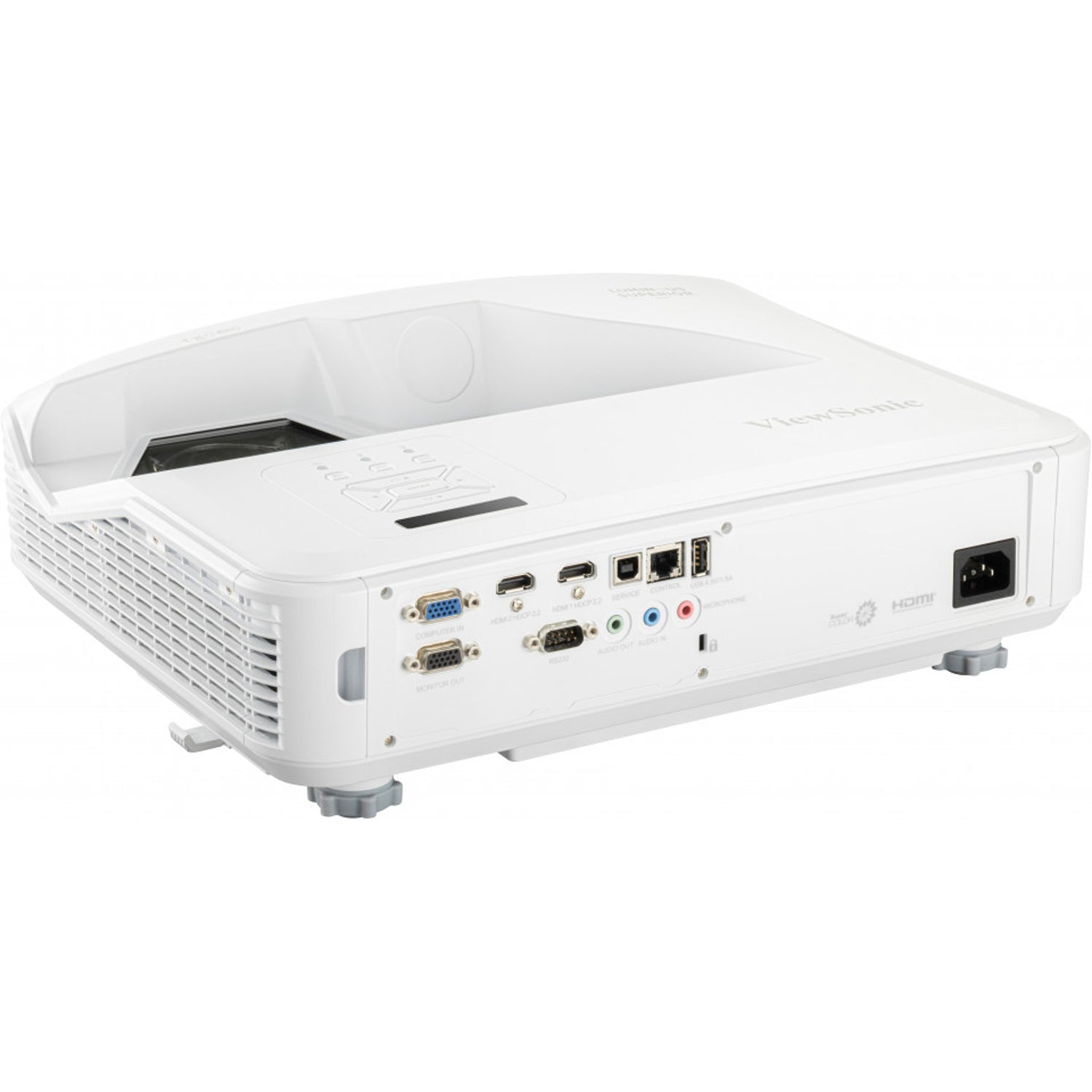

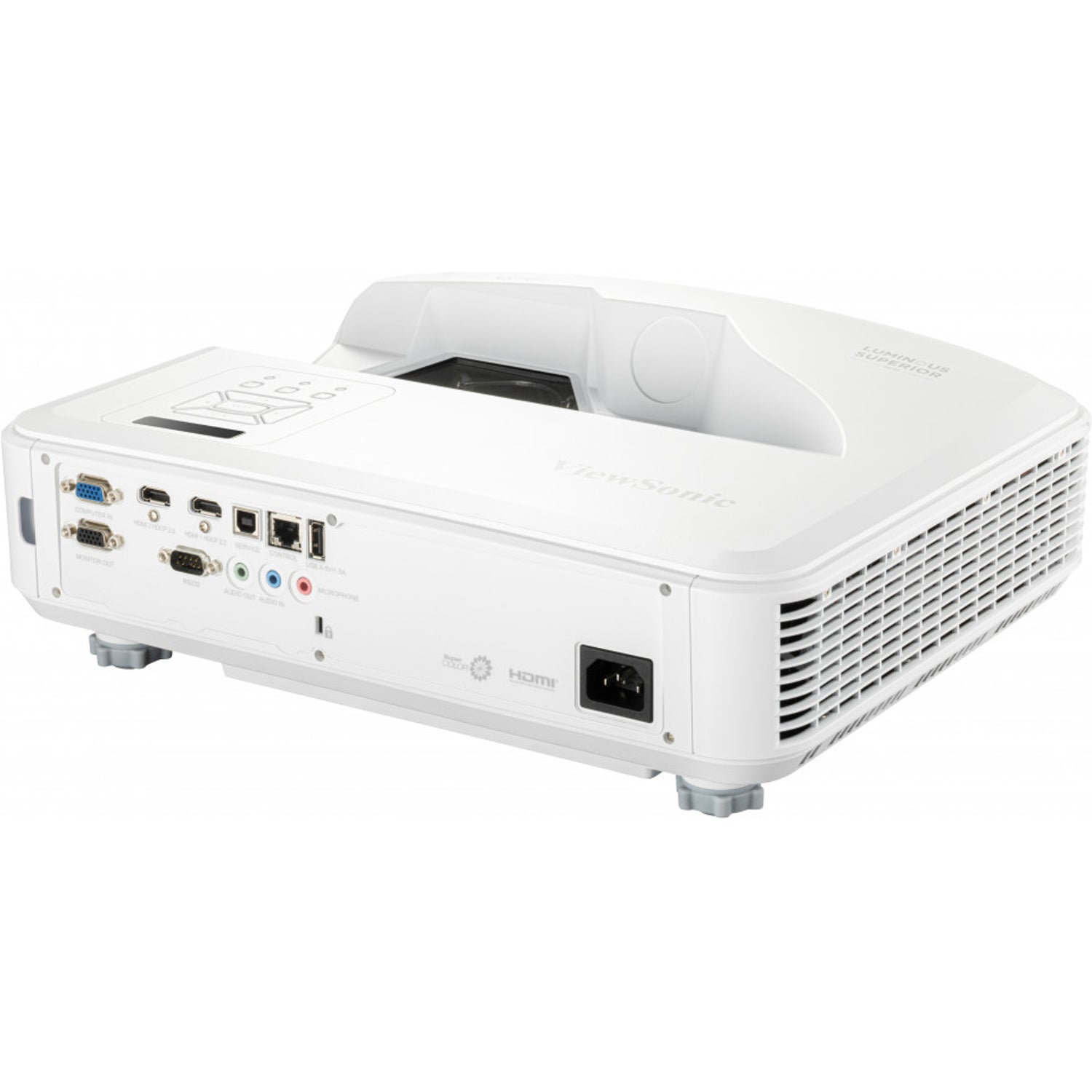

Connectivity
| HDMI | 2 x HDMI 2.0 (HDCP 1.4/2.2) |
| Computer In | 1 (shared with component) |
| Monitor Out | 1 |
| Audio In | 1 x 3.5 mm |
| Microphone In | 1 |
| Audio Out | 1 x 3.5 mm |
| USB Power | 1 x USB Type-A, 5 V / 1.5 A |
| USB Service | 1 x USB Type-B |
| Control | 1 x RS232 (DB9 male); 1 x RJ45 LAN control |
| Speaker | 10 W |
Power & Environmental
| Power Supply | 100–240 V ±10%, 50/60 Hz |
| Power Consumption | 328 W (Normal); <0.5 W standby |
| Audible Noise | 34 dB (Normal); 28 dB (Eco) |
| Operating Temperature | 5–40 °C |
Physical
| Dimensions (W x D x H) | 382 x 318 x 132 mm (with adjustment foot) |
| Net Weight | 5.8 kg |
| Packing Dimensions | 518 x 420 x 313 mm |
| Gross Weight | 8.1 kg |
| OSD Languages | 27 |
Compatibility & Software Support
Sources
Two HDMI 2.0 inputs accept 4K signals (displayed at native WUXGA), plus VGA in with monitor loop-out and a microphone input for classroom voice amplification.
Room Control
RJ45 LAN control works with Crestron, AMX, PJLink and Extron; RS232 is also provided. HDBaseT extension is available with the optional HB10B HDBaseT dongle.
Typical Use
Classrooms, meeting rooms, exhibitions, shop windows and transport hubs where the projector must sit right at the screen.
Package Contents & ViewSonic Laser & LED Projector Ordering Information
In the Box
LS832WU projector, power cord, remote control, quick start guide.
Optional Accessories
| Wall mount (UST) | PJ-WMK-304 |
| Wall/ceiling mount | PJ-WMK-007 |
| HDBaseT dongle | HB10B |
| Wireless casting kit | WPD-900 |
ViewSonic Laser & LED Business Projectors
| Model | Key feature |
| LS500WHE | 3,000 lm WXGA, LED |
| LSD400W | 4,000 lm WXGA, laser |
| LSD400HD | 4,000 lm 1080p, laser |
| LS711HD | 4,200 lm 1080p, short throw laser |
| LS740W | 5,000 lm WXGA, laser |
| LS740HD | 5,000 lm 1080p, laser |
| LS832WU (this listing) | 5,000 lm WUXGA, ultra short throw laser |
| LS860WU | 5,000 lm WUXGA, short throw laser, HDBaseT |
| LS920WU | 6,000 lm WUXGA, laser, 1.6x zoom |
| LS921WU | 6,000 lm WUXGA, short throw laser |
Datasheet & Downloads
| ViewSonic datasheet | LS832WU Datasheet |
| User guide | LS832WU User Guide (PDF, English) |
| Quick start guide | LS832WU Quick Start Guide (PDF) |
| RS-232/LAN control | RS-232/LAN Control Protocol Specification V1.5 (PDF) |
| ViewSonic product page | LS832WU on viewsonic.com Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting LS832WU.
Frequently Asked Questions — ViewSonic LS832WU
How close does it sit to the screen?
A 100" image needs only about 0.28 m (28 cm); the image range is 80" to 170".
Can it be controlled by our room control system?
Yes. RJ45 LAN control supports Crestron, AMX, PJLink and Extron, and RS232 is also available.
Which wall mount should I use?
ViewSonic lists the PJ-WMK-304 ultra short throw wall mount and the PJ-WMK-007 wall/ceiling mount as optional accessories.
What warranty do I get?
3 years on-site limited warranty on parts and labour (pick-up and drop-off service on Singapore's main island). Supplied by SourceIT with a GST invoice.
