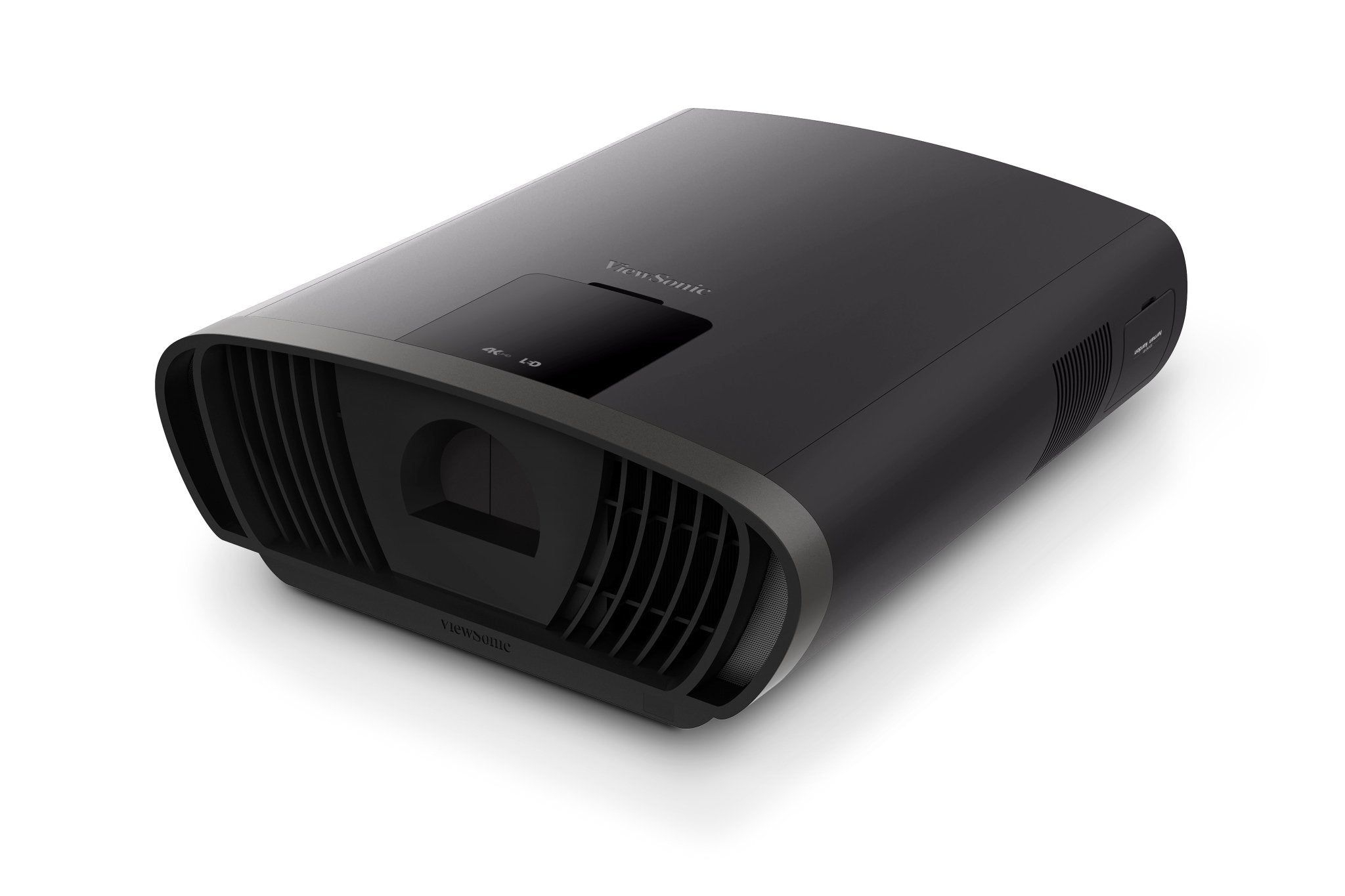

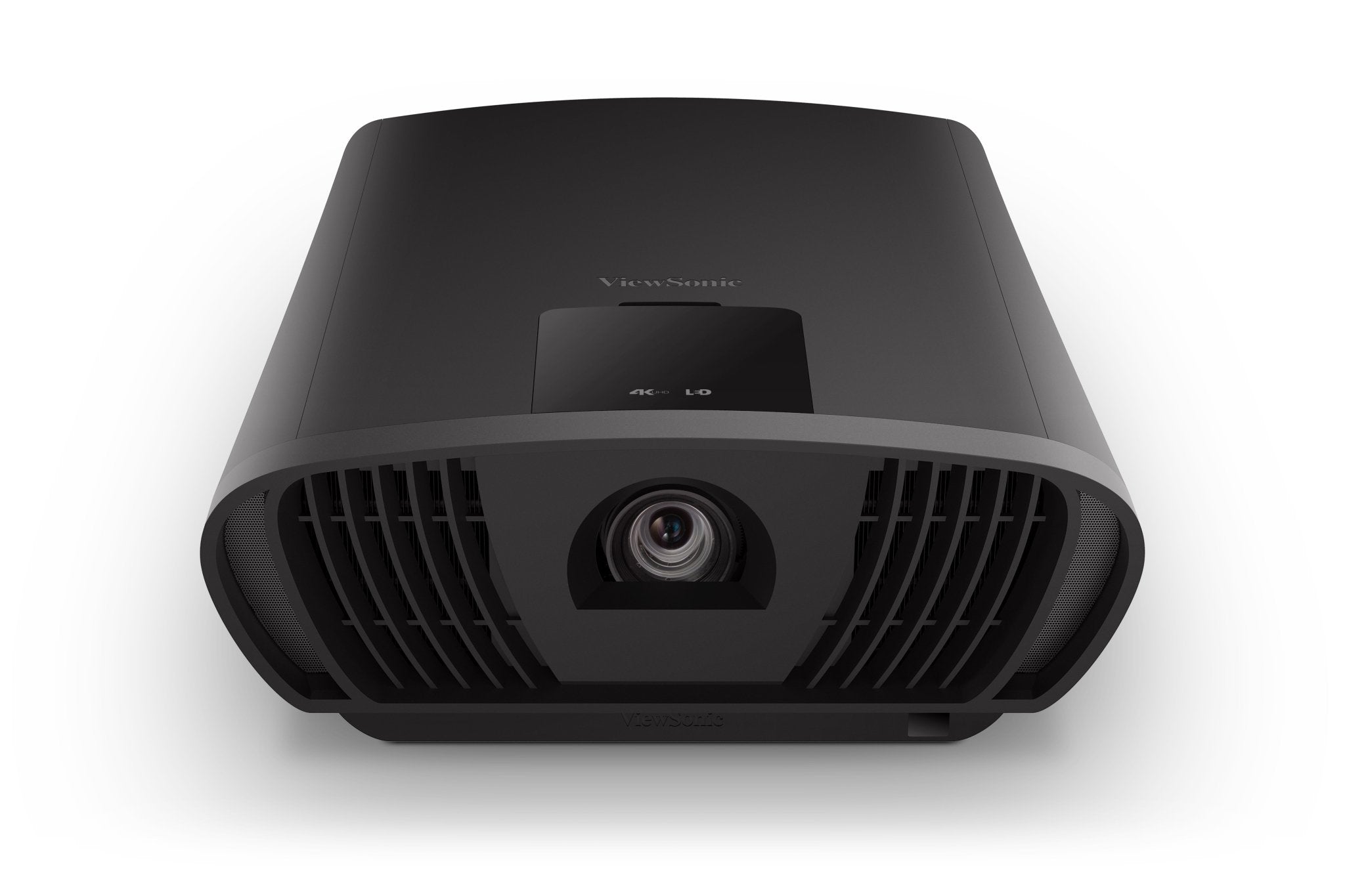

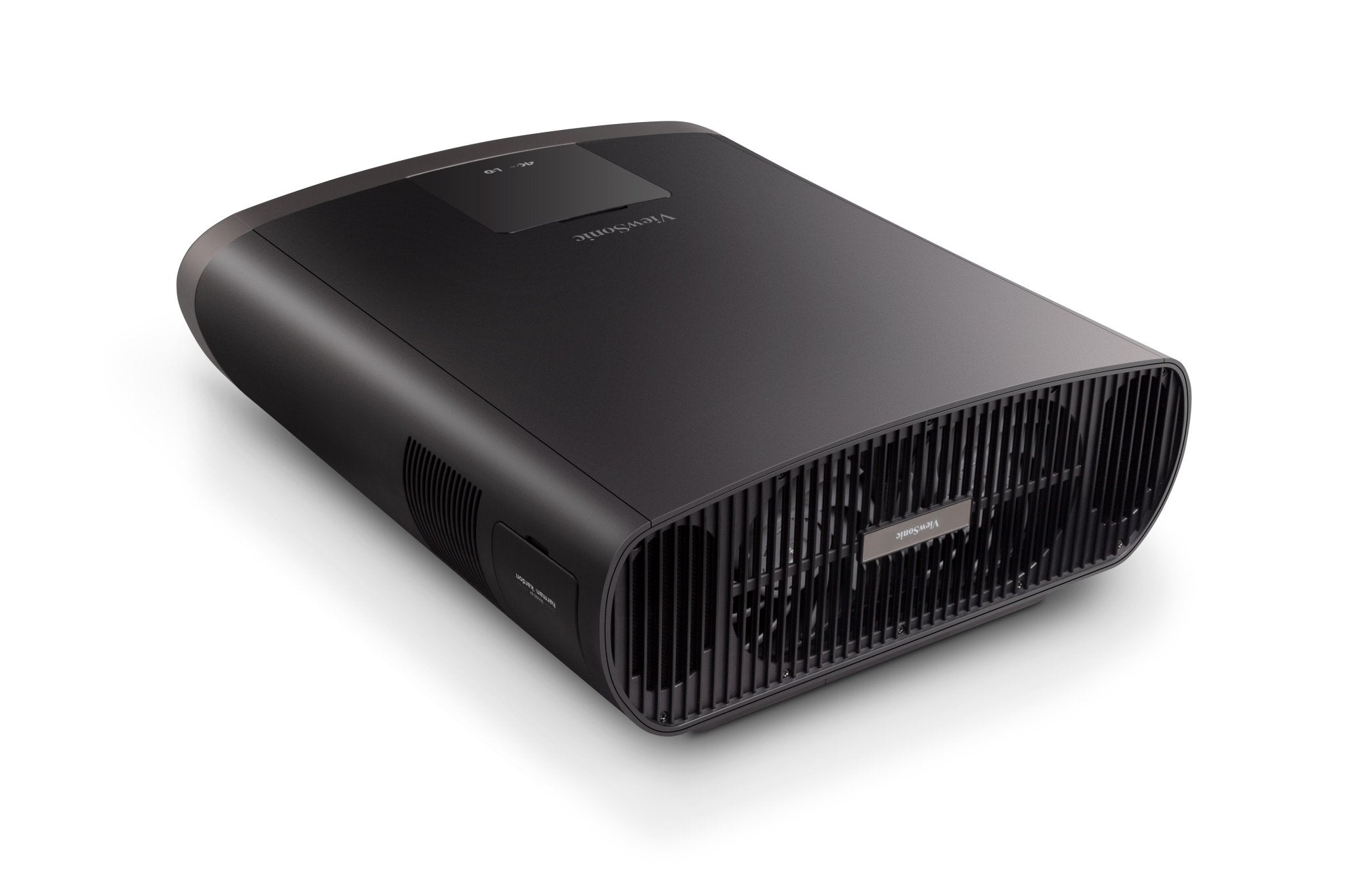

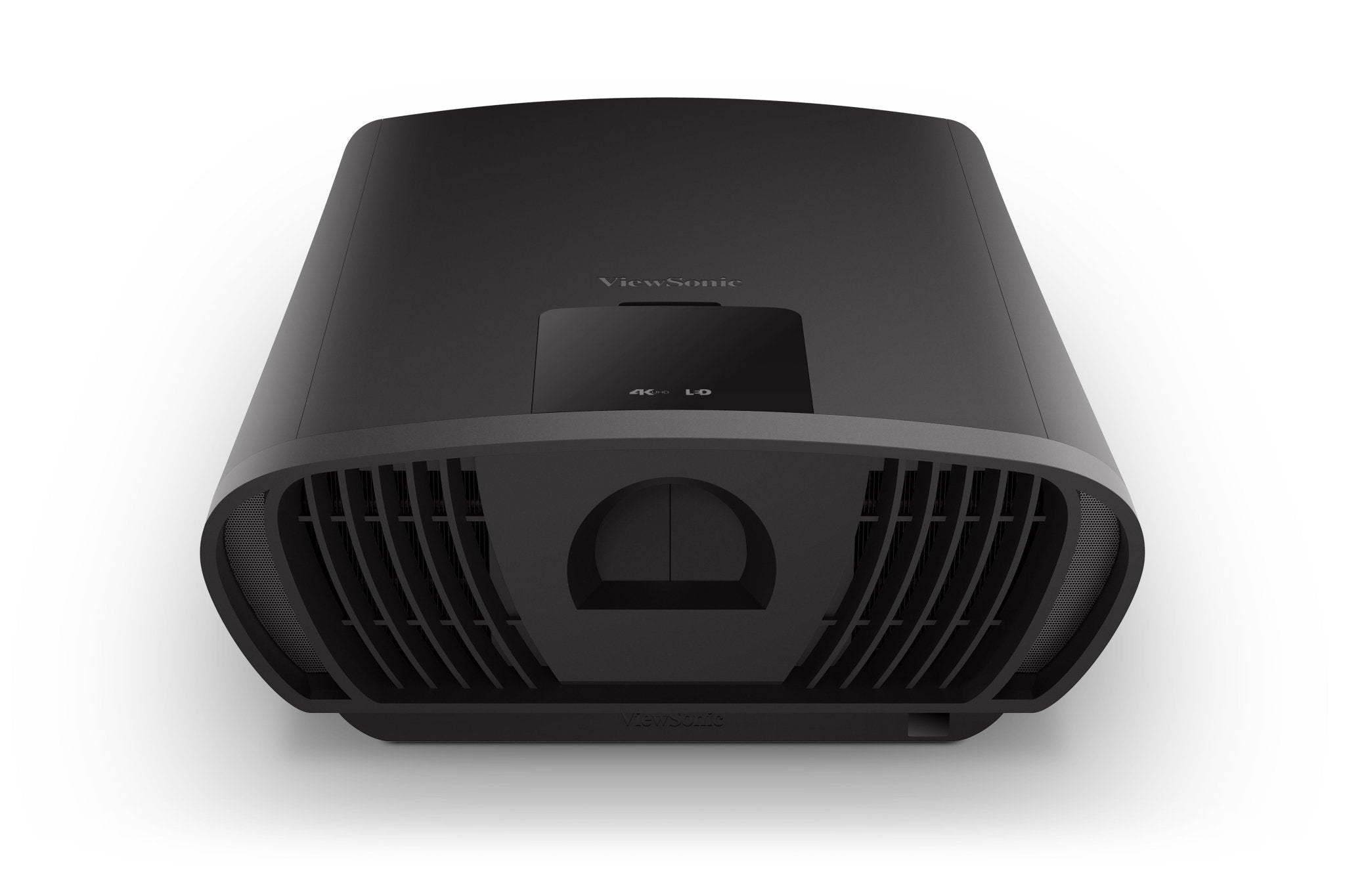

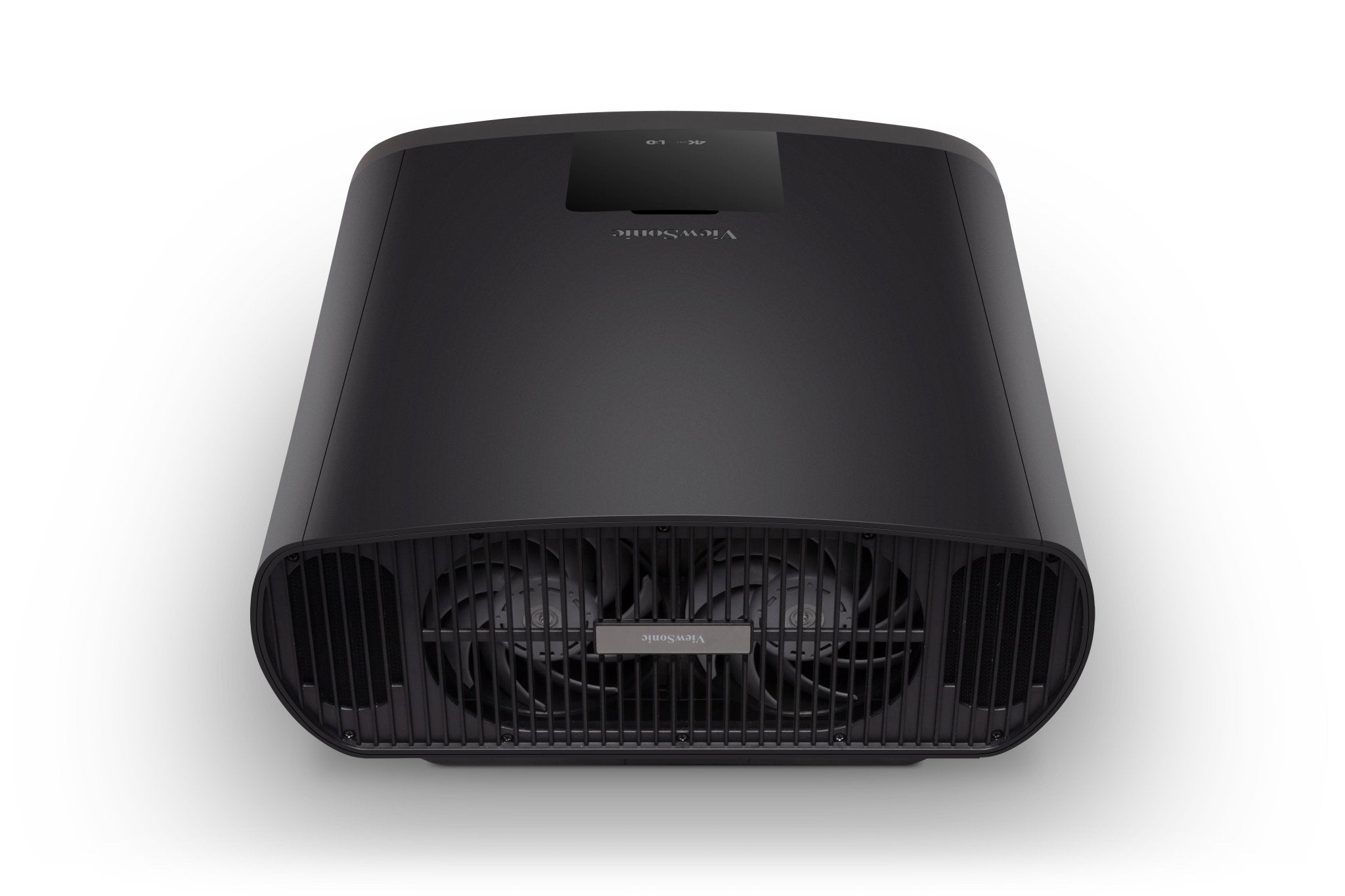

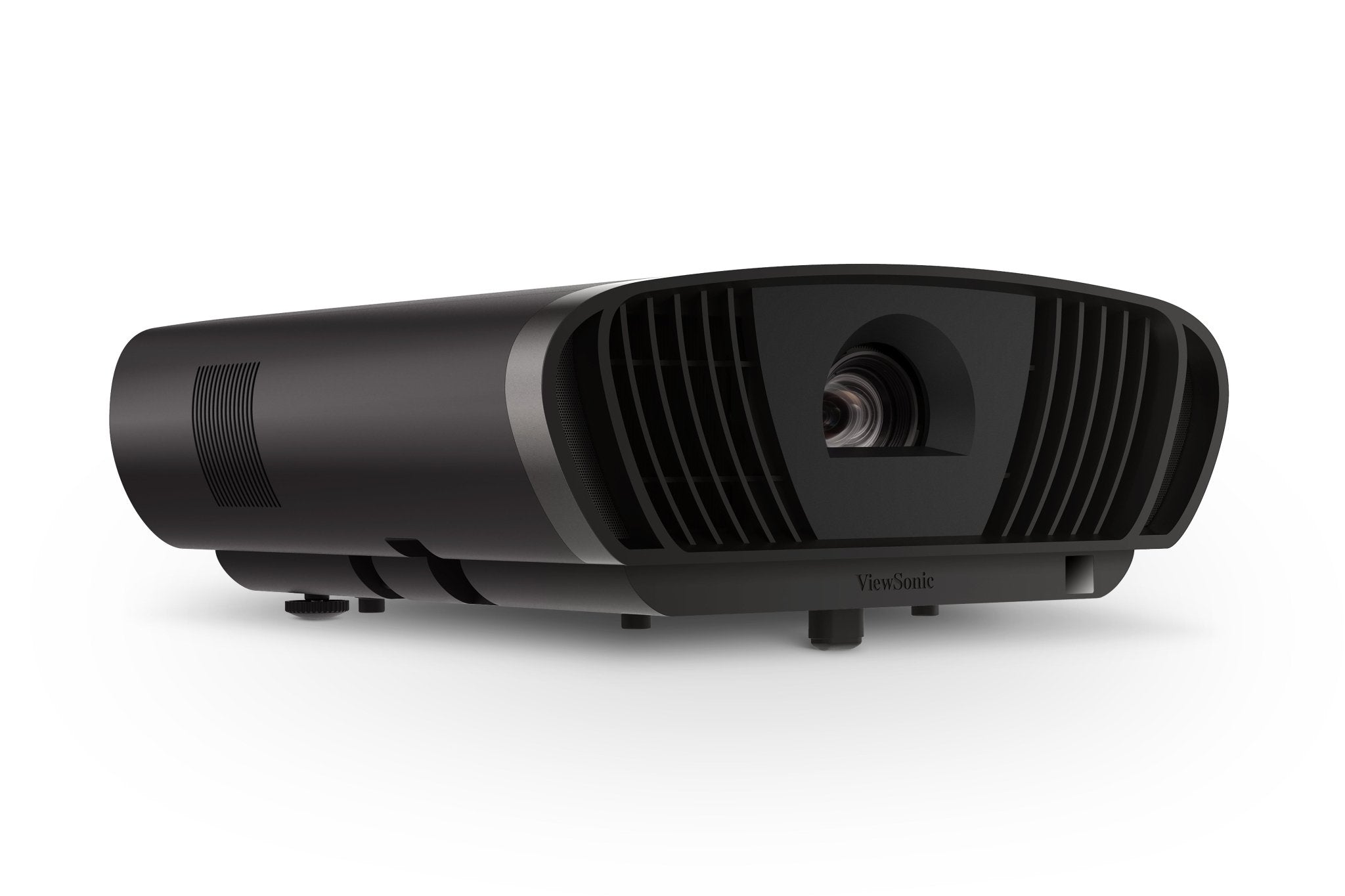

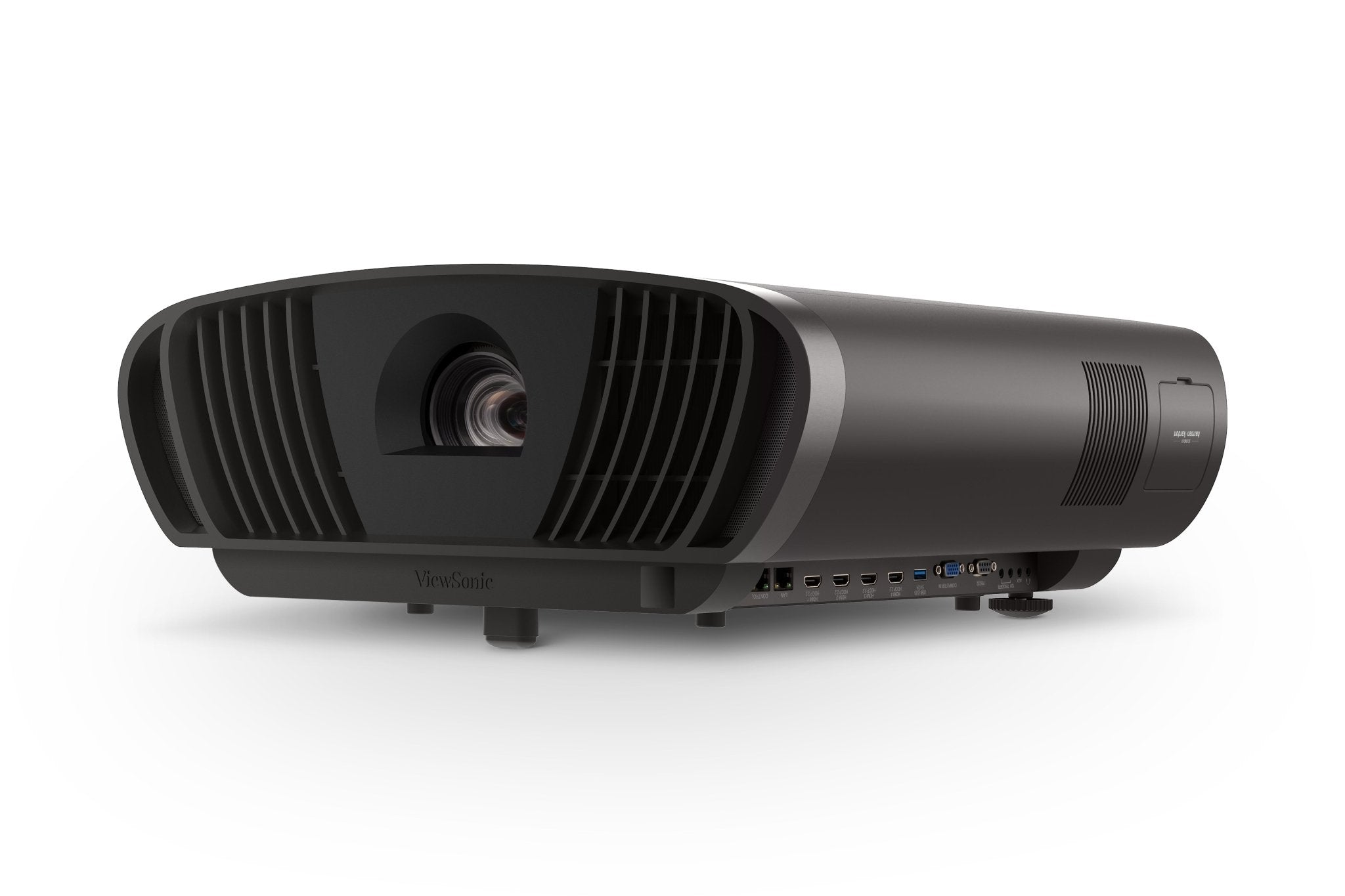

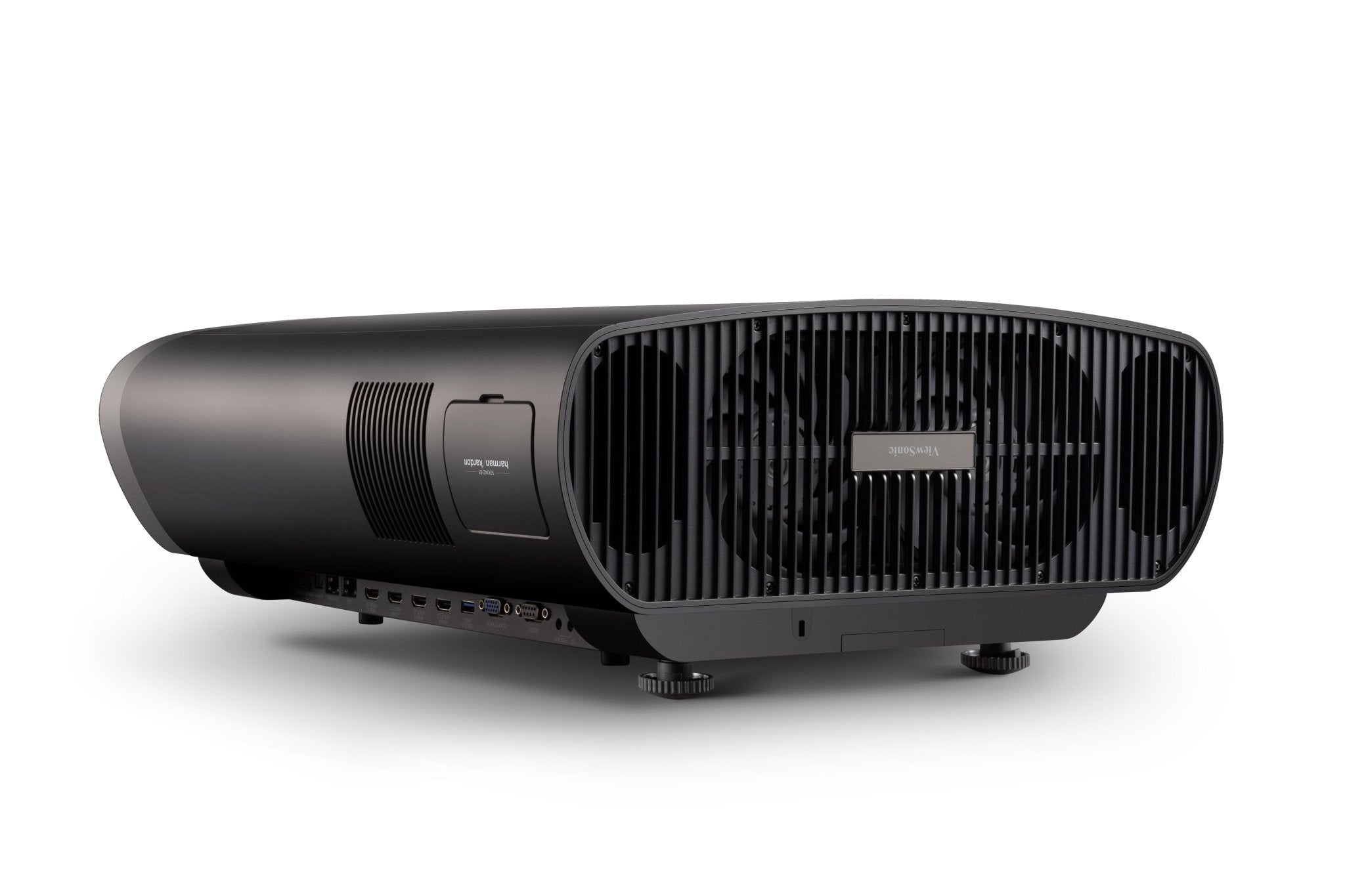

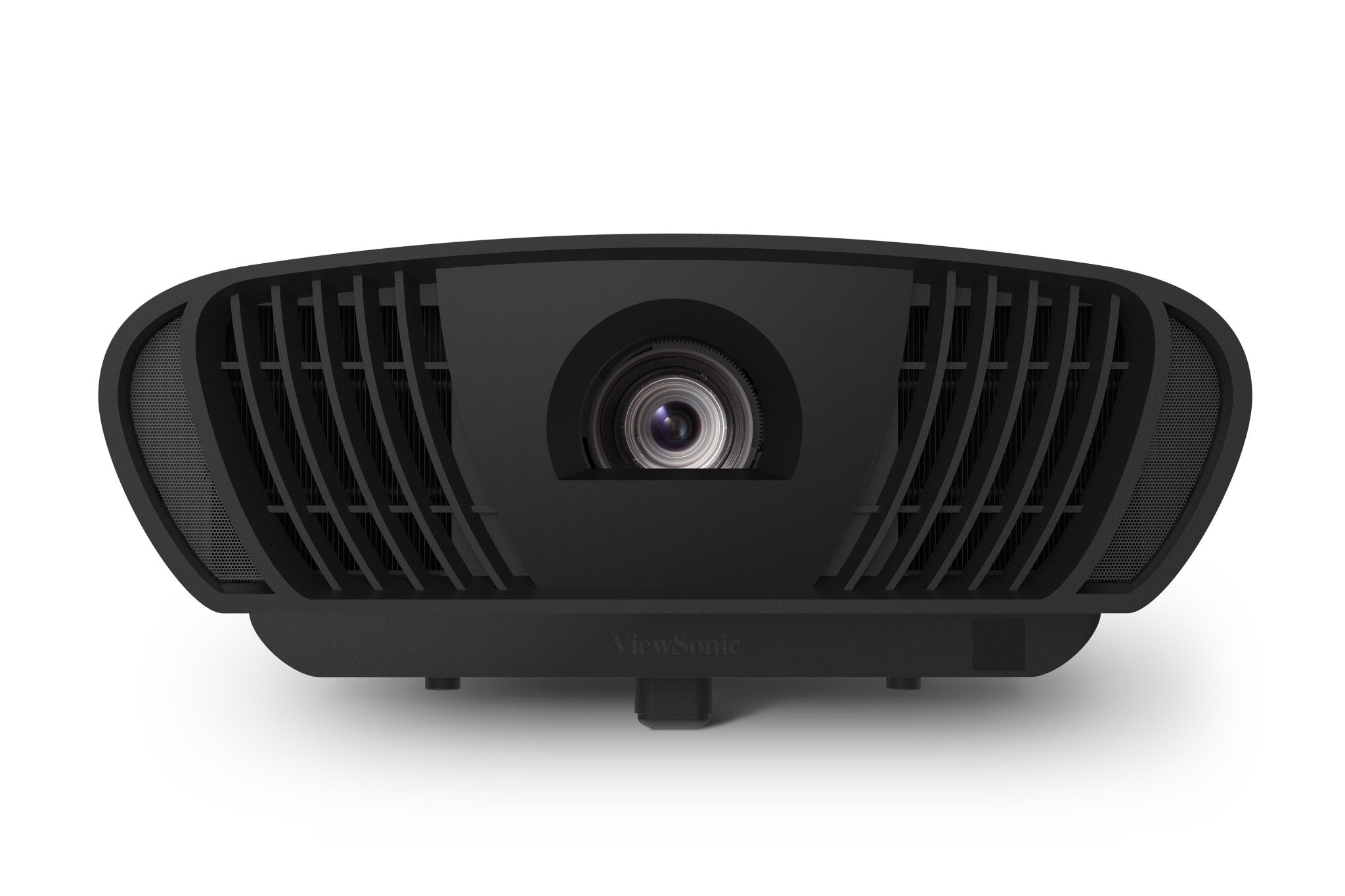

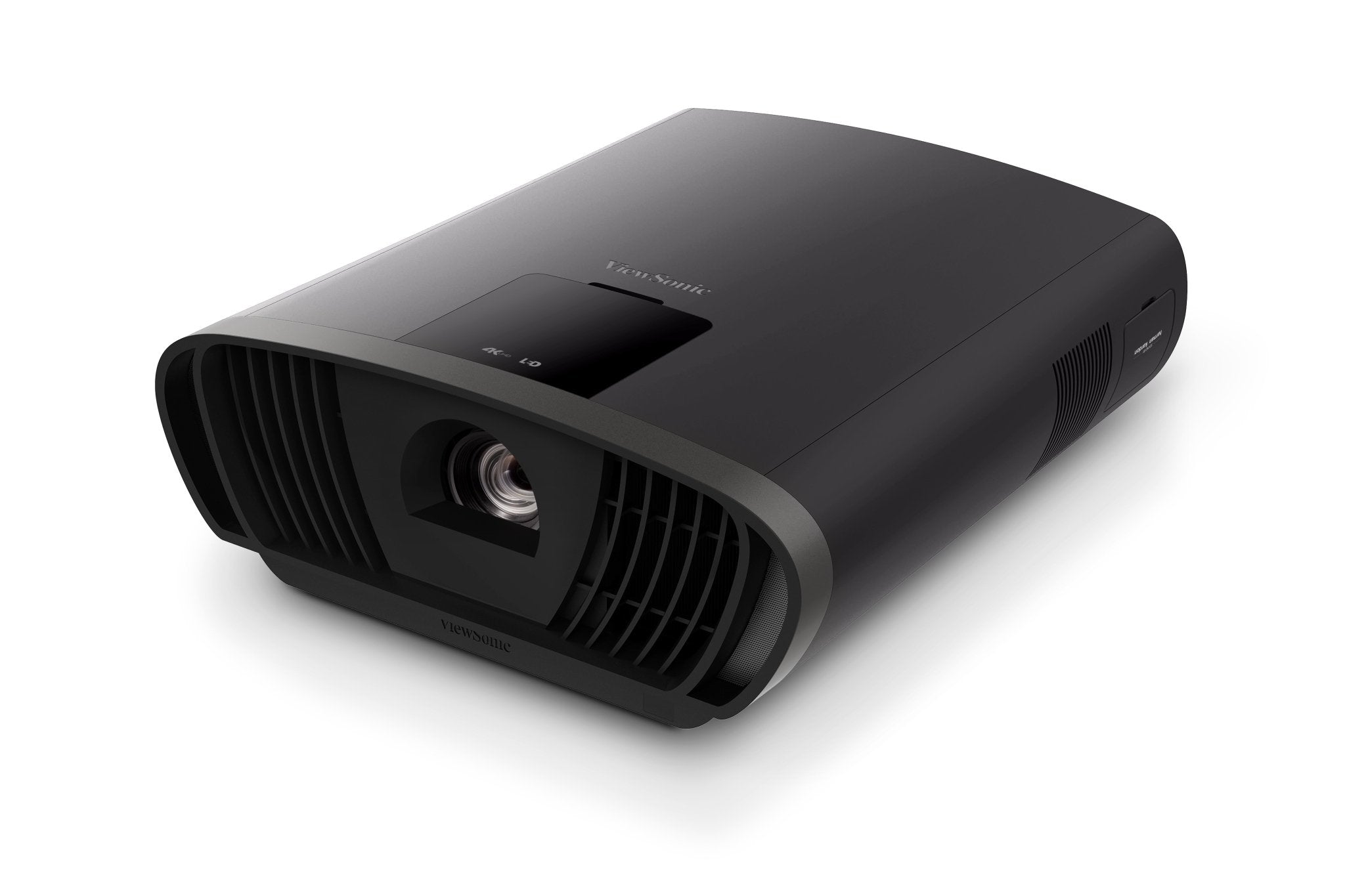

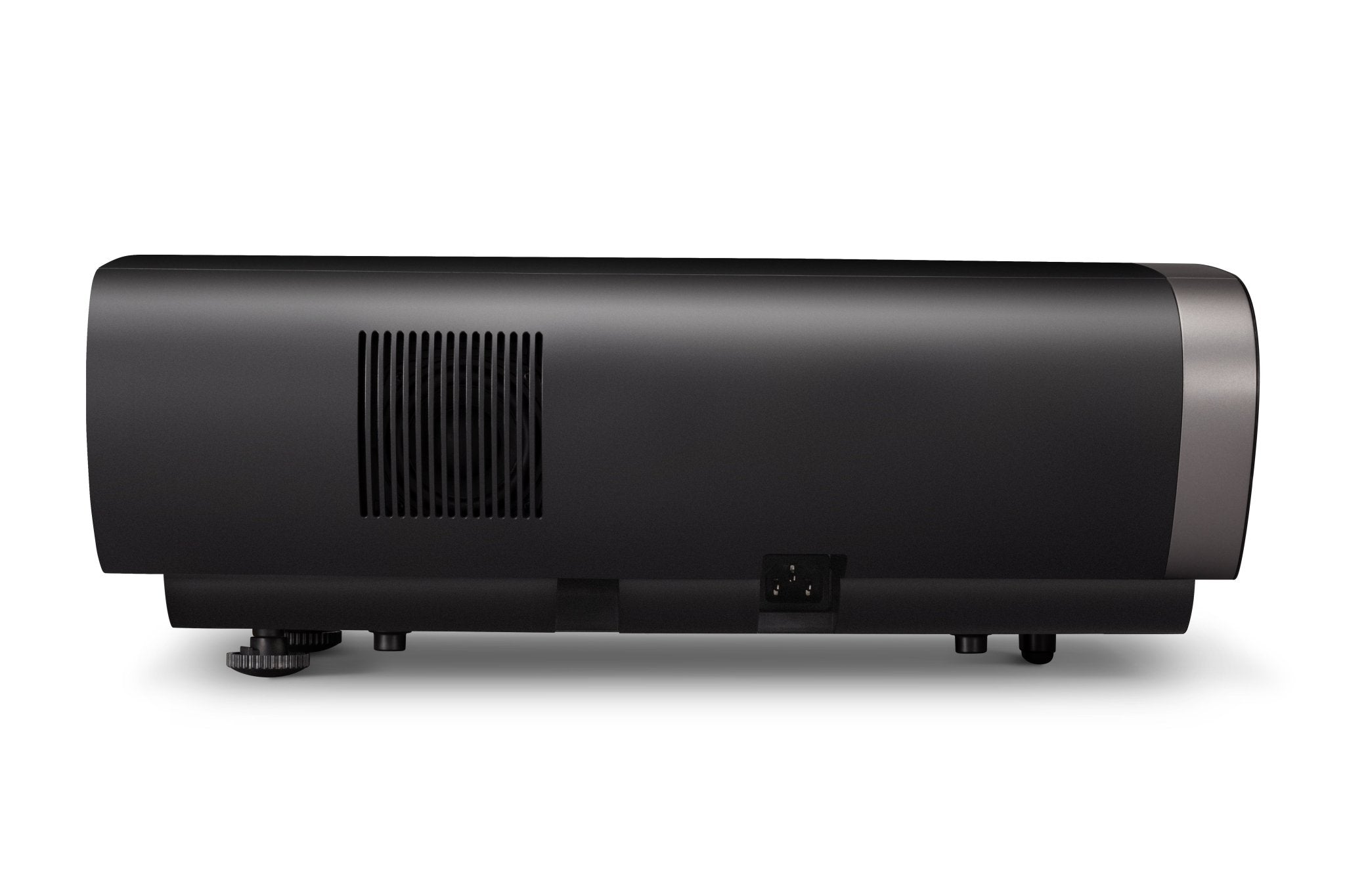

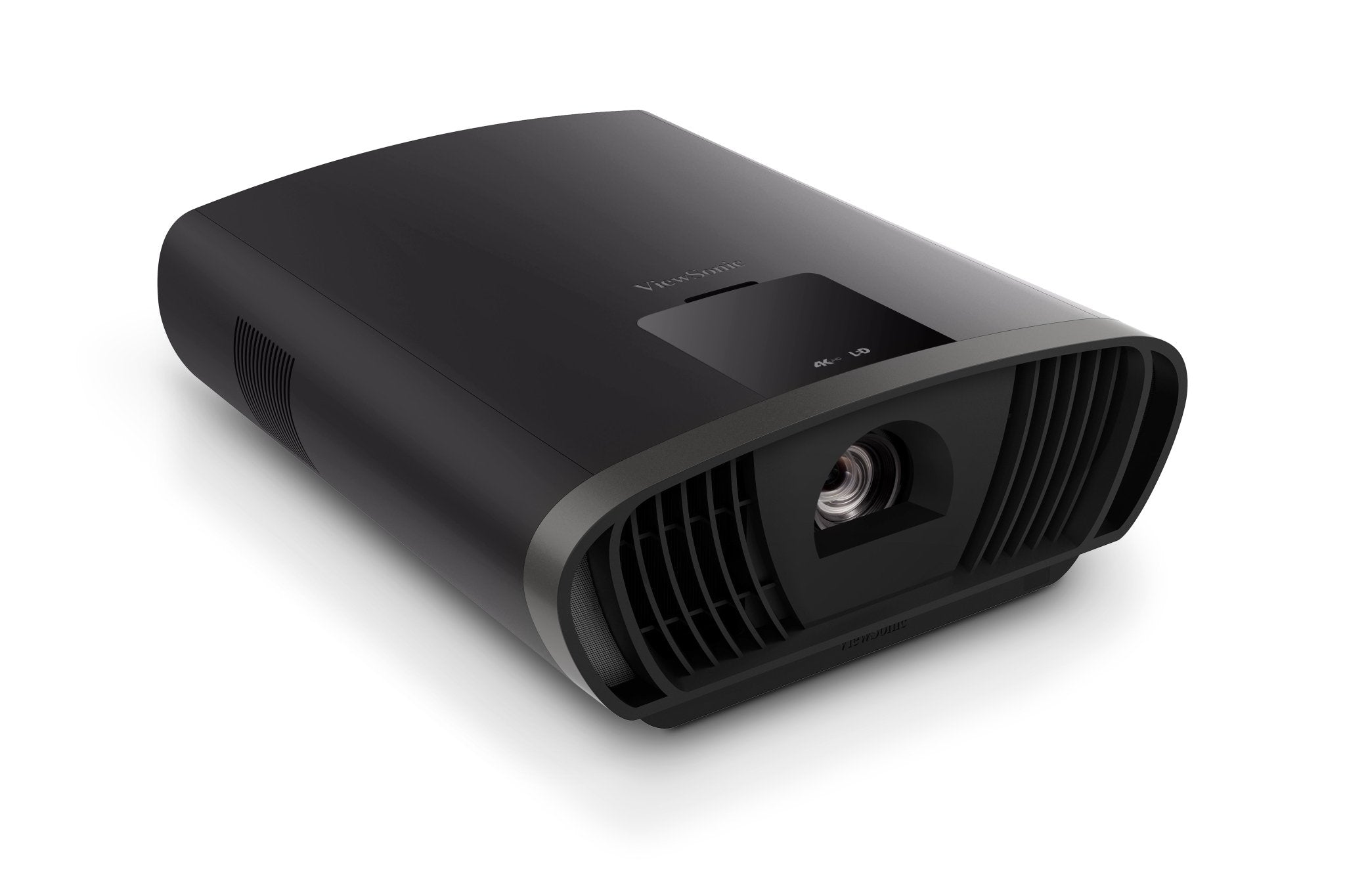

ViewSonic X100-4K+ 4K UHD Home Cinema LED Projector
PRODUCT DESCRIPTION
ViewSonic X100-4K+ 4K UHD Home Cinema LED Projector - 2 Years Local Warranty
True 4K UHD with Cinema Colour
The ViewSonic X100-4K+ projects native 3840 x 2160 (8.3 million pixels) at 2,900 LED lumens, with Cinema SuperColor+ covering 125% Rec.709, HDR and 3D support, and Dynamic Black for deeper contrast.

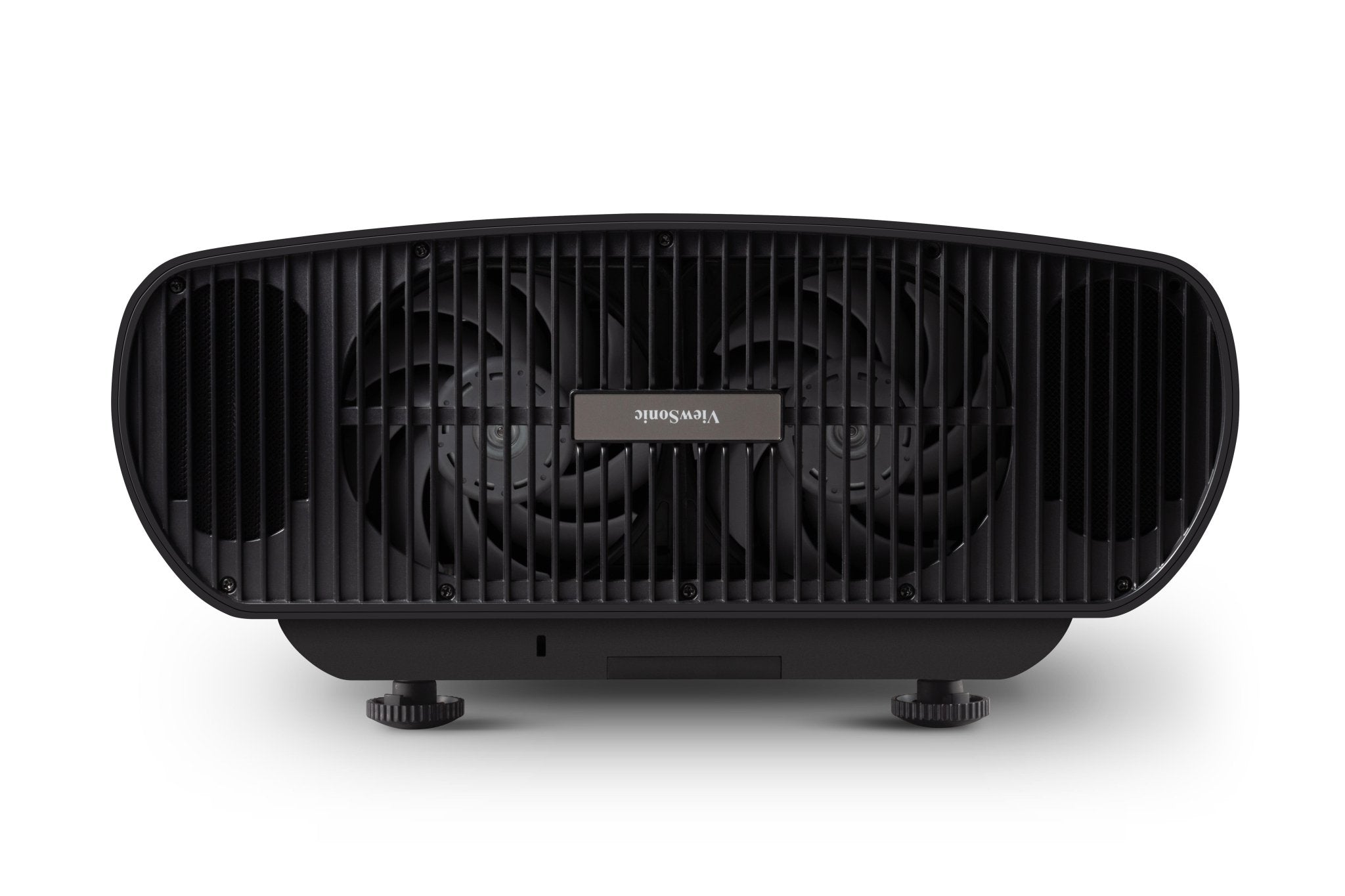

30,000-Hour LED, Whisper Quiet
A second-generation RGBB LED light source is rated up to 30,000 hours with no lamp changes, and fan noise is as low as 20 dB in Eco mode. It powers on instantly.
Flexible Installation

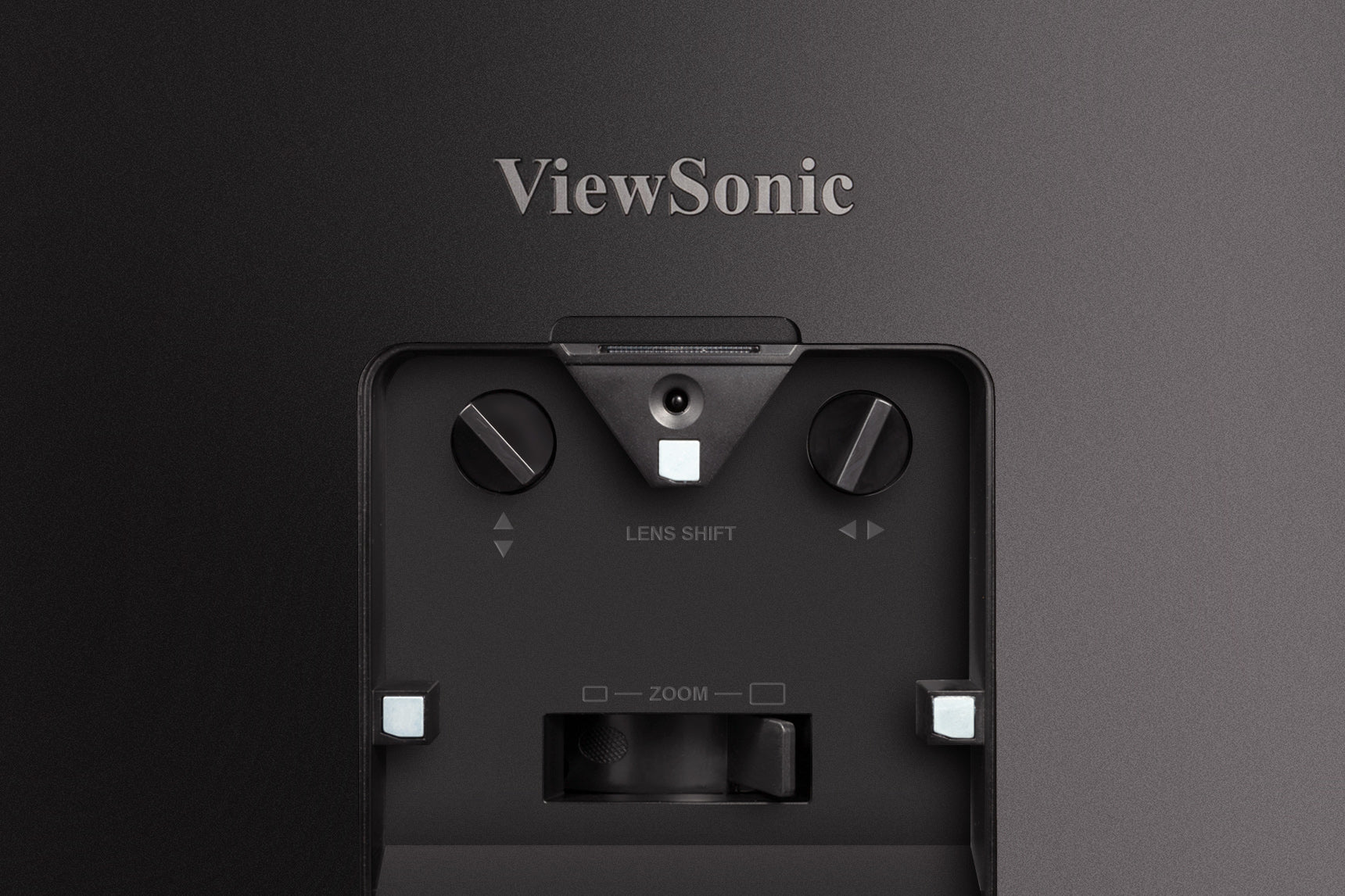

1.2x optical zoom (1.2–1.44 throw ratio), vertical lens shift up to +65% and horizontal ±25% make it easy to place on a shelf or ceiling mount without distorting the picture; ISF-certified calibration modes are built in.
Home Theatre Ready
Four HDMI 2.0 (HDCP 2.2) inputs, S/PDIF, dual 12 V triggers for screens and curtains, RS232 and LAN control, Harman Kardon speakers (2 x 20 W) and a built-in app centre.
Fitting out a home theatre, showroom or several rooms? Email sales@sourceit.com.sg for pricing and delivery lead time.
ViewSonic X100-4K+ Datasheet — Technical Specifications
General
| Product Name | ViewSonic X100-4K+ 4K UHD Home Cinema LED Projector |
| Model | X100-4K+ |
| Local Warranty (Singapore) | 2 years local limited warranty on parts and labour |
Optical
| Projection System | 0.47" |
| Native Resolution | 3840 x 2160 (4K UHD) |
| Brightness | 2,900 LED lumens |
| Contrast Ratio | 4,000,000:1 |
| Display Colour | 1.07 billion colours |
| Light Source | LED (RGBB) |
| Light Source Life | Up to 30,000 hours (Normal) |
| Lens | F=1.8–1.825, f=12.62–15.13 mm |
| Throw Ratio | 1.2–1.44 |
| Optical Zoom | 1.2x |
| Image Size | 40"–200" |
| Throw Distance | 1.06–6.37 m |
| Projection Offset | 0% |
| Lens Shift | Vertical +65% / -0%; Horizontal ±25% |
| Keystone | ±40° vertical |
Compatibility
| Resolution Support | VGA (640 x 480) to 4K (3840 x 2160) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Horizontal Frequency | 30–97 kHz |
| Vertical Scan Rate | 24–120 Hz |
| Local Storage | 16 GB total (12 GB available) |

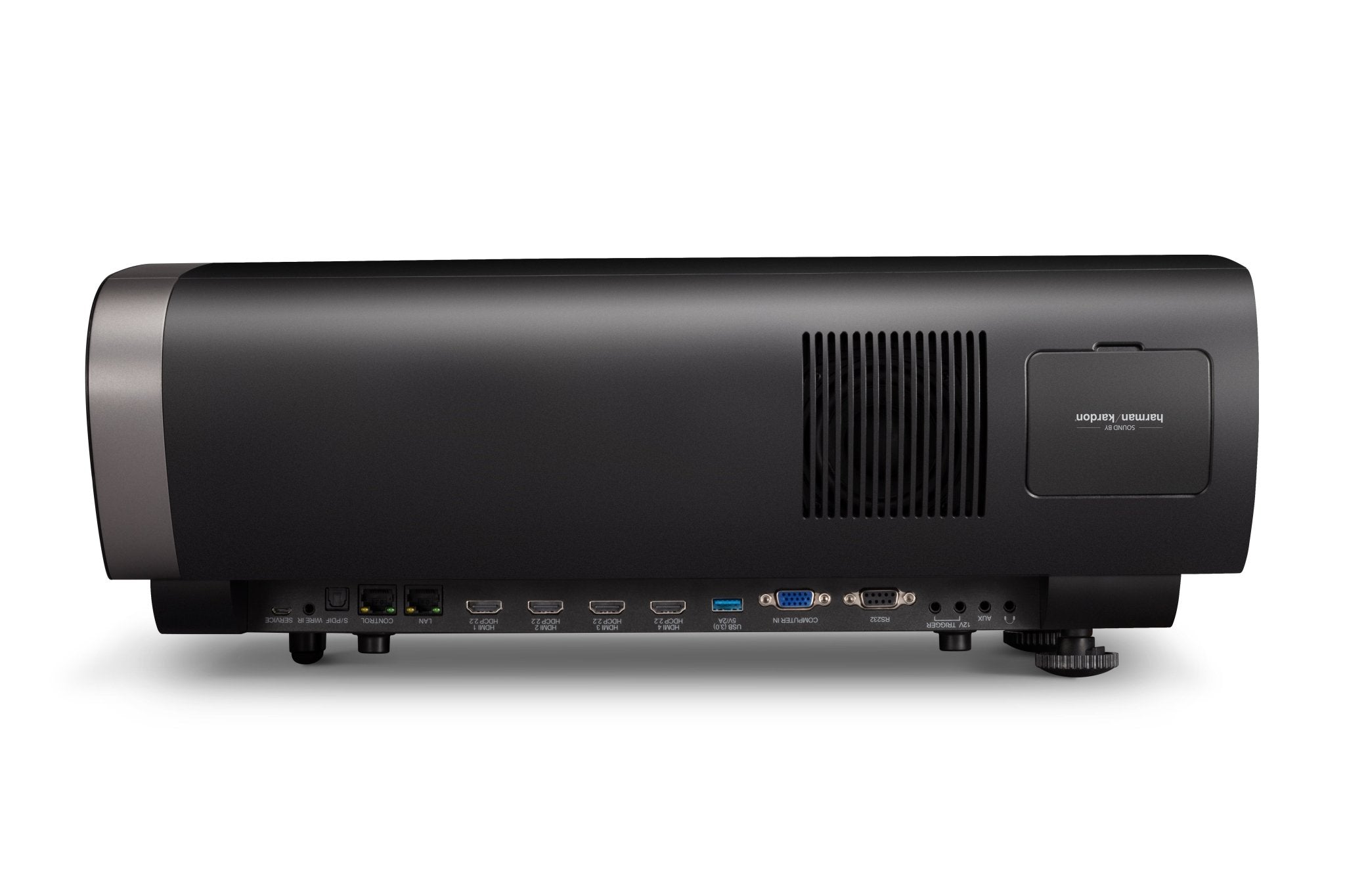

Connectivity
| HDMI | 4 x HDMI 2.0 (HDCP 1.4/2.2) |
| Computer In | 1 x VGA (shared with component) |
| Audio In | 1 x 3.5 mm |
| USB Reader | 1 x USB 3.0, 1 x USB 2.0 (Type-A) |
| USB Power | 2 x USB Type-A (5 V / 2 A and 5 V / 900 mA) |
| LAN | 1 x RJ45 (Internet); 1 x RJ45 (LAN control) |
| Audio Out | 1 x 3.5 mm; 1 x S/PDIF |
| 12 V Trigger | 2 x 3.5 mm |
| Control | 1 x RS232 |
| USB Service | 1 x Micro USB |
| Speakers | 2 x 20 W (Harman Kardon) |
Power & Environmental
| Power Supply | 100–240 V ±10%, 50/60 Hz |
| Power Consumption (Standby) | <0.5 W |
| Audible Noise | 23 dB (Normal); 20 dB (Eco) |
| Operating Temperature | 0–40 °C |
Physical
| Dimensions (W x D x H) | 416 x 463 x 183 mm (with adjustment foot) |
| OSD Languages | 23 |
Compatibility & Software Support
Sources
Four HDMI 2.0 inputs with HDCP 2.2 accept 4K Blu-ray players, game consoles, AV receivers and streaming boxes; VGA covers PCs.
Smart Features
A built-in app centre streams content directly, and the vCastSender mobile app turns a phone into a remote with screen annotation.
Home Automation
Two 12 V trigger outputs can drop a motorised screen or close curtains when the projector powers on; RS232 and LAN control integrate with home automation systems.
Typical Use
Dedicated home theatres and media rooms where precise placement (lens shift) and quiet operation matter.
Package Contents & ViewSonic 4K Home Projectors Ordering Information
In the Box
X100-4K+ projector, power cord, remote control, quick start guide.
Optional Accessories
| HDBaseT receiver | HB10B |
ViewSonic 4K Home Projectors
| Model | Key feature |
| LX700-4K RGB | 4K RGB laser home cinema |
| LX720-4K | 3,500 lm 4K laser, Google TV |
| LX750-4K | 4,000 lm 4K laser, Google TV |
| X100-4K+ (this listing) | 2,900 LED lm 4K, lens shift |
| X1000-4K+ | 4K ultra short throw LED soundbar |
| X2000B-4K | 4K ultra short throw laser |
Datasheet & Downloads
| ViewSonic datasheet | X100-4K+ Datasheet |
| User guide | X100-4K+ User Guide (PDF, English) |
| Quick start guide | X100-4K+ Quick Start Guide (PDF) |
| 2D drawing | X100-4K+ 2D Drawing (PDF) |
| ViewSonic product page | X100-4K+ on viewsonic.com Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting X100-4K+.
Frequently Asked Questions — ViewSonic X100-4K+
Is it true 4K?
Yes. ViewSonic lists a native resolution of 3840 x 2160 (4K UHD) with HDR and 3D support.
Do I ever need to replace a lamp?
No. The LED light source is rated up to 30,000 hours and has no lamp to replace.
How flexible is placement?
1.2x optical zoom plus vertical (+65%) and horizontal (±25%) lens shift let you move the image without keystone distortion; image sizes run from 40" to 200".
Can it control my motorised screen?
Yes, via either of its two 12 V trigger outputs.
What warranty do I get?
2 years local limited warranty on parts and labour. Supplied by SourceIT with a GST invoice.
