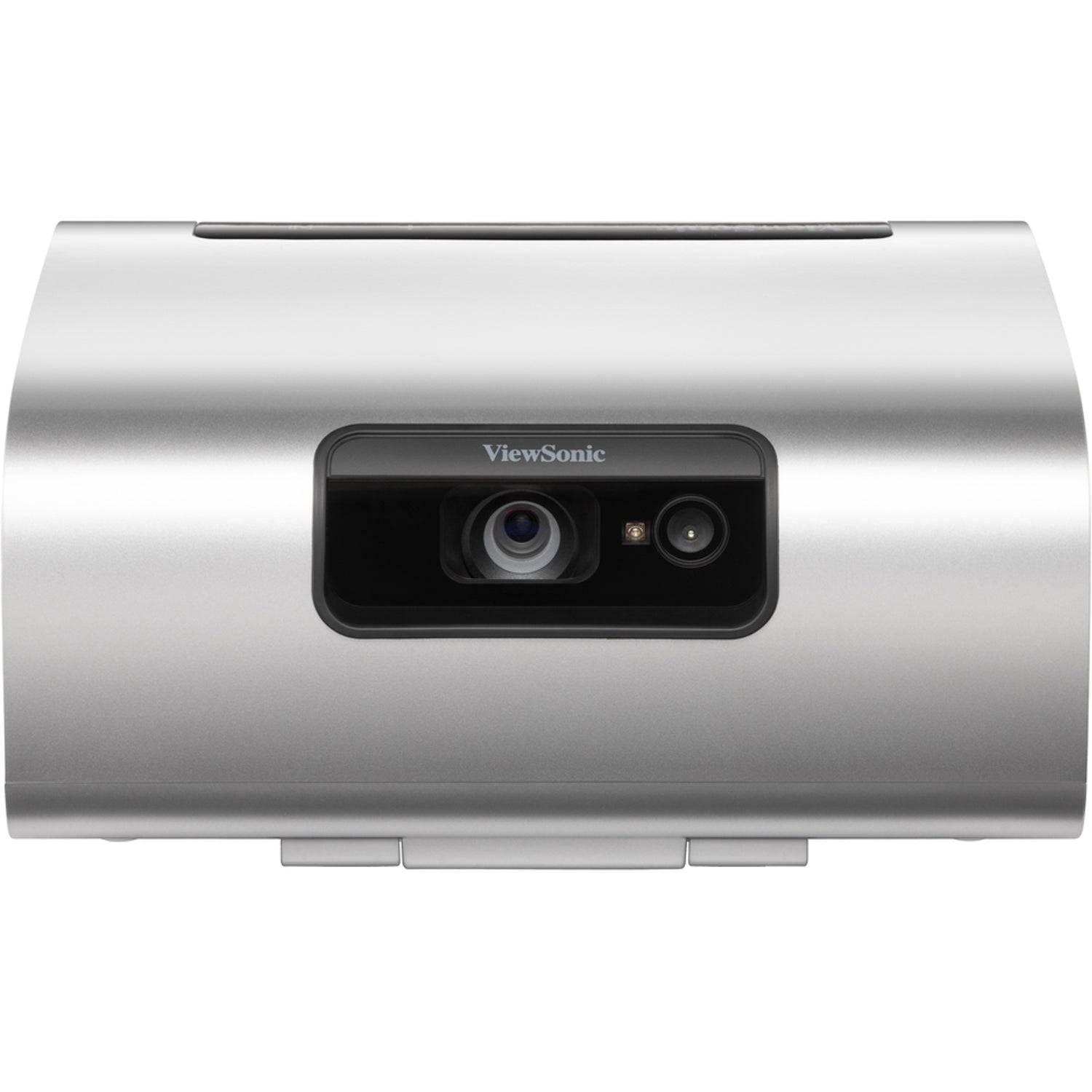

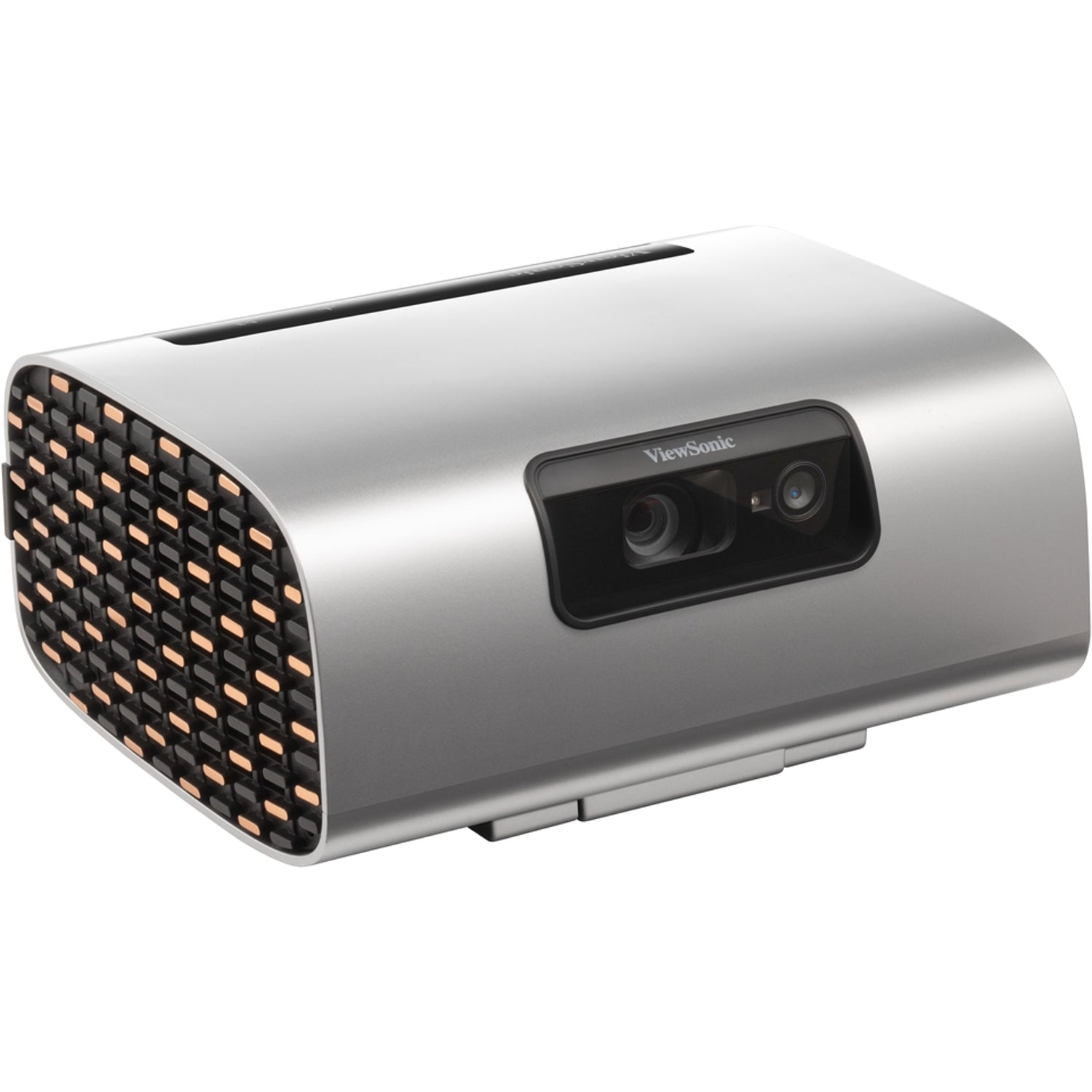

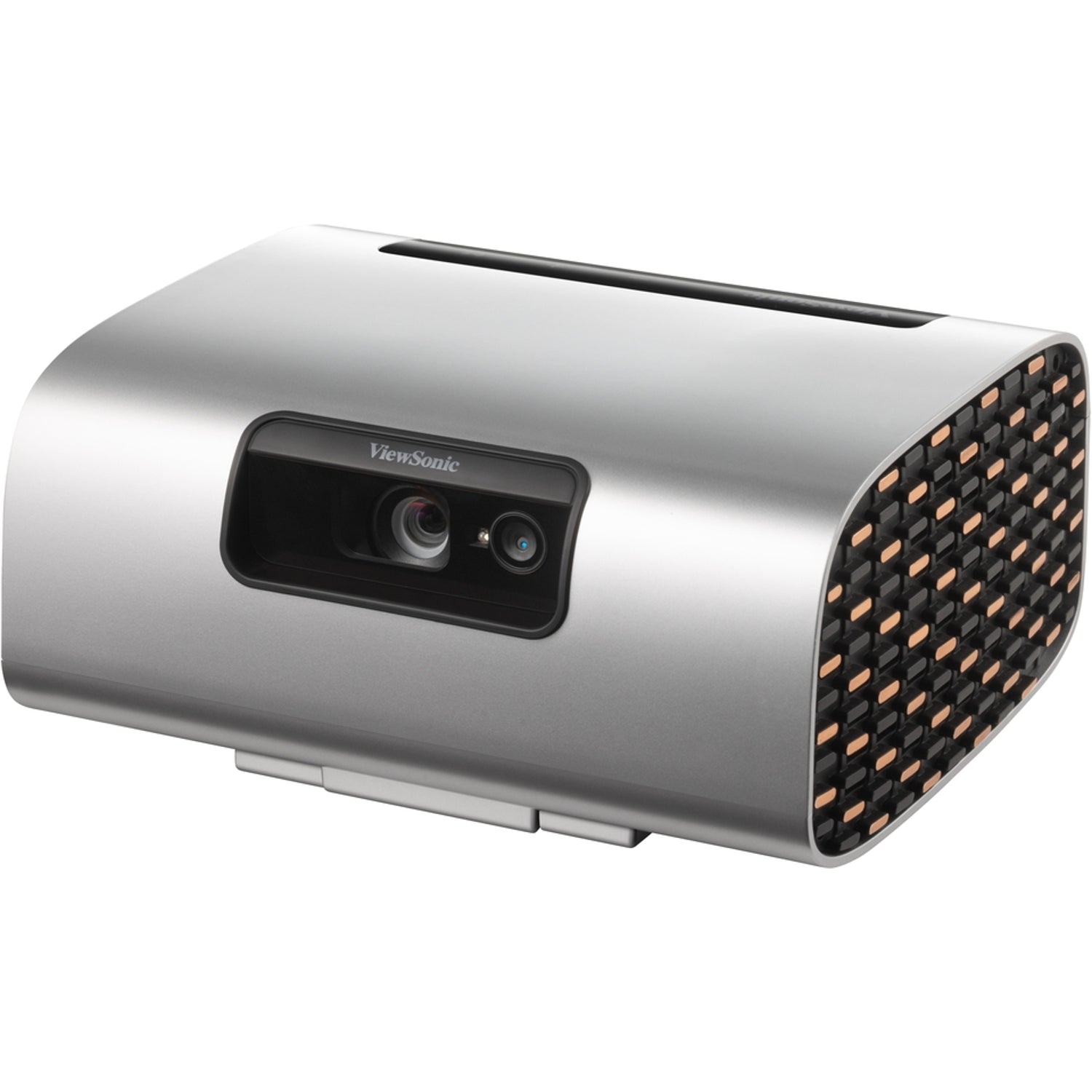

ViewSonic M10 Portable RGB Laser 1080p Smart Projector with Harman Kardon Speaker
PRODUCT DESCRIPTION
ViewSonic M10 Portable RGB Laser Smart Projector with Harman Kardon Speaker - 2 Years Local Warranty

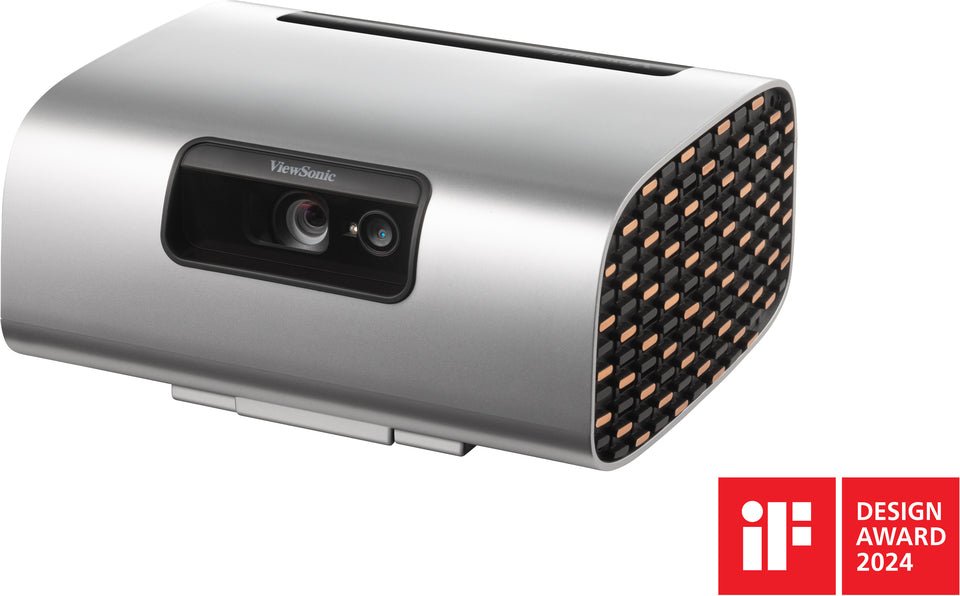

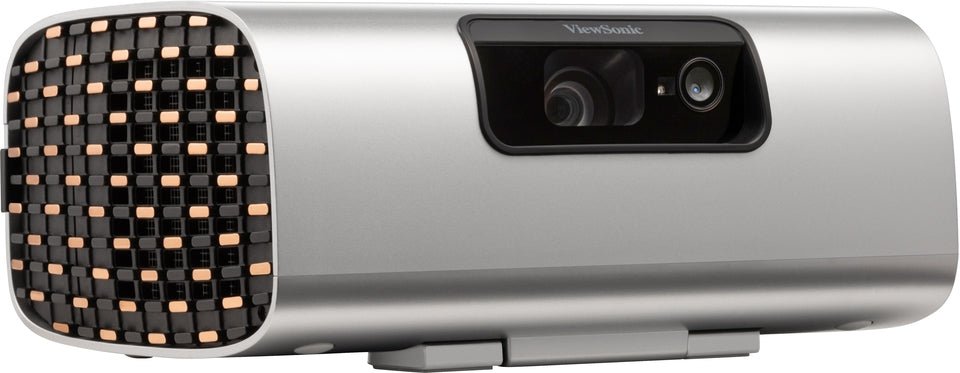

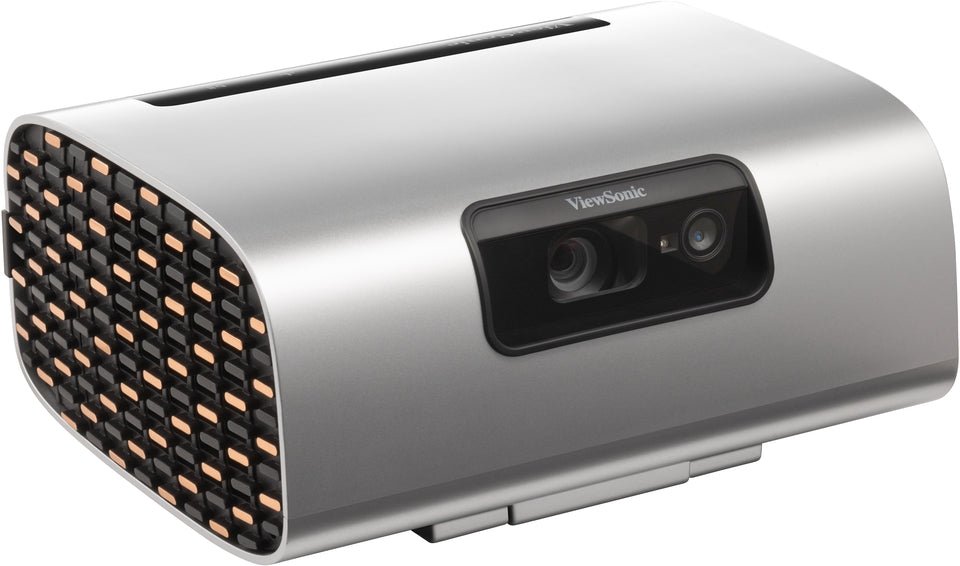

RGB Laser in a Compact Body

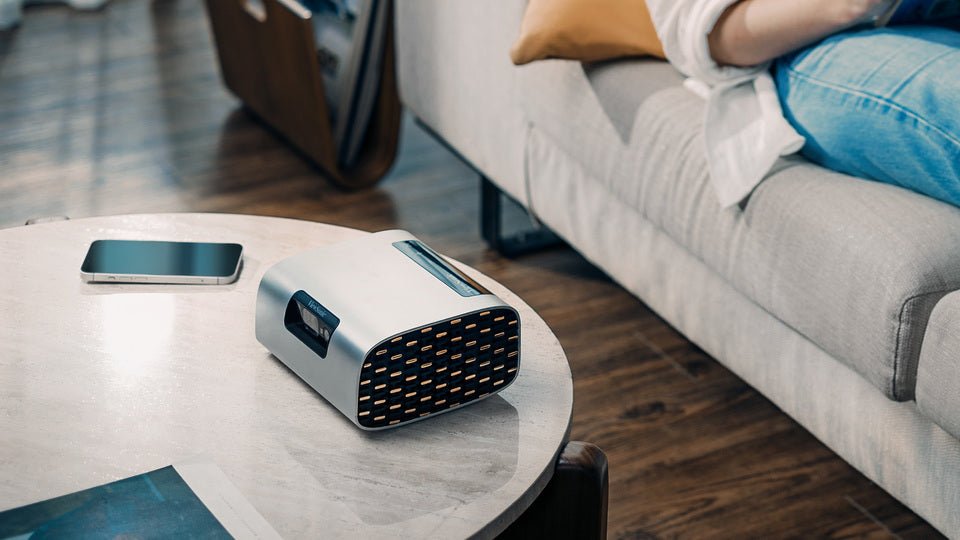

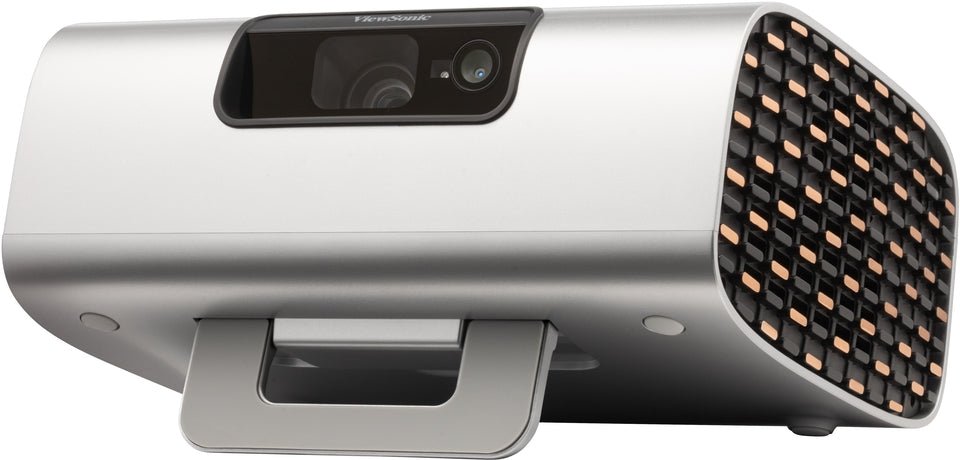

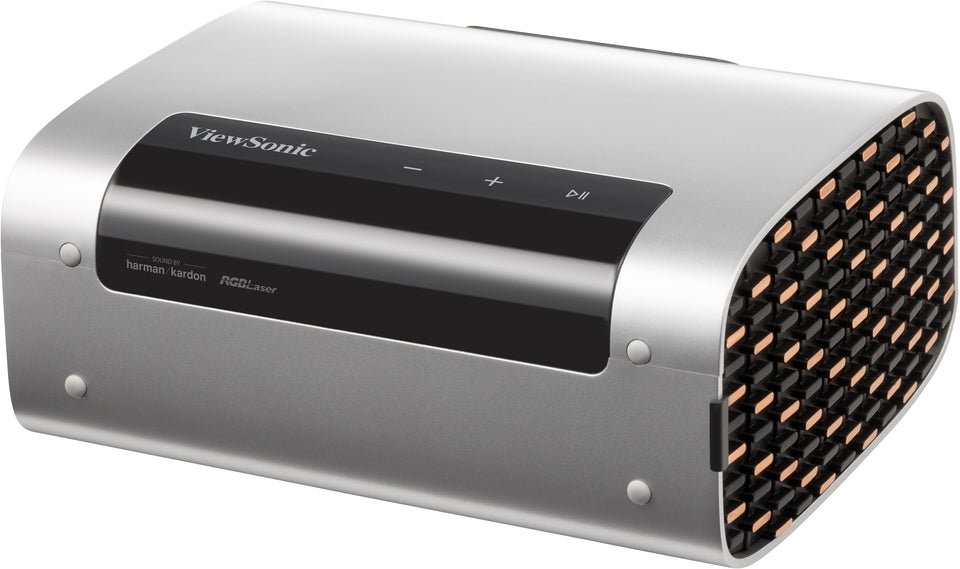

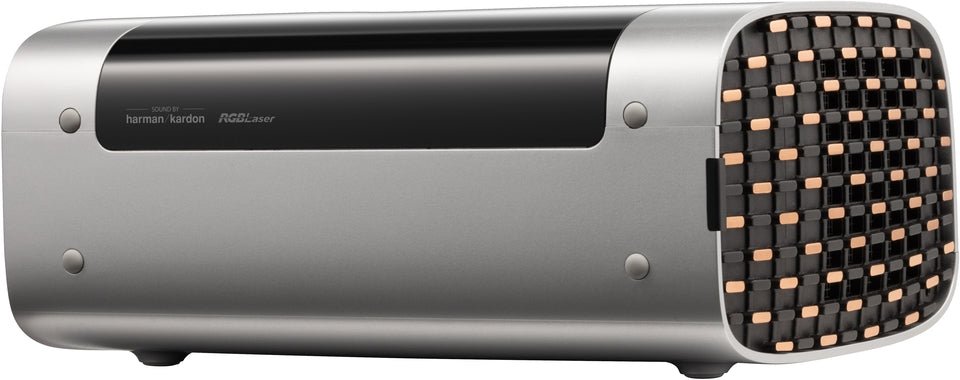

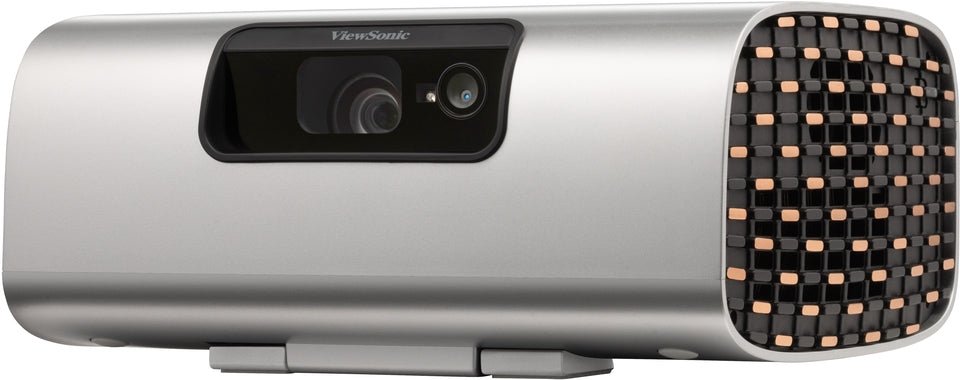

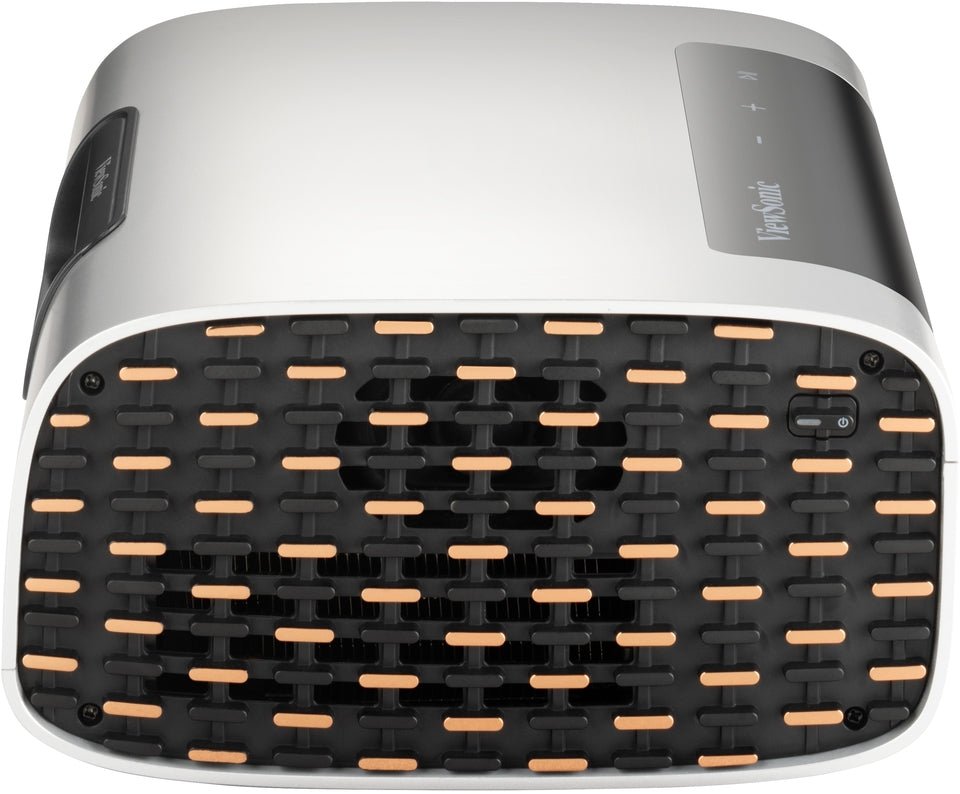

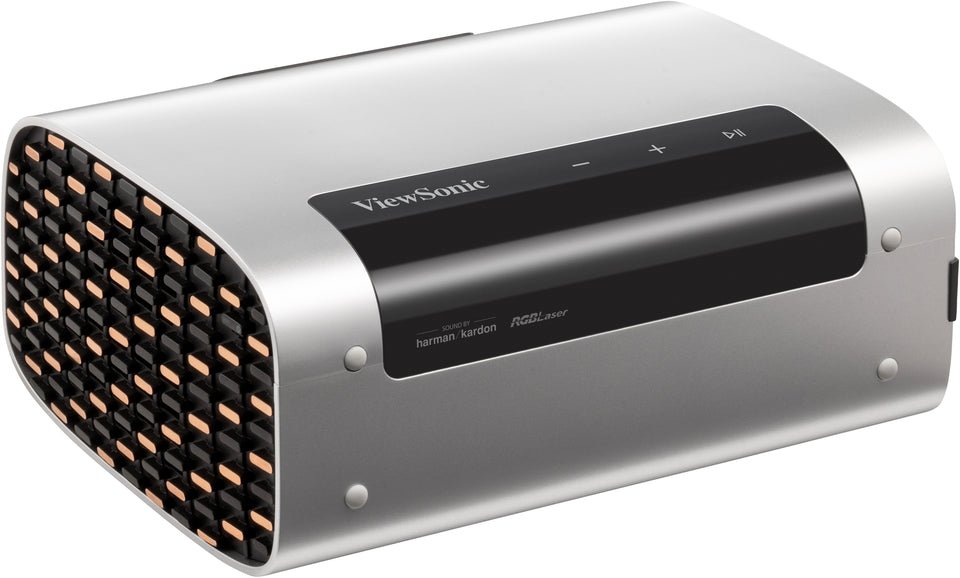

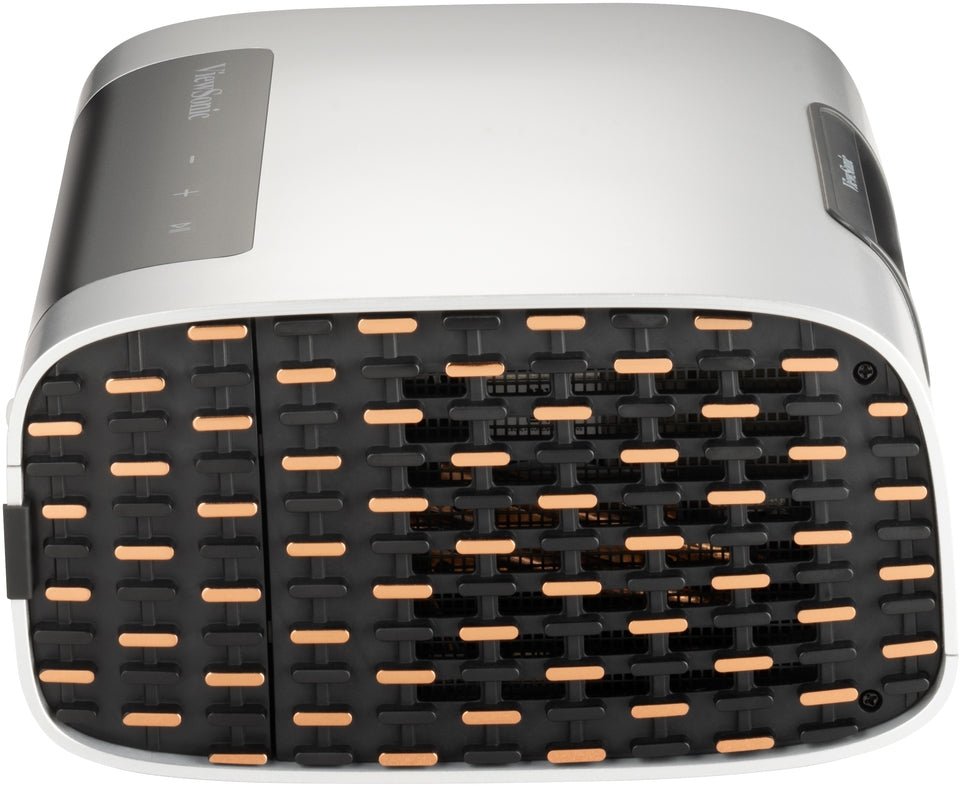

The M10 uses red, green and blue laser diodes for 100% BT.2020 colour coverage and 2,200 RGB laser lumens, in a brushed-metal body weighing 1.36 kg.
Full HD with HDR
Native 1920 x 1080 resolution with HDR/HLG support, 4K input and Frame Interpolation for smoother motion.
Set Up in Seconds

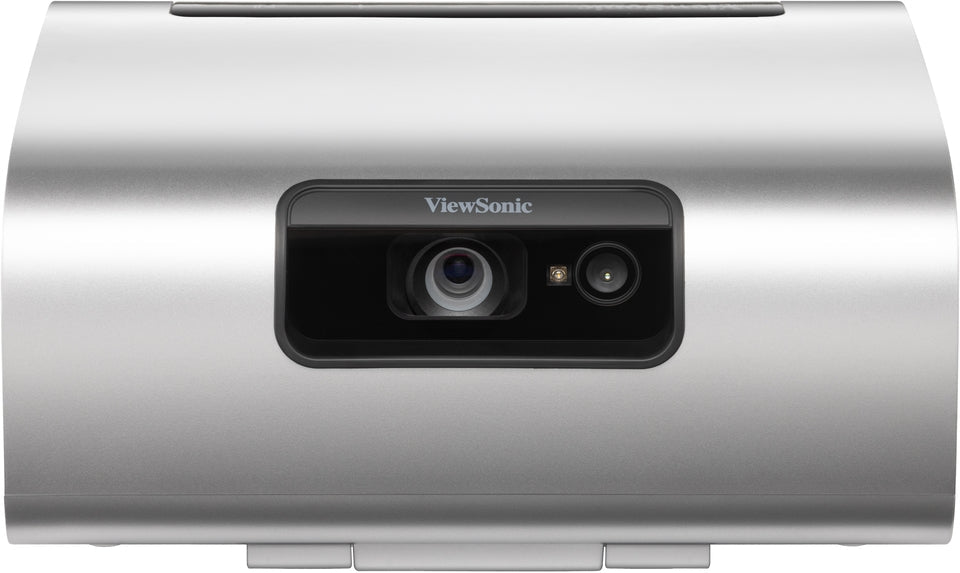

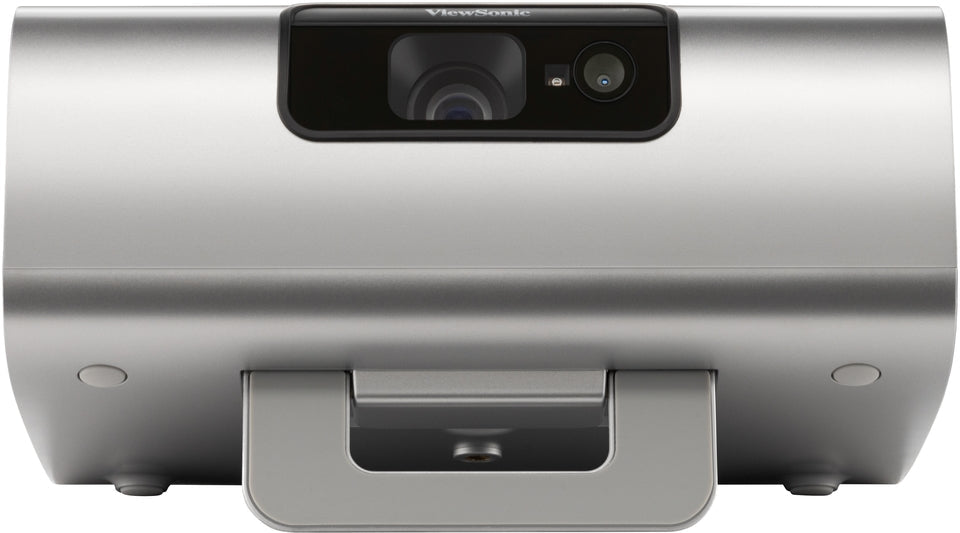

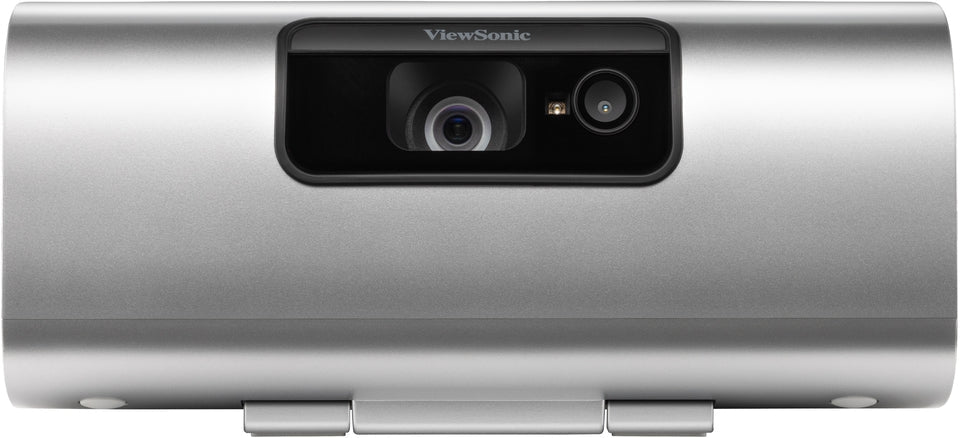

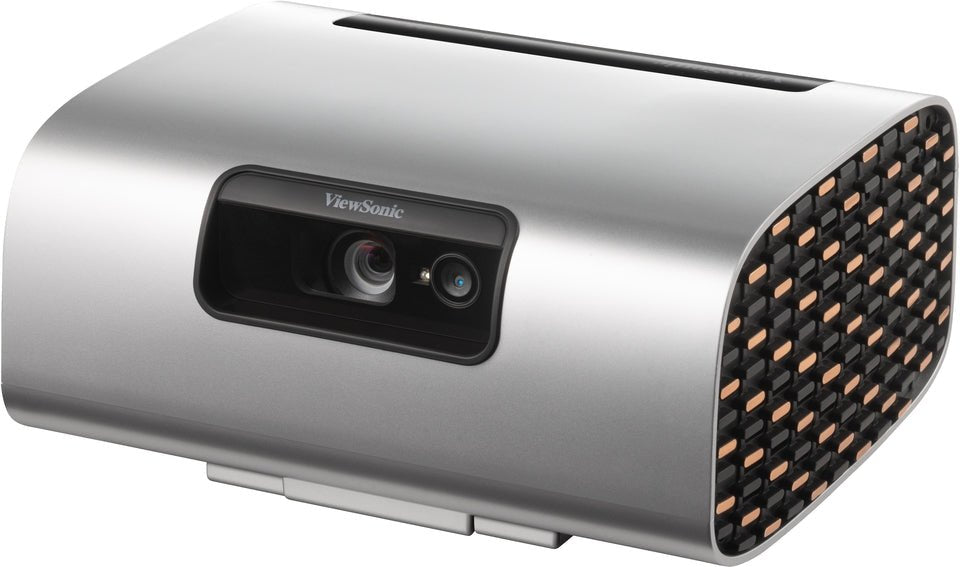

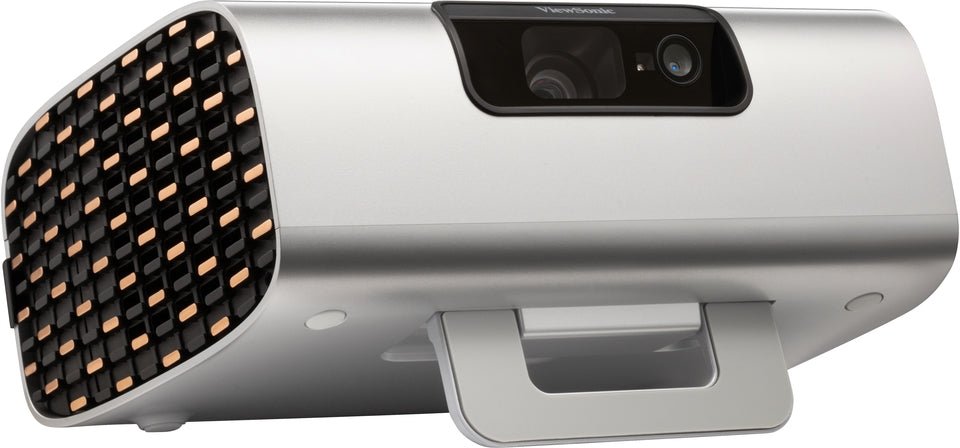

Time-of-Flight auto focus plus automatic H/V keystone and 4-corner adjustment square the image from any angle, and it can project onto the ceiling without a tripod.

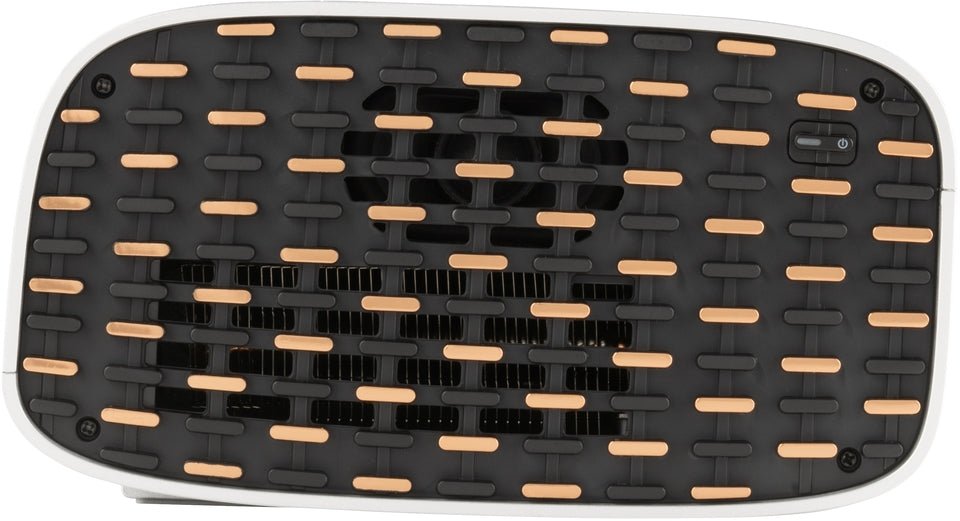

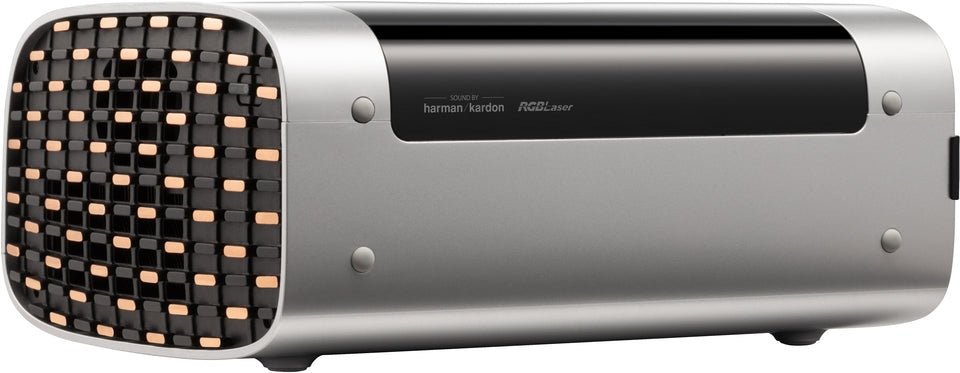

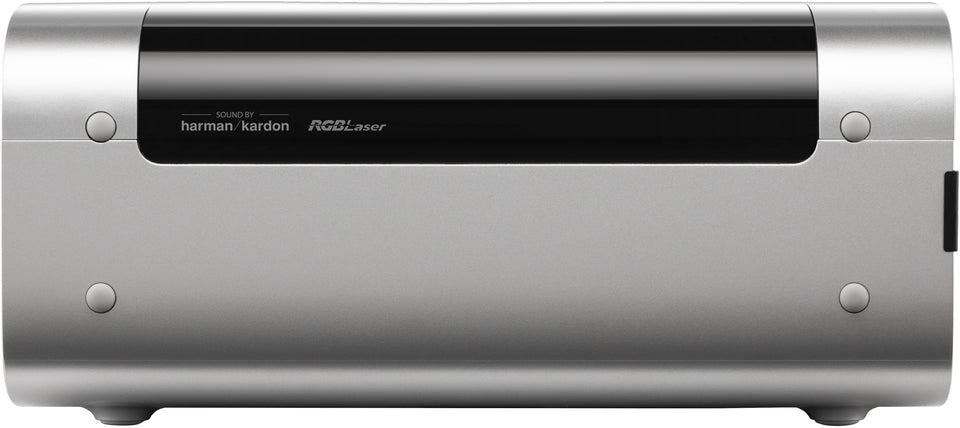

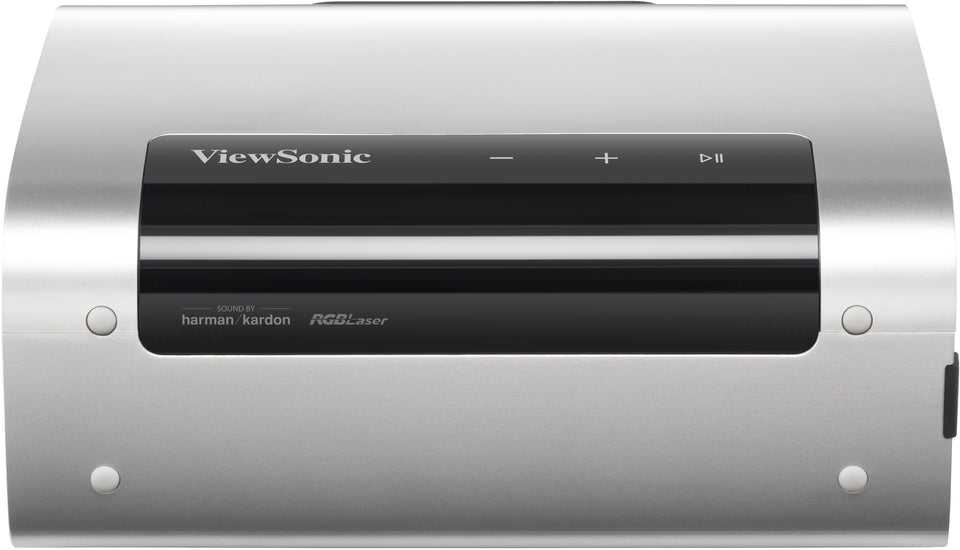

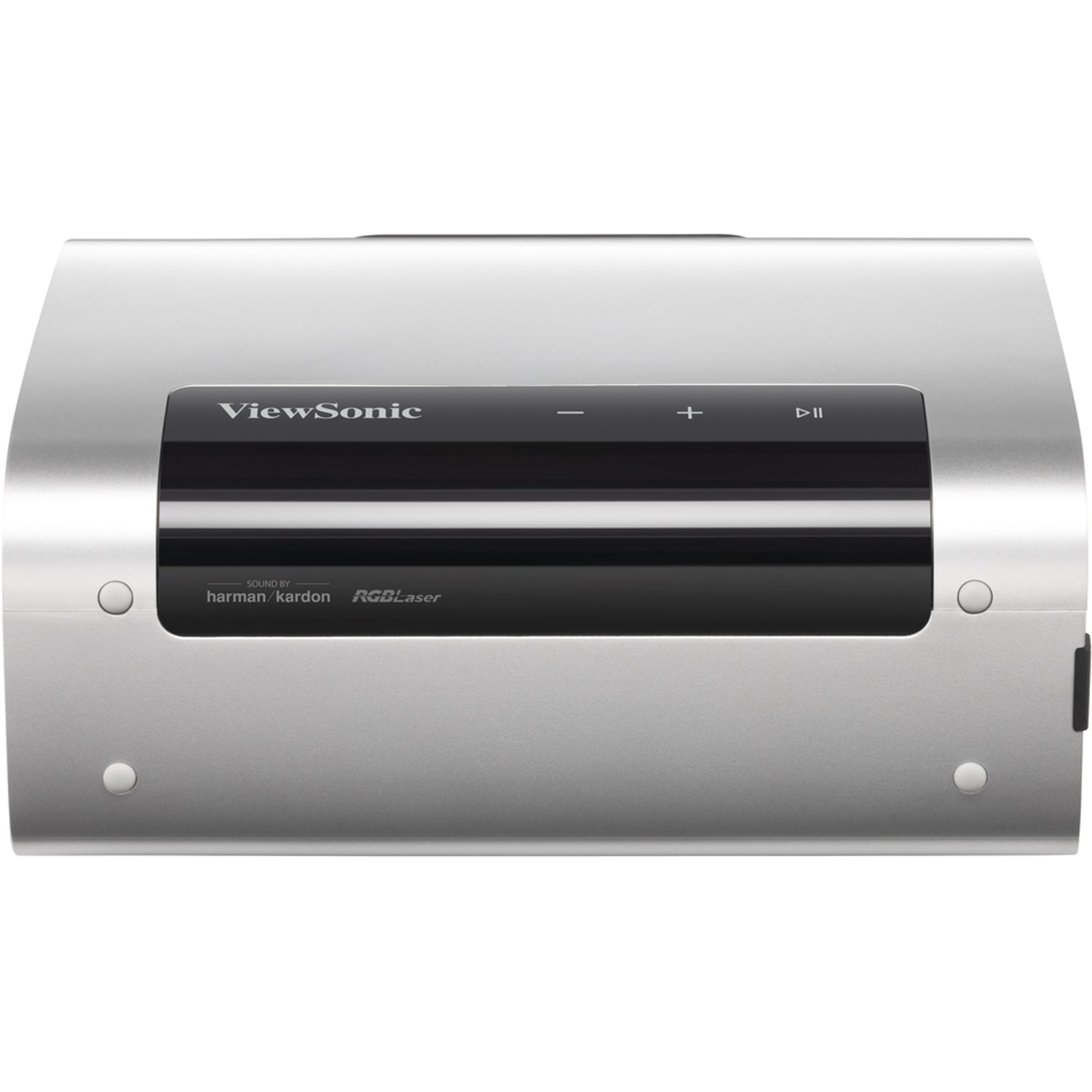

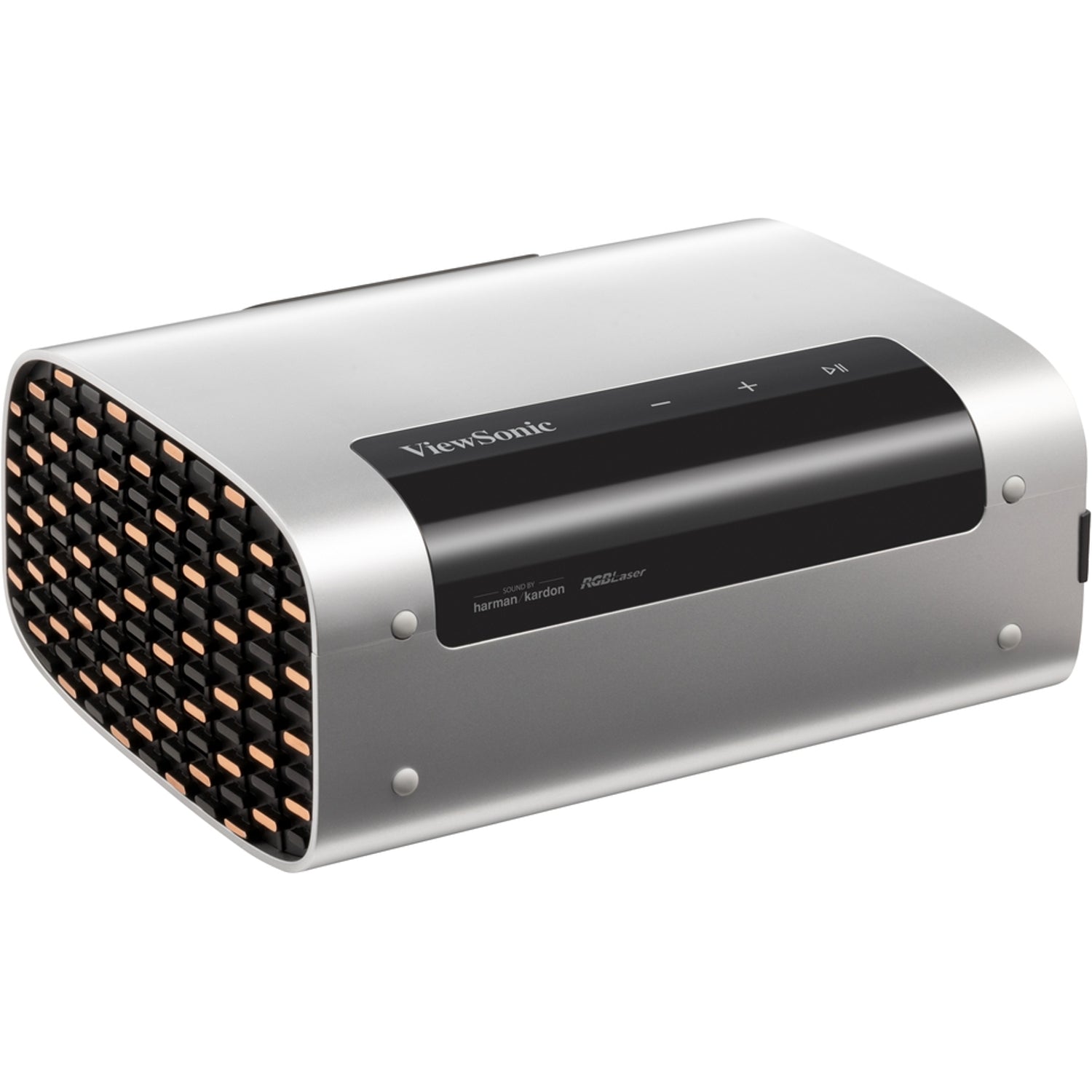

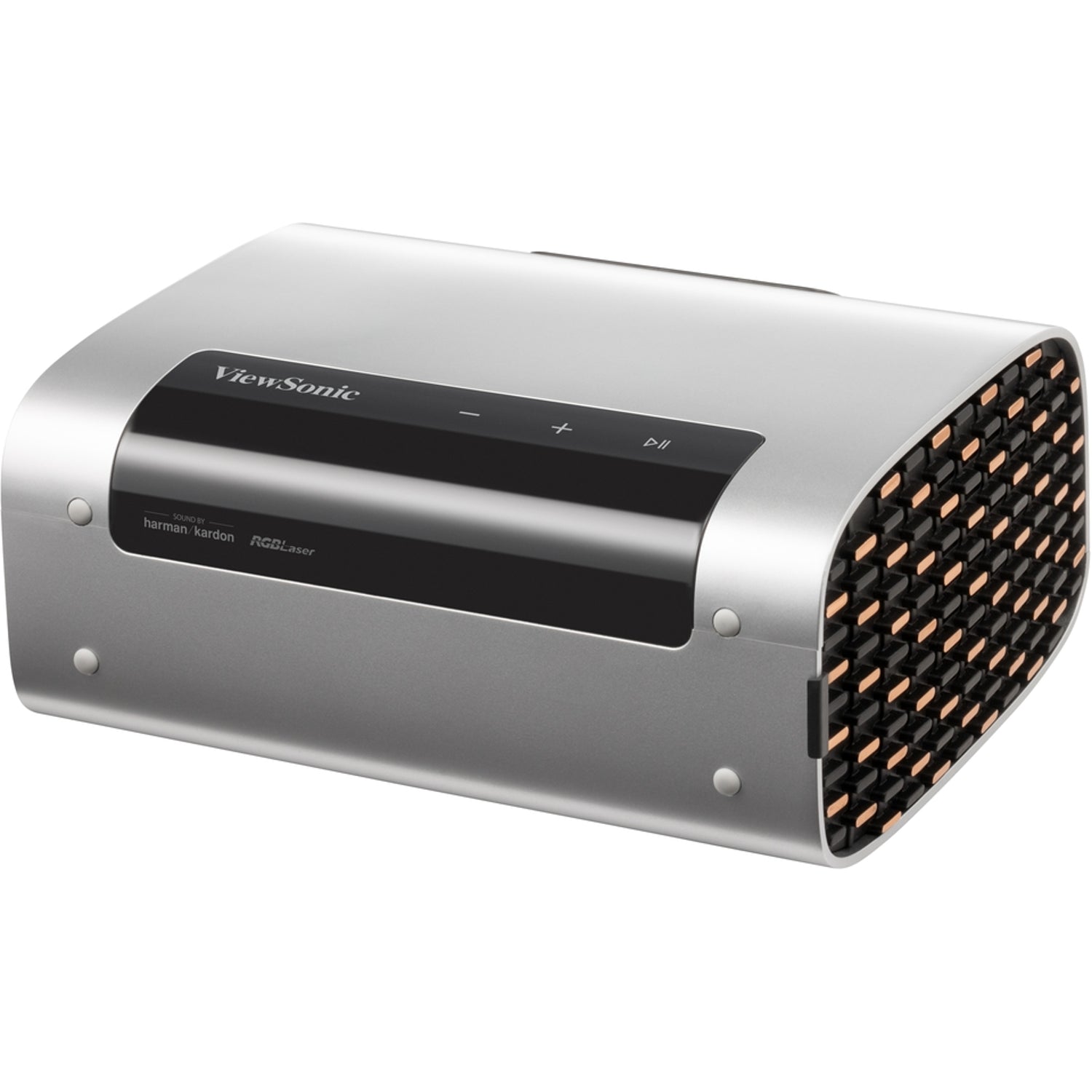

Harman Kardon Sound and Easy Connections

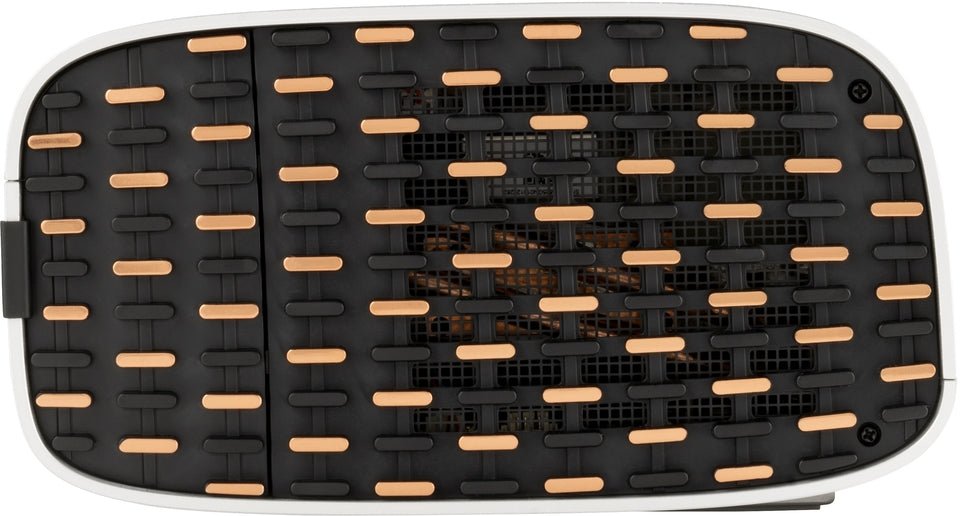

A 7 W Harman Kardon speaker doubles as a Bluetooth speaker; connect over HDMI 2.0, USB-C video input, 5 GHz Wi-Fi casting or Bluetooth headphones.
Questions about screen size, mounting or setup? Email sales@sourceit.com.sg and our team will help you choose.
ViewSonic M10 Datasheet — Technical Specifications
General
| Product Name | ViewSonic M10 Portable RGB Laser Smart Projector with Harman Kardon Speaker |
| Model | M10 |
| Local Warranty (Singapore) | 2 years local limited warranty on parts and labour |
Optical
| Projection System | 0.23" 1080p DLP |
| Native Resolution | 1920 x 1080 (Full HD) |
| Brightness | 2,200 RGB laser lumens |
| Contrast Ratio | 3,000,000:1 |
| Display Colour | 1.07 billion colours; 100% BT.2020 |
| Light Source | RGB laser |
| Light Source Life | 20,000 hours (Normal); 30,000 hours (SuperEco) |
| Lens | F=2.1, f=6.2451 mm |
| Throw Ratio | 1.2 |
| Digital Zoom | 0.8x–1.0x |
| Image Size | 40"–180" |
| Throw Distance | 1.06–4.78 m (100" at 2.66 m) |
| Projection Offset | 100% ±5% |
| Keystone | Auto H: ±40°, V: ±40°; 4-corner adjustment |
| Focus | Time-of-Flight auto focus |
| Input Lag | 176 ms |
Compatibility
| Resolution Support | VGA (640 x 480) to 4K UHD (3840 x 2160) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 1440p, 4K UHD |
| Horizontal Frequency | 15–135 kHz |
| Vertical Scan Rate | 23–120 Hz |
Smart Features
| Local Storage | 16 GB (12 GB available) |
| Wi-Fi | 5 GHz |
| Bluetooth | BT 4.2 audio in and out |
| Phone Control | vCastSender app |

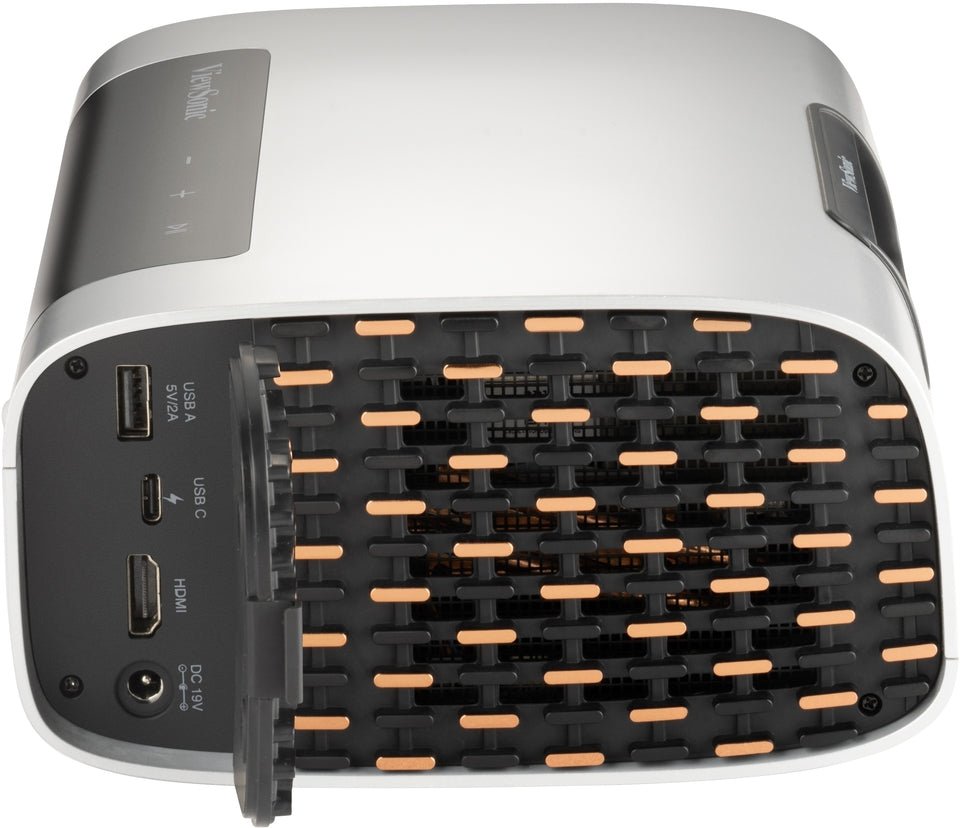

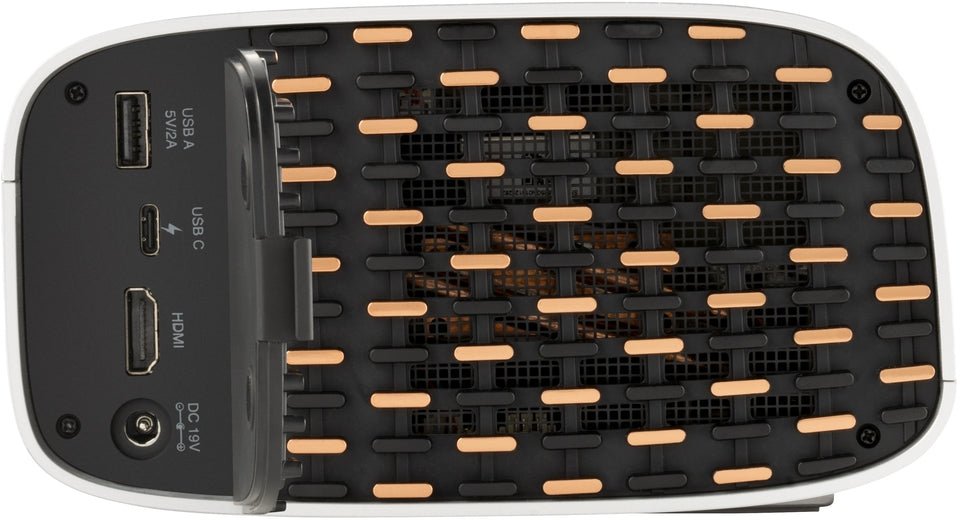

Connectivity
| HDMI | 1 x HDMI 2.0 (HDCP 2.2) |
| USB-C | 1 x USB Type-C (5 V / 2 A) |
| USB-A | 1 x USB 2.0 (reader; 5 V / 2 A power, shared) |
| Speaker | 7 W cube, Harman Kardon |
Power & Environmental
| Power Supply | External adapter, 100–240 V input; 19 V DC / 4.74 A output |
| Power Consumption | 51.3 W (Normal); <0.5 W standby |
| Audible Noise | 29 dB (Normal); 26 dB (Eco) |
| Operating Temperature | 0–35 °C |
Physical
| Dimensions (W x D x H) | 202 x 165 x 92 mm |
| Net Weight | 1.36 kg |
| Packing Dimensions | 340 x 220 x 140 mm |
| Gross Weight | 2.6 kg |
| OSD Languages | 24 |
Compatibility & Software Support
Streaming Devices
Plug in Chromecast, Apple TV, Fire TV or Roku over HDMI; the USB-A port can power a streaming stick.
Phones and Laptops
Mirror over 5 GHz Wi-Fi, or connect a USB-C phone or laptop that supports video output (including iPhone 15) to project and charge over one cable. The vCastSender app turns a phone into a touch remote.
Audio
Use the Harman Kardon speaker as a Bluetooth speaker, or send sound to Bluetooth headphones.
Typical Use
Bedrooms, living rooms, ceiling projection, travel and outdoor movie nights.
Package Contents & ViewSonic Smart LED & Laser Home Projectors Ordering Information
In the Box
M10 projector, power cord, USB-C cable (1 m), backlit Bluetooth remote control, quick start guide.
ViewSonic Smart LED & Laser Home Projectors
| Model | Key feature |
| M10 (this listing) | Portable 1080p RGB laser |
| X2 | 1080p short throw LED |
| X11-4KP | Portable 4K short throw LED |
| X100-4K+ | 4K UHD LED home cinema |
Datasheet & Downloads
| ViewSonic datasheet | M10 Datasheet |
| User guide | M10 User Guide (PDF, English) |
| Quick start guide | M10 Quick Start Guide (PDF) |
| ViewSonic product page | M10 on viewsonic.com Asia Pacific |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting M10.
Frequently Asked Questions — ViewSonic M10
Is it bright enough to use with the lights on?
It is rated at 2,200 RGB laser lumens, and ViewSonic positions it for use in a range of lighting conditions; a darker room still gives the best contrast.
How big an image can I get?
From 40" up to 180". A 100" image needs about 2.66 m.
Can I connect my iPhone with one cable?
Yes. USB-C devices with video output, including iPhone 15, can project and charge over the USB-C port.
Can it project onto the ceiling?
Yes. ViewSonic lists ceiling projection without a tripod, and auto keystone and auto focus square and sharpen the image.
What warranty do I get?
2 years local limited warranty on parts and labour. Supplied by SourceIT with a GST invoice.
