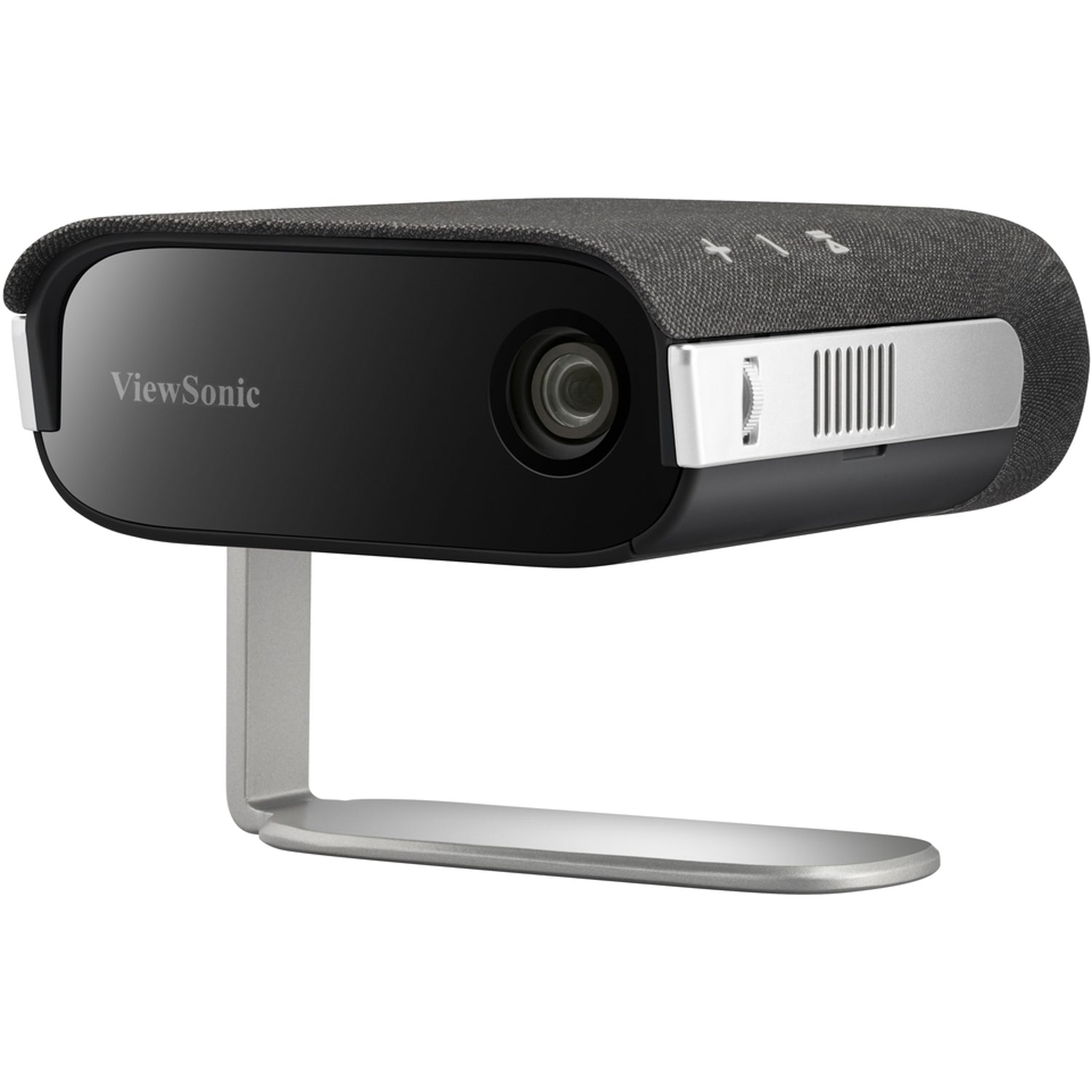

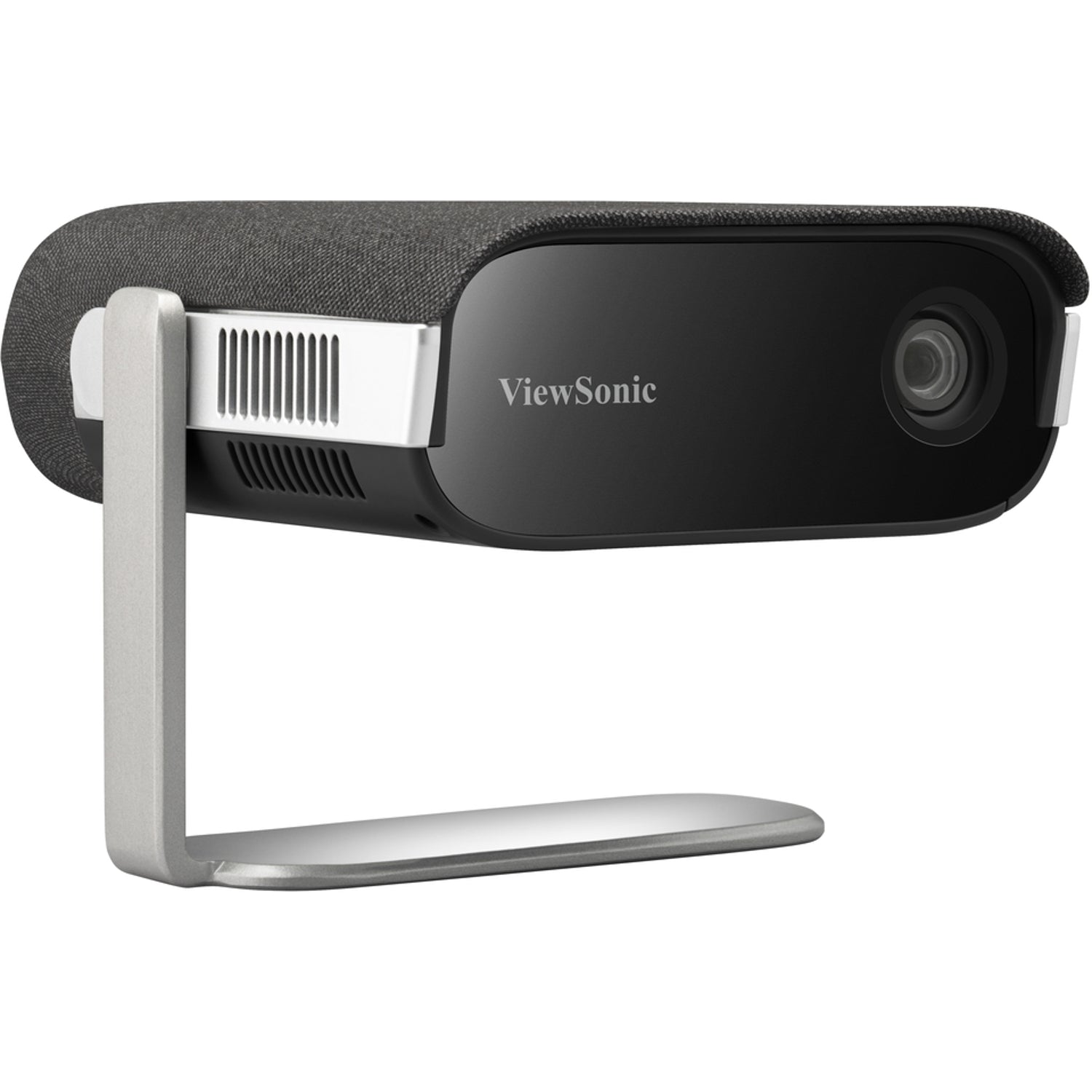

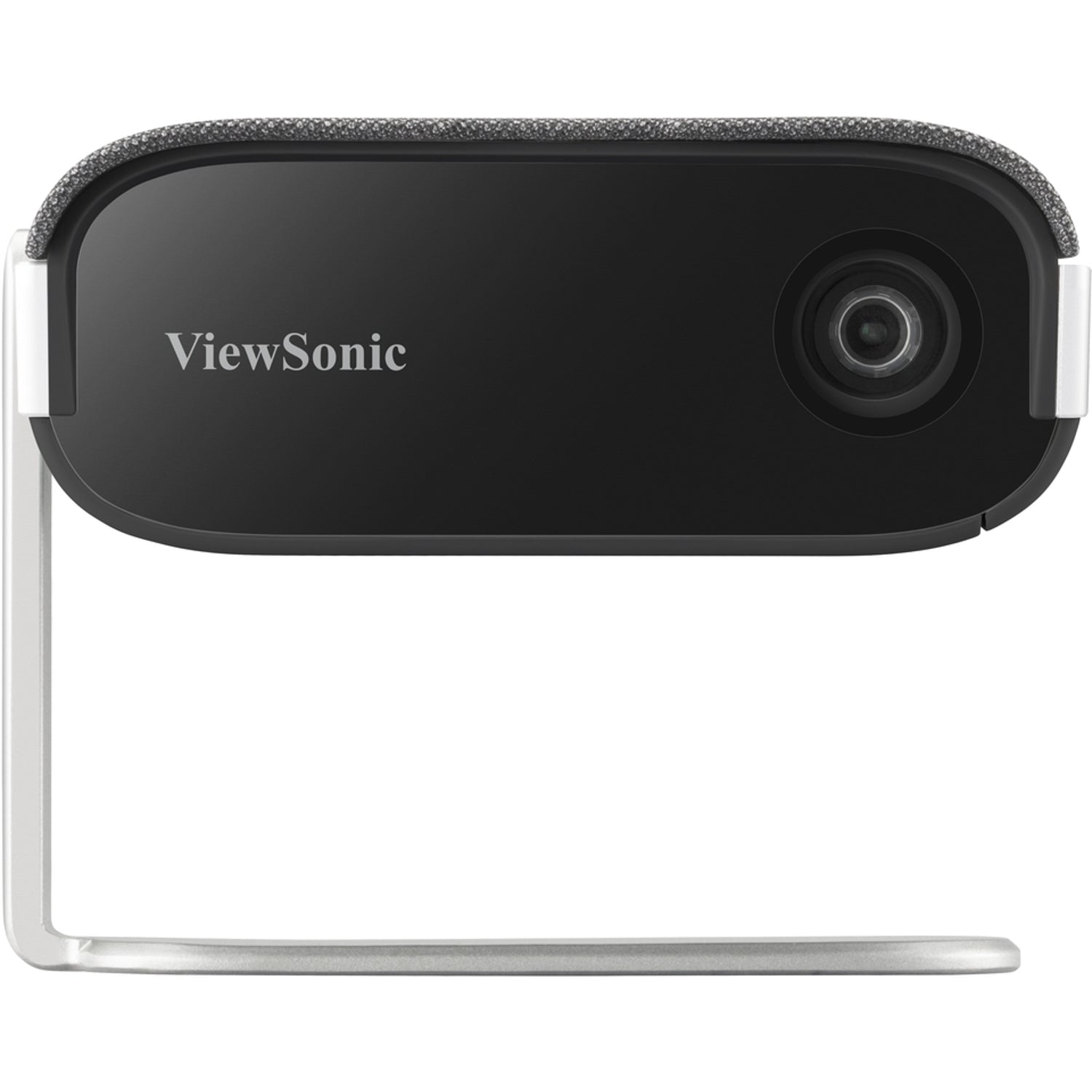

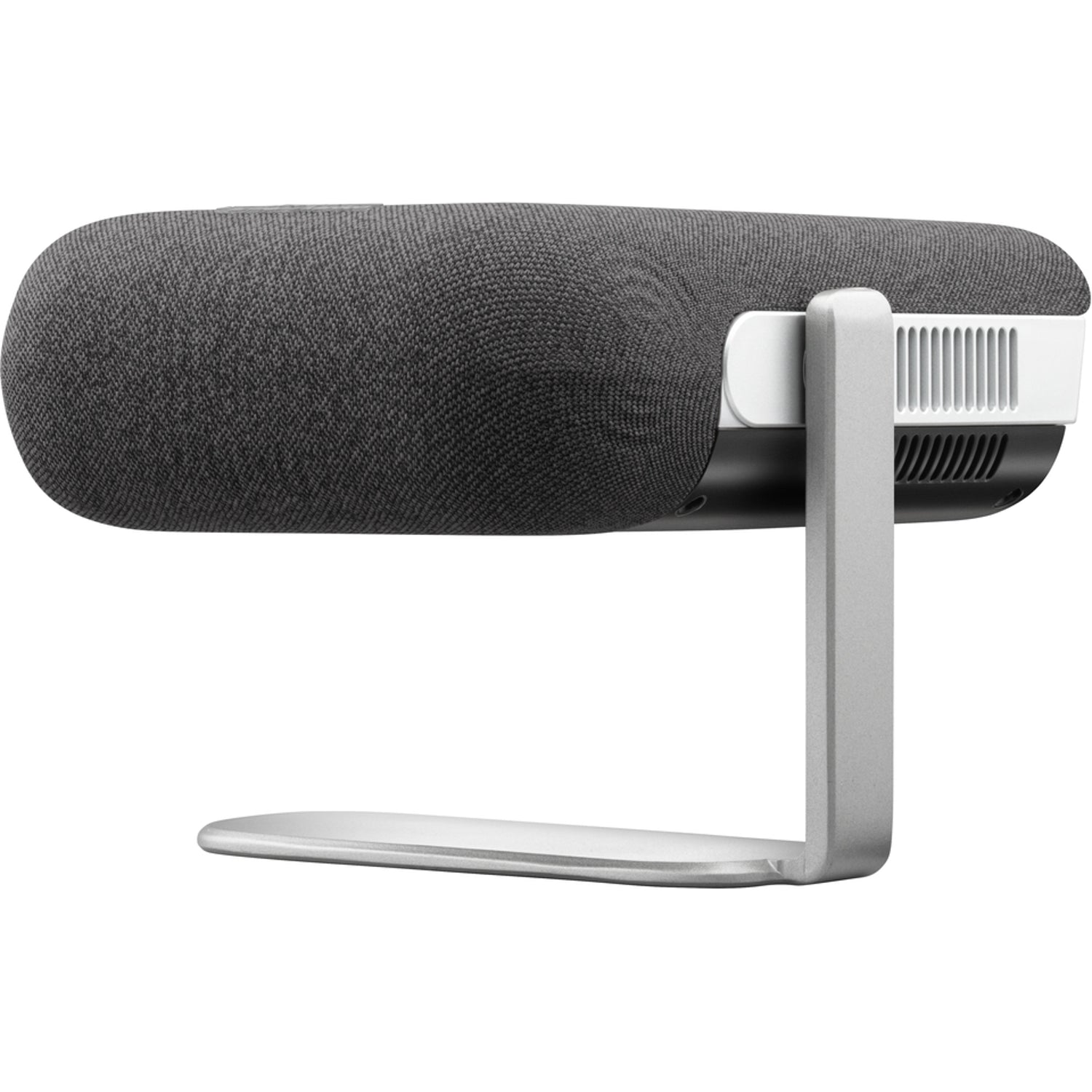

ViewSonic M1X Smart LED Portable Projector with Harman Kardon Speakers
PRODUCT DESCRIPTION
ViewSonic M1X Smart LED Portable Projector with Harman Kardon Speakers - 2 Years Local Warranty
3-in-1 Smart Stand
ViewSonic's patented stand rotates for 360° projection onto walls and ceilings.
Side Projection
H/V keystone correction and 4-corner adjustment square the image when projecting from the side.

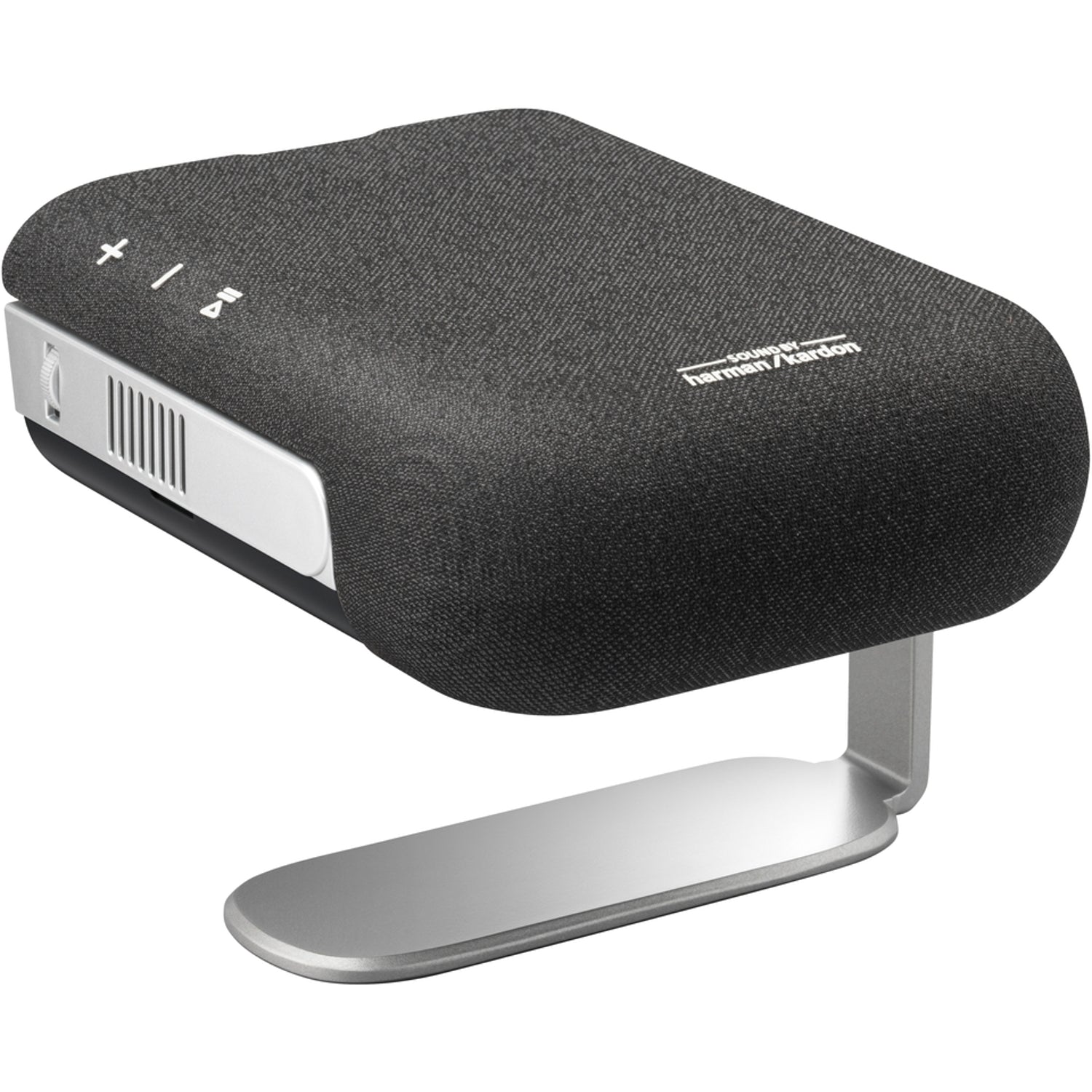

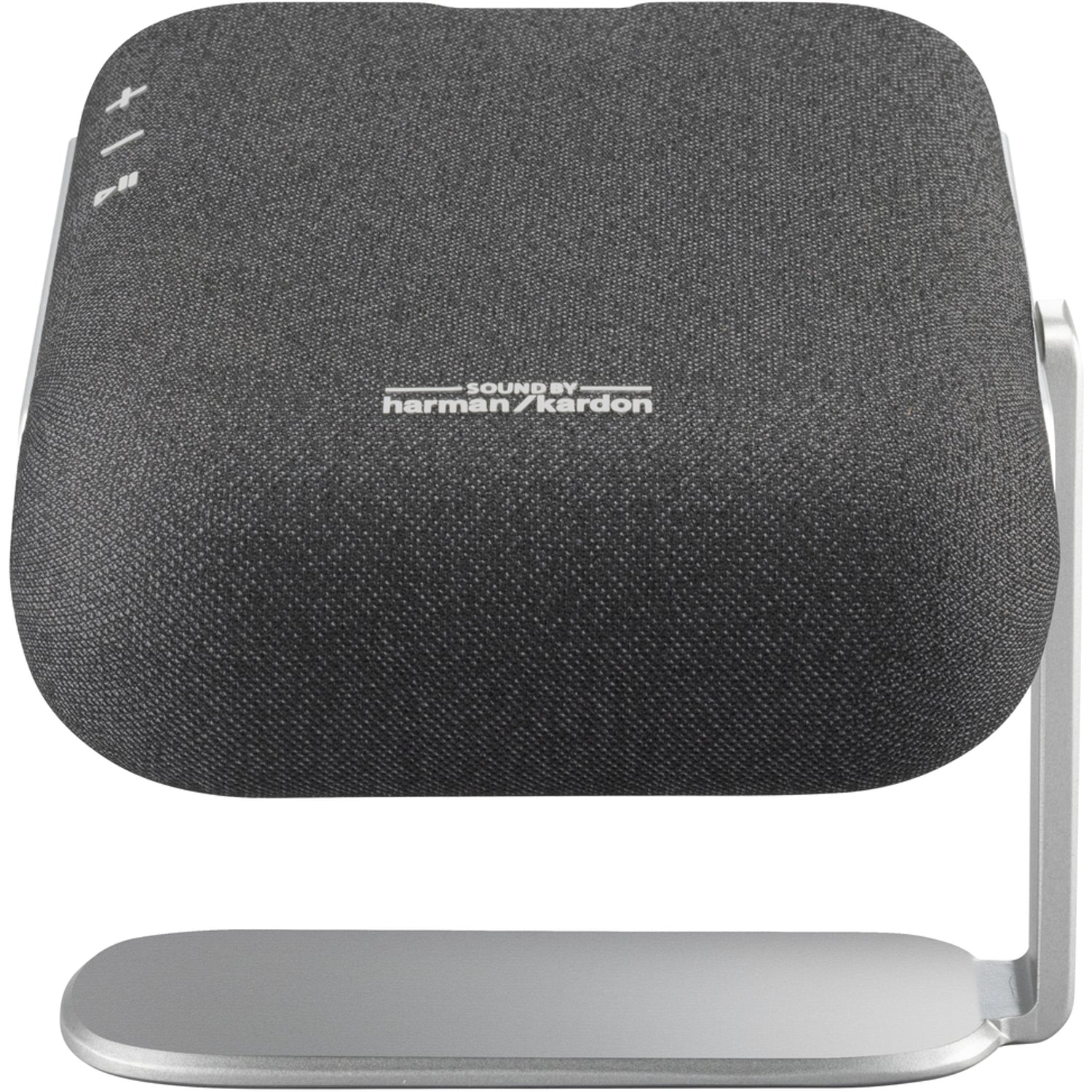

Harman Kardon Sound
Dual 3 W Harman Kardon speakers, plus Bluetooth audio in and out.
Battery Powered
The integrated 12,000 mAh battery gives 2.5 hours (Normal) or 3 hours (Eco) and supports power bank use.
Smart Connectivity
Wi-Fi screen mirroring, USB-C streaming, HDMI and 16 GB of local storage.
Questions about screen size, mounting or setup? Email sales@sourceit.com.sg and our team will help you choose.
ViewSonic M1X Datasheet — Technical Specifications
General
| Product Name | ViewSonic M1X Smart LED Portable Projector with Harman Kardon Speakers |
| Model | M1X |
| Local Warranty (Singapore) | 2 years local limited warranty on parts and labour; LED light source, no lamp to replace |
Optical
| Projection System | 0.2" WVGA |
| Native Resolution | 854 x 480 |
| Brightness | 360 LED lumens |
| Contrast Ratio | 120,000:1 |
| Display Colour | 1.07 billion colours |
| Light Source | LED |
| Light Source Life | 60,000 hours (Normal) |
| Lens | F=1.7, f=5.5 mm |
| Throw Ratio | 1.2 |
| Optical Zoom | Fixed |
| Image Size | 24"–100" |
| Throw Distance | 0.64–2.66 m (38" at 1 m) |
| Projection Offset | 100% ±5% |
| Keystone | H: ±40°, V: ±40°; 4-corner adjustment |
| Input Lag | 73 ms |
Compatibility
| Resolution Support | VGA (640 x 480) to Full HD (1920 x 1080) input |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Horizontal Frequency | 15–102 kHz |
| Vertical Scan Rate | 23–120 Hz |
Smart Features
| Local Storage | 16 GB (12 GB available) |
| Wi-Fi | 5 GHz |
| Bluetooth | BT 4.2 audio in and out |
Connectivity
| HDMI | 1 x HDMI 1.4 (HDCP 1.4) |
| USB-C | 1 x USB Type-C (5 V / 1.5 A) |
| USB-A | 1 x USB 2.0 (reader; 5 V / 1.5 A power and service, shared) |
| Audio Out | 1 x 3.5 mm |
| Speaker | 2 x 3 W cube (Harman Kardon) |
Power & Battery
| Power Supply | External adapter, 100–240 V input; 19 V DC / 3.26 A output |
| Battery | 12,000 mAh (4,000 mAh 3.7 V x 3) |
| Battery Life | 2.5 hours (Normal); 3 hours (Eco) |
| Power Consumption | 35 W (Normal); <0.5 W standby |
| Audible Noise | 26 dB (Normal); 25 dB (Eco) |
| Operating Temperature | 0–35 °C |
Physical
| Dimensions (W x D x H) | 166 x 138 x 54 mm (with adjustment foot) |
| Net Weight | 0.8 kg |
| Packing Dimensions | 220 x 190 x 125 mm |
| Gross Weight | 1.87 kg |
| OSD Languages | 23 |
Compatibility & Software Support
Phones and Laptops
Mirror over 5 GHz Wi-Fi, or connect a USB-C device that supports video output. HDMI 1.4 accepts laptops, consoles and streaming sticks.
Audio
Use the Harman Kardon speakers as a Bluetooth speaker, or send sound to Bluetooth headphones or the 3.5 mm output.
Media Playback
Play files from a USB drive or the 16 GB internal storage (12 GB available).
Typical Use
Bedrooms, kids' rooms, kitchens, camping and travel; side and ceiling projection with the smart stand.
Package Contents & ViewSonic Smart LED & Laser Home Projectors Ordering Information
In the Box
M1X projector, power cord, USB-C cable (1 m), Bluetooth remote control, sleeve bag, quick start guide.
ViewSonic Smart LED & Laser Home Projectors
| Model | Key feature |
| M1X (this listing) | Portable 480p LED, battery, smart stand |
| M10 | Portable 1080p RGB laser |
| X2 | 1080p short throw LED |
| X11-4KP | Portable 4K short throw LED |
| X100-4K+ | 4K UHD LED home cinema |
Datasheet & Downloads
| ViewSonic datasheet | M1X Datasheet |
| User guide | M1X User Guide (PDF, English) |
| Quick start guide | M1X/M1S Quick Start Guide (PDF) |
| ViewSonic product page | M1X on viewsonic.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting M1X.
Frequently Asked Questions — ViewSonic M1X
What is the native resolution?
854 x 480 (WVGA). It accepts input signals up to Full HD 1080p and scales them to the panel.
How long does the battery last?
2.5 hours in Normal mode or 3 hours in Eco mode from the 12,000 mAh battery; it also supports power bank use.
How big an image can I get?
From 24" up to 100". About 1 m from the wall gives a 38" image.
Can I use it as a Bluetooth speaker?
Yes. ViewSonic lists Bluetooth audio in and out, so it can play music from your phone or send sound to headphones.
What warranty do I get?
2 years local limited warranty on parts and labour. Supplied by SourceIT with a GST invoice.
